Parts for G0661 - 10" 2 HP Contractor Style Table Saw with Riving Knife

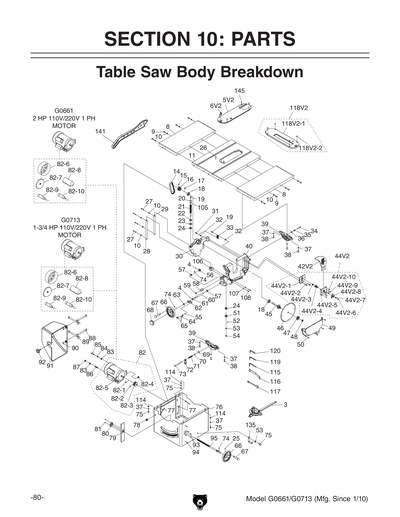

Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661
Part Diagram for G0661

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1

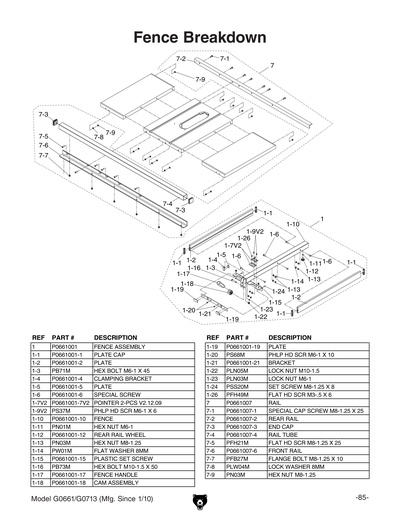

*DISCD*FENCE ASSEMBLY
Item is no longer available
Price
N/A
1-1
Price
$1.75
1-10
FENCE
Item is no longer available
Price
N/A
1-11
HEX NUT M6-1
Price
N/A
1-12
Price
$1.75
1-13
HEX NUT M8-1.25
Price
N/A
1-14
FLAT WASHER 8MM
Price
N/A
1-15
Price
$1.75
1-16
HEX BOLT M10-1.5 X 50
Price
N/A
1-17
Price
$5.15
1-18
CAM ASSEMBLY
Item is no longer available
Price
N/A
1-19
Price
$1.75
1-2
Price
$29.00
1-20
PHLP HD SCR M6-1 X 10
Price
N/A
1-21
BRACKET
Item is no longer available
Price
N/A
1-22
LOCK NUT M10-1.5
Price
N/A
1-23
LOCK NUT M6-1
Price
N/A
1-24
SET SCREW M8-1.25 X 8
Price
N/A
1-25
POINTER 2PCS V2.12.09
Price
N/A
1-26
FLAT HD SCR M3-.5 X 6
Price
N/A
1-3
HEX BOLT M6-1 X 45
Price
N/A
1-4
CLAMPING BRACKET
Item is no longer available
Price
N/A
1-5
PLATE
Item is no longer available
Price
N/A
1-6
FENCE SCREW
Item is no longer available
Price
N/A
1-7
POINTER 2PCS V2.12.09
Price
N/A
1-7V2
Price
$5.15
1-8
FLAT WASHER 6MM
Price
N/A
1-9
PHLP HD SCR M6-1 X 10
Price
N/A
1-9V2
PHLP HD SCR M6-1 X 6
Price
N/A
2

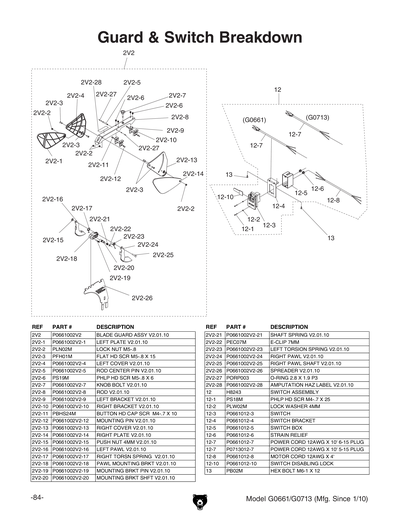

*DISCD*BLADE GUARD ASSEMBLY V1.12.08
Item is no longer available
Price
N/A
2-1
*DISCD*BLADE GUARD V1.12.08
Item is no longer available
Price
N/A
2-11
*DISCD*PUSH NUT 4MM V1.12.08
Item is no longer available
Price
N/A
2-12
*DISCD*LEFT ANTI BACK PAWL V1.12.08
Item is no longer available
Price
N/A
2-13
*DISCD*SPRING RIGHT V1.12.08
Item is no longer available
Price
N/A
2-14
*DISCD*BRACKET V1.12.08
Item is no longer available
Price
N/A
2-15
*DISCD*PIN V1.12.08
Item is no longer available
Price
N/A
2-16
*DISCD*SPLITTER V1.12.08
Item is no longer available
Price
N/A
2-17
*DISCD*SPRING LEFT V1.12.08
Item is no longer available
Price
N/A
2-18
*DISCD*RIGHT ANTI BACK PAWL V1.12.08
Item is no longer available
Price
N/A
2-19
*DISCD*SHAFT V1.12.08
Item is no longer available
Price
N/A
2-2
HEX BOLT M6-1 X 50
Price
N/A
2-20
ROLL PIN 4 X 16
Price
N/A
2-3
LOCK NUT M6-1
Price
N/A
2-4
PHLP HD SCR M4-.7 X 6
Price
N/A
2-5
*DISCD*ROD V1.12.08
Item is no longer available
Price
N/A
2-6
*DISCD*BRACKET V1.12.08
Item is no longer available
Price
N/A
2-7
*DISCD*SHAFT V1.12.08
Item is no longer available
Price
N/A
2-8
*DISCD*COMPRESSION SPRING V1.12.08
Item is no longer available
Price
N/A
2-9
E-CLIP 7MM
Price
N/A
2V2
BLADE GUARD ASSY V2.01.10
Price
$202.30
2V2-1
Price
$7.60
2V2-10
Price
$2.60
2V2-11
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
2V2-12
Price
$1.85
2V2-13
Price
$12.75
2V2-14
Price
$7.60
2V2-15
Price
$1.85
2V2-16
Price
$5.80
2V2-17
RIGHT TORSN SPRING V2.01.10
Price
$1.85
2V2-18
PAWL MOUNTING BRKT V2.01.10
Price
$12.75
2V2-19
MOUNTING BRKT PIN V2.01.10
Price
$1.75
2V2-2
LOCK NUT M5-.8
Price
N/A
2V2-20
ANTI-KICKBACK PAWL RELEASE PIN
Price
N/A
2V2-21
Price
$1.85
2V2-22
E-CLIP 7MM
Price
N/A
2V2-23
LEFT TORSION SPRING V2.01.10
Price
$1.85
2V2-24
Price
$5.80
2V2-25
RIGHT PAWL SHAFT V2.01.10
Price
$1.85
2V2-26
SPREADER
Price
N/A
2V2-27
O-RING 2.8 X 1.9 P3
Price
N/A
2V2-28

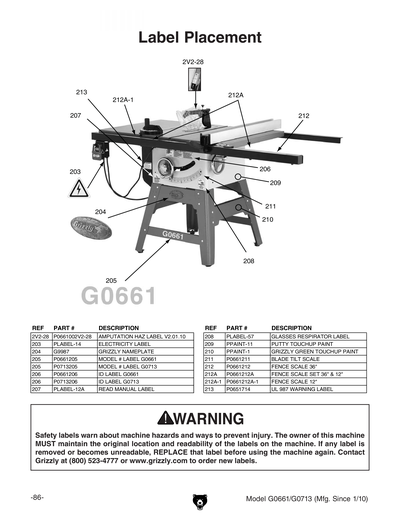

AMPUTATION HAZ LABEL V2.01.10
Price
$2.65
2V2-3
FLAT HD SCR M5-.8 X 15
Price
N/A
2V2-4
Price
$12.75
2V2-5
ROD CENTER PIN V2.01.10
Price
$1.85
2V2-6
PHLP HD SCR M5-.8 X 6
Price
N/A
2V2-7
Price
$3.05
2V2-8
BLADE GUARD BODY
Price
N/A
2V2-9
Price
$3.05

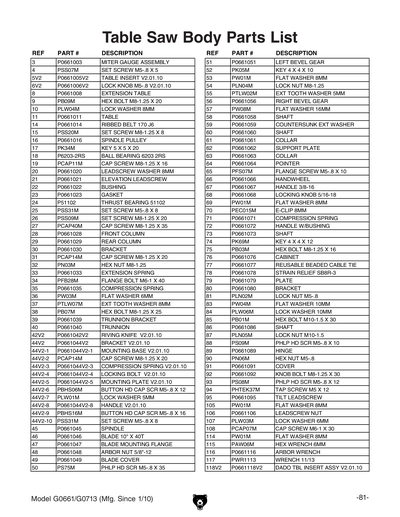

3
Price
$50.75
4
SET SCREW M5-.8 X 5
Price
N/A
5
*DISCD*TABLE INSERT V1.12.08
Item is no longer available
Price
N/A
5V2
Zero Clearance Table Saw Insert for G0661, G0713 & G0732
Price
N/A
6
FLAT HD SCR M5-.8 X 20
Price
N/A
6V2
LOCK KNOB M5-.8 V2.01.10
Price
$1.85
7
Price
$167.85
7-1
RAIL CAP SCREW M8-1.25 X 25
Price
$1.85
7-2
*DISCD*REAR RAIL
Item is no longer available
Price
N/A
7-3
Price
$2.75
7-4
Price
$96.05
7-5
FLAT HD SCR M8-1.25 X 25
Price
N/A
7-6
Price
$67.85
7-7
FLANGE BOLT M8-1.25 X 10
Price
N/A
7-8
LOCK WASHER 8MM
Price
N/A
7-9
HEX NUT M8-1.25
Price
N/A
8
Price
$228.60
9
HEX BOLT M8-1.25 X 20
Price
N/A
10
LOCK WASHER 8MM
Price
N/A
11
TABLE
Item is no longer available
Price
N/A
12
SWITCH ASSY W/POWER CORDS
Item is no longer available
Price
N/A
12-1
PHLP HD SCR M4-.7 X 25
Price
N/A
12-2
LOCK WASHER 4MM
Price
N/A
12-3
Paddle Switch 120/230V
Price
N/A
12-4
Price
$6.40
12-5
Price
$10.65
12-6
STRAIN RELIEF M16 TYPE-1 SNAP-IN
Price
$1.75
12-7
POWER CORD 12AWG X 10' 6-15 PLUG
Item is no longer available
Price
N/A
12-8
Price
$16.10
12-9
SWITCH DISABLING PIN 3/16 X 2-1/8"
Price
$2.75
13
HEX BOLT M6-1 X 12
Price
N/A
14
Price
$16.05
15
SET SCREW M8-1.25 X 8
Price
N/A
16
Price
$16.10
17
KEY 5 X 5 X 20
Price
N/A
18
BALL BEARING 6203-2RS
Price
N/A
19
CAP SCREW M8-1.25 X 16
Price
N/A
20
LEADSCREW WASHER 8MM
Item is no longer available
Price
N/A
21
Price
$16.05
22
BUSHING
Item is no longer available
Price
N/A
23
Price
$1.75
24
THRUST BEARING 51102
Price
N/A
25
SET SCREW M5-.8 X 8
Price
N/A
26
SET SCREW M8-1.25 X 20
Price
N/A
27
CAP SCREW M8-1.25 X 35
Price
N/A
28
COLUMN FRONT
Item is no longer available
Price
N/A
29
REAR COLUMN
Item is no longer available
Price
N/A
30
Price
$83.95
31
CAP SCREW M8-1.25 X 20
Price
N/A
32
HEX NUT M8-1.25
Price
N/A
33
EXTENSION SPRING
Item is no longer available
Price
N/A
34
FLANGE BOLT M6-1 X 40
Price
N/A
35
COMPRESSION SPRING
Item is no longer available
Price
N/A
36
FLAT WASHER 6MM
Price
N/A
37
EXT TOOTH WASHER 8MM
Price
N/A
38
HEX BOLT M8-1.25 X 25
Price
N/A
39
Price
$27.05
40
Price
$167.85
41
*DISCD*SHIM V1.12.08
Item is no longer available
Price
N/A
42
*DISCD*RIVING KNIFE V1.12.08
Item is no longer available
Price
N/A
42V2
Price
$27.55
43
*DISCD*RIVING KNIFE/GUARD BOLT V1.12.08
Item is no longer available
Price
N/A
44
*DISCD*BRACKET V1.12.08
Price
$13.25
44V2
Price
$27.80
44V2-1
Price
$10.90
44V2-10
SET SCREW M5-.8 X 8
Price
N/A
44V2-2
CAP SCREW M8-1.25 X 20
Price
N/A
44V2-3
COMPRESSION SPRING V2.01.10
Price
$1.85
44V2-4
Price
$3.05
44V2-5
MOUNTING BRACKET PLATE V2.01.10
Price
N/A
44V2-6
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
44V2-7
LOCK WASHER 5MM
Price
N/A
44V2-8
Price
$3.05
44V2-9
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
45
*DISCD* SPINDLE
Item is no longer available
Price
N/A
46
Price
$33.95
47
Price
$2.05
48
Price
$1.85
49
Price
$8.80
50
PHLP HD SCR M5-.8 X 35
Price
N/A
51
Price
$19.35
52
KEY 4 X 4 X 10
Price
N/A
53
FLAT WASHER 8MM
Price
N/A
54
LOCK NUT M8-1.25
Price
N/A
55
EXT TOOTH WASHER 5MM
Price
N/A
56
Price
$19.35
57
FLAT WASHER 16MM
Price
N/A
58
*DISCD*SHAFT
Item is no longer available
Price
N/A
59
EXT TOOTH WASHER 16MM ZY CHROMATE
Price
$1.85
60
Price
$10.95
61
Price
$1.75
62
SUPPORT PLATE
Item is no longer available
Price
N/A
63
COLLAR
Item is no longer available
Price
N/A
64
POINTER
Item is no longer available
Price
N/A
65
FLANGE SCREW M5-.8 X 10
Price
N/A
66
Price
$34.80
67
HANDWHEEL HANDLE
Price
N/A
68
LOCKING KNOB 5/16-18
Item is no longer available
Price
N/A
69
FLAT WASHER 8MM
Price
N/A
70
E-CLIP 8MM
Price
N/A
71
Price
$1.85
72
Price
$4.85
73
Price
$5.80
74
KEY 4 X 4 X 12
Price
N/A
75
HEX BOLT M8-1.25 X 16
Price
N/A
76
CABINET
Item is no longer available
Price
N/A
77
REUSABLE BEADED CABLE TIE
Item is no longer available
Price
N/A
78
STRAIN RELIEF 3/4" TYPE-1 SNAP-IN
Item is no longer available
Price
N/A
79
PLATE
Item is no longer available
Price
N/A
80
BRACKET
Item is no longer available
Price
N/A
81
LOCK NUT M5-.8
Price
N/A
82

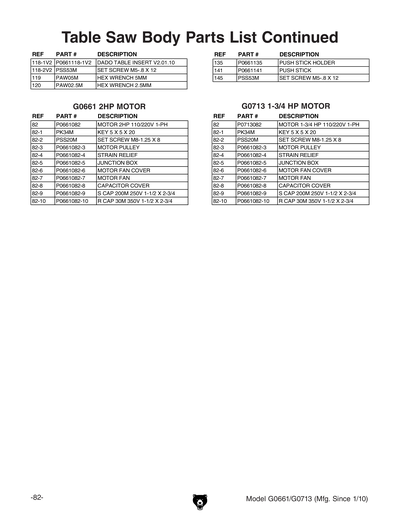

*DISCD*MOTOR 2HP 110V/220V 1-PH V1
Item is no longer available
Price
N/A
82-1
KEY 5 X 5 X 20
Price
N/A
82-10
R CAPACITOR 30M 350V 1-1/2 X 2-3/4" V1
Price
$34.25
82-10V2
R CAP 35M 300V 1-1/2 X 2-3/4 V2.05.11
Price
N/A
82-2
SET SCREW M8-1.25 X 8
Price
N/A
82-3
Price
$18.40
82-4
STRAIN RELIEF 3/4" TYPE-1 SNAP-IN
Price
N/A
82-5
JUNCTION BOX
Item is no longer available
Price
N/A
82-6
Price
$10.65
82-7
Price
$12.40
82-8
Price
$12.40
82-9
S CAPACITOR 200M 250V 1-1/2 X 2-3/4 V2.0
Price
N/A
82-9V2
S CAP 200M 125V 1-1/2 X 2-3/4 V2.05.11
Price
N/A
82V2
*DISCD*MOTOR 2HP 110V/220V 1-PH V2.05.11
Item is no longer available
Price
N/A
82V2-1
FAN COVER V2.05.11
Item is no longer available
Price
N/A
82V2-10
FRONT MOTOR BEARING V2.05.11
Item is no longer available
Price
N/A
82V2-11
REAR MOTOR BEARING V2.05.11
Item is no longer available
Price
N/A
82V2-12
Price
$9.40
82V2-2
Price
$10.35
82V2-3
S CAPACITOR COVER V2.05.11
Item is no longer available
Price
N/A
82V2-4
S CAP 200M 125V 1-1/2 X 2-3/4 V2.05.11
Price
$31.75
82V2-5
R CAPACITOR COVER V2.05.11
Item is no longer available
Price
N/A
82V2-6
R CAP 35M 300V 1-1/2 X 2-3/4 V2.05.11
Price
$22.15
82V2-7
JUNCTION BOX V2.05.11
Item is no longer available
Price
N/A
82V2-8
Price
$4.90
82V2-9
CENTRIFUGAL SWITCH V2.05.11
Price
$14.10
83
FLAT WASHER 10MM
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
HEX BOLT M10-1.5 X 30
Price
N/A
86
SHAFT
Item is no longer available
Price
N/A
87
LOCK NUT M10-1.5
Price
N/A
88
PHLP HD SCR M5-.8 X 10
Price
N/A
89
Price
$2.75
90
HEX NUT M5-.8
Price
N/A
91
*DISCD*COVER
Item is no longer available
Price
N/A
92
KNOB BOLT M8-1.25 X 30
Item is no longer available
Price
N/A
93
PHLP HD SCR M5-.8 X 12
Price
N/A
94
TAP SCREW M5 X 12
Price
N/A
95
*DISCD*TILT LEADSCREW
Item is no longer available
Price
N/A

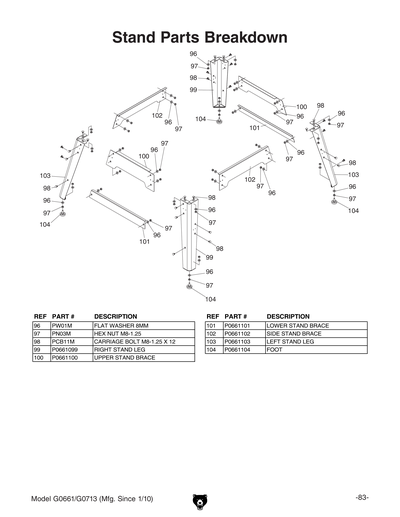

96
FLAT WASHER 8MM
Price
N/A
97
HEX NUT M8-1.25
Price
N/A
98
CARRIAGE BOLT M8-1.25 X 12
Price
N/A
99
Price
$27.60
100
Price
$13.55
101
Price
$8.35
102
Price
$13.55
103
Price
$29.00
104
Price
$1.85
105
FLAT WASHER 8MM
Price
N/A
106
*DISCD*LEADSCREW NUT
Item is no longer available
Price
N/A
107
LOCK WASHER 6MM
Price
N/A
108
CAP SCREW M6-1 X 30
Price
N/A
114
FLAT WASHER 8MM
Price
N/A
115
HEX WRENCH 6MM
Price
N/A
116
Price
$5.15
117
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
118
*DISCD*DADO TABLE INSERT V1.12.08
Item is no longer available
Price
N/A
118-1V2
DADO TABLE INSERT V2.01.10
Item is no longer available
Price
N/A
118-2V2
SET SCREW M5-.8 X 12
Price
N/A
118V2
*DISCD*DADO TBL INSERT ASSY V2.01.10
Item is no longer available
Price
N/A
119
HEX WRENCH 5MM
Price
N/A
120
HEX WRENCH 2.5MM
Price
N/A
135
PUSH STICK HOLDER
Item is no longer available
Price
N/A
141
Price
$9.40
145
SET SCREW M5-.8 X 12
Price
N/A
201
*DISCD*USE GUARD LABEL V1.12.08
Item is no longer available
Price
N/A
202
*DISCD*DISCONNECT PWR GUARD LABEL V1.12.
Item is no longer available
Price
N/A
203
ELECTRICITY 1.4W X 1.2H
Price
N/A
204
Nameplate - Mini
Price
N/A
205
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
206
MACHINE ID LABEL
Item is no longer available
Price
N/A
207
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
208
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
209
GREY PUTTY REF G0504
Price
N/A
210
N/S GRIZZLY GREEN G1023S
Price
N/A
211
BLADE TILT SCALE
Item is no longer available
Price
N/A
212
Price
$5.50
212A
FENCE SCALE SET 36" & 12"
Price
$9.10
212A-1
FENCE SCALE 12"
Item is no longer available
Price
N/A
213
UL 987 WARNING LABEL
Price
N/A
280
GUARD CONVERSION KIT G0661
Price
$167.35
BOX2
COMPLETE FENCE ASSY BOX 2
Item is no longer available
Price
N/A
MAN
Price
$20.00
