Parts for G0664 - 8" x 13" Heavy-Duty Metal-Cutting Bandsaw with Roller Tables

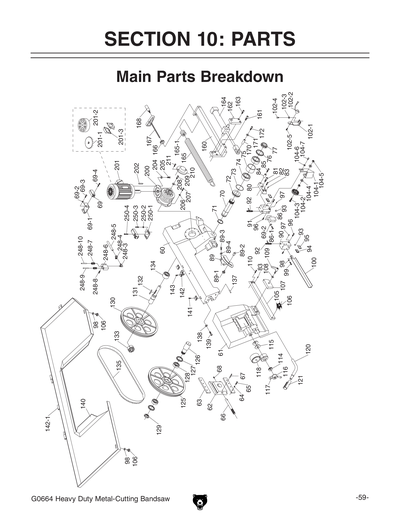

Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664
Part Diagram for G0664

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
9
*DISCD*BALL BEARING 35 X 52 X 4
Item is no longer available
Price
N/A
11
CAP SCREW M12-1.75 X 25
Price
N/A
12
SET SCREW M12-1.75 X 20
Price
N/A
13-2
SET SCREW M6-1 X 10
Price
N/A
13-5
LOCK WASHER 6MM
Price
N/A
13-8
HEX NUT M10-1.5
Price
N/A
13-9
HEX BOLT M10-1.5 X 25
Price
N/A
14-1
CAP SCREW M6-1 X 15
Price
N/A
17-1
HEX BOLT M8-1.25 X 20
Price
N/A
17-2
FLAT WASHER 8MM
Price
N/A
17-3
HEX NUT M8-1.25
Price
N/A
17-4
HEX NUT M16-2
Price
N/A
17-5
CAP SCREW M16-2 X 50
Price
N/A
18-1
CAP SCREW M8-1.25 X 20
Price
N/A
18-2
FLAT WASHER 8MM
Price
N/A
18-3
HEX NUT M8-1.25
Price
N/A
19-1
FLAT WASHER 6MM
Price
N/A
19-2
CAP SCREW M6-1 X 15
Price
N/A
19-4
FLAT WASHER 10MM
Price
N/A
19-5
HEX NUT M10-1.5
Price
N/A
38
SET SCREW M8-1.25 X 16
Price
N/A
42
FLAT HD SCR M8-1.25 X 15
Price
N/A
45
FLAT WASHER 16MM
Price
N/A
47
ROLL PIN 5 X 30
Price
N/A
49
FLAT WASHER 8MM
Price
N/A
50
CAP SCREW M8-1.25 X 30
Price
N/A
51
SET SCREW M8-1.25 X 16
Price
N/A
53
FLAT WASHER 10MM
Price
N/A
54
CAP SCREW M10-1.5 X 30
Price
N/A
55
HEX NUT M12-1.75
Price
N/A
56
CAP SCREW M12-1.75 X 50
Price
N/A
57-1
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
57-2
FEED SPEED LABEL
Item is no longer available
Price
N/A
58
FLAT WASHER 8MM
Price
N/A
59
CAP SCREW M8-1.25 X 25
Price
N/A
64
LOCK WASHER 8MM
Price
N/A
65
CAP SCREW M8-1.25 X 25
Price
N/A
67
ROLL PIN 6 X 45
Price
N/A
68
SET SCREW M8-1.25 X 20
Price
N/A
69-2
FLAT WASHER 5MM
Price
N/A
69-3
PHLP HD SCR M5-.8 X 8
Price
N/A
69-4
PHLP HD SCR M4-.7 X 30
Price
N/A
71
EXT RETAINING RING 45MM
Price
N/A
73
O-RING 69.4 X 3.1 G70
Price
N/A
74
*DISCD*BALL BEARING 32009J
Item is no longer available
Price
N/A
78-1
CAP SCREW M6-1 X 15
Price
N/A
78-2
PHLP HD SCR M4-.7 X 30
Price
N/A
78-3
FLAT WASHER 6MM
Price
N/A
80
*DISCD*BLADE GUIDE BLOCK
Item is no longer available
Price
N/A
81
CAP SCREW M12-1.75 X 25
Price
N/A
82
CAP SCREW M8-1.25 X 30
Price
N/A
83
SET SCREW M6-1 X 16
Price
N/A
85
CAP SCREW M12-1.75 X 60
Price
N/A
87
FLAT WASHER 6MM
Price
N/A
87-1
CAP SCREW M6-1 X 15
Price
N/A
89-3
HEX BOLT M6-1 X 30
Price
N/A
89-4
FLAT WASHER 6MM
Price
N/A
90
*DISCD*BLADE GUIDE UPPER
Item is no longer available
Price
N/A
91
*DISCD*BLADE GUIDE LOWER
Item is no longer available
Price
N/A
93
*DISCD*BLADE GUIDE ASSEMBLY
Price
N/A
93A
*DISCD*BLADE GUIDE ASSEMBLY
Price
$90.85
93V2
BLADE GUIDE BACK V2
Item is no longer available
Price
N/A
94
*DISCD*BLADE GUIDE ASSEMBLY
Price
N/A
94V2
*DISCD*BLADE GUIDE LEFT V2
Item is no longer available
Price
N/A
95
*DISCD*BLADE GUIDE ASSEMBLY
Price
N/A
95V2
BUTTON HD CAP SCR M6-1 X 30
Price
N/A
96
CAP SCREW M8-1.25 X 16
Price
N/A
97
CAP SCREW M6-1 X 15
Price
N/A
98
FLAT WASHER 6MM
Price
N/A
99
CAP SCREW M6-1 X 15
Price
N/A
102-3
FLAT WASHER 5MM
Price
N/A
102-4
PHLP HD SCR M5-.8 X 8
Price
N/A
102-5
PHLP HD SCR M5-.8 X 8
Price
N/A
104-3
HEX BOLT M6-1 X 30
Price
N/A
104-4
FLAT WASHER 6MM
Price
N/A
104-5
HEX NUT M6-1
Price
N/A
104-6
FLAT WASHER 5MM
Price
N/A
104-7
PHLP HD SCR M5-.8 X 8
Price
N/A
108
FLAT WASHER 12MM
Price
N/A
110
CAP SCREW M8-1.25 X 30
Price
N/A
114
*DISCD*BALL BEARING 51203
Item is no longer available
Price
N/A
128
*DISCD*BALL BEARING 32007J
Item is no longer available
Price
N/A
134
BALL BEARING 6307ZZ
Price
N/A
137
ROLL PIN 6 X 30
Price
N/A
138
LOCK WASHER 12MM
Price
N/A
139
CAP SCREW M12-1.75 X 45
Price
N/A
141
PHLP HD SCR M6-1 X 16
Price
N/A
143
PHLP HD SCR M5-.8 X 6
Price
N/A
161
CAP SCREW M10-1.5 X 35
Price
N/A
163
CAP SCREW M8-1.25 X 25
Price
N/A
167
*DISCD*SPRING TENSION LEADSCREW
Price
$35.10
171
FLAT WASHER 8MM
Price
N/A
172
CAP SCREW M8-1.25 X 15
Price
N/A
202
KEY 8 X 7 X 40
Price
N/A
204
LOCK WASHER 8MM
Price
N/A
205
CAP SCREW M8-1.25 X 25
Price
N/A
206
FLAT WASHER 10MM
Price
N/A
207
CAP SCREW M10-1.5 X 25
Price
N/A
209
CAP SCREW M10-1.5 X 20
Price
N/A
211
CAP SCREW M8-1.25 X 15
Price
N/A
241
LOCK WASHER 6MM
Price
N/A
242
CAP SCREW M6-1 X 15
Price
N/A
248-8
CAP SCREW M6-1 X 30
Price
N/A
250-2
LOCK WASHER 6MM
Price
N/A
250-3
CAP SCREW M6-1 X 15
Price
N/A
250-4
PHLP HD SCR M4-.7 X 30
Price
N/A

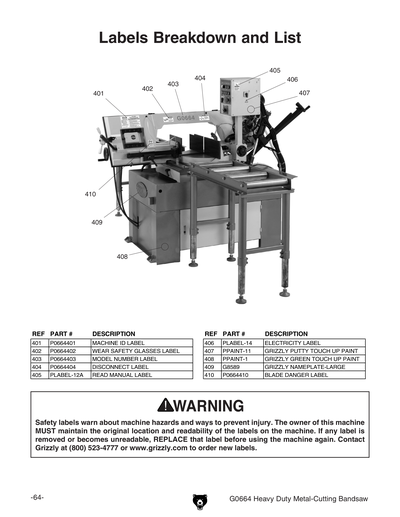

401
MACHINE ID LABEL
Item is no longer available
Price
N/A
402
WEAR SAFETY GLASSES LABEL
Item is no longer available
Price
N/A
403
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
404
DISCONNECT LABEL
Item is no longer available
Price
N/A
405
READ MANUAL LABEL
Item is no longer available
Price
N/A
406
ELECTRICITY 1.4W X 1.2H
Price
N/A
409
Nameplate - Large
Price
N/A
410
BLADE DANGER LABEL
Item is no longer available
Price
N/A
MAN
Price
$13.50
