Parts for G0667X - 9" x 48" 3 HP High Precision Variable-Speed Vertical Mill

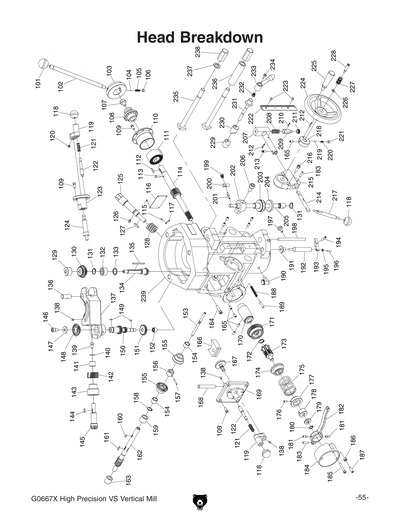

Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X
Part Diagram for G0667X

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

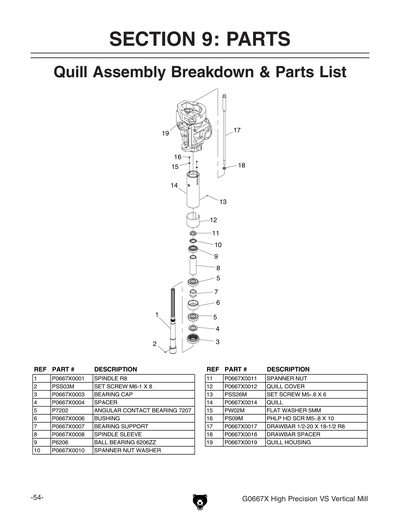

1
SPINDLE R8
Price
$575.10
2
SET SCREW M6-1 X 8
Price
N/A
3
BEARING CAP
Price
$86.70
4
SPACER
Price
$64.35
5
ANGULAR CONTACT BEARING 7202
Price
$14.40
6
BEARING SUPPORT ASSEMBLY
Price
N/A
7
BEARING SUPPORT ASSEMBLY
Price
N/A
7A
BEARING SUPPORT ASSEMBLY
Price
$83.95
8
SPINDLE SLEEVE
Price
$80.35
9
BALL BEARING 6206ZZ
Price
N/A
10
SPANNER NUT WASHER
Price
$6.70
11
SPANNER NUT
Price
$26.90
12
QUILL COVER
Price
$67.95
13
SET SCREW M5-.8 X 6
Price
N/A
14
QUILL
Price
$646.65
15
FLAT WASHER 5MM
Price
N/A
16
PHLP HD SCR M5-.8 X 10
Price
N/A
17
DRAWBAR 1/2-20 X 18-1/2 R8
Price
$166.65
18
DRAWBAR SPACER
Price
$14.50
19
QUILL HOUSING
Price
$1,841.45
101
KNOB 3/8-16
Price
$62.70
102
HANDLE
Price
$12.10
103
HANDLE HUB
Price
$71.60
104
STEEL BALL 3/16
Price
N/A
105
COMPRESSION SPRING
Price
$3.05
106
SET SCREW 5/16-18 X 1/4
Price
N/A
107
PINION SHAFT SCREW
Price
$14.50
108
PINION SHAFT HUB SLEEVE
Price
$68.85
109
CAP SCREW M5-.8 X 12
Price
N/A
110
SPRING COVER
Price
$159.40
111
COILED SPRING
Price
$92.40
112
KEY 3 X 3 X 18
Price
N/A
113
SPRING PIN
Price
$21.75
114
PINION GEAR SHAFT 10/16T
Price
$123.20
115
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
116
DATA PLATE
Price
$6.40
117
ZERO SCALE
Price
$1.60
118
KNOB 1/4-20
Price
$3.65
119
SHIFT CRANK
Price
$26.90
120
SET SCREW 1/4-20 X 1/4
Price
N/A
121
COMPRESSION SPRING
Price
$5.15
122
INDENT PIN
Price
$6.70
123
SHIFT SLEEVE
Price
$60.40
124
WORM GEAR CRADLE THROW-OUT
Price
$28.75
125
WORM SHAFT
Price
$48.95
126
SET SCREW M6-1 X 10
Price
N/A
127
KEY 4 X 4 X 18
Price
N/A
128
WORM GEAR
Price
$34.10
129
CLUSTER GEAR SHAFT CAP
Price
$44.45
130
FEED CLUSTER GEAR 17/28/22T
Price
$80.35
131
EXT RETAINING RING 16MM
Price
N/A
132
BEVEL GEAR BUSHING
Price
$26.90
133
BEVEL GEAR THRUST BUSHING
Price
$6.70
134
FEED REVERSE BEVEL PINION
Price
$80.35
135
KEY 3 X 3 X 45
Price
N/A
136
WORM GEAR CRADLE ASSEMBLY
Price
N/A
137
WORM GEAR CRADLE ASSEMBLY
Price
N/A
137A
WORM GEAR CRADLE ASSEMBLY
Price
$412.75
138
SET SCREW M5-.8 X 6
Price
N/A
139
CAP SCREW M6-1 X 10
Price
N/A
140
FLAT WASHER 6MM
Price
N/A
141
WORM GEAR CRADLE ASSEMBLY
Price
N/A
142
WORM GEAR CRADLE ASSEMBLY
Price
N/A
143
WORM GEAR CRADLE ASSEMBLY
Price
N/A
144
KEY 3 X 3 X 12
Price
N/A
145
WORM GEAR CRADLE ASSEMBLY
Price
N/A
146
CAP SCREW 5/16-18 X 1/2
Price
N/A
147
FLAT WASHER 5/16
Price
N/A
148
WORM GEAR CRADLE ASSEMBLY
Price
N/A
149
KEY 3 X 3 X 8
Price
N/A
150
WORM GEAR CRADLE ASSEMBLY
Price
N/A
151
WORM GEAR CRADLE ASSEMBLY
Price
N/A
152
FEED REVERSE GEAR ASSEMBLY
Price
N/A
153
REVERSE CLUTCH ROD
Price
$6.70
154
FEED REVERSE GEAR ASSEMBLY
Price
N/A
155
FEED REVERSE GEAR ASSEMBLY
Price
N/A
155A
FEED REVERSE GEAR ASSEMBLY
Price
$80.35
156
FEED REVERSE CLUTCH
Price
$45.00
157
DOWEL PIN 3 X 20MM
Price
$1.60
158
EXT RETAINING RING 12MM
Price
N/A
159
FEED WORM SHAFT BUSHING
Price
$28.75
160
KEY 3 X 3 X 10
Price
N/A
161
KEY 3 X 3 X 15
Price
N/A
162
FEED WORM SHAFT
Price
$80.35
163
FEED WORM SHAFT END CAP
Price
$36.90
164
CAP SCREW M6-1 X 25
Price
N/A
165
SET SCREW M6-1 X 10
Price
N/A
166
FEED GEAR SHIFTER FORK
Price
$10.00
167
CLUSTER GEAR SHIFT CRANK
Price
$41.70
168
FEED SHIFT ROD
Price
$10.00
169
CLUSTER GEAR COVER
Price
$53.80
170
QUILL PINION SHAFT BUSHING
Price
$91.80
171
OVERLOAD CLUTCH GEAR 30T
Price
$86.70
172
EXT RETAINING RING 15MM
Price
N/A
173
OVERLOAD CLUTCH ASSEMBLY
Price
N/A
173A
OVERLOAD CLUTCH ASSEMBLY
Price
$132.85
174
OVERLOAD CLUTCH ASSEMBLY
Price
N/A
175
CLUTCH SPRING
Price
$13.95
176
SET SCREW M5-.8 X 10
Price
N/A
177
OVERLOAD CLUTCH ASSEMBLY
Price
N/A
178
CLUTCH RING
Price
$26.00
179
CLUTCH WASHER
Price
$6.40
180
EXT RETAINING RING 10MM
Price
N/A
181
CLUTCH RING SCREW
Price
$4.60
182
OVERLOAD CLUTCH TRIP LEVER
Price
$64.95
183
ROLL PIN 5 X 20
Price
N/A
184
CLUTCH ARM COVER
Price
$53.80
185
CAP SCREW M5-.8 X 35
Price
N/A
186
HEX NUT 1/4-20
Price
N/A
187
SET SCREW 1/4-20 X 3/4
Price
N/A
188
COMPRESSION SPRING
Price
$6.05
189
OVERLOAD CLUTCH PLUNGER
Price
$5.15
190
OIL CUP 1/8" NPT X 7MM X 24MM ELBOW
Price
$67.70
191
FEED TRIP PLUNGER BUSHING
Price
$14.25
192
FEED TRIP PLUNGER
Price
$13.30
193
FEED TRIP LEVER
Price
$17.55
194
FEED TRIP LEVER PIN
Price
$6.70
195
HEX NUT M4-.7
Price
N/A
196
SET SCREW M4-.7 X 16
Price
N/A
197
KNURLED SCREW
Price
$10.00
198
INDICATOR ROD
Price
$11.85
199
REVERSE TRIP LEVER SCREW
Price
$5.15

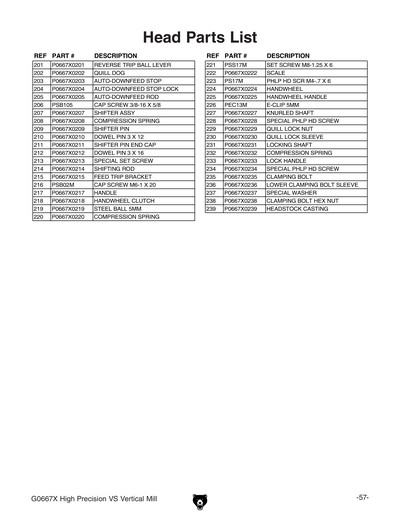

200
FEED REVERSE TRIP PLUNGER
Price
$6.05
201
REVERSE TRIP BALL LEVER
Price
$16.35
202
QUILL DOG
Price
$44.45
203
AUTO-DOWNFEED ROD ASSEMBLY
Price
N/A
204
AUTO-DOWNFEED ROD ASSEMBLY
Price
N/A
205
AUTO-DOWNFEED ROD ASSEMBLY
Price
N/A
205A
AUTO-DOWNFEED ROD ASSEMBLY
Price
$87.60
206
CAP SCREW 3/8-16 X 5/8
Price
N/A
207
SHIFTING ARM ASSEMBLY
Price
N/A
207A
SHIFTING ARM ASSEMBLY
Price
$115.05
208
SHIFTING ARM ASSEMBLY
Price
N/A
209
SHIFTING ARM ASSEMBLY
Price
N/A
210
SHIFTING ARM ASSEMBLY
Price
N/A
211
SHIFTING ARM ASSEMBLY
Price
N/A
212
SHIFTING ARM ASSEMBLY
Price
N/A
213
SHIFTING ARM ASSEMBLY
Price
N/A
214
SHIFTING ARM ASSEMBLY
Price
N/A
215
FEED TRIP BRACKET
Price
$80.35
216
CAP SCREW M6-1 X 20
Price
N/A
217
HANDLE
Price
$12.75
218
HANDWHEEL CLUTCH
Price
$41.70
219
STEEL BALL 5MM
Price
N/A
220
COMPRESSION SPRING
Price
$5.15
221
SET SCREW M8-1.25 X 6
Price
N/A
222
SCALE
Price
$14.25
223
PHLP HD SCR M4-.7 X 6
Price
N/A
224
HANDWHEEL ASSEMBLY
Price
N/A
224A
HANDWHEEL ASSEMBLY
Price
$52.60
225
HANDWHEEL ASSEMBLY
Price
N/A
226
E-CLIP 5MM
Price
N/A
227
DOWNFEED PIN ASSEMBLY
Price
N/A
227A
DOWNFEED PIN ASSEMBLY
Price
$58.00
228
DOWNFEED PIN ASSEMBLY
Price
N/A
229
QUILL LOCK NUT
Price
$26.90
230
QUILL LOCK SLEEVE
Price
$25.10
231
LOCK HANDLE ASSEMBLY
Price
N/A
231A
LOCK HANDLE ASSEMBLY
Price
$52.60
232
LOCK HANDLE ASSEMBLY
Price
N/A
233
LOCK HANDLE ASSEMBLY
Price
N/A
234
LOCK HANDLE ASSEMBLY
Price
N/A
235
CLAMPING BOLT
Price
$25.10
236
LOWER CLAMP BOLT SLEEVE
Price
$19.95
237
CLAMP BOLT FLAT WASHER
Price
$4.60
238
CLAMPING BOLT HEX NUT
Price
$12.75
239
HEADSTOCK CASTING
Price
$1,841.45

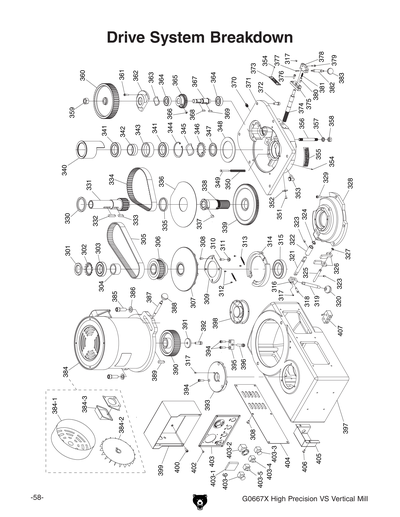

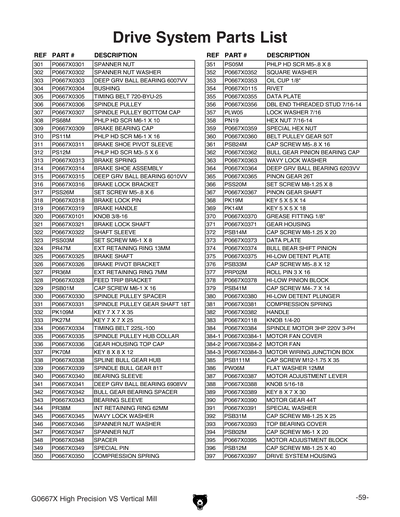

301
SPANNER NUT
Price
$17.55
302
SPANNER NUT WASHER
Price
$6.40
303
DEEP GRV BALL BEARING 6007VV
Price
$75.50
304
BUSHING
Price
$58.60
305
TIMING BELT 720-BYU-25
Price
$155.20
306
SPINDLE PULLEY
Price
$185.40
307
SPINDLE PULLEY BOTTOM CAP
Price
$207.70
308
PHLP HD SCR M6-1 X 10
Price
N/A
309
BRAKE BEARING CAP
Price
$39.85
310
PHLP HD SCR M6-1 X 16
Price
N/A
311
BRAKE SHOE PIVOT SLEEVE
Price
$12.75
312
PHLP HD SCR M3-.5 X 6
Price
N/A
313
BRAKE SPRING
Price
$4.85
314
BRAKE SHOE ASSEMBLY
Price
$115.05
315
DEEP GRV BALL BEARING 6010VV
Price
$104.50
316
BRAKE LOCK BRACKET
Price
$39.85
317
SET SCREW M5-.8 X 6
Price
N/A
318
BRAKE LOCK PIN
Price
$6.40
319
BRAKE HANDLE
Price
$16.05
320
KNOB 3/8-16
Price
N/A
321
BRAKE LOCK SHAFT
Price
$30.20
322
SHAFT SLEEVE
Price
$29.95
323
SET SCREW M6-1 X 8
Price
N/A
324
EXT RETAINING RING 13MM
Price
N/A
325
BRAKE SHAFT
Price
$16.05
326
BRAKE PIVOT BRACKET
Price
$61.60
327
EXT RETAINING RING 7MM
Price
N/A
328
FEED TRIP BRACKET
Price
$212.85
329
CAP SCREW M6-1 X 16
Price
N/A
330
SPINDLE PULLEY SPACER
Price
$29.95
331
SPINDLE PULLEY GEAR SHAFT 18T
Price
$235.20
332
KEY 7 X 7 X 35
Price
N/A
333
KEY 7 X 7 X 25
Price
N/A
334
TIMING BELT 225L-100
Price
$56.80
335
SPINDLE PULLEY HUB COLLAR
Price
$60.40
336
GEAR HOUSING TOP CAP
Price
$60.40
337
KEY 8 X 8 X 12
Price
N/A
338
SPLINE BULL GEAR HUB
Price
$214.95
339
SPINDLE BULL GEAR 81T
Price
$464.90
340
BEARING SLEEVE
Price
$232.50
341
DEEP GRV BALL BEARING 6908VV
Price
$97.85
342
BEARING SLEEVE ASSEMBLY
Price
N/A
343
BEARING SLEEVE ASSEMBLY
Price
N/A
343A
BEARING SLEEVE ASSEMBLY
Price
$82.75
344
INT RETAINING RING 62MM
Price
N/A
345
WAVY LOCK WASHER
Price
$31.75
346
SPANNER NUT WASHER
Price
$6.40
347
SPANNER NUT
Price
$26.90
348
SPACER
Price
$15.45
349
SPRING PIN
Price
$10.00
350
COMPRESSION SPRING
Price
$7.25
351
PHLP HD SCR M5-.8 X 8
Price
N/A
352
SQUARE WASHER
Price
$3.65
353
OIL CUP 1/8" NPT X 7MM X 24MM ELBOW
Price
N/A
354
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
355
DATA PLATE
Price
$4.60
356
DOUBLE END THREADED STUD 7/16-14
Price
$13.60
357
LOCK WASHER 7/16
Price
N/A
358
HEX NUT 7/16-14
Price
N/A
359
GEAR HEX NUT
Price
$3.65
360
BELT PULLEY GEAR 50T
Price
$137.40
361
CAP SCREW M5-.8 X 16
Price
N/A
362
BULL GEAR PINION BEARING CAP
Price
$91.80
363
WAVY LOCK WASHER
Price
$6.70
364
DEEP GRV BALL BEARING 6203VV
Price
$31.75
365
PINON GEAR 26T
Price
$200.20
366
SET SCREW M8-1.25 X 8
Price
N/A
367
PINON GEAR SHAFT
Price
$100.25
368
KEY 5 X 5 X 14
Price
N/A
369
KEY 5 X 5 X 18
Price
N/A
370
GREASE FITTING 1/8 NPT STRAIGHT
Price
$2.75
371
GEAR HOUSING
Price
$1,001.05
372
CAP SCREW M8-1.25 X 20
Price
N/A
373
DATA PLATE
Price
$31.75
374
BULL BEAR SHIFT PINION
Price
$71.90
375
HIGH/LOW DETENT PLATE
Price
$95.15
376
CAP SCREW M5-.8 X 12
Price
N/A
377
ROLL PIN 3 X 16
Price
N/A
378
HIGH/LOW PINION BLOCK
Price
$78.85
379
CAP SCREW M4-.7 X 14
Price
N/A
380
HIGH/LOW DETENT PLUNGER
Price
$14.25
381
COMPRESSION SPRING
Price
$3.65
382
HANDLE
Price
$15.45
383
KNOB 1/4-20
Price
N/A
384
SPINDLE MOTOR ASSEMBLY 3HP 220V 3-PH
Price
N/A
384-1
SPINDLE MOTOR ASSEMBLY 3HP 220V 3-PH
Price
N/A
384-2
SPINDLE MOTOR ASSEMBLY 3HP 220V 3-PH
Price
N/A
384-3
SPINDLE MOTOR ASSEMBLY 3HP 220V 3-PH
Price
N/A
384-4
MOTOR FAN COVER PLATE
Price
$75.20
384A
SPINDLE MOTOR ASSEMBLY 3HP 220V 3-PH
Price
$2,098.65
385
CAP SCREW M12-1.75 X 35
Price
N/A
386
FLAT WASHER 12MM
Price
N/A
387
MOTOR ADJUSTMENT LEVER
Price
$13.60
388
KNOB 5/16-18
Price
$6.05
389
KEY 8 X 7 X 30
Price
$10.00
390
MOTOR GEAR 44T
Price
$245.15
391
GEAR FLAT WASHER
Price
$39.85
392
CAP SCREW M8-1.25 X 25
Price
N/A
393
TOP BEARING COVER
Price
$96.95
394
CAP SCREW M6-1 X 20
Price
N/A
395
MOTOR ADJUSTMENT BLOCK
Price
$48.95
396
CAP SCREW M8-1.25 X 40
Price
N/A
397
DRIVE SYSTEM HOUSING
Price
$962.70

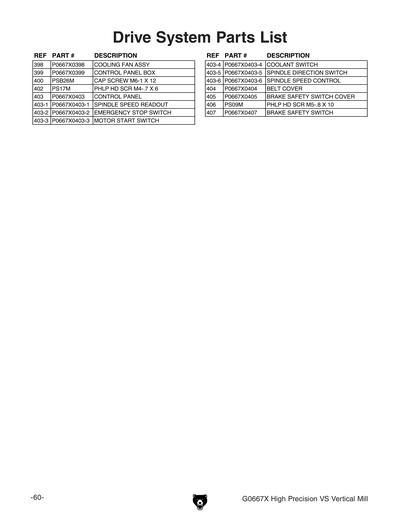

398
COOLING FAN ASSY
Price
$312.50
399
CONTROL PANEL BOX
Price
$162.45
400
CAP SCREW M6-1 X 12
Price
N/A
402
PHLP HD SCR M4-.7 X 6
Price
N/A
403
CONTROL PANEL
Price
$120.20
403-1
SPINDLE SPEED READOUT
Price
$112.95
403-2
EMERGENCY STOP SWITCH
Price
$39.85
403-3
MOTOR START SWITCH
Price
$53.45
403-4
COOLANT SWITCH
Price
$34.45
403-5
SPINDLE DIRECTION SWITCH
Price
$52.60
403-6
SPINDLE SPEED CONTROL
Price
$44.10
404
BELT COVER
Price
$105.10
405
BRAKE SAFETY SWITCH COVER
Price
$86.70
406
PHLP HD SCR M5-.8 X 10
Price
N/A
407
BRAKE SAFETY SWITCH
Price
$80.35

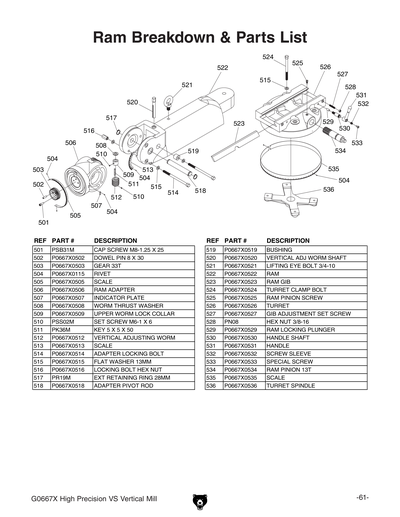

501
CAP SCREW M8-1.25 X 25
Price
N/A
502
DOWEL PIN 8 X 30MM
Price
N/A
503
GEAR 33T
Price
$63.10
504
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
505
SCALE
Price
$6.70
506
RAM ADAPTER
Price
$758.65
507
INDICATOR PLATE
Price
$1.60
508
WORM THRUST WASHER
Price
$10.30
509
UPPER WORM LOCK COLLAR
Price
$17.55
510
SET SCREW M6-1 X 6
Price
N/A
511
KEY 5 X 5 X 50
Price
N/A
512
VERTICAL ADJUSTING WORM
Price
$77.05
513
SCALE
Price
$15.45
514
ADAPTER LOCKING BOLT
Price
$28.75
515
FLAT WASHER 13MM
Price
$3.65
516
LOCK BOLT HEX NUT
Price
$12.75
517
EXT RETAINING RING 28MM
Price
N/A
518
ADAPTER PIVOT ROD
Price
$74.00
519
BUSHING
Price
$17.55
520
VERTICAL ADJUSTING WORM SHAFT
Price
$42.60
521
LIFTING EYE BOLT 3/4-10
Price
$53.80
522
RAM
Price
$2,123.45
523
RAM GIB
Price
$164.85
524
TURRET CLAMP BOLT
Price
$28.45
525
RAM PINION SCREW
Price
$10.90
526
TURRET
Price
$1,560.10
527
GIB ADJUSTING SET SCREW
Price
$12.10
528
HEX NUT 3/8-16
Price
N/A
529
RAM LOCKING PLUNGER
Price
$10.90
530
LOCK HANDLE ASSEMBLY
Price
N/A
531
LOCK HANDLE ASSEMBLY
Price
N/A
531A
LOCK HANDLE ASSEMBLY
Price
$77.05
532
LOCK HANDLE ASSEMBLY
Price
N/A
533
LOCK HANDLE ASSEMBLY
Price
N/A
534
RAM PINION 13T
Price
$115.05
535
SCALE
Price
$61.60
536
TURRET SPINDLE
Price
$144.90

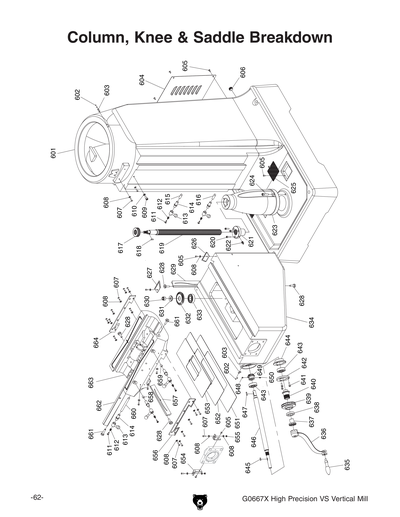

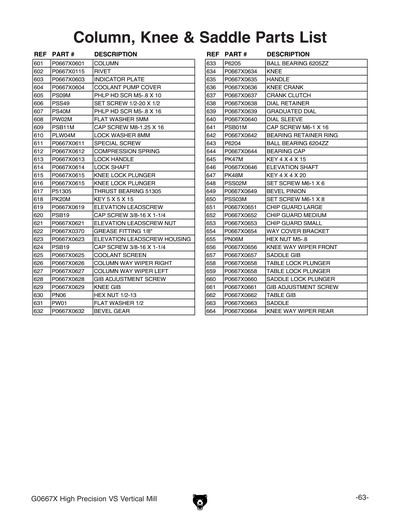

601
COLUMN
Price
$5,065.80
602
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
603
INDICATOR PLATE
Price
$1.60
604
COOLANT PUMP COVER
Price
$90.00
605
PHLP HD SCR M5-.8 X 10
Price
N/A
606
SET SCREW 1/2-20 X 1/2
Price
N/A
607
PHLP HD SCR M5-.8 X 16
Price
N/A
608
FLAT WASHER 5MM
Price
N/A
609
CAP SCREW M8-1.25 X 16
Price
N/A
610
LOCK WASHER 8MM
Price
N/A
611
KNEE LOCK HANDLE ASSEMBLY
Price
N/A
612
KNEE LOCK HANDLE ASSEMBLY
Price
N/A
613
KNEE LOCK HANDLE ASSEMBLY
Price
N/A
613A
KNEE LOCK HANDLE ASSEMBLY
Price
$39.00
614
KNEE LOCK HANDLE ASSEMBLY
Price
N/A
615
KNEE LOCK PLUNGER
Price
$10.90
616
KNEE LOCK PLUNGER
Price
N/A
617
THRUST BEARING 51305
Price
N/A
618
KEY 5 X 5 X 15
Price
N/A
619
ELEVATION LDSCR W/NUT ASSY
Price
N/A
619A
ELEVATION LDSCR W/NUT ASSY
Price
$362.25
620
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
621
ELEVATION LDSCR W/NUT ASSY
Price
N/A
622
GREASE FITTING 1/8 NPT STRAIGHT
Price
N/A
623
ELEVATION LEADSCREW HOUSING
Price
$202.60
624
CAP SCREW 3/8-16 X 1-1/4
Price
N/A
625
COOLANT SCREEN
Price
$13.30
626
COLUMN/KNEE WIPER ASSEMBLY
Price
N/A
626A
COLUMN/KNEE WIPER ASSEMBLY
Price
$113.55
627
COLUMN/KNEE WIPER ASSEMBLY
Price
N/A
628
GIB ADJUSTMENT SCREW
Price
$12.75
629
KNEE GIB
Price
$170.00
630
HEX NUT 1/2-12
Price
N/A
631
FLAT WASHER 1/2
Price
N/A
632
BEVEL GEAR
Price
$122.00
633
BALL BEARING 6205ZZ
Price
N/A
634
KNEE
Price
$3,519.30
635
HANDLE
Price
$38.10
636
KNEE CRANK
Price
$90.00
637
CRANK CLUTCH
Price
$55.30
638
DIAL RETAINER
Price
$74.00
639
GRADUATED DIAL
Price
$96.05
640
DIAL SLEEVE
Price
$74.00
641
CAP SCREW M6-1 X 16
Price
N/A
642
BEARING RETAINER RING
Price
$28.75
643
BALL BEARING 6204ZZ
Price
N/A
644
BEARING CAP
Price
$32.35
645
KEY 4 X 4 X 15
Price
N/A
646
ELEVATION SHAFT
Price
$135.25
647
KEY 4 X 4 X 20
Price
N/A
648
SET SCREW M6-1 X 6
Price
N/A
649
BEVEL PINION
Price
$93.95
650
SET SCREW M6-1 X 8
Price
N/A
651
CHIP GUARD SET
Price
N/A
651A
CHIP GUARD SET
Price
$159.15
652
CHIP GUARD SET
Price
N/A
653
CHIP GUARD SET
Price
N/A
654
WAY COVER BRACKET
Price
$6.40
655
HEX NUT M5-.8
Price
N/A
656
COLUMN/KNEE WIPER ASSEMBLY
Price
N/A
657
SADDLE GIB
Price
$119.30
658
TABLE LOCK PLUNGER
Price
$14.50
659
TABLE LOCK PLUNGER
Price
N/A
660
SADDLE LOCK PLUNGER
Price
$13.30
661
GIB ADJUSTMENT SCREW
Price
$12.75
662
TABLE GIB
Price
$157.65
663
SADDLE
Price
$2,587.10
664
COLUMN/KNEE WIPER ASSEMBLY
Price
N/A

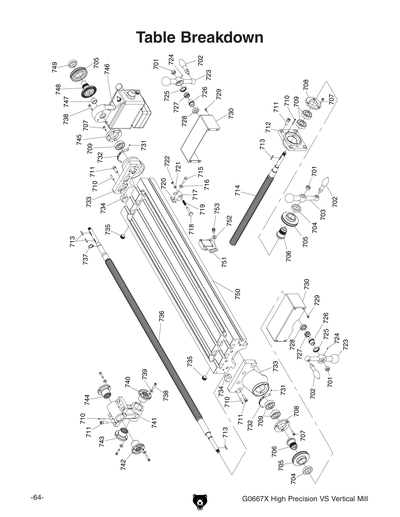

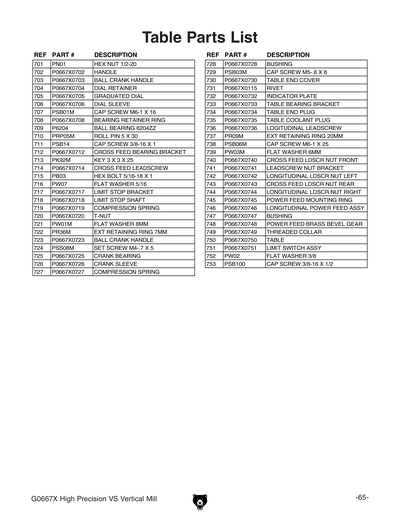

701
HEX NUT 1/2-20
Price
N/A
701-1
X-AXIS HANDWHEEL SHOULDER NUT
Price
$4.35
702
HANDLE
Price
$38.10
703
BALL CRANK HANDLE
Price
$121.40
704
DIAL HOLDER ASSEMBLY
Price
N/A
704A
DIAL HOLDER ASSEMBLY
Price
$63.15
705
GRADUATED DIAL
Price
$62.80
706
DIAL HOLDER ASSEMBLY
Price
N/A
707
CAP SCREW M6-1 X 16
Price
N/A
708
BEARING RETAINER RING
Price
$28.75
709
BALL BEARING 6204ZZ
Price
N/A
710
ROLL PIN 5 X 30
Price
N/A
711
CAP SCREW 3/8-16 X 1
Price
N/A
712
CROSS FEED BEARING BRACKET
Price
$115.70
713
KEY 3 X 3 X 25
Price
N/A
714
CROSS FEED LDSCR W/NUT ASSY
Price
N/A
714A
CROSS FEED LDSCR W/NUT ASSY
Price
$362.25
715
HEX BOLT 5/16-18 X 1
Price
N/A
716
FLAT WASHER 5/16
Price
N/A
717
LIMIT STOP ASSEMBLY
Price
N/A
717A
LIMIT STOP ASSEMBLY
Price
$37.20
718
LIMIT STOP ASSEMBLY
Price
N/A
719
LIMIT STOP ASSEMBLY
Price
N/A
720
LIMIT STOP ASSEMBLY
Price
N/A
721
FLAT WASHER 8MM
Price
N/A
722
EXT RETAINING RING 7MM
Price
N/A
723
BALL HANDLE ASSEMBLY
Price
N/A
723A
BALL HANDLE ASSEMBLY
Price
$198.35
724
SET SCREW M4-.7 X 5
Price
N/A
725
BALL HANDLE ASSEMBLY
Price
N/A
726
BALL HANDLE ASSEMBLY
Price
N/A
727
BALL HANDLE ASSEMBLY
Price
N/A
728
BALL HANDLE ASSEMBLY
Price
N/A
729
CAP SCREW M5-.8 X 8
Price
N/A
730
TABLE END COVER
Price
$80.35
731
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
732
INDICATOR PLATE
Price
$3.65
733
TABLE BEARING BRACKET
Price
$217.35
734
TABLE END PLUG
Price
$6.70
735
TABLE COOLANT PLUG
Price
$15.45
736
LONGITUDINAL LDSCR W/NUT ASSY
Price
N/A
736A
LONGITUDINAL LDSCR W/NUT ASSY
Price
$489.05
737
EXT RETAINING RING 20MM
Price
N/A
738
CAP SCREW M6-1 X 25
Price
N/A
739
FLAT WASHER 6MM
Price
N/A
740
CROSS FEED LDSCR W/NUT ASSY
Price
N/A
741
LEADSCREW NUT BRACKET
Price
$232.80
742
LONGITUDINAL LDSCR W/NUT ASSY
Price
N/A
743
CROSS FEED LDSCR W/NUT ASSY
Price
N/A
744
LONGITUDINAL LDSCR W/NUT ASSY
Price
N/A
745
Price
N/A
746
Price
N/A
747
Price
N/A
748
Price
N/A
749
THREADED COLLAR
Price
$15.15
750
TABLE
Price
$4,519.10
751
LIMIT SWITCH ASSY
Price
$95.15
752
FLAT WASHER 3/8
Price
N/A
753
CAP SCREW 3/8-16 X 1/2
Price
N/A

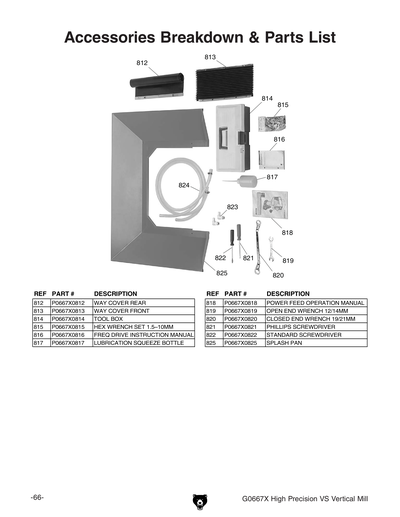

812
WAY COVER REAR
Price
$133.15
813
WAY COVER FRONT
Price
$62.80
814
TOOL BOX
Price
$83.95
815
HEX WRENCH SET 1.5-10MM
Price
$53.80
816
FREQ DRIVE INSTRUCTION MANUAL
Price
$5.15
817
LUBRICATION SQUEEZE BOTTLE
Price
$7.25
818
Price
N/A
819
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
820
WRENCH 19/21MM CLOSED END
Price
$46.85
821
SCREWDRIVER PHILLIPS #2
Price
N/A
822
SCREWDRIVER FLAT #2
Price
N/A
825
SPLASH PAN
Price
$697.40

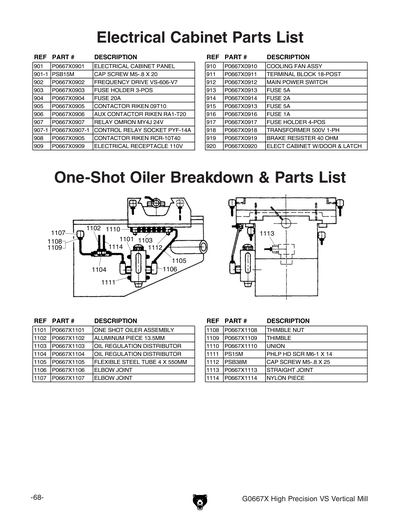

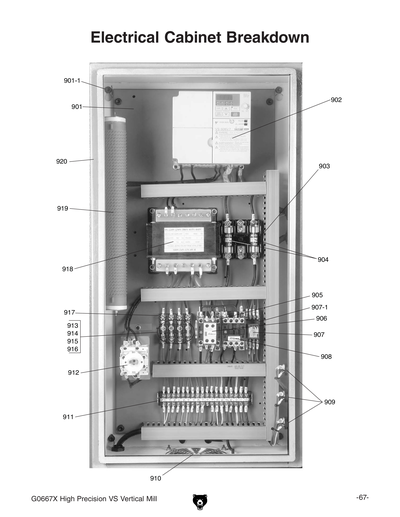

901
ELECTRICAL CABINET PANEL
Price
$325.15
901-1
CAP SCREW M5-.8 X 20
Price
N/A
902
INVERTER VS-606-V7
Price
$2,372.50
903
FUSE HOLDER 3-POS
Price
$82.45
904
FUSE 20A
Price
$15.15
905
CONTACTOR RIKEN 09T10
Price
$76.10
906
AUX CONTACTOR RIKEN RA1-T20 V1
Price
$28.10
906V2
AUX CONTACTOR TECO CUA-220 V2.08.11
Price
$18.75
907
RELAY OMRON MY4J 24V
Price
$45.00
907-1
CONTROL RELAY SOCKET PYF-14A
Price
$22.95
909
ELECTRICAL RECEPTACLE 110V
Price
$19.95
910
COOLING FAN ASSY
Price
$112.95
911
TERMINAL BLOCK 18-POST
Price
$144.90
912
MAIN POWER SWITCH
Price
$214.95
913
FUSE 5A
Price
$1.60
914
FUSE 2A
Price
$2.75
915
FUSE 5A
Price
N/A
916
FUSE 1A
Price
$2.75
917
FUSE HOLDER 4-POS
Price
$29.00
918
TRANSFORMER 500VA 220/440V-12/110V
Price
$462.80
919
BRAKE RESISTER 40 OHM
Price
$120.20
920
ELECT CABINET W/DOOR & LATCH
Price
$693.75

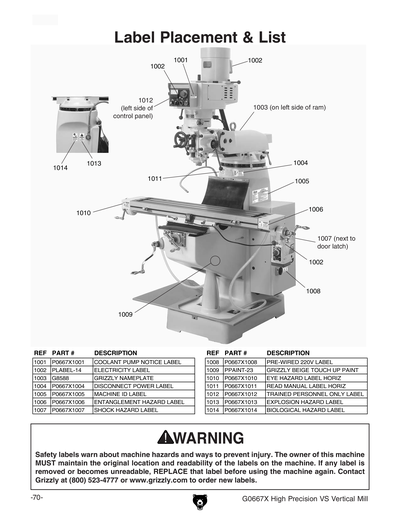

1001
COOLANT PUMP NOTICE LABEL
Price
$23.10
1002
ELECTRICITY 1.4W X 1.2H
Price
N/A
1003
Nameplate - Small
Price
N/A
1004
ELECTRICITY 1.4W X 1.2H
Price
N/A
1005
MACHINE ID LABEL
Price
$16.40
1006
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
1007
SHOCK HAZARD 2W X 3.3H
Price
N/A
1008
PREWIRED 220V LABEL
Price
$23.10
1009
LIGHT BEIGE REF G4003G
Price
N/A
1010
SAFETY GLASSES 3.8W X 2H
Price
N/A
1011
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
1012
TRAINED PERSONNEL ONLY LABEL
Price
$2.40
1013
EXPLOSION HAZARD LABEL
Price
$2.40
1014
BIOLOGICAL HAZARD LABEL
Price
$23.10
1101
ONE SHOT OILER ASSEMBLY
Price
$262.70
1102
FLEXIBLE STEEL TUBE 4 X 500MM
Price
$50.15
1103
OIL DISTRIBUTOR 4 X 4MM
Price
$86.95
1104
OIL DISTRIBUTOR A10/4 X 4MM
Price
$14.25
1105
CAP SCREW M6-1 X 20
Price
N/A
1106
ELBOW JOINT 4 X 1/8"
Price
$15.15
1107
CAP SCREW M6-1 X 16
Price
N/A
1108
CAP SCREW M5-.8 X 25
Price
N/A
1111
PHLP HD SCR M6-1 X 14
Price
N/A
1112
CAP SCREW M5-.8 X 25
Price
N/A

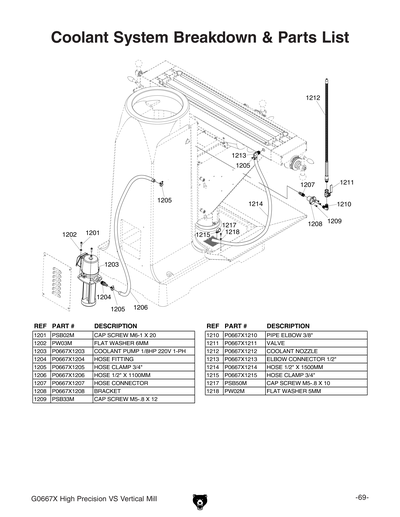

1201
CAP SCREW M6-1 X 20
Price
N/A
1202
FLAT WASHER 6MM
Price
N/A
1203
COOLANT PUMP 1/8HP 220V 1PH
Price
$409.35
1204
HOSE FITTING
Price
$11.50
1205
HOSE CLAMP 3/4"
Price
$6.05
1206
HOSE 1/2" X 1100MM
Price
$66.75
1207
HOSE CONNECTOR
Price
$14.25
1208
BRACKET
Price
$43.50
1209
CAP SCREW M5-.8 X 12
Price
N/A
1210
PIPE ELBOW 3/8"
Price
$10.00
1211
VALVE
Price
$67.95
1212
COOLANT NOZZLE
Price
$80.35
1213
ELBOW CONNECTOR 1/2"
Price
$16.05
1214
HOSE 1/2" X 1500MM
Price
$93.95
1215
HOSE CLAMP 3/4"
Price
N/A
1217
CAP SCREW M5-.8 X 10
Price
N/A
1218
FLAT WASHER 5MM
Price
N/A
MAN
MANUAL FOR G0667X 05/08
Price
$28.75
