Parts for G0668 - 20" 2 HP Vertical Metal-Cutting Bandsaw

Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668
Part Diagram for G0668

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

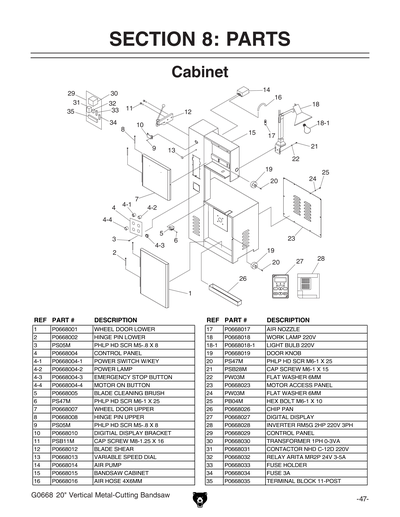

Ref #
Part #
Description
1
WHEEL DOOR LOWER
Price
$235.50
2
HINGE PIN LOWER 8 X 46MM
Price
$1.60
3
PHLP HD SCR M5-.8 X 8
Price
N/A
4
CONTROL PANEL
Price
$25.10

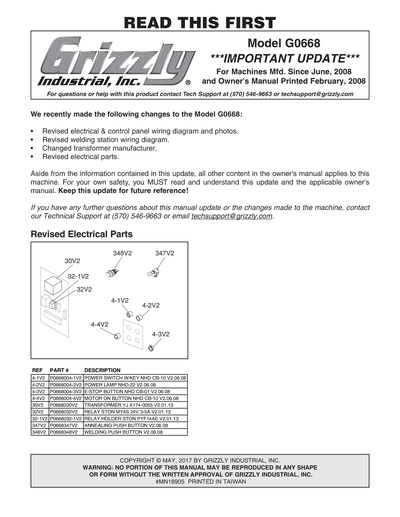

4-1
POWER SWITCH W/KEY TAI CHENG
Price
$83.35
4-1V2
POWER SWITCH W/KEY NHD CB-10 V2.06.08
Price
$86.95
4-2
POWER INDICATOR LIGHT DEFOND 22MM GRN V1
Price
$22.95
4-2V2
POWER LAMP NHD-22 GREEN V2.06.08
Price
$61.60
4-3
EMERGENCY STOP BUTTON V1
Price
$22.95
4-3V2
E-STOP BUTTON NHD CB-01 V2.06.08
Price
$90.60
4-4
MOTOR ON BUTTON TAI CHENG V1
Price
$22.95
4-4V2
MOTOR ON BUTTON NHD CB-10 V2.06.08
Price
$68.85
5
BLADE CLEANING BRUSH
Price
$16.65
6
PHLP HD SCR M6-1 X 25
Price
N/A
7
WHEEL DOOR UPPER
Price
$217.35
8
HINGE PIN UPPER 8 X 46MM
Price
$1.60
9
PHLP HD SCR M5-.8 X 8
Price
N/A
10
DIGITIAL DISPLAY BRACKET
Price
$20.85
11
CAP SCREW M8-1.25 X 16
Price
N/A
11V2
HEX BOLT M8-1.25 X 12
Price
N/A
12
BLADE SHEAR V1
Price
$137.40
12V2
*DISCD*BLADE SHEAR V1
Price
N/A
13
VARIABLE SPEED DIAL
Price
$20.85
14
AIR PUMP
Price
$145.85
15
BANDSAW CABINET
Price
$145.85
16
AIR HOSE 4 X 6MM
Price
$29.30
17
AIR NOZZLE
Price
$20.85
18
WORK LAMP 220V
Price
$90.60
18-1
LIGHT BULB 220V
Price
$29.00
19
BANDSAW CABINET DOOR KNOB
Price
$4.85
20
PHLP HD SCR M6-1 X 25
Price
N/A
21
CAP SCREW M6-1 X 15
Price
N/A
22
FLAT WASHER 6MM
Price
N/A
23
MOTOR ACCESS PANEL
Price
$191.10
24
FLAT WASHER 6MM
Price
N/A
25
HEX BOLT M6-1 X 10
Price
N/A
26
CHIP PAN
Price
$78.85
27
***SEE EXT DESCRIPTION***
Price
$127.10
27V2
DIGITAL DISPLAY KP-603A V2.03.20
Price
$108.70
28
***SEE EXT DESCRIPTION***
Price
N/A
28V2
INVERTER RM6-2001B3 2HP 220V V2.03.20
Price
$1,057.80
29
CONTROL PANEL
Price
$43.50
30
TRANSFORMER 220V-24V
Price
$126.80
30V2
TRANSFORMER YJA174-0055 V2.01.13
Price
$155.80
31
CONTACTOR NHD C-12D 220V
Price
$110.40
32
RELAY ARITA MR2P 24V 3-5A
Price
$25.40
32-1V2
RELAY HOLDER STON PYF14AE
Price
$101.45
32V2
RELAY STON MY4S 24V 3-5A
Price
$54.35
33
FUSE HOLDER
Price
$10.90
34
FUSE 3A
Price
$10.90
35
TERMINAL BLOCK 11-P
Price
$32.65

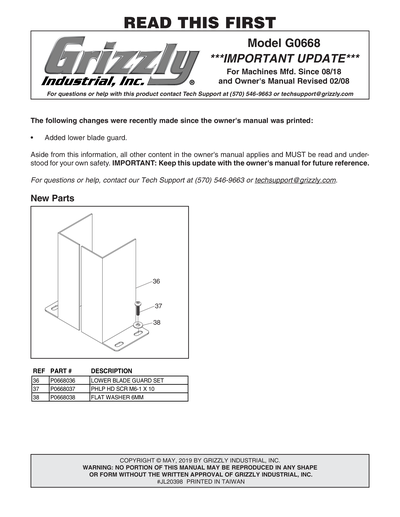

36
LOWER BLADE GUARD SET
Price
$39.85
37
PHLP HD SCR M6-1 X 10
Price
N/A
38
FLAT WASHER 6MM
Price
N/A

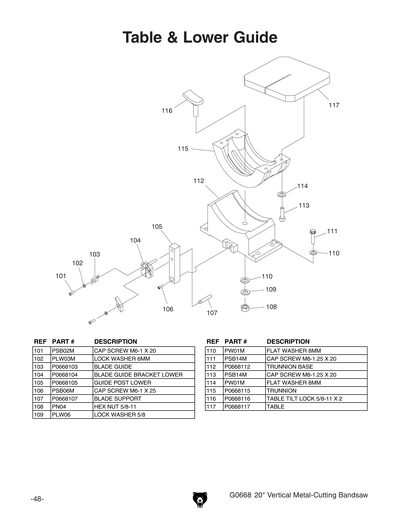

101
CAP SCREW M6-1 X 20
Price
N/A
102
LOCK WASHER 6MM
Price
N/A
103
BLADE GUIDE
Price
$54.35
104
BLADE GUIDE BRACKET LOWER
Price
$133.50
105
GUIDE POST LOWER
Price
$54.10
106
CAP SCREW M6-1 X 25
Price
N/A
107
BLADE SUPPORT
Price
$12.40
108
P0668108
Now: PN04
HEX NUT 5/8-11
Price
N/A
109
LOCK WASHER 5/8
Price
N/A
110
FLAT WASHER 8MM
Price
N/A
111
CAP SCREW M8-1.25 X 20
Price
N/A
112
TRUNNION BASE
Price
$235.50
113
CAP SCREW M8-1.25 X 20
Price
N/A
114
FLAT WASHER 8MM
Price
N/A
115
TRUNNION
Price
$163.05
116
TABLE TILT LOCK 5/8-11 X 2
Price
$12.40
117
TABLE
Price
$749.90

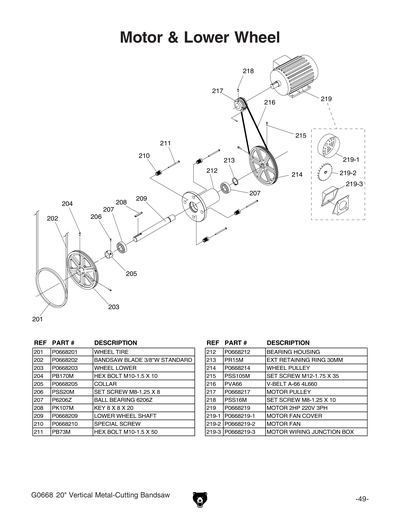

201
WHEEL TIRE 30.5 X 8 V1
Price
$126.80
201V2
WHEEL TIRE 35.5 X 3 V2.05.22
Price
$184.75
202
BANDSAW BLADE 3/8"W STANDARD
Price
$71.00
203
WHEEL LOWER V1
Price
$362.60
203V2
WHEEL LOWER V2.05.22
Price
$550.65
204
HEX BOLT M10-1.5 X 10
Price
N/A
205
COLLAR
Price
$12.40
206
SET SCREW M8-1.25 X 8
Price
N/A
207
BALL BEARING 6206Z
Price
N/A
208
KEY 8 X 8 X 20
Price
N/A
208V2
KEY 7 X 7 X 50 V2.05.22
Price
$5.50
209
WHEEL SHAFT LOWER V1
Price
$181.15
209V2
WHEEL SHAFT LOWER V2.05.22
Price
$333.30
210
BEARING HOUSING SCREW
Price
$8.50
211
HEX BOLT M10-1.5 X 50
Price
N/A
212
BEARING HOUSING V1
Price
$217.35
212V2
BEARING HOUSING V2.05.22
Price
$362.25
213
EXT RETAINING RING 30MM
Price
N/A
214
WHEEL PULLEY
Price
$36.90
215
SET SCREW M12-1.75 X 35
Price
N/A
215V2
CAP SCREW M12-1.75 X 35
Price
N/A
216
V-BELT A66
Price
N/A
216V2
V-BELT A64
Price
N/A
217
MOTOR PULLEY
Price
$33.25
218
SET SCREW M8-1.25 X 10
Price
N/A
218-1
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
218-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
218-3
*DISCD*MOTOR WIRING JUNCTION BOX
Item is no longer available
Price
N/A
219
MOTOR 2HP 220V 3-PH
Price
$480.60
219-1
MOTOR FAN COVER
Price
$43.50
219-2
MOTOR FAN
Price
$61.60
219-3
MOTOR WIRING JUNCTION BOX
Price
$21.75
220
HEX NUT M28-1.75
Price
$7.25
221
FLAT WASHER 28MM
Price
$5.50
222
EXT RETAINING RING 30MM
Price
N/A
223
LOCK WASHER 12MM
Price
N/A
224
HEX NUT M12-1.75
Price
N/A
225
HEX BOLT M8-1.25 X 20
Price
N/A
225V2
HEX BOLT M8-1.25 X 30
Price
N/A
226
FLAT WASHER 8MM
Price
N/A
227
HEX NUT M28-1.75 THIN
Price
$39.85
228
LOCK WASHER 8MM
Price
N/A
229
MOTOR BRACKET
Price
$110.40
230
HEX NUT M8-1.25
Price
N/A

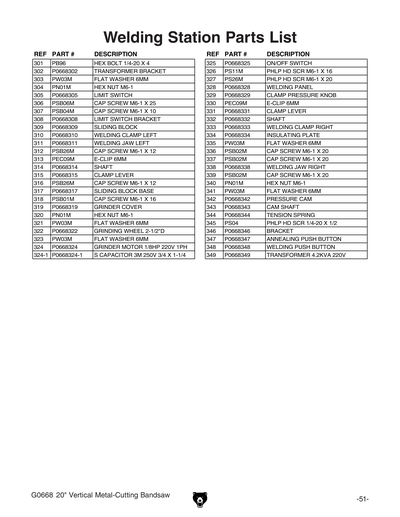

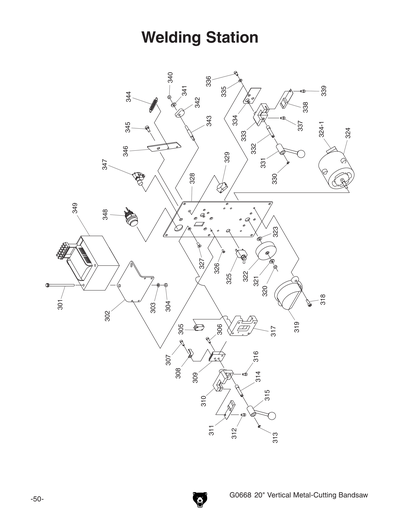

300A
COMPLETE WELDING STATION ASSY.
Price
$1,322.25
301
P0668301
Now: PB96
HEX BOLT 1/4-20 X 4
Price
N/A
302
TRANSFORMER BRACKET
Price
$29.30
303
FLAT WASHER 6MM
Price
N/A
304
HEX NUT M6-1
Price
N/A
305
LIMIT SWITCH
Price
$14.50
306
CAP SCREW M6-1 X 25
Price
N/A
307
CAP SCREW M6-1 X 10
Price
N/A
308
LIMIT SWITCH BRACKET
Price
$8.50
309
SLIDING BLOCK
Price
$50.15
310
WELDING CLAMP LEFT
Price
$112.65
311
WELDING JAW LEFT
Price
$16.65
312
CAP SCREW M6-1 X 12
Price
N/A
313
E-CLIP 6MM
Price
N/A
314
SHAFT
Price
$16.65
315
CLAMP LEVER
Price
$23.60
316
CAP SCREW M6-1 X 12
Price
N/A
317
SLIDING BLOCK BASE
Price
$112.30
318
CAP SCREW M6-1 X 16
Price
N/A
319
GRINDER COVER
Price
$14.50
320
HEX NUT M6-1
Price
N/A
321
FLAT WASHER 6MM
Price
N/A
322
GRINDING WHEEL 2-1/2"D
Price
$12.40
323
FLAT WASHER 6MM
Price
N/A
324
GRINDER MOTOR 1/8HP 220V 1-PH
Price
$89.40
324-1
S CAPACITOR 3M 250V 3/4 X 1-1/4
Price
$12.40
325
ON/OFF SWITCH
Price
$12.40
326
PHLP HD SCR M6-1 X 16
Price
N/A
327
PHLP HD SCR M6-1 X 20
Price
N/A
328
WELDING PANEL
Price
$152.15
329
CLAMP PRESSURE KNOB
Price
$7.60
330
E-CLIP 6MM
Price
N/A
331
CLAMP LEVER
Price
$23.60
332
SHAFT
Price
$6.40
333
WELDING CLAMP RIGHT
Price
$112.65
334
INSULATING PLATE
Price
$7.60
335
FLAT WASHER 6MM
Price
N/A
336
CAP SCREW M6-1 X 20
Price
N/A
337
CAP SCREW M6-1 X 20
Price
N/A
338
WELDING JAW RIGHT
Price
$16.65
339
CAP SCREW M6-1 X 20
Price
N/A
340
HEX NUT M6-1
Price
N/A
341
FLAT WASHER 6MM
Price
N/A
342
PRESSURE CAM
Price
$4.30
343
CAM SHAFT
Price
$6.40
344
TENSION SPRING 0.8 X 25MM
Price
$4.30
345
P0668345
Now: PS04
PHLP HD SCR 1/4-20 X 1/2
Price
N/A
346
BRACKET
Price
$4.30
347
ANNEALING PUSH BUTTON V1
Price
$14.50
347V2
ANNEALING PUSH BUTTON V2.06.08
Price
$39.85
348
WELDING PUSH BUTTON V1
Price
$14.50
348V2
WELDING PUSH BUTTON V2.06.08
Price
$36.25
349
TRANSFORMER 4.2KVA 220V
Price
$326.05

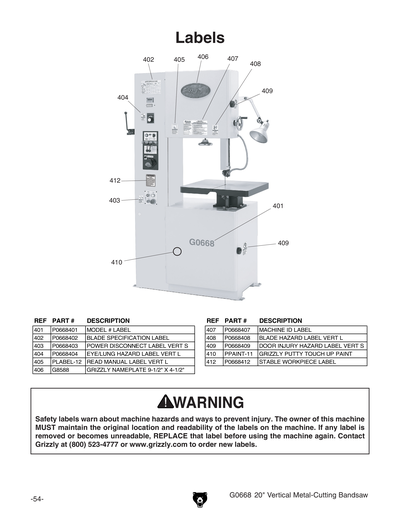

401
MODEL NUMBER LABEL
Price
$16.40
402
BLADE SPECIFICATION LABEL
Price
$2.40
403
POWER DISCONNECT LABEL VERT S
Price
$7.35
404
EYE/LUNG HAZARD LABEL VERT L
Price
$23.10
405
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
406
Nameplate - Small
Price
N/A
407
MACHINE ID LABEL
Price
$16.40
408
BLADE HAZARD LABEL VERT L
Price
$1.60
409
DOOR INJURY HAZARD LABEL VERT S
Price
$3.95
410
GREY PUTTY REF G0504
Price
N/A
411
N/S GRIZZLY GREEN G1023S
Price
N/A
412
STABLE WORKPIECE LABEL
Price
$1.05

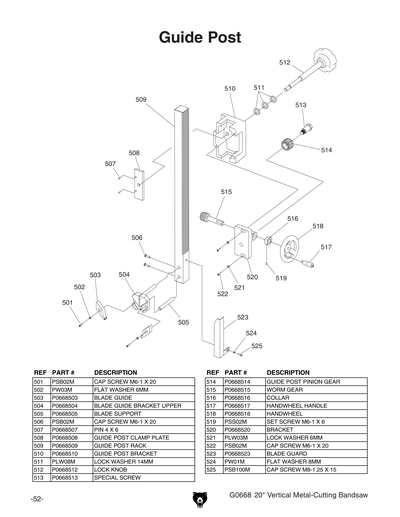

501
CAP SCREW M6-1 X 20
Price
N/A
502
FLAT WASHER 6MM
Price
N/A
503
BLADE GUIDE
Price
$62.55
504
BLADE GUIDE BRACKET UPPER
Price
$158.20
505
BLADE SUPPORT
Price
$25.40
506
CAP SCREW M6-1 X 20
Price
N/A
507
PIN 4 X 6
Price
$2.20
508
GUIDE POST CLAMP PLATE
Price
$83.35
509
GUIDE POST RACK
Price
$133.50
510
GUIDE POST BRACKET
Price
$133.50
511
LOCK WASHER 14MM
Price
N/A
512
LOCK KNOB 7/16-14 X 7/8
Price
$67.05
513
PINION GEAR SCREW 1/2-12 X 9/16
Price
$14.50
514
GUIDE POST PINION GEAR
Price
$18.75
515
WORM GEAR V1
Price
$37.45
515V2
WORM GEAR W9MM SHAFT V2.12.14
Price
$19.95
516
COLLAR
Price
$25.10
517
HANDWHEEL HANDLE
Price
$6.40
518
HANDWHEEL V1
Price
$37.45
518V2
HANDWHEEL W/ 9MM BORE V2.12.14
Price
$58.00
519
SET SCREW M6-1 X 6
Price
N/A
520
BRACKET V1
Price
$228.25
520V2
BRACKET W/9MM BORE V2.12.14
Price
$72.45
521
LOCK WASHER 6MM
Price
N/A
522
CAP SCREW M6-1 X 20
Price
N/A
523
BLADE GUARD
Price
$91.80
524
FLAT WASHER 8MM
Price
N/A
525
CAP SCREW M8-1.25 X 15
Price
N/A
526
BALL BEARING 609ZZ
Price
N/A

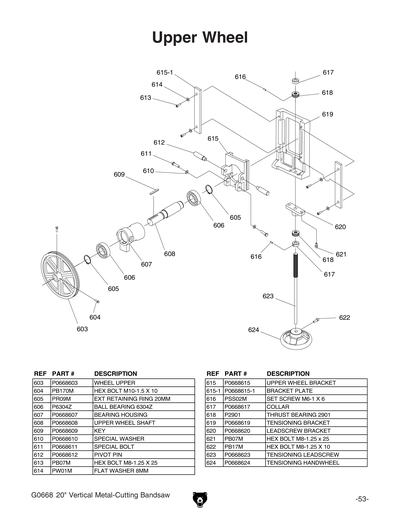

603
WHEEL UPPER V1
Price
$543.40
603V2
WHEEL UPPER V2.05.22
Price
$550.65
604
HEX BOLT M10-1.5 X 10
Price
N/A
605
EXT RETAINING RING 20MM
Price
N/A
605V2
EXT RETAINING RING 30MM
Price
N/A
606
BALL BEARING 6304Z
Price
N/A
606V2
BALL BEARING 6206Z
Price
N/A
607
BEARING HOUSING V1
Price
$166.65
607V2
BEARING HOUSING V2.05.22
Price
$250.00
608
WHEEL SHAFT UPPER V1
Price
$206.50
608V2
WHEEL SHAFT UPPER V2.05.22
Price
$258.75
609
KEY 8 X 8 X 50
Price
$8.50
609V2
KEY 7 X 7 X 30 V2.05.22
Price
$5.50
610
LOCK WASHER 3/8
Price
N/A
611
P0668611
Now: PB16
HEX BOLT 3/8-16 X 1-1/2
Price
N/A
612
UPPER WHEEL BRACKET PIVOT PIN
Price
$8.50
613
HEX BOLT M8-1.25 X 25
Price
N/A
614
FLAT WASHER 8MM
Price
N/A
615
WHEEL BRACKET UPPER
Price
$206.50
615-1
BRACKET PLATE
Price
$41.70
616
SET SCREW M6-1 X 6
Price
N/A
617
COLLAR
Price
$8.50
617-1
SET SCREW M6-1 X 6
Price
N/A
618
THRUST BEARING 2901
Price
N/A
619
TENSIONING BRACKET
Price
$362.25
620
LEADSCREW BRACKET
Price
$33.25
621
HEX BOLT M8-1.25 X 25
Price
N/A
622
HEX BOLT M8-1.25 X 10
Price
N/A
622V2
SET SCREW M8-1.25 X 10
Price
N/A
623
TENSIONING LEADSCREW 5/8-18 X 11-13/16
Price
$50.15
624
TENSIONING HANDWHEEL
Price
$29.30
625
HEX NUT M28-1.75
Price
N/A
626
FLAT WASHER 28MM
Price
N/A
627
P0668627
Now: PN08
HEX NUT 3/8-16
Price
N/A
628
COMPRESSION SPRING 5 X 22 X 61
Price
$39.85
629
POINTER
Price
$9.10
630
KNOB BOLT 1/2-12 X 6-3/4, 6-LOBE, D2-3/4
Price
$97.85
631
KNOB 1/2-12, 6-LOBE, D1-3/4
Price
$59.80
632
SLEEVE
Price
$13.10
MAN
MANUAL FOR G0668 02/08
Price
$17.25
