Parts for G0681 - 9" Slow Speed Cold Cut Saw

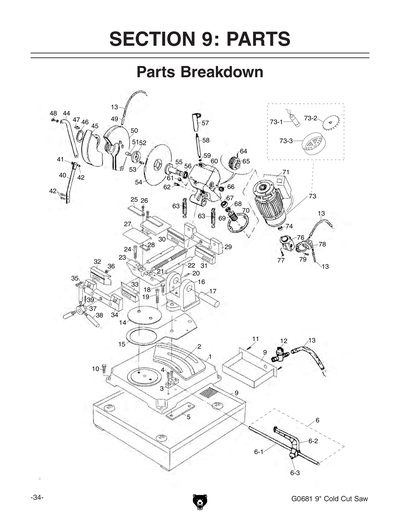

Part Diagram for G0681
Part Diagram for G0681
Part Diagram for G0681
Part Diagram for G0681
Part Diagram for G0681
Part Diagram for G0681
Part Diagram for G0681
Part Diagram for G0681

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

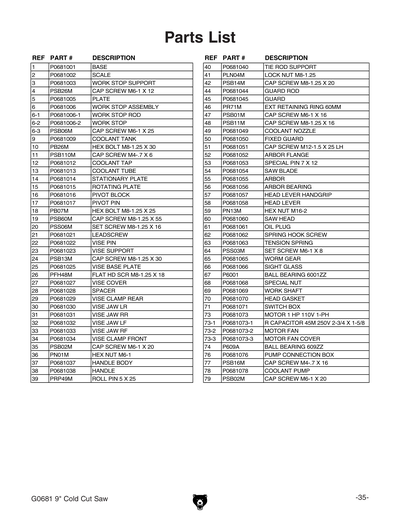

Ref #
Part #
Description
1
*DISCD*BASE
Item is no longer available
Price
N/A
2
*DISCD*SCALE
Item is no longer available
Price
N/A
3
*DISCD*WORK STOP SUPPORT
Item is no longer available
Price
N/A
4
CAP SCREW M6-1 X 12
Price
N/A
5
*DISCD*PLATE
Item is no longer available
Price
N/A
6
*DISCD*WORK STOP ASSEMBLY
Item is no longer available
Price
N/A
6-1
*DISCD*WORK STOP ASSEMBLY
Price
N/A
6-2
*DISCD*WORK STOP ASSEMBLY
Price
N/A
6-3
CAP SCREW M6-1 X 25
Price
N/A
9
*DISCD*COOLANT TANK
Item is no longer available
Price
N/A
10
HEX BOLT M8-1.25 X 30
Price
N/A
11
CAP SCREW M4-.7 X 6
Price
N/A
12
*DISCD*COOLANT TAP
Item is no longer available
Price
N/A
13
*DISCD*COOLANT TUBE
Item is no longer available
Price
N/A
14
*DISCD*STATIONARY PLATE
Item is no longer available
Price
N/A
15
*DISCD*ROTATING PLATE
Item is no longer available
Price
N/A
16
*DISCD*PIVOT BLOCK
Item is no longer available
Price
N/A
17
*DISCD*PIVOT PIN
Item is no longer available
Price
N/A
18
HEX BOLT M8-1.25 X 25
Price
N/A
19
CAP SCREW M8-1.25 X 55
Price
N/A
20
SET SCREW M8-1.25 X 16
Price
N/A
21
*DISCD*LEADSCREW
Item is no longer available
Price
N/A
22
*DISCD*VISE PIN
Item is no longer available
Price
N/A
23
*DISCD*VISE SUPPORT
Item is no longer available
Price
N/A
24
CAP SCREW M8-1.25 X 30
Price
N/A
25
*DISCD*VISE BASE PLATE
Item is no longer available
Price
N/A
26
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
27
*DISCD*VISE COVER
Item is no longer available
Price
N/A
28
*DISCD*SPACER
Item is no longer available
Price
N/A
29
*DISCD*VISE CLAMP REAR
Item is no longer available
Price
N/A
30
*DISCD*VISE JAW LR
Item is no longer available
Price
N/A
31
*DISCD*VISE JAW RR
Item is no longer available
Price
N/A
32
*DISCD*VISE JAW LF
Item is no longer available
Price
N/A
33
*DISCD*VISE JAW RF
Item is no longer available
Price
N/A
34
*DISCD*VISE CLAMP FRONT
Item is no longer available
Price
N/A
35
CAP SCREW M6-1 X 20
Price
N/A
36
HEX NUT M6-1
Price
N/A
37
*DISCD*HANDLE BODY
Item is no longer available
Price
N/A
38
*DISCD*HANDLE
Item is no longer available
Price
N/A
39
ROLL PIN 5 X 25
Price
N/A
40
*DISCD*TIE ROD SUPPORT ASSEMBLY
Item is no longer available
Price
N/A
41
LOCK NUT M8-1.25
Price
N/A
42
CAP SCREW M8-1.25 X 20
Price
N/A
44
*DISCD*TIE ROD SUPPORT ASSEMBLY
Price
N/A
45
Price
$56.35
46
EXT RETAINING RING 60MM
Price
N/A
47
CAP SCREW M6-1 X 16
Price
N/A
48
CAP SCREW M8-1.25 X 16
Price
N/A
49
Price
$44.85
50
*DISCD*FIXED GUARD
Item is no longer available
Price
N/A
51
*DISCD*CAP SCREW M12-1.5 X 25 LH
Item is no longer available
Price
N/A
52
*DISCD*ARBOR FLANGE W/PIN 7 X 12
Item is no longer available
Price
N/A
53
*DISCD*ARBOR FLANGE W/PIN 7 X 12
Price
N/A
54
9" X 32mm HSS Cold Cut Saw Blade for G0681
Price
N/A
55
*DISCD*ARBOR
Item is no longer available
Price
N/A
56
*DISCD*ARBOR BEARING
Item is no longer available
Price
N/A
57
*DISCD*HEAD LEVER W/ HANDGRIP
Item is no longer available
Price
N/A
58
*DISCD*HEAD LEVER W/ HANDGRIP
Price
N/A
59
HEX NUT M16-2
Price
N/A
60
*DISCD*SAW HEAD
Item is no longer available
Price
N/A
61
*DISCD*OIL PLUG
Item is no longer available
Price
N/A
62
*DISCD*SPRING HOOK SCREW
Item is no longer available
Price
N/A
63
Price
$23.90
64
SET SCREW M6-1 X 8
Price
N/A
65
*DISCD*WORM GEAR
Item is no longer available
Price
N/A
66
*DISCD*SIGHT GLASS
Item is no longer available
Price
N/A
67
BALL BEARING 6001ZZ
Price
N/A
68
*DISCD*HEAD GASKET NUT
Item is no longer available
Price
N/A
69
*DISCD*WORK SHAFT
Item is no longer available
Price
N/A
70
Price
$11.50
71
*DISCD*SWITCH BOX
Item is no longer available
Price
N/A
73
*DISCD*MOTOR 1HP 110V 1-PH
Item is no longer available
Price
N/A
73-1
*DISCD*R CAP 45M 250V 2-3/4 X 1-5/8
Item is no longer available
Price
N/A
73-2
*DISCD*MOTOR FAN
Item is no longer available
Price
N/A
73-3
*DISCD*MOTOR FAN COVER
Item is no longer available
Price
N/A
74
BALL BEARING 609ZZ
Price
N/A
76
*DISCD*PUMP CONNECTION BOX
Item is no longer available
Price
N/A
77
CAP SCREW M4-.7 X 16
Price
N/A
78
*DISCD*COOLANT PUMP
Item is no longer available
Price
N/A
79
CAP SCREW M6-1 X 20
Price
N/A

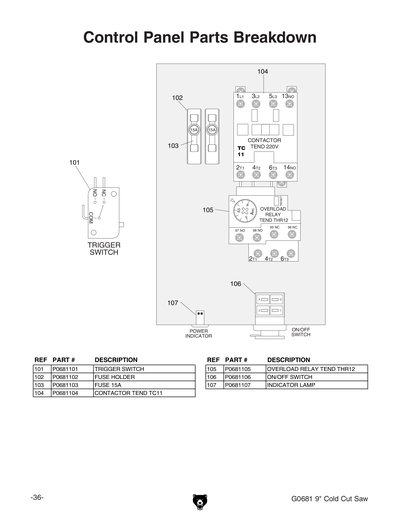

101
*DISCD*SWITCH BOX
Price
N/A
102
*DISCD*SWITCH BOX
Price
N/A
103
*DISCD*SWITCH BOX
Price
N/A
104
*DISCD*SWITCH BOX
Price
N/A
105
*DISCD*SWITCH BOX
Price
N/A
106
*DISCD*SWITCH BOX
Price
N/A
107
*DISCD*SWITCH BOX
Price
N/A

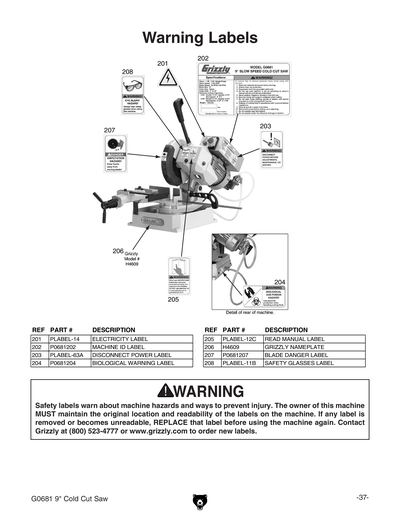

201
ELECTRICITY 1.4W X 1.2H
Price
N/A
202
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
203
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
204
*DISCD*BIOLOGICAL WARNING LABEL
Item is no longer available
Price
N/A
205
READ MANUAL 1.5W X 2.5H
Price
N/A
206
Oblong Nameplate-Small
Price
N/A
207
*DISCD*BLADE DANGER LABEL
Item is no longer available
Price
N/A
208
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
MAN
MANUAL FOR G0681 11/08
Item is no longer available
Price
N/A
