Parts for G0682 - 12" Slow Speed Cold Cut Saw with Stand

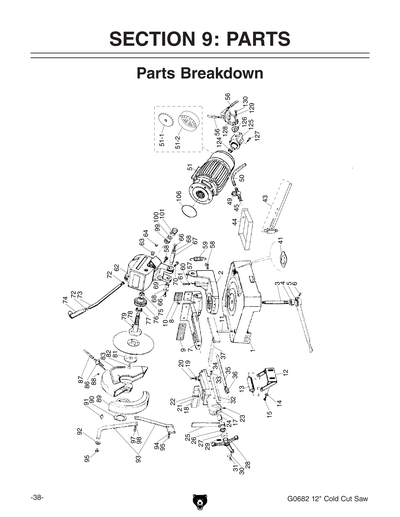

Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682
Part Diagram for G0682

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

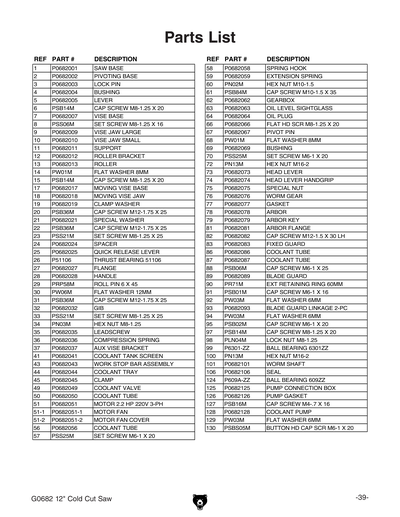

Ref #
Part #
Description
1
SAW BASE
Item is no longer available
Price
N/A
2
PIVOTING BASE
Item is no longer available
Price
N/A
3
LOCK PIN
Item is no longer available
Price
N/A
4
BUSHING
Item is no longer available
Price
N/A
5
LEVER
Item is no longer available
Price
N/A
6
CAP SCREW M8-1.25 X 20
Price
N/A
7
VISE BASE
Item is no longer available
Price
N/A
8
SET SCREW M8-1.25 X 16
Price
N/A
9
VISE JAW LARGE
Item is no longer available
Price
N/A
10
VISE JAW SMALL
Item is no longer available
Price
N/A
11
SUPPORT
Item is no longer available
Price
N/A
12
ROLLER & BRACKET ASSY
Price
N/A
12A
ROLLER & BRACKET ASSY
Item is no longer available
Price
N/A
13
ROLLER & BRACKET ASSY
Price
N/A
14
FLAT WASHER 8MM
Price
N/A
15
CAP SCREW M8-1.25 X 20
Price
N/A
17
MOVING VISE BASE
Item is no longer available
Price
N/A
18
MOVING VISE JAW
Item is no longer available
Price
N/A
19
CLAMP WASHER
Item is no longer available
Price
N/A
20
CAP SCREW M12-1.75 X 25
Price
N/A
21
GIB WASHER
Item is no longer available
Price
N/A
22
CAP SCREW M12-1.75 X 25
Price
N/A
23
SET SCREW M8-1.25 X 25
Price
N/A
24
SPACER
Item is no longer available
Price
N/A
25
QUICK RELEASE LEVER
Item is no longer available
Price
N/A
26
THRUST BEARING 51106
Price
N/A
27
Price
$15.70
28
Price
$83.95
29
ROLL PIN 6 X 45
Price
N/A
30
FLAT WASHER 12MM
Price
N/A
31
CAP SCREW M12-1.75 X 25
Price
N/A
32
GIB
Item is no longer available
Price
N/A
33
SET SCREW M8-1.25 X 25
Price
N/A
34
HEX NUT M8-1.25
Price
N/A
35
Price
$90.60
36
Price
$14.40
37
AUXILIARY VISE BRACKET
Item is no longer available
Price
N/A
41
Price
$14.40
43
WORK STOP BAR ASSEMBLY
Item is no longer available
Price
N/A
44
COOLANT TRAY
Item is no longer available
Price
N/A
45
CLAMP
Item is no longer available
Price
N/A
49
COOLANT VALVE
Item is no longer available
Price
N/A
50
COOLANT TUBE
Item is no longer available
Price
N/A
51
MOTOR 2-1/5HP 220V 3-PH
Price
$609.50
51-1
MOTOR FAN
Item is no longer available
Price
N/A
51-2
MOTOR FAN COVER
Item is no longer available
Price
N/A
56
COOLANT TUBE
Item is no longer available
Price
N/A
57
SET SCREW M6-1 X 20
Price
N/A
58
SPRING HOOK
Item is no longer available
Price
N/A
59
EXTENSION SPRING
Item is no longer available
Price
N/A
60
HEX NUT M10-1.5
Price
N/A
61
CAP SCREW M10-1.5 X 35
Price
N/A
62
GEARBOX
Item is no longer available
Price
N/A
63
OIL LEVEL SIGHTGLASS
Item is no longer available
Price
N/A
64
OIL PLUG
Item is no longer available
Price
N/A
66
FLAT HD SCR M8-1.25 X 20
Item is no longer available
Price
N/A
67
PIVOT PIN
Item is no longer available
Price
N/A
68
FLAT WASHER 8MM
Price
N/A
69
BUSHING
Item is no longer available
Price
N/A
70
SET SCREW M6-1 X 20
Price
N/A
72
HEX NUT M16-2
Price
N/A
73
HEAD LEVER W/HANDGRIP
Price
N/A
73A
Price
$94.60
74
Price
$90.60
75
WORM GEAR NUT
Item is no longer available
Price
N/A
76
Price
$181.70
77
GASKET
Item is no longer available
Price
N/A
78
ARBOR
Item is no longer available
Price
N/A
79
Price
$5.15
80
12" x 32mm x 240T HSS Cold Cut Saw Blade for G0682
Price
N/A
81
ARBOR FLANGE
Item is no longer available
Price
N/A
82
CAP SCREW M12-1.5 X 30 LH
Price
$4.90
83
Price
$175.40
86
Price
$28.45
87
COOLANT TUBE
Item is no longer available
Price
N/A
88
CAP SCREW M6-1 X 25
Price
N/A
89
Price
$62.55
90
EXT RETAINING RING 60MM
Price
N/A
91
CAP SCREW M6-1 X 16
Price
N/A
92
FLAT WASHER 6MM
Price
N/A
92A
BLADE GUARD ASSY
Item is no longer available
Price
N/A
93
BLADE GUARD ASSY
Price
N/A
94
FLAT WASHER 6MM
Price
N/A
95
CAP SCREW M6-1 X 20
Price
N/A
97
CAP SCREW M8-1.25 X 20
Price
N/A
98
LOCK NUT M8-1.25
Price
N/A
99
BALL BEARING 6301ZZ
Price
N/A
100
HEX NUT M16-2
Item is no longer available
Price
N/A
101
Price
$65.00
102
Price
$642.85

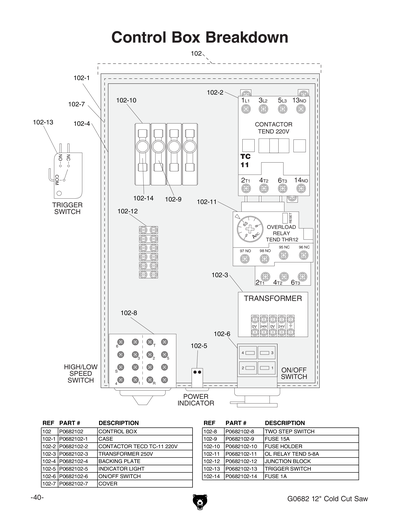

102-1
CASE W/BACKING PLATE
Item is no longer available
Price
N/A
102-10
FUSE HOLDER
Item is no longer available
Price
N/A
102-11
Price
$77.65
102-12
JUNCTION BLOCK
Item is no longer available
Price
N/A
102-13
Price
$16.70
102-14
FUSE 1A
Item is no longer available
Price
N/A
102-2
CONTACTOR TECO TC-11 220V
Item is no longer available
Price
N/A
102-3
*DISCD*TRANSFORMER 250V
Price
N/A
102-4
CASE W/BACKING PLATE
Price
N/A
102-5
POWER INDICATOR LIGHT 15MM GRN
Item is no longer available
Price
N/A
102-6
ON/OFF SWITCH
Item is no longer available
Price
N/A
102-7
COVER
Item is no longer available
Price
N/A
102-8
SWITCH TWO STEP
Item is no longer available
Price
N/A
102-9
FUSE 15A
Item is no longer available
Price
N/A
106
SEAL
Item is no longer available
Price
N/A
124
BALL BEARING 609ZZ
Price
N/A
125
Price
$31.05
127
CAP SCREW M4-.7 X 16
Price
N/A
128
Price
$317.00
129
FLAT WASHER 6MM
Price
N/A
130
BUTTON HD CAP SCR M6-1 X 20
Price
N/A

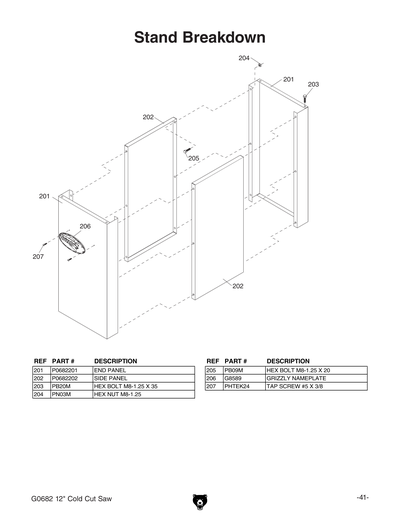

201
STAND W/O MOTOR
Price
N/A
201A
Price
$547.70
202
STAND W/O MOTOR
Price
N/A
203
HEX BOLT M8-1.25 X 35
Price
N/A
204
HEX NUT M8-1.25
Price
N/A
205
HEX BOLT M8-1.25 X 20
Price
N/A
206
Nameplate - Large
Price
N/A
207
TAP SCREW #5 X 3/8
Price
N/A

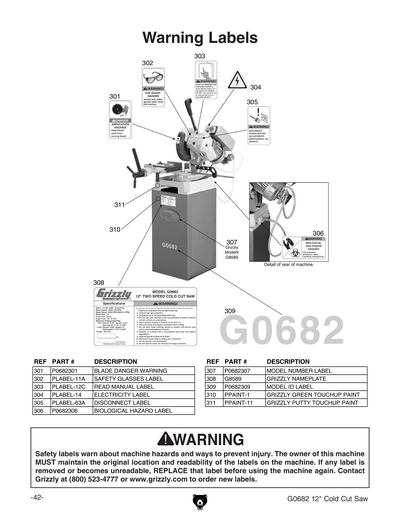

301
BLADE DANGER WARNING
Item is no longer available
Price
N/A
302
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
303
READ MANUAL 1.5W X 2.5H
Price
N/A
304
ELECTRICITY 1.4W X 1.2H
Price
N/A
305
DISCONNECT 220V 1.5W X 2.5H
Price
N/A
306
BIOLOGICAL HAZARD LABEL
Item is no longer available
Price
N/A
307
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
308
Nameplate - Large
Price
N/A
309
MACHINE ID LABEL
Item is no longer available
Price
N/A
310
N/S GRIZZLY GREEN G1023S
Price
N/A
311
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL FOR G0682 11/08
Item is no longer available
Price
N/A
