Parts for G0689 - 13" 2 HP Planer with Dust Collection

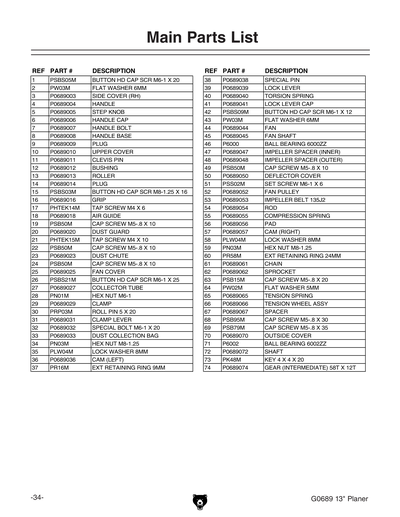

Part Diagram for G0689

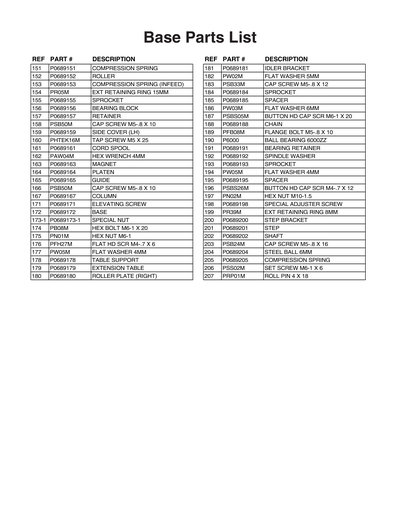

Part Diagram for G0689

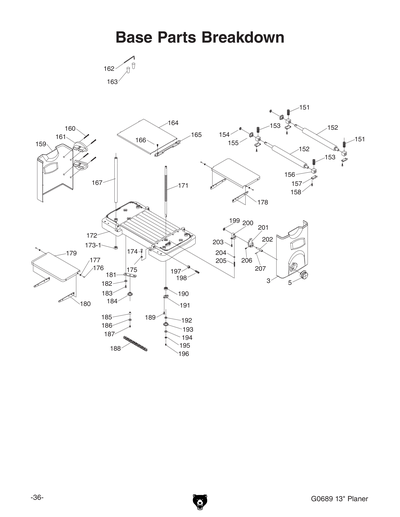

Part Diagram for G0689

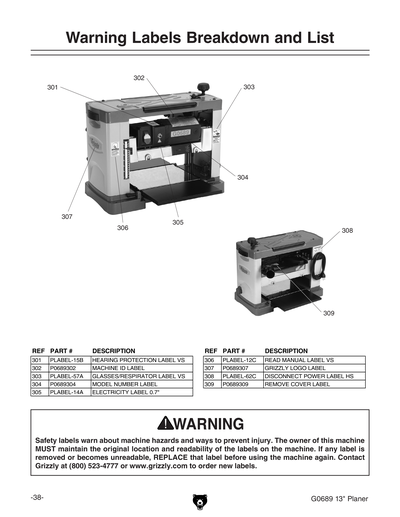

Part Diagram for G0689

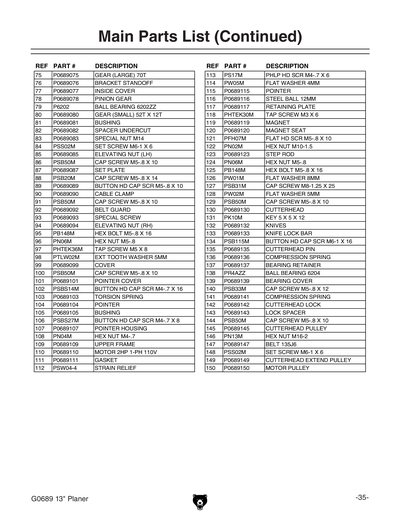

Part Diagram for G0689

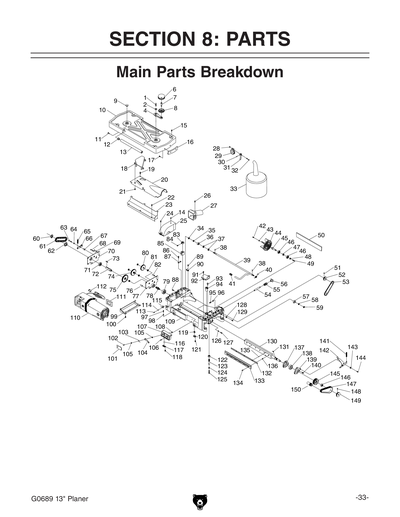

Part Diagram for G0689
Part Diagram for G0689
Part Diagram for G0689
Part Diagram for G0689
Part Diagram for G0689
Part Diagram for G0689
Part Diagram for G0689

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
2
FLAT WASHER 6MM
Price
N/A
3
*DISCD*SIDE COVER RH
Price
$19.30
4
*DISCD*HANDLE
Item is no longer available
Price
N/A
5
*DISCD*STEP KNOB
Item is no longer available
Price
N/A
6
HANDLE CAP
Price
$1.70
7
HANDLE BOLT
Price
$1.60
8
HANDLE BASE
Price
$1.60
9
*DISCD*PLUG
Item is no longer available
Price
N/A
10
*DISCD*UPPER COVER
Item is no longer available
Price
N/A
11
*DISCD*CLEVIS PIN
Price
$1.49
12
*DISCD*BUSHING
Price
$1.49
13
*DISCD*ROLLER
Item is no longer available
Price
N/A
14
*DISCD*PLUG
Item is no longer available
Price
N/A
15
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
16
*DISCD*GRIP
Price
$1.49
17
TAP SCREW M4 X 6
Price
N/A
18
AIR GUIDE
Price
$1.49
19
CAP SCREW M5-.8 X 10
Price
N/A
20
*DISCD*DUST GUARD
Item is no longer available
Price
N/A
21
TAP SCREW M4 X 10
Price
N/A
22
CAP SCREW M5-.8 X 10
Price
N/A
23
*DISCD*DUST CHUTE
Item is no longer available
Price
N/A
24
CAP SCREW M5-.8 X 10
Price
N/A
25
*DISCD*FAN COVER
Item is no longer available
Price
N/A
26
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
27
COLLECTOR TUBE
Price
$3.50
28
HEX NUT M6-1
Price
N/A
29
CLAMP
Price
$1.60
30
ROLL PIN 5 X 20
Price
N/A
31
CLAMP LEVER
Price
$1.60
32
CLAMP BOLT M6-1 X 20
Price
$1.60
33
DUST COLLECTION BAG
Price
$17.85
34
HEX NUT M8-1.25
Price
N/A
35
LOCK WASHER 8MM
Price
N/A
36
*DISCD*CAM LEFT
Item is no longer available
Price
N/A
37
EXT RETAINING RING 9MM
Price
N/A
38
LOCK LEVER PIN 3 X 12
Item is no longer available
Price
N/A
39
*DISCD*LOCK LEVER
Item is no longer available
Price
N/A
40
*DISCD*TORSION SPRING
Item is no longer available
Price
N/A
41
*DISCD*LOCK LEVER CAP
Item is no longer available
Price
N/A
42
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
43
FLAT WASHER 6MM
Price
N/A
44
*DISCD*FAN
Item is no longer available
Price
N/A
45
*DISCD*FAN SHAFT
Price
$2.20
46
BALL BEARING 6000ZZ
Price
N/A
47
IMPELLER SPACER INNER
Price
$1.60
48
IMPELLER SPACER OUTER 5MM
Price
$1.60
49
CAP SCREW M5-.8 X 10
Price
N/A
50
*DISCD*DEFLECTOR COVER
Item is no longer available
Price
N/A
51
SET SCREW M6-1 X 6
Price
N/A
52
FAN PULLEY
Item is no longer available
Price
N/A
53
*DISCD*IMPELLER BELT 135J2
Item is no longer available
Price
N/A
54
*DISCD*ROD
Item is no longer available
Price
N/A
55
*DISCD*COMPRESSION SPRING 1.8 X 18X 25.2
Item is no longer available
Price
N/A
56
PAD
Item is no longer available
Price
N/A
57
*DISCD*CAM RIGHT
Item is no longer available
Price
N/A
58
LOCK WASHER 8MM
Price
N/A
59
HEX NUT M8-1.25
Price
N/A
60
EXT RETAINING RING 24MM
Price
N/A
61
*DISCD*CHAIN #410-30
Item is no longer available
Price
N/A
62
SPROCKET
Price
$1.60
63
CAP SCREW M5-.8 X 20
Price
N/A
64
FLAT WASHER 5MM
Price
N/A
65
*DISCD*TENSION SPRING
Item is no longer available
Price
N/A
66
*DISCD*TENSION WHEEL ASSY
Item is no longer available
Price
N/A
67
*DISCD*SPACER
Price
$1.49
68
CAP SCREW M5-.8 X 30
Price
N/A
69
CAP SCREW M5-.8 X 35
Price
N/A
70
*DISCD*OUTSIDE COVER
Item is no longer available
Price
N/A
71
BALL BEARING 6002ZZ
Price
N/A
72
*DISCD*SHAFT
Item is no longer available
Price
N/A
73
KEY 4 X 4 X 20
Price
N/A
74
*DISCD*INTERMEDIATE GEAR 58T X 12T
Item is no longer available
Price
N/A
75
*DISCD*GEAR 70T LARGE
Item is no longer available
Price
N/A
76
BRACKET STANDOFF
Price
$1.60
77
*DISCD*INSIDE COVER
Item is no longer available
Price
N/A
78
*DISCD*PINION GEAR
Item is no longer available
Price
N/A
79
BALL BEARING 6202ZZ
Price
N/A
80
*DISCD*GEAR 52T/12T SMALL
Item is no longer available
Price
N/A
81
BUSHING
Price
$1.80
82
SPACER UNDERCUT
Price
$1.49
83
UPPER FRAME NUT M14
Item is no longer available
Price
N/A
84
SET SCREW M6-1 X 6
Price
N/A
85
ELEVATING NUT LH
Item is no longer available
Price
N/A
86
CAP SCREW M5-.8 X 10
Price
N/A
87
*DISCD*SET PLATE
Item is no longer available
Price
N/A
88
CAP SCREW M5-.8 X 14
Price
N/A
89
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
90
CABLE CLAMP UC-1.5
Item is no longer available
Price
N/A
91
CAP SCREW M5-.8 X 10
Price
N/A
92
*DISCD*BELT GUARD
Item is no longer available
Price
N/A
93
UPPER FRAME SCREW
Price
$1.60
94
ELEVATING NUT RH
Price
$1.60
95
HEX BOLT M5-.8 X 16
Price
N/A
96
HEX NUT M5-.8
Price
N/A
97
TAP SCREW M5 X 8
Price
N/A
98
EXT TOOTH WASHER 5MM
Price
N/A
99
*DISCD*COVER
Item is no longer available
Price
N/A
100
CAP SCREW M5-.8 X 10
Price
N/A
101
*DISCD*POINTER COVER
Price
$1.49
102
BUTTON HD CAP SCR M4-.7 X 16
Price
N/A
103
TORSION SPRING
Item is no longer available
Price
N/A
104
*DISCD*POINTER
Item is no longer available
Price
N/A
105
BUSHING
Item is no longer available
Price
N/A
106
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
107
*DISCD*POINTER HOUSING
Item is no longer available
Price
N/A
108
HEX NUT M4-.7
Price
N/A
109
*DISCD*FRAME UPPER
Item is no longer available
Price
N/A
110
*DISCD*MOTOR 2HP 110V 1-PH
Item is no longer available
Price
N/A
110-1
BRUSH
Price
$1.60
110-2
BRUSH CAP
Price
$4.60
111
GASKET 30 X 60
Price
$1.49
113
PHLP HD SCR M4-.7 X 6
Price
N/A
114
FLAT WASHER 4MM
Price
N/A
115
*DISCD*POINTER
Item is no longer available
Price
N/A
116
STEEL BALL 12MM
Price
N/A
117
*DISCD*RETAINING PLATE
Item is no longer available
Price
N/A
118
TAP SCREW M3 X 6
Price
N/A
119
*DISCD*MAGNET
Item is no longer available
Price
N/A
120
*DISCD*MAGNETIC SEAT
Item is no longer available
Price
N/A
121
FLAT HD SCR M5-.8 X 10
Price
N/A
122
HEX NUT M10-1.5
Price
N/A
123
STEP ROD
Item is no longer available
Price
N/A
124
HEX NUT M5-.8
Price
N/A
125
HEX BOLT M5-.8 X 16
Price
N/A
126
FLAT WASHER 8MM
Price
N/A
127
CAP SCREW M8-1.25 X 25
Price
N/A
128
FLAT WASHER 5MM
Price
N/A
129
CAP SCREW M5-.8 X 10
Price
N/A
130
*DISCD*CUTTERHEAD
Item is no longer available
Price
N/A
131
KEY 5 X 5 X 12
Price
N/A
132
13" x 15/32" x 1/16" HSS Planer Knives for G0689, Set of 2
Price
N/A
133
*DISCD*KNIFE LOCK BAR
Item is no longer available
Price
N/A
134
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
135
*DISCD*CUTTERHEAD PIN
Price
$1.49
136
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
137
BEARING RETAINER
Price
$2.60
139
BEARING COVER
Item is no longer available
Price
N/A
140
CAP SCREW M5-.8 X 12
Price
N/A
141
COMPRESSION SPRING
Item is no longer available
Price
N/A
142
CUTTERHEAD LOCK
Price
$3.05
143
LOCK SPACER
Price
$1.60
144
CAP SCREW M5-.8 X 10
Price
N/A
145
*DISCD*CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
146
HEX NUT M16-2
Price
N/A
147
BELT 135J6
Price
$16.95
148
SET SCREW M6-1 X 6
Price
N/A
149
CUTTERHEAD EXTEND PULLEY
Price
$3.65
150
MOTOR PULLEY
Price
$4.60
151
COMPRESSION SPRING
Price
$1.60
152
*DISCD*ROLLER
Item is no longer available
Price
N/A
153
COMPRESSION SPRING INFEED
Price
$1.60
154
EXT RETAINING RING 15MM
Price
N/A
155
SPROCKET
Price
$2.75
156
BEARING BLOCK
Price
$1.60
157
*DISCD*RETAINER
Item is no longer available
Price
N/A
158
CAP SCREW M5-.8 X 10
Price
N/A
159
*DISCD*SIDE COVER LH
Price
$19.00
160
TAP SCREW M5 X 25
Price
N/A
161
*DISCD*CORD SPOOL
Price
$1.49
162
HEX WRENCH 4MM
Price
N/A
163
MAGNET 6 X 4
Price
$1.60
164
PLATEN
Price
$19.70
165
GUIDE
Item is no longer available
Price
N/A
166
CAP SCREW M5-.8 X 10
Price
N/A
167
*DISCD*COLUMN
Item is no longer available
Price
N/A
169
FLAT WASHER 8MM
Price
N/A
170
LOCK WASHER 8MM
Price
N/A
171
*DISCD*ELEVATING SCREW
Item is no longer available
Price
N/A
172
*DISCD*BASE
Item is no longer available
Price
N/A
173
CAP SCREW M8-1.25 X 45
Price
N/A
174
HEX BOLT M6-1 X 20
Price
N/A
175
HEX NUT M6-1
Price
N/A
176
FLAT HD SCR M4-.7 X 6
Price
N/A
177
FLAT WASHER 4MM
Price
N/A
178
*DISCD*TABLE SUPPORT
Item is no longer available
Price
N/A
179
*DISCD*EXTENSION TABLE
Price
$41.15
180
*DISCD*ROLLER PLATE RIGHT
Item is no longer available
Price
N/A
181
*DISCD*IDLER BRACKET
Item is no longer available
Price
N/A
182
FLAT WASHER 5MM
Price
N/A
183
CAP SCREW M5-.8 X 12
Price
N/A
184
*DISCD*SPROCKET
Item is no longer available
Price
N/A
185
*DISCD*SPACER
Item is no longer available
Price
N/A
186
FLAT WASHER 6MM
Price
N/A
187
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
188
*DISCD*CHAIN
Item is no longer available
Price
N/A
189
FLANGE BOLT M5-.8 X 10
Price
N/A
190
BALL BEARING 6000ZZ
Price
N/A
191
BEARING RETAINER
Item is no longer available
Price
N/A
192
FLAT WASHER 10MM
Price
N/A
193
*DISCD*SPROCKET
Price
$1.95
194
FLAT WASHER 4MM
Price
N/A
195
SPACER
Item is no longer available
Price
N/A
196
BUTTON HD CAP SCR M4-.7 X 12
Price
N/A
197
HEX NUT M10-1.5
Price
N/A
198
BASE ADJUSTING SCREW
Item is no longer available
Price
N/A
199
EXT RETAINING RING 8MM
Price
N/A
200
STEP BRACKET
Item is no longer available
Price
N/A
201
*DISCD*STEP
Item is no longer available
Price
N/A
202
SHAFT
Item is no longer available
Price
N/A
203
CAP SCREW M5-.8 X 16
Price
N/A
204
STEEL BALL 6MM
Price
N/A
205
COMPRESSION SPRING
Item is no longer available
Price
N/A
206
SET SCREW M6-1 X 6
Price
N/A
207
ROLL PIN 4 X 18
Price
N/A
301
EAR PROTECTION 1.5W X 2.5H
Price
N/A
302
*DISCD*MACHINE ID LABEL
Item is no longer available
Price
N/A
303
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
304
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
305
ELECTRICITY 0.7W X 0.6H
Price
N/A
306
READ MANUAL 1.5W X 2.5H
Price
N/A
307
*DISCD*GRIZZLY LOGO LABEL
Price
$2.25
308
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
309
*DISCD*REMOVE COVER LABEL
Item is no longer available
Price
N/A
310
*DISCD*CUTTING DEPTH LABEL
Price
$2.25
MAN
*DISCD*MANUAL FOR G0689 09/08
Item is no longer available
Price
N/A
