Parts for G0691 10" 3 HP 220V Cabinet Table Saw with Long Rails & Riving Knife

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

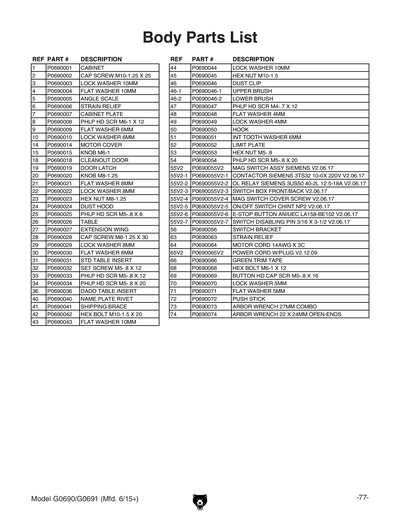

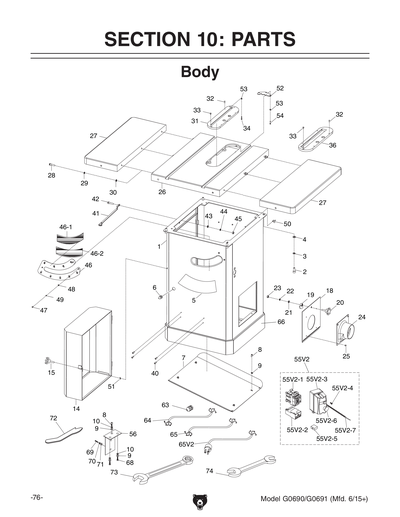

1
*DISCD*CABINET
Price
N/A
2
CAP SCREW M10-1.25 X 25
Price
N/A
3
LOCK WASHER 10MM
Price
N/A
4
Now: PW04M
FLAT WASHER 10MM
Price
N/A
5
*DISCD*ANGLE SCALE
Price
N/A
6
*DISCD*STRAIN RELIEF PG11 TYPE-10 ST
Price
N/A
7
*DISCD*CABINET PLATE
Price
N/A
8
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
9
Now: PW03M
FLAT WASHER 6MM
Price
N/A
10
LOCK WASHER 6MM
Price
N/A
14
*DISCD*MOTOR COVER
Price
N/A
15
*DISCD*KNOB M6-1
Price
N/A
18
*DISCD*CLEANOUT DOOR
Price
N/A
19
*DISCD*DOOR LATCH
Price
N/A
20
*DISCD*KNOB M8-1.25
Price
N/A
21
Now: PW01M
FLAT WASHER 8MM
Price
N/A
22
LOCK WASHER 8MM
Price
N/A
23
Now: PN03M
HEX NUT M8-1.25
Price
N/A
24
*DISCD*DUST HOOD
Price
N/A
25
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
26
*DISCD*TABLE
Price
N/A
27
*DISCD*EXTENSION WING
Price
N/A
28
CAP SCREW M8-1.25 X 30
Price
N/A
29
LOCK WASHER 8MM
Price
N/A
30
Now: PW01M
FLAT WASHER 8MM
Price
N/A
31
*DISCD*STD TABLE INSERT
Price
N/A
32
SET SCREW M5-.8 X 12
Price
N/A
33
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
33-1
*DISCD*TABLE INSERT SET SCREW M12-7 X 10
Price
N/A
34
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
36
*DISCD*DADO TABLE INSERT
Price
N/A
40
*DISCD*NAME PLATE RIVET
Price
N/A
41
*DISCD*SHIPPING BRACE
Price
N/A
42
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
43
Now: PW04M
FLAT WASHER 10MM
Price
N/A
44
LOCK WASHER 10MM
Price
N/A
45
Now: PN02M
HEX NUT M10-1.5
Price
N/A
46
*DISCD*DUST CLIP
Price
N/A
46-1
*DISCD*UPPER BRUSH
Price
N/A
46-2
*DISCD*BRUSH LOWER
Price
N/A
47
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
48
Now: PW05M
FLAT WASHER 4MM
Price
N/A
49
LOCK WASHER 4MM
Price
N/A
50
*DISCD*HOOK
Price
N/A
51
INT TOOTH WASHER 6MM
Price
N/A
52
*DISCD*LIMIT PLATE
Price
N/A
53
Now: PN06M
HEX NUT M5-.8
Price
N/A
54
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
55
*DISCD*MAGNETIC SWITCH ASSEMBLY MS-15
Price
N/A
55-1
*DISCD*MAGNETIC SWITCH ASSEMBLY MS-15
Price
N/A
55-2
*DISCD*MAGNETIC SWITCH ASSEMBLY MS-15
Price
N/A
55-3
*DISCD*MAGNETIC SWITCH ASSEMBLY MS-15
Price
N/A
55-4
*DISCD*MAGNETIC SWITCH ASSEMBLY MS-15
Price
N/A
55-5
*DISCD*MAGNETIC SWITCH ASSEMBLY MS-15
Price
N/A
56
*DISCD*SWITCH BRACKET
Price
N/A
63
*DISCD*STRAIN RELIEF PG11 TYPE-10 ST
Price
N/A
64
*DISCD*MOTOR CORD 14AWG X 3C
Price
N/A
65
*DISCD*POWER CORD 14AWG X 3C V1.01.09
Price
N/A
65V2
*DISCD*POWER CORD W/PLUG V2.12.09
Price
N/A
66
*DISCD*GREEN TRIM TAPE
Price
N/A
68
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
69
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
70
LOCK WASHER 5MM
Price
N/A
71
Now: PW02M
FLAT WASHER 5MM
Price
N/A
72
*DISCD*PUSH STICK
Price
N/A
73
*DISCD*ARBOR WRENCH 27MM COMBO
Price
N/A
74
*DISCD*ARBOR WRENCH 22 X 24MM OPEN-ENDS
Price
N/A

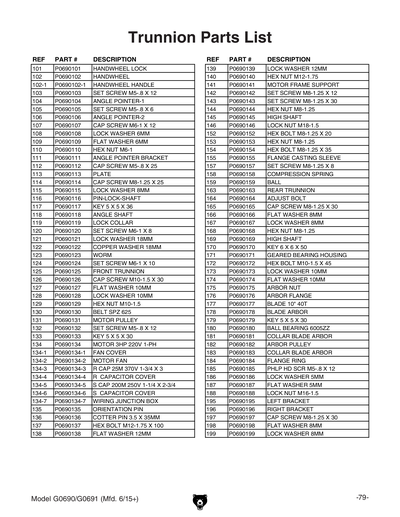

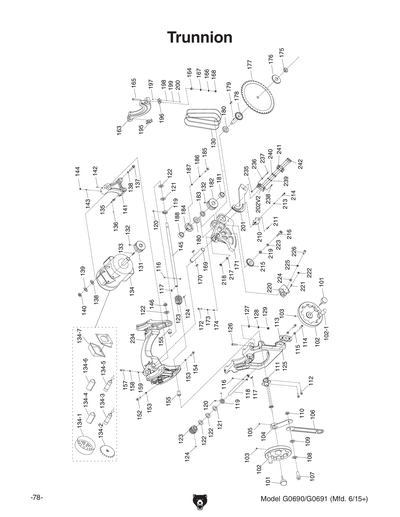

101
*DISCD*HANDWHEEL LOCK
Price
N/A
102
*DISCD*HANDWHEEL
Price
N/A
103
SET SCREW M5-.8 X 12
Price
N/A
104
*DISCD*ANGLE POINTER 1
Price
N/A
105
SET SCREW M5-.8 X 6
Price
N/A
106
*DISCD*ANGLE POINTER 2
Price
N/A
107
CAP SCREW M6-1 X 12
Price
N/A
108
LOCK WASHER 6MM
Price
N/A
109
Now: PW03M
FLAT WASHER 6MM
Price
N/A
110
Now: PN01M
HEX NUT M6-1
Price
N/A
111
*DISCD*ANGLE POINTER BRACKET
Price
N/A
112
CAP SCREW M5-.8 X 25
Price
N/A
113
*DISCD*PLATE
Price
N/A
114
CAP SCREW M8-1.25 X 25
Price
N/A
115
LOCK WASHER 8MM
Price
N/A
116
DOWEL PIN
Price
N/A
117
KEY 5 X 5 X 36
Price
N/A
118
*DISCD*ANGLE SHAFT
Price
N/A
119
*DISCD*LOCK COLLAR
Price
N/A
120
SET SCREW M6-1 X 8
Price
N/A
121
*DISCD*WAVE WASHER 21MM ID
Item is no longer available
Price
N/A
122
*DISCD*WASHER 20MM COPPER
Price
N/A
123
*DISCD*WORM
Price
N/A
124
SET SCREW M6-1 X 10
Price
N/A
125
*DISCD*TRUNNION FRONT
Price
N/A
126
CAP SCREW M10-1.5 X 30
Price
N/A
127
Now: PW04M
FLAT WASHER 10MM
Price
N/A
128
LOCK WASHER 10MM
Price
N/A
129
Now: PN02M
HEX NUT M10-1.5
Price
N/A
130
***SEE EXT. DESCRIPTION***
Price
N/A
131
*DISCD*MOTOR PULLEY
Price
N/A
132
SET SCREW M5-.8 X 12
Price
N/A
133
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
134
MOTOR 3HP 220V 1-PH V2.09.21
Price
N/A
134-1
*DISCD*FAN COVER
Price
N/A
134-2
*DISCD*MOTOR FAN
Price
N/A
134-3
*DISCD*R CAPACITOR 25M 370V 1-3/4 X 3
Price
N/A
134-4
*DISCD*R CAPACITOR COVER
Price
N/A
134-5
*DISCD*S CAPACITOR 200M 250V 1-1/4 X 2-3
Price
N/A
134-6
*DISCD*S CAPACITOR COVER
Price
N/A
134-7
*DISCD*WIRING JUNCTION BOX
Price
N/A
134V2
MOTOR 3HP 220V 1-PH V2.09.21
Price
N/A
135
*DISCD*ORIENTATION PIN
Price
N/A
136
*DISCD*COTTER PIN 3.5 X 35MM
Price
N/A
137
HEX BOLT M12-1.75 X 100
Price
N/A
138
Now: PW06M
FLAT WASHER 12MM
Price
N/A
139
LOCK WASHER 12MM
Price
N/A
140
Now: PN09M
HEX NUT M12-1.75
Price
N/A
141
*DISCD*MOTOR FRAME SUPPORT
Price
N/A
142
SET SCREW M8-1.25 X 12
Price
N/A
143
SET SCREW M8-1.25 X 30
Price
N/A
144
Now: PN03M
HEX NUT M8-1.25
Price
N/A
145
*DISCD*HIGH SHAFT
Price
N/A
146
LOCK NUT M18-1.5
Price
N/A
152
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
153
Now: PN03M
HEX NUT M8-1.25
Price
N/A
154
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
155
*DISCD*FLANGE CASTING SLEEVE
Price
N/A
157
SET SCREW M8-1.25 X 8
Price
N/A
158
*DISCD*COMPRESSION SPRING
Price
N/A
159
*DISCD*BALL
Price
N/A
163
*DISCD*TRUNNION REAR
Price
N/A
164
*DISCD*ADJUST BOLT
Price
N/A
165
CAP SCREW M8-1.25 X 30
Price
N/A
166
Now: PW01M
FLAT WASHER 8MM
Price
N/A
167
LOCK WASHER 8MM
Price
N/A
168
Now: PN03M
HEX NUT M8-1.25
Price
N/A
169
*DISCD*HIGH SHAFT
Price
N/A
170
Now: PK44M
KEY 6 X 6 X 50
Price
N/A
171
*DISCD*GEARED BEARING HOUSING
Price
N/A
172
HEX BOLT M10-1.5 X 45
Price
N/A
173
LOCK WASHER 10MM
Price
N/A
174
Now: PW04M
FLAT WASHER 10MM
Price
N/A
175
*DISCD*ARBOR NUT
Price
N/A
176
*DISCD*ARBOR FLANGE
Price
N/A
177
*DISCD*BLADE 10" 40T
Price
N/A
178
*DISCD*BLADE ARBOR
Price
N/A
179
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
180
BALL BEARING 6005ZZ
Price
N/A
181
*DISCD*COLLAR BLADE ARBOR
Price
N/A
182
*DISCD*ARBOR PULLEY
Price
N/A
183
*DISCD*COLLAR BLADE ARBOR
Price
N/A
184
*DISCD*FLANGE RING
Price
N/A
185
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
186
LOCK WASHER 5MM
Price
N/A
187
Now: PW02M
FLAT WASHER 5MM
Price
N/A
188
***USE PLN15M***
Price
N/A
195
*DISCD*BRACKET LEFT
Price
N/A
196
*DISCD*BRACKET RIGHT
Price
N/A
197
CAP SCREW M8-1.25 X 30
Price
N/A
198
Now: PW01M
FLAT WASHER 8MM
Price
N/A
199
LOCK WASHER 8MM
Price
N/A
200
Now: PN03M
HEX NUT M8-1.25
Price
N/A

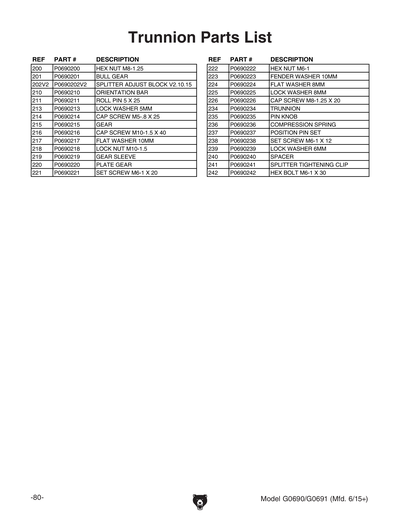

201
*DISCD*BULL GEAR
Price
N/A
202
*DISCD*SPLITTER ADJUST BLOCK
Price
N/A
203
Now: PW03M
FLAT WASHER 6MM
Price
N/A
204
LOCK WASHER 6MM
Price
N/A
205
CAP SCREW M6-1 X 25
Price
N/A
206
SET SCREW M6-1 X 12
Price
N/A
207
*DISCD*SPLITTER TIGHTEN CLIP
Price
N/A
208
LOCK WASHER 6MM
Price
N/A
209
Now: PB08M
HEX BOLT M6-1 X 20
Price
N/A
210
*DISCD*ORIENTATION BAR
Price
N/A
211
ROLL PIN 5 X 25
Price
N/A
213
LOCK WASHER 5MM
Price
N/A
214
CAP SCREW M5-.8 X 25
Price
N/A
215
*DISCD*GEAR
Price
N/A
216
CAP SCREW M10-1.5 X 40
Price
N/A
217
Now: PW04M
FLAT WASHER 10MM
Price
N/A
218
LOCK NUT M10-1.5
Price
N/A
219
*DISCD*GEAR SLEEVE
Price
N/A
220
*DISCD*PLATE GEAR
Price
N/A
221
SET SCREW M6-1 X 20
Price
N/A
222
Now: PN01M
HEX NUT M6-1
Price
N/A
223
FENDER WASHER 10MM
Price
N/A
224
Now: PW01M
FLAT WASHER 8MM
Price
N/A
225
LOCK WASHER 8MM
Price
N/A
226
CAP SCREW M8-1.25 X 20
Price
N/A
230
*DISCD*SPACER
Price
N/A
231
*DISCD*SPLITTER ADJUST BLOCK V2.10.15
Price
N/A
232
LOCK WASHER 4MM
Price
N/A
233
SET SCREW M4-.7 X 12
Price
N/A
234
*DISCD*TRUNNION
Price
N/A

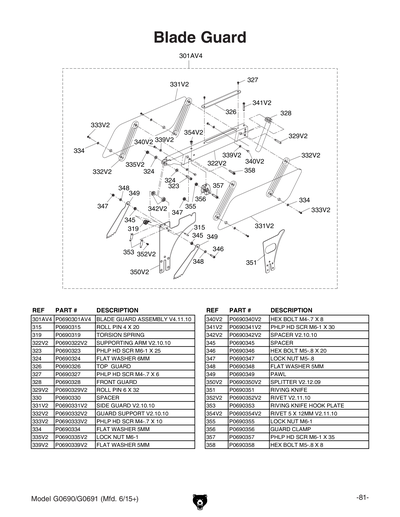

301A
*DISCD*BLADE GUARD ASSEMBLY V4.11.10
Price
N/A
301AV2
*DISCD*BLADE GUARD ASSEMBLY V2.12.09
Price
N/A
301AV3
*DISCD*BLADE GUARD ASSEMBLY V4.11.10
Price
N/A
301AV4
*DISCD*BLADE GUARD ASSEMBLY V4.11.10
Price
N/A
315
ROLL PIN 4 X 20
Price
N/A
319
*DISCD*TORSION SPRING
Price
N/A
321
*DISCD*SPACER
Price
N/A
322
*DISCD*SUPPORTING ARM V1
Price
N/A
322V2
*DISCD*SUPPORTING ARM V2.10.10
Price
N/A
323
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
324
Now: PW03M
FLAT WASHER 6MM
Price
N/A
326
*DISCD*TOP GUARD
Price
N/A
327
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
328
*DISCD*GUARD FRONT
Price
N/A
329
ROLL PIN 6 X 28
Price
N/A
329V2
ROLL PIN 6 X 32
Price
N/A
330
*DISCD*SPACER
Price
N/A
331
*DISCD*SIDE GUARD V1
Price
N/A
331V2
*DISCD*SIDE GUARD V2.10.10
Price
N/A
332
*DISCD*GUARD SUPPORT V1
Price
N/A
332V2
*DISCD*GUARD SUPPORT V2.10.10
Price
N/A
333
FLAT HD SCR M5-.8 X 12
Price
N/A
333V2
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
334
Now: PW02M
FLAT WASHER 5MM
Price
N/A
335
LOCK NUT M5-.8
Price
N/A
335V2
LOCK NUT M6-1
Price
N/A
336
*DISCD*GUARD SUPPORT SCR M5-.8 X 15
Price
N/A
337
*DISCD*SPRING, SPLITTER, ARM
Price
N/A
338
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
339
LOCK NUT M5-.8
Price
N/A
340
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
340V2
HEX BOLT M4-.7 X 8
Price
N/A
341
Now: PS83M
PHLP HD SCR M6-1 X 45
Price
N/A
341V2
Now: PS62M
PHLP HD SCR M6-1 X 30
Price
N/A
342
*DISCD*SPACER V1
Price
N/A
342V2
*DISCD*SPACER V2.10.10
Price
N/A
345
*DISCD*SPACER
Price
N/A
346
Now: PB42M
HEX BOLT M5-.8 X 20
Price
N/A
347
LOCK NUT M5-.8
Price
N/A
348
Now: PW02M
FLAT WASHER 5MM
Price
N/A
349
*DISCD*PAWL
Price
N/A
350
*DISCD*BLADE GUARD ASSEMBLY V4.11.10
Price
N/A
350V2
*DISCD*BLADE GUARD ASSEMBLY V4.11.10
Price
N/A
351
*DISCD*RIVING KNIFE
Price
N/A
352
Now: PB11M
HEX BOLT M5-.8 X 8
Price
N/A
352V2
*DISCD*RIVET 4 X 8MM BLIND, STEEL
Price
N/A
353
*DISCD*RIVING KNIFE HOOK PLATE
Price
N/A
354
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
354V2
*DISCD*RIVET 5 X 12MM BLIND, STEEL
Price
N/A
355
LOCK NUT M6-1
Price
N/A
356
*DISCD*GUARD CLAMP
Price
N/A
357
Now: PS31M
PHLP HD SCR M6-1 X 35
Price
N/A
358
Now: PB11M
HEX BOLT M5-.8 X 8
Price
N/A

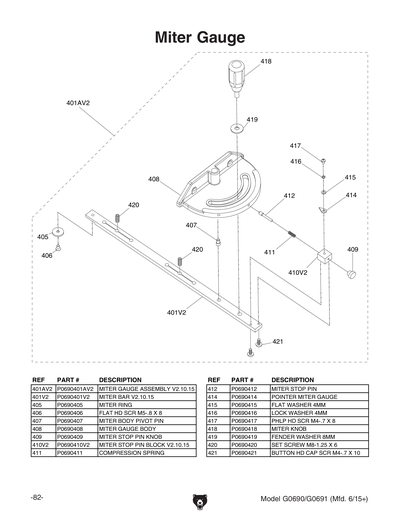

401
*DISCD*MITER GAUGE ASSEMBLY V2.10.15
Price
N/A
402
*DISCD*GIB
Price
N/A
403
SET SCREW M4-.7 X 6
Price
N/A
404
CAP SCREW M4-.7 X 14
Price
N/A
405
*DISCD*MITER RING
Price
N/A
406
FLAT HD SCR M5-.8 X 8
Price
N/A
407
*DISCD*MITER BODY PIVOT PIN
Price
N/A
408
*DISCD*MITER GAUGE BODY
Price
N/A
409
*DISCD*MITER STOP PIN KNOB
Price
N/A
410
*DISCD*MITER GAUGE ASSEMBLY V2.10.15
Price
N/A
411
*DISCD*COMPRESSION SPRING
Price
N/A
412
*DISCD*MITER STOP PIN
Price
N/A
413
FLAT HD SCR M4-.7 X 20
Price
N/A
414
*DISCD*POINTER MITER GAUGE
Price
N/A
415
Now: PW05M
FLAT WASHER 4MM
Price
N/A
416
LOCK WASHER 4MM
Price
N/A
417
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
418
*DISCD*MITER KNOB
Price
N/A
419
FENDER WASHER 8MM
Price
N/A

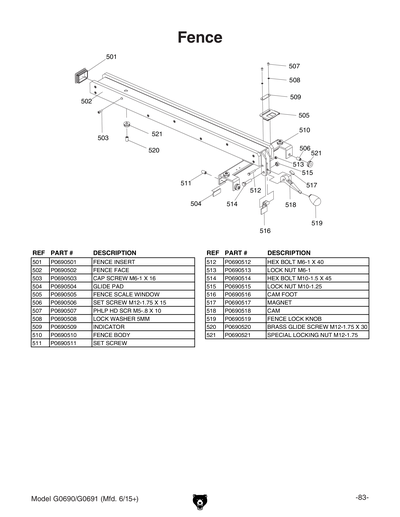

501
*DISCD*FENCE INSERT
Price
N/A
502
*DISCD*FENCE FACE
Price
N/A
503
CAP SCREW M6-1 X 16
Price
N/A
504
*DISCD*GLIDE PAD
Price
N/A
505
*DISCD*FENCE SCALE WINDOW
Price
N/A
506
*DISCD*BRASS GLIDE SCREW M12-1.75 X 16
Price
N/A
507
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
508
LOCK WASHER 5MM
Price
N/A
509
*DISCD*INDICATOR
Price
N/A
510
*DISCD*FENCE BODY
Price
N/A
511
*DISCD*SET SCREW M12-1 X 10
Price
N/A
512
Now: PB47M
HEX BOLT M6-1 X 40
Price
N/A
513
LOCK NUT M6-1
Price
N/A
514
HEX BOLT M10-1.5 X 45
Price
N/A
515
LOCK NUT M10-1.25
Price
N/A
516
*DISCD*CAM FOOT
Price
N/A
517
*DISCD*MAGNET
Price
N/A
518
*DISCD*CAM
Price
N/A
519
*DISCD*FENCE LOCK KNOB
Price
N/A
520
*DISCD*GLIDE SCREW M12-1.75 X 30
Price
N/A
521
*DISCD*ALUMINUM LOCK NUT M12-1.75
Price
N/A

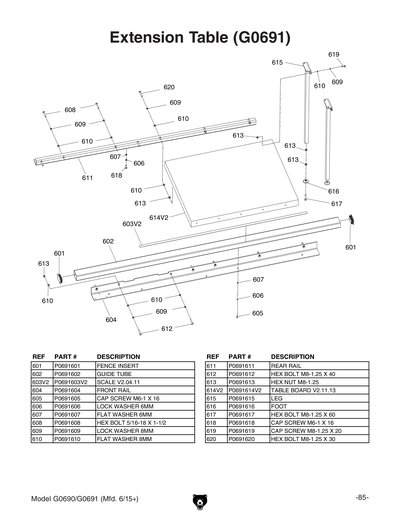

601
*DISCD*FENCE INSERT
Price
N/A
602
*DISCD*GUIDE TUBE
Item is no longer available
Price
N/A
603
*DISCD*SCALE
604
*DISCD*RAIL FRONT
605
CAP SCREW M6-1 X 16
Price
N/A
606
LOCK WASHER 6MM
Price
N/A
607
Now: PW03M
FLAT WASHER 6MM
Price
N/A
608
Now: PB11
HEX BOLT 5/16-18 X 1-1/2
Price
N/A
609
LOCK WASHER 8MM
Price
N/A
610
Now: PW01M
FLAT WASHER 8MM
Price
N/A
611
*DISCD*RAIL REAR
Item is no longer available
Price
N/A
612
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
613
Now: PN03M
HEX NUT M8-1.25
Price
N/A
614
*DISCD*TABLE BOARD 50"
Item is no longer available
Price
N/A
615
*DISCD*LEG
616
*DISCD*FOOT
Item is no longer available
Price
N/A
616V2
*DISCD*SUPPORT FOOT M8-1.25 X 60
Item is no longer available
Price
N/A
617
Now: PB28M
HEX BOLT M8-1.25 X 60
Price
N/A
618
CAP SCREW M6-1 X 16
Price
N/A
619
CAP SCREW M8-1.25 X 20
Price
N/A
620
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A

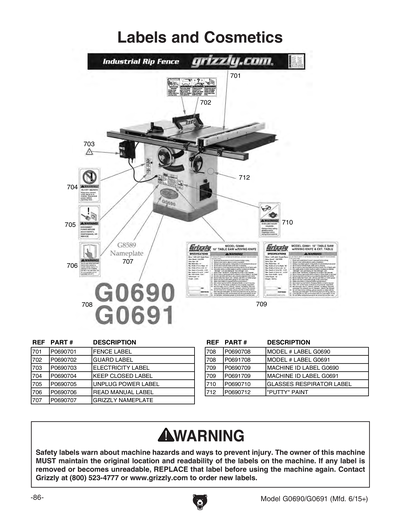

701
*DISCD*FENCE LABEL
Price
N/A
702
*DISCD*GUARD LABEL
Price
N/A
703
ELECTRICITY 1.4W X 1.2H
Price
N/A
704
*DISCD*KEEP CLOSED LABEL
Price
N/A
705
DISCONNECT 220V 2W X 3.3H
Price
N/A
706
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
707
Now: G8589
Nameplate - Large
Price
N/A
708
*DISCD*MODEL NUMBER LABEL
Item is no longer available
Price
N/A
709
MACHINE ID LABEL
Item is no longer available
Price
N/A
710
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
711
N/S GRIZZLY GREEN G1023S
Price
N/A
712
GREY PUTTY REF G0504
Price
N/A
BOX2
*DISCD*COMPLETE FENCE ASSY W/COMPONENTS
Item is no longer available
Price
N/A
BOX3
*DISCD*COMPLETE RAIL ASSY BOX 3
Item is no longer available
Price
N/A
BOX4
*DISCD*TABLE EXTENSION BOX 4 OF 4
Item is no longer available
Price
N/A
HDWBAG
*DISCD*HARDWARE BAG
MAN
MANUAL FOR G0691 11/08
