Parts for G0692 - 14" Dry Cut Metal Saw

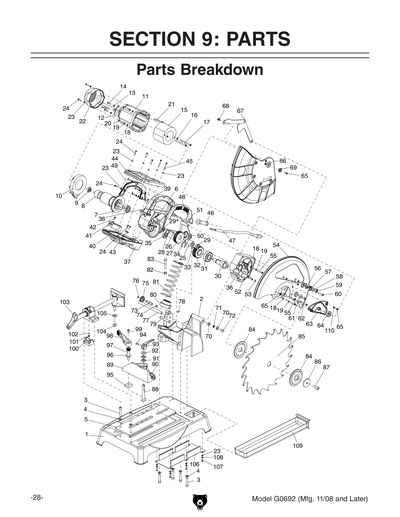

Part Diagram for G0692
Part Diagram for G0692
Part Diagram for G0692
Part Diagram for G0692
Part Diagram for G0692
Part Diagram for G0692

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

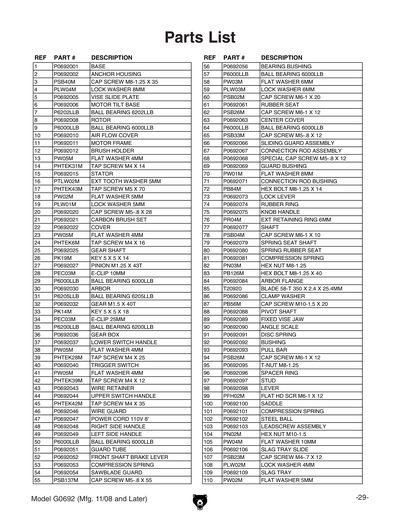

Ref #
Part #
Description
1
*DISCD*BASE
Item is no longer available
Price
N/A
2
*DISCD*ANCHOR HOUSING
Item is no longer available
Price
N/A
3
CAP SCREW M8-1.25 X 35
Price
N/A
4
LOCK WASHER 8MM
Price
N/A
5
*DISCD*VISE SLIDE PLATE
Item is no longer available
Price
N/A
6
*DISCD*MOTOR TILT BASE
Item is no longer available
Price
N/A
7
BALL BEARING 6202LLB
Price
N/A
8
*DISCD*ROTOR
Price
$210.45
9
BALL BEARING 6000LLB
Price
N/A
10
*DISCD*AIR FLOW COVER
Item is no longer available
Price
N/A
11
*DISCD*MOTOR FRAME
Item is no longer available
Price
N/A
12
*DISCD*BRUSH HOLDER
Item is no longer available
Price
N/A
13
FLAT WASHER 4MM
Price
N/A
14
TAP SCREW M4 X 14
Price
N/A
15
*DISCD*STATOR
Item is no longer available
Price
N/A
16
EXT TOOTH WASHER 5MM
Price
N/A
17
TAP SCREW M5 X 70
Price
N/A
18
FLAT WASHER 5MM
Price
N/A
19
LOCK WASHER 5MM
Price
N/A
20
*DISCD*CAP SCREW M5-.8 X 28
Item is no longer available
Price
N/A
21
*DISCD*CARBON BRUSH (SINGLE)
Price
$2.60
22
*DISCD*COVER
Item is no longer available
Price
N/A
23
FLAT WASHER 4MM
Price
N/A
24
TAP SCREW M4 X 16
Price
N/A
25
*DISCD*GEAR SHAFT
Item is no longer available
Price
N/A
26
KEY 5 X 5 X 14
Price
N/A
27
*DISCD*PINION M1.25 X 43T
Item is no longer available
Price
N/A
28
E-CLIP 10MM
Price
N/A
29
BALL BEARING 6000LLB
Price
N/A
30
*DISCD*ARBOR
Item is no longer available
Price
N/A
31
BALL BEARING 6205LLB
Price
N/A
32
*DISCD*GEAR 40T X M1.5
Item is no longer available
Price
N/A
33
KEY 5 X 5 X 18
Price
N/A
34
E-CLIP 10MM
Price
N/A
35
BALL BEARING 6200-2RS
Price
N/A
36
*DISCD*GEAR BOX
Item is no longer available
Price
N/A
37
*DISCD*SWITCH HANDLE LOWER
Item is no longer available
Price
N/A
38
FLAT WASHER 4MM
Price
N/A
39
TAP SCREW M4 X 25
Price
N/A
40
*DISCD*TRIGGER SWITCH
Item is no longer available
Price
N/A
41
FLAT WASHER 4MM
Price
N/A
42
TAP SCREW M4 X 12
Price
N/A
43
*DISCD*WIRE RETAINER
Item is no longer available
Price
N/A
44
*DISCD*SWITCH HANDLE UPPER
Item is no longer available
Price
N/A
45
TAP SCREW M4 X 35
Price
N/A
46
*DISCD*WIRE GUARD
Item is no longer available
Price
N/A
47
*DISCD*POWER CORD 110V 8'
Item is no longer available
Price
N/A
48
*DISCD*HANDLE RIGHT
Item is no longer available
Price
N/A
49
*DISCD*SIDE HANDLE LEFT
Item is no longer available
Price
N/A
50
BALL BEARING 6000LLB
Price
N/A
51
*DISCD*GUARD TUBE
Item is no longer available
Price
N/A
52
*DISCD*SHAFT BRAKE LEVER FRONT
Price
$3.20
53
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
54
*DISCD*SAW BLADE GUARD
Item is no longer available
Price
N/A
55
CAP SCREW M5-.8 X 55
Price
N/A
56
*DISCD*BEARING BUSHING
Item is no longer available
Price
N/A
57
BALL BEARING 6000LLB
Price
N/A
58
FLAT WASHER 6MM
Price
N/A
59
LOCK WASHER 6MM
Price
N/A
60
CAP SCREW M6-1 X 20
Price
N/A
61
*DISCD*RUBBER SEAT
Item is no longer available
Price
N/A
62
CAP SCREW M6-1 X 12
Price
N/A
63
*DISCD*CENTER COVER
Price
$6.90
64
BALL BEARING 6000LLB
Price
N/A
65
CAP SCREW M5-.8 X 12
Price
N/A
66
*DISCD*SLIDING GUARD ASSY
Item is no longer available
Price
N/A
67
*DISCD*CONNECTING ROD ASSY
Price
$12.95
68
*DISCD*CONNECTION ROD CAP SCREW M5-.8 X
Price
$1.49
69
*DISCD*GUARD BUSHING
Price
$1.75
70
FLAT WASHER 8MM
Price
N/A
71
*DISCD*CONNECTION ROD BUSHING
Item is no longer available
Price
N/A
72
HEX BOLT M8-1.25 X 14
Price
N/A
73
*DISCD*LOCK LEVER
Item is no longer available
Price
N/A
74
*DISCD*RUBBER RING
Item is no longer available
Price
N/A
75
*DISCD*KNOB HANDLE
Item is no longer available
Price
N/A
76
EXT RETAINING RING 6MM
Price
N/A
77
*DISCD*SHAFT
Item is no longer available
Price
N/A
78
CAP SCREW M6-1 X 10
Price
N/A
79
*DISCD*SPRING SEAT SHAFT
Item is no longer available
Price
N/A
80
*DISCD*SPRING RUBBER SEAT
Item is no longer available
Price
N/A
81
*DISCD*COMPRESSION SPRING
Item is no longer available
Price
N/A
82
HEX NUT M8-1.25
Price
N/A
83
HEX BOLT M8-1.25 X 40
Price
N/A
84
*DISCD*ARBOR FLANGE
Item is no longer available
Price
N/A
85
14" x 1" x 58t General Purpose Cold Cut Saw Blade for G0692
Price
N/A
86
*DISCD*CLAMP WASHER
Item is no longer available
Price
N/A
87
CAP SCREW M3-.5 X 10
Price
N/A
88
*DISCD*PIVOT SHAFT
Item is no longer available
Price
N/A
89
*DISCD*FIXED VISE JAW
Item is no longer available
Price
N/A
90
*DISCD*ANGLE SCALE
Item is no longer available
Price
N/A
91
*DISCD*DISC SPRING
Item is no longer available
Price
N/A
92
*DISCD*BUSHING
Item is no longer available
Price
N/A
93
*DISCD*PULL BAR
Item is no longer available
Price
N/A
94
CAP SCREW M6-1 X 12
Price
N/A
95
*DISCD*T-NUT M8-1.25
Item is no longer available
Price
N/A
96
*DISCD*SPACER RING
Item is no longer available
Price
N/A
97
*DISCD*SHOULDER STUD
Item is no longer available
Price
N/A
98
*DISCD*LEVER
Item is no longer available
Price
N/A
99
FLAT HD SCR M6-1 X 12
Price
N/A
100
*DISCD*SADDLE
Price
$11.50
101
*DISCD*COMPRESSION SPRING 5 X 7.5 X0.6MM
Item is no longer available
Price
N/A
102
STEEL BALL 4MM
Price
N/A
103
*DISCD*LEADSCREW ASSY
Price
$89.15
104
HEX NUT M10-1.5
Price
N/A
105
FLAT WASHER 10MM
Price
N/A
106
*DISCD*SLAG TRAY SLIDE
Item is no longer available
Price
N/A
107
CAP SCREW M4-.7 X 12
Price
N/A
108
LOCK WASHER 4MM
Price
N/A
109
*DISCD*SLAG TRAY
Item is no longer available
Price
N/A
110
FLAT WASHER 5MM
Price
N/A
200

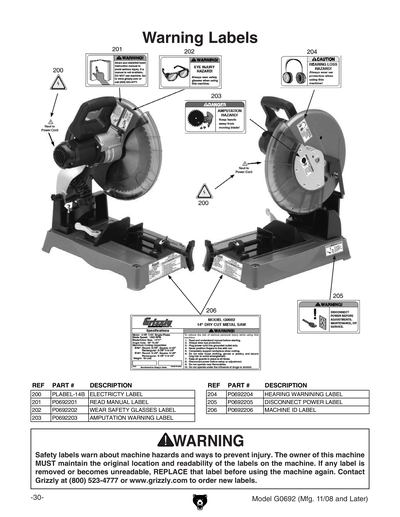

ELECTRICITY 0.5W X 0.4H
Price
N/A
201
*DISCD*READ MANUAL LABEL
Item is no longer available
Price
N/A
202
*DISCD*WEAR SAFETY GLASSES LABEL
Item is no longer available
Price
N/A
203
*DISCD*AMPUTATION WARNING LABEL
Item is no longer available
Price
N/A
204
*DISCD*HEARING WARNING LABEL
Item is no longer available
Price
N/A
205
*DISCD*DISCONNECT POWER LABEL
Item is no longer available
Price
N/A
206
MACHINE ID LABEL
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0692 01/09
Price
$14.65
PHTEK42M
TAP SCREW M4 X 35
Item is no longer available
Price
N/A
P
TAP SCREW M5 X 70
Price
$1.49
