Parts for G0698 18" X 47" Wood Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

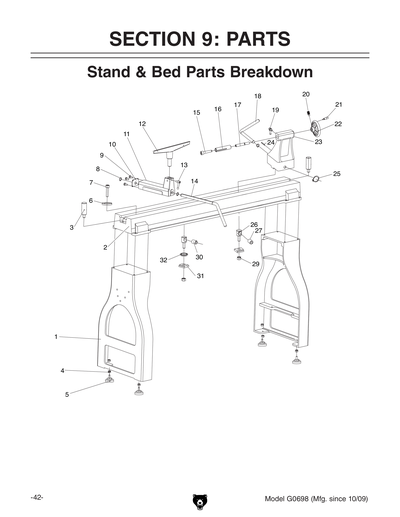

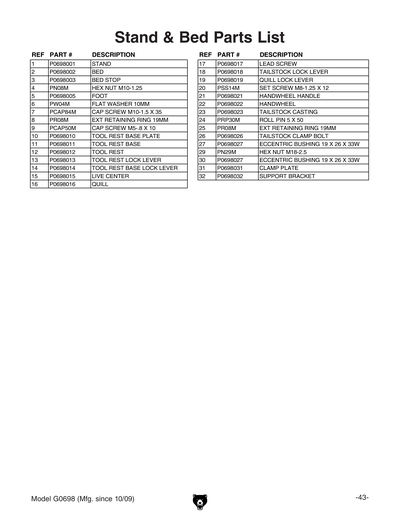

1
STAND SET
2
BED GREEN
3
BED STOP
Item is no longer available
Price
N/A
4
Now: PN08M
HEX NUT M10-1.25
Price
N/A
5
FOOT
6
Now: PW04M
FLAT WASHER 10MM
Price
N/A
7
CAP SCREW M10-1.5 X 35
Price
N/A
8
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
9
CAP SCREW M5-.8 X 10
Price
N/A
10
TOOL REST BASE PLATE
11
*DISCD*TOOL REST BASE
Item is no longer available
Price
N/A
12
TOOL REST
12-1
COMPLETE TOOL REST ASSY
13
TOOL REST LOCK LEVER
14
TOOL REST BASE LOCK LEVER
15
Now: H3404
Cupped Live Center for Wood Lathe - MT2
Price
N/A
16
QUILL
17
LEAD SCREW
18
TAILSTOCK LOCK LEVER
19
QUILL STOCK LEVER
20
SET SCREW M8-1.25 X 12
Price
N/A
21
HANDWHEEL HANDLE
22
HANDWHEEL
23
TAILSTOCK CASTING (GREEN)
24
ROLL PIN 5 X 50
Price
N/A
25
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
26
TAILSTOCK CLAMP BOLT
27
ECCENTRIC BUSHING 19 X 26 X 33W
29
Now: PN29M
HEX NUT M18-2.5
Price
N/A
30
ECCENTRIC BUSHING 19 X 26 X 33W
Price
N/A
31
CLAMP PLATE
32
SUPPORT BRACKET
33

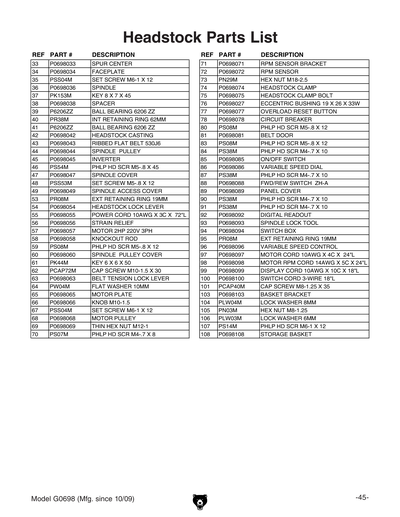

SPUR CENTER
34
FACEPLATE
35
SET SCREW M6-1 X 12
Price
N/A
36

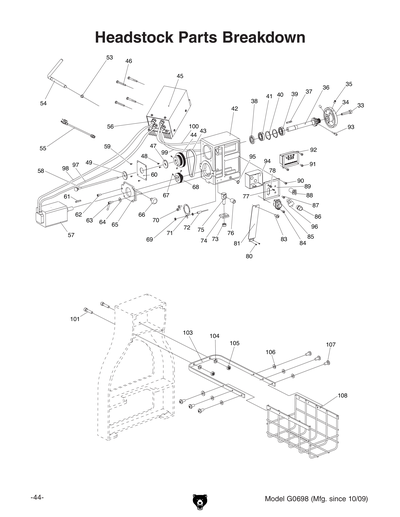

SPINDLE
37
KEY 8 X 7 X 45
Price
N/A
38
SPACER
Item is no longer available
Price
N/A
39
BALL BEARING 6206ZZ
Price
N/A
40
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
41
BALL BEARING 6206ZZ
Price
N/A
42
HEADSTOCK CASTING (GREEN)
42A
HEADSTOCK ASSEMBLY
43
RIBBED FLAT BELT 530J6
44
SPINDLE PULLEY W/MAGNETS
44-1
SPINDLE PULLEY MAGNETS - SET OF 3
Price
N/A
45
*DISCD*MOTOR 2HP 220V 3-PH/INVERTER ASSY
Price
N/A
46
Now: PS54M
PHLP HD SCR M5-.8 X 45
Price
N/A
47
SPINDLE COVER
Item is no longer available
Price
N/A
48
SET SCREW M5-.8 X 12
Price
N/A
49
SPINDLE ACCESS COVER
53
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
54
HEADSTOCK LOCK LEVER
55
POWER CORD 104WG X 3C X 72"L
Item is no longer available
Price
N/A
56
STRAIN RELIEF M20
Item is no longer available
Price
N/A
57
***USE P0698057A***
57A
*DISCD*MOTOR 2HP 220V 3-PH/INVERTER ASSY
58
KNOCKOUT ROD
59
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
60
SPINDLE PULLEY COVER
61
Now: PK44M
KEY 6 X 6 X 50
Price
N/A
62
CAP SCREW M10-1.5 X 30
Price
N/A
63
BELT TENSION LOCK LEVER
64
Now: PW04M
FLAT WASHER 10MM
Price
N/A
65
MOTOR PLATE
Item is no longer available
Price
N/A
66
KNOB M10-1.5
Item is no longer available
Price
N/A
67
SET SCREW M6-1 X 12
Price
N/A
68
MOTOR PULLEY
69
THIN HEX NUT M12-1
Item is no longer available
Price
N/A
70
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
71
RPM SENSOR BRACKET
Item is no longer available
Price
N/A
72
RPM SENSOR
73
Now: PN29M
HEX NUT M18-2.5
Price
N/A
74
HEADSTOCK CLAMP
75
HEADSTOCK CLAMP BOLT
Item is no longer available
Price
N/A
76
ECCENTRIC BUSHING 19 X 26 X 33W
Price
N/A
77
OVERLOAD RESET BUTTON
78
CIRCUIT BREAKER
80
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
81
BELT DOOR
83
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
84
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
85
ON/OFF SWITCH
86
VARIABLE SPEED DIAL
87
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
88
FWD/REV SWITCH KEDU EN61058
Price
N/A
89
PANEL COVER
90
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
91
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
92
DIGITAL READOUT
93
SPINDLE LOCK TOOL
94
SWITCH BOX
Item is no longer available
Price
N/A
95
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
96
POTENTIOMETER B10K
97
MOTOR CORD 10AWG X 4C X 24"L
Item is no longer available
Price
N/A
98
MOTOR RPM CORD 14AWG X 5C X 24"L
Item is no longer available
Price
N/A
99
DISPLAY CORD 10AWG X 10 C 18"L
Item is no longer available
Price
N/A
100
SWITCH CORD 3-WIRE 18"L
Item is no longer available
Price
N/A
101
CAP SCREW M8-1.25 X 35
Price
N/A
103
BASKET BRACKET
104
LOCK WASHER 8MM
Price
N/A
105
Now: PN03M
HEX NUT M8-1.25
Price
N/A
106
LOCK WASHER 6MM
Price
N/A
107
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
108
STORAGE BASKET

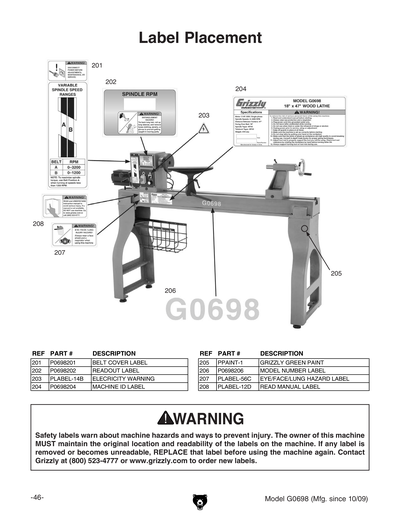

201
BELT COVER LABEL
Item is no longer available
Price
N/A
202
READOUT LABEL
203
ELECTRICITY 0.5W X 0.4H
Price
N/A
204
MACHINE ID LABEL
Item is no longer available
Price
N/A
205
N/S GRIZZLY GREEN G1023S
Price
N/A
206
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
207
FACE SHIELD/RESPIRATOR 2.8W X 1.5H
Price
N/A
208
READ MANUAL 2.8W X 1.5H
Price
N/A
MAN
MANUAL FOR G0698
