Parts for G0707 - Sandblasting Cabinet 24" x 37"

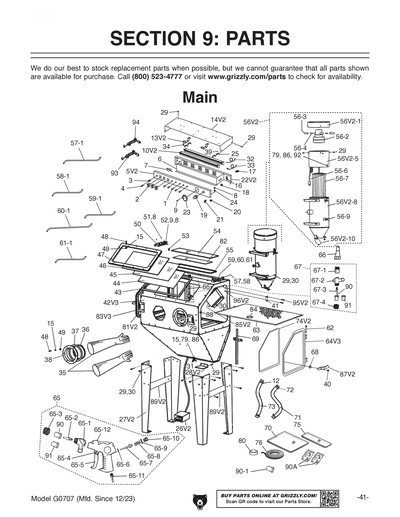

Part Diagram for G0707
Part Diagram for G0707
Part Diagram for G0707
Part Diagram for G0707
Part Diagram for G0707
Part Diagram for G0707
Part Diagram for G0707
Part Diagram for G0707

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

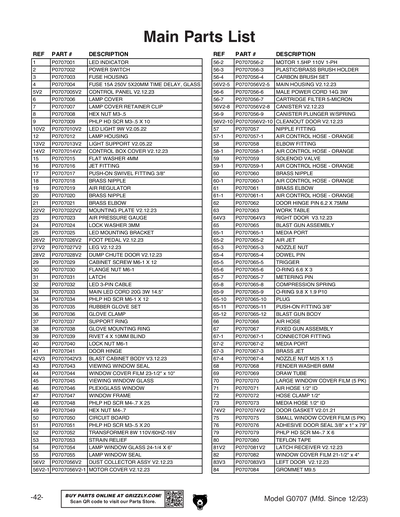

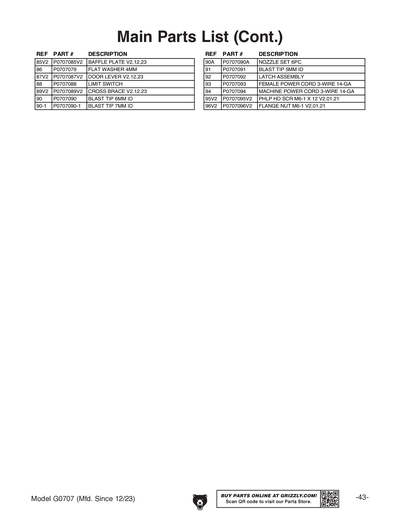

Ref #
Part #
Description
1
LED INDICATOR
Price
$1.90
2
***USE P0714020***
Price
N/A
3
FUSE HOUSING
Price
$3.65
4
FUSE 15A 250V 5X20MM TIME DELAY, GLASS
Price
$1.90
5
*DISCD*CONTROL PANEL V1
Price
$26.75
5V2
CONTROL PANEL V2.11.23
Price
$40.15
6
LAMP COVER
Price
$107.85
7
LAMP COVER RETAINER CLIP
Price
$35.95
8
HEX NUT M3-.5
Price
N/A
9
PHLP HD SCR M3-.5 X 10
Price
N/A
10
FLORESCENT BULB 18W V1
Price
N/A
10V2
LED LIGHT 9W V2.05.22
Price
$62.60
11
STRAIN RELIEF
Price
$5.45
12
LAMP HOUSING
Price
$83.40
13
LAMP SUPPORT V1
Price
$8.65
13V2
LIGHT SUPPORT V2.05.22
Price
$1.90
14
*DISCD*CONTROL BOX COVER V1
Price
$48.90
14V2
CONTROL BOX COVER V2.11.23
Price
$57.95
15
FLAT WASHER 4MM
Price
N/A
16
JET FITTING
Price
$7.60
17
PUSH-ON SWIVEL FITTING 3/8"
Price
N/A
18
NIPPLE FITTING
Price
N/A
19
AIR REGULATOR
Price
$69.75
20
BRASS NIPPLE
Price
N/A
21
BRASS ELBOW
Price
N/A
22
*DISCD*MOUNTING PLATE V1
Price
$32.80
22V2
MOUNTING PLATE V2.11.23
Price
$37.45
23
AIR PRESSURE GAUGE
Price
$26.65
24
LOCK WASHER 3MM
Price
N/A
25
LED MOUNTING BRACKET
Price
$1.90
26
*DISCD*FOOT PEDAL V1
Price
$20.15
26V2
FOOT PEDAL V2.11.23
Price
$40.15
27
*DISCD*LEG V1
Price
N/A
27V2
LEG V2.12.23
Price
N/A
28
*DISCD*DUMP CHUTE DOOR V1
Price
$9.20
28V2
DUMP CHUTE DOOR V2.11.23
Price
$10.75
29
CABINET SCREW M6-1 X 12
Price
N/A
30
FLANGE NUT M6-1
Price
N/A
31
LATCH ASSEMBLY
Price
N/A
32
LED 3-PIN CABLE
Price
N/A
33
MAIN LED CORD 20G 3W 14.5"
Price
$2.60
34
PHLP HD SCR M6-1 X 12
Price
N/A
35
Sandblasting Gloves
Price
N/A
36
GLOVE CLAMP
Price
N/A
37
SUPPORT RING
Price
$1.80
38
GLOVE MOUNTING RING
Price
N/A
39
RIVET 4 X 10MM BLIND
Price
N/A
40
LOCK NUT M6-1
Price
N/A
41
DOOR HINGE
Price
$3.25
42
BLAST CABINET BODY V1
Price
$699.40
42V2
BLAST CABINET BODY V2.01.21
Price
$672.75
42V3
BLAST CABINET BODY V3.11.23
Price
$632.85
43
FRONT WINDOW SEAL
Price
N/A
44
Sandblaster Protective Film, 5-Pack, Large for G0707 & G0708
Price
N/A
45
VIEWING WINDOW GLASS
Price
$28.60
46
PLEXIGLASS WINDOW
Price
N/A
47
WINDOW FRAME
Price
N/A
48
PHLP HD SCR M4-.7 X 25
Price
N/A
49
HEX NUT M4-.7
Price
N/A
50
CIRCUIT BOARD
Price
$51.45
51
PHLP HD SCR M3-.5 X 20
Price
N/A
52
TRANSFORMER 8W 110V/60HZ-16V
Price
$30.60
53
STRAIN RELIEF
Price
$2.90
54
LAMP WINDOW GLASS 25-1/4 X 6"
Price
$11.90
55
SEAL
Price
N/A
56
DUST COLLECTOR ASSEMBLY V1
Price
N/A
56-1
MOTOR COVER
Price
N/A
56-10
CLEANOUT DOOR
Price
N/A
56-2
MOTOR 1.5HP 110V 1-PH
Price
N/A
56-3
CARBON BRUSH (SINGLE)
Price
N/A
56-4
CARBON BRUSH (SINGLE)
Price
N/A
56-5
FILTER HOUSING
Price
N/A
56-6
MALE POWER CORD 14G 3W
Price
N/A
56-7
CARTRIDGE FILTER 5-MICRON
Price
N/A
56-8
CANISTER
Price
N/A
56-9
CANISTER PLUNGER W/SPRING
Price
N/A
56V2
DUST COLLECTOR ASSY V2.11.23
Price
$412.25
56V2-1
MOTOR COVER
Price
N/A
56V2-10
CLEANOUT DOOR V2.11.23
Price
$7.20
56V2-5
MAIN HOUSING V2.11.23
Price
$22.35
56V2-8
CANISTER
Price
N/A
57
NIPPLE FITTING
Price
$7.60
57-1
AIR CONTROL HOSE - ORANGE
Price
$4.70
58
ELBOW FITTING
Price
$5.20
58-1
AIR CONTROL HOSE - ORANGE
Price
N/A
59
SOLENOID VALVE
Price
$60.40
59-1
AIR CONTROL HOSE - ORANGE
Price
N/A
60
BRASS NIPPLE
Price
$5.45
60-1
AIR CONTROL HOSE - ORANGE
Price
$3.65
61
BRASS ELBOW
Price
$6.50
61-1
AIR CONTROL HOSE - ORANGE
Price
N/A
62
DOOR HINGE PIN 6.2 X 75MM
Price
$4.70
63
WORK TABLE
Price
$74.20
63V2
WORK TABLE V2.12.23
Price
$92.60
64
RIGHT DOOR V1
Price
$80.90
64V2
RIGHT DOOR V2.01.21
Price
$73.35
64V3
RIGHT DOOR V3.12.23
Price
N/A
65
BLAST GUN ASSEMBLY
Price
$34.40
65-1
BLAST GUN ASSEMBLY
Price
N/A
65-10
BLAST GUN ASSEMBLY
Price
N/A
65-11
BLAST GUN ASSEMBLY
Price
N/A
65-12
BLAST GUN ASSEMBLY
Price
N/A
65-2
BLAST GUN ASSEMBLY
Price
N/A
65-3
***USE P0707065***
Price
$3.20
65-4
BLAST GUN ASSEMBLY
Price
N/A
65-5
BLAST GUN ASSEMBLY
Price
N/A
65-6
O-RING 6.6 X 3
Price
N/A
65-7
BLAST GUN ASSEMBLY
Price
N/A
65-8
BLAST GUN ASSEMBLY
Price
N/A
65-9
O-RING 9.8 X 1.9 P10
Price
N/A
66
AIR HOSE
Price
$4.00
67
FIXED GUN ASSEMBLY
Price
$7.60
67-1
CONNECTOR FITTING
Price
$2.25
67-2
MEDIA PORT
Price
$4.50
67-3
BRASS JET
Price
$4.95
67-4
NOZZLE NUT M25 X 1.5
Price
$1.90
68
FENDER WASHER 6MM
Price
N/A
69
DRAW TUBE
Price
$7.20
70
Large Replacement Films for G0707 and G0708, 5 pk.
Price
N/A
71
AIR HOSE 1/2" ID
Price
N/A
72
HOSE CLAMP 1/2"
Price
N/A
73
MEDIA HOSE 1/2" ID
Price
$20.40
74
DOOR GASKET V1
Price
$6.25
74V2
DOOR GASKET V2.01.21
Price
$11.20
75
Small Replacement Films for G0707 and G0708, 5 pk.
Price
N/A
76
ADHESIVE DOOR SEAL 3/8 X 1 X 79"
Price
N/A
79
PHLP HD SCR M4-.7 X 6
Price
N/A
80
TEFLON TAPE
Price
N/A
81
LATCH RECEIVER V1
Price
N/A
81V2
LATCH RECEIVER V2.12.23
Price
N/A
82
Sandblaster Protective Film, 5-Pack, Small, for G0707 & G0708
Price
N/A
83
LEFT DOOR V1
Price
N/A
83V2
*DISCD*LEFT DOOR V2.01.21
Price
$58.65
83V3
LEFT DOOR V2.12.23
Price
N/A
84
GROMMET M9.5
Price
$1.90
85
BAFFLE PLATE V1
Price
N/A
85V2
BAFFLE PLATE V2.11.23
Price
$7.20
86
FLAT WASHER 4MM
Price
N/A
87
*DISCD*DOOR LEVER V1
Price
N/A
87V2
DOOR LEVER V2.12.23
Price
N/A
88
LIMIT SWITCH
Price
$18.00
89
CROSS BRACE V1
Price
N/A
89V2
CROSS BRACE V2.12.23
Price
N/A
90
Sandblast Tip, 6mm for G0707
Price
N/A
90-1
BLAST TIP 7MM ID
Price
$2.05
90A
Sandblast Tip Set for G0707
Price
N/A
91
Sandblast Tip, 5mm for G0707
Price
N/A
92
LATCH ASSEMBLY
Price
N/A
93
FEMALE POWER CORD 3-WIRE 14-GA
Price
N/A
94
MACHINE POWER CORD 3-WIRE 14-GA
Price
N/A
95
FLAT HD SCR M5-.8 X 10
Price
N/A
95V2
PHLP HD SCR M6-1 X 12
Price
N/A
96
HEX NUT M5-.8
Price
N/A
96V2
FLANGE NUT M6-1
Price
N/A
98
BALLAST 110V-130V 40-WATT
Price
N/A
100
MACHINE ID LABEL V1
Price
$16.40
100V2
MACHINE ID LABEL V2.01.15
Price
$18.45
101
READ MANUAL 2.8W X 1.5H
Price
N/A
102
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
103
DISCONNECT AIR/POWER LABEL V2.01.15
Price
N/A
103V2
DISCONNECT AIR/POWER LABEL V2.01.15
Price
$1.00
104
DUST WARNING LABEL
Price
N/A
105
MODEL NUMBER LABEL V1
Price
$16.40
105V2
MODEL NUMBER LABEL V2.01.15
Price
$18.45
106
AIR PRESSURE HAZARD LABEL V2.01.15
Price
N/A
106V2
AIR PRESSURE HAZARD LABEL V2.01.15
Price
$1.25
108
FILTER CLEANING LABEL
Price
$4.25
109
GENERAL WARNING LABEL V2.01.15
Price
N/A
109V2
GENERAL WARNING LABEL V2.01.15
Price
$16.40
110
GRIZZLY.COM LABEL 11.5",BEIGE
Price
N/A
MAN
MANUAL G0707 MFD-11.09-12.14 V1.11.09
Price
$20.00
MANV2
MANUAL G0707 MFD-01.15-12.20 V2.02.15
Price
$20.00
MANV3
MANUAL G0707 MFD-01.21-04.22 V3.03.21
Price
$20.00
MANV4
MANUAL G0707 MFD-05.22-10.23 V4.04.22
Price
$20.00
MANV5
MANUAL G0707 MFD-11.23+ V5.02.25
Price
$22.65
