Parts for G0708 - Sandblasting Cabinet 24" x 48"

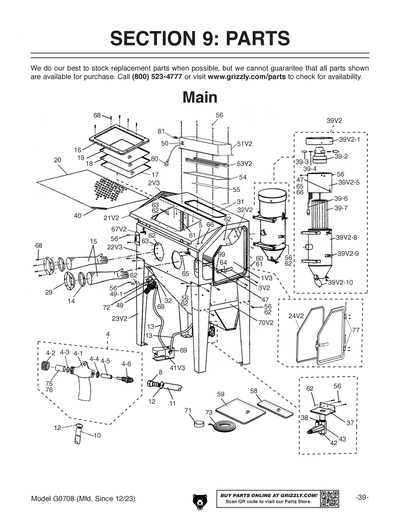

Part Diagram for G0708
Part Diagram for G0708
Part Diagram for G0708
Part Diagram for G0708
Part Diagram for G0708
Part Diagram for G0708

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

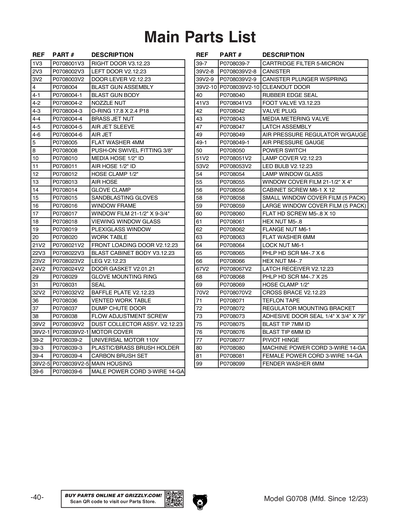

Ref #
Part #
Description
1
RIGHT DOOR V1
Price
$48.90
1V2
*DISCD*RIGHT DOOR V2.01.21
Item is no longer available
Price
N/A
1V3
RIGHT DOOR V3.12.23
Price
$75.85
2
LEFT DOOR V1
Price
$53.10
2V2
*DISCD*LEFT DOOR V2.01.21
Item is no longer available
Price
N/A
2V3
LEFT DOOR V2.12.23
Price
$75.85
3
*DISCD*DOOR LEVER V1
Price
$9.50
3V2
DOOR LEVER V2.12.23
Price
$13.40
4
BLAST GUN ASSEMBLY
Price
$60.75
4-1
BLAST GUN BODY
Price
$39.25
4-2
NOZZLE CAP
Price
N/A
4-3
O-RING 17.8 X 2.4 P18
Price
N/A
4-4
*DISCD*BRASS JET NUT
Item is no longer available
Price
N/A
4-5
AIR JET W/SLEEVE
Price
N/A
4-6
AIR JET W/SLEEVE
Price
N/A
4-6A
AIR JET W/SLEEVE
Price
$15.85
4-7
PUSH-ON FITTING 3/8"
Price
$5.20
5
FLAT WASHER 4MM
Price
N/A
6
RUBBER GROMMET
Price
$2.60
8
PUSH-ON SWIVEL FITTING 3/8"
Price
$7.60
10
MEDIA HOSE 1/2" ID
Price
$26.25
11
AIR HOSE 1/2" ID
Price
$23.40
12
HOSE CLAMP 1/2"
Price
$1.90
13
AIR HOSE
Price
$35.90
14
GLOVE CLAMP
Price
$1.90
15
Sandblasting Gloves
Price
N/A
16
WINDOW FRAME
Price
$28.10
17
Sandblaster Protective Film, 5-Pack, Large for G0707 & G0708
Price
N/A
18
VIEWING WINDOW GLASS
Price
$72.90
19
PLEXIGLASS WINDOW
Price
$34.85
20
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
20V2
WORK TABLE V2.12.23
Price
$98.10
21
*DISCD*FRONT LOADING DOOR V1
Price
$37.70
21V2
FRONT LOADING DOOR V2.12.23
Price
$53.50
22
BLAST CABINET BODY V1
Price
$1,071.35
22V2
BLAST CABINET BODY V2.01.21
Price
$927.20
22V3
BLAST CABINET BODY V3.12.23
Price
$797.70
23
*DISCD*LEG V1
Price
$37.70
23V2
LEG V2.12.23
Price
$44.60
24
*DISCD*DOOR GASKET V1
Price
$5.20
24V2
***USE P0707074V2***
Price
$5.20
29
GLOVE MOUNTING RING
Price
$10.75
31
SEAL
Price
$12.25
32
BAFFLE PLATE V1
Price
$7.95
32V2
BAFFLE PLATE V2.11.23
Price
N/A
36
***SEE EXT. DESCRIPTION***
Price
N/A
37
DUMP CHUTE DOOR
Price
$12.65
38
FLOW ADJUSTMENT SCREW
Price
$3.65
39
DUST COLLECTOR ASSEMBLY V1
Price
$414.75
39-1
MOTOR COVER
Price
$15.15
39-10
CLEANOUT DOOR
Price
$7.95
39-11
CARTRIDGE SUPPORT ROD M6-1.0 X 30
Price
$5.45
39-12
WING NUT M6-1
Price
N/A
39-13
RUBBER BACKED WASHER 6MM ID
Price
$1.90
39-14
FLANGE NUT M6-1
Price
N/A
39-2
MOTOR 1.5HP 110V 1-PH
Price
N/A
39-3
CARBON BRUSH (SINGLE)
Price
N/A
39-3A
CARBON BRUSH (SINGLE)
Price
$34.45
39-4
CARBON BRUSH (SINGLE)
Price
N/A
39-5
FILTER HOUSING
Price
N/A
39-6
MALE POWER CORD 14G 3W
Price
$6.50
39-7
CARTRIDGE FILTER 5-MICRON
Price
$102.85
39-8
CANISTER
Price
$56.10
39-9
CANISTER PLUNGER W/SPRING
Price
$5.45
39V2
DUST COLLECTOR ASSY V2.12.23
Price
$377.00
39V2-1
MOTOR COVER
Price
$13.40
39V2-10
CLEANOUT DOOR V2.11.23
Price
N/A
39V2-5
MAIN HOUSING V2.11.23
Price
N/A
39V2-8
CANISTER
Price
$51.25
39V2-9
CANISTER PLUNGER W/SPRING
Price
$4.50
40
RUBBER EDGE SEAL
Price
$2.20
41
*DISCD*FOOT VALVE
Item is no longer available
Price
N/A
41V2
*DISCD*FOOT VALVE V2.07.17
Price
$63.85
41V3
FOOT VALVE V3.12.23
Price
$80.25
42
VALVE PLUG
Price
$2.25
43
MEDIA METERING VALVE
Price
$40.45
47
LATCH ASSEMBLY
Price
$6.50
49
AIR PRESSURE REGULATOR W/GAUGE
Price
$58.25
49-1
AIR PRESSURE GAUGE
Price
$12.95
49-2
AIR PRESSURE REGULATOR W/O GAUGE
Price
$44.25
50
ON/OFF SWITCH - LIGHT
Price
N/A
51
*DISCD*LAMP COVER V1
Price
$41.00
51V2
LAMP COVER V2.12.23
Price
$44.60
52
LAMP HOUSING
Price
$73.00
53
FLORESCENT BULB 18W V1
Price
$4.00
53V2
LED LIGHT 9W V2.05.22
Price
N/A
54
LAMP WINDOW GLASS 26" X 6 1/4"
Price
$6.70
55
Sandblaster Protective Film, 5-Pack, Small, for G0707 & G0708
Price
N/A
56
CABINET SCREW M6-1 X 12
Price
$1.90
58
Sandblaster Protective Film, 5-Pack, Small, for G0707 & G0708
Price
N/A
59
Sandblaster Protective Film, 5-Pack, Large for G0707 & G0708
Price
N/A
60
FLAT HD SCR M5-.8 X 10
Price
N/A
61
HEX NUT M5-.8
Price
N/A
62
FLANGE NUT M6-1
Price
N/A
63
FLAT WASHER 6MM
Price
N/A
64
LOCK NUT M6-1
Price
N/A
65
PHLP HD SCR M4-.7 X 6
Price
N/A
66
HEX NUT M4-.7
Price
N/A
67
LATCH RECEIVER V1
Price
$14.10
67V2
LATCH RECEIVER V2.12.23
Price
$13.40
68
PHLP HD SCR M4-.7 X 25
Price
N/A
69
HOSE CLAMP 1/2"
Price
N/A
70
CROSS BRACE V1
Price
$32.40
70V2
CROSS BRACE V2.12.23
Price
$31.25
71
TEFLON TAPE
Price
$2.20
72
REGULATOR MOUNTING BRACKET
Price
$7.20
73
ADHESIVE DOOR SEAL 1/4 X 3/4 X 79"
Price
$7.95
74
ADHESIVE DOOR SEAL 3/8 X 1 X 79"
Price
$7.95
75
Sandblast Tip, 7mm for G0708
Price
N/A
76
Sandblast Tip, 6mm for G0708
Price
N/A
77
DOOR HINGE
Price
N/A
79
BALLAST 110V-130V 40-WATT
Price
$72.65
80
MACHINE POWER CORD 3-WIRE 14-GA
Price
$23.40
81
FEMALE POWER CORD 3-WIRE 14-GA
Price
$13.70
97
SPINDLE DRO WIRING HARNESS
Price
N/A
99
FENDER WASHER 6MM
Price
$1.90
100
MACHINE ID LABEL
Price
$16.40
101
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
102
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
103
DISCONNECT AIR/POWER LABEL
Price
$4.25
104
DUST WARNING LABEL
Price
$4.25
105
MACHINE MODEL NUMBER V1
Price
$16.40
105V2
GRIZZLY.COM LABEL V2.01.15
Price
$6.70
106
AIR PRESSURE HAZARD LABEL
Price
$4.25
108
FILTER CLEANING LABEL
Price
N/A
109
GENERAL WARNING LABEL V2.01.15
Price
N/A
110
MACHINE MODEL NUMBER
Price
$8.50
111
ANNIV EDITION BLACK REF G0555LANV
Price
N/A
112
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0708 MFD-11.09-12.14 V1.11.09
Price
$12.75
MANV2
MANUAL G0708 MFD-01.15-12.20 V2.02.15
Price
$19.50
MANV3
MANUAL G0708 MFD-01.21-11.23 V3.02.21
Price
$19.50
MANV4
MANUAL G0708 MFD-12.23+ V4.12.23
Price
$14.65
