Parts for G0710P - 1 HP Wall Hanging Dust Collector - Polar Bear Series

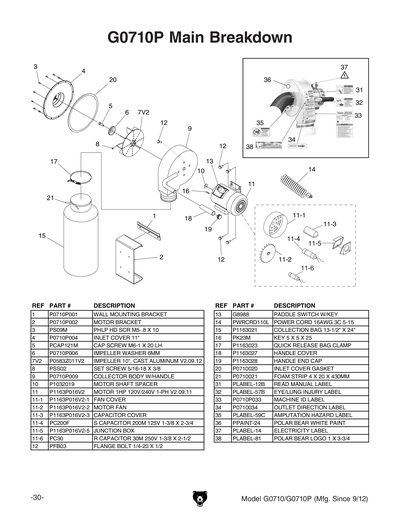

Part Diagram for G0710P
Part Diagram for G0710P

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$26.30
2
Price
$54.95
3
PHLP HD SCR M5-.8 X 10
Price
N/A
4
INLET COVER 11"
Item is no longer available
Price
N/A
5
CAP SCREW M6-1 X 20 LH
Price
N/A
6
IMPELLER WASHER 6MM
Price
N/A
7
STEEL IMPELLER 10" V2.12.09
Price
N/A
7V2
CAST ALUMINUM IMPELLER 10" V2.09.12
Price
N/A
8
SET SCREW 5/16-18 X 3/8
Price
N/A
9
COLLECTOR BODY W/HANDLE
Item is no longer available
Price
N/A
10
GASKET
Price
N/A
11
MOTOR 1HP 120V/240V 1-PH V2.09.11
Price
N/A
11-1
FAN COVER
Price
N/A
11-2
MOTOR FAN V2.06.08
Price
N/A
11-3
CAPACITOR COVER
Price
N/A
11-4
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
11-5
JUNCTION BOX
Price
N/A
11-6
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
Price
N/A
12
FLANGE BOLT 1/4-20 X 1/2
Price
N/A
13
Safety Paddle Switch
Price
N/A
14
POWER CORD 16G X 3W 73"L
Price
N/A
15
Replacement Bag for G1163P Dust Collector
Price
N/A
16
KEY 5 X 5 X 25
Price
N/A
17
CLAMP
Price
N/A
18
HANDLE COVER
Price
N/A
19
HANDLE CAP
Price
N/A
20
INLET COVER GASKET
Price
N/A
21
FOAM STRIP 4 X 20 X 430MM
Price
N/A
31
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
32
GLASSES/RESPIRATOR 3.8 X 2H
Price
N/A
33
MACHINE ID LABEL
Item is no longer available
Price
N/A
34
OUTLET DIRECTION LABEL
Price
N/A
35
HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
Price
N/A
36
POLAR BEAR WHITE TOUCH-UP PAINT
Price
N/A
37
ELECTRICITY 1.4W X 1.2H
Price
N/A
38
POLAR BEAR LOGO-SMALL 3.75W X 1H
Price
N/A
MAN
MANUAL FOR G0710 MFG 11.11 V3.01.12
Price
N/A
P
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
$23.30
