Parts for G0711 - Pneumatic Planishing Hammer

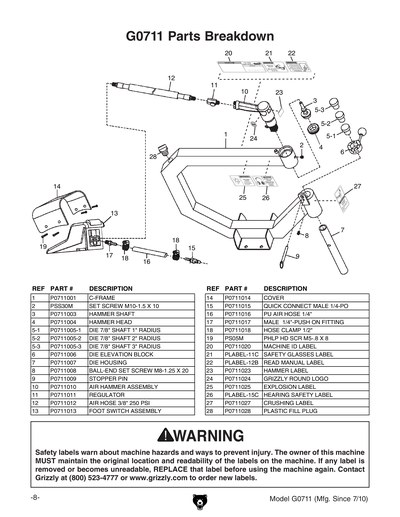

Part Diagram for G0711
Part Diagram for G0711

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*C-FRAME
Item is no longer available
Price
N/A
2
SET SCREW M10-1.5 X 10
Price
N/A
3
*DISCD*HAMMER SHAFT
Item is no longer available
Price
N/A
4
*DISCD*HAMMER HEAD
Price
$1.49
5-1
*DISCD*DIE 7/8" SHAFT 1" RADIUS
Item is no longer available
Price
N/A
5-2
*DISCD*DIE 7/8" SHAFT 2" RADIUS
Item is no longer available
Price
N/A
5-3
*DISCD*DIE 7/8" SHAFT 3" RADIUS
Item is no longer available
Price
N/A
6
*DISCD*DIE ELEVATION BLOCK
Item is no longer available
Price
N/A
7
*DISCD*DIE HOUSING
Price
$19.00
8
*DISCD*BALL-END SET SCREW M8-1.25 X 20
Item is no longer available
Price
N/A
9
*DISCD*STOPPER PIN
Price
$1.49
10
*DISCD*AIR HAMMER ASSEMBLY
Item is no longer available
Price
N/A
11
*DISCD*REGULATOR
Item is no longer available
Price
N/A
12
*DISCD*AIR HOSE 3/8" 250 PSI
Price
$2.60
13
*DISCD*FOOT SWITCH ASSEMBLY
Item is no longer available
Price
N/A
14
*DISCD*COVER
Item is no longer available
Price
N/A
15
*DISCD*QUICK CONNECT MALE 1/4-PO
Item is no longer available
Price
N/A
16
*DISCD*PU AIR HOSE 1/4"
Item is no longer available
Price
N/A
17
*DISCD*MALE 1/4" PUSH ON FITTING
Item is no longer available
Price
N/A
18
*DISCD*HOSE CLAMP 1/2"
Item is no longer available
Price
N/A
19
PHLP HD SCR M5-.8 X 8
Price
N/A
20
MACHINE ID LABEL
Item is no longer available
Price
N/A
21
SAFETY GLASSES 3.8W X 2H
Price
N/A
22
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
23
HAMMER LABEL
Item is no longer available
Price
N/A
24
GRIZZLY ROUND LOGO
Item is no longer available
Price
N/A
25
EXPLOSION LABEL
Item is no longer available
Price
N/A
26
EAR PROTECTION 3.3W X 2H
Price
N/A
27
CRUSHING LABEL
Item is no longer available
Price
N/A
28
*DISCD*PLASTIC FILL PLUG
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0711 08/10
Item is no longer available
Price
N/A
