Parts for G0714 - Sandblasting Cabinet 24" x 48"

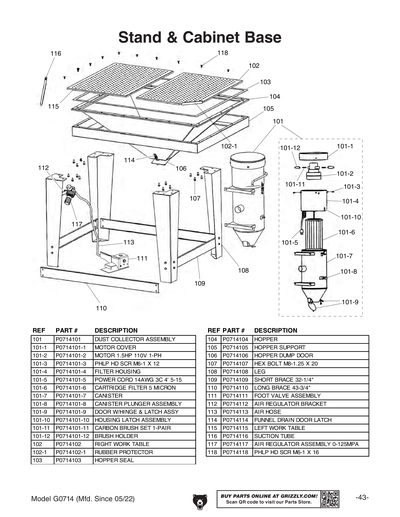

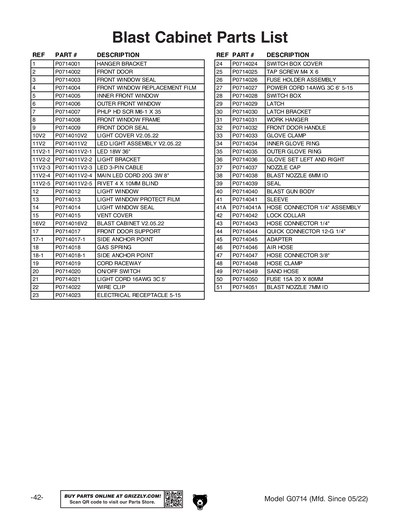

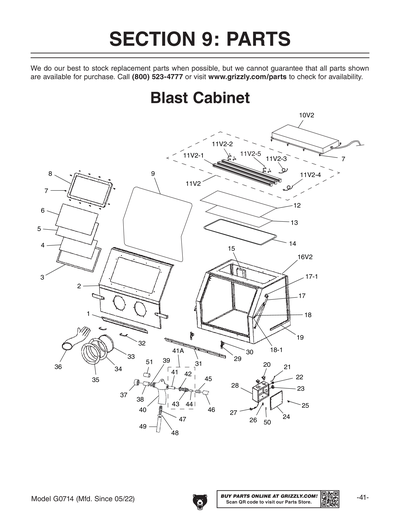

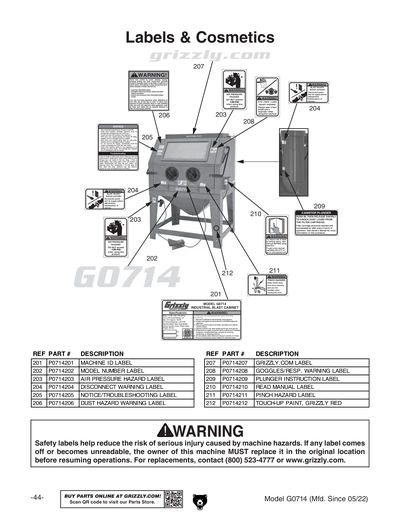

Part Diagram for G0714
Part Diagram for G0714
Part Diagram for G0714
Part Diagram for G0714
Part Diagram for G0714
Part Diagram for G0714
Part Diagram for G0714
Part Diagram for G0714

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HANGER BRACKET V1
Price
$16.95
1V2
HANGER BRACKET V2.03.24
Price
$13.20
2
FRONT DOOR V1
Price
$181.15
2V2
FRONT DOOR V2.03.24
Price
$187.20
3
FRONT WINDOW SEAL
Price
$8.05
4
Sandblaster Protective Film for G0714
Price
N/A
5
INNER FRONT WINDOW
Price
$24.45
6
OUTER FRONT WINDOW
Price
$35.65
7
PHLP HD SCR M6-1 X 35
Price
N/A
8
FRONT WINDOW FRAME
Price
$47.15
9
FRONT DOOR SEAL
Price
$47.15
10
*DISCD*LIGHT COVER V1
Item is no longer available
Price
N/A
10V2
LIGHT COVER V2.05.22
Price
$49.25
10V3
LIGHT COVER V3.03.24
Price
$49.10
11
LIGHT ASSEMBLY V1
Price
$251.60
11-1
FLUORESCENT BULB 36" T5 26W
Price
$7.95
11-2
BALLAST E2F28B 110V 60HZ
Price
$106.10
11-3
*DISCD*FLUORESCENT BULB 36" T5 21W
Price
$10.65
11V2
LED LIGHT ASSEMBLY V2.05.22
Price
$285.40
11V2-1
LED 18W 36"
Price
$87.00
11V2-2
LED MOUNTING BRACKET
Price
N/A
11V2-3
LED 3-PIN CABLE
Price
$2.60
11V2-4
MAIN LED CORD 20G 3W 8"
Price
$2.60
11V2-5
RIVET 4 X 10MM BLIND
Price
$1.90
12
LIGHT WINDOW
Price
$29.15
13
Sandblaster Protective Film for G0714 Light
Price
N/A
14
LIGHT WINDOW SEAL
Price
$29.15
15
VENT COVER V1
Price
$7.95
15V2
VENT COVER V2.03.24
Price
$7.20
16
*DISCD*BLAST CABINET V1
Item is no longer available
Price
N/A
16V2
BLAST CABINET V2.05.22
Price
$863.95
16V3
BLAST CABINET V3.03.24
Price
$863.65
17
FRONT DOOR SUPPORT
Price
$34.90
17-1
SIDE ANCHOR POINT
Price
$5.40
18
GAS SPRING
Price
$62.60
18-1
SIDE ANCHOR POINT
Price
$5.40
19
CORD RACEWAY
Price
$11.90
20
ON/OFF SWITCH - LIGHT
Price
$3.65
20A
ON/OFF SWITCH - LIGHT
Price
N/A
21
LIGHT CORD 16AWG 3C 5'
Price
$4.10
22
WIRE CLIP
Price
$3.25
23
ELECTRICAL RECEPTACLE 5-15
Price
$7.60
24
SWITCH BOX COVER V1
Price
$6.50
24V2
SWITCH BOX COVER V2.03.24
Price
$4.50
25
TAP SCREW M4 X 6
Price
N/A
26
FUSE HOUSING
Price
N/A
27
POWER CORD 14AWG 3C 6' 5-15
Price
$19.65
28
SWITCH BOX V1
Price
$22.35
28V2
SWITCH BOX V2.03.24
Price
$22.35
29
LATCH
Price
$7.20
30
LATCH BRACKET
Price
$2.20
31
WORK HANGER V1
Price
$15.85
31V2
WORK HANGER V2.03.24
Price
$11.40
32
FRONT DOOR HANDLE
Price
$4.35
33
GLOVE CLAMP
Price
$1.49
34
INNER GLOVE RING
Price
$1.90
35
GLOVE MOUNTING RING
Price
N/A
36
GLOVE SET LEFT AND RIGHT
Price
$19.45
37
NOZZLE CAP
Price
$6.75
38
BLAST NOZZLE 6MM ID
Price
$3.25
38A
Sandblast Tip Set for G0714
Price
N/A
39
SEAL
Price
$1.90
40
BLAST GUN BODY
Price
$30.75
41
HOSE CONNECTOR 1/4" ASSEMBLY
Price
N/A
41A
HOSE CONNECTOR 1/4" ASSEMBLY
Price
$23.75
42
HOSE CONNECTOR 1/4" ASSEMBLY
Price
N/A
43
HOSE CONNECTOR 1/4" ASSEMBLY
Price
N/A
44
HOSE CONNECTOR 1/4" ASSEMBLY
Price
N/A
45
ADAPTER
Price
$4.00
46
AIR HOSE
Price
$27.70
47
HOSE CONNECTOR 3/8"
Price
$7.60
48
HOSE CLAMP
Price
$1.49
49
SAND HOSE
Price
$26.10
50
FUSE 15A 20 X 80MM
Price
$7.50
51
BLAST NOZZLE 7MM ID
Price
$2.50
51A
4-Piece Replacement Nozzle Set for G0714
Price
N/A
52
FRONT DOOR SIDE LATCH
Price
$7.20
101
LATCH ASSEMBLY
Price
N/A
101-1
MOTOR COVER
Price
$12.65
101-10
LATCH ASSEMBLY
Price
N/A
101-11
BRUSH ASSEMBLY
Price
N/A
101-11A
BRUSH ASSEMBLY
Price
$31.65
101-12
BRUSH ASSEMBLY
Price
N/A
101-2
MOTOR 1.5HP 110V 1-PH
Price
$138.00
101-3
PHLP HD SCR M6-1 X 12
Price
N/A
101-4
FILTER HOUSING
Price
$21.95
101-5
POWER CORD 14AWG 3C 4' 5-15
Price
$13.40
101-6
CARTRIDGE FILTER 5-MICRON
Price
N/A
101-7
CANISTER
Price
N/A
101-8
CANISTER PLUNGER ASSEMBLY
Price
$6.90
101-9
DOOR W/HINGE & LATCH ASSY
Price
$7.95
101V2
DUST COLLECTOR ASSY V2.03.24
Price
$380.85
101V2-1
MOTOR COVER
Price
$13.40
101V2-4
FILTER HOUSING
Price
$22.35
101V2-7
CANISTER
Price
$51.25
101V2-8
CANISTER PLUNGER ASSEMBLY
Price
$6.70
101V2-9
DOOR W/HINGE & LATCH ASSY
Price
$7.20
102
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
102-1
RUBBER PROTECTOR
Price
$1.90
102V2
RIGHT WORK TABLE V2.03.24
Price
$107.00
103
HOPPER SEAL
Price
$11.50
104
HOPPER V1
Price
$370.90
104V2
HOPPER V2.03.24
Price
$311.95
105
HOPPER SUPPORT V1
Price
$203.85
105V2
HOPPER SUPPORT V2.03.24
Price
$171.65
106
HOPPER DUMP DOOR V1
Price
$7.20
106V2
HOPPER DUMP DOOR V2.03.24
Price
$7.20
107
HEX BOLT M8-1.25 X 20
Price
N/A
108
LEG V1
Price
$88.10
108V2
LEG V2.03.24
Price
$87.40
109
SHORT BRACE 32-1/4" V1
Price
$23.40
109V2
SHORT BRACE 32-1/4" V2.03.24
Price
$23.20
110
LONG BRACE 43-3/4" V1
Price
$32.00
110V2
LONG BRACE 43-3/4" V2.03.24
Price
$31.25
111
FOOT VALVE ASSEMBLY V1
Price
$136.60
111V2
FOOT VALVE ASSEMBLY V2.03.24
Price
$136.40
112
AIR REGULATOR BRACKET
Price
$6.90
113
AIR HOSE
Price
N/A
114
LATCH ASSEMBLY
Price
N/A
115
LEFT WORK TABLE V1
Price
$99.50
115V2
LEFT WORK TABLE V2.03.24
Price
$107.00
116
SUCTION TUBE
Price
$5.85
117
AIR PRESSURE REGULATOR W/GAUGE
Price
N/A
118
PHLP HD SCR M6-1 X 16
Price
N/A
201
MACHINE ID LABEL
Price
$16.40
202
MODEL NUMBER LABEL
Price
$16.40
203
AIR PRESSURE HAZARD LABEL V2.01.15
Price
N/A
204
DISCONNECT AIR/POWER LABEL V2.01.15
Price
N/A
205
GENERAL WARNING LABEL V2.01.15
Price
N/A
206
DUST WARNING LABEL
Price
N/A
207
GRIZZLY.COM LABEL
Price
$10.95
208
GOGGLES/RESP. WARNING LABEL
Price
$4.25
209
FILTER CLEANING LABEL
Price
N/A
210
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
211
PINCH HAZARD LABEL
Price
$4.25
212
RED REF TOOL BOXES
Price
N/A
212V2
GLOSSY BLACK
Price
N/A
213
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0714 MFD-09.10 V1.11.10
Price
$20.00
MANV2
MANUAL G0714 MFD-09.10-12.14 V2.11.12
Price
$20.00
MANV3
MANUAL G0714 MFD-01.15-04.22 V3.06.15
Price
$20.00
MANV4
MANUAL G0714 MFD-05.22-02.24 V4.04.22
Price
$19.25
MANV5
MANUAL G0714 MFD-03.24+ V5.05.24
Price
$23.55
