Parts for G0717 9" x 16" Metal Cutting Bandsaw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

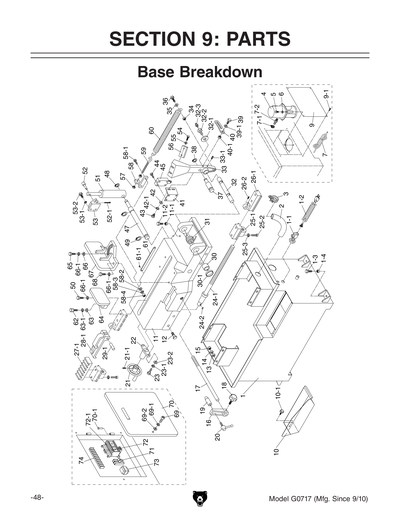

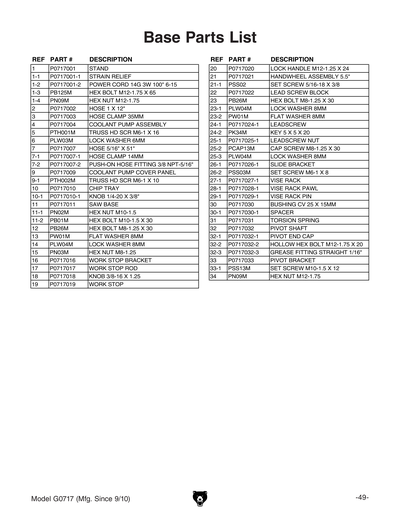

1
STAND
Item is no longer available
Price
N/A
1-1
STRAIN RELIEF TYPE-9 ELBOW
Item is no longer available
Price
N/A
1-2
POWER CORD 14G 3W 100" 6-15
Item is no longer available
Price
N/A
1-3
HEX BOLT M12-1.75 X 65
Price
N/A
1-4
Now: PN09M
HEX NUT M12-1.75
Price
N/A
2
HOSE 1 X 12"
Item is no longer available
Price
N/A
3
HOSE CLAMP 35MM
Item is no longer available
Price
N/A
4
COOLANT PUMP ASSEMBLY
5
TRUSS HD SCR M6-1 X 16
Price
N/A
6
LOCK WASHER 6MM
Price
N/A
7
HOSE 5/16" X 51"
Item is no longer available
Price
N/A
7-1
HOSE CLAMP 14MM
Item is no longer available
Price
N/A
7-2
PUSH-ON HOSE FITTING 3/8 NPT-5/16"
Item is no longer available
Price
N/A
9
COOLANT PUMP COVER PANEL
Item is no longer available
Price
N/A
9-1
TRUSS HD SCR M6-1 X 10
Price
N/A
10
CHIP TRAY
Item is no longer available
Price
N/A
10-1
KNOB 1/4-20 X 3/8"
Item is no longer available
Price
N/A
11
SAW BASE
Item is no longer available
Price
N/A
11-1
Now: PN02M
HEX NUT M10-1.5
Price
N/A
11-2
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
12
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
13
Now: PW01M
FLAT WASHER 8MM
Price
N/A
14
LOCK WASHER 8MM
Price
N/A
15
Now: PN03M
HEX NUT M8-1.25
Price
N/A
16
WORK STOP BRACKET
Item is no longer available
Price
N/A
17
WORK STOP ROD
Item is no longer available
Price
N/A
18
KNOB 3/8-16 X 1.25
Item is no longer available
Price
N/A
19
WORK STOP
Item is no longer available
Price
N/A
20
LOCK HANDLE M12-1.25 X 24
Item is no longer available
Price
N/A
21
HANDWHEEL ASSEMBLY 5.5"
Item is no longer available
Price
N/A
21-1
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
22
LEAD SCREW BLOCK
23
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
23-1
LOCK WASHER 8MM
Price
N/A
23-2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
24-1
LEADSCREW
Item is no longer available
Price
N/A
24-2
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
25-1
LEADSCREW NUT
25-2
CAP SCREW M8-1.25 X 30
Price
N/A
25-3
LOCK WASHER 8MM
Price
N/A
26-1
SLIDE BRACKET
Item is no longer available
Price
N/A
26-2
SET SCREW M6-1 X 8
Price
N/A
27-1
VISE RACK
28-1
VISE RACK PAWL
Item is no longer available
Price
N/A
29-1
VISE RACK PIN
Item is no longer available
Price
N/A
30
BUSHING CV 25 X 15MM
Item is no longer available
Price
N/A
30-1
SPACER
Item is no longer available
Price
N/A
31
TORSION SPRING
Item is no longer available
Price
N/A
32
PIVOT SHAFT
Item is no longer available
Price
N/A
32-1
PIVOT END CAP
Item is no longer available
Price
N/A
32-2
HOLLOW HEX BOLT M12-1.75 X 20
Item is no longer available
Price
N/A
32-3
GREASE FITTING STRAIGHT 1/16"
Item is no longer available
Price
N/A
33
PIVOT BRACKET
Item is no longer available
Price
N/A
33-1
SET SCREW M10-1.5 X 12
Price
N/A
34
Now: PN09M
HEX NUT M12-1.75
Price
N/A

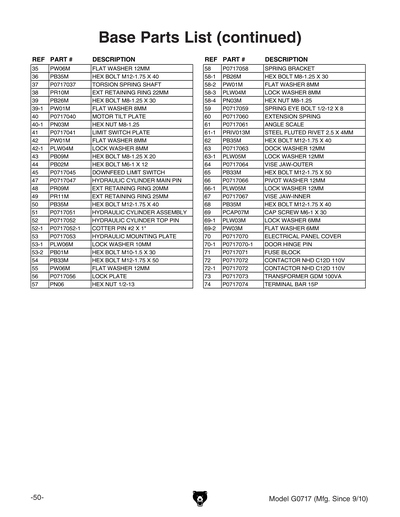

35
Now: PW06M
FLAT WASHER 12MM
Price
N/A
36
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
37
TORSION SPRING SHAFT
Item is no longer available
Price
N/A
38
Now: PR10M
EXT RETAINING RING 22MM
Price
N/A
39
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
39-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
40
MOTOR TILT PLATE
Item is no longer available
Price
N/A
40-1
Now: PN03M
HEX NUT M8-1.25
Price
N/A
41
LIMIT SWITCH PLATE
Item is no longer available
Price
N/A
42
Now: PW01M
FLAT WASHER 8MM
Price
N/A
42-1
LOCK WASHER 8MM
Price
N/A
43
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
44
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
45
DOWNFEED LIMIT SWITCH
Item is no longer available
Price
N/A
47
HYDRAULIC CYLINDER MAIN PIN
Item is no longer available
Price
N/A
48
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
49
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
50
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
51
HYDRAULIC CYLINDER ASSEMBLY
Item is no longer available
Price
N/A
52
HYDRAULIC CYLINDER TOP PIN
Item is no longer available
Price
N/A
52-1
COTTER PIN #2 X 1"
Item is no longer available
Price
N/A
53
HYDRAULIC MOUNTING PLATE
Item is no longer available
Price
N/A
53-1
LOCK WASHER 10MM
Price
N/A
53-2
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
54
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
55
Now: PW06M
FLAT WASHER 12MM
Price
N/A
56
LOCK PLATE
Item is no longer available
Price
N/A
57
Now: PN06
HEX NUT 1/2-12
Price
N/A
58
SPRING BRACKET
Item is no longer available
Price
N/A
58-1
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
58-2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
58-3
LOCK WASHER 8MM
Price
N/A
58-4
Now: PN03M
HEX NUT M8-1.25
Price
N/A
59
SPRING EYE BOLT 1/2-12 X 8
Item is no longer available
Price
N/A
60
EXTENSION SPRING
Item is no longer available
Price
N/A
61
ANGLE SCALE
Item is no longer available
Price
N/A
61-1
RIVET 2.5 X 4MM NAMEPLATE, STEEL
Price
N/A
62
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
63
DOCK WASHER 12MM
Item is no longer available
Price
N/A
63-1
LOCK WASHER 12MM
Price
N/A
64
VISE JAW-OUTER
Item is no longer available
Price
N/A
65
Now: PB33M
HEX BOLT M12-1.75 X 50
Price
N/A
66
PIVOT WASHER 12MM
Item is no longer available
Price
N/A
66-1
LOCK WASHER 12MM
Price
N/A
67
VISE JAW-INNER
Item is no longer available
Price
N/A
68
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
69
CAP SCREW M6-1 X 30
Price
N/A
69-1
LOCK WASHER 6MM
Price
N/A
69-2
Now: PW03M
FLAT WASHER 6MM
Price
N/A
70
ELECTRICAL PANEL COVER
Item is no longer available
Price
N/A
70-1
DOOR HINGE PIN
Item is no longer available
Price
N/A
71
FUSE BLOCK
Item is no longer available
Price
N/A
72
CONTACTOR NHD C120 110V
Item is no longer available
Price
N/A
72-1
CONTACTOR NHD C12D 110V
Item is no longer available
Price
N/A
73
TRANSFORMER 72VA 110/440V-24V
Item is no longer available
Price
N/A
74
TERMINAL BAR 15P
Item is no longer available
Price
N/A
75
HANDLE
Item is no longer available
Price
N/A
76
TRUSS HD SCR M6-1 X 16
Price
N/A
77
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
77-1
LOCK WASHER 6MM
Price
N/A
77-2
Now: PW03M
FLAT WASHER 6MM
Price
N/A
78
WIRE BRUSH GUARD
Item is no longer available
Price
N/A
79
UPPER BLADE WHEEL COVER
Item is no longer available
Price
N/A
80
LOWER BLADE WHEEL COVER
Item is no longer available
Price
N/A
82
DRIVE WHEEL SPACER
Item is no longer available
Price
N/A
83
DRIVE WHEEL WASHER
Item is no longer available
Price
N/A
84
DRIVE WHEEL
Item is no longer available
Price
N/A
85
BLADE 119-1/2L X 1-1/16W VP TPI
Item is no longer available
Price
N/A
86
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
87
CAP SCREW M5-.8 X 10
Price
N/A
88
FILTER SCREEN
Item is no longer available
Price
N/A
89
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
89-1
LOCK WASHER 12MM
Price
N/A
90
LOCK KNOB 1/4-20 X 10
Item is no longer available
Price
N/A
91
SAW BOW SUPPORT
Item is no longer available
Price
N/A
91-1
LOCK WASHER 10MM
Price
N/A
91-2
CAP SCREW M10-1.5 X 30
Price
N/A
92

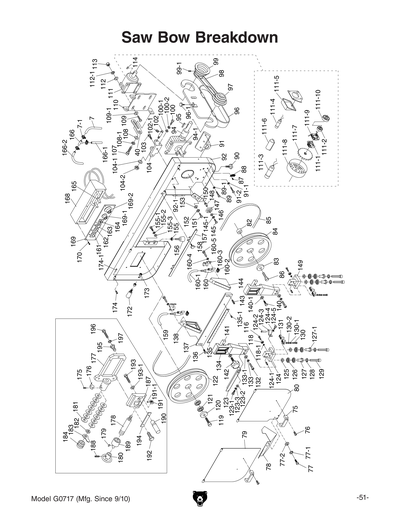

SAW BOW
Item is no longer available
Price
N/A
92-1
SET SCREW M10-1.5 X 12
Price
N/A

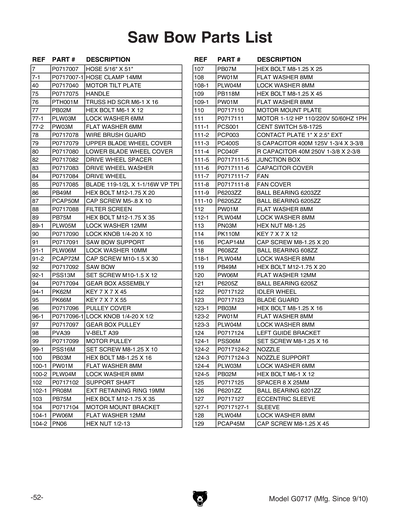

94
GEAR BOX ASSEMBLY
Item is no longer available
Price
N/A
94-1
Now: PK62M
KEY 7 X 7 X 45
Price
N/A
95
Now: PK66M
KEY 7 X 7 X 55
Price
N/A
96
PULLEY COVER
Item is no longer available
Price
N/A
96-1
LOCK KNOB 1/4-20 X 1/2
Item is no longer available
Price
N/A
97
GEAR BOX PULLEY
Item is no longer available
Price
N/A
98
Now: PVA39
V-BELT A39
Price
N/A
99
MOTOR PULLEY
Item is no longer available
Price
N/A
99-1
SET SCREW M8-1.25 X 10
Price
N/A
100
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
100-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
100-2
LOCK WASHER 8MM
Price
N/A
102
SUPPORT SHAFT
Item is no longer available
Price
N/A
102-1
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
103
Now: PB75M
HEX BOLT M12-1.75 X 35
Price
N/A
104
MOTOR MOUNT BRACKET
Item is no longer available
Price
N/A
104-1
Now: PW06M
FLAT WASHER 12MM
Price
N/A
104-2
Now: PN06
HEX NUT 1/2-12
Price
N/A
107
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
108
Now: PW01M
FLAT WASHER 8MM
Price
N/A
108-1
LOCK WASHER 8MM
Price
N/A
109
HEX BOLT M8-1.25 X 45
Price
N/A
109-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
110
MOTOR MOUNT PLATE
111
MOTOR 1.5HP 110V/220V 1-PH
Item is no longer available
Price
N/A
111-1
CENT SWITCH 5/8-1725
Price
N/A
111-10
BALL BEARING 6205ZZ
Price
N/A
111-2
CONTACT PLT SM INT PT
Price
N/A
111-3
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
111-4
R CAPACITOR 40M 250V 1-3/8 X 2-3/8
Price
N/A
111-5
JUNCTION BOX
Item is no longer available
Price
N/A
111-6
CAPACITOR COVER
Item is no longer available
Price
N/A
111-7
FAN
Item is no longer available
Price
N/A
111-8
FAN COVER
Item is no longer available
Price
N/A
111-9
BALL BEARING 6203ZZ
Price
N/A
112
Now: PW01M
FLAT WASHER 8MM
Price
N/A
112-1
LOCK WASHER 8MM
Price
N/A
113
Now: PN03M
HEX NUT M8-1.25
Price
N/A
114
KEY 7 X 7 X 12
Price
N/A
116
CAP SCREW M8-1.25 X 20
Price
N/A
118
Now: G3845
Bearing - 22mm x 8mm
Price
N/A
118-1
LOCK WASHER 8MM
Price
N/A
119
Now: PB49M
HEX BOLT M12-1.75 X 20
Price
N/A
120
Now: PW06M
FLAT WASHER 12MM
Price
N/A
121
BALL BEARING 6205Z
Price
N/A
122
IDLER WHEEL
Item is no longer available
Price
N/A
123
BLADE GUARD
Item is no longer available
Price
N/A
123-1
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
123-2
Now: PW01M
FLAT WASHER 8MM
Price
N/A
123-3
LOCK WASHER 8MM
Price
N/A
124
LEFT GUIDE BRACKET
Item is no longer available
Price
N/A
124-1
SET SCREW M8-1.25 X 16
Price
N/A
124-2
NOZZLE
Item is no longer available
Price
N/A
124-3
NOZZLE SUPPORT
Item is no longer available
Price
N/A
124-4
LOCK WASHER 6MM
Price
N/A
124-5
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
125
SPACER 8 X 25MM
126
BALL BEARING 6201ZZ
Price
N/A
127
ECCENTRIC SLEEVE W/CENTRIC SLEEVE
127-1
ECCENTRIC SLEEVE W/CENTRIC SLEEVE
Price
N/A
128
LOCK WASHER 8MM
Price
N/A
129
CAP SCREW M8-1.25 X 45
Price
N/A
130
CAP SCREW M6-1 X 30
Price
N/A
130-1
LOCK WASHER 6MM
Price
N/A
130-2
Now: PW03M
FLAT WASHER 6MM
Price
N/A
131
TUNGSTEN CARBIDE BLADE GUIDE
Item is no longer available
Price
N/A
132
Now: PB15M
HEX BOLT M8-1.25 X 40
Price
N/A
133
LOCK WASHER 8MM
Price
N/A
133-1
Now: PW01M
FLAT WASHER 8MM
Price
N/A
134
ADJUSTABLE BRACKET
135
SCALE
Item is no longer available
Price
N/A
135-1
RIVET 2.5 X 4MM NAMEPLATE, STEEL
Price
N/A
136
CAP SCREW M10-1.5 X 25
Price
N/A
137
SLIDE
Item is no longer available
Price
N/A
138
LEFT BLADE BRACKET
Item is no longer available
Price
N/A
140
Now: PB31M
HEX BOLT M10-1.5 X 40
Price
N/A
140-1
Now: PW04M
FLAT WASHER 10MM
Price
N/A
141
BLOCK
Item is no longer available
Price
N/A
142
LOCK KNOB 3/8-16 X 2
Item is no longer available
Price
N/A
143
SET SCREW M8-1.25 X 10
Price
N/A
144
RIGHT BLADE BRACKET
Item is no longer available
Price
N/A
145
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
145-1
LOCK WASHER 6MM
Price
N/A
146
Now: PW03M
FLAT WASHER 6MM
Price
N/A
147
WIRE BRUSH
Item is no longer available
Price
N/A
148
BUSHING
Item is no longer available
Price
N/A
149
RIGHT GUIDE BRACKET
Item is no longer available
Price
N/A
150
BRUSH BRACKET
Item is no longer available
Price
N/A
151
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
152
LOCK WASHER 6MM
Price
N/A
153
Now: PW03M
FLAT WASHER 6MM
Price
N/A
155
Now: PN09M
HEX NUT M12-1.75
Price
N/A
155-1
Now: PB27M
HEX BOLT M12-1.75 X 30
Price
N/A
155-2
LOCK WASHER 12MM
Price
N/A
155-3
Now: PW06M
FLAT WASHER 12MM
Price
N/A
156
SAW BOW STOP M12-1.75 X 50
157
BLADE GUARD
Item is no longer available
Price
N/A
158
KNOB 1/4-20 X 3/8"
Item is no longer available
Price
N/A
159
HOSE 8 X 700MM
Item is no longer available
Price
N/A
160
ADJUSTING VALVE
Item is no longer available
Price
N/A
160-1
HOSE 8 X 320MM
Item is no longer available
Price
N/A
160-2
HOSE CLAMP 14MM
Item is no longer available
Price
N/A
160-3
VALVE BRACKET
Item is no longer available
Price
N/A
160-4
LOCK WASHER 6MM
Price
N/A
160-5
Now: PB02M
HEX BOLT M6-1 X 12
Price
N/A
161
POWER INDICATOR LIGHT TEND
162
START SWITCH TEND
Item is no longer available
Price
N/A
163
EMER STOP SWITCH KEDU HY57B
164
PUMP SWITCH TEND
Item is no longer available
Price
N/A
165
SPEED CONTROL VALVE
166
CONNECTION TUBE
Item is no longer available
Price
N/A
166-1
HOSE 5/16 X 15-3/4"
Item is no longer available
Price
N/A
166-2
HOSE 5/16 X 37"
Item is no longer available
Price
N/A
168
CONTROL BOX
Item is no longer available
Price
N/A
169
CONTROL PANEL
Item is no longer available
Price
N/A
169-1
HYRAULIC MICRO-ADJUST VALVE
Item is no longer available
Price
N/A
169-2
ON/OFF SWITCH
Item is no longer available
Price
N/A
170
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
172
HANDLE M12-1.75 X 30
173
Now: PN09M
HEX NUT M12-1.75
Price
N/A
174
SET SCREW M4-.7 X 5
Price
N/A
174-1
HINGE PIN
Item is no longer available
Price
N/A
175
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
176
INDICATOR SCALE
Item is no longer available
Price
N/A
177
SLIDE BRACKET
Item is no longer available
Price
N/A
178
TENSION SHAFT
Item is no longer available
Price
N/A
179
Now: PK20M
KEY 5 X 5 X 15
Price
N/A
180
HANDWHEEL
181
CONICAL SPRING 22 X 45 X 6MM
Item is no longer available
Price
N/A
182
SPACER 22MM
Item is no longer available
Price
N/A
183
TENSION INDICATOR
Item is no longer available
Price
N/A
184
THRUST BEARING 51104
Price
N/A
187
BLADE WHEEL GUIDE
Item is no longer available
Price
N/A
188
Now: PSS02
SET SCREW 5/16-18 X 3/8
Price
N/A
189
EXTENSION CYLINDER
Item is no longer available
Price
N/A
190
BLADE WHEEL SHAFT
Item is no longer available
Price
N/A
191
Now: PN13M
HEX NUT M16-2
Price
N/A
191-1
SET SCREW M6-1 X 8
Price
N/A
192
CAP SCREW M8-1.25 X 20
Price
N/A
193
CAP SCREW M12-1.75 X 20
Price
N/A
193-1
AXLE WASHER
Item is no longer available
Price
N/A
194
GIB
Item is no longer available
Price
N/A
195
WHEEL ALIGNMENT BOLT M16-2 X 30
Item is no longer available
Price
N/A
196
Now: PB34M
HEX BOLT M10-1.5 X 60
Price
N/A
197
LOCK WASHER 10MM
Price
N/A

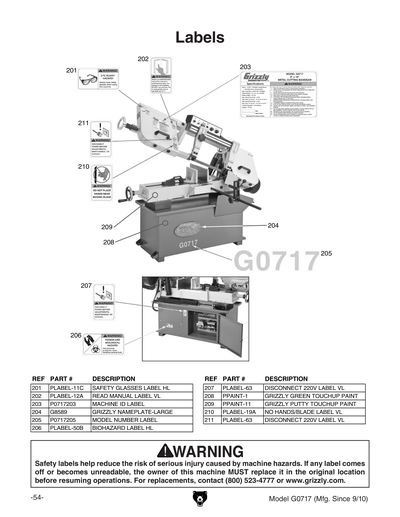

201
SAFETY GLASSES 3.8W X 2H
Price
N/A
202
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
203
MACHINE ID LABEL
Item is no longer available
Price
N/A
204
Now: G8589
Nameplate - Large
Price
N/A
205
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
206
BIOLOGICAL/POISON HAZARD 3.8W X 2H
Price
N/A
207
DISCONNECT 220V 2W X 3.3H
Price
N/A
208
N/S GRIZZLY GREEN G1023S
Price
N/A
209
GREY PUTTY REF G0504
Price
N/A
210
BANDSAW BLADE 2W X 3.3H V2.04.08
Price
N/A
211
DISCONNECT 220V 2W X 3.3H
Price
N/A
MAN
MANUAL FOR G0717 04/11
Item is no longer available
Price
N/A
