Parts for G0718 Hinge Boring Machine

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

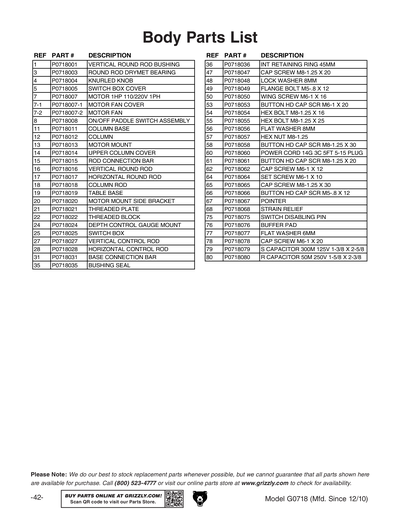

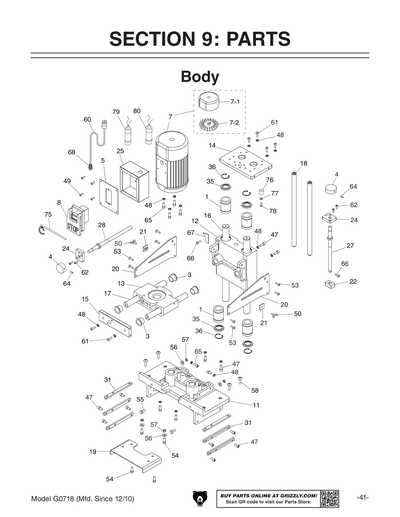

1
VERTICAL ROUND ROD BUSHING
3
ROUND ROD DRYMET BEARING
4
KNURLED KNOB
5
SWITCH BOX COVER
7
MOTOR 1HP 110V/220V 1-PH
7-1
MOTOR FAN COVER
7-2
MOTOR FAN
8
ON/OFF PADDLE SWITCH ASSEMBLY
11
COLUMN BASE
12
COLUMN
13
MOTOR MOUNT
14
UPPER COLUMN COVER
15
ROD CONNECTION BAR
16
VERTICAL ROUND ROD
17
HORIZONTAL ROUND ROD
18
COLUMN ROD
19
TABLE BASE
20
MOTOR MOUNT SIDE BRACKET
21
THREADED PLATE
22
THREADED BLOCK
24
DEPTH CONTROL GAUGE MOUNT
25
SWITCH BOX
27
VERTICAL CONTROL ROD
28
HORIZONTAL CONTROL ROD
31
BASE CONNECTION BAR
35
BUSHING SEAL
36
Now: PR74M
INT RETAINING RING 45MM
Price
N/A
47
CAP SCREW M8-1.25 X 20
Price
N/A
48
LOCK WASHER 8MM
Price
N/A
49
FLANGE BOLT M5-.8 X 12
Price
N/A
50
WING SCREW M6-1 X 16
53
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
54
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
55
Now: PB07M
HEX BOLT M8-1.25 X 25
Price
N/A
56
Now: PW01M
FLAT WASHER 8MM
Price
N/A
57
Now: PN03M
HEX NUT M8-1.25
Price
N/A
58
BUTTON HD CAP SCR M8-1.25 X 30
Price
N/A
60
POWER CORD 14G 3C 5FT 5-15 PLUG
61
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
62
CAP SCREW M6-1 X 12
Price
N/A
64
SET SCREW M6-1 X 10
Price
N/A
65
CAP SCREW M8-1.25 X 30
Price
N/A
66
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
67
POINTER
68
STRAIN RELIEF PG11 TYPE-6 ST
Price
N/A
75
SWITCH DISABLING PIN
76
BUFFER PAD
77
Now: PW03M
FLAT WASHER 6MM
Price
N/A
78
CAP SCREW M6-1 X 20
Price
N/A
79
S CAPACITOR 300M 125V 1-3/8 X 2-5/8
Price
N/A
79-1
*DISCD*R CAP 50M 250V 1-3/8 X 2-3/8
Item is no longer available
Price
N/A
80
R CAP 50M 250V 2-1/4 X 1-1/2 V2.11.14
Price
N/A
102
CAP SCREW M6-1 X 30
Price
N/A
106
LONGITUDINAL STOP PLATE
106A
LONGITUDINAL STOP ASSEMBLY
109
STOP PIN
110
STOP PLATE BASE
123
BASE RAILS
126
TABLE
129
CLAMP ROD
130
FRONT LONGITUDINAL FENCE
132
CLAMP CONNECTION BAR
133
LOCK WASHER 6MM
Price
N/A
134
CLAMP BASE
137
LOCK LEVER
138
CAP SCREW M5-.8 X 16
Price
N/A
139
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
140
RIGHT FRONT LONGITUDINAL SCALE
141
LEFT FRONT LONGITUDINAL SCALE 3M X 16MM
142
Now: PW02M
FLAT WASHER 5MM
Price
N/A
143
REAR LONGITUDINAL FENCE
143A
REAR LONGITUDINAL FENCE ASSEMBLY
144
LEFT REAR LONGITUDINAL SCALE 3M X 16MM
145
RIGHT REAR LONGITUDINAL SCALE 5M X 16MM
146
CAP SCREW M8-1.25 X 25
Price
N/A
148
LOCK WASHER 8MM
Price
N/A
151
FLAT HD SCR M8-1.25 X 30
Price
N/A
152
T-NUT M8-1.25
157
Now: PN03M
HEX NUT M8-1.25
Price
N/A
159
BASE FRONT COVER
161
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
163
HOLD-DOWN BOLT NEOPRENE TIP M8-1.25 X 25
164
SET SCREW M6-1 X 10
Price
N/A
169
CAP SCREW M5-.8 X 16
Price
N/A
170
CLAMP ASSEMBLY
171
CLAMP HORIZONTAL SUPPORT
172
CLAMP PAD
173
FLAT HD SCR M6-1 X 16
Price
N/A
174
FENCE CONNECTING ROD
201
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
202
FLAT HD SCR M5-.8 X 12
Price
N/A
203
CAP SCREW M8-1.25 X 12
Price
N/A
204
KNURLED KNOB
206
PIVOT ARM
207
PIVOT ARM FRONT BRACE
208
GUARD BRACKET
209
BORING HEAD GUARD
210
PIVOT ARM STEP BOLT M10 X 12
211
UPPER SPRING BRACKET
212
LOWER SPRING BRACKET
213
L-BRACKET
214
PIVOT ARM EXTENSION SPRING 2 X 19 X 13MM
215
STOP BRACKET
216
BORING HEAD RIGHT SUPPORT
217
BORING HEAD LEFT SUPPORT
218
Now: PN01M
HEX NUT M6-1
Price
N/A
219
Now: PW03M
FLAT WASHER 6MM
Price
N/A
220
SET SCREW M6-1 X 30
Price
N/A
221
CAP SCREW M5-.8 X 12
Price
N/A
222
CAP SCREW M6-1 X 55
Price
N/A
223
CAP SCREW M6-1 X 45
Price
N/A
224
CAP SCREW M6-1 X 65
Price
N/A
225
CAP SCREW M5-.8 X 16
Price
N/A
226
CAP SCREW M6-1 X 25
Price
N/A
227
LEFT BIT ARBOR M10
228
RIGHT BIT ARBOR M10
229
SET SCREW M5-.8 X 5
Price
N/A

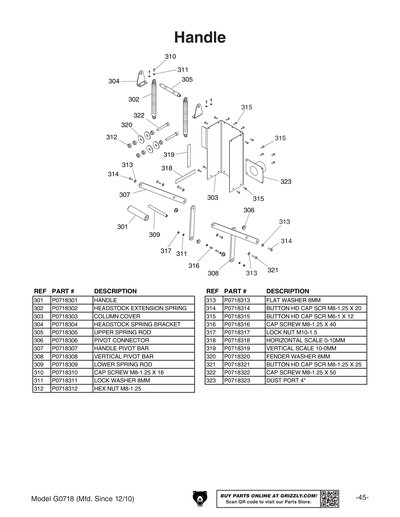

301
HANDLE
302
HEADSTOCK EXTENSION SPRING 3.5 X 195 X 2
303
COLUMN COVER
304
HEADSTOCK SPRING BRACKET
305
UPPER SPRING ROD
306
PIVOT CONNECTOR
307
HANDLE PIVOT BAR
308
VERTICAL PIVOT BAR
309
LOWER SPRING ROD
310
CAP SCREW M8-1.25 X 16
Price
N/A
311
LOCK WASHER 8MM
Price
N/A
312
Now: PN03M
HEX NUT M8-1.25
Price
N/A
313
Now: PW01M
FLAT WASHER 8MM
Price
N/A
314
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
315
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
316
CAP SCREW M8-1.25 X 40
Price
N/A
317
LOCK NUT M10-1.5
Price
N/A
318
HORIZONTAL SCALE 0-10MM
319
VERTICAL SCALE 10-0MM
320
FENDER WASHER 8MM
Price
N/A
321
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
322
CAP SCREW M8-1.25 X 50
Price
N/A
323
DUST PORT 4"
401

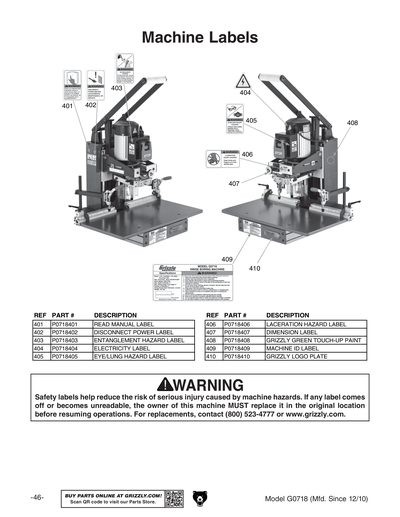

READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
402
DISCONNECT 110V 2W X 3.3H
Price
N/A
403
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
404
ELECTRICITY 1.4W X 1.2H
Price
N/A
405
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
406
LACERATION HAZARD LABEL
407
DIMENSION LABEL
408
N/S GRIZZLY GREEN G1023S
Price
N/A
409
MACHINE ID LABEL
410
Now: H4608
Oblong Nameplate-Mini
Price
N/A
