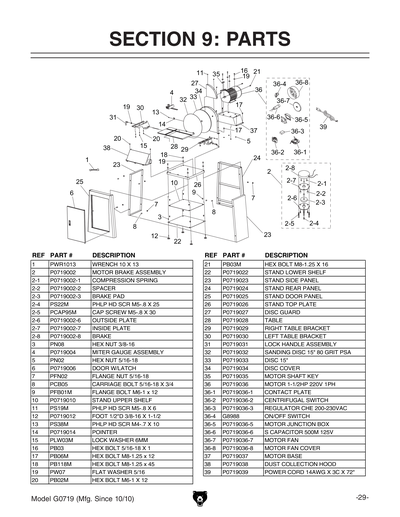

Parts for G0719 - 15" Disc Sander with Stand

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref # Part # Description Price Qty
1 P0719001
Replaced By PWR1013
WRENCH 10 X 13MM OPEN-ENDS
N/A View Replacement
2 P0719002 MOTOR BRAKE ASSEMBLY $378.00
2-1 P0719002-1
COMPRESSION SPRING
N/A
2-2 P0719002-2
SPACER
N/A
2-3 P0719002-3 BRAKE PAD $18.50
2-4 P0719002-4
Replaced By PS22M
PHLP HD SCR M5-.8 X 25
N/A View Replacement
2-5 P0719002-5
Replaced By PCAP95M
CAP SCREW M5-.8 X 30
N/A View Replacement
2-6 P0719002-6
OUTSIDE PLATE
N/A
2-7 P0719002-7
INSIDE PLATE
N/A
2-8 P0719002-8
Replaced By P0719002
MOTOR BRAKE ASSEMBLY
N/A View Replacement
3 P0719003
Replaced By PN08
HEX NUT 3/8-16
N/A View Replacement
4 P0719004 MITER GAUGE ASSEMBLY $63.00
5 P0719005
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement
6 P0719006 DOOR W/LATCH $110.75
7 P0719007
Replaced By PFN02
FLANGE NUT 5/16-18
N/A View Replacement
8 P0719008
Replaced By PCB05
CARRIAGE BOLT 5/16-18 X 3/4
N/A View Replacement
9 P0719009
Replaced By PFB01M
FLANGE BOLT M6-1 X 12
N/A View Replacement
10 P0719010 STAND UPPER SHELF $15.25
11 P0719011
Replaced By PS19M
PHLP HD SCR M5-.8 X 6
N/A View Replacement
12 P0719012 FOOT 1/2"D 3/8-16 X 1-1/2 $4.75
13 P0719013
Replaced By PS38M
PHLP HD SCR M4-.7 X 10
N/A View Replacement
14 P0719014
POINTER
N/A
15 P0719015
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
16 P0719016
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
17 P0719017
Replaced By PB06M
HEX BOLT M8-1.25 X 12
N/A View Replacement
18 P0719018
Replaced By PB118M
HEX BOLT M8-1.25 X 45
N/A View Replacement
19 P0719019
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
20 P0719020
Replaced By PB02M
HEX BOLT M6-1 X 12
N/A View Replacement
21 P0719021
Replaced By PB03M
HEX BOLT M8-1.25 X 16
N/A View Replacement
22 P0719022 STAND LOWER SHELF $16.25
23 P0719023 STAND SIDE PANEL $81.75
24 P0719024 STAND REAR PANEL $102.75
25 P0719025
STAND DOOR PANEL
N/A
26 P0719026
STAND TOP PLATE
N/A
27 P0719027
DISC GUARD
N/A
28 P0719028 TABLE $163.50
29 P0719029 RIGHT TABLE BRACKET $19.50
30 P0719030 LEFT TABLE BRACKET $20.25
31 P0719031 LOCK HANDLE ASSEMBLY $17.50
32 P0719032
SANDING DISC 15" 80 GRIT PSA
N/A
33 P0719033 DISC 15" $213.75
34 P0719034 DISC COVER $91.25
35 P0719035
MOTOR SHAFT KEY
N/A
36 P0719036 MOTOR 1.5HP 220V 1-PH $420.50
36-1 P0719036-1 CONTACT PLATE $18.25
36-2 P0719036-2 CENTRIFUGAL SWITCH $21.50
36-3 P0719036-3 REGULATOR CHE 200-230VAC $25.75
36-4 P0719036-4
Replaced By G8988
Safety Paddle Switch
N/A View Replacement
36-5 P0719036-5
MOTOR JUNCTION BOX
N/A
36-6 P0719036-6 S CAPACITOR 500M 125V $19.50
36-7 P0719036-7 MOTOR FAN $10.25
36-8 P0719036-8 MOTOR FAN COVER $17.50
37 P0719037
MOTOR BASE
N/A
38 P0719038 DUST COLLECTION HOOD $59.00
39 P0719039
POWER CORD 14G 3C 72"
N/A

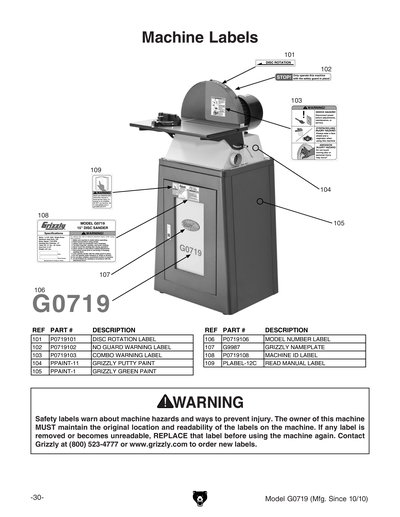

101 P0719101 DISC ROTATION LABEL $22.00
102 P0719102
NO GUARD WARNING LABEL
N/A
103 P0719103
COMBO WARNING LABEL
N/A
104 P0719104
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
105 P0719105
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
106 P0719106
MODEL NUMBER LABEL
N/A
107 P0719107
Replaced By G9987
Name Plates - Mini
N/A View Replacement
108 P0719108 MACHINE ID LABEL $9.50
109 P0719109
Replaced By PLABEL-12C
READ MANUAL 1.5W X 2.5H
N/A View Replacement
BOX2 P0719BOX2 COMPLETE STAND ASSY BOX 2 $497.50
MAN P0719MAN
MANUAL FOR G0719 01/11
N/A
