Parts for G0720 - Heavy-Duty Bench Top Milling Machine

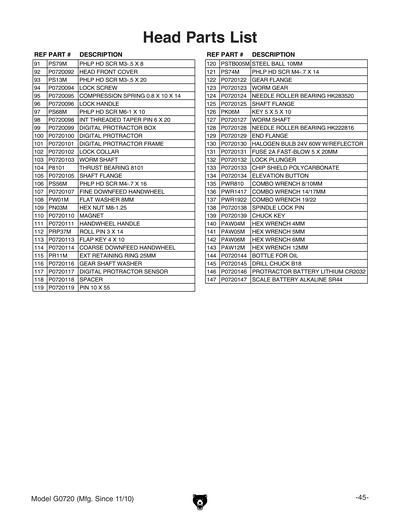

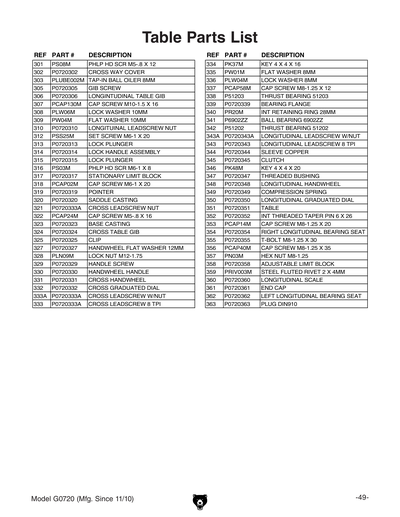

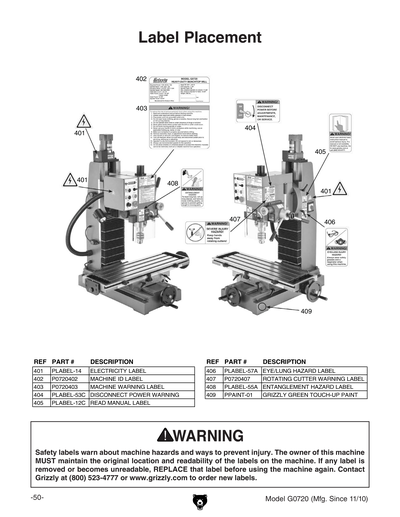

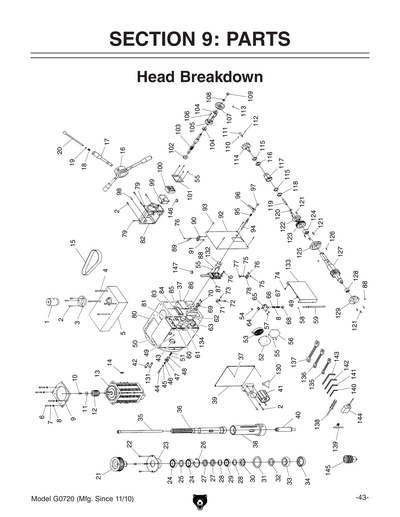

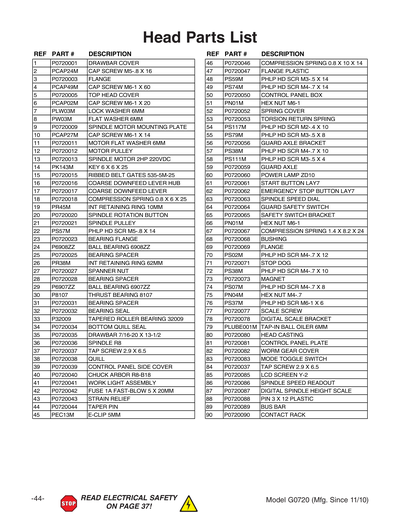

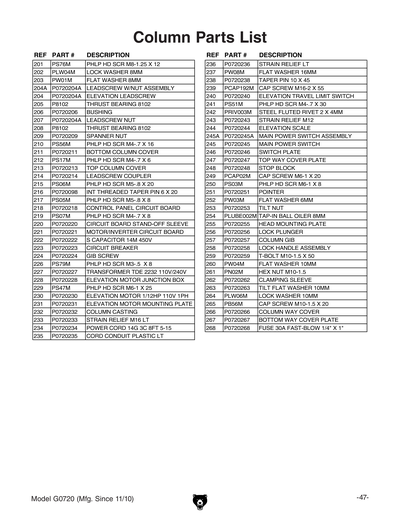

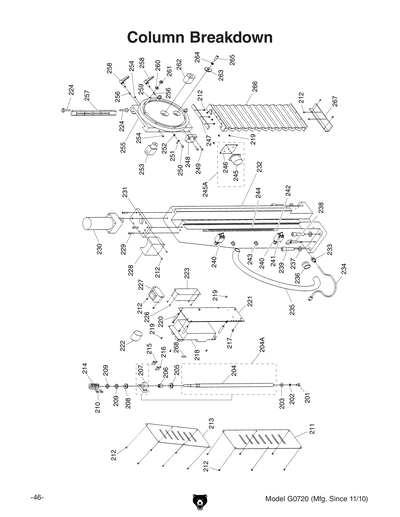

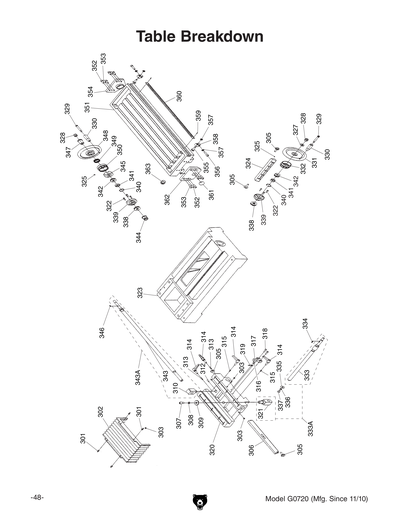

Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720
Part Diagram for G0720

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
DRAWBAR COVER
Item is no longer available
Price
N/A
2
CAP SCREW M5-.8 X 16
Price
N/A
3
FLANGE
Item is no longer available
Price
N/A
4
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
5
TOP HEAD COVER
Item is no longer available
Price
N/A
6
CAP SCREW M6-1 X 20
Price
N/A
7
LOCK WASHER 6MM
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
SPINDLE MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
10
CAP SCREW M6-1 X 14
Price
N/A
11
FLAT WASHER 6MM
Price
N/A
12
*DISCD*MOTOR PULLEY
Item is no longer available
Price
N/A
13
SPINDLE MOTOR 2HP 220VDC
Price
$817.95
14
KEY 6 X 6 X 25
Price
N/A
15
RIBBED BELT GATES 535-5M-25
Price
$15.15
16
COARSE DOWNFEED LEVER HUB
Item is no longer available
Price
N/A
17
Price
$3.15
18
COMPRESSION SPRING 0.8 X 6 X 25
Item is no longer available
Price
N/A
19
INT RETAINING RING 10MM
Price
N/A
20
SPINDLE ROTATION BUTTON
Price
$12.00
21
Price
$81.10
22
PHLP HD SCR M5-.8 X 14
Price
N/A
23
Price
$14.10
24
BALL BEARING 6908ZZ
Price
N/A
25
Price
$1.90
26
INT RETAINING RING 62MM
Price
N/A
27
Price
$1.90
28
Price
$1.49
29
Price
$10.95
30
THRUST BEARING 51107
Price
N/A
31
Price
$2.60
32
Price
$2.90
33
TAPERED ROLLER BEARING 32008
Price
N/A
34
BOTTOM QUILL SEAL
Item is no longer available
Price
N/A
35
DRAWBAR 7/16-20 X 13-1/2
Price
$15.15
36
*DISCD*SPINDLE R8
Item is no longer available
Price
N/A
36-1
SPINDLE COLLET PIN PRESS-TYPE
Price
$4.00
37
TAP SCREW 2.9 X 6.5
Item is no longer available
Price
N/A
38
*DISCD*QUILL
Item is no longer available
Price
N/A
39
CONTROL PANEL SIDE COVER
Item is no longer available
Price
N/A
40
Price
$17.65
41
LED WORK LIGHT ASSEMBLY V2.05.12
Price
N/A
41V2
LED WORK LIGHT ASSEMBLY V2.05.12
Price
$89.95
42
FUSE 1A FAST-BLOW 5 X 20MM
Price
$1.90
43
STRAIN RELIEF M12/M16 TYPE-6 ST
Item is no longer available
Price
N/A
44
TAPER PIN
Item is no longer available
Price
N/A
45
E-CLIP 5MM
Price
N/A
46
COMPRESSION SPRING 0.8 X 10 X 14
Price
$1.49
47
FLANGE PLASTIC
Item is no longer available
Price
N/A
48
PHLP HD SCR M3-.5 X 14
Price
N/A
49
PHLP HD SCR M4-.7 X 14
Price
N/A
50
Price
$16.20
51
HEX NUT M6-1
Price
N/A
52
SPRING COVER
Item is no longer available
Price
N/A
53
Price
$13.35
54
PHLP HD SCR M2-.4 X 10
Price
N/A
55
PHLP HD SCR M3-.5 X 8
Price
N/A
56
GUARD AXLE BRACKET
Item is no longer available
Price
N/A
57
PHLP HD SCR M4-.7 X 10
Price
N/A
58
PHLP HD SCR M3-.5 X 4
Price
N/A
59
GUARD AXLE
Item is no longer available
Price
N/A
60
POWER INDICATOR LIGHT ZD-10 GRN
Price
N/A
61
START BUTTON LAY7
Item is no longer available
Price
N/A
62
*DISCD*EMERGENCY STOP BUTTON LAY7
Item is no longer available
Price
N/A
63
Price
$14.60
64
*DISCD*GUARD SAFETY SWITCH
Item is no longer available
Price
N/A
65
SAFETY SWITCH BRACKET
Item is no longer available
Price
N/A
66
HEX NUT M6-1
Price
N/A
67
COMPRESSION SPRING 1.4 X 8.2 X 24
Item is no longer available
Price
N/A
68
BUSHING
Item is no longer available
Price
N/A
69
FLANGE
Item is no longer available
Price
N/A
70
PHLP HD SCR M4-.7 X 12
Price
N/A
71
STOP DOG
Item is no longer available
Price
N/A
72
PHLP HD SCR M4-.7 X 10
Price
N/A
73
MAGNET
Item is no longer available
Price
N/A
74
PHLP HD SCR M4-.7 X 8
Price
N/A
75
HEX NUT M4-.7
Price
N/A
76
PHLP HD SCR M6-1 X 6
Price
N/A
77
SCALE SCREW
Item is no longer available
Price
N/A
78
DIGITAL SCALE BRACKET
Item is no longer available
Price
N/A
79
BALL OILER 6MM PRESS-IN
Price
N/A
80
HEAD CASTING
Item is no longer available
Price
N/A
81
*DISCD*CONTROL PANEL LABEL
Item is no longer available
Price
N/A
82
WORM GEAR COVER
Item is no longer available
Price
N/A
83
Price
$7.45
84
TAP SCREW 2.9 X 6.5
Price
N/A
85
Price
$27.35
86
SPINDLE SPEED READOUT
Item is no longer available
Price
N/A
87
DIGITAL SPINDLE DEPTH UNIT
Price
N/A
88
PIN 3 X 12 PLASTIC
Item is no longer available
Price
N/A
89
BUS BAR
Item is no longer available
Price
N/A
90
CONTACT RACK
Item is no longer available
Price
N/A
91
PHLP HD SCR M3-.5 X 8
Price
N/A
92
HEAD FRONT COVER
Item is no longer available
Price
N/A
93
PHLP HD SCR M3-.5 X 20
Price
N/A
94
LOCK SCREW
Item is no longer available
Price
N/A
95
COMPRESSION SPRING 0.8 X 10 X 14
Item is no longer available
Price
N/A
96
Price
$4.70
97
PHLP HD SCR M6-1 X 10
Price
N/A
98
INT THREADED TAPER PIN 6 X 20
Item is no longer available
Price
N/A
99
DIGITAL PROTRACTOR BOX
Item is no longer available
Price
N/A
100
Price
$76.20
101
DIGITAL PROTRACTOR FRAME
Item is no longer available
Price
N/A
102
LOCK COLLAR
Item is no longer available
Price
N/A
103
WORM SHAFT
Item is no longer available
Price
N/A
104
THRUST BEARING 8101
Price
N/A
105
SHAFT FLANGE
Item is no longer available
Price
N/A
106
PHLP HD SCR M4-.7 X 16
Price
N/A
107
FINE DOWNFEED HANDWHEEL
Item is no longer available
Price
N/A
108
FLAT WASHER 8MM
Price
N/A
109
HEX NUT M8-1.25
Price
N/A
110
MAGNET
Item is no longer available
Price
N/A
111
HANDWHEEL HANDLE
Item is no longer available
Price
N/A
112
ROLL PIN 3 X 14
Price
N/A
113
FLAP KEY 4 X 10
Item is no longer available
Price
N/A
114
COARSE DOWNFEED HANDWHEEL
Item is no longer available
Price
N/A
115
EXT RETAINING RING 25MM
Price
N/A
116
FLAT WASHER 25MM
Price
N/A
117
DIGITAL PROTRACTOR SENSOR
Item is no longer available
Price
N/A
118
SPACER
Item is no longer available
Price
N/A
119
PIN 10 X 55
Item is no longer available
Price
N/A
120
STEEL BALL 10MM
Price
N/A
121
PHLP HD SCR M4-.7 X 14
Price
N/A
122
GEAR FLANGE
Item is no longer available
Price
N/A
123
WORM GEAR
Item is no longer available
Price
N/A
124
NEEDLE ROLLER BEARING HK283520
Item is no longer available
Price
N/A
125
SHAFT FLANGE
Item is no longer available
Price
N/A
126
KEY 5 X 5 X 10
Price
N/A
127
WORM SHAFT
Item is no longer available
Price
N/A
128
NEEDLE ROLLER BEARING HK222816
Item is no longer available
Price
N/A
129
END FLANGE
Item is no longer available
Price
N/A
130
LED WORK LIGHT ASSEMBLY V2.05.12
Price
N/A
130V2
LED WORK LIGHT ASSEMBLY V2.05.12
Price
N/A
131
FUSE 2A FAST-BLOW 5 X 20MM
Price
$1.90
132
LOCK PLUNGER
Item is no longer available
Price
N/A
133
*DISCD*CHIP SHIELD POLYCARBONATE
Item is no longer available
Price
N/A
134
Price
$6.50
135
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
136
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
137
WRENCH 19 X 22MM OPEN ENDS
Price
N/A
138
Price
$5.10
139
Price
$5.75
140
HEX WRENCH 4MM
Price
N/A
141
HEX WRENCH 5MM
Price
N/A
142
HEX WRENCH 6MM
Price
N/A
143
HEX WRENCH 12MM
Price
N/A
144
BOTTLE FOR OIL
Item is no longer available
Price
N/A
145
Price
$22.35
146
BATTERY CR2032
Price
N/A
147
SCALE BATTERY ALKALINE SR44
Price
$2.60
148
CONTROL PANEL CIRCUIT BOARD
Price
$36.35
201
PHLP HD SCR M8-1.25 X 12
Price
N/A
202
LOCK WASHER 8MM
Price
N/A
203
FLAT WASHER 8MM
Price
N/A
204
LEADSCREW W/NUT ASSEMBLY
Price
N/A
204A
LEADSCREW W/NUT ASSEMBLY
Item is no longer available
Price
N/A
205
THRUST BEARING 8102
Price
N/A
206
BUSHING
Item is no longer available
Price
N/A
207
LEADSCREW W/NUT ASSEMBLY
Price
N/A
208
THRUST BEARING 8102
Price
N/A
209
SPANNER NUT
Item is no longer available
Price
N/A
210
PHLP HD SCR M4-.7 X 16
Price
N/A
211
BOTTOM COLUMN COVER
Item is no longer available
Price
N/A
212
PHLP HD SCR M4-.7 X 6
Price
N/A
213
TOP COLUMN COVER
Item is no longer available
Price
N/A
214
LEADSCREW COUPLER
Item is no longer available
Price
N/A
215
PHLP HD SCR M5-.8 X 20
Price
N/A
216
INT THREADED TAPER PIN 6 X 20
Price
N/A
217
PHLP HD SCR M5-.8 X 8
Price
N/A
218
MOTOR POWER SUPPLY CIRCUIT BOARD
Price
$594.10
219
PHLP HD SCR M4-.7 X 8
Price
N/A
220
CIRCUIT BOARD STAND-OFF SLEEVE
Item is no longer available
Price
N/A
221
MOTOR POWER CIRCUIT BOARD PLATE
Price
$12.25
222
S CAPACITOR 14M 450V 1-5/8 X 2-11/16 X 1
Price
$7.20
223
CIRCUIT BREAKER 32A JUCHE DZ47-63 D32 1P
Item is no longer available
Price
N/A
224
GIB SCREW
Item is no longer available
Price
N/A
226
PHLP HD SCR M3-.5 X 8
Price
N/A
227
TRANSFORMER 63VA 110V-24V
Price
$30.60
228
ELEVATION MOTOR JUNCTION BOX
Price
$14.70
229
PHLP HD SCR M6-1 X 25
Price
N/A
230
ELEVATION MOTOR 1/12HP 110V 1-PH
Price
$234.35
231
ELEVATION MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
232
COLUMN CASTING
Item is no longer available
Price
N/A
233
STRAIN RELIEF M12/M16 TYPE-6 ST
Price
N/A
234
POWER CORD 14G 3C 8FT 5-15
Item is no longer available
Price
N/A
235
CORD CONDUIT PLASTIC LT
Price
$8.95
236
STRAIN RELIEF M12/M16 TYPE-6 ST
Price
N/A
237
FLAT WASHER 16MM
Price
N/A
238
TAPER PIN 10 X 45
Item is no longer available
Price
N/A
239
CAP SCREW M16-2 X 55
Price
N/A
240
ELEVATION TRAVEL LIMIT SWITCH
Price
$10.45
241
PHLP HD SCR M4-.7 X 30
Price
N/A
242
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
243
Price
$1.49
244
ELEVATION SCALE
Item is no longer available
Price
N/A
245
MAIN POWER SWITCH
Item is no longer available
Price
N/A
245A
MAIN POWER SWITCH ASSEMBLY
Item is no longer available
Price
N/A
246
SWITCH PLATE
Item is no longer available
Price
N/A
247
TOP WAY COVER PLATE
Item is no longer available
Price
N/A
248
STOP BLOCK
Item is no longer available
Price
N/A
249
CAP SCREW M6-1 X 20
Price
N/A
250
PHLP HD SCR M6-1 X 8
Price
N/A
251
POINTER
Item is no longer available
Price
N/A
252
FLAT WASHER 6MM
Price
N/A
253
TILT NUT
Item is no longer available
Price
N/A
254
BALL OILER 8MM PRESS-IN
Price
N/A
255
HEAD MOUNTING PLATE
Item is no longer available
Price
N/A
256
LOCK PLUNGER
Item is no longer available
Price
N/A
257
*DISCD*COLUMN GIB
Item is no longer available
Price
N/A
258
LOCK HANDLE ASSEMBLY
Item is no longer available
Price
N/A
259
Price
$1.90
260
FLAT WASHER 10MM
Price
N/A
261
HEX NUT M10-1.5
Price
N/A
262
CLAMPING SLEEVE
Item is no longer available
Price
N/A
263
FLAT WASHER 12MM
Price
N/A
264
LOCK WASHER 10MM
Price
N/A
265
CAP SCREW M3-.5 X 10
Price
N/A
266
Price
$1.90
267
BOTTOM WAY COVER PLATE
Item is no longer available
Price
N/A
268
FUSE 30A FAST-BLOW 1/4" X 1"
Price
$6.50
301
PHLP HD SCR M5-.8 X 12
Price
N/A
302
*DISCD*CROSS WAY COVER
Item is no longer available
Price
N/A
303
BALL OILER 8MM PRESS-IN
Price
N/A
305
Price
$3.65
306
LONGINTUDINAL TABLE GIB
Price
$60.75
307
CAP SCREW M10-1.5 X 16
Price
N/A
308
LOCK WASHER 10MM
Price
N/A
309
FLAT WASHER 10MM
Price
N/A
310
LONGITUDINAL LEADSCREW NUT
Item is no longer available
Price
N/A
312
SET SCREW M6-1 X 20
Price
N/A
313
LOCK PLUNGER
Item is no longer available
Price
N/A
314
LOCK HANDLE ASSEMBLY
Item is no longer available
Price
N/A
315
LOCK PLUNGER
Item is no longer available
Price
N/A
316
PHLP HD SCR M6-1 X 8
Price
N/A
317
STATIONARY LIMIT BLOCK
Item is no longer available
Price
N/A
318
CAP SCREW M6-1 X 20
Price
N/A
319
POINTER
Item is no longer available
Price
N/A
320
SADDLE CASTING
Item is no longer available
Price
N/A
321
CROSS LEADSCREW W/NUT
Price
N/A
322
CAP SCREW M5-.8 X 16
Price
N/A
323
BASE CASTING
Item is no longer available
Price
N/A
324
Price
$54.65
325
Price
$1.90
327
FLAT WASHER 11MM
Price
N/A
328
LOCK NUT M12-1.75
Price
N/A
329
Price
$2.20
330
Price
$2.60
331
CROSS HANDWHEEL
Item is no longer available
Price
N/A
332
Price
$12.40
333
CROSS LEADSCREW W/NUT
Price
N/A
333A
Price
$33.10
334
KEY 4 X 4 X 16
Price
N/A
335
FLAT WASHER 8MM
Price
N/A
336
LOCK WASHER 8MM
Price
N/A
337
CAP SCREW M8-1.25 X 12
Price
N/A
338
THRUST BEARING 51203
Price
N/A
339
BEARING FLANGE
Item is no longer available
Price
N/A
340
INT RETAINING RING 28MM
Price
N/A
341
BALL BEARING 6902ZZ
Price
N/A
342
THRUST BEARING 51202
Price
N/A
343
LONGITUDINAL LEADSCREW 8 TPI
Price
$40.25
343A
LONGITUDINAL LEADSCREW W/NUT
Price
$53.95
344
SLEEVE COPPER
Item is no longer available
Price
N/A
345
CLUTCH
Item is no longer available
Price
N/A
346
KEY 4 X 4 X 20
Price
N/A
347
THREADED BUSHING
Item is no longer available
Price
N/A
348
Price
$40.90
349
COMPRESSION SPRING
Item is no longer available
Price
N/A
350
LONGITUDINAL GRADUATED DIAL
Item is no longer available
Price
N/A
351
TABLE
Item is no longer available
Price
N/A
352
INT THREADED TAPER PIN 6 X 26
Item is no longer available
Price
N/A
353
CAP SCREW M8-1.25 X 20
Price
N/A
354
RIGHT LONGITUDINAL BEARING SEAT
Item is no longer available
Price
N/A
355
Price
$2.90
356
CAP SCREW M8-1.25 X 35
Price
N/A
357
HEX NUT M8-1.25
Price
N/A
358
Price
$3.65
359
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
360
LONGITUDINAL SCALE
Item is no longer available
Price
N/A
361
Price
$1.49
362
LEFT LONGITUDINAL BEARING SEAT
Price
$27.35
363
Price
$1.90
401
ELECTRICITY 1.4W X 1.2H
Price
N/A
402
MACHINE ID LABEL
Item is no longer available
Price
N/A
403
Price
$4.25
404
DISCONNECT HARDWIRED POWER 2.8W X 1.5H
Price
N/A
405
READ MANUAL 1.5W X 2.5H
Price
N/A
406
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
407
ROTATING CUTTER WARNING LABEL
Price
$4.25
408
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
409
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL FOR G0720 12/10
Item is no longer available
Price
N/A
PS117M
PHLP HD SCR M2-.4 X 10
Item is no longer available
Price
N/A
