Parts for G0724 - 12" Disc Sander

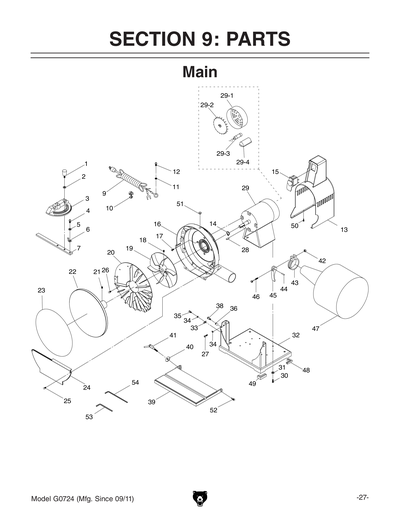

Part Diagram for G0724
Part Diagram for G0724
Part Diagram for G0724
Part Diagram for G0724
Part Diagram for G0724
Part Diagram for G0724

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

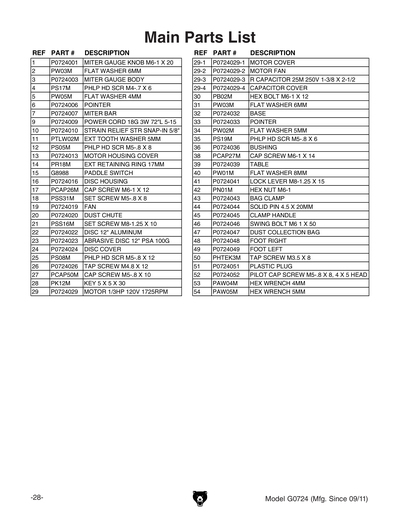

Ref #
Part #
Description
1
MITER GAUGE KNOB M6-1 X 20
Item is no longer available
Price
N/A
2
FLAT WASHER 6MM
Price
N/A
3
MITER GAUGE BODY
Item is no longer available
Price
N/A
4
PHLP HD SCR M4-.7 X 6
Price
N/A
5
FLAT WASHER 4MM
Price
N/A
6
*DISCD*POINTER
Item is no longer available
Price
N/A
7
MITER BAR
Item is no longer available
Price
N/A
9
POWER CORD 18G 3W 72"L 5-15
Item is no longer available
Price
N/A
10
STRAIN RELIEF TYPE-6 ST
Price
N/A
11
EXT TOOTH WASHER 5MM
Price
N/A
12
PHLP HD SCR M5-.8 X 8
Price
N/A
13
MOTOR HOUSING COVER
Item is no longer available
Price
N/A
14
EXT RETAINING RING 17MM
Price
N/A
15
Safety Paddle Switch
Price
N/A
16
DISC HOUSING
Item is no longer available
Price
N/A
17
CAP SCREW M6-1 X 12
Price
N/A
18
SET SCREW M5-.8 X 8
Price
N/A
19
FAN
Item is no longer available
Price
N/A
20
DUST CHUTE
Item is no longer available
Price
N/A
21
SET SCREW M8-1.25 X 10
Price
N/A
22
DISC 12" ALUMINUM
Item is no longer available
Price
N/A
23
ABRASIVE DISC 12" PSA 100G
Item is no longer available
Price
N/A
24
DISC COVER
Item is no longer available
Price
N/A
25
PHLP HD SCR M5-.8 X 12
Price
N/A
26
TAP SCREW M4.8 X 12
Item is no longer available
Price
N/A
27
CAP SCREW M5-.8 X 10
Price
N/A
28
KEY 5 X 5 X 30
Price
N/A
29
MOTOR 1/3HP 120V 1-PH
Item is no longer available
Price
N/A
29-1
MOTOR 1/3HP 120V 1-PH
Price
N/A
29-2
MOTOR 1/3HP 120V 1-PH
Price
N/A
29-3
MOTOR 1/3HP 120V 1-PH
Price
N/A
29-4
MOTOR 1/3HP 120V 1-PH
Price
N/A
30
HEX BOLT M6-1 X 12
Price
N/A
31
FLAT WASHER 6MM
Price
N/A
32
BASE
Item is no longer available
Price
N/A
33
*DISCD*POINTER
Item is no longer available
Price
N/A
34
FLAT WASHER 5MM
Price
N/A
35
PHLP HD SCR M5-.8 X 6
Price
N/A
36
Price
$1.49
38
CAP SCREW M6-1 X 14
Price
N/A
39
Price
$43.45
40
FLAT WASHER 8MM
Price
N/A
41
*DISCD*LOCK LEVER M8-1.25 X 15
Item is no longer available
Price
N/A
42
HEX NUT M6-1
Price
N/A
43
BAG CLAMP
Item is no longer available
Price
N/A
44
SOLID PIN 4.5 X 20MM
Item is no longer available
Price
N/A
45
CLAMP HANDLE
Item is no longer available
Price
N/A
46
SWING BOLT M6-1 X 50
Item is no longer available
Price
N/A
47
DUST BAG
Item is no longer available
Price
N/A
48
FOOT RIGHT
Item is no longer available
Price
N/A
49
FOOT LEFT
Item is no longer available
Price
N/A
50
TAP SCREW M3.5 X 8
Price
N/A
51
Price
$1.49
52
PILOT CAP SCREW M5-.8 X 8, 4 X 5 HEAD
Price
$1.49
53
HEX WRENCH 4MM
Price
N/A
54
HEX WRENCH 5MM
Price
N/A
55

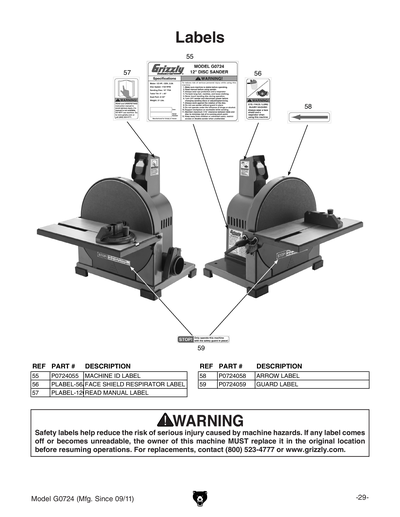

MACHINE ID LABEL
Item is no longer available
Price
N/A
56
FACE SHIELD/RESPIRATOR 1.5W X 2.5H
Price
N/A
57
READ MANUAL 1.5W X 2.5H
Price
N/A
58
ARROW LABEL
Item is no longer available
Price
N/A
59
GUARD LABEL
Item is no longer available
Price
N/A
MAN
MANUAL FOR G0724 09/11 09/11
Item is no longer available
Price
N/A
