Parts for G0725 - 6" x 28" Benchtop Jointer

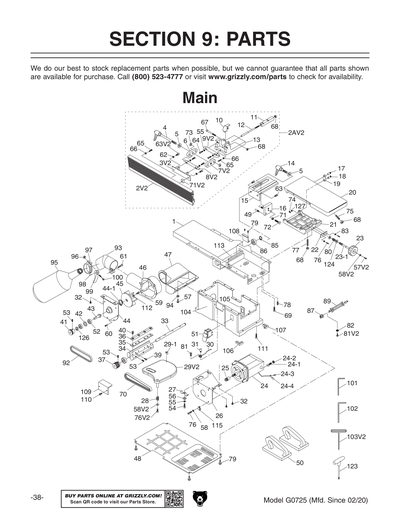

Part Diagram for G0725
Part Diagram for G0725
Part Diagram for G0725
Part Diagram for G0725
Part Diagram for G0725
Part Diagram for G0725

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

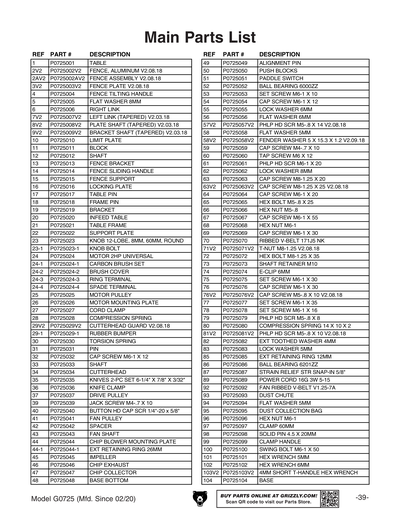

Ref #
Part #
Description
1
TABLE
Price
$200.20
2
*DISCD*FENCE, CAST IRON V1
Item is no longer available
Price
N/A
2A
*DISCD*FENCE ASSEMBLY V1
Item is no longer available
Price
N/A
2AV2
FENCE ASSEMBLY V2.08.18
Price
$192.95
2V2
FENCE, ALUMINUM V2.08.18
Price
$63.15
3
*DISCD*FENCE PLATE V1
Item is no longer available
Price
N/A
3V2
FENCE PLATE V2.08.18
Price
$52.25
4
HANDLE
Price
N/A
5
FLAT WASHER 10MM
Price
N/A
6
RIGHT LINK
Price
$2.55
7
LINK LEFT
Price
N/A
7V2
LEFT LINK (TAPERED) V2.03.18
Price
$3.35
8
PLATE SHAFT V1
Item is no longer available
Price
N/A
8V2
PLATE SHAFT (TAPERED) V2.03.18
Price
$1.60
9
BRACKET SHAFT V1
Price
$1.60
9V2
BRACKET SHAFT (TAPERED) V2.03.18
Price
$1.60
10
LIMIT PLATE
Price
$1.60
11
*DISCD*BLOCK
Item is no longer available
Price
N/A
12
SHAFT
Price
$3.30
13
FENCE BRACKET
Price
$58.30
14
FENCE SLIDING HANDLE
Price
$9.40
15
FENCE SUPPORT
Price
$43.80
16
LOCKING PLATE
Price
$7.60
17
TABLE PIN
Price
$1.60
18
FRAME PIN
Price
$1.60
19
BRACKET
Price
$1.60
20
INFEED TABLE
Price
$95.15
21
TABLE FRAME
Price
$19.35
22
SUPPORT PLATE
Price
$1.60
23
KNOB 12-LOBE, 8MM, 60MM, ROUND
Price
$3.75
23-1
KNOB BOLT
Price
$3.95
24
MOTOR 2HP UNIVERSAL
Price
$141.95
24-1
CARBON BRUSH (SET OF 2)
Price
$2.75
24-2
BRUSH COVER
Price
$1.60
24-3
RING TERMINAL
Item is no longer available
Price
N/A
24-4
SPADE TERMINAL
Item is no longer available
Price
N/A
25
MOTOR PULLEY
Price
$3.05
26
MOTOR MOUNTING PLATE
Price
$9.80
27
CORD CLAMP
Item is no longer available
Price
N/A
28
COMPRESSION SPRING
Price
$1.60
29
CUTTERHEAD GUARD V2.08.18
Price
N/A
29-1
RUBBER BUMPER
Price
$1.60
29V2
CUTTERHEAD GUARD V2.08.18
Price
$15.15
30
TORSION SPRING
Price
$1.60
31
PIN
Price
$1.60
32
CAP SCREW M6-1 X 12
Price
N/A
33
SHAFT
Price
$7.60
34
CUTTERHEAD
Price
$36.90
35
6-1/4" x 7/8" x 3/32" HSS Jointer Knives, Set of 2
Price
N/A
36
KNIFE CLAMP
Price
$6.05
37
DRIVE PULLEY
Price
$6.30
39
JACK SCREW M4-.7 X 10
Price
$1.60
40
BUTTON HD CAP SCR 1/4-20 X 5/8
Price
N/A
41
FAN PULLEY
Price
$4.85
42
SPACER
Price
$1.60
43
FAN SHAFT
Price
$5.15
44
CHIP BLOWER MOUNTING PLATE
Price
$8.50
44-1
EXT RETAINING RING 26MM
Price
N/A
45
IMPELLER
Price
$2.20
46
CHIP EXHAUST
Price
N/A
47
CHIP COLLECTOR
Item is no longer available
Price
N/A
48
BASE BOTTOM
Item is no longer available
Price
N/A
49
ALIGNMENT PIN
Price
$1.60
50
Safety Push Block - Small
Price
N/A
51
Safety Paddle Switch
Price
N/A
52
BALL BEARING 6000ZZ
Price
N/A
53
SET SCREW M6-1 X 10
Price
N/A
54
CAP SCREW M6-1 X 12
Price
N/A
55
LOCK WASHER 6MM
Price
N/A
56
FLAT WASHER 6MM
Price
N/A
57
PHLP HD SCR M5-.8 X 10
Price
N/A
57V2
PHLP HD SCR M5-.8 X 14
Price
N/A
58
FLAT WASHER 5MM
Price
N/A
58V2
FENDER WASHER 5 X 15.3 X 1.2 V2.09.18
Price
$1.60
59
CAP SCREW M4-.7 X 10
Price
N/A
60
TAP SCREW M2.2 X 4.5
Price
N/A
61
PHLP HD SCR M6-1 X 20
Price
N/A
62
LOCK WASHER 8MM
Price
N/A
63
CAP SCREW M8-1.25 X 20
Price
N/A
63V2
CAP SCREW M8-1.25 X 25
Price
N/A
64
CAP SCREW M6-1 X 20
Price
N/A
65
HEX BOLT M5-.8 X 25
Price
N/A
66
HEX NUT M5-.8
Price
N/A
67
CAP SCREW M6-1 X 55
Price
N/A
68
HEX NUT M6-1
Price
N/A
69
CAP SCREW M6-1 X 30
Price
N/A
70
CUTTERHEAD BELT 171J5 NK
Price
N/A
71
HEX NUT M8-1.25
Price
N/A
71V2
T-NUT M8-1.25 V2.08.18
Price
$1.60
72
HEX BOLT M8-1.25 X 35
Price
N/A
73
SHAFT RETAINER M10
Price
$1.60
74
E-CLIP 6MM
Price
N/A
75
SET SCREW M6-1 X 30
Price
N/A
76
CAP SCREW M6-1 X 30
Price
N/A
76V2
CAP SCREW M5-.8 X 10
Price
N/A
77
SET SCREW M6-1 X 35
Price
N/A
78
SET SCREW M6-1 X 16
Price
N/A
79
PHLP HD SCR M5-.8 X 8
Price
N/A
80
COMPRESSION SPRING 14 X 10 X 2
Price
$1.60
81
PHLP HD SCR M4-.7 X 10
Price
N/A
81V2
PHLP HD SCR M5-.8 X 10
Price
N/A
82
EXT TOOTH WASHER 4MM
Price
N/A
83
LOCK WASHER 5MM
Price
N/A
84
WIRE NUT
Item is no longer available
Price
N/A
85
EXT RETAINING RING 12MM
Price
N/A
86
BALL BEARING 6201ZZ
Price
N/A
87
STRAIN RELIEF TYPE-6 ST
Item is no longer available
Price
N/A
89
POWER CORD 16G 3W 5-15
Item is no longer available
Price
N/A
90
SPADE TERMINAL
Item is no longer available
Price
N/A
91
RING TERMINAL
Item is no longer available
Price
N/A
92
FAN BELT 25-7A V1.19.07
Price
N/A
93
DUST CHUTE
Price
$2.45
94
FLAT WASHER 5MM
Price
N/A
95
DUST COLLECTION BAG
Price
$28.45
96
HEX NUT M6-1
Price
N/A
97
CLAMP 60MM
Price
N/A
98
SOLID PIN 4.5 X 20MM
Price
$1.60
99
CLAMP HANDLE
Price
$1.60
100
SWING BOLT M6-1 X 50
Price
$1.60
101
HEX WRENCH 5MM
Price
N/A
102
HEX WRENCH 6MM
Price
N/A
103
HEX WRENCH 4MM
Price
N/A
103V2
4MM SHORT T-HANDLE HEX WRENCH
Price
$4.60
104
BASE
Item is no longer available
Price
N/A
105
SWITCH MOUNTING PLATE
Price
$1.60
106
RIGHT RUBBER FOOT
Price
$2.20
107
LEFT RUBBER FOOT
Price
$2.20
108
GUARD PLATE
Item is no longer available
Price
N/A
109
CUTTERHEAD COVER
Price
$1.60
110
PHLP HD SCR M5-.8 X 6
Price
N/A
111
CAP SCREW M6-1 X 8
Price
N/A
112
FENDER WASHER 5MM
Price
N/A
113
INFEED TABLE SUPPORT ARM
Item is no longer available
Price
N/A
114
CHIP COLLECTOR COVER PLATE
Item is no longer available
Price
N/A
115
WIRE RESTRAINT
Item is no longer available
Price
N/A
116
READ MANUAL 2.8W X 1.5H
Price
N/A
117
CUTTERHEAD GUARD LABEL
Item is no longer available
Price
N/A
118
GLASSES/RESPIRATOR 2.8W X 1.5H
Price
N/A
119
ELECTRICITY 1.4W X 1.2H
Price
N/A
120
MACHINE ID LABEL V2.12.14
Price
N/A
120V2
MACHINE ID LABEL V2.12.14
Item is no longer available
Price
N/A
120V3
MACHINE ID LABEL V3.05.20
Item is no longer available
Price
N/A
121
CUTTERHEAD EXPOSURE LABEL
Item is no longer available
Price
N/A
122
N/S GRIZZLY GREEN G1023S
Price
N/A
123
T-HANDLE TORX DRIVER T-30
Price
N/A
124
FLAT WASHER 10MM
Price
N/A
126
EXT RETAINING RING 4MM
Item is no longer available
Price
N/A
127
FLAT WASHER 6MM
Price
N/A
2Z637
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
MAN
MANUAL G0725 MFD-09.11-07.18 V1.09.11
Price
$21.95
MANV2
MANUAL G0725 MFD-08.18-01.20 V2.09.18
Item is no longer available
Price
N/A
MANV3
MANUAL G0725 MFD-02.20+ V3.05.20
Price
$18.00
