Parts for G0727 - 5" x 18" 1/2 HP Mini Horizontal/Vertical Mill

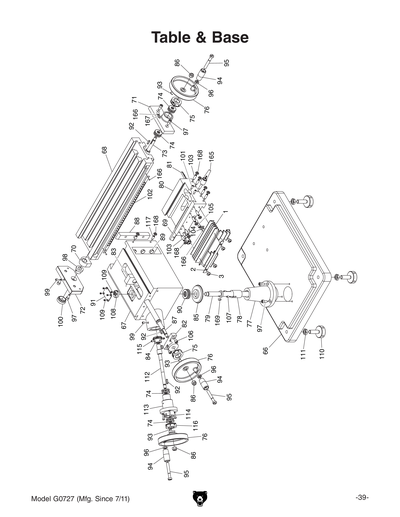

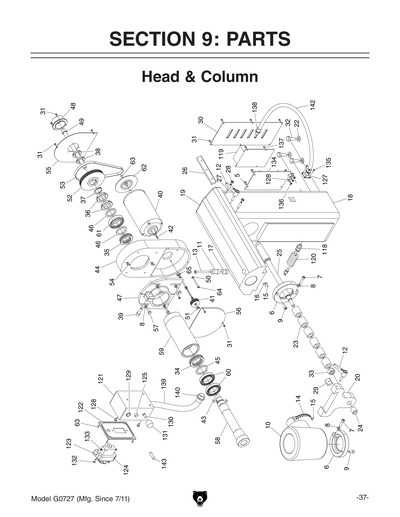

Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727
Part Diagram for G0727

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

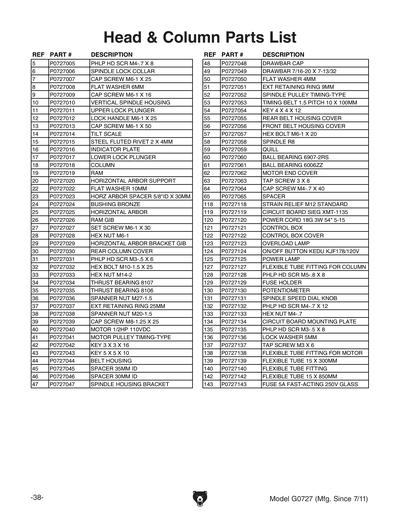

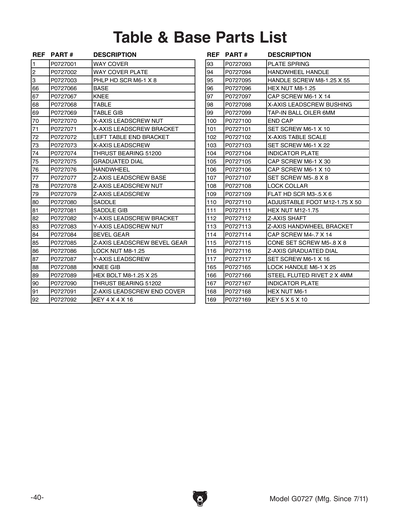

Ref #
Part #
Description
1
WAY COVER
Price
$7.95
2
WAY COVER PLATE
Item is no longer available
Price
N/A
3
PHLP HD SCR M6-1 X 8
Price
N/A
5
PHLP HD SCR M4-.7 X 8
Price
N/A
6
SPINDLE LOCK COLLAR
Price
$20.40
7
CAP SCREW M6-1 X 25
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
CAP SCREW M6-1 X 16
Price
N/A
10
VERTICAL SPINDLE HOUSING
Price
$115.40
11
UPPER LOCK PLUNGER
Item is no longer available
Price
N/A
12
LOCK HANDLE M6-1 X 25
Price
$5.45
13
CAP SCREW M6-1 X 50
Price
N/A
14
TILT SCALE
Price
$1.90
15
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
16
INDICATOR PLATE
Item is no longer available
Price
N/A
17
LOWER LOCK PLUNGER
Item is no longer available
Price
N/A
18
COLUMN
Item is no longer available
Price
N/A
19
RAM
Price
$138.75
20
HORZ ARBOR BRACKET
Price
$22.70
22
FLAT WASHER 10MM
Price
N/A
23
HORZ ARBOR SPACER 21MM ID X 31MM OD
Price
$2.20
24
BUSHING BRONZE
Price
$6.15
25
CHUCK ARBOR R8
Price
$56.10
26
RAM GIB
Price
$4.70
27
SET SCREW M6-1 X 30
Price
N/A
28
HEX NUT M6-1
Price
N/A
29
HORIZONTAL ARBOR BRACKET GIB
Price
$2.60
30
REAR COLUMN COVER
Price
$9.40
31
PHLP HD SCR M3-.5 X 6
Price
N/A
32
HEX BOLT M10-1.5 X 25
Price
N/A
33
HEX NUT M14-2
Price
N/A
34
THRUST BEARING 51107
Price
N/A
35
THRUST BEARING 8106
Price
N/A
36
SPANNER NUT M27-1.5
Price
$2.20
37
EXT RETAINING RING 25MM
Price
N/A
38
SPANNER NUT M20-1.5
Price
$1.90
39
CAP SCREW M8-1.25 X 25
Price
N/A
40
MOTOR 1/2HP 110V 1-PH
Price
$325.65
41
MOTOR PULLEY TIMING-TYPE
Price
$12.65
42
KEY 3 X 3 X 16
Price
N/A
43
KEY 5 X 5 X 10
Price
N/A
44
BELT HOUSING
Price
$92.40
45
SPACER 35MM ID
Price
$2.20
46
SPACER 30MM ID
Price
$4.00
47
SPINDLE HOUSING BRACKET
Price
$50.95
48
DRAWBAR CAP
Price
$10.45
49
DRAWBAR 7/16-20 X 7-13/32
Price
$7.95
50
FLAT WASHER 4MM
Price
N/A
51
EXT RETAINING RING 9MM
Price
N/A
52
SPINDLE PULLEY TIMING-TYPE
Price
$37.10
53
TIMING BELT 1.5 PITCH 10 X 100MM
Price
$5.45
54
KEY 4 X 4 X 12
Price
N/A
55
REAR BELT HOUSING COVER
Price
$4.70
56
FRONT BELT HOUSING COVER
Price
$4.35
57
HEX BOLT M6-1 X 20
Price
N/A
58
SPINDLE R8
Price
$79.10
59
QUILL
Price
$93.85
60
BALL BEARING 6907-2RS
Price
N/A
61
BALL BEARING 6006ZZ
Price
N/A
62
MOTOR END COVER
Price
$1.90
63
TAP SCREW M3 X 8
Price
N/A
64
CAP SCREW M4-.7 X 40
Price
N/A
65
SPACER
Price
$1.90
66
BASE
Item is no longer available
Price
N/A
67
KNEE
Item is no longer available
Price
N/A
68
TABLE
Price
$165.00
69
TABLE GIB
Item is no longer available
Price
N/A
70
X-AXIS LEADSCREW NUT
Price
$7.20
71
X-AXIS LEADSCREW BRACKET
Item is no longer available
Price
N/A
72
LEFT TABLE END BRACKET
Item is no longer available
Price
N/A
73
X-AXIS LEADSCREW
Price
$15.50
74
THRUST BEARING 51200
Price
N/A
75
GRADUATED DIAL
Item is no longer available
Price
N/A
76
HANDWHEEL
Price
$17.00
77
Z-AXIS LEADSCREW BASE
Item is no longer available
Price
N/A
78
Z-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
79
Z-AXIS LEADSCREW
Item is no longer available
Price
N/A
80
SADDLE
Item is no longer available
Price
N/A
81
SADDLE GIB
Item is no longer available
Price
N/A
82
Y-AXIS LEADSCREW BRACKET
Item is no longer available
Price
N/A
83
Y-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
84
BEVEL GEAR
Item is no longer available
Price
N/A
85
Z-AXIS LEADSCREW BEVEL GEAR
Item is no longer available
Price
N/A
86
LOCK NUT M8-1.25
Price
N/A
87
Y-AXIS LEADSCREW
Item is no longer available
Price
N/A
88
KNEE GIB
Item is no longer available
Price
N/A
89
HEX BOLT M8-1.25 X 25
Price
N/A
90
THRUST BEARING 51202
Price
N/A
91
Z-AXIS LEADSCREW END COVER
Item is no longer available
Price
N/A
92
KEY 4 X 4 X 16
Price
N/A
93
PLATE SPRING
Price
$1.49
94
HANDWHEEL HANDLE
Price
$1.90
95
HANDLE SCREW M8-1.25 X 55
Price
$1.90
96
HEX NUT M8-1.25
Price
N/A
97
CAP SCREW M6-1 X 14
Price
N/A
98
X-AXIS LEADSCREW BUSHING
Price
$8.35
99
BALL OILER 6MM PRESS-IN
Price
N/A
100
END CAP
Item is no longer available
Price
N/A
101
SET SCREW M6-1 X 10
Price
N/A
102
X-AXIS TABLE SCALE
Price
$3.20
103
SET SCREW M6-1 X 22
Price
N/A
104
INDICATOR PLATE
Item is no longer available
Price
N/A
105
CAP SCREW M6-1 X 30
Price
N/A
106
CAP SCREW M6-1 X 10
Price
N/A
107
SET SCREW M5-.8 X 8
Price
N/A
108
LOCK COLLAR
Item is no longer available
Price
N/A
109
FLAT HD SCR M3-.5 X 6
Price
N/A
110
ADJUSTABLE FOOT M12-1.75 X 50
Price
$6.50
111
HEX NUT M12-1.75
Price
N/A
112
Z-AXIS SHAFT
Item is no longer available
Price
N/A
113
Z-AXIS HANDWHEEL BRACKET
Item is no longer available
Price
N/A
114
CAP SCREW M4-.7 X 14
Price
N/A
115
CONE SET SCREW M5-.8 X 8
Item is no longer available
Price
N/A
116
Z-AXIS GRADUATED DIAL
Item is no longer available
Price
N/A
117
SET SCREW M6-1 X 16
Price
N/A
118
STRAIN RELIEF M12 TYPE-6 ST
Price
N/A
119
CIRCUIT BOARD SIEG XMT-1135
Price
$260.60
120
POWER CORD 18G 3W 54" 5-15
Price
$8.65
121
CONTROL BOX
Price
$7.60
122
CONTROL BOX COVER
Price
$2.60
123
OVERLOAD LAMP
Price
$1.90
124
ON/OFF BUTTON KEDU KJF178/120V
Price
$19.45
125
POWER INDICATOR LIGHT ZD-10 GRN
Price
N/A
126
ELECTRICAL CONNECTOR FEMALE
Item is no longer available
Price
N/A
127
FLEXIBLE TUBE FITTING FOR COLUMN
Price
$1.90
128
PHLP HD SCR M5-.8 X 8
Price
N/A
129
FUSE HOLDER
Price
$2.20
130
POTENTIOMETER WH24-2 Z4K7
Price
$2.20
131
SPINDLE SPEED DIAL KNOB
Price
$2.20
132
PHLP HD SCR M4-.7 X 12
Price
N/A
133
HEX NUT M4-.7
Price
N/A
134
CIRCUIT BOARD MOUNTING PLATE
Price
$6.15
135
PHLP HD SCR M3-.5 X 8
Price
N/A
136
LOCK WASHER 5MM
Price
N/A
137
TAP SCREW M3 X 6
Price
N/A
138
FLEXIBLE TUBE FITTING FOR MOTOR
Price
$1.90
139
FLEXIBLE TUBE 15 X 300MM
Price
$2.90
140
FLEXIBLE TUBE FITTING
Price
$1.90
142
FLEXIBLE TUBE 15 X 850MM
Price
$3.65
143
FUSE 5A FAST-ACTING 250V GLASS
Price
$1.90

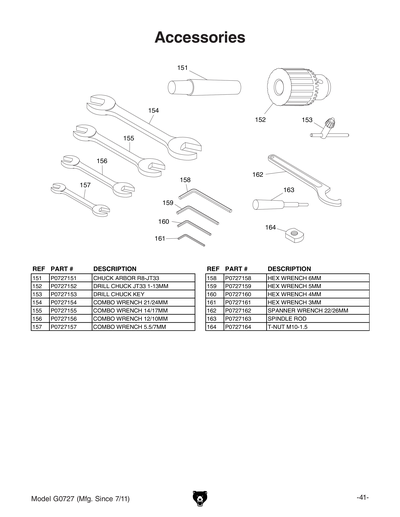

151
CHUCK ARBOR R8 X JT33
Price
$6.35
152
DRILL CHUCK JT33 1-13MM
Item is no longer available
Price
N/A
153
DRILL CHUCK KEY
Price
$4.35
154
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
155
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
156
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
157
WRENCH 5.5/7MM
Price
N/A
158
HEX WRENCH 6MM
Price
N/A
159
HEX WRENCH 5MM
Price
N/A
160
HEX WRENCH 4MM
Price
N/A
161
HEX WRENCH 3MM
Price
N/A
162
SPANNER WRENCH 22/26MM
Price
$4.35
163
SPINDLE ROD
Item is no longer available
Price
N/A
164
T-NUT M10-1.5
Item is no longer available
Price
N/A
165
LOCK HANDLE M6-1 X 25
Price
N/A
166
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
167
INDICATOR PLATE
Price
N/A
168
HEX NUT M6-1
Price
N/A
169
KEY 5 X 5 X 10
Price
N/A

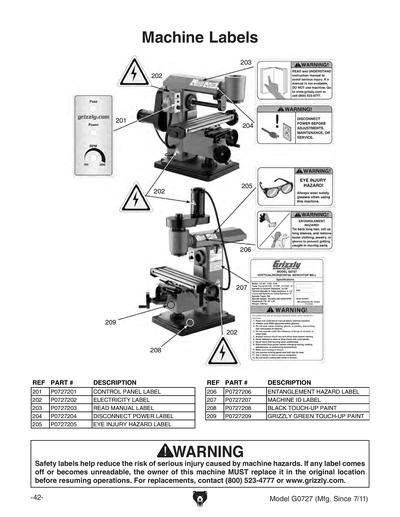

201
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
202
ELECTRICITY 1.4W X 1.2H
Price
N/A
203
READ MANUAL 2.8W X 1.5H
Price
N/A
204
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
205
SAFETY GLASSES 2.8W X 1.5H
Price
N/A
206
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
207
MACHINE ID LABEL
Item is no longer available
Price
N/A
208
GLOSSY BLACK
Price
N/A
209
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0727 MFG 7/11 10/11
Item is no longer available
Price
N/A
