Parts for G0730 8" x 30" Vertical Mill

IMPORTANT

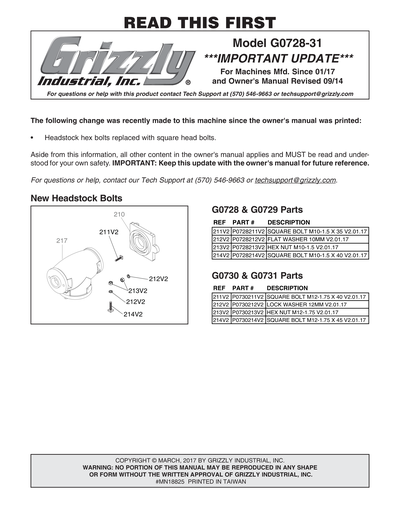

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

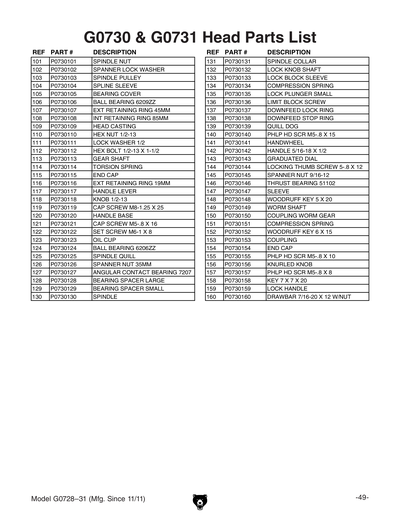

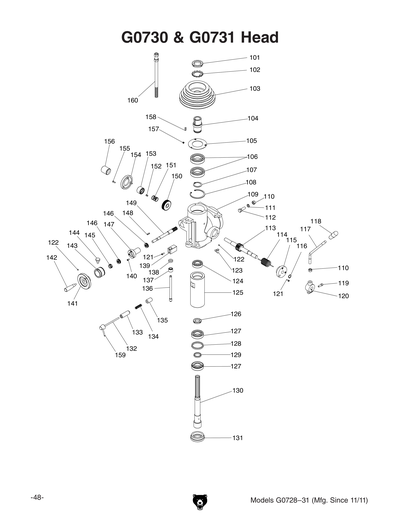

101
SPINDLE NUT
Price
N/A
102
SPANNER LOCK WASHER
103
SPINDLE PULLEY
104
SPLINE SLEEVE
Price
N/A
105
BEARING COVER
106
BALL BEARING 6209ZZ
Price
N/A
107
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
108
Now: PR27M
INT RETAINING RING 85MM
Price
N/A
109
HEAD CASTING
110
Now: PN13
HEX NUT 1/2-13
Price
N/A
111
Now: PLW07
LOCK WASHER 1/2
Price
N/A
112
Now: PB55
HEX BOLT 1/2-13 X 1-1/2
Price
N/A
113
GEAR SHAFT
Price
N/A
114
TORSION SPRING
Price
N/A
115
END CAP
Price
N/A
116
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
117
HANDLE LEVER
Price
N/A
118
KNOB 1/2-13
Price
N/A
119
CAP SCREW M8-1.25 X 25
Price
N/A
120
HANDLE BASE
Price
N/A
121
CAP SCREW M5-.8 X 16
Price
N/A
122
SET SCREW M6-1 X 8
Price
N/A
123
OIL CUP 1/8" NPT X 8MM X 24MM ELBOW
Price
N/A
124
BALL BEARING 6206ZZ
Price
N/A
125
SPINDLE QUILL
126
SPANNER NUT 35MM X 1.5P
Price
N/A
127
Now: P7207
ANGULAR CONTACT BEARING 7207
Price
N/A
128
BEARING SPACER LARGE
129
BEARING SPACER SMALL
130
SPINDLE
130-1
SET SCREW M4-.7 X 10
Price
N/A
131
SPINDLE COLLAR
Price
N/A
132
LOCK KNOB SHAFT
Price
N/A
133
LOCK BLOCK SLEEVE
Price
N/A
134
COMPRESSION SPRING
Price
N/A
135
LOCK PLUNGER SMALL
Price
N/A
136
LIMIT BLOCK SCREW
Price
N/A
137
DOWNFEED LOCK RING
Price
N/A
138
DOWNFEED STOP RING
Price
N/A
139
QUILL DOG
Price
N/A
140
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
141
HANDWHEEL
Price
N/A
142
HANDLE 5/16-18 X 1/2
Price
N/A
143
GRADUATED DIAL
144
LOCKING THUMB SCREW 5-.8 X 12
Price
N/A
145
SPANNER NUT 9/16-12
Price
N/A
146
THRUST BEARING 51102
Price
N/A
147
SLEEVE
Price
N/A
148
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
149
WORM SHAFT
150
COUPLING WORM GEAR
151
COMPRESSION SPRING
Price
N/A
152
KEY 6 X 6 X 15
Price
N/A
153
***USE P0678053***
Price
N/A
154
END CAP
Price
N/A
155
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
156
KNURLED KNOB
Price
N/A
157
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
158
Now: PK25M
KEY 7 X 7 X 20
Price
N/A
159
LOCK HANDLE
Price
N/A
160
DRAWBAR 7/16-20 X 12 W/NUT
Price
N/A

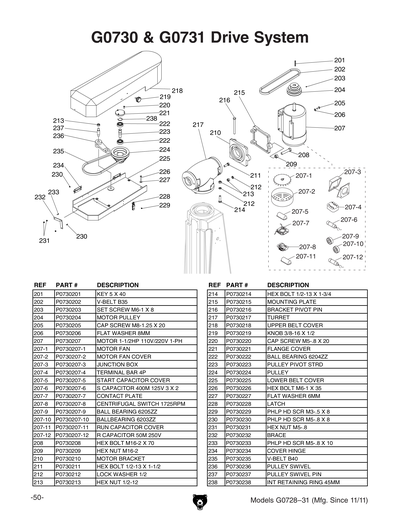

201
Now: PK02M
KEY 5 X 5 X 40
Price
N/A
202
Now: PVB33
V-BELT B33
Price
N/A
203
SET SCREW M6-1 X 8
Price
N/A
204
MOTOR PULLEY
205
CAP SCREW M8-1.25 X 20
Price
N/A
206
Now: PW01M
FLAT WASHER 8MM
Price
N/A
207
MOTOR 1-1/2HP 110V/200V 1PH
207-1
MOTOR FAN
207-10
BALL BEARING 6203ZZ
Price
N/A
207-11
RUN CAPACITOR COVER
207-12
R CAPACITOR 50M 250V 1-3/8 X 3-1/2
207-2
MOTOR FAN COVER
207-3
JUNCTION BOX
207-4
TERMINAL BAR 4P
207-5
START CAPACITOR COVER
207-6
S CAPACITOR 400M 250V 3 X 2 V2.07.22
Price
N/A
207-7
CONTACTOR PLATE
207-8
CENTRIFUGAL SWITCH 1725RPM
207-9
BALL BEARING 6205ZZ
Price
N/A
208
HEX BOLT M16-2 X 70
Price
N/A
209
Now: PN13M
HEX NUT M16-2
Price
N/A
210
MOTOR BRACKET
Price
N/A
211V2
SQUARE BOLT M12-1.75 X 40 V2.01.17
Price
N/A
212V2
LOCK WASHER 12MM
Price
N/A
213
Now: PN13
HEX NUT 1/2-13
Price
N/A
213V2
Now: PN09M
HEX NUT M12-1.75
Price
N/A
214
Now: PB56
HEX BOLT 1/2-13 X 1-3/4
Price
N/A
214V2
SQUARE BOLT M12-1.75 X 45 V2.01.17
Price
N/A
215
MOUNTING PLATE
Price
N/A
216
PIVOT BOLT 1/2 X 140
Price
N/A
217
TURRET
218
UPPER BELT COVER
219
KNOB 3/8-16 X 1/2
220
CAP SCREW M5-.8 X 20
Price
N/A
221
FLANGE COVER
222
BALL BEARING 6204ZZ
Price
N/A
223
PULLEY PIVOT PIN
224
PULLEY
225
LOWER BELT COVER
226
Now: PB52M
HEX BOLT M6-1 X 35
Price
N/A
227
Now: PW03M
FLAT WASHER 6MM
Price
N/A
228
LATCH
Price
N/A
229
Now: PS79M
PHLP HD SCR M3-.5 X 8
Price
N/A
230
Now: PS05M
PHLP HD SCR M5-.8 X 8
Price
N/A
231
Now: PN06M
HEX NUT M5-.8
Price
N/A
232
BRACE
233
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
234
COVER HINGE
Price
N/A
235
Now: PVB38
V-BELT B38
Price
N/A
236
PULLEY SWIVEL
237
PULLEY SWIVEL PIN
Price
N/A
238
Now: PR74M
INT RETAINING RING 45MM
Price
N/A

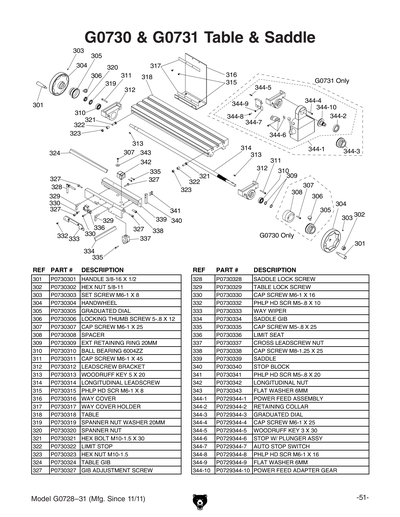

301
HANDLE 3/8-16 X 1/2
302
Now: PN04
HEX NUT 5/8-11
Price
N/A
303
SET SCREW M6-1 X 8
Price
N/A
304
HANDWHEEL
Price
N/A
305
GRADUATED DIAL
Price
N/A
306
LOCKING THUMB SCREW 5-.8 X 12
Price
N/A
307
CAP SCREW M6-1 X 25
Price
N/A
308
SPACER
309
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
310
BALL BEARING 6004ZZ
Price
N/A
311
CAP SCREW M6-1 X 45
Price
N/A
312
LEADSCREW BRACKET
Price
N/A
313
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
314
LONGITUDINAL LEADSCREW
315
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
316
WAY COVER
Price
N/A
317
WAY COVER HOLDER
Price
N/A
318
TABLE
319
SPANNER NUT WASHER 20MM
320
SPANNER NUT
Price
N/A
321
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
322
ADJUSTING SCREW SLEEVE
323
Now: PN02M
HEX NUT M10-1.5
Price
N/A
324
TABLE GIB
Price
N/A
327
GIB ADJUSTING SCREW
Price
N/A
328
SADDLE LOCK LEVER
329
TABLE LOCK LEVER
330
CAP SCREW M6-1 X 16
Price
N/A
332
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
333
WAY WIPER
334
SADDLE GIB
Price
N/A
335
CAP SCREW M5-.8 X 25
Price
N/A
336
LIMIT SEAT
Price
N/A
337
CROSS LEADSCREW NUT
Price
N/A
338
CAP SCREW M8-1.25 X 25
Price
N/A
339
SADDLE
340
LIMIT BLOCK
Price
N/A
341
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
342
LONGITUDINAL NUT
Price
N/A
343
Now: PW03M
FLAT WASHER 6MM
Price
N/A

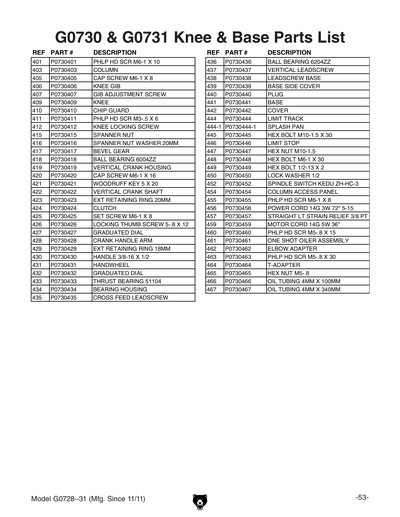

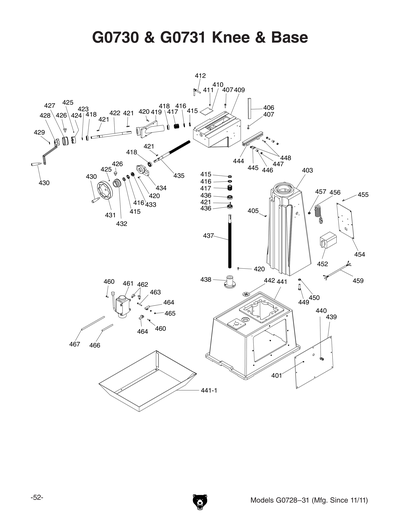

401
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
403
COLUMN
405
CAP SCREW M6-1 X 8
Price
N/A
406
KNEE GIB
Price
N/A
407
GIB ADJUSTMENT SCREW
Price
N/A
409
KNEE
410
KNEE COVER
411
Now: PS12M
PHLP HD SCR M3-.5 X 6
Price
N/A
412
KNEE LOCKING LEVER
415
SPANNER NUT
Price
N/A
416
SPANNER NUT WASHER 20MM
417
BEVEL GEAR
Price
N/A
418
BALL BEARING 6004ZZ
Price
N/A
419
VERTICAL CRANK HOUSING
420
CAP SCREW M6-1 X 16
Price
N/A
421
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
422
VERTICAL CRANK SHAFT
Price
N/A
423
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
424
CLUTCH
Price
N/A
425
SET SCREW M6-1 X 8
Price
N/A
426
LOCKING THUMB SCREW 5-.8 X 12
Price
N/A
427
GRADUATED DIAL
Price
N/A
428
CRANK HANDLE ARM
Price
N/A
429
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
430
HANDLE 3/8-16 X 1/2
Price
N/A
431
HANDWHEEL 3-SPOKE 7 X 5/8
432
GRADUATED DIAL
Price
N/A
433
THRUST BEARING 51104
Price
N/A
434
BEARING HOUSING
Price
N/A
435
CROSS FEED LEADSCREW 7/8" X 425
Price
N/A
436
BALL BEARING 6204ZZ
Price
N/A
437
VERTICAL LEADSCREW
438
LEADSCREW BASE
439
BASE SIDE COVER
440
PLUG
441
BASE
441-1
SPLASH PAN
442
COVER
444
LIMIT TRACK
Price
N/A
445
Now: PB01M
HEX BOLT M10-1.5 X 30
Price
N/A
446
SLEEVE
447
Now: PN02M
HEX NUT M10-1.5
Price
N/A
448
Now: PB29M
HEX BOLT M6-1 X 30
Price
N/A
449
Now: PB72
HEX BOLT 1/2-13 X 2
Price
N/A
450
Now: PLW07
LOCK WASHER 1/2
Price
N/A
452
SPINDLE SWITCH KEDU ZH-HC-3
Price
N/A
454
COLUMN ACCESS PANEL
Price
N/A
455
Now: PS03M
PHLP HD SCR M6-1 X 8
Price
N/A
456
POWER CORD 14G 3W 72" 5-15
457
STRAIN RELIEF TYPE-10 ST
Price
N/A
459
MOTOR CORD 14G 5W 36"
460
Now: PS20M
PHLP HD SCR M5-.8 X 15
Price
N/A
461
ONE SHOT OILER ASSEMBLY
462
JOINT
Price
N/A
463
Now: PS60M
PHLP HD SCR M5-.8 X 30
Price
N/A
464
LIMIT BLOCK
Price
N/A
465
Now: PN06M
HEX NUT M5-.8
Price
N/A
466
OIL TUBING 4MM X 100MM
467
OIL TUBING 4MM X 340MM
Price
N/A

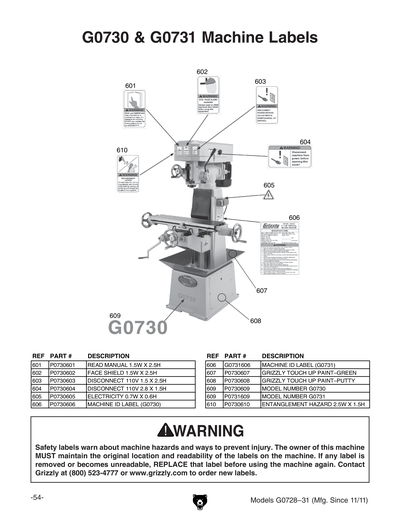

601
READ MANUAL 1.5W X 2.5H
Price
N/A
602
FACE SHIELD 1.5W X 2.5H
Price
N/A
603
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
604
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
605
ELECTRICITY 0.7W X 0.6H
Price
N/A
606
MACHINE ID LABEL
607
N/S GRIZZLY GREEN G1023S
Price
N/A
608
GREY PUTTY REF G0504
Price
N/A
609
MODEL NUMBER LABEL
610
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
611
MANUAL G0728 MFG-9.11 V1.12.11
Price
N/A
MAN
MANUAL G0728-31 MFD-11/11+ V1.05.13
Price
N/A
