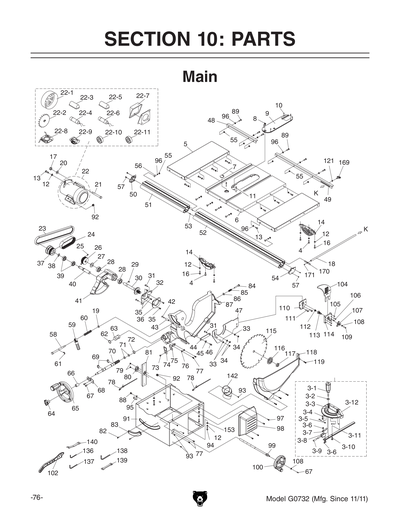

Parts for G0732 - Contractor Style Saw

1/7

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1

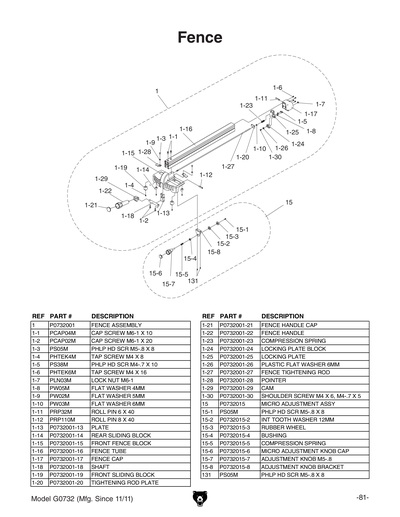

FENCE ASSEMBLY
Price
$166.75
1-1
CAP SCREW M6-1 X 10
Price
N/A
1-10
FLAT WASHER 6MM
Price
N/A
1-11
ROLL PIN 6 X 40
Price
N/A
1-12
ROLL PIN 8 X 40
Price
N/A
1-13
PLATE
Item is no longer available
Price
N/A
1-14
REAR SLIDING BLOCK
Item is no longer available
Price
N/A
1-15
FRONT FENCE BLOCK
Price
$21.00
1-16
FENCE TUBE
Price
$35.65
1-17
FENCE CAP
Price
$2.05
1-18
SHAFT
Item is no longer available
Price
N/A
1-19
FRONT SLIDING BLOCK
Item is no longer available
Price
N/A
1-2
CAP SCREW M6-1 X 20
Price
N/A
1-20
TIGHTENING ROD PLATE
Item is no longer available
Price
N/A
1-21
FENCE HANDLE CAP
Item is no longer available
Price
N/A
1-22
FENCE HANDLE
Price
$3.20
1-23
COMPRESSION SPRING
Item is no longer available
Price
N/A
1-24
LOCKING PLATE BLOCK
Price
$2.90
1-25
LOCKING PLATE
Item is no longer available
Price
N/A
1-26
FLAT WASHER 6MM PLASTIC
Price
$1.49
1-27
FENCE TIGHTENING ROD
Item is no longer available
Price
N/A
1-28
POINTER
Item is no longer available
Price
N/A
1-29
CAM
Item is no longer available
Price
N/A
1-3
PHLP HD SCR M5-.8 X 8
Price
N/A
1-30
SHOULDER SCREW M4 X 6, M4-.7 X 5
Price
$1.49
1-4
TAP SCREW M4 X 8
Price
N/A
1-5
PHLP HD SCR M4-.7 X 10
Price
N/A
1-6
TAP SCREW M4 X 16
Price
N/A
1-7
LOCK NUT M6-1
Price
N/A
1-8
FLAT WASHER 4MM
Price
N/A
1-9
FLAT WASHER 5MM
Price
N/A
2

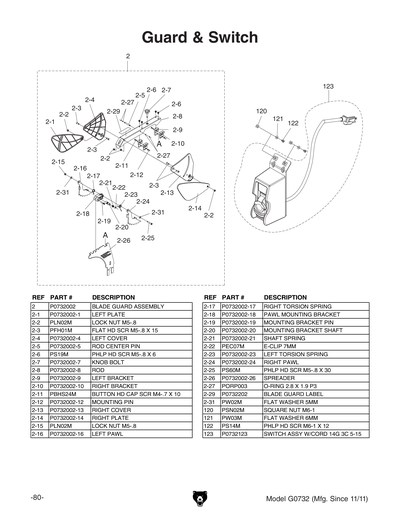

BLADE GUARD ASSEMBLY
Price
$167.65
2-1
LEFT PLATE
Price
$6.35
2-10
RIGHT BRACKET
Item is no longer available
Price
N/A
2-11
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
2-12
MOUNTING PIN
Item is no longer available
Price
N/A
2-13
RIGHT COVER
Price
$10.65
2-14
RIGHT PLATE
Price
$6.35
2-15
LOCK NUT M5-.8
Price
N/A
2-16
LEFT PAWL
Item is no longer available
Price
N/A
2-17
RIGHT TORSION SPRING
Item is no longer available
Price
N/A
2-18
PAWL MOUNTING BRACKET
Item is no longer available
Price
N/A
2-19
MOUNTING BRACKET PIN
Item is no longer available
Price
N/A
2-2
LOCK NUT M5-.8
Price
N/A
2-20
MOUNTING BRACKET SHAFT
Item is no longer available
Price
N/A
2-21
SHAFT SPRING
Item is no longer available
Price
N/A
2-22
E-CLIP 7MM
Price
N/A
2-23
LEFT TORSION SPRING
Item is no longer available
Price
N/A
2-24
RIGHT PAWL
Item is no longer available
Price
N/A
2-25
PHLP HD SCR M5-.8 X 30
Price
N/A
2-26
SPREADER
Item is no longer available
Price
N/A
2-27
O-RING 2.8 X 1.9 P3
Price
N/A
2-29
BLADE GUARD LABEL
Price
N/A
2-3
FLAT HD SCR M5-.8 X 15
Price
N/A
2-31
FLAT WASHER 5MM
Price
N/A
2-4
LEFT COVER
Price
$10.65
2-5
ROD CENTER PIN
Item is no longer available
Price
N/A
2-6
PHLP HD SCR M5-.8 X 6
Price
N/A
2-7
KNOB BOLT
Item is no longer available
Price
N/A
2-8
ROD
Item is no longer available
Price
N/A
2-9
LEFT BRACKET
Item is no longer available
Price
N/A
3
MITER GAUGE ASSEMBLY
Price
$60.70
3-1
MITER GAUGE HANDLE
Item is no longer available
Price
N/A
3-10
SHOULDER SCREW M7 X 4, M6-1 X 8
Item is no longer available
Price
N/A
3-11
MITER GAUGE PLATE
Item is no longer available
Price
N/A
3-12
MITER GAUGE SCALE LABEL
Item is no longer available
Price
N/A
3-2
FLAT WASHER 8MM
Price
N/A
3-3
MITER GAUGE BODY
Item is no longer available
Price
N/A
3-4
PHLP HD SCR M4-.7 X 20
Price
N/A
3-5
HEX NUT M4-.7
Price
N/A
3-6
PHLP HD SCR M5-.8 X 10
Price
N/A
3-7
MITER GAUGE POINTER
Item is no longer available
Price
N/A
3-8
SLIDING SHAFT BLOCK
Item is no longer available
Price
N/A
3-9
SLIDING SHAFT
Item is no longer available
Price
N/A
4
SHOULDER BOLT M15.5 X 10, M8-1.25 X 8
Item is no longer available
Price
N/A
5
EXTENSION WING
Price
$35.65
6
TABLE
Price
$310.80
7
ALIGN-A-CUT MARKER
Item is no longer available
Price
N/A
8
LOCK KNOB M5-.8
Price
$1.49
9
*DISCD*TABLE INSERT
Item is no longer available
Price
N/A
10
SET SCREW M5-.8 X 12
Price
N/A
11
SET SCREW M8-1.25 X 20
Price
N/A
12
LOCK WASHER 8MM
Price
N/A
13
HEX BOLT M8-1.25 X 20
Price
N/A
14
TRUNNION
Item is no longer available
Price
N/A
15
MICRO ADJUSTMENT ASSY
Price
$5.50
15-1
PHLP HD SCR M5-.8 X 8
Price
N/A
15-2
INT TOOTH WASHER 10MM SS
Item is no longer available
Price
N/A
15-3
RUBBER WHEEL
Item is no longer available
Price
N/A
15-4
BUSHING
Item is no longer available
Price
N/A
15-5
COMPRESSION SPRING
Item is no longer available
Price
N/A
15-6
MICRO ADJUSTMENT KNOB CAP
Item is no longer available
Price
N/A
15-7
ADJUSTMENT KNOB M5-.8
Item is no longer available
Price
N/A
15-8
ADJUSTMENT KNOB BRACKET
Item is no longer available
Price
N/A
16
HEX BOLT M8-1.25 X 25
Price
N/A
17
LOCK NUT M10-1.5
Price
N/A
18
RAIL SUPPORT SHAFT
Price
$10.35
19
FLAT WASHER 8MM
Price
N/A
20
FLAT WASHER 10MM
Price
N/A
21
HEX BOLT M10-1.5 X 80
Price
N/A
22
MOTOR 1.5HP 110V/220V 1-PH
Price
$310.80
22-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
22-10
FRONT MOTOR BEARING
Item is no longer available
Price
N/A
22-11
REAR MOTOR BEARING
Item is no longer available
Price
N/A
22-12
THERMAL CIRCUIT BREAKER
Price
$7.20
22-2
MOTOR FAN
Item is no longer available
Price
N/A
22-3
R CAPACITOR COVER
Price
$10.65
22-4
R CAPACITOR 30M 350V 1-1/2 X 2-3/8
Price
$22.75
22-5
S CAPACITOR COVER
Item is no longer available
Price
N/A
22-6
S CAPACITOR 200M 125V 1-3/8 X 2-3/4
Price
N/A
22-7
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
22-8
CONTACT PLATE
Item is no longer available
Price
N/A
22-9
CENTRIFUGAL SWITCH
Price
$14.10
23
BELT 17-320
Price
$29.65
24
RIBBED V-BELT 125J-6
Price
$12.40
25
SET SCREW M6-1 X 10
Price
N/A
26
SPINDLE PULLEY V1
Price
$13.25
26V2
SPINDLE PULLEY V2.11.14
Price
$13.25
27
FLAT WASHER 14MM
Price
$1.49
28
BALL BEARING 6002-2RS
Price
N/A
29
KEY 5 X 5 X 10
Price
N/A
29V2
KEY 5 X 5 X 10
Price
N/A
30
ARBOR SPINDLE ASSEMBLY V2.11.14
Price
N/A
30V2
ARBOR SPINDLE V2.11.14
Price
$18.15
30V2A
ARBOR SPINDLE ASSEMBLY V2.11.14
Price
$40.00
31
HEX BOLT M6-1 X 20
Price
N/A
32
SPINDLE PLATE
Item is no longer available
Price
N/A
33
FLAT WASHER 6MM
Price
N/A
34
LOCK NUT M6-1
Price
N/A
35
FLAT HD SCR M6-1 X 12
Price
N/A
36
SPINDLE BRACKET
Item is no longer available
Price
N/A
37
TRANSFER PULLEY
Price
$16.10
38
EXT RETAINING RING 15MM
Price
N/A
39
BALL BEARING 6002-2RS
Price
N/A
40
TRANSFER PULLEY SHAFT
Price
$8.35
41
GEARED BEARING HOUSING
Price
$48.60
42
CAP SCREW M8-1.25 X 50
Price
N/A
43
BUSHING
Item is no longer available
Price
N/A
44
LINK ARM
Item is no longer available
Price
N/A
45
BUSHING
Item is no longer available
Price
N/A
46
HEX BOLT M5-.8 X 12
Price
N/A
47
RIVING KNIFE MOUNTING PLATE
Item is no longer available
Price
N/A
48
LEFT REAR RAIL
Price
$7.20
49
RIGHT REAR RAIL
Price
$10.35
50
LEFT FRONT RAIL CAP
Price
$1.49
51
LEFT FRONT RAIL
Price
$20.15
52
RIGHT FRONT RAIL
Price
$37.70
53
RAIL MOUNTING PIN
Item is no longer available
Price
N/A
54
RIGHT FRONT RAIL CAP
Price
$1.49
55
HEX NUT M8-1.25
Price
N/A
56
T-BOLT M8-1.25 X 20
Price
$1.49
57
TAP SCREW M4 X 10
Price
N/A
58
TRUNNION ANGLE LOCK SHAFT
Item is no longer available
Price
N/A
59
LOCK SHAFT HANDLE
Item is no longer available
Price
N/A
60
COMPRESSION SPRING
Item is no longer available
Price
N/A
61
E-CLIP 8MM
Price
N/A
62
INT RETAINING RING 24MM
Price
N/A
63
HANDWHEEL SHAFT
Item is no longer available
Price
N/A
64
BLADE HEIGHT LOCK KNOB
Item is no longer available
Price
N/A
65
BLADE HEIGHT HANDWHEEL
Price
$11.50
66
HEIGHT HANDWHEEL BUSHING
Item is no longer available
Price
N/A
67
CAP SCREW M5-.8 X 12
Price
N/A
68
HANDWHEEL MOUNTING PLATE
Item is no longer available
Price
N/A
69
E-CLIP 12MM
Price
N/A
70
HEIGHT LEADSCREW
Item is no longer available
Price
N/A
71
O-RING 11.8 X 2.4 P12
Price
N/A
72
WAVY WASHER 16MM
Item is no longer available
Price
N/A
73
PHLP HD SCR M4-.7 W/WASHER
Item is no longer available
Price
N/A
74
BLADE ANGLE POINTER
Item is no longer available
Price
N/A
75
BLADE ANGLE POINTER BRACKET
Item is no longer available
Price
N/A
76
FLAT WASHER 6MM
Price
N/A
77
PHLP HD SCR M5-.8 X 12
Price
N/A
78
CHAIN
Item is no longer available
Price
N/A
79
LOCK NUT M5-.8
Price
N/A
80
TILT LEADSCREW BRACKET
Item is no longer available
Price
N/A
81
TILT LEADSCREW SUPPORT PLATE
Item is no longer available
Price
N/A
82
PHLP HD SCR M4-.7 X 12
Price
N/A
83
TILT PLATE W/SCALE
Item is no longer available
Price
N/A
84
FLANGE BOLT M6-1 X 40
Price
N/A
85
COMPRESSION SPRING
Item is no longer available
Price
N/A
86
FLAT WASHER 6MM
Price
N/A
87
TRUNNION BRACKET
Item is no longer available
Price
N/A
88
HEX BOLT M8-1.25 X 10 W/WASHER
Item is no longer available
Price
N/A
89
CAP SCREW M8-1.25 X 20
Price
N/A
90
FLAT WASHER 4MM
Price
N/A
91
CABINET
Item is no longer available
Price
N/A
92
STRAIN RELIEF 3/4" TYPE-1 SNAP-IN
Price
N/A
93
TAP SCREW M4 X 10
Price
N/A
94
HEX BOLT M8-1.25 X 16
Price
N/A
95
PUSH STICK HOLDER
Price
$1.49
96
LOCK WASHER 8MM
Price
N/A
97
PHLP HD SCR M4-.7 X 10
Price
N/A
98
MOTOR ACCESS COVER
Price
$5.50
99
LEADSCREW TILT SHAFT
Price
$12.40
100
BLADE TILT HANDWHEEL
Price
$10.10
101
HEX BOLT M8-1.25 X 20
Price
N/A
102
PUSH STICK
Price
$5.50
104
RIVING KNIFE
Price
$14.95
105
SET SCREW M5-.8 X 8
Price
N/A
106
BUTTON HD CAP SCR M5-.8 X 16
Price
N/A
107
STAR HANDLE
Price
$1.75
108
LOCK WASHER 5MM
Price
N/A
109
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
110
MOUNTING BASE
Price
$7.20
111
CAP SCREW M8-1.25 X 10
Price
N/A
112
COMPRESSION SPRING
Price
$1.49
113
LOCKING BOLT
Price
$2.05
114
MOUNTING PLATE
Price
$6.35
115
BLADE 10" X 40T
Price
$29.65
116
BLADE MOUNTING FLANGE
Price
$1.75
117
ARBOR NUT 5/8"-12 RH
Price
$1.49
118
BLADE COVER
Price
$7.20
119
PHLP HD SCR M5-.8 X 30
Price
N/A
120
SQUARE NUT M6-1
Price
N/A
121
FLAT WASHER 6MM
Price
N/A
122
PHLP HD SCR M6-1 X 12
Price
N/A
123
SWITCH ASSY W/CORD 14G 3C 5-15
Price
$26.75
123-1
PADDLE SWITCH
Price
$4.90
131
PHLP HD SCR M5-.8 X 8
Price
N/A
137
HEX WRENCH 4MM
Price
N/A
138
HEX WRENCH 6MM
Price
N/A
139
WRENCH 11 X 13MM OPEN-ENDS
Price
N/A
140
ARBOR WRENCH 25MM
Price
$4.35
142
DUST CHUTE
Price
$4.60
143
FLAT WASHER 5MM
Price
N/A
144
P0732144
Now: PS06
PHLP HD SCR 10-24 X 3/8
Price
N/A
153
FLAT WASHER 8MM
Price
N/A
154
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
155
FLAT WASHER 8MM
Price
N/A
156
HEX NUT M8-1.25
Price
N/A
157
RUBBER FOOT M8-1.25 X 20
Price
$1.75
158

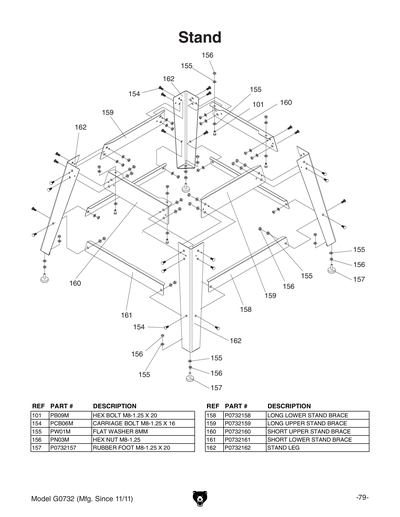

LONG LOWER STAND BRACE
Price
$10.35
159
LONG UPPER STAND BRACE
Price
$11.25
160
SHORT UPPER STAND BRACE
Price
$12.10
161
SHORT LOWER STAND BRACE
Price
$10.35
162
STAND LEG
Price
$18.15
169
KNOB M6-1 X 12
Price
$1.75
170
REAR SLIDING PLATE
Price
$1.49
171
FLAT HD SCR M4-.7 X 12
Price
N/A
172
SPINDLE LOCK NUT M10-1.5
Item is no longer available
Price
N/A
173
FLAT WASHER 10MM
Price
N/A
174
WAVE WASHER 26MM
Item is no longer available
Price
N/A
201

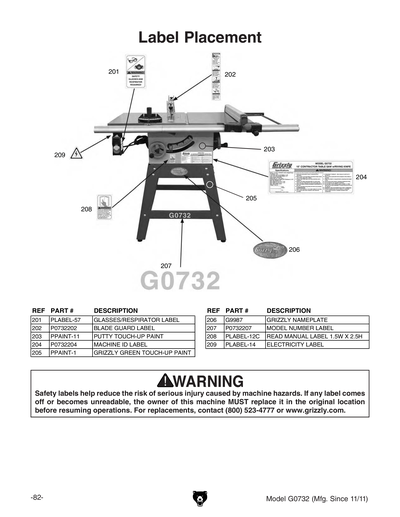

GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
202
BLADE GUARD LABEL
Item is no longer available
Price
N/A
203
GREY PUTTY REF G0504
Price
N/A
204
MACHINE ID LABEL
Item is no longer available
Price
N/A
205
N/S GRIZZLY GREEN G1023S
Price
N/A
206
Name Plates - Mini
Price
N/A
207
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
208
READ MANUAL 1.5W X 2.5H
Price
N/A
209
ELECTRICITY 1.4W X 1.2H
Price
N/A
MAN
MANUAL FOR G0732 MFG.11.11
Price
$9.75
