Parts for G0735 - 16" Variable-Speed Scroll Saw w/ Flexible Shaft Grinder

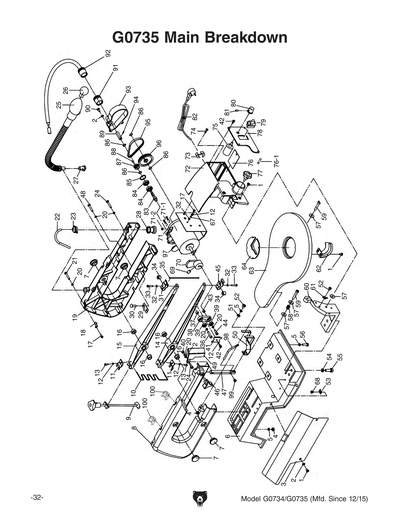

Part Diagram for G0735
Part Diagram for G0735
Part Diagram for G0735
Part Diagram for G0735
Part Diagram for G0735
Part Diagram for G0735

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

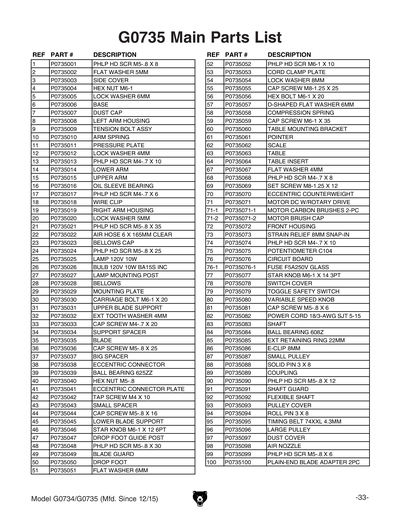

Ref #
Part #
Description
1
PHLP HD SCR M5-.8 X 8
Price
N/A
2
FLAT WASHER 5MM
Price
N/A
3
SIDE COVER
Price
N/A
3V2
Price
$0.00
4
HEX NUT M6-1
Price
N/A
5
LOCK WASHER 6MM
Price
N/A
6
BASE
Price
N/A
7
DUST CAP
Price
N/A
8
LEFT ARM HOUSING
Price
N/A
8V2
LEFT ARM HOUSING V2.09.25
Price
$0.00
9
TENSION BOLT ASSY
Price
N/A
9-1
BLADE TENSION BODY
Price
N/A
9-2
THREADED PLATE
Price
N/A
9-3
NON-THREADED PLATE
Price
N/A
10
ARM SPRING
Price
N/A
11
PRESSURE PLATE
Price
N/A
12
LOCK WASHER 4MM
Price
N/A
13
PHLP HD SCR M4-.7 X 10
Price
N/A
14
LOWER ARM
Price
N/A
15
UPPER ARM
Price
N/A
16
OIL SLEEVE BEARING
Price
N/A
17
PHLP HD SCR M4-.7 X 6
Price
N/A
18
WIRE CLIP
Price
N/A
19
RIGHT ARM HOUSING
Price
N/A
19V2
RIGHT ARM HOUSING V2.09.25
Price
$0.00
20
LOCK WASHER 5MM
Price
N/A
21
PHLP HD SCR M5-.8 X 35
Price
N/A
22
AIR HOSE 6 X 165MM CLEAR
Price
N/A
23
BELLOWS CAP
Price
N/A
24
PHLP HD SCR M5-.8 X 25
Price
N/A
25
LAMP 120V 10W
Price
N/A
26
BULB 120V 10W BA15S INC
Price
N/A
27
LAMP MOUNTING POST
Price
N/A
28
BELLOWS
Price
N/A
29
MOUNTING PLATE
Price
N/A
30
CARRIAGE BOLT M6-1 X 20
Price
N/A
31
UPPER BLADE SUPPORT
Price
N/A
32
EXT TOOTH WASHER 4MM
Price
N/A
33
CAP SCREW M4-.7 X 20
Price
N/A
34
SUPPORT SPACER
Price
N/A
35
BLADE
Price
N/A
36
CAP SCREW M5-.8 X 25
Price
N/A
37
BIG SPACER
Price
N/A
38
ECCENTRIC CONNECTOR
Price
N/A
39
Bearing - 16mm x 5mm
Price
N/A
40
HEX NUT M5-.8
Price
N/A
41
ECCENTRIC CONNECTOR PLATE
Price
N/A
42
TAP SCREW M4 X 10
Price
N/A
43
SMALL SPACER
Price
N/A
44
CAP SCREW M5-.8 X 16
Price
N/A
45
LOWER BLADE SUPPORT
Price
N/A
46
STAR KNOB M6-1 X 12 6PT
Price
N/A
46V2
STAR KNOB M6-1 X 12 6PT V2.09.25
Price
$0.00
47
DROP FOOT GUIDE POST
Price
N/A
48
PHLP HD SCR M5-.8 X 30
Price
N/A
49
BLADE GUARD
Price
N/A
50
DROP FOOT
Price
N/A
51
FLAT WASHER 6MM
Price
N/A
52
PHLP HD SCR M6-1 X 10
Price
N/A
53
CORD CLAMP PLATE
Price
N/A
54
LOCK WASHER 8MM
Price
N/A
55
CAP SCREW M8-1.25 X 25
Price
N/A
56
HEX BOLT M6-1 X 20
Price
N/A
57
CLIPPED FLAT WASHER 6MM PLASTIC
Price
N/A
58
COMPRESSION SPRING
Price
N/A
59
CAP SCREW M6-1 X 35
Price
N/A
60
TABLE MOUNTING BRACKET
Price
N/A
61
POINTER
Price
N/A
62
SCALE
Price
N/A
63
TABLE
Price
N/A
64
TABLE INSERT
Price
N/A
64V2
Price
$0.00
67
FLAT WASHER 4MM
Price
N/A
68
PHLP HD SCR M4-.7 X 8
Price
N/A
69
SET SCREW M8-1.25 X 12
Price
N/A
70
ECCENTRIC COUNTERWEIGHT
Price
N/A
71
MOTOR DC W/ROTARY DRIVE
Price
$48.80
71-1
CARBON BRUSH (SET OF 2)
Price
N/A
71-2
MOTOR BRUSH CAP
Price
N/A
72
FRONT HOUSING
Price
N/A
73
STRAIN RELIEF 8MM SNAP-IN
Price
N/A
74
PHLP HD SCR M4-.7 X 10
Price
N/A
75
POTENTIOMETER C104
Price
N/A
76
CIRCUIT BOARD
Price
N/A
76-1
FUSE F5A250V GLASS
Price
N/A
77
STAR KNOB M6-1 X 14 3PT
Price
N/A
77V2
STAR KNOB M6-1 X 14 3PT V2.09.25
Price
$0.00
78
SWITCH COVER
Price
N/A
79
Toggle Safety Switch
Price
N/A
80
VARIABLE SPEED KNOB
Price
N/A
81
CAP SCREW M5-.8 X 6
Price
N/A
82
POWER CORD 18/3-AWG SJT 5-15
Price
N/A
83
Price
$2.40
84
BALL BEARING 608Z
Price
N/A
85
EXT RETAINING RING 22MM
Price
N/A
86
E-CLIP 8MM
Price
N/A
87
Price
$2.05
88
Price
$1.49
89
Price
$2.40
90
PHLP HD SCR M5-.8 X 12
Price
N/A
91
Price
$1.60
92
Price
$13.95
93
Price
$2.05
94
ROLL PIN 3 X 8
Price
N/A
95
TIMING BELT 74XXL 4.3MM
Price
$1.90
96
Price
$1.49
97
Price
$1.49
98
AIR NOZZLE
Price
N/A
99
PHLP HD SCR M5-.8 X 6
Price
N/A
100
PLAIN-END BLADE ADAPTER 2PC
Price
N/A
101
Price
$16.40
101V2
MACHINE ID LABEL V2.03.16
Price
$16.40
101V3
MACHINE ID LABEL V3.09.25
Price
$0.00

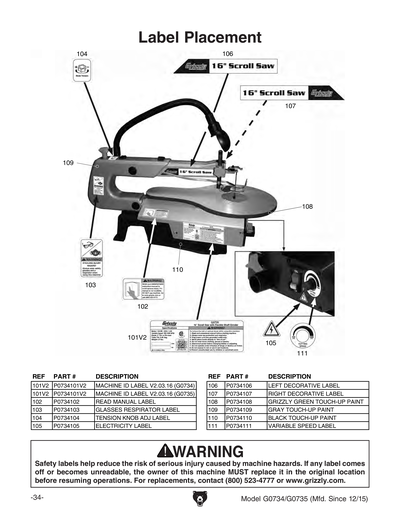

102
READ MANUAL 2.8W X 1.5H
Price
N/A
103
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
104
TENSION KNOB ADJ LABEL
Price
N/A
105
ELECTRICITY 0.7W X 0.6H
Price
N/A
106
LEFT DECORATIVE LABEL
Price
N/A
106V2
MODEL LABEL, LEFT V2.09.25
Price
$0.00
107
RIGHT DECORATIVE LABEL
Price
N/A
107V2
MODEL LABEL, RIGHT V2.09.25
Price
$0.00
108
N/S GRIZZLY GREEN G1023S
Price
N/A
109
*DISCD*GRAY TOUCH-UP PAINT
Price
N/A
110
GLOSSY BLACK
Price
N/A
111
VARIABLE SPEED LABEL
Price
N/A
120
Price
$0.00
121
Price
$0.00
122
Price
$0.00
123
Price
$0.00
124
Price
$0.00
MAN
MANUAL G0734/G0735 MFD-05/12 V1.05.12
Price
N/A
MANV2
Price
$0.00
MANV3
MANUAL G0735 MFD-09.25+ V3.08.25
Price
$0.00
