Parts for G0738 - Hanging Air Filter, 3-Speed

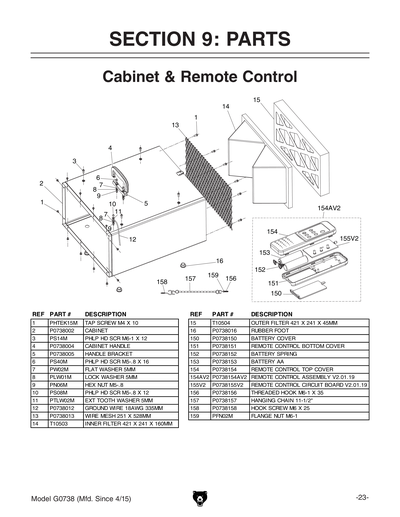

Part Diagram for G0738

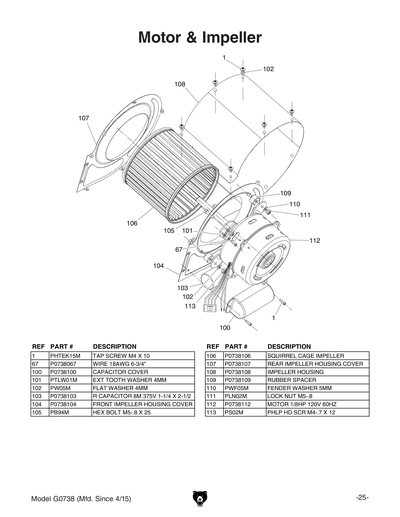

Part Diagram for G0738

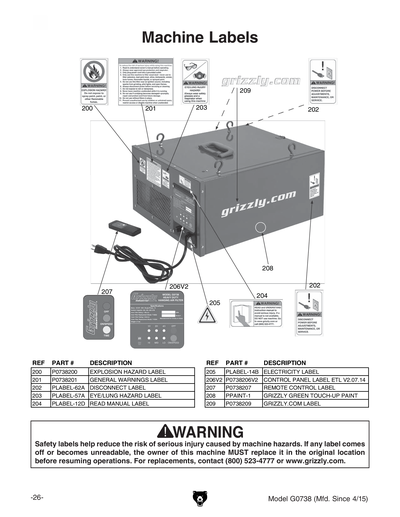

Part Diagram for G0738

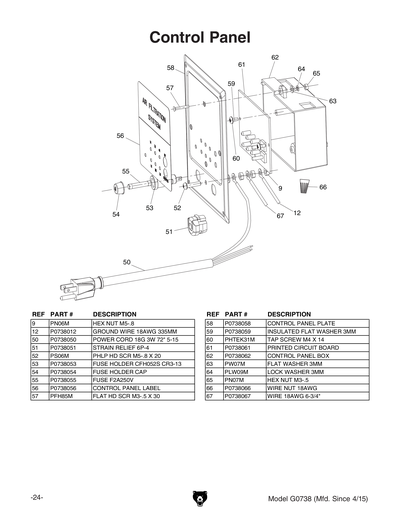

Part Diagram for G0738
Part Diagram for G0738
Part Diagram for G0738
Part Diagram for G0738
Part Diagram for G0738

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
TAP SCREW M4 X 10
Price
N/A
2
CABINET
Price
$66.50
3
PHLP HD SCR M6-1 X 12
Price
N/A
4
CABINET HANDLE
Price
$2.90
5
HANDLE BRACKET
Price
$1.90
6
PHLP HD SCR M5-.8 X 16
Price
N/A
7
FLAT WASHER 5MM
Price
N/A
8
LOCK WASHER 5MM
Price
N/A
9
HEX NUT M5-.8
Price
N/A
10
PHLP HD SCR M5-.8 X 12
Price
N/A
11
EXT TOOTH WASHER 5MM
Price
N/A
12
GROUND WIRE 18AWG 335MM
Price
$1.90
13
WIRE MESH 251 X 528MM
Price
$5.10
14
Inner Filter for G0738
Price
N/A
15
Outer Filter for G0738
Price
N/A
16
RUBBER FOOT
Price
$1.90
17
BACK COVER
Price
$11.90
50
POWER CORD 18G 3W 72" 5-15
Price
$9.00
51
STRAIN RELIEF M13.5 TYPE-1 SNAP-IN
Price
N/A
52
PHLP HD SCR M5-.8 X 20
Price
N/A
53
FUSE HOLDER CFH052S CR3-13
Price
$4.40
54
FUSE HOLDER CFH052S CR3-13
Price
N/A
55
FUSE F2A250V
Price
$1.90
56
CONTROL PANEL LABEL
Price
$1.90
57
FLAT HD SCR M3-.5 X 30
Price
N/A
58
CONTROL PANEL PLATE
Price
$3.25
59
INSULATED FLAT WASHER 3MM
Price
$1.90
60
TAP SCREW M4 X 14
Price
N/A
61
PRINTED CIRCUIT BOARD W/WIRES V2.01.19
Price
N/A
61V2
PRINTED CIRCUIT BOARD W/WIRES V2.01.19
Price
$15.70
62
CONTROL PANEL BOX
Price
$2.20
63
FLAT WASHER 3MM
Price
N/A
64
LOCK WASHER 3MM
Price
N/A
65
HEX NUT M3-.5
Price
N/A
66
WIRE NUT 18AWG
Price
$1.90
67
WIRE 18AWG 6-3/4"
Price
$1.90
68
FILTER RETAINING CLIP
Price
$2.20
100
CAPACITOR COVER
Price
$1.90
101
EXT TOOTH WASHER 4MM
Price
N/A
102
FLAT WASHER 4MM
Price
N/A
103
R CAPACITOR 8M 375V 1-1/4 X 2-1/2
Price
$3.50
104
IMPELLER HOUSING ASSY
Price
N/A
105
HEX BOLT M5-.8 X 25
Price
N/A
106
SQUIRREL CAGE IMPELLER
Price
$12.25
107
IMPELLER HOUSING ASSY
Price
N/A
108
IMPELLER HOUSING ASSY
Price
$20.15
109
RUBBER SPACER
Price
$1.90
110
FENDER WASHER 5MM
Price
N/A
111
LOCK NUT M5-.8
Price
N/A
112
MOTOR 1/8HP 120V 60HZ
Price
$66.15
113
PHLP HD SCR M4-.7 X 12
Price
N/A
150
BATTERY COVER
Price
$1.90
151
REMOTE CONTROL BOTTOM COVER
Price
$1.90
152
BATTERY SPRING
Price
$1.90
153
BATTERY AA
Price
$1.90
154
REMOTE CONTROL TOP COVER
Price
$1.90
154A
REMOTE CONTROL ASSEMBLY
Price
$11.70
154AV2
REMOTE CONTROL ASSEMBLY V2.01.19
Price
$8.15
155
REMOTE CONTROL CIRCUIT BOARD
Price
$8.45
155V2
REMOTE CONTROL CIRCUIT BOARD V2.01.19
Price
$10.25
156
THREADED HOOK M6-1 X 35
Price
$1.90
157
HANGING CHAIN 11-1/2"
Price
$1.85
158
HOOK SCREW M6 X 25
Price
$1.90
159
FLANGE NUT M6-1
Price
N/A
200
EXPLOSION HAZARD LABEL
Price
$1.60
201
GENERAL WARNINGS LABEL
Price
$1.60
202
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
203
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
204
READ MANUAL 2.8W X 1.5H
Price
N/A
205
ELECTRICITY 0.5W X 0.4H
Price
N/A
206
CONTROL PANEL LABEL CSA V1
Price
$1.25
206V2
CONTROL PANEL LABEL ETL V2.07.14
Price
$2.50
207
REMOTE CONTROL LABEL
Price
$1.60
208
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0738 MFG 01/12-06/14 V1
Price
$11.50
MANV2
MANUAL G0738 MFD 07/14-03/15 V2.07.14
Price
$11.50
MANV3
MANUAL G0738 MFD 04/15+ V3.04.15
Price
$11.50
