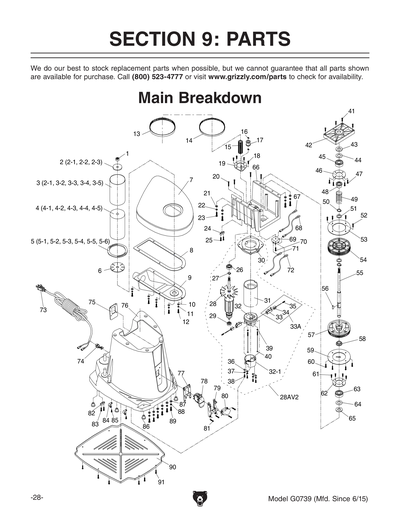

Parts for G0739 - 1/2 HP Benchtop Oscillating Spindle Sander

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

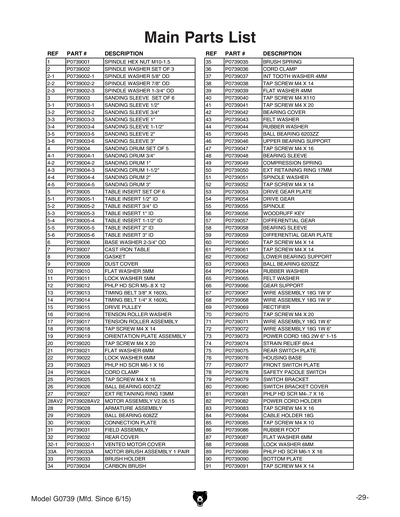

Ref # Part # Description Price Qty
1 P0739001 SPINDLE HEX NUT M10-1.5 $1.00
2 P0739002 SPINDLE WASHER SET OF 3 $1.00
2-1 P0739002-1
Replaced By P0739002
SPINDLE WASHER SET OF 3
N/A View Replacement
2-2 P0739002-2
Replaced By P0739002
SPINDLE WASHER SET OF 3
N/A View Replacement
2-3 P0739002-3 SPINDLE WASHER 1-3/4" OD $1.00
2-4 P0739002-4
*DISCD*SPINDLE WASHER 2-3/4" OD
Item is no longer available
N/A
3 P0739003 SANDING SLEEVE SET OF 6 $4.50
3-1 P0739003-1 SANDING SLEEVE 1/2" $1.25
3-2 P0739003-2
***USE P0739003***
Item is no longer available
N/A
3-3 P0739003-3
***USE P0739003***
Item is no longer available
N/A
3-4 P0739003-4
***USE P0739003***
Item is no longer available
N/A
3-5 P0739003-5 SANDING SLEEVE 2" $1.75 View Item
3-6 P0739003-6
***USE P0739003***
Item is no longer available
N/A
4 P0739004 SANDING DRUM SET OF 5 $9.25
4-1 P0739004-1 SANDING DRUM 3/4" $1.00
4-2 P0739004-2 SANDING DRUM 1" $1.25
4-3 P0739004-3
SANDING DRUM 1-1/2"
Item is no longer available
N/A
4-4 P0739004-4
SANDING DRUM 2"
Item is no longer available
N/A
4-5 P0739004-5 SANDING DRUM 3" $5.00
5 P0739005 TABLE INSERT SET OF 6 $3.50
5-1 P0739005-1
Replaced By P0739005
TABLE INSERT SET OF 6
N/A View Replacement
5-2 P0739005-2
Replaced By P0739005
TABLE INSERT SET OF 6
N/A View Replacement
5-3 P0739005-3
Replaced By P0739005
TABLE INSERT SET OF 6
N/A View Replacement
5-4 P0739005-4
Replaced By P0739005
TABLE INSERT SET OF 6
N/A View Replacement
5-5 P0739005-5
Replaced By P0739005
TABLE INSERT SET OF 6
N/A View Replacement
5-6 P0739005-6
Replaced By P0739005
TABLE INSERT SET OF 6
N/A View Replacement
6 P0739006 BASE WASHER 2-3/4" OD $1.00
7 P0739007
CAST IRON TABLE
N/A
8 P0739008
GASKET
N/A
9 P0739009 DUST COVER $1.00
10 P0739010
Replaced By PW02M
FLAT WASHER 5MM
N/A View Replacement
11 P0739011
Replaced By PLW01M
LOCK WASHER 5MM
N/A View Replacement
12 P0739012
Replaced By PS08M
PHLP HD SCR M5-.8 X 12
N/A View Replacement
13 P0739013 TIMING BELT 3/8" X 160XL $17.00
14 P0739014 TIMING BELT 1/4" X 160XL $12.50
15 P0739015 DRIVE PULLEY $1.75
16 P0739016
Replaced By PR73M
EXT RETAINING RING 5MM
N/A View Replacement
17 P0739017 TENSION ROLLER ASSEMBLY $1.00
18 P0739018
Replaced By PHTEK31M
TAP SCREW M4 X 14
N/A View Replacement
19 P0739019
ORIENTATION PLATE ASSEMBLY
N/A
20 P0739020
Replaced By PHTEK8M
TAP SCREW M4 X 20
N/A View Replacement
21 P0739021
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
22 P0739022
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
23 P0739023
Replaced By PS11M
PHLP HD SCR M6-1 X 16
N/A View Replacement
24 P0739024
CORD CLAMP
N/A
25 P0739025
Replaced By PHTEK6M
TAP SCREW M4 X 16
N/A View Replacement
26 P0739026
Replaced By P6001ZZ
BALL BEARING 6001ZZ
N/A View Replacement
27 P0739027
Replaced By PR47M
EXT RETAINING RING 13MM
N/A View Replacement
28 P0739028
ARMATURE ASSEMBLY
N/A
28A P0739028A
Replaced By P0739028AV2
MOTOR ASSEMBLY V2.06.15
N/A View Replacement
28AV2 P0739028AV2 MOTOR ASSEMBLY V2.06.15 $27.25
29 P0739029
Replaced By G3845
Bearing - 22mm x 8mm
N/A View Replacement
30 P0739030 CONNECTION PLATE $1.00
31 P0739031
FIELD ASSEMBLY
N/A
32 P0739032
REAR COVER
N/A
32-1 P0739032-1 VENTED MOTOR COVER $5.75
33 P0739033
Replaced By P0739033A
MOTOR BRUSH ASSEMBLY 2 SETS
N/A View Replacement
33A P0739033A MOTOR BRUSH ASSEMBLY 2 SETS $1.00
34 P0739034
Replaced By P0739033A
MOTOR BRUSH ASSEMBLY 2 SETS
N/A View Replacement
35 P0739035
Replaced By P0739033A
MOTOR BRUSH ASSEMBLY 2 SETS
N/A View Replacement
36 P0739036
CORD CLAMP
N/A
37 P0739037
Replaced By PTLW11M
INT TOOTH WASHER 4MM
N/A View Replacement
38 P0739038
Replaced By PHTEK31M
TAP SCREW M4 X 14
N/A View Replacement
39 P0739039
Replaced By PW05M
FLAT WASHER 4MM
N/A View Replacement
40 P0739040
TAP SCREW M4 X 110
N/A
41 P0739041
Replaced By PHTEK8M
TAP SCREW M4 X 20
N/A View Replacement
42 P0739042 BEARING COVER $1.75
43 P0739043
FELT WASHER
N/A
44 P0739044 RUBBER WASHER $1.00
45 P0739045
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
46 P0739046 UPPER BEARING SUPPORT $1.00
47 P0739047
Replaced By PHTEK6M
TAP SCREW M4 X 16
N/A View Replacement
48 P0739048
BEARING SLEEVE
N/A
49 P0739049
COMPRESSION SPRING
N/A
50 P0739050
Replaced By PR18M
EXT RETAINING RING 17MM
N/A View Replacement
51 P0739051 SPINDLE WASHER $1.00
52 P0739052
Replaced By PHTEK31M
TAP SCREW M4 X 14
N/A View Replacement
53 P0739053 DRIVE GEAR PLATE $1.00
54 P0739054 DRIVE GEAR $1.75
55 P0739055 SPINDLE $4.00
56 P0739056
WOODRUFF KEY
N/A
57 P0739057 DIFFERENTIAL GEAR $1.50
58 P0739058 BEARING SLEEVE $1.00
59 P0739059 DIFFERENTIAL GEAR PLATE $1.00
60 P0739060
Replaced By PHTEK31M
TAP SCREW M4 X 14
N/A View Replacement
61 P0739061
Replaced By PHTEK31M
TAP SCREW M4 X 14
N/A View Replacement
62 P0739062 LOWER BEARING SUPPORT $1.00
63 P0739063
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
64 P0739064
RUBBER WASHER
N/A
65 P0739065
FELT WASHER
N/A
66 P0739066 GEAR SUPPORT $8.75
67 P0739067
***USE P0739067A***
N/A
67A P0739067A
WIRE ASSEMBLY 18 G 1W 2-PC
N/A
68 P0739068
Replaced By P0739067
***USE P0739067A***
N/A View Replacement
69 P0739069 RECTIFIER $2.00
70 P0739070
Replaced By PHTEK8M
TAP SCREW M4 X 20
N/A View Replacement
71 P0739071
***USE P0739067A***
N/A
72 P0739072
Replaced By P0739071
***USE P0739067A***
N/A View Replacement
73 P0739073 POWER CORD 18G 2W 6" 1-15 $2.50
74 P0739074
STRAIN RELIEF 6N-4
N/A
75 P0739075 REAR SWITCH PLATE $1.00
76 P0739076 HOUSING BASE $2.00
77 P0739077
FRONT SWITCH PLATE
N/A
78 P0739078
Replaced By G8988
Safety Paddle Switch
N/A View Replacement
79 P0739079
SWITCH BRACKET
N/A
80 P0739080
SWITCH BRACKET COVER
N/A
81 P0739081
Replaced By PS56M
PHLP HD SCR M4-.7 X 16
N/A View Replacement
82 P0739082
POWER CORD HOLDER
N/A
83 P0739083
Replaced By PHTEK6M
TAP SCREW M4 X 16
N/A View Replacement
84 P0739084
CABLE HOLDER 18G
N/A
85 P0739085
Replaced By PHTEK15M
TAP SCREW M4 X 10
N/A View Replacement
86 P0739086
RUBBER FOOT
N/A
87 P0739087
Replaced By PW03M
FLAT WASHER 6MM
N/A View Replacement
88 P0739088
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
89 P0739089
Replaced By PS11M
PHLP HD SCR M6-1 X 16
N/A View Replacement
90 P0739090 BOTTOM PLATE $1.00
91 P0739091
Replaced By PHTEK31M
TAP SCREW M4 X 14
N/A View Replacement
92 P0739092

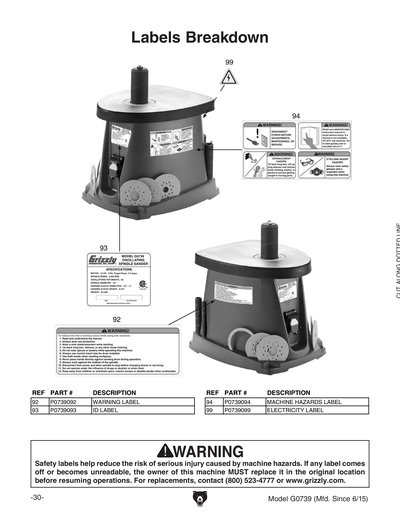

WARNING LABEL
N/A
93 P0739093
ID LABEL
N/A
94 P0739094
MACHINE HAZARDS LABEL
N/A
99 P0739099
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
100 P0739100
ARBOR WRENCH 16MM (STAMPED STEEL)
N/A
MAN P0739MAN
MANUAL G0739 MFG-02.12 V1.02.12
N/A
P0733005V2 P0733005V2
ADJ FOOT M16-2 X 100, 100D V2.01.21
N/A
