Parts for G0740 - 14" x 40" 3-Phase High Precision Toolroom Metal Lathe

Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740
Part Diagram for G0740

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

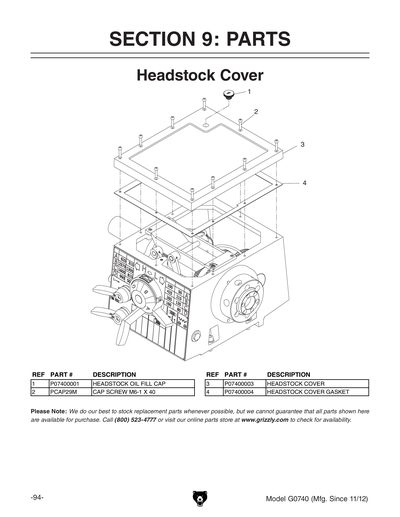

1
HEADSTOCK OIL FILL CAP
Item is no longer available
Price
N/A
2
CAP SCREW M6-1 X 40
Price
N/A
3
HEADSTOCK COVER
Item is no longer available
Price
N/A
4
HEADSTOCK COVER GASKET
Item is no longer available
Price
N/A

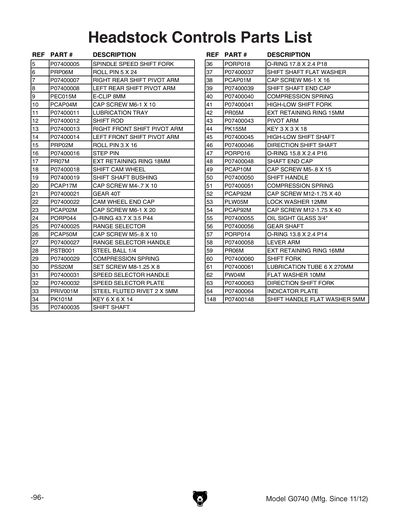

5
SPINDLE SPEED SHIFT FORK
Item is no longer available
Price
N/A
6
ROLL PIN 5 X 24
Price
N/A
7
RIGHT REAR SHIFT PIVOT ARM
Item is no longer available
Price
N/A
8
LEFT REAR SHIFT PIVOT ARM
Item is no longer available
Price
N/A
9
E-CLIP 8MM
Price
N/A
10
CAP SCREW M6-1 X 10
Price
N/A
11
LUBRICATION TRAY
Item is no longer available
Price
N/A
12
SHIFT ROD
Item is no longer available
Price
N/A
13
RIGHT FRONT SHIFT PIVOT ARM
Item is no longer available
Price
N/A
14
LEFT FRONT SHIFT PIVOT ARM
Item is no longer available
Price
N/A
15
ROLL PIN 3 X 16
Price
N/A
16
STEP PIN
Item is no longer available
Price
N/A
17
EXT RETAINING RING 18MM
Price
N/A
18
SHIFT CAM WHEEL
Item is no longer available
Price
N/A
19
SHIFT SHAFT BUSHING
Item is no longer available
Price
N/A
20
CAP SCREW M4-.7 X 10
Price
N/A
21
GEAR 40T
Item is no longer available
Price
N/A
22
CAM WHEEL END CAP
Item is no longer available
Price
N/A
23
CAP SCREW M6-1 X 20
Price
N/A
24
O-RING 43.7 X 3.5 P44
Price
N/A
25
RANGE SELECTOR
Item is no longer available
Price
N/A
26
CAP SCREW M5-.8 X 10
Price
N/A
27
RANGE SELECTOR HANDLE
Price
$64.70
28
STEEL BALL 1/4
Price
N/A
29
COMPRESSION SPRING
Item is no longer available
Price
N/A
30
SET SCREW M8-1.25 X 8
Price
N/A
31
SPEED SELECTOR HANDLE
Item is no longer available
Price
N/A
32
SPEED SELECTOR PLATE
Item is no longer available
Price
N/A
33
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
34
KEY 6 X 6 X 14
Price
N/A
35
SHIFT SHAFT
Item is no longer available
Price
N/A
36
O-RING 17.8 X 2.4 P18
Price
N/A
37
SHIFT SHAFT FLAT WASHER
Item is no longer available
Price
N/A
38
CAP SCREW M6-1 X 16
Price
N/A
39
SHIFT SHAFT END CAP
Item is no longer available
Price
N/A
40
COMPRESSION SPRING
Item is no longer available
Price
N/A
41
HIGH-LOW SHIFT FORK
Item is no longer available
Price
N/A
42
EXT RETAINING RING 15MM
Price
N/A
43
PIVOT ARM
Item is no longer available
Price
N/A
44
KEY 3 X 3 X 18
Price
N/A
45
HIGH-LOW SHIFT SHAFT
Item is no longer available
Price
N/A
46
DIRECTION SHIFT SHAFT
Item is no longer available
Price
N/A
47
O-RING 15.8 X 2.4 P16
Price
N/A
48
SHAFT END CAP
Item is no longer available
Price
N/A
49
CAP SCREW M5-.8 X 15
Price
N/A
50
SHIFT HANDLE
Price
$68.15
51
COMPRESSION SPRING
Item is no longer available
Price
N/A
52
CAP SCREW M12-1.75 X 40
Price
N/A
53
LOCK WASHER 12MM
Price
N/A
54
CAP SCREW M12-1.75 X 40
Price
N/A
55
OIL SIGHT GLASS 3/4"
Item is no longer available
Price
N/A
56
GEAR SHAFT
Item is no longer available
Price
N/A
57
O-RING 13.8 X 2.4 P14
Price
N/A
58
LEVER ARM
Item is no longer available
Price
N/A
59
EXT RETAINING RING 16MM
Price
N/A
60
SHIFT FORK
Item is no longer available
Price
N/A
61
LUBRICATION TUBE 6 X 270MM
Item is no longer available
Price
N/A
62
FLAT WASHER 10MM
Price
N/A
63
DIRECTION SHIFT FORK
Item is no longer available
Price
N/A
64
INDICATOR PLATE
Item is no longer available
Price
N/A
65
SHAFT END CAP
Item is no longer available
Price
N/A
66
O-RING 54.6 X 5.7 P55
Price
N/A
67
EXT RETAINING RING 30MM
Price
N/A
68
BALL BEARING 6206-OPEN
Price
N/A
69
EXT RETAINING RING 38MM
Price
N/A
70
SPLINED SHAFT
Item is no longer available
Price
N/A
71
COMBO GEAR 22T/72T
Item is no longer available
Price
N/A
72
COMBO GEAR 22T/38T
Item is no longer available
Price
N/A
73
COMBO GEAR 45T/52T
Item is no longer available
Price
N/A
74
OIL SEAL 40 X 62 X 12
Item is no longer available
Price
N/A
75
O-RING 27.7 X 3.5 P28
Price
N/A
76
PULLEY SHAFT SPACER
Item is no longer available
Price
N/A
77
SPINDLE PULLEY FLAT WASHER
Item is no longer available
Price
N/A
78
LOCK WASHER 8MM
Price
N/A
79
CAP SCREW M8-1.25 X 25
Price
N/A
82
BALL BEARING 6205-OPEN
Price
N/A
83
EXT RETAINING RING 25MM
Price
N/A
84
DRIVE SHAFT END CAP
Item is no longer available
Price
N/A
85
EXT RETAINING RING 20MM
Price
N/A
86
BALL BEARING 6304-OPEN
Price
N/A
87
GEAR 30T
Item is no longer available
Price
N/A
88
GEAR 38T
Item is no longer available
Price
N/A
89
GEAR 22T
Item is no longer available
Price
N/A
90
SPINDLE PULLEY GEAR SHAFT 16T
Item is no longer available
Price
N/A
91
KEY 7 X 7 X 104
Item is no longer available
Price
N/A
92
KEY 7 X 7 X 55
Price
N/A
93
O-RING 74.6 X 5.7 P75
Price
N/A
94
FLANGE BEARING SEAT
Item is no longer available
Price
N/A
95
INT RETAINING RING 62MM
Price
N/A
96
SPINDLE PULLEY
Item is no longer available
Price
N/A
97
HEADSTOCK CASTING
Item is no longer available
Price
N/A
98
SPINDLE
Item is no longer available
Price
N/A
99
CAM LOCK BOLT
Item is no longer available
Price
N/A
100
CAM LOCK COMPRESSION SPRING
Item is no longer available
Price
N/A
101
SPINDLE HEAD CAP SCREW
Item is no longer available
Price
N/A
102
CAM LOCK
Item is no longer available
Price
N/A
103
KEY 10 X 6 X 85
Price
N/A
104
KEY 7 X 7 X 35
Price
N/A
105
CAP SCREW M6-1 X 30
Price
N/A
106
INBOARD SPINDLE BEARING COVER
Item is no longer available
Price
N/A
107
BEARING COVER GASKET
Item is no longer available
Price
N/A
108
TAPERED ROLLER BEARING 30213 NTN
Price
N/A
109
GEAR 72T
Item is no longer available
Price
N/A
110
GEAR 41T
Item is no longer available
Price
N/A
111
EXT RETAINING RING 60MM
Price
N/A
112
GEAR 42T
Item is no longer available
Price
N/A
113
EXT RETAINING RING 56MM
Price
N/A
114
TAPERED ROLLER BEARING 32011 NTN
Price
N/A
115
SPANNER NUT
Item is no longer available
Price
N/A
116
SPINDLE END CAP GASKET
Item is no longer available
Price
N/A
117
OUTBOARD SPINDLE END CAP
Item is no longer available
Price
N/A

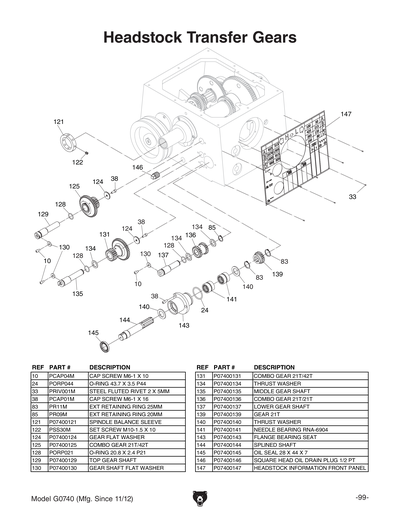

121
SPINDLE BALANCE SLEEVE
Item is no longer available
Price
N/A
122
SET SCREW M10-1.5 X 10
Price
N/A
124
GEAR FLAT WASHER
Item is no longer available
Price
N/A
125
COMBO GEAR 21T/42T
Item is no longer available
Price
N/A
128
O-RING 20.8 X 2.4 P21
Price
N/A
129
TOP GEAR SHAFT
Item is no longer available
Price
N/A
130
GEAR SHAFT FLAT WASHER
Item is no longer available
Price
N/A
131
COMBO GEAR 21T/42T
Item is no longer available
Price
N/A
134
THRUST WASHER
Item is no longer available
Price
N/A
135
MIDDLE GEAR SHAFT
Item is no longer available
Price
N/A
136
COMBO GEAR 21T/21T
Item is no longer available
Price
N/A
137
LOWER GEAR SHAFT
Item is no longer available
Price
N/A
139
GEAR 21T
Item is no longer available
Price
N/A
140
THRUST WASHER
Item is no longer available
Price
N/A
141
NEEDLE BEARING RNA-6904
Item is no longer available
Price
N/A
143
FLANGE BEARING SEAT
Item is no longer available
Price
N/A
144
SPLINED SHAFT
Item is no longer available
Price
N/A
145
OIL SEAL 28 X 44 X 7
Item is no longer available
Price
N/A
146
SQUARE HEAD OIL DRAIN PLUG 1/2 PT
Item is no longer available
Price
N/A
147
HEADSTOCK INFORMATION FRONT PANEL
Item is no longer available
Price
N/A
148
SHIFT HANDLE FLAT WASHER 5MM
Item is no longer available
Price
N/A

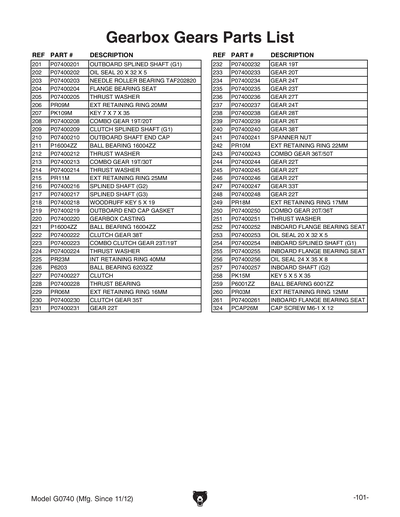

201
OUTBOARD SPLINED SHAFT G1
Item is no longer available
Price
N/A
202
OIL SEAL 20 X 32 X 5
Item is no longer available
Price
N/A
203
NEEDLE ROLLER BEARING TAF202820
Item is no longer available
Price
N/A
204
FLANGE BEARING SEAT
Item is no longer available
Price
N/A
205
THRUST WASHER
Item is no longer available
Price
N/A
206
EXT RETAINING RING 20MM
Price
N/A
207
KEY 7 X 7 X 35
Price
N/A
208
COMBO GEAR 19T/20T
Item is no longer available
Price
N/A
209
CLUTCH SPLINED SHAFT G1
Item is no longer available
Price
N/A
210
OUTBOARD SHAFT END CAP
Item is no longer available
Price
N/A
211
BALL BEARING 16004ZZ
Price
N/A
212
THRUST WASHER
Item is no longer available
Price
N/A
213
COMBO GEAR 19T/30T
Item is no longer available
Price
N/A
214
THRUST WASHER
Item is no longer available
Price
N/A
215
EXT RETAINING RING 25MM
Price
N/A
216
SPLINED SHAFT G2
Item is no longer available
Price
N/A
217
SPLINED SHAFT G3
Item is no longer available
Price
N/A
218
WOODRUFF KEY
Price
N/A
219
OUTBOARD END CAP GASKET
Item is no longer available
Price
N/A
220
GEARBOX CASTING
Item is no longer available
Price
N/A
221
BALL BEARING 16004ZZ
Price
N/A
222
CLUTCH GEAR 38T
Item is no longer available
Price
N/A
223
COMBO CLUTCH GEAR 23T/19T
Item is no longer available
Price
N/A
224
THRUST WASHER
Item is no longer available
Price
N/A
225
INT RETAINING RING 40MM
Price
N/A
226
***SEE EXT DESCRIPTION***
Price
N/A
227
CLUTCH
Item is no longer available
Price
N/A
228
THRUST BEARING
Item is no longer available
Price
N/A
229
EXT RETAINING RING 16MM
Price
N/A
230
CLUTCH GEAR 35T
Item is no longer available
Price
N/A
231
GEAR 22T
Item is no longer available
Price
N/A
232
GEAR 19T
Item is no longer available
Price
N/A
233
GEAR 20T
Item is no longer available
Price
N/A
234
GEAR 24T
Item is no longer available
Price
N/A
235
GEAR 23T
Item is no longer available
Price
N/A
236
GEAR 27T
Price
$64.70
237
GEAR 24T
Price
$64.70
238
GEAR 28T
Item is no longer available
Price
N/A
239
GEAR 26T
Item is no longer available
Price
N/A
240
GEAR 38T
Item is no longer available
Price
N/A
241
SPANNER NUT
Item is no longer available
Price
N/A
242
EXT RETAINING RING 22MM
Price
N/A
243
COMBO GEAR 36T/50T
Item is no longer available
Price
N/A
244
GEAR 22T
Item is no longer available
Price
N/A
245
GEAR 22T
Item is no longer available
Price
N/A
246
GEAR 22T
Item is no longer available
Price
N/A
247
GEAR 33T
Item is no longer available
Price
N/A
248
GEAR 22T
Item is no longer available
Price
N/A
249
EXT RETAINING RING 17MM
Price
N/A
250
COMBO GEAR 20T/36T
Item is no longer available
Price
N/A
251
THRUST WASHER
Item is no longer available
Price
N/A
252
INBOARD FLANGE BEARING SEAT
Item is no longer available
Price
N/A
253
OIL SEAL 20 X 32 X 5
Item is no longer available
Price
N/A
254
INBOARD SPLINED SHAFT G1
Item is no longer available
Price
N/A
255
INBOARD FLANGE BEARING SEAT
Item is no longer available
Price
N/A
256
OIL SEAL 24 X 35 X 8
Item is no longer available
Price
N/A
257
INBOARD SHAFT G2
Item is no longer available
Price
N/A
258
KEY 5 X 5 X 35
Price
N/A
259
BALL BEARING 6001ZZ
Price
N/A
260
EXT RETAINING RING 12MM
Price
N/A
261
INBOARD FLANGE BEARING SEAT
Item is no longer available
Price
N/A
262
GEARBOX COVER GASKET
Item is no longer available
Price
N/A

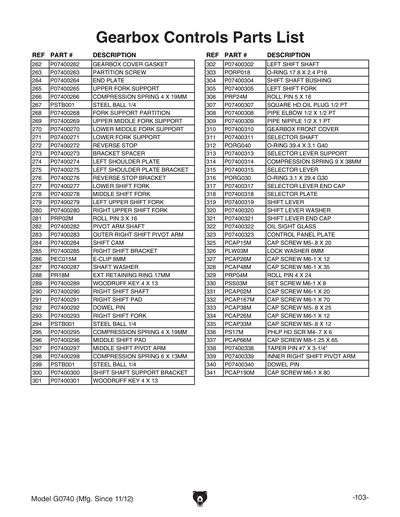

263
PARTITION SCREW
Item is no longer available
Price
N/A
264
END PLATE
Item is no longer available
Price
N/A
265
UPPER FORK SUPPORT
Item is no longer available
Price
N/A
266
COMPRESSION SPRING 4 X 19MM
Item is no longer available
Price
N/A
267
STEEL BALL 1/4
Price
N/A
268
FORK SUPPORT PARTITION
Item is no longer available
Price
N/A
269
UPPER MIDDLE FORK SUPPORT
Item is no longer available
Price
N/A
270
LOWER MIDDLE FORK SUPPORT
Item is no longer available
Price
N/A
271
LOWER FORK SUPPORT
Item is no longer available
Price
N/A
272
REVERSE STOP
Item is no longer available
Price
N/A
273
BRACKET SPACER
Item is no longer available
Price
N/A
274
LEFT SHOULDER PLATE
Item is no longer available
Price
N/A
275
LEFT SHOULDER PLATE BRACKET
Item is no longer available
Price
N/A
276
REVERSE STOP BRACKET
Item is no longer available
Price
N/A
277
LOWER SHIFT FORK
Item is no longer available
Price
N/A
278
MIDDLE SHIFT FORK
Item is no longer available
Price
N/A
279
LEFT UPPER SHIFT FORK
Item is no longer available
Price
N/A
280
RIGHT UPPER SHIFT FORK
Item is no longer available
Price
N/A
281
ROLL PIN 3 X 16
Price
N/A
282
PIVOT ARM SHAFT
Item is no longer available
Price
N/A
283
OUTER RIGHT SHIFT PIVOT ARM
Item is no longer available
Price
N/A
284
SHIFT CAM
Item is no longer available
Price
N/A
285
RIGHT SHIFT BRACKET
Item is no longer available
Price
N/A
286
E-CLIP 8MM
Price
N/A
287
SHAFT WASHER
Item is no longer available
Price
N/A
288
EXT RETAINING RING 17MM
Price
N/A
289
WOODRUFF KEY 4 X 13
Price
N/A
290
RIGHT SHIFT SHAFT
Item is no longer available
Price
N/A
291
RIGHT SHIFT PAD
Item is no longer available
Price
N/A
292
DOWEL PIN
Item is no longer available
Price
N/A
293
RIGHT SHIFT FORK
Item is no longer available
Price
N/A
294
STEEL BALL 1/4
Price
N/A
295
COMPRESSION SPRING 4 X 19MM
Item is no longer available
Price
N/A
296
MIDDLE SHIFT PAD
Item is no longer available
Price
N/A
297
MIDDLE SHIFT PIVOT ARM
Item is no longer available
Price
N/A
298
COMPRESSION SPRING 6 X 13MM
Item is no longer available
Price
N/A
299
STEEL BALL 1/4
Price
N/A
300
SHIFT SHAFT SUPPORT BRACKET
Item is no longer available
Price
N/A
301
WOODRUFF KEY 4 X 13
Price
N/A
302
LEFT SHIFT SHAFT
Item is no longer available
Price
N/A
303
O-RING 17.8 X 2.4 P18
Price
N/A
304
SHIFT SHAFT BUSHING
Item is no longer available
Price
N/A
305
LEFT SHIFT FORK
Item is no longer available
Price
N/A
306
ROLL PIN 5 X 16
Price
N/A
307
SQUARE HD OIL PLUG 1/2 PT
Item is no longer available
Price
N/A
308
PIPE ELBOW 1/2 X 1/2 PT
Item is no longer available
Price
N/A
309
PIPE NIPPLE 1/2 X 1 PT
Item is no longer available
Price
N/A
310
GEARBOX FRONT COVER
Item is no longer available
Price
N/A
311
SELECTOR SHAFT
Item is no longer available
Price
N/A
312
O-RING 39.4 X 3.1 G40
Price
N/A
313
SELECTOR LEVER SUPPORT
Item is no longer available
Price
N/A
314
COMPRESSION SPRING 9 X 38MM
Item is no longer available
Price
N/A
315
SELECTOR LEVER
Item is no longer available
Price
N/A
316
O-RING 3.1 X 29.4 G30
Price
N/A
317
SELECTOR LEVER END CAP
Item is no longer available
Price
N/A
318
SELECTOR PLATE
Item is no longer available
Price
N/A
319
SHIFT LEVER
Price
$55.20
320
SHIFT LEVER WASHER
Item is no longer available
Price
N/A
321
SHIFT LEVER END CAP
Item is no longer available
Price
N/A
322
OIL SIGHT GLASS
Item is no longer available
Price
N/A
323
CONTROL PANEL PLATE
Item is no longer available
Price
N/A
324
CAP SCREW M6-1 X 12
Price
N/A
325
CAP SCREW M5-.8 X 20
Price
N/A
326
LOCK WASHER 6MM
Price
N/A
327
CAP SCREW M6-1 X 12
Price
N/A
328
CAP SCREW M6-1 X 35
Price
N/A
329
ROLL PIN 4 X 24
Price
N/A
330
SET SCREW M6-1 X 8
Price
N/A
331
CAP SCREW M6-1 X 20
Price
N/A
332
CAP SCREW M6-1 X 70
Price
N/A
333
CAP SCREW M5-.8 X 25
Price
N/A
334
CAP SCREW M6-1 X 12
Price
N/A
335
CAP SCREW M5-.8 X 12
Price
N/A
336
PHLP HD SCR M4-.7 X 6
Price
N/A
337
CAP SCREW M8-1.25 X 65
Price
N/A
338
TAPER PIN 7 X 3-1/4"
Item is no longer available
Price
N/A
339
INNER RIGHT SHIFT PIVOT ARM
Item is no longer available
Price
N/A
340
DOWEL PIN
Item is no longer available
Price
N/A
341
CAP SCREW M6-1 X 80
Price
N/A

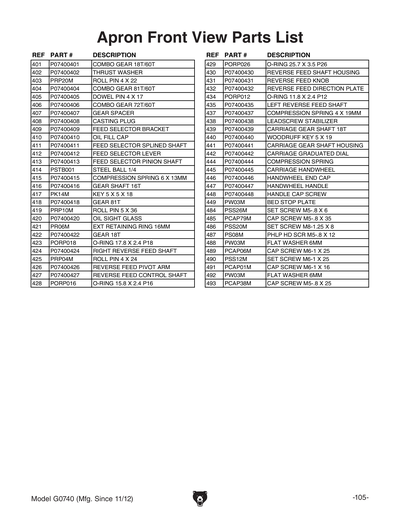

401
COMBO GEAR 18T/60T
Item is no longer available
Price
N/A
402
THRUST WASHER
Item is no longer available
Price
N/A
403
ROLL PIN 4 X 22
Price
N/A
404
COMBO GEAR 81T/60T
Item is no longer available
Price
N/A
405
DOWEL PIN 4 X 17
Item is no longer available
Price
N/A
406
COMBO GEAR 72T/60T
Item is no longer available
Price
N/A
407
GEAR SPACER
Item is no longer available
Price
N/A
408
CASTING PLUG
Item is no longer available
Price
N/A
409
FEED SELECTOR BRACKET
Item is no longer available
Price
N/A
410
OIL FILL CAP
Item is no longer available
Price
N/A
411
FEED SELECTOR SPLINED SHAFT
Item is no longer available
Price
N/A
412
FEED SELECTOR LEVER
Item is no longer available
Price
N/A
413
FEED SELECTOR PINION SHAFT
Item is no longer available
Price
N/A
414
STEEL BALL 1/4
Price
N/A
415
COMPRESSION SPRING 6 X 13MM
Item is no longer available
Price
N/A
416
GEAR SHAFT 16T
Item is no longer available
Price
N/A
417
KEY 5 X 5 X 18
Price
N/A
418
GEAR 81T
Item is no longer available
Price
N/A
419
ROLL PIN 5 X 36
Price
N/A
420
OIL SIGHT GLASS
Item is no longer available
Price
N/A
421
EXT RETAINING RING 16MM
Price
N/A
422
GEAR 18T
Item is no longer available
Price
N/A
423
O-RING 17.8 X 2.4 P18
Price
N/A
424
RIGHT REVERSE FEED SHAFT
Item is no longer available
Price
N/A
425
ROLL PIN 4 X 24
Price
N/A
426
REVERSE FEED PIVOT ARM
Item is no longer available
Price
N/A
427
REVERSE FEED CONTROL SHAFT
Item is no longer available
Price
N/A
428
O-RING 15.8 X 2.4 P16
Price
N/A
429
O-RING 25.7 X 3.5 P26
Price
N/A
430
REVERSE FEED SHAFT HOUSING
Item is no longer available
Price
N/A
431
REVERSE FEED KNOB
Item is no longer available
Price
N/A
432

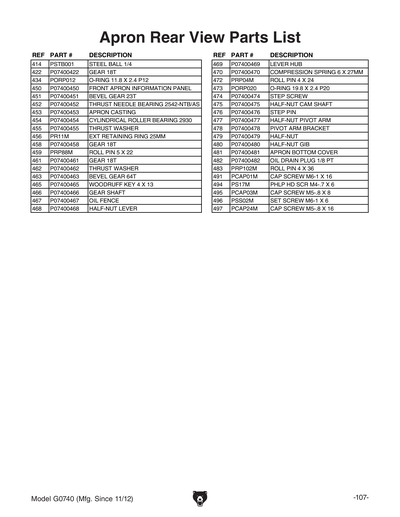

REVERSE FEED DIRECTION PLATE
Item is no longer available
Price
N/A
434
O-RING 11.8 X 2.4 P12
Price
N/A
435
LEFT REVERSE FEED SHAFT
Item is no longer available
Price
N/A
437
COMPRESSION SPRING 4 X 19MM
Item is no longer available
Price
N/A
438
LEADSCREW STABILIZER
Item is no longer available
Price
N/A
439
CARRIAGE GEAR SHAFT 18T
Item is no longer available
Price
N/A
440
WOODRUFF KEY
Price
N/A
441
CARRIAGE GEAR SHAFT HOUSING
Item is no longer available
Price
N/A
442
CARRIAGE GRADUATED DIAL
Item is no longer available
Price
N/A
444
COMPRESSION SPRING
Item is no longer available
Price
N/A
445
CARRIAGE HANDWHEEL
Item is no longer available
Price
N/A
446
HANDWHEEL END CAP
Item is no longer available
Price
N/A
447
HANDWHEEL HANDLE
Item is no longer available
Price
N/A
448
HANDLE CAP SCREW
Item is no longer available
Price
N/A
449
FLAT WASHER 6MM
Price
N/A
450
FRONT APRON INFORMATION PANEL
Item is no longer available
Price
N/A
451
BEVEL GEAR 23T
Item is no longer available
Price
N/A
452
THRUST NEEDLE BEARING 2542-NTB/AS
Item is no longer available
Price
N/A
453

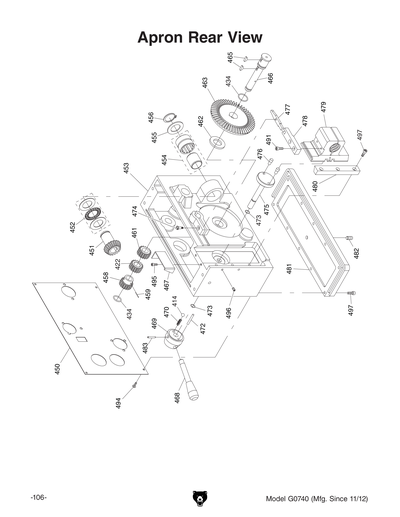

APRON CASTING
Item is no longer available
Price
N/A
454
CYLINDRICAL ROLLER BEARING 2930
Item is no longer available
Price
N/A
455
THRUST WASHER
Item is no longer available
Price
N/A
456
EXT RETAINING RING 25MM
Price
N/A
458
GEAR 18T
Item is no longer available
Price
N/A
459
ROLL PIN 5 X 22
Price
N/A
461
GEAR 18T
Item is no longer available
Price
N/A
462
THRUST WASHER
Item is no longer available
Price
N/A
463
BEVEL GEAR 64T
Item is no longer available
Price
N/A
465
WOODRUFF KEY 4 X 13
Price
N/A
466
GEAR SHAFT
Item is no longer available
Price
N/A
467
OIL FENCE
Item is no longer available
Price
N/A
468
HALF-NUT LEVER
Item is no longer available
Price
N/A
469
LEVER HUB
Item is no longer available
Price
N/A
470
COMPRESSION SPRING 6 X 27MM
Item is no longer available
Price
N/A
472
ROLL PIN 4 X 24
Price
N/A
473
O-RING 19.8 X 2.4 P20
Price
N/A
474
STEP SCREW
Item is no longer available
Price
N/A
475
HALF-NUT CAM SHAFT
Item is no longer available
Price
N/A
476
STEP PIN
Item is no longer available
Price
N/A
477
HALF-NUT PIVOT ARM
Item is no longer available
Price
N/A
478
PIVOT ARM BRACKET
Item is no longer available
Price
N/A
479
HALF-NUT
Item is no longer available
Price
N/A
480
HALF-NUT GIB
Item is no longer available
Price
N/A
481
APRON BOTTOM COVER
Item is no longer available
Price
N/A
482
OIL DRAIN PLUG 1/8 PT
Item is no longer available
Price
N/A
483
ROLL PIN 4 X 36
Price
N/A
484
SET SCREW M5-.8 X 6
Price
N/A
485
CAP SCREW M5-.8 X 35
Price
N/A
486
SET SCREW M8-1.25 X 8
Price
N/A
487
PHLP HD SCR M5-.8 X 12
Price
N/A
488
FLAT WASHER 6MM
Price
N/A
489
CAP SCREW M6-1 X 25
Price
N/A
490
SET SCREW M6-1 X 25
Price
N/A
491
CAP SCREW M6-1 X 16
Price
N/A
492
FLAT WASHER 6MM
Price
N/A
493
CAP SCREW M5-.8 X 25
Price
N/A
494
PHLP HD SCR M4-.7 X 6
Price
N/A
495
CAP SCREW M5-.8 X 8
Price
N/A
496
SET SCREW M6-1 X 6
Price
N/A
497
CAP SCREW M5-.8 X 16
Price
N/A

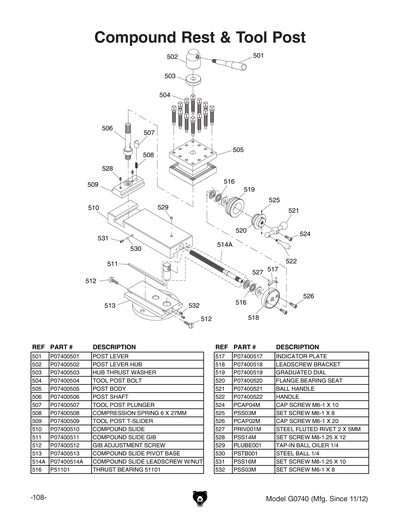

501
POST LEVER
Item is no longer available
Price
N/A
502
POST LEVER HUB
Item is no longer available
Price
N/A
503
HUB THRUST WASHER
Item is no longer available
Price
N/A
504
TOOL POST BOLT
Item is no longer available
Price
N/A
505
POST BODY
Item is no longer available
Price
N/A
506
POST SHAFT
Item is no longer available
Price
N/A
507
TOOL POST PLUNGER
Item is no longer available
Price
N/A
508
COMPRESSION SPRING 6 X 27MM
Item is no longer available
Price
N/A
509
TOOL POST T-SLIDER
Item is no longer available
Price
N/A
510
COMPOUND SLIDE
Item is no longer available
Price
N/A
511
COMPOUND SLIDE GIB
Item is no longer available
Price
N/A
512
GIB ADJUSTMENT SCREW
Item is no longer available
Price
N/A
513
COMPOUND SLIDE PIVOT BASE
Item is no longer available
Price
N/A
514A
COMPOUND SLIDE LEADSCREW W/NUT
Item is no longer available
Price
N/A
516
THRUST BEARING 51101
Price
N/A
517
INDICATOR PLATE
Item is no longer available
Price
N/A
518
LEADSCREW BRACKET
Item is no longer available
Price
N/A
519
GRADUATED DIAL
Item is no longer available
Price
N/A
520
FLANGE BEARING SEAT
Item is no longer available
Price
N/A
521
BALL HANDLE
Item is no longer available
Price
N/A
522
HANDLE
Item is no longer available
Price
N/A
524
CAP SCREW M6-1 X 10
Price
N/A
525
SET SCREW M6-1 X 8
Price
N/A
526
CAP SCREW M6-1 X 20
Price
N/A
527
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
528
SET SCREW M8-1.25 X 12
Price
N/A
529
BALL OILER 1/4 PRESS-IN
Price
N/A
530
STEEL BALL 1/4
Price
N/A
531
SET SCREW M8-1.25 X 10
Price
N/A
532
SET SCREW M6-1 X 8
Price
N/A

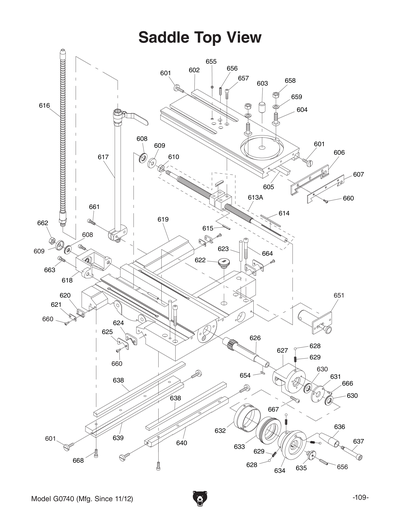

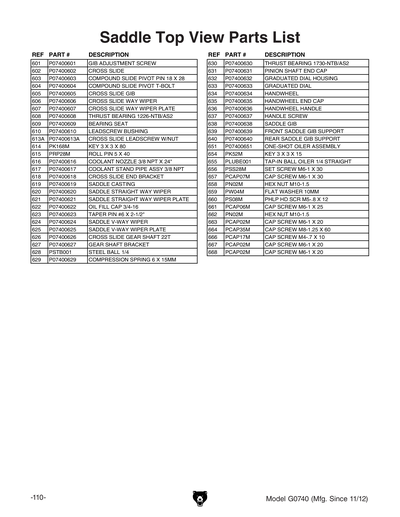

601
GIB ADJUSTMENT SCREW
Item is no longer available
Price
N/A
602
CROSS SLIDE
Item is no longer available
Price
N/A
603
COMPOUND SLIDE PIVOT PIN 18 X 28
Item is no longer available
Price
N/A
604
COMPOUND SLIDE PIVOT T-BOLT
Item is no longer available
Price
N/A
605
CROSS SLIDE GIB
Item is no longer available
Price
N/A
606
CROSS SLIDE WAY WIPER
Item is no longer available
Price
N/A
607
CROSS SLIDE WAY WIPER PLATE
Item is no longer available
Price
N/A
608
THRUST BEARING 1226-NTB/AS2
Price
$25.05
609
BEARING SEAT
Price
$16.10
610
LEADSCREW BUSHING
Price
$11.50
613A
CROSS SLIDE LEADSCREW W/NUT
Price
$583.05
614
KEY 3 X 3 X 80
Price
N/A
615
ROLL PIN 5 X 40
Price
N/A
616
COOLANT NOZZLE 3/8 NPT X 24"
Item is no longer available
Price
N/A
617
COOLANT STAND PIPE ASSY 3/8 NPT
Item is no longer available
Price
N/A
618
CROSS SLIDE END BRACKET
Item is no longer available
Price
N/A
619
SADDLE CASTING
Item is no longer available
Price
N/A
620
SADDLE STRAIGHT WAY WIPER
Item is no longer available
Price
N/A
621
SADDLE STRAIGHT WAY WIPER PLATE
Item is no longer available
Price
N/A
622
OIL FILL CAP 3/4-16
Item is no longer available
Price
N/A
623
TAPER PIN 6 X 2-1/2"
Item is no longer available
Price
N/A
624
SADDLE V-WAY WIPER
Item is no longer available
Price
N/A
625
SADDLE V-WAY WIPER PLATE
Item is no longer available
Price
N/A
626
CROSS SLIDE GEAR SHAFT 22T
Item is no longer available
Price
N/A
627
GEAR SHAFT BRACKET
Item is no longer available
Price
N/A
628
STEEL BALL 1/4
Price
N/A
629
COMPRESSION SPRING 6 X 15MM
Item is no longer available
Price
N/A
630
THRUST BEARING 1730-NTB/AS2
Item is no longer available
Price
N/A
631
PINION SHAFT END CAP
Item is no longer available
Price
N/A
632
GRADUATED DIAL HOUSING
Item is no longer available
Price
N/A
633
GRADUATED DIAL
Item is no longer available
Price
N/A
634
HANDWHEEL
Item is no longer available
Price
N/A
635
HANDWHEEL END CAP
Item is no longer available
Price
N/A
636
HANDWHEEL HANDLE
Item is no longer available
Price
N/A
637
HANDLE SCREW
Price
$25.30
638
SADDLE GIB
Item is no longer available
Price
N/A
639
FRONT SADDLE GIB SUPPORT
Item is no longer available
Price
N/A
640
REAR SADDLE GIB SUPPORT
Item is no longer available
Price
N/A

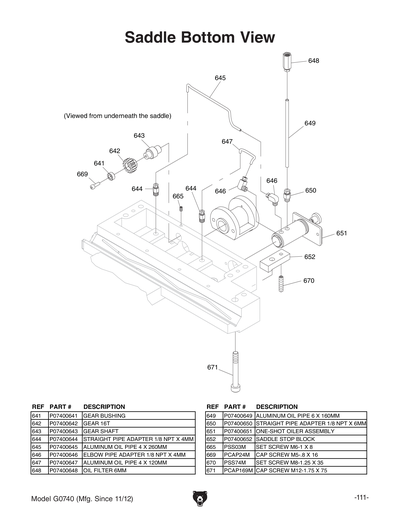

641
GEAR BUSHING
Item is no longer available
Price
N/A
642
GEAR 16T
Item is no longer available
Price
N/A
643
GEAR SHAFT
Item is no longer available
Price
N/A
644
STRAIGHT PIPE ADAPTER 1/8 NPT X 4MM
Item is no longer available
Price
N/A
645
ALUMINUM OIL PIPE 4 X 260MM
Item is no longer available
Price
N/A
646
ELBOW PIPE ADAPTER 1/8 NPT X 4MM
Item is no longer available
Price
N/A
647
ALUMINUM OIL PIPE 4 X 120MM
Item is no longer available
Price
N/A
648
OIL FILTER 6MM
Item is no longer available
Price
N/A
649
ALUMINUM OIL PIPE 6 X 160MM
Item is no longer available
Price
N/A
650
STRAIGHT PIPE ADAPTER 1/8 NPT X 6MM
Item is no longer available
Price
N/A
651
ONE-SHOT OILER ASSEMBLY
Item is no longer available
Price
N/A
652
SADDLE STOP BLOCK
Item is no longer available
Price
N/A
654
KEY 3 X 3 X 15
Price
N/A
655
BALL OILER 1/4 PRESS-IN
Price
N/A
656
SET SCREW M6-1 X 30
Price
N/A
657
CAP SCREW M6-1 X 30
Price
N/A
658
HEX NUT M10-1.5
Price
N/A
659
FLAT WASHER 10MM
Price
N/A
660
PHLP HD SCR M5-.8 X 12
Price
N/A
661
CAP SCREW M6-1 X 25
Price
N/A
662
HEX NUT M10-1.5
Price
N/A
663
CAP SCREW M6-1 X 20
Price
N/A
664
CAP SCREW M8-1.25 X 60
Price
N/A
665
SET SCREW M6-1 X 8
Price
N/A
666
CAP SCREW M4-.7 X 10
Price
N/A
667
CAP SCREW M6-1 X 20
Price
N/A
668
CAP SCREW M6-1 X 20
Price
N/A
669
CAP SCREW M5-.8 X 16
Price
N/A
670
SET SCREW M8-1.25 X 35
Price
N/A
671
CAP SCREW M12-1.75 X 75
Price
N/A

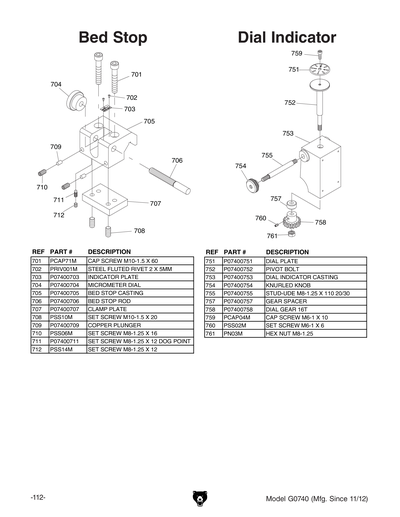

701
CAP SCREW M10-1.5 X 60
Price
N/A
702
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
703
INDICATOR PLATE
Item is no longer available
Price
N/A
704
MICROMETER DIAL
Item is no longer available
Price
N/A
705
BED STOP CASTING
Item is no longer available
Price
N/A
706
BED STOP ROD
Item is no longer available
Price
N/A
707
CLAMP PLATE
Item is no longer available
Price
N/A
708
SET SCREW M10-1.5 X 20
Price
N/A
709
COPPER PLUNGER
Item is no longer available
Price
N/A
710
SET SCREW M8-1.25 X 16
Price
N/A
711
SET SCREW M8-1.25 X 12 DOG POINT
Item is no longer available
Price
N/A
712
SET SCREW M8-1.25 X 12
Price
N/A
751
DIAL PLATE
Item is no longer available
Price
N/A
752
PIVOT BOLT
Item is no longer available
Price
N/A
753
DIAL INDICATOR CASTING
Item is no longer available
Price
N/A
754
KNURLED KNOB
Price
$41.10
755
STUD-UDE M8-1.25 X 110 20/30
Price
$12.10
757
GEAR SPACER
Item is no longer available
Price
N/A
758
DIAL GEAR 16T
Item is no longer available
Price
N/A
759
CAP SCREW M6-1 X 10
Price
N/A
760
SET SCREW M6-1 X 6
Price
N/A
761
HEX NUT M8-1.25
Price
N/A
801
BED AND GAP ASSEMBLY
Price
N/A
801A
BED AND GAP ASSEMBLY
Item is no longer available
Price
N/A
802
BED STOP STUD
Item is no longer available
Price
N/A
803
HEX BOLT M12-1.75 X 45
Price
N/A
804
FLAT WASHER 12MM
Price
N/A
805
CAP SCREW M6-1 X 20
Price
N/A
806
ROLL PIN 6 X 25
Price
N/A
807
LEADSCREW LOCK NUT
Item is no longer available
Price
N/A
808
SET SCREW M6-1 X 8
Price
N/A
809
THRUST BEARING 51203
Price
N/A
810
SHAFT END BRACKET
Item is no longer available
Price
N/A
811
BALL OILER 1/4 PRESS-IN
Price
N/A
812
FEED ROD END CAP
Item is no longer available
Price
N/A
813
SET SCREW M12-1.75 X 12
Price
N/A
814
COMPRESSION SPRING
Item is no longer available
Price
N/A
815
STEEL BALL 3/8
Price
N/A
816
CAP SCREW M8-1.25 X 35
Price
N/A
817
TAPER PIN 6 X 2"
Item is no longer available
Price
N/A
818
SPINDLE ON/OFF LEVER KNOB
Item is no longer available
Price
N/A
819
SPINDLE ON/OFF LEVER
Item is no longer available
Price
N/A
820
HEX NUT M12-1.75
Price
N/A
821
STEP PIN
Item is no longer available
Price
N/A
822
THRUST BEARING 1831-NTB/AS2
Item is no longer available
Price
N/A
823
SPINDLE ON/OFF LEVER HUB
Item is no longer available
Price
N/A
824
LOCK COLLAR
Item is no longer available
Price
N/A
825
SET SCREW M6-1 X 8
Price
N/A
826
LONGITUDINAL LEADSCREW 4 TPI
Item is no longer available
Price
N/A
827
FEED ROD
Item is no longer available
Price
N/A
828
SPLINDLE LEVER SELECTOR BRACKET
Item is no longer available
Price
N/A
829
SPINDLE ROD SLEEVE
Item is no longer available
Price
N/A
830
SPINDLE ROD COMPRESSION SPRING
Item is no longer available
Price
N/A
831
SPINDLE ROD SPRING HOUSING
Item is no longer available
Price
N/A
832
EXT RETAINING RING 32MM
Price
N/A
833
SPINDLE ROD
Item is no longer available
Price
N/A
834
FEED ROD STOP COLLAR
Item is no longer available
Price
N/A
835
CAP SCREW M6-1 X 20
Price
N/A
836A
FEED ROD CLUTCH COLLAR ASSY
Item is no longer available
Price
N/A
838
TAPER PIN 4 X 1-1/4"
Item is no longer available
Price
N/A
839
THRUST BEARING 51203
Price
N/A
840
KEY 5 X 5 X 15
Price
N/A
841
LEADSCREW SPRING HOUSING
Item is no longer available
Price
N/A
842
LEADSCREW SPRING
Item is no longer available
Price
N/A
843
EXT RETAINING RING 32MM
Price
N/A
844
LEADSCREW SHEAR PIN
Item is no longer available
Price
N/A
845
SHEAR PIN SHROUD
Item is no longer available
Price
N/A
846
LEADSCREW FLANGE WASHER
Item is no longer available
Price
N/A
847
SET SCREW M6-1 X 6
Price
N/A
848
COMPRESSION SPRING 8 X 32
Item is no longer available
Price
N/A
849
BED RACK
Item is no longer available
Price
N/A
850
GAP RACK
Item is no longer available
Price
N/A
851
SET SCREW M8-1.25 X 12
Price
N/A
852
CAPTIVE PIN
Item is no longer available
Price
N/A
853
SPINDLE SWITCH PIVOT ARM
Item is no longer available
Price
N/A
854
E-CLIP 6MM
Price
N/A
855
SPINDLE SWITCH LINKAGE ROD
Item is no longer available
Price
N/A
856
SPINDLE SWITCH BRACKET
Item is no longer available
Price
N/A
857
SPINDLE SWITCH
Item is no longer available
Price
N/A
858
CAP SCREW M6-1 X 16
Price
N/A
859
LOCK COLLAR
Item is no longer available
Price
N/A
860
CAP SCREW M6-1 X 10
Price
N/A
861
PHLP HD SCR M6-1 X 10
Price
N/A
862
SPINDLE SWITCH COVER BOX
Item is no longer available
Price
N/A
863
HALOGEN LAMP ASSEMBLY
Item is no longer available
Price
N/A
863-1
LAMP BODY
Item is no longer available
Price
N/A
863-2
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
863-3
LENS
Item is no longer available
Price
N/A
863-4
LENS RETAINER
Item is no longer available
Price
N/A
863-5
PHLP HD SCR M3-.5 X 10
Price
N/A
863-6
LAMP TERMINAL BLOCK 2P
Item is no longer available
Price
N/A
864
CAP SCREW M10-1.5 X 25
Price
N/A
865
GAP INSERT THREADED TAPER PIN
Item is no longer available
Price
N/A
866
HEX NUT M8-1.25
Price
N/A
867
BED AND GAP ASSEMBLY
Price
N/A

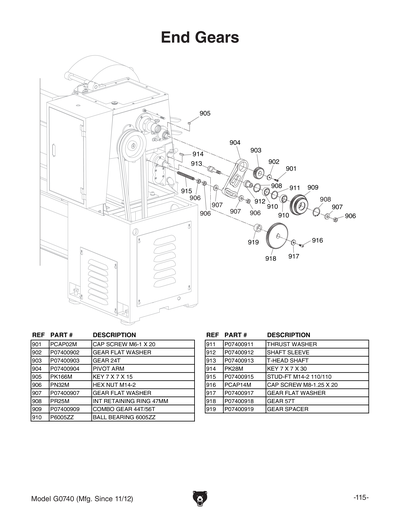

901
CAP SCREW M6-1 X 20
Price
N/A
902
GEAR FLAT WASHER
Item is no longer available
Price
N/A
903
GEAR 24T
Item is no longer available
Price
N/A
904
PIVOT ARM
Item is no longer available
Price
N/A
905
KEY 7 X 7 X 15
Price
N/A
906
HEX NUT M14-2
Price
N/A
907
GEAR FLAT WASHER
Item is no longer available
Price
N/A
908
INT RETAINING RING 47MM
Price
N/A
909
COMBO GEAR 44T/56T
Item is no longer available
Price
N/A
910
BALL BEARING 6005ZZ
Price
N/A
911
THRUST WASHER
Item is no longer available
Price
N/A
912
SHAFT SLEEVE
Price
$48.30
913
T-HEAD SHAFT
Item is no longer available
Price
N/A
914
KEY 7 X 7 X 29
Price
N/A
915
STUD-FT M14-2 X 110/110
Item is no longer available
Price
N/A
916
CAP SCREW M8-1.25 X 20
Price
N/A
917
GEAR FLAT WASHER
Item is no longer available
Price
N/A
918
GEAR 57T
Item is no longer available
Price
N/A
919
GEAR SPACER
Item is no longer available
Price
N/A

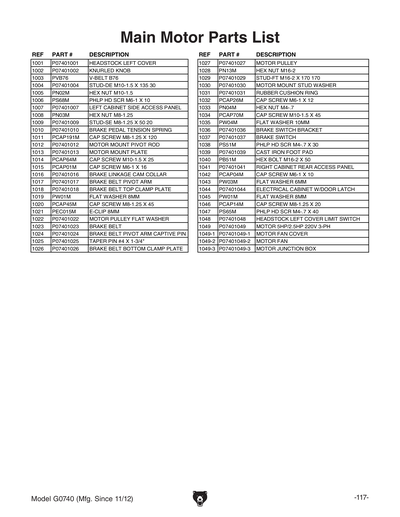

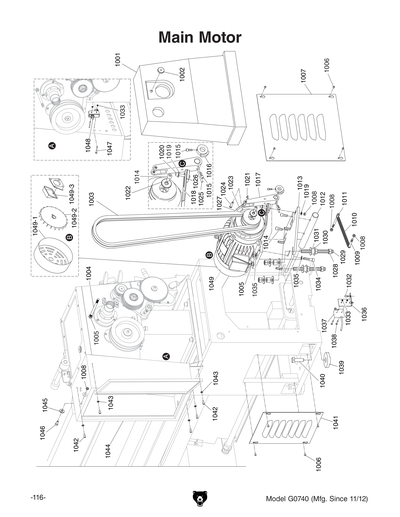

1001
HEADSTOCK LEFT COVER
Item is no longer available
Price
N/A
1002
KNURLED KNOB
Item is no longer available
Price
N/A
1003
V-BELT B76
Price
N/A
1004
STUD-DE M10-1.5 X 135 30
Item is no longer available
Price
N/A
1005
HEX NUT M10-1.5
Price
N/A
1006
PHLP HD SCR M6-1 X 10
Price
N/A
1007
LEFT CABINET SIDE ACCESS PANEL
Item is no longer available
Price
N/A
1008
HEX NUT M8-1.25
Price
N/A
1009
STUD-SE M8-1.25 X 50 20
Item is no longer available
Price
N/A
1010
BRAKE PEDAL TENSION SPRING
Item is no longer available
Price
N/A
1011
CAP SCREW M8-1.25 X 120
Price
N/A
1012
MOTOR MOUNT PIVOT ROD
Item is no longer available
Price
N/A
1013
MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
1014
CAP SCREW M10-1.5 X 25
Price
N/A
1015
CAP SCREW M6-1 X 16
Price
N/A
1016
BRAKE LINKAGE CAM COLLAR
Item is no longer available
Price
N/A
1017
BRAKE BELT PIVOT ARM
Item is no longer available
Price
N/A
1018
BRAKE BELT TOP CLAMP PLATE
Item is no longer available
Price
N/A
1019
FLAT WASHER 8MM
Price
N/A
1020
CAP SCREW M8-1.25 X 45
Price
N/A
1021
E-CLIP 8MM
Price
N/A
1022
MOTOR PULLEY FLAT WASHER
Item is no longer available
Price
N/A
1023
BRAKE BELT
Item is no longer available
Price
N/A
1024
BRAKE BELT PIVOT ARM CAPTIVE PIN
Item is no longer available
Price
N/A
1025
TAPER PIN 4 X 1-3/4"
Item is no longer available
Price
N/A
1026
BRAKE BELT BOTTOM CLAMP PLATE
Item is no longer available
Price
N/A
1027
MOTOR PULLEY
Item is no longer available
Price
N/A
1028
HEX NUT M16-2
Price
N/A
1029
STUD-FT M16-2 X 170 170
Item is no longer available
Price
N/A
1030
MOTOR MOUNT STUD WASHER
Item is no longer available
Price
N/A
1031
RUBBER CUSHION RING
Item is no longer available
Price
N/A
1032
CAP SCREW M6-1 X 12
Price
N/A
1033
HEX NUT M4-.7
Price
N/A
1034
CAP SCREW M10-1.5 X 45
Price
N/A
1035
FLAT WASHER 10MM
Price
N/A
1036
BRAKE SWITCH BRACKET
Item is no longer available
Price
N/A
1037
BRAKE SWITCH
Item is no longer available
Price
N/A
1038
PHLP HD SCR M4-.7 X 30
Price
N/A
1039
CAST IRON FOOT PAD
Item is no longer available
Price
N/A
1040
HEX BOLT M16-2 X 50
Price
N/A
1041
RIGHT CABINET REAR ACCESS PANEL
Item is no longer available
Price
N/A
1042
CAP SCREW M6-1 X 10
Price
N/A
1043
FLAT WASHER 6MM
Price
N/A
1044
ELECTRICAL CABINET W/DOOR LATCH
Item is no longer available
Price
N/A
1045
FLAT WASHER 8MM
Price
N/A
1046
CAP SCREW M8-1.25 X 20
Price
N/A
1047
PHLP HD SCR M4-.7 X 40
Price
N/A
1048
HEADSTOCK LEFT COVER LIMIT SWITCH
Item is no longer available
Price
N/A
1049
MOTOR 5HP/2.5HP 220V 3-PH
Item is no longer available
Price
N/A
1049-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
1049-2
MOTOR FAN
Item is no longer available
Price
N/A
1049-3
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A

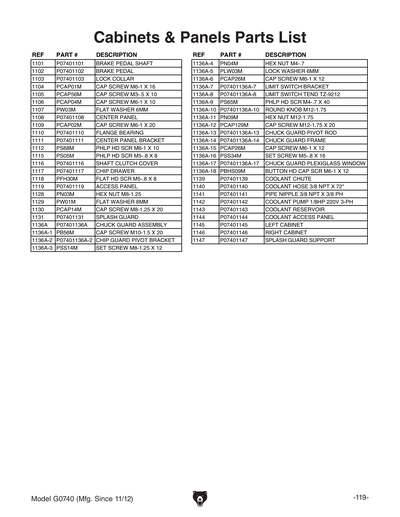

1101
BRAKE PEDAL SHAFT
Item is no longer available
Price
N/A
1102
BRAKE PEDAL
Item is no longer available
Price
N/A
1103
LOCK COLLAR
Item is no longer available
Price
N/A
1104
CAP SCREW M6-1 X 16
Price
N/A
1105
CAP SCREW M3-.5 X 10
Price
N/A
1106
CAP SCREW M6-1 X 10
Price
N/A
1107
FLAT WASHER 6MM
Price
N/A
1108
CENTER PANEL
Item is no longer available
Price
N/A
1109
CAP SCREW M6-1 X 20
Price
N/A
1110
FLANGE BEARING
Item is no longer available
Price
N/A
1111
CENTER PANEL BRACKET
Item is no longer available
Price
N/A
1112
PHLP HD SCR M6-1 X 10
Price
N/A
1115
PHLP HD SCR M5-.8 X 8
Price
N/A
1116
SHAFT CLUTCH COVER
Item is no longer available
Price
N/A
1117
CHIP DRAWER
Item is no longer available
Price
N/A
1118
FLAT HD SCR M5-.8 X 8
Price
N/A
1119
ACCESS PANEL
Item is no longer available
Price
N/A
1128
HEX NUT M8-1.25
Price
N/A
1129
FLAT WASHER 8MM
Price
N/A
1130
CAP SCREW M8-1.25 X 20
Price
N/A
1131
SPLASH GUARD
Item is no longer available
Price
N/A
1136A
CHUCK GUARD ASSEMBLY
Price
$759.00
1136A-1
CAP SCREW M3-.5 X 10
Price
N/A
1136A-10
ROUND KNOB M12-1.75
Item is no longer available
Price
N/A
1136A-11
HEX NUT M12-1.75
Price
N/A
1136A-12
CAP SCREW M12-1.75 X 20
Price
N/A
1136A-13
CHUCK GUARD PIVOT ROD
Item is no longer available
Price
N/A
1136A-14
CHUCK GUARD FRAME
Item is no longer available
Price
N/A
1136A-15
CAP SCREW M6-1 X 12
Price
N/A
1136A-16
SET SCREW M5-.8 X 16
Price
N/A
1136A-17
CHUCK GUARD PLEXIGLASS WINDOW
Item is no longer available
Price
N/A
1136A-18
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1136A-2
CHIP GUARD PIVOT BRACKET
Item is no longer available
Price
N/A
1136A-3
SET SCREW M8-1.25 X 12
Price
N/A
1136A-4
HEX NUT M4-.7
Price
N/A
1136A-5
LOCK WASHER 6MM
Price
N/A
1136A-6
CAP SCREW M6-1 X 12
Price
N/A
1136A-7
LIMIT SWITCH BRACKET
Item is no longer available
Price
N/A
1136A-8
LIMIT SWITCH TEND TZ-9212
Item is no longer available
Price
N/A
1136A-9
PHLP HD SCR M4-.7 X 40
Price
N/A
1139
COOLANT CHUTE
Item is no longer available
Price
N/A
1140
COOLANT HOSE 3/8 NPT X 72"
Item is no longer available
Price
N/A
1141
PIPE NIPPLE 3/8 NPT X 3/8 PH
Item is no longer available
Price
N/A
1142
COOLANT PUMP 1/8HP 220V 3-PH
Item is no longer available
Price
N/A
1143
COOLANT RESERVOIR
Item is no longer available
Price
N/A
1144
COOLANT ACCESS PANEL
Item is no longer available
Price
N/A
1145
LEFT CABINET
Item is no longer available
Price
N/A
1146
RIGHT CABINET
Item is no longer available
Price
N/A
1147
SPLASH GUARD SUPPORT
Item is no longer available
Price
N/A
1201
TAILSTOCK LEADSCREW AND NUT
Item is no longer available
Price
N/A
1202
TAILSTOCK LEADSCREW AND NUT
Price
N/A
1203
KEY 5 X 5 X 20
Price
N/A
1204
THRUST BEARING 2035-NTB/AS2
Item is no longer available
Price
N/A
1205
BEARING FLANGE SEAT
Item is no longer available
Price
N/A
1206
EXT RETAINING RING 32MM
Price
N/A
1207
THRUST WASHER
Item is no longer available
Price
N/A
1208
GRADUATED DIAL
Item is no longer available
Price
N/A
1209
QUILL HANDWHEEL
Item is no longer available
Price
N/A
1210
HANDWHEEL END CAP
Item is no longer available
Price
N/A
1211
HANDLE BOLT
Item is no longer available
Price
N/A
1212
HANDWHEEL HANDLE
Item is no longer available
Price
N/A
1213
COMPRESSION SPRING 6.2 X 16MM
Item is no longer available
Price
N/A
1214
STEEL BALL 1/4
Price
N/A
1215
QUILL LOCK LEVER
Item is no longer available
Price
N/A
1216
QUILL LOCK LEVER CAM SHAFT
Item is no longer available
Price
N/A
1217
TAILSTOCK LOCK LEVER
Item is no longer available
Price
N/A
1218
TAILSTOCK LOCK LEVER CAM SHAFT
Item is no longer available
Price
N/A
1219
ROLL PIN 4 X 24
Price
N/A
1221
BALL OILER 1/4 PRESS-IN
Price
N/A
1222
TAILSTOCK CASTING
Item is no longer available
Price
N/A
1223
QUILL
Item is no longer available
Price
N/A
1224
QUILL ALIGNMENT KEY
Item is no longer available
Price
N/A
1225
UPPER OFFSET PLATE
Item is no longer available
Price
N/A
1226
LOWER OFFSET PLATE
Item is no longer available
Price
N/A
1227
ALIGNMENT PIN
Item is no longer available
Price
N/A
1228
PIVOT BLOCK
Item is no longer available
Price
N/A
1229
SET SCREW M8-1.25 X 25 DOG-PT
Price
N/A
1230
TAILSTOCK BASE
Item is no longer available
Price
N/A
1231
GIB ALIGNMENT SCREW M6-1 X 16
Item is no longer available
Price
N/A
1232
V-WAY WIPER
Item is no longer available
Price
N/A
1233
V-WAY WIPER PLATE
Item is no longer available
Price
N/A
1234
STRAIGHT WAY WIPER PLATE
Item is no longer available
Price
N/A
1235
STRAIGHT WAY WIPER
Item is no longer available
Price
N/A
1236
TAILSTOCK GIB
Item is no longer available
Price
N/A
1237
COMPRESSION SPRING 25 X 45
Item is no longer available
Price
N/A
1238
CLAMP PLATE
Item is no longer available
Price
N/A
1239
TAILSTOCK STUD-FT M14-2 X 110
Item is no longer available
Price
N/A
1240
CAP SCREW M6-1 X 16
Price
N/A
1241
SET SCREW M6-1 X 12
Price
N/A
1242
CAP SCREW M6-1 X 12
Price
N/A
1243
CAP SCREW M8-1.25 X 70
Price
N/A
1244
CAP SCREW M8-1.25 X 60
Price
N/A
1245
HEX BOLT M6-1 X 8
Price
N/A
1246
CAP SCREW M6-1 X 16
Price
N/A
1247
PHLP HD SCR M5-.8 X 12
Price
N/A
1248
FLAT WASHER 10MM
Price
N/A
1249
CAP SCREW M10-1.5 X 40
Price
N/A
1250
FLAT WASHER 14MM
Price
N/A
1251
HEX NUT M14-2
Price
N/A
1252
HEX NUT M8-1.25
Price
N/A
1253
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
1254
LOCK WASHER 10MM
Price
N/A
1300
STEADY REST ASSEMBLY
Item is no longer available
Price
N/A
1301
FINGER ADJUSTMENT KNOB
Item is no longer available
Price
N/A
1302
ROLL PIN 4 X 40
Price
N/A
1303
BUSHING
Item is no longer available
Price
N/A
1304
FINGER ADJUSTMENT SCREW
Item is no longer available
Price
N/A
1305
FINGER
Item is no longer available
Price
N/A
1306
DOWEL PIN
Item is no longer available
Price
N/A
1307
BALL BEARING 627ZZ
Price
N/A
1308
SET SCREW M8-1.25 X 8
Price
N/A
1309
CLAMP SCREW KNOB
Item is no longer available
Price
N/A
1310
CLAMP SCREW
Item is no longer available
Price
N/A
1311
DOWEL PIN
Item is no longer available
Price
N/A
1312A
STEADY REST ASSEMBLY
Price
N/A
1314
HINGE PIN
Item is no longer available
Price
N/A
1315
LEAF SCREW M8-1.25 X 25 DOG PT
Item is no longer available
Price
N/A
1316
HEX NUT M12-1.75
Price
N/A
1317
FLAT WASHER 12MM
Price
N/A
1318
STUD-DE M14-2 X 80 28/35
Item is no longer available
Price
N/A
1319
CLAMP PLATE
Item is no longer available
Price
N/A
1350
FOLLOW REST ASSEMBLY
Item is no longer available
Price
N/A
1351
FINGER ADJUSTMENT KNOB
Item is no longer available
Price
N/A
1352
ROLL PIN 4 X 40
Price
N/A
1353
BUSHING
Item is no longer available
Price
N/A
1354
FINGER ADJUSTMENT SCREW
Item is no longer available
Price
N/A
1355
FINGER
Item is no longer available
Price
N/A
1356
BRASS FINGER POINT
Item is no longer available
Price
N/A
1357
SET SCREW M8-1.25 X 8
Price
N/A
1358
FOLLOW REST ASSEMBLY
Price
N/A
1401
ELECTRICAL BACKPLATE
Item is no longer available
Price
N/A
1402
CONTACTOR TELE LC1D18 24V
Item is no longer available
Price
N/A
1403
CONTACTOR SCHN LC1D09 24V
Item is no longer available
Price
N/A
1404
OL RELAY TELE LR3D22 16-24A
Item is no longer available
Price
N/A
1405
OL RELAY SCHN LR3D03 0.25-0.4A
Item is no longer available
Price
N/A
1406
FUSE HOLDER 40A
Item is no longer available
Price
N/A
1407
FUSE 600V 40A
Item is no longer available
Price
N/A
1408
FUSE HOLDER 10A MAX
Item is no longer available
Price
N/A
1409
FUSE 5A 0.25" GLASS
Item is no longer available
Price
N/A
1410
TRNSFORMR TBS-11V 140VA 220/440V-24/220V
Item is no longer available
Price
N/A
1411
LARGE TERMINAL POST
Item is no longer available
Price
N/A
1412
CONTROL PANEL PLATE
Item is no longer available
Price
N/A
1413
COOLANT ON/OFF BUTTON XB7ED21P
Item is no longer available
Price
N/A
1414
POWER INDICATOR LIGHT XB7 EV6P 22MM WHT
Item is no longer available
Price
N/A
1415
STOP BUTTON XB7-ES542P
Item is no longer available
Price
N/A
1416
JOG BUTTON SCH XB7-EA1P 22MM GRN
Price
$55.55
1417
SMALL TERMINAL POST
Item is no longer available
Price
N/A
1501
4-JAW CHUCK 10"
Item is no longer available
Price
N/A
1502
3-JAW CHUCK 8" W/2PC JAW SET
Item is no longer available
Price
N/A
1503
FACEPLATE ASSEMBLY 10"
Item is no longer available
Price
N/A
1503-1
FACEPLATE BODY 10"
Item is no longer available
Price
N/A
1503-2
FACEPLATE CAMLOCK STUD SET
Item is no longer available
Price
N/A
1504
3-JAW CHUCK KEY
Item is no longer available
Price
N/A
1505
4-JAW CHUCK KEY
Item is no longer available
Price
N/A
1506
TOOL POST T-WRENCH
Item is no longer available
Price
N/A
1507
DEAD CENTER MT#3 HSS TIP
Item is no longer available
Price
N/A
1508
DEAD CENTER MT#3 CARBIDE TIP
Item is no longer available
Price
N/A
1509
SPINDLE SLEEVE MT#3/MT#5
Item is no longer available
Price
N/A
1511
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
1512
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
1513
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
1514
SCREWDRIVER FLAT #2
Price
N/A
1515
SCREWDRIVER PHILLIPS #2
Price
N/A
1516
HEX WRENCH 1.5-10MM 10PC SET
Price
N/A
1517
TOOLBOX
Item is no longer available
Price
N/A
1518
HEX WRENCH 8MM
Price
N/A
1519
BACK PLATE D1-5 8-1/4"
Item is no longer available
Price
N/A
1520
CAMLOCK KEY D1-5
Item is no longer available
Price
N/A
1601
MACHINE ID LABEL
Item is no longer available
Price
N/A
1602
ENTANGLEMENT HAZARD 3.8W X 2H
Price
N/A
1603
SAFETY GLASSES 3.8W X 2H
Price
N/A
1604
READ MANUAL 3.7W X 2H V2.07.05
Price
N/A
1605
THREAD DIAL CHART LABEL
Item is no longer available
Price
N/A
1606
SPINDLE SPEED HAZARD
Item is no longer available
Price
N/A
1607
RELEASE BOLT NOTICE LABEL
Item is no longer available
Price
N/A
1608
DISCONNECT 220V 3.8W X 2H
Price
N/A
1609
BIOLOGICAL/POISON HAZARD 3.8W X 2H
Price
N/A
1610
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
1611
Nameplate - Small
Price
N/A
1612
FLUID CAPACITIES LABEL
Item is no longer available
Price
N/A
1613
AUTHORIZED PERSONNEL NOTICE LABEL
Item is no longer available
Price
N/A
1614
N/S GRIZZLY GREEN G1023S
Price
N/A
1615
GREY PUTTY REF G0504
Price
N/A
1616
ELECTRICITY 1.4W X 1.2H
Price
N/A
1617
220V 3-PHASE LABEL
Item is no longer available
Price
N/A
1618
OUTBOARD ENTANGLEMENT LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0740 MFG 11/12 V1.12.12
Item is no longer available
Price
N/A
