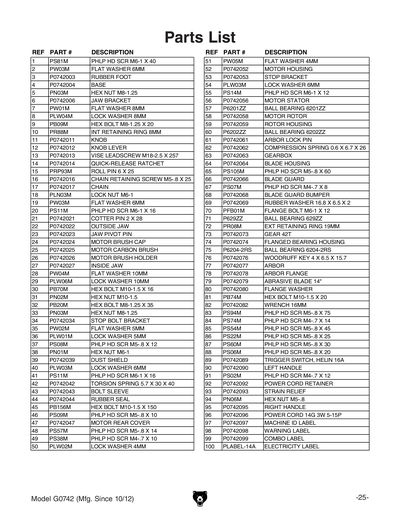

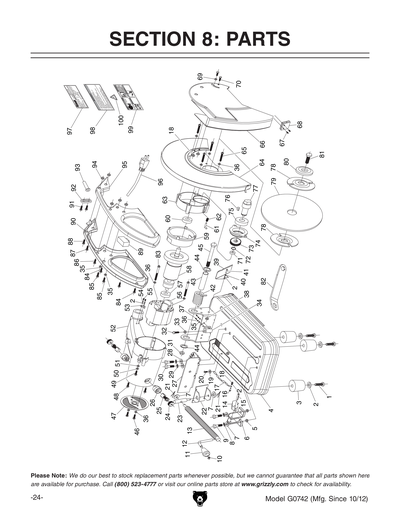

Parts for G0742 14" Abrasive Cut-Off Saw

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

2
Now: PW03M
FLAT WASHER 6MM
Price
N/A
3
*DISCD*RUBBER FOOT
4
*DISCD*BASE
5
Now: PN03M
HEX NUT M8-1.25
Price
N/A
6
*DISCD*JAW BRACKET
7
Now: PW01M
FLAT WASHER 8MM
Price
N/A
8
LOCK WASHER 8MM
Price
N/A
9
Now: PB09M
HEX BOLT M8-1.25 X 20
Price
N/A
10
Now: PR88M
INT RETAINING RING 8MM
Price
N/A
11
*DISCD*KNOB
12
*DISCD*VISE LEADSCREW W/KNOB LEVER ASSEM
Price
N/A
13
*DISCD*VISE LEADSCREW W/KNOB LEVER ASSEM
Price
N/A
13A
*DISCD*VISE LEADSCREW W/KNOB LEVER ASSEM
14
*DISCD*QUICK-RELEASE RATCHET
15
ROLL PIN 6 X 25
Price
N/A
16
Now: PS47M
PHLP HD SCR M6-1 X 25
Price
N/A
17
*DISCD*CHAIN
Item is no longer available
Price
N/A
18
LOCK NUT M6-1
Price
N/A
19
Now: PW03M
FLAT WASHER 6MM
Price
N/A
20
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
21
COTTER PIN 2 X 25MM STANDARD
Price
N/A
22
*DISCD*OUTSIDE JAW
23
*DISCD*JAW PIVOT PIN
24
*DISCD*MOTOR BRUSH CAP
Item is no longer available
Price
N/A
25
*DISCD*MOTOR CARBON BRUSH
Item is no longer available
Price
N/A
26
*DISCD*MOTOR BRUSH HOLDER
27
*DISCD*INSIDE JAW
Item is no longer available
Price
N/A
28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
29
LOCK WASHER 10MM
Price
N/A
30
Now: PB70M
HEX BOLT M10-1.5 X 16
Price
N/A
31
Now: PN02M
HEX NUT M10-1.5
Price
N/A
32
Now: PB20M
HEX BOLT M8-1.25 X 35
Price
N/A
33
Now: PN03M
HEX NUT M8-1.25
Price
N/A
34
*DISCD*STOP BOLT BRACKET
Item is no longer available
Price
N/A
35
Now: PW02M
FLAT WASHER 5MM
Price
N/A
36
LOCK WASHER 5MM
Price
N/A
37
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
38
Now: PN01M
HEX NUT M6-1
Price
N/A
39
*DISCD*DUST SHIELD
Item is no longer available
Price
N/A
40
LOCK WASHER 6MM
Price
N/A
41
Now: PS11M
PHLP HD SCR M6-1 X 16
Price
N/A
42
*DISCD*TORSION SPRING 5.7 X 30 X 40
Item is no longer available
Price
N/A
43
*DISCD*BOLT SLEEVE
Item is no longer available
Price
N/A
44
*DISCD*RUBBER SEAL
Item is no longer available
Price
N/A
45
HEX BOLT M10-1.5 X 150
Price
N/A
46
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
47
*DISCD*MOTOR REAR COVER
Item is no longer available
Price
N/A
48
Now: PS57M
PHLP HD SCR M5-.8 X 14
Price
N/A
49
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
50
LOCK WASHER 4MM
Price
N/A
51
Now: PW05M
FLAT WASHER 4MM
Price
N/A
52
*DISCD*MOTOR HOUSING
Item is no longer available
Price
N/A
53
*DISCD*STOP BRACKET
Item is no longer available
Price
N/A
54
LOCK WASHER 6MM
Price
N/A
55
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
56
*DISCD*MOTOR STATOR
Item is no longer available
Price
N/A
57
BALL BEARING 6201ZZ
Price
N/A
58
*DISCD*MOTOR ROTOR
Item is no longer available
Price
N/A
59
*DISCD*ROTOR HOUSING
Item is no longer available
Price
N/A
60
BALL BEARING 6202ZZ
Price
N/A
61
*DISCD*ARBOR LOCK PIN
Item is no longer available
Price
N/A
62
*DISCD*COMPRESSION SPRING 0.6 X 6.7 X 26
Item is no longer available
Price
N/A
63
*DISCD*GEARBOX
Item is no longer available
Price
N/A
64
*DISCD*BLADE HOUSING
Item is no longer available
Price
N/A
65
PHLP HD SCR M5-.8 X 60
Price
N/A
66
*DISCD*BLADE GUARD
Item is no longer available
Price
N/A
67
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
68
*DISCD*BLADE GUARD BUMPER
69
Now: PW03M
FLAT WASHER 6MM
Price
N/A
70
FLANGE BOLT M6-1 X 12
Price
N/A
71
BALL BEARING 629ZZ
Price
N/A
72
Now: PR08M
EXT RETAINING RING 19MM
Price
N/A
73
*DISCD*GEAR 42T
Item is no longer available
Price
N/A
74
*DISCD*FLANGED BEARING HOUSING
Item is no longer available
Price
N/A
75
BALL BEARING 6204-2RS
Price
N/A
76
*DISCD*WOODRUFF KEY 6.5 X 15.7
Item is no longer available
Price
N/A
77
*DISCD*ARBOR
Item is no longer available
Price
N/A
78
*DISCD*ARBOR FLANGE
Item is no longer available
Price
N/A
79
*DISCD*ABRASIVE BLADE 14"
Item is no longer available
Price
N/A
80
*DISCD*FLANGE WASHER
Item is no longer available
Price
N/A
81
Now: PB74M
HEX BOLT M10-1.5 X 20
Price
N/A
82
*DISCD*WRENCH 16MM
Item is no longer available
Price
N/A
83
Now: PS94M
PHLP HD SCR M5-.8 X 75
Price
N/A
84
Now: PS74M
PHLP HD SCR M4-.7 X 14
Price
N/A
85
Now: PS54M
PHLP HD SCR M5-.8 X 45
Price
N/A
86
Now: PS22M
PHLP HD SCR M5-.8 X 25
Price
N/A
87
Now: PS60M
PHLP HD SCR M5-.8 X 30
Price
N/A
88
Now: PS06M
PHLP HD SCR M5-.8 X 20
Price
N/A
89
*DISCD*TRIGGER SWITCH HELIN 16A
Item is no longer available
Price
N/A
90
*DISCD*LEFT HANDLE
Item is no longer available
Price
N/A
91
Now: PS02M
PHLP HD SCR M4-.7 X 12
Price
N/A
92
*DISCD*POWER CORD RETAINER
Item is no longer available
Price
N/A
93
*DISCD*STRAIN RELIEF
Item is no longer available
Price
N/A
94
Now: PN06M
HEX NUT M5-.8
Price
N/A
95
*DISCD*RIGHT HANDLE
Item is no longer available
Price
N/A
96
*DISCD*POWER CORD 14G 3W 5-15P
Item is no longer available
Price
N/A
97
MACHINE ID LABEL
Item is no longer available
Price
N/A
98
WARNING LABEL
Item is no longer available
Price
N/A
99
COMBO LABEL
Item is no longer available
Price
N/A
100
ELECTRICITY 0.7W X 0.6H
Price
N/A
MAN
MANUAL G0742 MFG 10/12 V1.11.12
Item is no longer available
Price
N/A
