Parts for G0750G - 12" x 36" Gunsmithing Metal Lathe

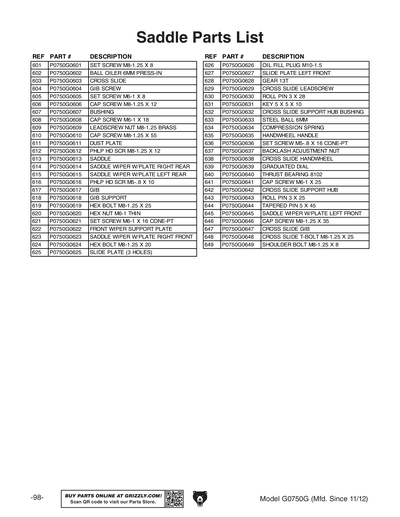

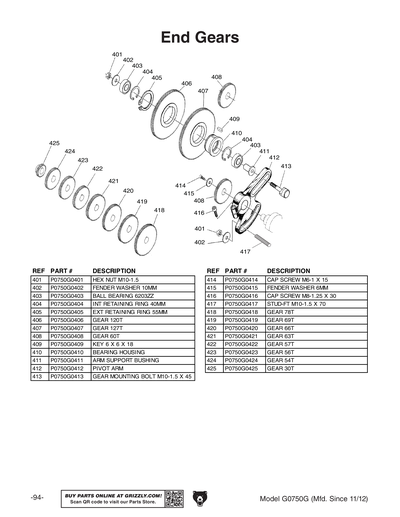

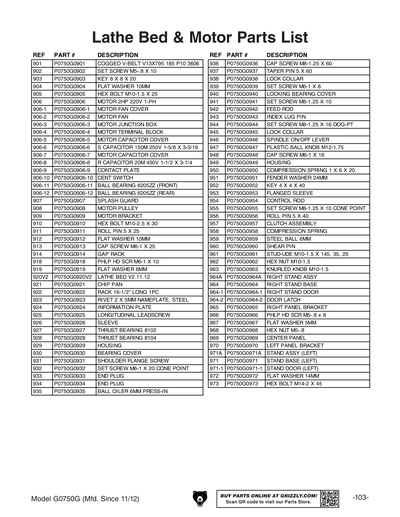

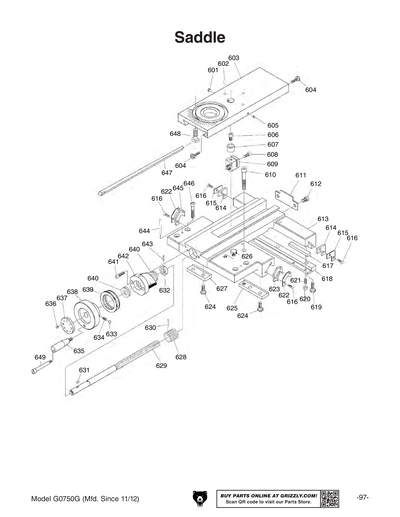

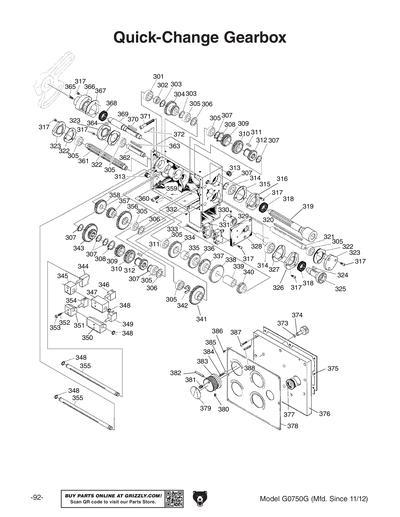

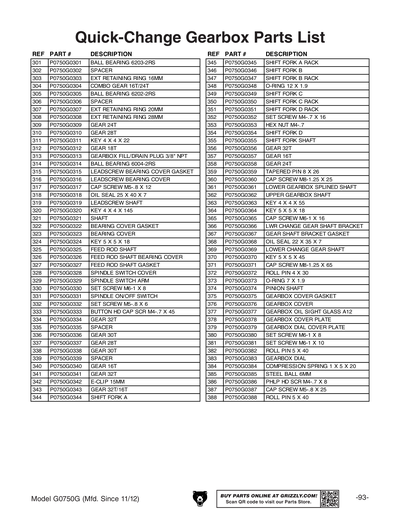

Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G
Part Diagram for G0750G

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

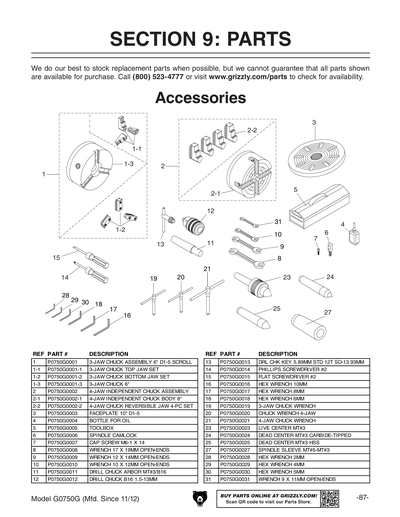

Ref #
Part #
Description
1
CHUCK 3-JAW 6" D1-5 ASSEMBLY
Price
N/A
1-1
3-JAW CHUCK TOP JAW SET
Price
$182.95
1-2
3-JAW CHUCK BOTTOM JAW SET
Price
$182.95
1-3
3-JAW CHUCK 5"
Price
N/A
2
4-JAW INDEPENDENT CHUCK ASSEMBLY
Price
N/A
2-1
4-JAW INDEPENDENT CHUCK BODY 8"
Price
N/A
2-2
4-JAW CHUCK REVERSIBLE JAW 4-PC SET
Price
N/A
3
FACEPLATE 10" D1-5
Price
N/A
4
BOTTLE FOR OIL
Price
N/A
5
TOOLBOX
Price
N/A
6
SPINDLE CAMLOCK
Price
N/A
7
CAP SCREW M6-1 X 14
Price
N/A
8
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
9
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
10
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
11
DRILL CHUCK ARBOR MT#3/B16
Price
N/A
12
DRILL CHUCK B16 1.5-13MM
Price
N/A
13
DRL CHK KEY 5.89MM STD 12T SD-13.93MM
Price
N/A
14
SCREWDRIVER PHILLIPS #2
Price
N/A
15
SCREWDRIVER FLAT #2
Price
N/A
16
HEX WRENCH 10MM
Price
N/A
17
HEX WRENCH 8MM
Price
N/A
18
HEX WRENCH 6MM
Price
N/A
19
CHUCK WRENCH 3-JAW
Price
N/A
20
CHUCK WRENCH 4-JAW
Price
N/A
21
CHUCK WRENCH 4-JAW
Price
N/A
23
LIVE CENTER MT#3
Price
N/A
24
DEAD CENTER MT#3 CARBIDE-TIPPED
Price
$25.35
25
DEAD CENTER MT#3 HSS
Price
N/A
27
SPINDLE SLEEVE MT#5-MT#3
Price
N/A
28
HEX WRENCH 2MM
Price
N/A
29
HEX WRENCH 4MM
Price
N/A
30
HEX WRENCH 5MM
Price
N/A
31
WRENCH 9 X 11MM OPEN-ENDS
Price
N/A

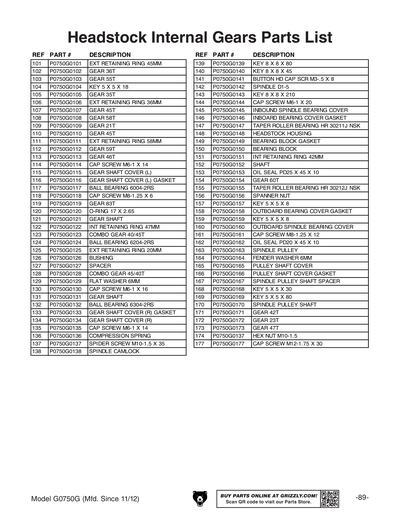

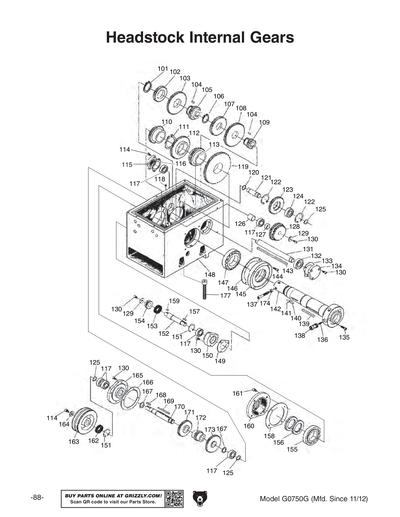

101
EXT RETAINING RING 45MM
Price
N/A
102
GEAR 36T
Price
N/A
103
GEAR 55T
Price
N/A
104
KEY 5 X 5 X 18
Price
N/A
105
GEAR 35T
Price
N/A
106
EXT RETAINING RING 36MM
Price
N/A
107
GEAR 45T
Price
N/A
108
GEAR 58T
Price
N/A
109
GEAR 21T
Price
N/A
110
GEAR 45T
Price
N/A
111
EXT RETAINING RING 58MM
Price
N/A
112
GEAR 59T
Price
N/A
113
GEAR 46T
Price
N/A
114
CAP SCREW M6-1 X 14
Price
N/A
115
GEAR SHAFT COVER (L)
Price
N/A
116
GEAR SHAFT COVER (L) GASKET
Price
N/A
117
BALL BEARING 6004-2RS
Price
N/A
119
GEAR 83T
Price
N/A
120
*DISCD* O-RING 17 X 2.65
Price
N/A
121
GEAR SHAFT
Price
$58.25
122
INT RETAINING RING 47MM
Price
N/A
123
COMBO GEAR 40/45T
Price
N/A
124
BALL BEARING 6204-2RS
Price
N/A
125
EXT RETAINING RING 20MM
Price
N/A
126
BUSHING
Price
$13.70
127
SPACER
Price
$9.00
128
COMBO GEAR 45/40T
Price
N/A
129
FLAT WASHER 6MM
Price
N/A
130
CAP SCREW M6-1 X 16
Price
N/A
131
GEAR SHAFT
Price
$66.90
132
BALL BEARING 6304-2RS
Price
N/A
133
GEAR SHAFT COVER (R) GASKET
Price
N/A
134
GEAR SHAFT COVER (R)
Price
N/A
135
CAP SCREW M6-1 X 14
Price
N/A
136
COMPRESSION SPRING
Price
N/A
137
SPIDER BOLT M10-1.5 X 35
Price
N/A
137V2
SPIDER BOLT SET SCREW M10-1.5 X 30
Price
N/A
138
SPINDLE CAMLOCK
Price
N/A
139
KEY 8 X 8 X 80
Price
N/A
140
KEY 8 X 8 X 45
Price
N/A
141
BUTTON HD CAP SCR M3-.5 X 8
Price
$1.90
142
SPINDLE D1-5
Price
N/A
143
KEY 8 X 8 X 210
Price
N/A
144
CAP SCREW M6-1 X 20
Price
N/A
145
INBOUND SPINDLE BEARING COVER
Price
N/A
146
INBOARD BEARING COVER GASKET
Price
N/A
147
TAPER ROLLER BEARING HR 30211J NSK
Price
N/A
148
HEADSTOCK HOUSING
Price
$1,024.95
149
BEARING BLOCK GASKET
Price
N/A
150
BEARING BLOCK
Price
$36.70
151
INT RETAINING RING 42MM
Price
N/A
152
SHAFT
Price
$75.90
153
OIL SEAL PD25 X 45 X 10
Price
N/A
154
GEAR 60T
Price
$80.50
155
TAPER ROLLER BEARING HR 30212J NSK
Price
N/A
156
SPANNER NUT
Price
N/A
157
KEY 5 X 5 X 8
Price
N/A
158
OUTBOARD BEARING COVER GASKET
Price
$7.15
159
KEY 5 X 5 X 8
Price
N/A
160
OUTBOARD SPINDLE BEARING COVER
Price
$44.60
161
CAP SCREW M8-1.25 X 12
Price
N/A
162
OIL SEAL PD20 X 45 X 10
Price
N/A
163
SPINDLE PULLEY
Price
N/A
164
FENDER WASHER 6MM
Price
N/A
165
PULLEY SHAFT COVER
Price
N/A
166
PULLEY SHAFT COVER GASKET
Price
N/A
167
SPINDLE PULLEY SHAFT SPACER
Price
$4.70
168
KEY 5 X 5 X 30
Price
N/A
169
KEY 5 X 5 X 80
Price
N/A
170
SPINDLE PULLEY SHAFT
Price
$66.90
171
GEAR 42T
Price
N/A
172
GEAR 23T
Price
N/A
173
GEAR 47T
Price
N/A
177
CAP SCREW M12-1.75 X 30
Price
N/A

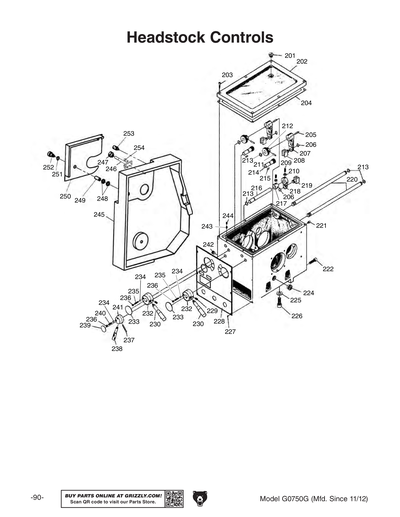

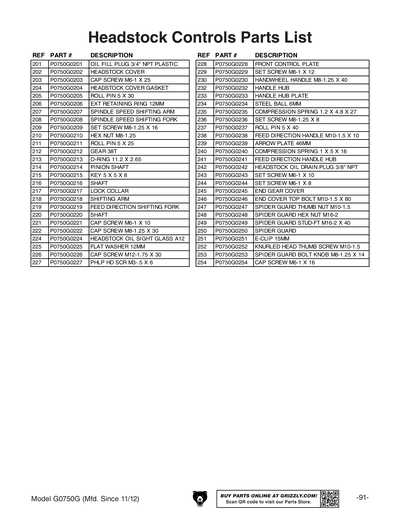

201
OIL FILL PLUG 3/4" NPT PLASTIC
Price
N/A
202
HEADSTOCK COVER
Price
$162.85
203
CAP SCREW M6-1 X 25
Price
N/A
204
HEADSTOCK COVER GASKET
Price
$12.50
205
ROLL PIN 5 X 30
Price
N/A
206
EXT RETAINING RING 12MM
Price
N/A
207
SPINDLE SPEED SHIFTING ARM
Price
N/A
208
SPINDLE SPEED SHIFTING FORK
Price
N/A
209
SET SCREW M8-1.25 X 16
Price
N/A
210
HEX NUT M8-1.25
Price
N/A
211
ROLL PIN 5 X 25
Price
N/A
212
GEAR 38T
Price
N/A
213
O-RING 11.2 X 2.65
Price
N/A
214
PINION SHAFT
Price
N/A
215
KEY 5 X 5 X 8
Price
N/A
216
SHAFT
Price
$31.35
217
LOCK COLLAR
Price
N/A
218
SHIFTING ARM
Price
$31.35
219
FEED DIRECTION SHIFTING FORK
Price
N/A
220
SHAFT
Price
$47.15
221
CAP SCREW M6-1 X 10
Price
N/A
222
CAP SCREW M8-1.25 X 30
Price
N/A
224
*DISCD*OIL SIGHT GLASS (PUSH-IN)
Price
N/A
225
FLAT WASHER 12MM
Price
N/A
226
CAP SCREW M12-1.75 X 30
Price
N/A
227
PHLP HD SCR M3-.5 X 6
Price
N/A
228
FRONT CONTROL PLATE
Price
$49.25
229
SET SCREW M6-1 X 12
Price
N/A
230
HANDWHEEL HANDLE M8-1.25 X 40
Price
$9.00
232
HANDLE HUB
Price
$38.15
233
ARROW PLATE 46MM
Price
N/A
234
STEEL BALL 6MM
Price
N/A
235
COMPRESSION SPRING 1.2 X 4.8 X 27
Price
N/A
236
SET SCREW M8-1.25 X 8
Price
N/A
237
ROLL PIN 5 X 40
Price
N/A
238
FEED DIRECTION HANDLE M10-1.5 X 10
Price
$14.30
239
ARROW PLATE 46MM
Price
N/A
240
COMPRESSION SPRING 1 X 5 X 16
Price
N/A
241
FEED DIRECTION HANDLE HUB
Price
$22.35
242
HEADSTOCK OIL DRAIN PLUG 3/8" NPT
Price
N/A
243
SET SCREW M6-1 X 10
Price
N/A
244
SET SCREW M6-1 X 8
Price
N/A
245
END GEAR COVER
Price
$401.10
246
END COVER TOP BOLT M10-1.5 X 80
Price
$7.20
247
SPIDER GUARD THUMB NUT M10-1.5
Price
$2.60
248
SPIDER GUARD HEX NUT M16-2
Price
$1.90
249
SPIDER GUARD STUD-FT M16-2 X 40
Price
$1.90
250
SPIDER GUARD
Price
$54.65
251
E-CLIP 15MM
Price
N/A
252
KNURLED HEAD THUMB SCREW M10-1.5
Price
$2.25
253
SPIDER GUARD BOLT KNOB M8-1.25 X 14
Price
$1.90
254
CAP SCREW M6-1 X 16
Price
N/A
301
BALL BEARING 6203-2RS
Price
N/A
302
SPACER
Price
$6.15
303
EXT RETAINING RING 16MM
Price
N/A
304
COMBO GEAR 16T/24T
Price
$40.65
305
BALL BEARING 6202-2RS
Price
N/A
306
SPACER
Price
$6.15
307
EXT RETAINING RING 20MM
Price
N/A
308
EXT RETAINING RING 28MM
Price
N/A
309
GEAR 24T
Price
$53.60
310
GEAR 28T
Price
$53.60
311
KEY 4 X 4 X 22
Price
N/A
312
GEAR 18T
Price
$34.90
313
GEARBOX FILL/DRAIN PLUG 3/8" NPT
Price
$4.70
314
BALL BEARING 6004-2RS
Price
N/A
315
LEADSCREW BEARING COVER GASKET
Price
$6.90
316
LEADSCREW BEARING COVER
Price
$40.65
317
CAP SCREW M5-.8 X 12
Price
N/A
318
OIL SEAL 25 X 40 X 7
Price
$4.70
319
LEADSCREW SHAFT
Price
$66.90
320
KEY 4 X 4 X 145
Price
$1.90
321
SHAFT
Price
$64.70
322
BEARING COVER GASKET
Price
$4.70
323
BEARING COVER
Price
$40.25
324
KEY 5 X 5 X 18
Price
N/A
325
FEED ROD SHAFT
Price
$49.25
326
FEED ROD SHAFT BEARING COVER
Price
$40.25
327
FEED ROD SHAFT GASKET
Price
$6.90
328
SPINDLE SWITCH COVER
Price
$40.65
329
SPINDLE SWITCH ARM
Price
$40.25
330
SET SCREW M6-1 X 8
Price
N/A
331
SPINDLE ON/OFF SWITCH
Price
$53.60
332
SET SCREW M5-.8 X 6
Price
N/A
333
BUTTON HD CAP SCR M4-.7 X 45
Price
N/A
334
GEAR 32T
Price
$40.65
335
SPACER
Price
$6.15
336
GEAR 30T
Price
$53.60
337
GEAR 28T
Price
$53.60
338
GEAR 30T
Price
$40.65
339
SPACER
Price
$6.15
340
GEAR 16T
Price
$34.90
341
GEAR 32T
Price
$40.65
342
E-CLIP 15MM
Price
N/A
343
GEAR 32T/16T
Price
$64.00
344
SHIFT FORK A
Price
$11.90
345
SHIFT FORK A RACK
Price
$11.90
346
SHIFT FORK B
Price
$11.90
347
SHIFT FORK B RACK
Price
$11.90
348
O-RING 12 X 1.9
Price
$1.90
349
SHIFT FORK C
Price
$11.90
350
SHIFT FORK C RACK
Price
$11.90
351
SHIFT FORK D RACK
Price
$11.90
352
SET SCREW M4-.7 X 16
Price
N/A
353
HEX NUT M4-.7
Price
N/A
354
SHIFT FORK D
Price
$11.90
355
SHIFT FORK SHAFT
Price
$46.40
356
GEAR 32T
Price
$40.65
357
GEAR 16T
Price
$34.90
358
GEAR 24T
Price
$40.65
359
TAPERED PIN 8 X 26
Price
$1.90
360
CAP SCREW M8-1.25 X 25
Price
N/A
361
LOWER GEARBOX SPLINED SHAFT
Price
$58.25
362
UPPER GEARBOX SHAFT
Price
$40.25
363
KEY 4 X 4 X 55
Price
N/A
364
KEY 5 X 5 X 18
Price
N/A
365
CAP SCREW M6-1 X 16
Price
N/A
366
LWR CHANGE GEAR SHAFT BRACKET
Price
$32.45
367
GEAR SHAFT BRACKET GASKET
Price
$4.65
368
OIL SEAL 22 X 35 X 7
Price
$3.60
369
LOWER CHANGE GEAR SHAFT
Price
$49.25
370
KEY 5 X 5 X 45
Price
N/A
371
CAP SCREW M8-1.25 X 65
Price
N/A
372
ROLL PIN 4 X 30
Price
N/A
373
O-RING 7 X 1.9
Price
$1.90
374
PINION SHAFT
Price
$22.35
375
GEARBOX COVER GASKET
Price
$11.65
376
GEARBOX COVER
Price
$116.15
377
GEARBOX OIL SIGHT GLASS A12
Price
$7.65
378
GEARBOX COVER PLATE
Price
$49.95
379
GEARBOX DIAL COVER PLATE
Price
$3.25
380
SET SCREW M6-1 X 8
Price
N/A
381
SET SCREW M6-1 X 10
Price
N/A
382
ROLL PIN 5 X 40
Price
N/A
383
GEARBOX DIAL
Price
$40.65
384
COMPRESSION SPRING 1 X 5 X 20
Price
N/A
385
STEEL BALL 6MM
Price
N/A
386
PHLP HD SCR M4-.7 X 8
Price
N/A
387
CAP SCREW M5-.8 X 25
Price
N/A
388
ROLL PIN 5 X 40
Price
N/A
401
HEX NUT M10-1.5
Price
N/A
402
FENDER WASHER 10MM
Price
N/A
403
BALL BEARING 6203ZZ
Price
N/A
404
INT RETAINING RING 40MM
Price
N/A
405
EXT RETAINING RING 55MM
Price
N/A
406
GEAR 120T
Price
$58.25
407
GEAR 127T
Price
$58.25
408
GEAR 60T
Price
$55.75
409
KEY 6 X 6 X 18
Price
N/A
410
BEARING HOUSING
Price
$13.70
411
ARM SUPPORT BUSHING
Price
$6.15
412
PIVOT ARM
Price
$62.60
413
GEAR MOUNTING BOLT M10-1.5 X 45
Price
$1.90
414
CAP SCREW M6-1 X 15
Price
N/A
415
FENDER WASHER 6MM
Price
N/A
416
CAP SCREW M8-1.25 X 30
Price
N/A
417
STUD-FT M10-1.5 X 70
Price
$1.90
418
GEAR 78T
Price
$55.75
419
GEAR 69T
Price
$55.75
420
GEAR 66T
Price
$55.75
421
GEAR 63T
Price
$55.75
422
GEAR 57T
Price
$44.60
423
GEAR 56T
Price
$44.60
424
GEAR 54T
Price
$44.60
425
GEAR 30T
Price
$40.15

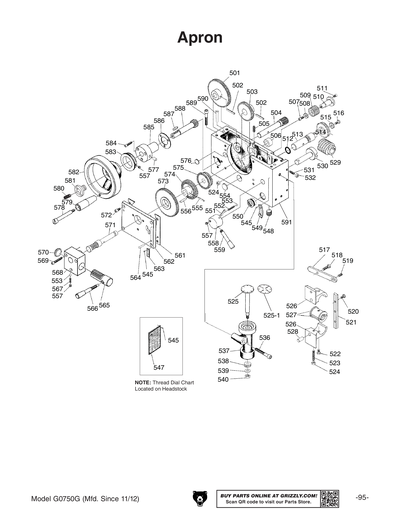

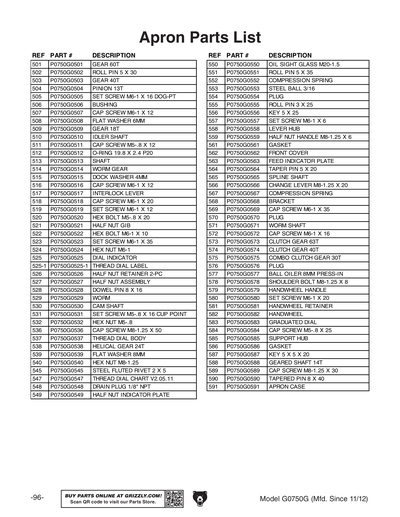

501
GEAR 60T
Price
N/A
502
ROLL PIN 5 X 30
Price
N/A
503
GEAR 40T
Price
$30.60
504
PINION 13T
Price
$49.25
505
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
506
BUSHING
Price
N/A
507
CAP SCREW M6-1 X 12
Price
N/A
508
FLAT WASHER 6MM
Price
N/A
509
GEAR 18T
Price
N/A
510
IDLER SHAFT
Price
N/A
511
CAP SCREW M5-.8 X 12
Price
N/A
512
O-RING 19.8 X 2.4 P20
Price
N/A
513
SHAFT
Price
N/A
514
WORM GEAR
Price
N/A
515
DOCK WASHER 4MM
Price
$1.90
516
CAP SCREW M6-1 X 12
Price
N/A
517
INTERLOCK LEVER
Price
N/A
518
CAP SCREW M6-1 X 20
Price
N/A
519
SET SCREW M6-1 X 12
Price
N/A
520
HEX BOLT M5-.8 X 20
Price
N/A
521
GIB
Price
N/A
522
HEX BOLT M6-1 X 10
Price
N/A
523
SET SCREW M6-1 X 35
Price
N/A
524
HEX NUT M6-1
Price
N/A
525
DIAL INDICATOR
Price
N/A
525-1
THREADED DIAL LABEL V2.05.11
Price
N/A
526
HALF NUT RETAINER
Price
N/A
527
HALF NUT ASSEMBLY
Price
N/A
528
DOWEL PIN 8 X 16
Price
N/A
529
WORM
Price
N/A
530
CAM SHAFT
Price
N/A
531
SET SCREW M5-.8 X 16 CUP POINT
Price
N/A
532
HEX NUT M5-.8
Price
N/A
536
CAP SCREW M8-1.25 X 50
Price
N/A
537
THREAD DIAL BODY
Price
N/A
538
*DISCD*HELICAL GEAR 24T V1
Price
N/A
539
FLAT WASHER 8MM
Price
N/A
540
HEX NUT M8-1.25
Price
N/A
545
RIVET 5 X 20MM BLIND, STEEL
Price
N/A
547
*DISCD*THREAD DIAL CHART V2.05.11
Price
N/A
548
DRAIN PLUG 1/8 NPT
Price
N/A
549
HALF NUT INDICATOR PLATE
Price
N/A
550
OIL SIGHT GLASS
Price
N/A
551
ROLL PIN 5 X 35
Price
N/A
552
COMPRESSION SPRING
Price
N/A
553
STEEL BALL 3/16
Price
N/A
554
PLUG
Price
N/A
555
ROLL PIN 3 X 25
Price
N/A
556
KEY 5 X 25
Price
N/A
557
SET SCREW M6-1 X 6
Price
N/A
558
LEVER HUB
Price
N/A
559
LEVER
Price
N/A
561
SPACER
Price
N/A
562
FRONT COVER
Price
N/A
563
FEED INDICATOR PLATE
Price
N/A
564
TAPER PIN 5 X 20
Price
N/A
565
CAM SHAFT
Price
N/A
566
CHANGE LEVER W/KNOB M8-1.25
Price
N/A
567
COMPRESSION SPRING
Price
N/A
568
BRACKET
Price
N/A
569
CAP SCREW M6-1 X 35
Price
N/A
570
PLUG
Price
N/A
571
TOOTHED SHIFT SHAFT
Price
N/A
572
CAP SCREW M6-1 X 16
Price
N/A
573
CLUTCH GEAR 63T
Price
N/A
574
CLUTCH GEAR 40T
Price
N/A
575
COMBO CLUTCH GEAR 30T
Price
N/A
576
PLUG
Price
N/A
577
BALL OILER 8MM PRESS-IN
Price
N/A
578
HANDLE SHOULDER SCREW
Price
N/A
579
HANDLE
Price
N/A
580
SET SCREW M6-1 X 20
Price
N/A
581
HANDWHEEL RETAINER
Price
N/A
582
HANDWHEEL
Price
N/A
583
CALIBRATED RING
Price
N/A
584
CAP SCREW M5-.8 X 25
Price
N/A
585
SUPPORT HUB
Price
N/A
586
SPACER
Price
N/A
587
KEY 5 X 5 X 20
Price
N/A
588
GEARED SHAFT 14T
Price
N/A
589
CAP SCREW M8-1.25 X 30
Price
N/A
590
TAPER PIN 8 X 40
Price
N/A
591
APRON CASE
Price
$264.90
601
SET SCREW M8-1.25 X 8
Price
N/A
602
BALL OILER 6MM PRESS-IN
Price
N/A
603
CROSS SLIDE
Price
N/A
603-1
SOLID BUSHING 25 X 25MM
Price
$13.70
604
GIB SCREW
Price
N/A
605
SET SCREW M6-1 X 8
Price
N/A
606
CAP SCREW M8-1.25 X 12
Price
N/A
607
BUSHING
Price
N/A
608
CAP SCREW M6-1 X 18
Price
N/A
609
LEADSCREW NUT M8-1.25 BRASS
Price
N/A
610
CAP SCREW M8-1.25 X 55
Price
N/A
611
DUST PLATE
Price
N/A
612
PHLP HD SCR M8-1.25 X 12
Price
N/A
613
SADDLE
Price
N/A
614
SADDLE WIPER W/PLATE RIGHT REAR
Price
N/A
615
SADDLE WIPER W/PLATE LEFT REAR
Price
N/A
616
PHLP HD SCR M5-.8 X 10
Price
N/A
617
GIB
Price
$22.35
618
REAR SLIDE PLATE
Price
N/A
619
HEX BOLT M8-1.25 X 25
Price
N/A
620
HEX NUT M6-1 THIN
Price
N/A
621
SET SCREW M6-1 X 16 CONE-PT
Price
N/A
622
FRONT WIPER SUPPORT PLATE
Price
$6.90
623
SADDLE WIPER W/PLATE RIGHT FRONT
Price
N/A
624
HEX BOLT M8-1.25 X 20
Price
N/A
625
SLIDE PLATE (3 HOLES) V2.01.15
Price
N/A
626
OIL FILL PLUG M10-1.5
Price
$2.60
627
SLIDE PLATE (LEFT FRONT)
Price
N/A
628
GEAR 13T
Price
N/A
629
CROSS SLIDE LEADSCREW
Price
$89.15
630
ROLL PIN 3 X 28
Price
N/A
631
KEY 5 X 5 X 10
Price
N/A
632
CROSS SLIDE SUPPORT HUB BUSHING
Price
$9.00
633
STEEL BALL 6MM
Price
N/A
634
COMPRESSION SPRING
Price
$2.60
635
HANDLE
Price
N/A
636
SET SCREW M5-.8 X 16 CONE-PT
Price
N/A
637
BACKLASH ADJUSTMENT NUT
Price
N/A
638
CROSS SLIDE HANDWHEEL
Price
N/A
639
GRADUATED DIAL
Price
N/A
640
THRUST BEARING 8102
Price
N/A
641
CAP SCREW M6-1 X 25
Price
N/A
642
HANDWHEEL BRACKET
Price
N/A
643
ROLL PIN 3 X 25
Price
N/A
644
TAPERED PIN 5 X 45
Price
$2.60
645
SADDLE WIPER W/PLATE LEFT FRONT
Price
N/A
646
CAP SCREW M8-1.25 X 35
Price
N/A
647
CROSS SLIDE GIB
Price
N/A
648
CROSS SLIDE T-BOLT M8-1.25 X 25
Price
$4.50
649
HANDLE SHOULDER SCREW
Price
N/A

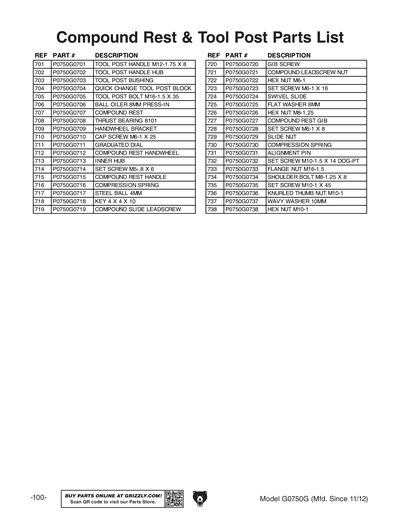

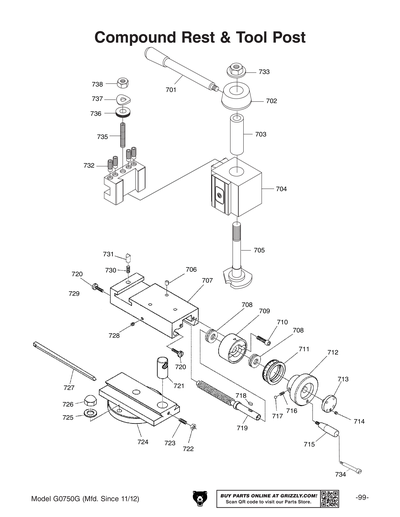

701
TOOL POST HANDLE M12-1.75 X 8
Price
$17.90
702
TOOL POST HANDLE HUB
Price
$22.35
703
TOOL POST BUSHING
Price
$13.70
704
QUICK CHANGE TOOL POST BLOCK
Price
$231.85
705
TOOL POST BOLT M16-1.5 X 35
Price
$29.15
706
BALL OILER 8MM PRESS-IN
Price
N/A
707
COMPOUND REST
Price
$120.75
708
THRUST BEARING 8101
Price
N/A
709
HANDWHEEL BRACKET
Price
N/A
710
CAP SCREW M6-1 X 25
Price
N/A
711
GRADUATED DIAL
Price
$40.15
712
COMPOUND REST HANDWHEEL
Price
$30.35
713
BACKLASH ADJUSTMENT NUT
Price
N/A
714
SET SCREW M5-.8 X 6
Price
N/A
715
HANDLE LARGE M5-.8 X 10 50L
Price
N/A
716
COMPRESSION SPRING
Price
$2.25
717
STEEL BALL 4MM
Price
N/A
718
KEY 4 X 4 X 10
Price
N/A
719
COMPOUND REST LEADSCREW
Price
N/A
720
GIB SCREW
Price
N/A
721
COMPOUND REST LEADSCREW NUT
Price
N/A
722
HEX NUT M6-1
Price
N/A
723
SET SCREW M6-1 X 16
Price
N/A
724
SWIVEL SLIDE
Price
$187.25
725
FLAT WASHER 8MM
Price
N/A
726
HEX NUT M8-1.25
Price
N/A
727
COMPOUND REST GIB
Price
N/A
728
SET SCREW M6-1 X 8
Price
N/A
729
SLIDE NUT
Price
$1.90
730
COMPRESSION SPRING
Price
$1.90
731
ALIGNMENT PIN
Price
$1.90
732
SET SCREW M10-1.5 X 14 DOG-PT
Price
N/A
733
FLANGE NUT M16-1.5
Price
N/A
734
SHOULDER BOLT M8-1.25 X 8
Price
$6.15
735
SET SCREW M10-1 X 45
Price
N/A
736
KNURLED THUMB NUT M10-1
Price
$2.25
737
WAVY WASHER 10MM
Price
$2.25
738
HEX NUT M10-1
Price
N/A

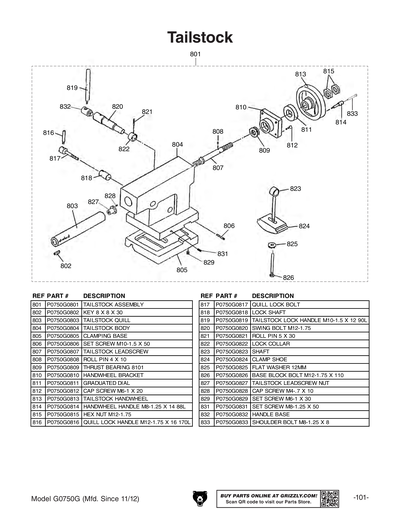

801
TAILSTOCK ASSEMBLY
Price
N/A
802
KEY 8 X 8 X 30
Price
N/A
803
QUILL 40MM
Price
N/A
804
TAILSTOCK BODY
Price
N/A
805
CLAMPING BASE
Price
N/A
806
SET SCREW M10-1.5 X 50
Price
N/A
807
QUILL LEADSCREW
Price
N/A
808
ROLL PIN 4 X 10
Price
N/A
809
THRUST BEARING 8101
Price
N/A
810
HANDWHEEL BRACKET
Price
N/A
811
GRADUATED DIAL
Price
N/A
812
CAP SCREW M6-1 X 20
Price
N/A
813
QUILL HANDWHEEL
Price
N/A
814
HANDWHEEL HANDLE M8-1.25 X 14 88L
Price
N/A
815
HEX NUT M12-1.75
Price
N/A
816
QUILL LOCK HANDLE M12-1.75 X 16 170L
Price
N/A
817
QUILL LOCK BOLT
Price
N/A
818
LOCK SHAFT
Price
N/A
819
TAILSTOCK LOCK HANDLE M10-1.5 X 12 90L
Price
N/A
820
TAILSTOCK LOCK SHAFT
Price
N/A
821
ROLL PIN 5 X 30
Price
N/A
822
LOCK COLLAR
Price
N/A
823
CLAMP BOLT 3-7/8" V1
Price
N/A
824
CLAMP SHOE
Price
N/A
825
FLAT WASHER 12MM
Price
N/A
826
BASE BLOCK BOLT M12-1.75 X 110
Price
$1.90
827
QUILL LEADSCREW NUT
Price
N/A
828
CAP SCREW M4-.7 X 10
Price
N/A
829
SET SCREW M6-1 X 30
Price
N/A
831
SET SCREW M8-1.25 X 50
Price
N/A
832
HANDLE BASE
Price
N/A
833
***USE P0750G0734***
Price
$1.80
901
COGGED V-BELT V13X795 185 P10 3606
Price
N/A
902
SET SCREW M5-.8 X 10
Price
N/A
903
KEY 8 X 8 X 20
Price
N/A
904
FLAT WASHER 10MM
Price
N/A
905
HEX BOLT M10-1.5 X 25
Price
N/A
906
MOTOR 2HP 220V 1-PH
Price
N/A
906-1
MOTOR FAN COVER
Price
N/A
906-10
CENT SWITCH
Price
N/A
906-11
BALL BEARING 6205ZZ
Price
N/A
906-12
BALL BEARING 6205ZZ
Price
N/A
906-2
MOTOR FAN
Price
N/A
906-3
MOTOR JUNCTION BOX
Price
N/A
906-4
MOTOR TERMINAL BLOCK
Price
N/A
906-5
MOTOR CAPACITOR COVER
Price
N/A
906-6
S CAPACITOR 150M 250V 1-5/8 X 3-3/16
Price
N/A
906-7
MOTOR CAPACITOR COVER
Price
N/A
906-8
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
906-9
CONTACT PLATE
Price
N/A
907
SPLASH GUARD
Price
$289.70
908
MOTOR PULLEY
Price
N/A
909
MOTOR MOUNT
Price
N/A
910
HEX BOLT M10-1.5 X 30
Price
N/A
911
ROLL PIN 5 X 25
Price
N/A
912
FLAT WASHER 10MM
Price
N/A
913
CAP SCREW M6-1 X 25
Price
N/A
914
GAP RACK
Price
$47.15
915
GAP INSERT
Price
N/A
916
CAP SCREW M10-1.5 X 45
Price
N/A
917
THREADED TAPER PIN
Price
N/A
918
PHLP HD SCR M6-1 X 10
Price
N/A
919
FLAT WASHER 6MM
Price
N/A
920
***SEE EXT. DESCRIPTION***
Item is no longer available
Price
N/A
920V2

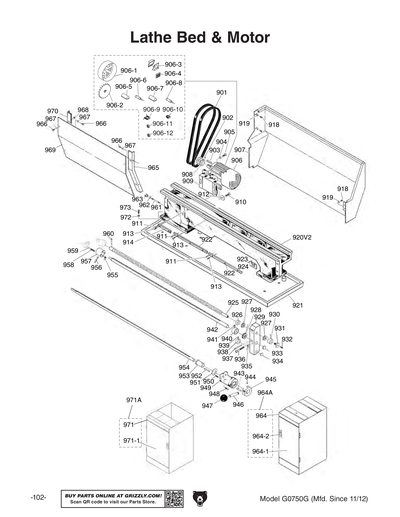

LATHE BED V2.11.12
Price
$3,097.15
921
CHIP PAN
Price
$347.65
922
RACK 16-1/2" LONG 1PC
Price
N/A
923
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
924
INFORMATION PLATE
Price
N/A
925
LONGITUDINAL LEADSCREW
Price
$253.00
926
SLEEVE
Price
N/A
927
THRUST BEARING 8102
Price
N/A
928
THRUST BEARING 8104
Price
N/A
929
HOUSING
Price
N/A
930
BEARING COVER
Price
N/A
931
SHOULDER FLANGE SCREW
Price
N/A
932
SET SCREW M6-1 X 20 CONE POINT
Price
N/A
933
END PLUG
Price
N/A
934
END PLUG
Price
N/A
935
BALL OILER 6MM PRESS-IN
Price
N/A
936
CAP SCREW M8-1.25 X 60
Price
N/A
937
TAPER PIN 5 X 60
Price
N/A
938
LOCK COLLAR
Price
N/A
939
SET SCREW M6-1 X 8
Price
N/A
940
LOCKING BEARING COVER
Price
N/A
941
SET SCREW M8-1.25 X 10
Price
N/A
942
FEED ROD
Price
$133.70
943
RETAINER COLLAR W/ LUG PIN
Price
N/A
944
SET SCREW M8-1.25 X 16 DOG-PT
Price
N/A
945
RETAINER COLLAR W/ LUG PIN
Price
N/A
946
SPINDLE ON/OFF LEVER
Price
N/A
947
PLASTIC BALL KNOB M12-1.75
Price
N/A
948
CAP SCREW M6-1 X 16
Price
N/A
949
HOUSING
Price
N/A
950
COMPRESSION SPRING
Price
N/A
951
FENDER WASHER 24MM
Price
N/A
952
KEY 4 X 4 X 40
Price
N/A
953
FLANGED SLEEVE
Price
N/A
954
CONTROL ROD
Price
$125.10
955
SET SCREW M8-1.25 X 10 CONE POINT
Price
N/A
956
ROLL PIN 5 X 40
Price
N/A
957
CLUTCH ASSEMBLY
Price
N/A
958
COMPRESSION SPRING
Price
N/A
959
STEEL BALL 6MM
Price
N/A
960
SHEAR PIN
Price
N/A
961
STUD-UDE M10-1.5 X 145, 35, 25
Price
$1.90
962
HEX NUT M10-1.5
Price
N/A
963
KNURLED KNOB M10-1.5
Price
N/A
964
RIGHT STAND BASE
Price
$1,053.40
964-1
RIGHT STAND DOOR
Price
$60.40
964-2
DOOR LATCH
Price
$24.85
964A
RIGHT STAND ASSY
Price
$1,053.40
965
RIGHT PANEL BRACKET
Price
$48.20
966
PHLP HD SCR M5-.8 X 8
Price
N/A
967
FLAT WASHER 5MM
Price
N/A
968
HEX NUT M5-.8
Price
N/A
969
CENTER PANEL
Price
N/A
970
LEFT PANEL BRACKET
Price
$48.20
971
STAND BASE (LEFT)
Price
$1,069.50
971-1
STAND DOOR (LEFT)
Price
$66.50
971A
STAND ASSY (LEFT)
Price
$1,069.50
972
FLAT WASHER 14MM
Price
N/A
973
HEX BOLT M14-2 X 50
Price
N/A

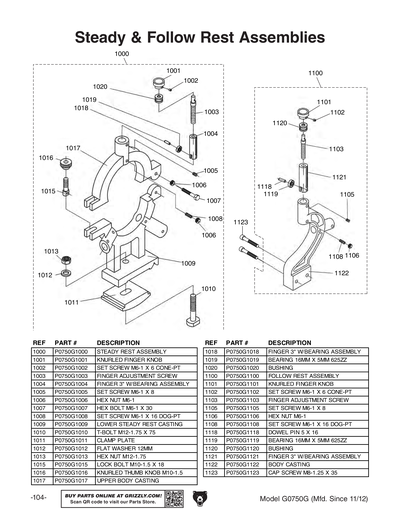

1000
STEADY REST ASSEMBLY
Price
N/A
1001
KNURLED FINGER KNOB
Price
N/A
1002
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1003
FINGER ADJUSTMENT SCREW
Price
N/A
1004
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1004A
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1005
SET SCREW M6-1 X 8
Price
N/A
1006
HEX NUT M6-1
Price
N/A
1007
HEX BOLT M6-1 X 30
Price
N/A
1008
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1009
LOWER STEADY REST CASTING
Price
N/A
1010
T-BOLT M12-1.75 X 75
Price
N/A
1011
CLAMP PLATE
Price
N/A
1012
FLAT WASHER 12MM
Price
N/A
1013
HEX NUT M12-1.75
Price
N/A
1015
LOCK BOLT M10-1.5 X 18
Price
N/A
1016
KNURLED THUMB KNOB M10-1.5
Price
N/A
1017
UPPER STEADY REST CASTING
Price
N/A
1018
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1019
Bearing - 16mm x 5mm
Price
N/A
1020
BUSHING
Price
N/A
1021
LOCK PIN
Price
N/A
1100
FOLLOW REST ASSEMBLY
Price
N/A
1101
KNURLED FINGER KNOB
Price
N/A
1102
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
1103
FINGER ADJUSTMENT SCREW
Price
N/A
1105
SET SCREW M6-1 X 8
Price
N/A
1106
HEX NUT M6-1
Price
N/A
1108
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
1118
DOWEL PIN 5 X 16
Price
N/A
1119
Bearing - 16mm x 5mm
Price
N/A
1120
BUSHING
Price
N/A
1121
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1121A
FINGER 3" W/BEARING ASSEMBLY
Price
N/A
1122
FOLLOW REST CASTING
Price
N/A
1123
CAP SCREW M8-1.25 X 35
Price
N/A

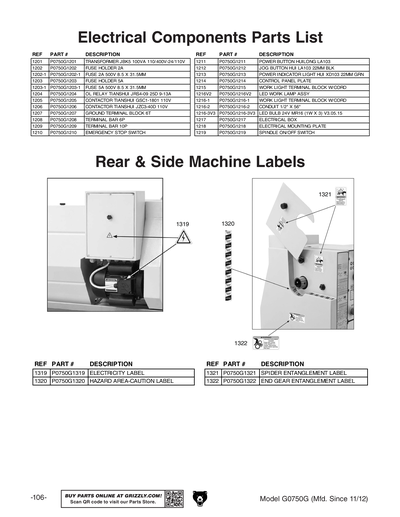

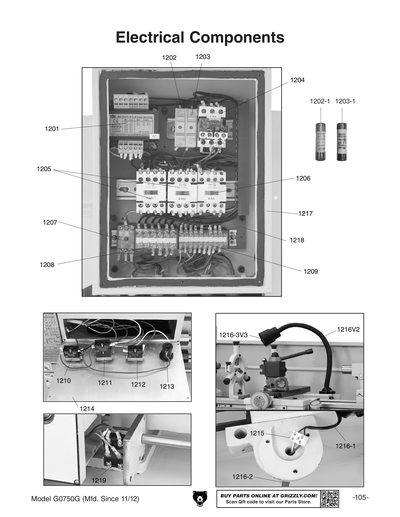

1201
TRANSFORMER JBK5 100VA 110/400V-24/110V
Price
N/A
1202
FUSE HOLDER 2A
Price
N/A
1202-1
FUSE 2A 500V 8.5 X 31.5MM
Price
N/A
1203
FUSE HOLDER 2A
Price
N/A
1203-1
FUSE 5A 500V 8.5 X 31.5MM
Price
N/A
1204
OL RELAY TIANSHUI JRS4-09 25D 9-13A
Price
N/A
1205
CONTACTOR TIANSHUI GSC1-1801
Price
N/A
1206
CONTACTOR TIANSHUI JZC3 40D
Price
N/A
1207
GROUND TERMINAL BLOCK
Price
N/A
1208
TERMINAL BLOCK 12-POLE
Price
N/A
1209
TERMINAL BLOCK 20-POLE
Price
N/A
1210
EMERGENCY STOP SWITCH
Price
N/A
1211
POWER START BUTTON SS LA103
Price
N/A
1212
JOG BUTTON HUI LA103 22MM BLK
Price
N/A
1213
POWER INDICATOR LIGHT HUI XD103 22MM GRN
Price
N/A
1214
HEADSTOCK CONTROL PLATE 2-PC ASSY
Price
N/A
1215
WORK LIGHT TERMINAL BLOCK W/CORD
Price
N/A
1216
HALOGEN WORK LIGHT ASSY
Price
N/A
1216-1
WORK LIGHT TERMINAL BLOCK W/CORD
Price
N/A
1216-2
CONDUIT 1/2"DIA 56"LONG
Price
N/A
1216-3
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
1216-3V2
LED BULB 24V MR16 (1W X 3) V3.05.15
Price
N/A
1216-3V3
LED BULB 24V MR16 (1W X 3) V3.05.15
Price
N/A
1216V2
LED LAMP
Price
$102.85
1216V2-3
LED BULB
Price
$22.35
1217
ELECTRICAL BOX
Price
$116.15
1218
ELECTRICAL MOUNTING PLATE
Price
$40.25
1219
SPINDLE ON/OFF SWITCH
Price
N/A

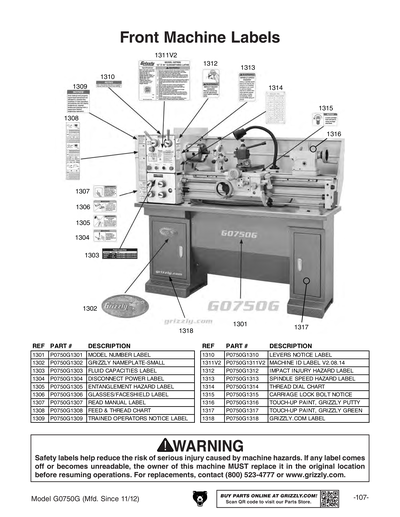

1301
MODEL NUMBER LABEL
Price
$4.10
1302
Nameplate - Small
Price
N/A
1303
FLUID CAPACITIES LABEL
Price
$6.45
1304
DISCONNECT 220V 2.8W X 1.5H
Price
N/A
1305
ENTANGLEMENT HAZARD 2.8W X 1.5H
Price
N/A
1306
GLASSES/FACESHIELD LABEL
Price
$5.65
1307
READ MANUAL 2.8W X 1.5H
Price
N/A
1308
FEED & THREAD CHART
Price
$9.30
1309
TRAINED OPERATORS NOTICE LABEL
Price
$5.65
1310
LEVERS NOTICE LABEL
Price
$5.65
1311
MACHINE ID LABEL V1
Price
$16.40
1311V2
MACHINE ID LABEL V2.08.14
Price
$16.40
1312
IMPACT INJURY HAZARD LABEL
Price
$5.65
1313
SPINDLE SPEED HAZARD LABEL
Price
$5.65
1314
THREAD DIAL CHART
Price
$7.65
1315
CARRIAGE LOCK BOLT NOTICE
Price
$6.50
1316
GREY PUTTY REF G0504
Price
N/A
1317
N/S GRIZZLY GREEN G1023S
Price
N/A
1318
GRIZZLY.COM LABEL
Price
$7.85
1319
ELECTRICITY 1.4W X 1.2H
Price
N/A
1320
HAZARD AREA-CAUTION LABEL
Price
$7.85
1321
SPIDER ENTANGLEMENT LABEL
Price
N/A
1322
END GEAR ENTANGLEMENT LABEL
Price
$5.65
MAN
MANUAL G0750G MFG 11.12 V1.04.13
Price
$19.50
