Parts for G0751 - 22" Heavy-Duty Drill Press

1/10

IMPORTANT: Parts may have multiple versions. This will be indicated by V1, V2, or V3 on the part number and/or description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 beginning in January 2017. Please reference your machine's manufacture date on the ID Label to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

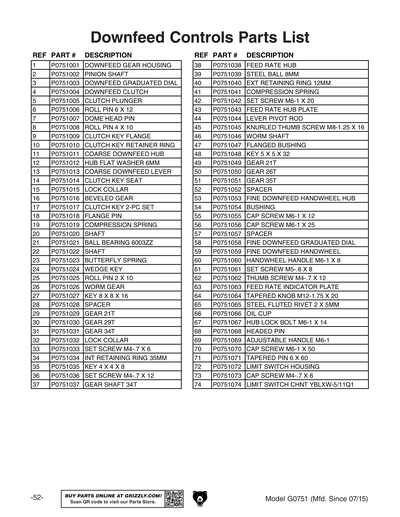

Ref #
Part #
Description

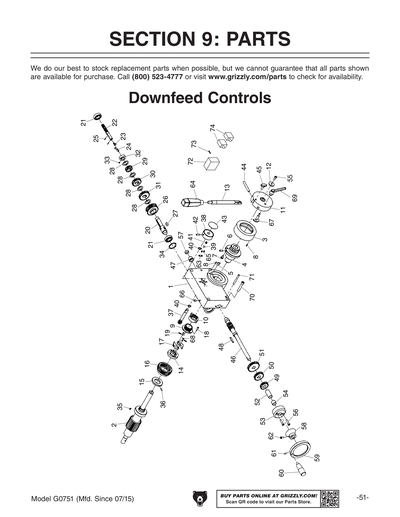

1
DOWNFEED GEAR HOUSING
Price
$178.25
2
PINION SHAFT
Price
$117.90
3
DOWNFEED GRADUATED DIAL
Price
$35.65
4
DOWNFEED CLUTCH
Price
$139.15
5
CLUTCH PLUNGER
Price
$12.65
6
ROLL PIN 6 X 12
Price
N/A
7
DOME HEAD PIN
Price
$8.05
8
ROLL PIN 4 X 10
Price
N/A
9
CLUTCH KEY FLANGE
Price
$27.90
10
CLUTCH KEY RETAINER RING
Price
$46.60
11
COARSE DOWNFEED HUB
Price
$78.50
12
HUB FLAT WASHER 6MM
Price
$2.05
13
COARSE DOWNFEED LEVER
Price
$17.25
14
CLUTCH KEY SEAT
Price
$23.30
15
LOCK COLLAR
Price
$10.95
16
BEVELED GEAR
Price
$42.00
17
CLUTCH KEY 2-PC SET
Price
$14.40
18
FLANGE PIN
Price
$14.30
19
COMPRESSION SPRING
Price
$1.80
20
SHAFT
Price
$20.15
21
Bearing - 35mm x 17mm
Price
N/A
22
SHAFT
Price
$20.15
23
BUTTERFLY SPRING
Price
$1.49
24
WEDGE KEY
Price
$7.20
25
ROLL PIN 2 X 10
Price
N/A
26
WORM GEAR
Price
$73.60
27
KEY 8 X 8 X 16
Price
N/A
28
SPACER
Price
$2.05
29
GEAR 21T
Price
$10.95
30
GEAR 29T
Price
$12.65
31
GEAR 34T
Price
$12.65
32
LOCK COLLAR
Price
$3.75
33
SET SCREW M4-.7 X 6
Price
N/A
34
INT RETAINING RING 35MM
Price
N/A
35
KEY 4 X 4 X 8
Price
N/A
36
SET SCREW M4-.7 X 12
Price
N/A
37
GEAR SHAFT 34T
Price
$12.65
38
FEED RATE HUB
Price
$17.85
39
STEEL BALL 8MM
Price
N/A
40
EXT RETAINING RING 12MM
Price
N/A
41
COMPRESSION SPRING
Price
$1.49
42
SET SCREW M6-1 X 20
Price
N/A
43
FEED RATE HUB PLATE
Price
$3.75
44
LEVER PIVOT ROD
Price
$3.75
45
KNURLED THUMB SCREW M8-1.25 X 16
Price
$5.75
46
WORM SHAFT
Price
$46.60
47
FLANGED BUSHING
Price
$7.20
48
KEY 5 X 5 X 32
Price
N/A
49
GEAR 21T
Price
$10.95
50
GEAR 26T
Price
$12.65
51
GEAR 35T
Price
$12.65
52
SPACER
Price
$5.75
53
FINE DOWNFEED HANDWHEEL HUB
Price
$23.00
54
BUSHING
Price
$6.65
55
CAP SCREW M6-1 X 12
Price
N/A
56
CAP SCREW M6-1 X 25
Price
N/A
57
SPACER
Price
$2.90
58
FINE DOWNFEED GRADUATED DIAL
Price
$17.85
59
FINE DOWNFEED HANDWHEEL
Price
$28.75
60
HANDWHEEL HANDLE M6-1 X 8
Price
$7.20
61
SET SCREW M5-.8 X 8
Price
N/A
62
THUMB SCREW M4-.7 X 12
Price
$3.75
63
FEED RATE INDICATOR PLATE
Price
$1.80
64
TAPERED KNOB M12-1.75 X 20
Price
$7.20
65
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
66
OIL CUP 3/8" NPT X 6MM X 17MM ST
Price
$4.35
67
HUB LOCK BOLT M6-1 X 14
Price
$10.95
68
HEADED PIN
Price
$11.80
69
ADJUSTABLE HANDLE M6-1
Price
$10.95
70
CAP SCREW M6-1 X 50
Price
N/A
71
TAPERED PIN 6 X 60
Price
$2.90
72
LIMIT SWITCH HOUSING
Price
$14.40
73
CAP SCREW M4-.7 X 6
Price
N/A
74
LIMIT SWITCH CHNT YBLXW-5/11Q1
Price
$32.20

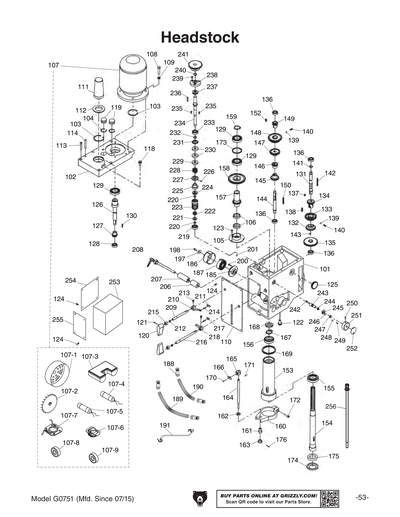

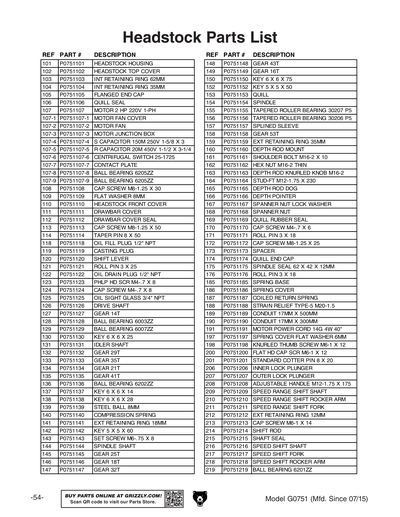

101
HEADSTOCK HOUSING
Price
N/A
101-1
DIGITAL DEPTH GAUGE
Price
$125.65
102
HEADSTOCK TOP COVER
Price
N/A
103
INT RETAINING RING 62MM
Price
N/A
104
INT RETAINING RING 35MM
Price
N/A
105
FLANGED END CAP
Price
N/A
106
QUILL SEAL
Price
N/A
107
MOTOR 2HP 220V 1-PH
Price
N/A
107-1
MOTOR FAN COVER
Price
N/A
107-2
MOTOR FAN
Price
N/A
107-3
MOTOR JUNCTION BOX
Price
N/A
107-4
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
107-5
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
107-6
CENTRIFUGAL SWITCH 25-1725
Price
N/A
107-7
CONTACT PLATE
Price
N/A
107-8
BALL BEARING 6205ZZ
Price
N/A
107-9
BALL BEARING 6205ZZ
Price
N/A
108
CAP SCREW M8-1.25 X 30
Price
N/A
109
FLAT WASHER 8MM
Price
N/A
110
HEADSTOCK FRONT COVER
Price
N/A
111
DRAWBAR CAP
Price
N/A
112
DRAWBAR CAP RUBBER SEAL
Price
N/A
113
CAP SCREW M8-1.25 X 50
Price
N/A
114
TAPER PIN 8 X 40
Price
N/A
118
OIL FILL PLUG 1/2" NPT
Price
N/A
119
CASTING PLUG
Price
N/A
120
SHIFT LEVER
Price
N/A
121
ROLL PIN 3 X 25
Price
N/A
122
OIL DRAIN PLUG 1/2" NPT
Price
N/A
123
PHLP HD SCR M4-.7 X 8
Price
N/A
124
CAP SCREW M4-.7 X 8
Price
N/A
125
OIL SIGHT GLASS 3/4" NPT
Price
N/A
126
DRIVE SHAFT
Price
N/A
127
GEAR 14T
Price
N/A
128
Bearing - 35mm x 17mm
Price
N/A
129
BALL BEARING 6007ZZ
Price
N/A
130
KEY 6 X 6 X 25
Price
N/A
131
IDLER SHAFT
Price
N/A
132
***USE P0754033A***
Price
N/A
133
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
134
MATCHED GEAR SET 29/35/21T (4PCS)
Price
N/A
135
GEAR 41T
Price
N/A
136
BALL BEARING 6202ZZ
Price
N/A
137
KEY 6 X 6 X 14
Price
N/A
138
KEY 6 X 6 X 28
Price
N/A
139
STEEL BALL 8MM
Price
N/A
140
COMPRESSION SPRING
Price
N/A
141
EXT RETAINING RING 18MM
Price
N/A
142
KEY 5 X 5 X 60
Price
N/A
143
SET SCREW M6-.75 X 8
Price
N/A
144
SPINDLE SHAFT
Price
N/A
145
GEAR 25T
Price
N/A
146
GEAR 18T
Price
N/A
147
GEAR 32T
Price
N/A
148
MATCHED GEAR SET 43/16T (3PCS)
Price
N/A
149
MATCHED GEAR SET 43/16T (3PCS)
Price
N/A
150
KEY 6 X 6 X 75
Price
N/A
152
KEY 5 X 5 X 50
Price
N/A
153
QUILL
Price
N/A
154
SPINDLE
Price
N/A
155
TAPERED ROLLER BEARING 30207 P5
Price
N/A
156
TAPERED ROLLER BEARING 30206 P5
Price
N/A
157
SPLINED SLEEVE
Price
N/A
158
GEAR 53T
Price
N/A
159
EXT RETAINING RING 35MM
Price
N/A
160
DEPTH ROD MOUNT
Price
N/A
161
INT THREADED SHOULDER BOLT M16-2 X 10
Price
N/A
162
HEX NUT M16-2 THIN
Price
N/A
163
DEPTH ROD KNURLED KNOB M16-2
Price
N/A
164
STUD-FT M12-1.75 X 230
Price
N/A
165
DEPTH ROD DOG
Price
N/A
166
DEPTH POINTER
Price
N/A
167
SPANNER NUT LOCK WASHER
Price
N/A
168
SPANNER NUT
Price
N/A
169
QUILL RUBBER SEAL
Price
N/A
170
CAP SCREW M4-.7 X 6
Price
N/A
171
ROLL PIN 3 X 18
Price
N/A
172
CAP SCREW M8-1.25 X 25
Price
N/A
173
SPACER
Price
N/A
174
SPINDLE END CAP
Price
N/A
175
*DISCD*SPINDLE SEAL
Price
N/A
176
ROLL PIN 3 X 18
Price
N/A
185
SPRING BASE
Price
N/A
186
SPRING COVER
Price
N/A
187
COILED SPRING
Price
N/A
188
STRAIN RELIEF TYPE-5 M20-1.5
Price
$8.95
189
CONDUIT 17MM X 500MM
Price
$17.85
190
CONDUIT 17MM X 300MM
Price
$10.95
191
MOTOR POWER CORD 14G 4W 40"
Price
$12.65
197
DOCK WASHER 8MM
Price
$3.60
198
KNURLED THUMB SCREW M6-1 X 12
Price
N/A
200
FLAT HD CAP SCR M6-1 X 12
Price
N/A
201
ROLL PIN 3.38 X 10MM
Price
$1.49
206
INSIDE LOCK PLUNGER
Price
N/A
207
OUTSIDE LOCK PLUNGER
Price
N/A
208
ADJUSTABLE HANDLE
Price
N/A
209
SPEED RANGE SHIFT SHAFT
Price
N/A
210
SPEED RANGE SHIFT ROCKER ARM
Price
N/A
211
SPEED RANGE SHIFT FORK
Price
N/A
212
EXT RETAINING RING 12MM
Price
N/A
213
CAP SCREW M6-1 X 14
Price
N/A
214
SHIFT ROD
Price
N/A
215
SHAFT SEAL
Price
N/A
216
SPEED SHIFT SHAFT
Price
N/A
217
SPEED SHIFT FORK
Price
N/A
218
SPEED SHIFT ROCKER ARM
Price
N/A

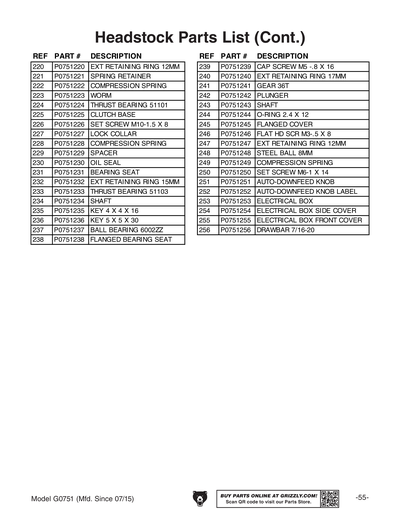

219
BALL BEARING 6201ZZ
Price
N/A
220
EXT RETAINING RING 12MM
Price
N/A
221
SPRING RETAINER
Price
$2.30
222
COMPRESSION SPRING
Price
$2.90
223
WORM
Price
$17.85
224
THRUST BEARING 51101
Price
N/A
225
CLUTCH BASE
Price
$21.60
226
SET SCREW M10-1.5 X 8
Price
N/A
227
LOCK COLLAR
Price
$10.95
228
COMPRESSION SPRING
Price
$3.75
229
SPACER
Price
$8.05
230
OIL SEAL
Price
$2.90
231
BEARING SEAT
Price
$10.95
232
EXT RETAINING RING 15MM
Price
N/A
233
THRUST BEARING 51103
Price
N/A
234
SHAFT
Price
$32.20
235
KEY 4 X 4 X 16
Price
N/A
236
KEY 5 X 5 X 30
Price
N/A
237
BALL BEARING 6002ZZ
Price
N/A
238
FLANGED BEARING SEAT
Price
$17.85
239
CAP SCREW M5-.8 X 10
Price
N/A
240
EXT RETAINING RING 17MM
Price
N/A
241
GEAR 36T
Price
$63.55
242
PLUNGER
Price
$1.49
243
SHAFT
Price
$7.20
244
O-RING 2.4 X 12
Price
$1.49
245
FLANGED COVER
Price
$5.75
246
FLAT HD SCR M3-.5 X 8
Price
N/A
247
EXT RETAINING RING 12MM
Price
N/A
248
STEEL BALL 8MM
Price
N/A
249
COMPRESSION SPRING
Price
$1.49
250
SET SCREW M6-1 X 14
Price
N/A
251
AUTO-DOWNFEED KNOB
Price
$17.85
252
AUTO-DOWNFEED KNOB LABEL
Price
$3.25
253
ELECTRICAL BOX
Price
$50.05
253-1
PUMP CORD
Price
$21.60
253-2
LIGHT CORD
Price
$17.85
253-3
MAIN POWER CORD
Price
$28.75
253V2
ELECTRICAL BOX 4 HOLES V2
Price
$60.70
254
ELECTRICAL BOX SIDE COVER
Price
$17.85
255
ELECTRICAL BOX FRONT COVER
Price
$17.85
256
DRAWBAR 7/16-20
Price
N/A

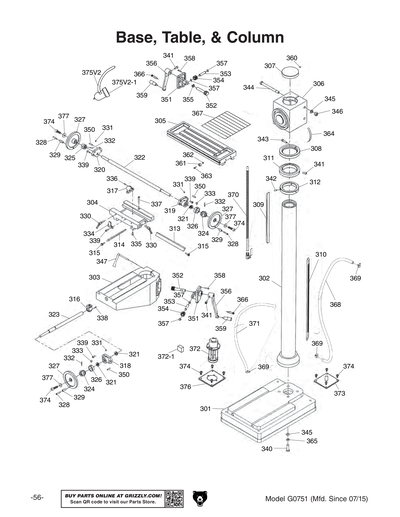

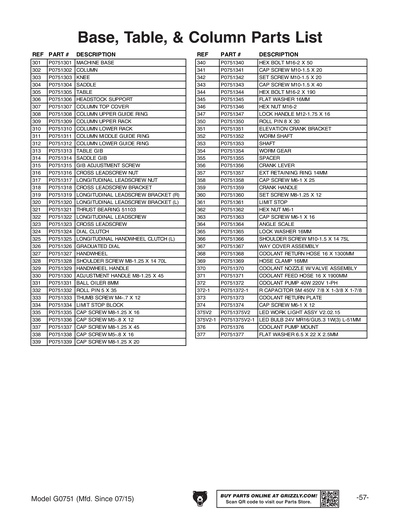

301
MACHINE BASE
Price
$659.55
302
COLUMN
Price
$695.20
303
KNEE
Price
$360.25
304
SADDLE
Price
$267.40
305
TABLE
Price
$463.45
306
HEADSTOCK SUPPORT
Price
$219.40
307
COLUMN TOP COVER
Price
$28.75
307-1
COLUMN TOP COVER HOSE FITTING
Price
$10.95
308
COLUMN UPPER GUIDE RING
Price
$32.20
309
COLUMN UPPER RACK
Price
$63.55
310
COLUMN LOWER RACK
Price
$63.55
311
COLUMN MIDDLE GUIDE RING
Price
$32.20
312
COLUMN LOWER GUIDE RING
Price
$32.20
313
TABLE GIB
Price
$35.65
314
SADDLE GIB
Price
$32.20
315
GIB ADJUSTMENT SCREW
Price
$6.35
316
CROSS LEADSCREW NUT
Price
$39.40
317
LONGITUDINAL LEADSCREW NUT
Price
$39.40
318
CROSS LEADSCREW BRACKET
Price
$19.85
319
LONGITUDINAL LEADSCREW BRACKET (R)
Price
$20.15
320
LONGITUDINAL LEADSCREW BRACKET (L)
Price
$17.25
321
THRUST BEARING 51103
Price
N/A
322
LONGITUDINAL LEADSCREW
Price
$135.70
323
CROSS LEADSCREW
Price
$121.35
324
DIAL CLUTCH
Price
$17.85
325
LONGITUDINAL HANDWHEEL CLUTCH (L)
Price
$32.20
326
GRADUATED DIAL
Price
$14.40
327
HANDWHEEL
Price
$32.20
328
SHOULDER SCREW M8-1.25 X 14 70L
Price
$7.20
329
HANDWHEEL HANDLE
Price
$7.20
330
ADJUSTMENT HANDLE M8-1.25 X 45
Price
$5.75
331
BALL OILER 8MM PRESS-IN
Price
N/A
332
ROLL PIN 5 X 35
Price
N/A
333
THUMB SCREW M4-.7 X 12
Price
N/A
334
LIMIT STOP BLOCK
Price
$7.20
335
CAP SCREW M8-1.25 X 16
Price
N/A
336
CAP SCREW M5-.8 X 12
Price
N/A
337
CAP SCREW M8-1.25 X 45
Price
N/A
338
CAP SCREW M5-.8 X 16
Price
N/A
339
CAP SCREW M8-1.25 X 20
Price
N/A
340
HEX BOLT M16-2 X 50
Price
N/A
341
CAP SCREW M10-1.5 X 20
Price
N/A
342
SET SCREW M10-1.5 X 20
Price
N/A
343
CAP SCREW M10-1.5 X 40
Price
N/A
344
HEX BOLT M16-2 X 190
Price
N/A
345
FLAT WASHER 16MM
Price
N/A
346
HEX NUT M16-2
Price
N/A
347
LOCK HANDLE M12-1.75 X 16
Price
$7.20
350
ROLL PIN 8 X 30
Price
N/A
351
ELEVATION CRANK BRACKET
Price
$57.25
352
WORM SHAFT
Price
$10.95
353
SHAFT
Price
$8.95
354
WORM GEAR
Price
$25.05
355
SPACER
Price
$2.05
356
CRANK LEVER
Price
$25.05
357
EXT RETAINING RING 14MM
Price
N/A
358
CAP SCREW M6-1 X 25
Price
N/A
359
CRANK HANDLE
Price
$14.40
360
SET SCREW M8-1.25 X 12
Price
N/A
361
LIMIT STOP
Price
$3.75
362
HEX NUT M6-1
Price
N/A
363
CAP SCREW M6-1 X 16
Price
N/A
364
ANGLE SCALE
Price
$5.20
365
LOCK WASHER 16MM
Price
N/A
366
SHOULDER SCREW M10-1.5 X 14 75L
Price
$5.75
367
WAY COVER ASSEMBLY
Price
$28.75
368
COOLANT RETURN HOSE 16 X 1300MM
Price
$18.70
369
HOSE CLAMP 16MM
Price
$7.20
370
COOLANT NOZZLE W/VALVE ASSEMBLY
Price
$17.85
370-1
COOLANT NOZZLE BOX
Price
$14.40
371
COOLANT FEED HOSE 16 X 1900MM
Price
$18.70
372
COOLANT PUMP 40W 220V 1-PH
Price
$303.05
372-1
R CAPACITOR 5M 450V 7/8 X 1-3/8 X 1-7/8
Price
$20.15
372-2
HOSE FITTING
Price
$8.05
373
COOLANT RETURN PLATE
Price
$25.05
374
CAP SCREW M6-1 X 12
Price
N/A
375
HALOGEN WORK LIGHT ASSY 24V 35W
Price
$82.25
375-1
HALOGEN BULB 24V/35W MR16/GU5.3
Price
$15.55
375V2
LED WORK LIGHT ASSY V2.02.15
Price
$67.85
375V2-1
LED BULB 24V MR16/GU5.3 1W(3) L-51MM
Price
$17.85
376
COOLANT PUMP MOUNT
Price
$25.05
377
FLAT WASHER 6.5 X 22 X 2.5MM
Price
$17.85

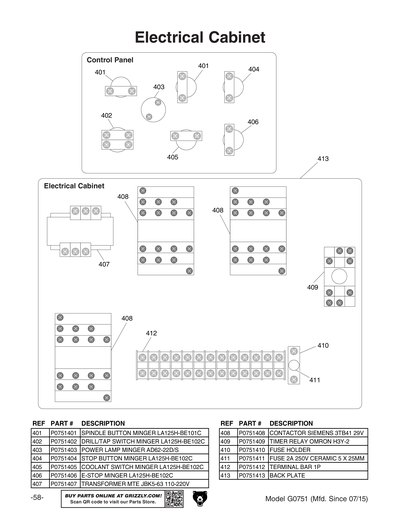

401
SPINDLE BUTTON MINGER LA125H-BE101C
Price
$25.05
402
SPINDLE DIRECTION SWITCH
Price
N/A
403
POWER LAMP MINGER AD62-22D/S
Price
$25.05
404
STOP BUTTON MINGER LA125H-BE102C
Price
$25.05
405
COOLANT SWITCH MINGER LA125H-BE102C
Price
$25.05
406
E-STOP MINGER LA125H-BE102C
Price
$32.20
407
TRANSFORMER JBK5 63VA 220/400V-24V
Price
$92.90
408
CONTACTOR SIEMENS 3TB41 29V
Price
$82.25
409
TIMER RELAY OMRON H3Y-2
Price
$48.60
410
FUSE HOLDER
Price
$20.15
411
FUSE 2A 250V CERAMIC 5 X 25MM
Price
$3.75
412
TERMINAL BAR 1P
Price
$10.95
413
BACK PLATE
Price
$32.20
501
TOOLBOX
Price
N/A
502
HEX NUT M12-1.75
Price
N/A
503
FLAT WASHER 8MM
Price
N/A
504
HEX NUT M8-1.25
Price
N/A
505
DRILL CHUCK B16 W/CHUCK KEY
Price
N/A
506
SPINDLE SLEEVE MT#3-MT#2
Price
N/A
507
ARBOR R8 X B16
Price
N/A
508
SPINDLE SLEEVE R8-MT#3
Price
N/A
509
BOTTLE FOR OIL
Price
N/A
510
DRIFT KEY
Price
N/A
511
HEX WRENCH 10MM
Price
N/A
512
HEX WRENCH 5MM
Price
N/A
513
HEX WRENCH 4MM
Price
N/A
514
HEX WRENCH 3MM
Price
N/A
515
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
516
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
601
STOP OIL FILL TAG 4W X 4H
Price
N/A
602
ELECTRICITY 1.4W X 1.2H
Price
N/A
603
CONTROL PANEL LABEL
Price
$18.75
604
HEADSTOCK PANEL LABEL
Price
$43.50
605
MACHINE ID LABEL
Price
$16.40
606
BIOLOGICAL/POISON HAZARD 3.8W X 2H
Price
N/A
607
POWER DOWNFEED NOTICE LABEL
Price
$6.25
608
FLUID CAPACITIES LABEL
Price
$6.25
609
N/S GRIZZLY GREEN G1023S
Price
N/A
610
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0751 MFG-1.13-01.15 V1.07.13
Price
$12.00
P
ROLL PIN 2 X 10
Price
$12.65
