Parts for G0752 10" x 22" Variable-Speed Metal Lathe

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

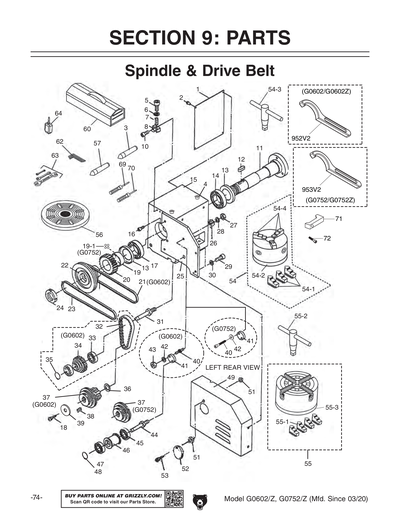

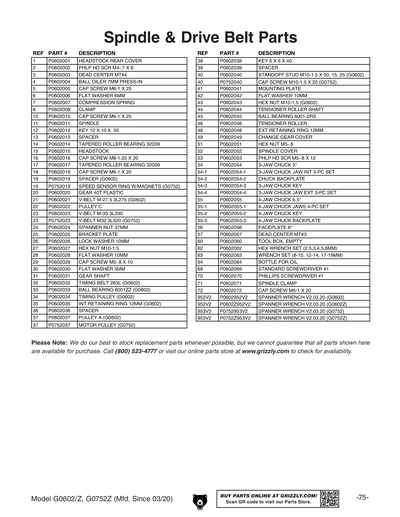

1
HEADSTOCK REAR COVER
Price
N/A
2
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
3
DEAD CENTER MT#4
Price
N/A
4
BALL OILER 7MM PRESS-IN
Price
N/A
5
CAP SCREW M6-1 X 25
Price
N/A
6
Now: PW03M
FLAT WASHER 6MM
Price
N/A
7
*DISCD*COMPRESSION SPRING
Price
N/A
8
CLAMP
Price
N/A
10
CAP SCREW M6-1 X 25
Price
N/A
11
SPINDLE
Price
N/A
12
KEY 10 X 10 X 55
Price
N/A
13
SPACER
Price
N/A
14
TAPERED ROLLER BEARING 32009
Price
N/A
15
HEADSTOCK
Price
N/A
16
CAP SCREW M8-1.25 X 20
Price
N/A
17
TAPERED ROLLER BEARING 32009
Price
N/A
18
CAP SCREW M6-1 X 20
Price
N/A
19
SPEED SENSOR RING W/MAGNETS
20
GEAR 40T PLASTIC
Price
N/A
22
PULLEY C
Price
N/A
23
Now: PVM33
V-BELT M33 3L330
Price
N/A
24
SPANNER NUT 37MM
Price
N/A
25
BRACKET PLATE
Price
N/A
26
LOCK WASHER 10MM
Price
N/A
27
Now: PN02M
HEX NUT M10-1.5
Price
N/A
28
Now: PW04M
FLAT WASHER 10MM
Price
N/A
29
CAP SCREW M5-.8 X 10
Price
N/A
30
Now: PW02M
FLAT WASHER 5MM
Price
N/A
31
GEAR SHAFT
Price
N/A
36
SPACER
Price
N/A
37
MOTOR PULLEY
38
Now: PK11M
KEY 6 X 6 X 40
Price
N/A
39
SPACER
Price
N/A
40
CAP SCREW M3-.5 X 10
Price
N/A
41
MOUNTING PLATE
Price
N/A
42
Now: PW04M
FLAT WASHER 10MM
Price
N/A
44
TENSIONER ROLLER SHAFT
Price
N/A
45
BALL BEARING 6001-2RS
Price
N/A
46
TENSIONER ROLLER
Price
N/A
48
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
49
CHANGE GEAR COVER
Price
N/A
51
Now: PN06M
HEX NUT M5-.8
Price
N/A
52
SPINDLE COVER
Price
N/A
53
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
54
3-JAW CHUCK 5"
Price
N/A
54-1
3-JAW CHUCK JAW INT 3-PC SET
Price
N/A
54-2
CHUCK BACKPLATE
Price
N/A
54-3
LATHE CHUCK KEY 9.75MM STD
Price
N/A
54-4
3-JAW CHUCK JAW EXT 3-PC SET
Price
N/A
55
4-JAW CHUCK 6.5"
Price
N/A
55-1
4-JAW CHUCK JAWS 4-PC SET
Price
N/A
55-2
4-JAW CHUCK KEY
Price
N/A
56
FACEPLATE 8"
Price
N/A
57
DEAD CENTER MT#3
Price
N/A
60
TOOL BOX, EMPTY
Price
N/A
62
HEX WRENCH SET (2.5,3,4,5,6MM)
Price
N/A
63
WRENCH SET (8-10, 12-14, 17-19MM)
Price
N/A
64
BOTTLE FOR OIL
Price
N/A
69
STANDARD SCREWDRIVER #1
Price
N/A
70
PHILLIPS SCREWDRIVER #1
Price
N/A
71
SPINDLE CLAMP
Price
N/A
72
CAP SCREW M6-1 X 20
Price
N/A

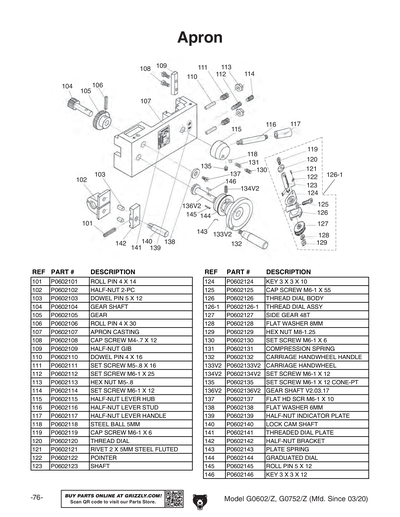

101
ROLL PIN 4 X 14
Price
N/A
102
HALF-NUT 2-PC
Price
N/A
103
DOWEL PIN 5 X 12
Price
N/A
104
GEAR SHAFT
Price
N/A
105
GEAR
Price
N/A
106
ROLL PIN 4 X 30
Price
N/A
107
APRON CASTING
Price
N/A
108
CAP SCREW M4-.7 X 12
Price
N/A
109
HALF-NUT GIB
Price
N/A
110
DOWEL PIN 4 X 16
Price
N/A
111
SET SCREW M5-.8 X 16
Price
N/A
112
SET SCREW M6-1 X 25
Price
N/A
113
Now: PN06M
HEX NUT M5-.8
Price
N/A
114
SET SCREW M6-1 X 12
Price
N/A
115
HALF-NUT LEVER HUB
Price
N/A
116
HALF-NUT LEVER STUD
Price
N/A
117
HALF-NUT LEVER HANDLE
Price
N/A
118
STEEL BALL 5MM
Price
N/A
119
CAP SCREW M6-1 X 6
Price
N/A
120
THREAD DIAL
Price
N/A
121
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
122
POINTER
Price
N/A
123
SHAFT
Price
N/A
124
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
125
CAP SCREW M6-1 X 55
Price
N/A
126
THREAD DIAL BODY
Price
N/A
126-1
THREAD DIAL ASSY
Price
N/A
127
SIDE GEAR 48T
Price
N/A
128
Now: PW01M
FLAT WASHER 8MM
Price
N/A
129
Now: PN03M
HEX NUT M8-1.25
Price
N/A
130
SET SCREW M6-1 X 6
Price
N/A
131
COMPRESSION SPRING
Price
N/A
132
HANDLE W/OUT SHAFT 10, 21 X 75
Price
N/A
133
CARRIAGE HANDWHEEL
134
SET SCREW M6-1 X 12
Price
N/A
135
SET SCREW M6-1 X 12 CONE-PT
Price
N/A
136
GEAR SHAFT
137
FLAT HD SCR M6-1 X 10
Price
N/A
138
Now: PW03M
FLAT WASHER 6MM
Price
N/A
139
HALF-NUT INDICATOR PLATE
Price
N/A
140
LOCK CAM SHAFT
Price
N/A
141
THREADED DIAL PLATE
Price
N/A
142
HALF-NUT BRACKET
Price
N/A
143
PLATE SPRING
144
GRADUATED DIAL
145
ROLL PIN 5 X 12
Price
N/A
146
KEY 3 X 3 X 12
Price
N/A

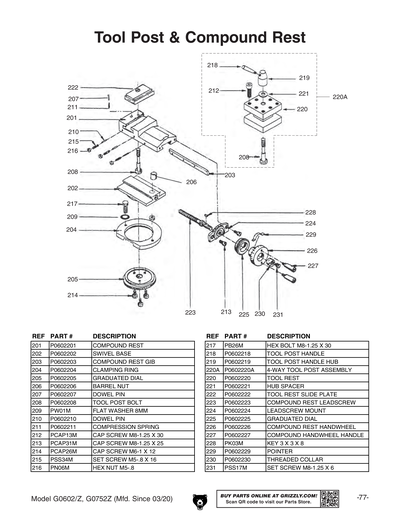

201
COMPOUND REST
Price
N/A
202
SWIVEL BASE
Price
N/A
203
COMPOUND REST GIB
Price
N/A
204
CLAMPING RING
Price
N/A
205
GRADUATED DIAL
Price
N/A
206
BARREL NUT
Price
N/A
207
DOWEL PIN
Price
N/A
208
TOOL POST BOLT
Price
N/A
209
Now: PW01M
FLAT WASHER 8MM
Price
N/A
210
DOWEL PIN
Price
N/A
211
COMPRESSION SPRING
Price
N/A
212
CAP SCREW M8-1.25 X 30
Price
N/A
213
CAP SCREW M8-1.25 X 25
Price
N/A
214
CAP SCREW M6-1 X 12
Price
N/A
215
SET SCREW M5-.8 X 16
Price
N/A
216
Now: PN06M
HEX NUT M5-.8
Price
N/A
217
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
218
TOOL POST HANDLE
Price
N/A
219
TOOL POST HANDLE HUB
Price
N/A
220
TOOL REST
Price
N/A
220A
4-WAY TOOL POST ASSEMBLY
Price
N/A
221
HUB SPACER
Price
N/A
222
TOOL REST SLIDE PLATE
Price
N/A
223
COMPOUND REST LEADSCREW
Price
N/A
224
LEADSCREW MOUNT
Price
N/A
225
GRADUATED DIAL
Price
N/A
226
COMPOUND REST HANDWHEEL
Price
N/A
227
COMPOUND HANDWHEEL HANDLE
Price
N/A
228
Now: PK03M
KEY 3 X 3 X 8
Price
N/A
229
POINTER
Price
N/A
230
THREADED COLLAR
Price
N/A
231
SET SCREW M8-1.25 X 6
Price
N/A

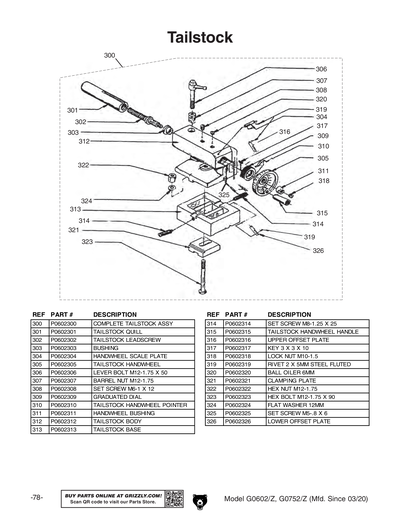

300
COMPLETE TAILSTOCK ASSY
Price
N/A
301
TAILSTOCK QUILL
Price
N/A
302
TAILSTOCK LEADSCREW
Price
N/A
303
BUSHING
Price
N/A
304
HANDWHEEL SCALE PLATE
Price
N/A
305
TAILSTOCK HANDWHEEL
Price
N/A
306
LEVER BOLT M12-1.75 X 50
Price
N/A
307
Now: PW06M
FLAT WASHER 12MM
Price
N/A
308
SET SCREW M6-1 X 12
Price
N/A
309
GRADUATED DIAL
Price
N/A
310
TAILSTOCK HANDWHEEL POINTER
Price
N/A
311
HANDWHEEL BUSHING
Price
N/A
312
TAILSTOCK BODY
Price
N/A
313
TAILSTOCK BASE
Price
N/A
314
SET SCREW M8-1.25 X 25
Price
N/A
315
HANDLE W/OUT SHAFT 10, 21 X 75
Price
N/A
316
UPPER OFFSET PLATE
Price
N/A
317
Now: PK39M
KEY 3 X 3 X 10
Price
N/A
318
LOCK NUT M10-1.5
Price
N/A
319
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
320
BALL OILER 6MM PRESS-IN
Price
N/A
321
CLAMPING PLATE
Price
N/A
322
Now: PN09M
HEX NUT M12-1.75
Price
N/A
323
HEX BOLT M12-1.75 X 90
Price
N/A
324
Now: PW06M
FLAT WASHER 12MM
Price
N/A
325
SET SCREW M5-.8 X 6
Price
N/A
326
LOWER OFFSET PLATE
Price
N/A
329
ADJUSTABLE HANDLE ASSEMBLY
Price
N/A
330
ADJUSTABLE HANDLE ASSEMBLY
Price
N/A
331
ADJUSTABLE HANDLE ASSEMBLY
Price
N/A

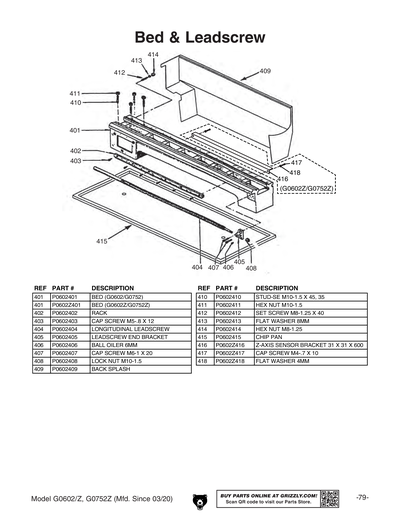

401
BED
Price
N/A
402
RACK V2
Price
N/A
403
CAP SCREW M5-.8 X 12
Price
N/A
404
LONGITUDINAL LEADSCREW
Price
N/A
405
LEADSCREW END BRACKET
Price
N/A
406
BALL OILER 6MM PRESS-IN
Price
N/A
407
CAP SCREW M6-1 X 20
Price
N/A
408
LOCK NUT M10-1.5
Price
N/A
409
BACK SPLASH
Price
N/A
410
STUD-SE M10-1.5 X 45, 35
Price
N/A
411
Now: PN02M
HEX NUT M10-1.5
Price
N/A
412
SET SCREW M8-1.25 X 40
Price
N/A
413
Now: PW01M
FLAT WASHER 8MM
Price
N/A
414
Now: PN03M
HEX NUT M8-1.25
Price
N/A
415
CHIP PAN
Price
N/A

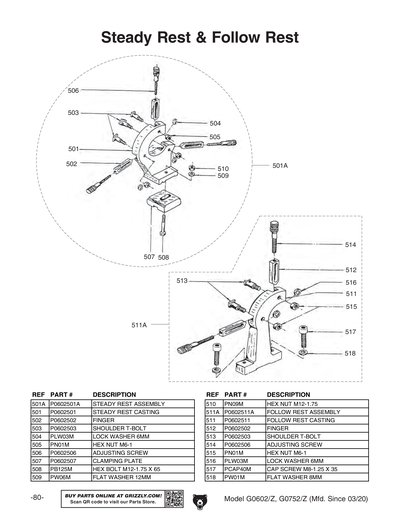

501
STEADY REST CASTING
Price
N/A
501A
STEADY REST ASSEMBLY
Price
N/A
502
FINGER
Price
N/A
503
SHOULDER T-BOLT
Price
N/A
504
LOCK WASHER 6MM
Price
N/A
505
Now: PN01M
HEX NUT M6-1
Price
N/A
506
ADJUSTING SCREW
Price
N/A
507
CLAMPING PLATE
Price
N/A
508
HEX BOLT M12-1.75 X 65
Price
N/A
509
Now: PW06M
FLAT WASHER 12MM
Price
N/A
510
Now: PN09M
HEX NUT M12-1.75
Price
N/A
511
FOLLOW REST CASTING
Price
N/A
511A
FOLLOW REST ASSEMBLY
Price
N/A
512
FINGER
Price
N/A
513
SHOULDER T-BOLT
Price
N/A
514
ADJUSTING SCREW
Price
N/A
515
Now: PN01M
HEX NUT M6-1
Price
N/A
516
LOCK WASHER 6MM
Price
N/A
517
CAP SCREW M8-1.25 X 35
Price
N/A
518
Now: PW01M
FLAT WASHER 8MM
Price
N/A
601

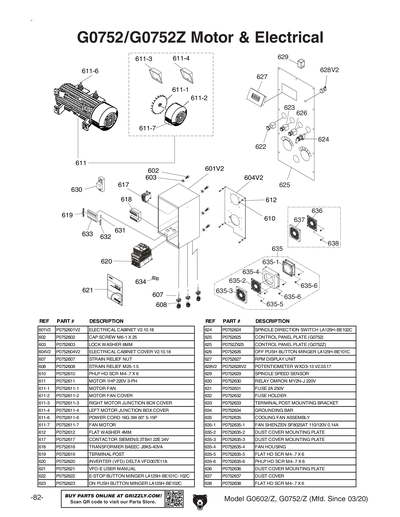

ELECTRICAL CABINET V1
601V2
ELECTRICAL CABINET V2.10.18
602
CAP SCREW M6-1 X 25
Price
N/A
603
LOCK WASHER 6MM
Price
N/A
604
*DISCD*ELECTRICAL CABINET COVER V1
Item is no longer available
Price
N/A
604V2
ELECTRICAL CABINET COVER V2.10.18
607
STRAIN RELIEF TYPE-3 M18-1.5 ST
Price
N/A
608
STRAIN RELIEF TYPE-3 M24 - 1.5 ST
Price
N/A
610
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
611
MOTOR 1HP 220V 3-PH
611-1
MOTOR FAN
611-2
MOTOR FAN COVER
611-3
RIGHT MOTOR JUNCTION BOX COVER
611-4
LEFT MOTOR JUNCTION BOX COVER
611-6
*DISCD*POWER CORD V1.12.06
Price
N/A
611-7
FAN MOTOR
612
Now: PW05M
FLAT WASHER 4MM
Price
N/A
617
CONTACTOR SIEMENS 3TB41 22E 24V V1
617V2
CONTACTOR SIEMENS 3TH82 62E V2.12.20
618
TRANSFORMER BAEEC JBK5-63VA
619
TERMINAL POST
620
INVERTER (VFD) DELTA VFD007E11A V1
620V2
VFD DELTA VFD4A8MS11ANSAA V2.05.24
621
VFD-E USER MANUAL
622
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
623
ON PUSH BUTTON MINGER LA125H-BE102C
624
SPINDLE DIRECTION SWITCH
625
CONTROL PANEL PLATE
626
STOP BUTTON
Price
N/A
627
RPM DISPLAY UNIT
628
POTENTIOMETER 4K7 WX14-12 V1
628V2
POTENTIOMETER 4K7 WXD3-13-2W V2.03.17
629
SPINDLE SPEED SENSOR
630
RELAY OMRON MY2N-J 220V
631
FUSE 2A 250V
632
FUSE HOLDER
633
TERMINAL POST MOUNTING BRACKET
634
GROUNDING BAR
635
COOLING FAN ASSEMBLY
635-1
COOLING FAN ASSEMBLY
Price
N/A
635-2
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
635-3
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
635-4
COOLING FAN ASSEMBLY
Price
N/A
635-5
FLAT HD SCR M4-.7 X 6
Price
N/A
635-6
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
636
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
637
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
638
FLAT HD SCR M4-.7 X 6
Price
N/A
639
FAN COVER MOUNTING PLATE W/ FILTER

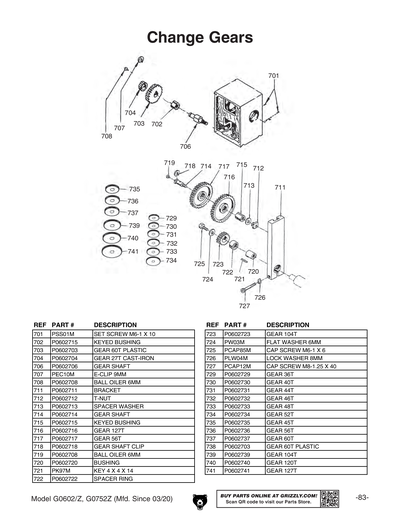

701
SET SCREW M6-1 X 10
Price
N/A
702
KEYED BUSHING
Price
N/A
703
GEAR 60T PLASTIC
Price
N/A
704
GEAR 27T CAST-IRON
Price
N/A
706
GEAR SHAFT
Price
N/A
707
E-CLIP 9MM
Price
N/A
708
BALL OILER 6MM PRESS-IN
Price
N/A
711
BRACKET
Price
N/A
712
T-NUT
Price
N/A
713
SPACER WASHER
Price
N/A
714
GEAR SHAFT
Price
N/A
715
KEYED BUSHING
Price
N/A
716
GEAR 127T
Price
N/A
717
GEAR 56T
Price
N/A
718
GEAR SHAFT CLIP
Price
N/A
719
BALL OILER 6MM PRESS-IN
Price
N/A
720
BUSHING
Price
N/A
721
Now: PK97M
KEY 4 X 4 X 14
Price
N/A
722
SPACER RING
Price
N/A
723
GEAR 104T
Price
N/A
724
Now: PW03M
FLAT WASHER 6MM
Price
N/A
725
CAP SCREW M6-1 X 6
Price
N/A
726
LOCK WASHER 8MM
Price
N/A
727
CAP SCREW M8-1.25 X 40
Price
N/A
728
GEAR 36T
Price
N/A
729
GEAR 36T
Price
N/A
730
GEAR 40T
Price
N/A
731
GEAR 44T
Price
N/A
732
GEAR 46T
Price
N/A
733
GEAR 48T
Price
N/A
734
GEAR 52T
Price
N/A
735
GEAR 45T
Price
N/A
736
GEAR 56T
Price
N/A
737
GEAR 60T
Price
N/A
739
GEAR 104T
Price
N/A
740
GEAR 120T
Price
N/A
741
GEAR 127T
Price
N/A

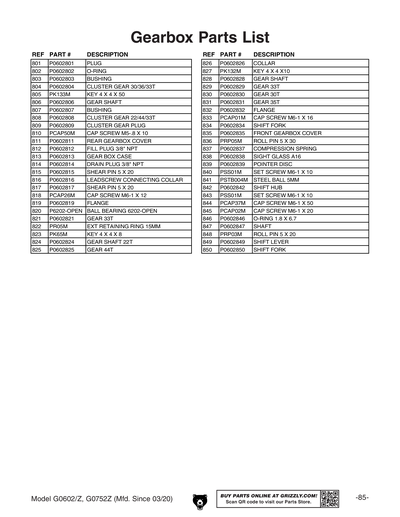

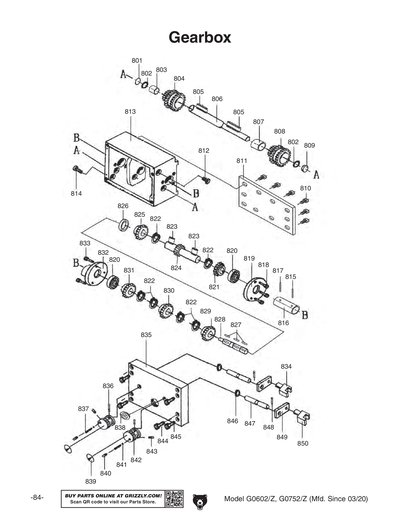

801
PLUG
Price
N/A
802
***USE P0602846***
Price
N/A
803
BUSHING
Price
N/A
804
CLUSTER GEAR 30/36/33T
Price
N/A
805
KEY 4 X 4 X 50
Price
N/A
806
GEAR SHAFT
Price
N/A
807
BUSHING
Price
N/A
808
CLUSTER GEAR 22/44/33T
Price
N/A
809
CLUSTER GEAR PLUG
Price
N/A
810
CAP SCREW M5-.8 X 10
Price
N/A
811
REAR GEARBOX COVER
Price
N/A
812
FILL PLUG 3/8" NPT
Price
N/A
813
GEAR BOX CASE
Price
N/A
814
DRAIN PLUG 3/8" NPT
Price
N/A
815
SHEAR PIN 5 X 20
Price
N/A
816
LEADSCREW CONNECTING COLLAR
Price
N/A
817
***USE P0602815***
Price
N/A
818
CAP SCREW M6-1 X 12
Price
N/A
819
FLANGE
Price
N/A
820
BALL BEARING 6202-OPEN
Price
N/A
821
GEAR 33T
Price
N/A
822
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
823
Now: PK65M
KEY 4 X 4 X 8
Price
N/A
824
GEAR SHAFT 22T
Price
N/A
825
GEAR 44T
Price
N/A
826
COLLAR
Price
N/A
827
KEY 8 X 7 X 40
Price
N/A
828
GEAR SHAFT
Price
N/A
829
GEAR 33T
Price
N/A
830
GEAR 30T
Price
N/A
831
GEAR 35T
Price
N/A
832
FLANGE
Price
N/A
833
CAP SCREW M6-1 X 16
Price
N/A
834
SHIFT FORK
Price
N/A
835
FRONT GEARBOX COVER
Price
N/A
836
ROLL PIN 5 X 30
Price
N/A
837
COMPRESSION SPRING
Price
N/A
838
SIGHT GLASS A16
Price
N/A
839
POINTER DISC
Price
N/A
840
SET SCREW M6-1 X 10
Price
N/A
841
STEEL BALL 5MM
Price
N/A
842
SHIFT HUB
Price
N/A
843
SET SCREW M6-1 X 10
Price
N/A
844
CAP SCREW M6-1 X 50
Price
N/A
845
CAP SCREW M6-1 X 20
Price
N/A
846
O-RING 1.8 X 6.7
Price
N/A
847
SHAFT
Price
N/A
848
ROLL PIN 5 X 20
Price
N/A
849
SHIFT LEVER
Price
N/A
850
SHIFT FORK
Price
N/A

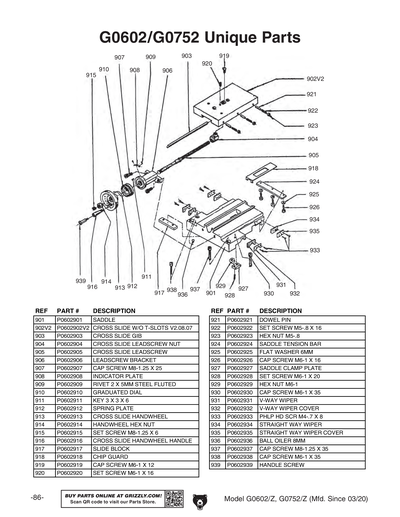

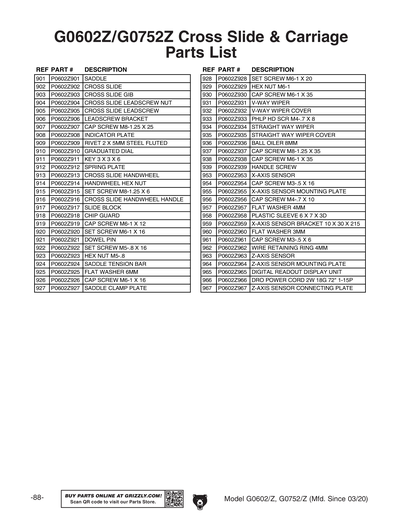

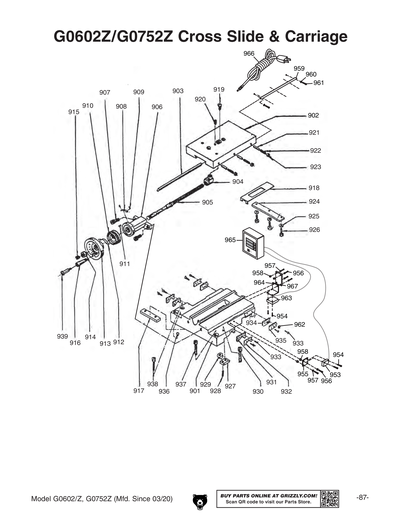

901
SADDLE
Price
N/A
902A
CROSS SLIDE W/O T-SLOTS V2.08.07
Price
N/A
903
CROSS SLIDE GIB
Price
N/A
904
CROSS SLIDE LEADSCREW NUT
Price
N/A
905
CROSS SLIDE LEADSCREW
Price
N/A
906
LEADSCREW BRACKET
Price
N/A
907
CAP SCREW M8-1.25 X 25
Price
N/A
908
INDICATOR PLATE
Price
N/A
909
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
910
GRADUATED DIAL
Price
N/A
911
KEY 3 X 3 X 6
Price
N/A
912
SPRING PLATE
Price
N/A
913
CROSS SLIDE HANDWHEEL
Price
N/A
914
HANDWHEEL HEX NUT
Price
N/A
915
SET SCREW M8-1.25 X 6
Price
N/A
916
CROSS SLIDE HANDWHEEL HANDLE
Price
N/A
917
SLIDE BLOCK
Price
N/A
918
CHIP GUARD
Price
N/A
919
CAP SCREW M6-1 X 12
Price
N/A
920
SET SCREW M6-1 X 16
Price
N/A
921
DOWEL PIN
Price
N/A
922
SET SCREW M5-.8 X 16
Price
N/A
923
Now: PN06M
HEX NUT M5-.8
Price
N/A
924
SADDLE TENSION BAR
Price
N/A
925
Now: PW03M
FLAT WASHER 6MM
Price
N/A
926
CAP SCREW M6-1 X 16
Price
N/A
927
SADDLE CLAMP PLATE
Price
N/A
928
SET SCREW M6-1 X 20
Price
N/A
929
Now: PN01M
HEX NUT M6-1
Price
N/A
930
CAP SCREW M6-1 X 35
Price
N/A
931
V-WAY WIPER
Price
N/A
932
V-WAY WIPER COVER
Price
N/A
933
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
934
STRAIGHT WAY WIPER
Price
N/A
935
STRAIGHT WAY WIPER COVER
Price
N/A
936
BALL OILER 8MM
Price
N/A
937
CAP SCREW M8-1.25 X 35
Price
N/A
938
CAP SCREW M6-1 X 35
Price
N/A
939
HANDLE SCREW
Price
N/A

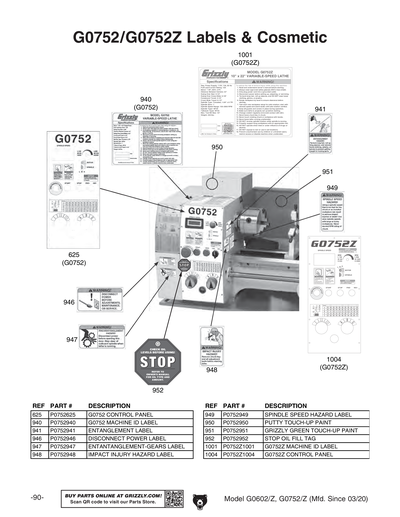

940
MACHINE ID LABEL
Price
N/A

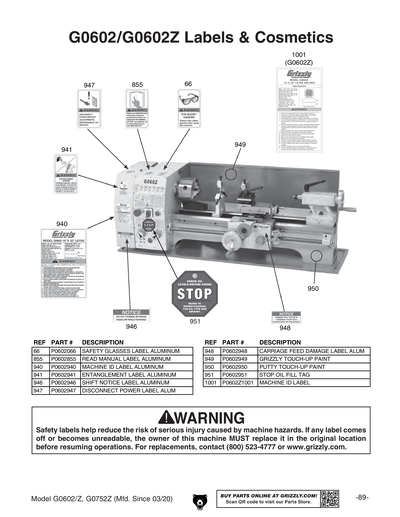

941
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
942
TOOL BOX, EMPTY
Price
N/A
943
HEX WRENCH SET (2.5,3,4,5,6MM)
Price
N/A
944
WRENCH SET (8-10, 12-14, 17-19MM)
Price
N/A
945
BOTTLE FOR OIL
Price
N/A
946
DISCONNECT 110V 2.8W X 1.5H
Price
N/A
947
ENTANGLEMENT-GEARS LABEL
948
IMPACT INJURY HAZARD LABEL
949
SPINDLE SPEED HAZARD LABEL
950
GREY PUTTY REF G0504
Price
N/A
951
N/S GRIZZLY GREEN G1023S
Price
N/A
952
STOP OIL FILL TAG
Price
N/A
953
SPANNER WRENCH V2.03.20 (G0602)
Price
N/A
953V2
SPANNER WRENCH V2.03.20 (G0602)
Price
N/A
MANUAL
MANUAL G0602/G0752 MFG 11.12 V8.03.13
Price
N/A
P0752MANV9
MANUAL G0602/Z/G0752/Z 03.20-04.24 V9.04
Price
N/A

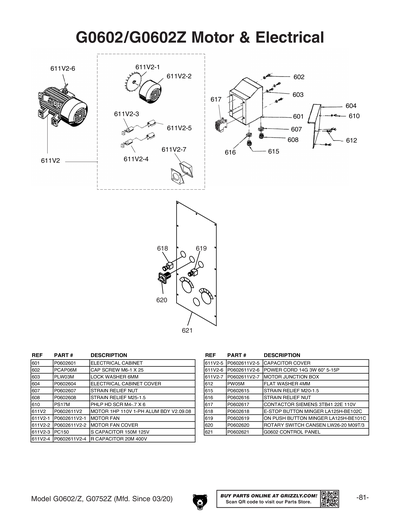

Z601V2
ELECTRICAL CABINET V2.10.18
Price
N/A
Z604V2
ELECTRICAL CABINET COVER V2.10.18
Price
N/A
Z635
COOLING FAN ASSEMBLY
Price
N/A
Z635-1
COOLING FAN ASSEMBLY
Price
N/A
Z635-2
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
Z635-3
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
Z635-4
COOLING FAN ASSEMBLY
Price
N/A
Z635-5
FLAT HD SCR M4-.7 X 6
Price
N/A
Z635-6
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
Z636
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
Z638
FLAT HD SCR M4-.7 X 6
Price
N/A
Z639
FAN COVER MOUNTING PLATE W/ FILTER
Price
N/A
Z968
***USE PW01M***
Z969
***USE P51100***
