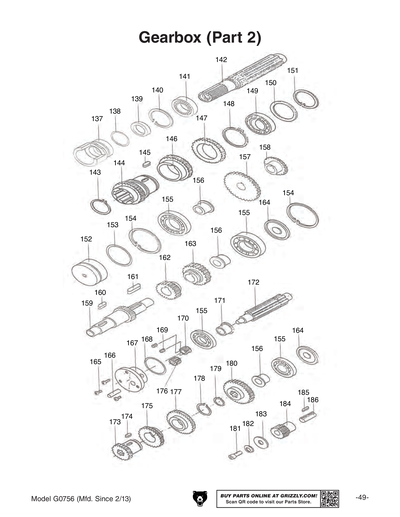

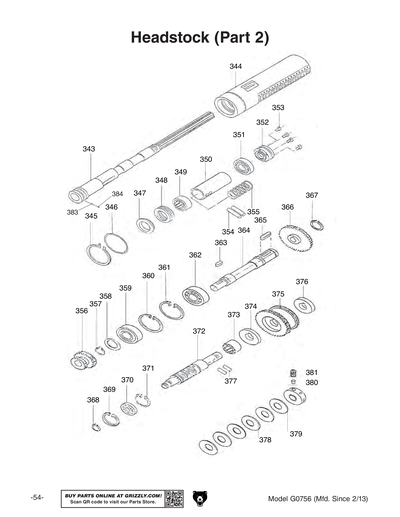

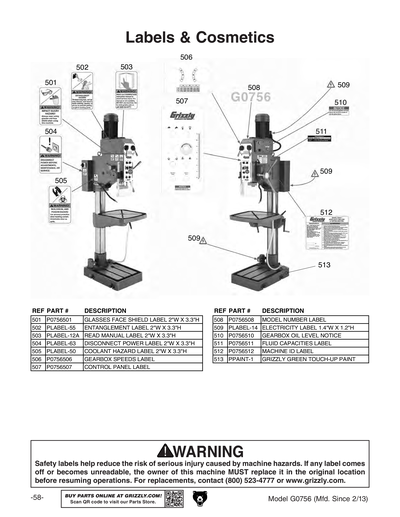

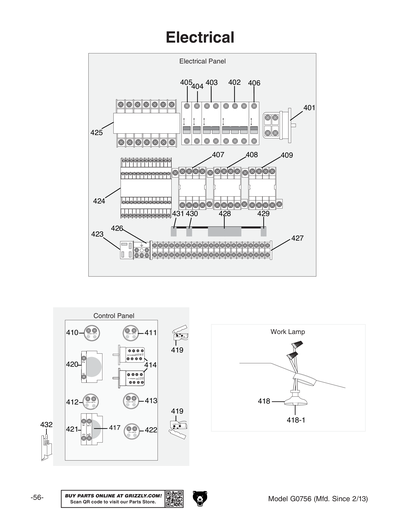

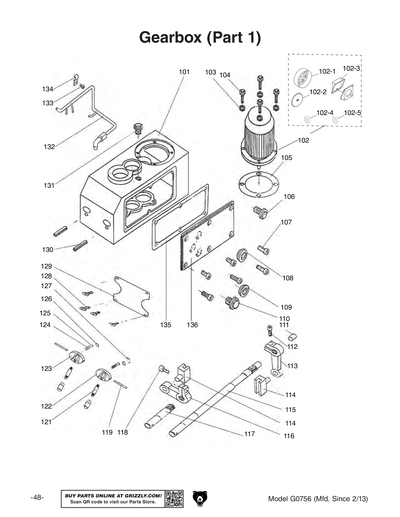

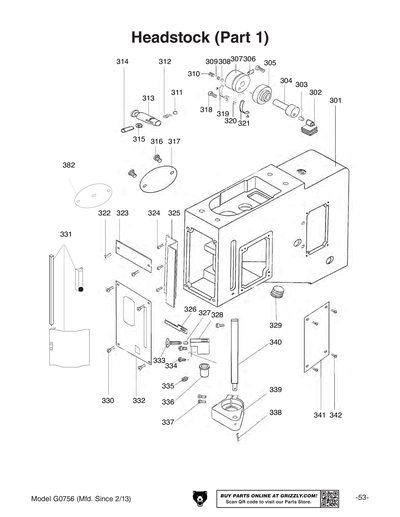

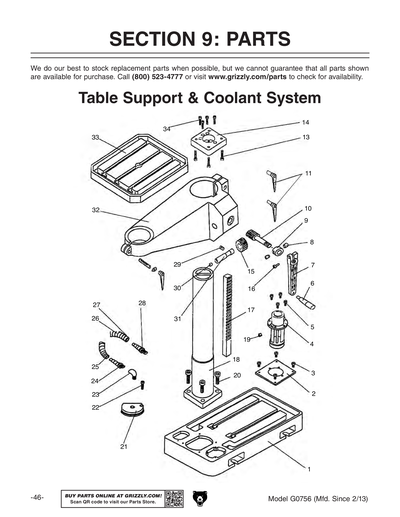

Parts for G0756 - 27-1/2" Heavy-Duty Gearhead Drill Press

Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756
Part Diagram for G0756

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

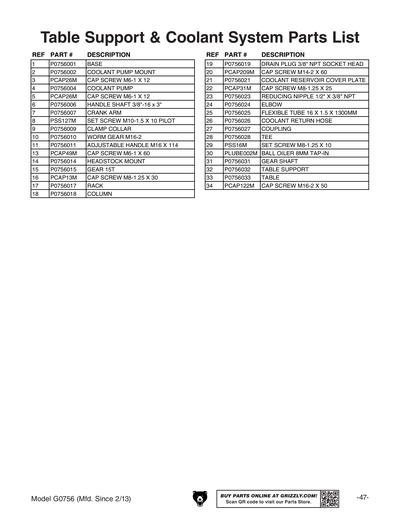

Ref #
Part #
Description
1
BASE
Price
$1,091.85
2
COOLANT PUMP MOUNT
Price
$13.70
3
CAP SCREW M6-1 X 12
Price
N/A
4
COOLANT PUMP
Price
$367.70
5
CAP SCREW M6-1 X 12
Price
N/A
6
HANDLE SHAFT 3/8"-16 X 3"
Price
$7.20
7
CRANK ARM
Price
$24.85
8
SET SCREW M10-1.5 X 10 DOG-PT
Price
N/A
9
CLAMP COLLAR
Price
$6.90
10
WORM GEAR M16-2
Price
$49.25
11
ADJUSTABLE HANDLE M16 X 114
Price
$17.90
13
CAP SCREW M6-1 X 60 BLK C12.9 USA
Price
N/A
14
HEADSTOCK MOUNT
Price
$93.85
15
GEAR 15T
Price
$33.45
16
CAP SCREW M8-1.25 X 30
Price
N/A
17
RACK
Price
$118.25
18
COLUMN
Price
$1,100.85
19
DRAIN PLUG 3/8" NPT SOCKET HEAD
Price
$1.90
20
CAP SCREW M14-2 X 60
Price
N/A
21
COOLANT RESERVOIR COVER PLATE
Price
$13.70
22
CAP SCREW M8-1.25 X 25
Price
N/A
23
REDUCING NIPPLE 1/2" X 3/8" NPT
Price
$4.70
24
ELBOW
Price
$5.45
25
FLEXIBLE TUBE 16 X 1.5 X 1300MM
Price
$31.35
26
COOLANT RETURN HOSE
Price
$22.35
27
COUPLING
Price
$13.70
28
TEE
Price
$13.70
29
SET SCREW M8-1.25 X 10
Price
N/A
30
BALL OILER 8MM PRESS-IN
Price
N/A
31
GEAR SHAFT
Price
$22.35
32
TABLE SUPPORT
Price
$726.70
33
TABLE
Price
$891.25
34
CAP SCREW M16-2 X 50
Price
N/A

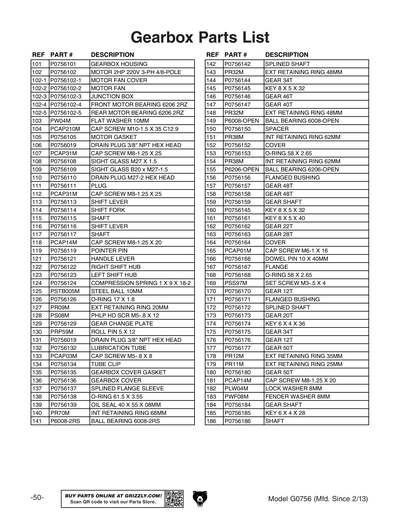

101
GEARBOX HOUSING
Price
$601.65
102
MOTOR 2HP 220V 3-PH 4/8-POLE
Price
$852.45
102-1
MOTOR FAN COVER
Price
$46.40
102-2
MOTOR FAN
Price
$52.50
102-3
JUNCTION BOX
Price
$24.15
102-4
FRONT MOTOR BEARING 6206 2RZ
Price
$22.35
102-5
REAR MOTOR BEARING 6206-2RZ
Price
$22.35
103
FLAT WASHER 10MM
Price
N/A
104
CAP SCREW M10-1.5 X 35 C12.9
Price
N/A
105
MOTOR GASKET
Price
$6.70
106
DRAIN PLUG 3/8" NPT SOCKET HEAD
Price
N/A
107
CAP SCREW M8-1.25 X 25
Price
N/A
108
SIGHT GLASS M27-1.5
Price
N/A
109
SIGHT GLASS B20 X M27-1.5
Price
$9.00
110
DRAIN PLUG M27-2 HEX HEAD
Price
$1.90
111
PLUG
Price
$1.90
112
CAP SCREW M8-1.25 X 25
Price
N/A
113
SHIFT LEVER
Price
$18.00
114
SHIFT FORK
Price
$6.90
115
SHAFT
Price
$27.00
116
SHIFT LEVER
Price
$22.35
117
SHAFT
Price
$11.20
118
CAP SCREW M8-1.25 X 20
Price
N/A
119
POINTER PIN
Price
$4.70
121
HANDLE LEVER
Price
$9.00
122
RIGHT SHIFT HUB
Price
$18.00
123
LEFT SHIFT HUB
Price
$18.00
124
COMPRESSION SPRING 1 X 9 X 18-2
Price
$1.90
125
STEEL BALL 10MM
Price
N/A
126
O-RING 17 X 1.8
Price
$1.90
127
EXT RETAINING RING 20MM
Price
N/A
128
PHLP HD SCR M5-.8 X 12
Price
N/A
129
GEAR CHANGE PLATE
Price
$13.70
130
ROLL PIN 5 X 12
Price
N/A
131
DRAIN PLUG 3/8" NPT SOCKET HEAD
Price
N/A
132
LUBRICATION TUBE
Price
$44.60
133
CAP SCREW M5-.8 X 8
Price
N/A
134
TUBE CLIP
Price
$1.90
135
GEARBOX COVER GASKET
Price
$6.15
136
GEARBOX COVER
Price
$62.60
137
SPLINED FLANGE SLEEVE
Price
$22.35
138
O-RING 61.5 X 3.55
Price
$2.25
139
OIL SEAL 40 X 55 X 08MM
Price
$2.25
140
INT RETAINING RING 68MM
Price
N/A
141
BALL BEARING 6008-2RS
Price
N/A
142
SPLINED SHAFT
Price
$151.70
143
EXT RETAINING RING 48MM
Price
N/A
144
GEAR 34T
Price
$63.75
145
KEY 8 X 5 X 32
Price
$1.90
146
GEAR 46T
Price
$98.50
147
GEAR 40T
Price
$75.35
148
EXT RETAINING RING 48MM
Price
N/A
149
BALL BEARING 6008-OPEN
Price
N/A
150
SPACER
Price
$24.85
151
INT RETAINING RING 62MM
Price
N/A
152
COVER
Price
$11.20
153
O-RING 58 X 2.65
Price
$2.25
154
INT RETAINING RING 62MM
Price
N/A
155
BALL BEARING 6206-OPEN
Price
N/A
156
FLANGED BUSHING
Price
$9.00
157
GEAR 48T
Price
$81.15
158
GEAR 48T
Price
$57.95
159
GEAR SHAFT
Price
$66.90
160
KEY 8 X 5 X 32
Price
N/A
161
KEY 8 X 5 X 40
Price
$1.90
162
GEAR 22T
Price
$57.95
163
GEAR 28T
Price
$57.95
164
COVER
Price
$11.20
165
CAP SCREW M6-1 X 16
Price
N/A
166
DOWEL PIN 10 X 40MM
Price
$1.90
167
FLANGE
Price
$31.35
168
O-RING 58 X 2.65
Price
N/A
169
SET SCREW M3-.5 X 4
Price
N/A
170
GEAR 12T
Price
$9.00
171
FLANGED BUSHING
Price
$9.00
172
SPLINED SHAFT
Price
$38.15
173
GEAR 20T
Price
$81.15
174
KEY 6 X 4 X 36
Price
$1.90
175
GEAR 34T
Price
$66.90
176
GEAR 12T
Price
$13.70
177
GEAR 50T
Price
$98.50
178
EXT RETAINING RING 35MM
Price
N/A
179
EXT RETAINING RING 25MM
Price
N/A
180
GEAR 50T
Price
$92.75
181
CAP SCREW M8-1.25 X 20
Price
N/A
182
LOCK WASHER 8MM
Price
N/A
183
FENDER WASHER 8MM
Price
N/A
184
GEAR SHAFT
Price
$49.25
185
KEY 6 X 4 X 28
Price
$1.80
186
*DISCD*SHAFT
Item is no longer available
Price
N/A

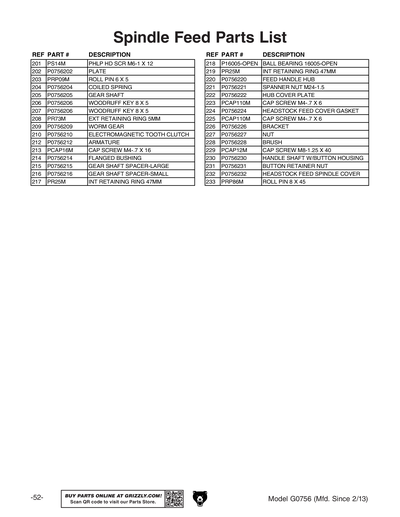

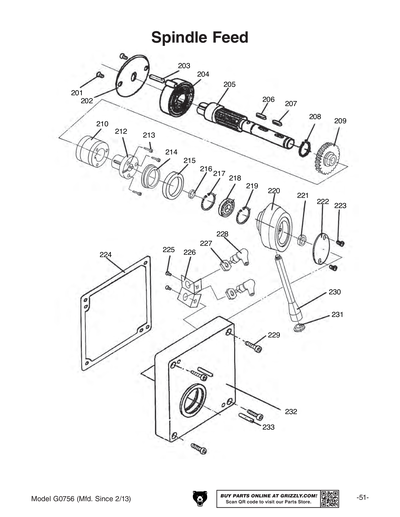

201
PHLP HD SCR M6-1 X 12
Price
N/A
202
PLATE
Price
$6.90
203
ROLL PIN 6 X 5
Price
N/A
204
COILED SPRING
Price
$75.85
205
GEAR SHAFT
Price
$88.10
206
KEY 8 X 8 X 25
Price
N/A
207
KEY 8 X 8 X 25
Price
N/A
208
EXT RETAINING RING 5MM
Price
N/A
209
WORM GEAR
Price
$89.15
210
ELECTROMAGNETIC TOOTH CLUTCH
Price
$467.95
210-1
ELECTROMAGNETIC TOOTH CLUTCH PINS (3PC)
Price
$13.70
212
ARMATURE
Price
$44.60
213
CAP SCREW M4-.7 X 16
Price
N/A
214
FLANGED BUSHING
Price
$22.35
215
GEAR SHAFT SPACER-LARGE
Price
$22.35
216
GEAR SHAFT SPACER-SMALL
Price
$9.00
217
INT RETAINING RING 47MM
Price
N/A
218
BALL BEARING 16005-OPEN
Price
N/A
219
INT RETAINING RING 47MM
Price
N/A
220
FEED HANDLE HUB
Price
$49.25
221
SPANNER NUT M24-1.5
Price
$1.90
222
HUB COVER PLATE
Price
$9.00
223
CAP SCREW M4-.7 X 6
Price
N/A
224
HEADSTOCK FEED COVER GASKET
Price
$6.90
225
CAP SCREW M4-.7 X 6
Price
N/A
226
BRACKET
Price
$6.90
227
NUT
Price
$1.90
228
BRUSH
Price
$13.70
229
CAP SCREW M8-1.25 X 40
Price
N/A
230
HANDLE SHAFT W/BUTTONASSEMBLY IN HOUSING
Price
$58.25
231
BUTTON RETAINER NUT
Price
$4.70
232
HEADSTOCK FEED SPINDLE COVER
Price
$151.70
233
ROLL PIN 8 X 45
Price
N/A
301
HEADSTOCK HOUSING
Price
$1,359.20
302
AUTO DOWNFEED SHIFTING FORK
Price
$9.00
303
DOWEL PIN 10 X 20MM
Price
$1.90
304
AUTO DOWNFEED SHIFTING SHAFT
Price
$11.20
305
AUTO DOWNFEED INDICATOR HUB
Price
$18.00
306
SET SCREW M10-1.5 X 25 DOG-PT
Price
N/A
307
AUTOMATIC DOWNFEED DIAL
Price
$33.45
308
STEEL BALL 6MM
Price
N/A
309
COMPRESSION SPRING 0.8 X 5 X 16
Price
$1.90
310
SET SCREW M8-1.25 X 16
Price
N/A
311
STEEL BALL 6MM
Price
N/A
312
COMPRESSION SPRING 0.8 X 7 X 12
Price
$1.90
313
AUTOMATIC DRIFT SHAFT
Price
$11.20
314
SET SCREW M10-1.5 X 25 DOG-PT
Price
N/A
315
HEX NUT M8-1.25 THIN
Price
N/A
316
PHLP HD SCR M6-1 X 12
Price
N/A
317
COILED SPRING COVER PLATE
Price
$4.70
318
CAP SCREW M6-1 X 20
Price
N/A
319
CURVED PLATE
Price
$2.60
320
RIVET 2 X 4MM NAMEPLATE, STEEL
Price
N/A
321
INDEX RING
Price
$2.60
322
PHLP HD SCR M6-1 X 12
Price
N/A
323
PLATE
Price
$6.90
324
CAP SCREW M5-.8 X 30
Price
N/A
325
FIREWALL PLATE
Price
$27.00
326
SLIDE PLATE
Price
$4.70
327
PIN
Price
$1.90
328
BRACKET
Price
$9.00
329
DRAIN PLUG 3/8" NPT SOCKET HEAD
Price
N/A
330
PHLP HD SCR M6-1 X 12
Price
N/A
331
CHIP GUARD ASSEMBLY
Price
$116.15
332
CONTROL PANEL COVER PLATE
Price
$53.60
333
STAR KNOB 5-PT M10-1.5 X 40
Price
$4.50
334
CAP SCREW M5-.8 X 8
Price
N/A
335
SET SCREW M6-1 X 16 CONE-PT
Price
N/A
336
FLANGED COLLAR
Price
$1.90
337
CAP SCREW M8-1.25 X 40
Price
N/A
338
ROLL PIN 3 X 25
Price
N/A
339
QUILL COLLAR
Price
$64.70
340
QUILL COLLAR SHAFT
Price
$512.50
341
TORQUE LIMITER COVER PLATE
Price
$9.00
342
PHLP HD SCR M6-1 X 12
Price
N/A
343
SPINDLE
Price
$445.65
344
QUILL
Price
$401.10
345
EXT RETAINING RING 75MM
Price
N/A
346
O-RING 85 X 5.7
Price
$1.90
347
FLAT WASHER 75MM
Price
$4.70
348
THRUST BEARING 51108
Price
N/A
349
NEEDLE ROLLER BEARING RNA49/32
Price
$133.70
350
SPRING HOUSING
Price
$40.60
351
BALL BEARING 6006-2RS
Price
N/A
352
CLAMP NUT
Price
$17.90
353
CAP SCREW M4-.7 X 14
Price
N/A
354
DOWEL PIN 12 X 50MM
Price
$2.25
355
COMPRESSION SPRING
Price
$13.70
356
GEAR 32/20T
Price
$44.60
357
EXT RETAINING RING 25MM
Price
N/A
358
FLAT WASHER 24MM
Price
N/A
359
BALL BEARING 6205-2RS
Price
N/A
360
INT RETAINING RING 52MM
Price
N/A
361
INT RETAINING RING 52MM
Price
N/A
362
BALL BEARING 6205-2RS
Price
N/A
363
KEY 6 X 6 X 18
Price
$1.90
364
SHAFT
Price
$22.35
365
KEY 6 X 6 X 12
Price
N/A
366
GEAR 22T
Price

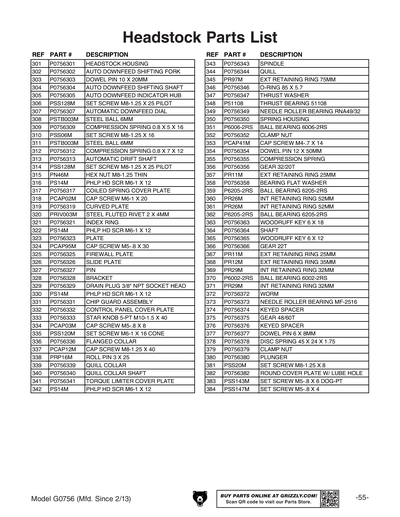

$38.15
367
EXT RETAINING RING 25MM
Price
N/A
368
EXT RETAINING RING 35MM
Price
N/A
369
INT RETAINING RING 32MM
Price
N/A
370
BALL BEARING 6002-2RS
Price
N/A
371
INT RETAINING RING 32MM
Price
N/A
372
WORM
Price
$38.15
373
NEEDLE ROLLER BEARING MF-2516
Price
$51.45
374
KEYED SPACER
Price
$13.70
375
GEAR 48/60T
Price
$111.45
376
KEYED SPACER
Price
$13.70
377
DOWEL PIN 6 X 8MM
Price
$1.90
378
DISC SPRING 45 X 24 X 1.75
Price
$31.35
379
CLAMP NUT
Price
$6.90
380
PLUNGER
Price
$1.90
381
SET SCREW M8-1.25 X 8
Price
N/A
382
ROUND COVER PLATE W/ LUBE HOLE
Price
$9.00
383
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
384
SET SCREW M5-.8 X 4
Price
N/A
385
DEPTH STOP HANDLE
Price
$9.00
400
CONTROL BOX
Price
$120.45
400-1
CONTROL BOX COVER
Price
$40.25
400A
CONTROL BOX ASSY. W/ELECTRICALS
Price
$1,671.15
401
ROTARY SWITCH CANSEN LW26GS-20 4P
Price
$62.60
402
CIRCUIT BREAKER 10A HUIL DZ451-63 D10 3P
Price
$63.75
403
CIRCUIT BREAKER 1A HUIL DZ451-63 D1 2P
Price
$43.70
404
CIRCUIT BREAKER 3A HUIL DZ451-63 C3 1P
Price
N/A
405
CIRCUIT BREAKER 1A HUIL DZ451-63 C1 1P
Price
$29.00
406
CIRCUIT BREAKER 1A HUIL DZ451-63 C1 1P
Price
N/A
407
CONTACTOR TIANSHUI GSC-1201 24V
Price
$75.85
408
CONTACTOR TIANSHUI GSC-1201 24V
Price
N/A
409
CONTACTOR TIANSHUI JZC3-40D 24V
Price
$58.25
410
SELECTOR SWITCH ABB C2SS2-10B-10
Price
$22.35
411
SELECTOR SWITCH ABB C2SS2-10B-10
Price
N/A
412
SELECTOR SWITCH ABB C2SS2-10B-10
Price
N/A
413
SELECTOR SWITCH ABB C2SS2-10B-10
Price
N/A
414
H/L ROTARY SWITCH CANSEN LW26-20 16P
Price
$120.45
417
POWER LIGHT LA58-XD
Price
$40.60
418
HALOGEN WORK LAMP 24V 25W
Price
$53.60

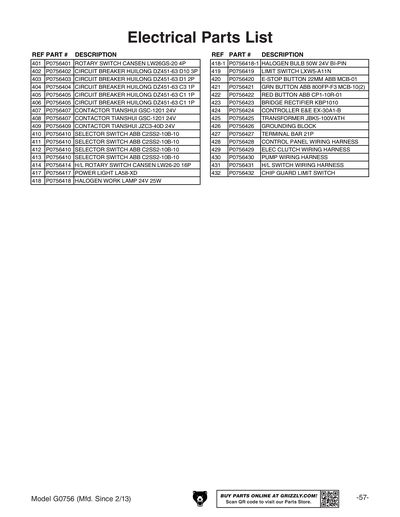

418-1
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
419
LIMIT SWITCH LXW5-A11N
Price
$18.00
420
***USE P0793411***
Price
$60.65
421
GRN BUTTON ABB 800FP-F3 MCB-10(2)
Price
$75.85
422
RED BUTTON ABB CP1-10R-01
Price
$18.00
423
BRIDGE RECTIFIER KBP1010
Price
$13.40
424
CONTROLLER E&E EX-30A1-B
Price
$690.75
425
TRANSFORMER JBK5 100VA 220/415V-24/220V
Price
$191.65
426
GROUNDING BLOCK
Price
$13.70
427
TERMINAL BAR 21P
Price
$66.90
428
CONTROL PANEL WIRING HARNESS
Price
$13.70
429
ELEC CLUTCH WIRING HARNESS
Price
$13.70
430
PUMP WIRING HARNESS
Price
$13.70
431
H/L SWITCH WIRING HARNESS
Price
$13.70
432
CHIP GUARD LIMIT SWITCH
Price
$13.40
501
GLASSES FACE SHIELD LABEL 2"W X 3.3"H
Price
$5.65
502
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
503
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
504
DISCONNECT 220V 2W X 3.3H
Price
N/A
505
BIOLOGICAL/POISON HAZARD 2W X 3.3H
Price
N/A
506
GEARBOX SPEEDS LABEL
Price
$27.20
507
CONTROL PANEL LABEL
Price
$46.60
508
MODEL NUMBER LABEL
Price
$7.85
509
ELECTRICITY 1.4W X 1.2H
Price
N/A
510
GEARBOX OIL LEVEL NOTICE
Price
$4.70
511
FLUID CAPACITIES LABEL
Price
$4.10
512
MACHINE ID LABEL
Price
$16.40
513
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0756 MFG 01/13 V1.04.13
Price
$18.00
