Parts for G0757 9" x 39" 2 HP Horizontal/Vertical Mill with Power Feed

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

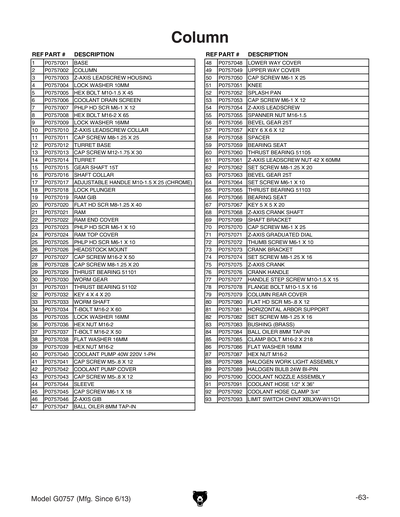

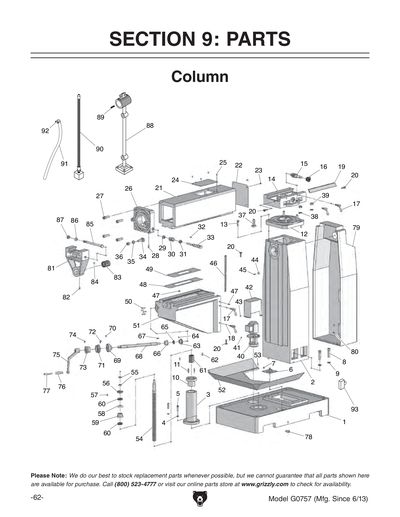

1
BASE
2
COLUMN
3
Z-AXIS LEADSCREW HOUSING
4
LOCK WASHER 10MM
Price
N/A
5
HEX BOLT M10-1.5 X 45
Price
N/A
6
COOLANT DRAIN SCREEN
7
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
8
HEX BOLT M16-2 X 65
Price
N/A
9
LOCK WASHER 16MM
Price
N/A
10
Z-AXIS LEADSCREW COLLAR
11
CAP SCREW M8-1.25 X 25
Price
N/A
12
TURRET BASE
12-1
TURRET SCALE
13
CAP SCREW M12-1.75 X 30
Price
N/A
14
TURRET
15
GEAR SHAFT 15T
16
SHAFT COLLAR
17
ADJUSTABLE HANDLE M10-1.5 X 25 (CHROME)
18
LOCK PLUNGER
19
RAM GIB
20
FLAT HD SCR M8-1.25 X 40
Price
N/A
21
RAM
22
RAM END COVER
23
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
24
RAM TOP COVER
25
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
26
HEADSTOCK MOUNT
27
CAP SCREW M16-2 X 50
Price
N/A
28
CAP SCREW M8-1.25 X 20
Price
N/A
29
THRUST BEARING 51101
Price
N/A
30
WORM GEAR
31
THRUST BEARING 51102
Price
N/A
32
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
33
WORM SHAFT
34
T-BOLT M16-2 X 60
35
LOCK WASHER 16MM
Price
N/A
36
Now: PN13M
HEX NUT M16-2
Price
N/A
37
T-BOLT M16-2 X 50
Price
N/A
38
Now: PW08M
FLAT WASHER 16MM
Price
N/A
39
Now: PN13M
HEX NUT M16-2
Price
N/A
40
COOLANT PUMP 40W 220V 1-PH
Price
N/A
40-1
PUMP HOSE FITTING (PLASTIC)
41
CAP SCREW M5-.8 X 12
Price
N/A
42
COOLANT PUMP COVER
43
CAP SCREW M5-.8 X 12
Price
N/A
44
SLEEVE
45
CAP SCREW M6-1 X 18
Price
N/A
46
Z-AXIS GIB
47
BALL OILER 8MM PRESS-IN
Price
N/A
48
LOWER WAY COVER
49
UPPER WAY COVER
50
CAP SCREW M6-1 X 25
Price
N/A
51
KNEE
51-1
WAY COVER
52
SPLASH PAN
53
CAP SCREW M6-1 X 12
Price
N/A
54
Z-AXIS LEADSCREW
55
SPANNER NUT M16-1.5
56
BEVEL GEAR 25T
57
Now: PK81M
KEY 6 X 6 X 12
Price
N/A
58
SPACER
59
BEARING SEAT
60
THRUST BEARING 51105
Price
N/A
61
Z-AXIS LEADSCREW NUT 42 X 60MM & COLLAR
62
SET SCREW M8-1.25 X 20
Price
N/A
63
BEVEL GEAR 25T
64
SET SCREW M6-1 X 10
Price
N/A
65
THRUST BEARING 51103
Price
N/A
66
BEARING SEAT
67
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
68
Z-AXIS CRANK SHAFT
69
SHAFT BRACKET
70
CAP SCREW M6-1 X 25
Price
N/A
71
Z-AXIS GRADUATED DIAL
72
THUMB SCREW M6-1 X 10
73
CRANK BRACKET
74
SET SCREW M8-1.25 X 16
Price
N/A
75
Z-AXIS CRANK
76
CRANK HANDLE
77
HANDLE STEP SCREW M10-1.5 X 15
78
FLANGE BOLT M10-1.5 X 16
Price
N/A
79
COLUMN REAR COVER
80
FLAT HD SCR M5-.8 X 12
Price
N/A
81
HORIZONTAL ARBOR SUPPORT
82
SET SCREW M8-1.25 X 16
Price
N/A
83
BUSHING (BRASS)
84
BALL OILER 8MM PRESS-IN
Price
N/A
85
CLAMP BOLT M16-2 X 218
86
Now: PW08M
FLAT WASHER 16MM
Price
N/A
87
Now: PN13M
HEX NUT M16-2
Price
N/A
88
HALOGEN WORK LIGHT ASSEMBLY (HALOGEN) V1
88V2
WORK LIGHT ASSEMBLY (LED) V2.01.15
89
HALOGEN BULB 50W 24V BI-PIN
Price
N/A
90
COOLANT NOZZLE ASSEMBLY
91
COOLANT HOSE 1/2" X 36"
92
COOLANT HOSE CLAMP 3/4"
93
LIMIT SWITCH CHINT XBLXW-W11Q1

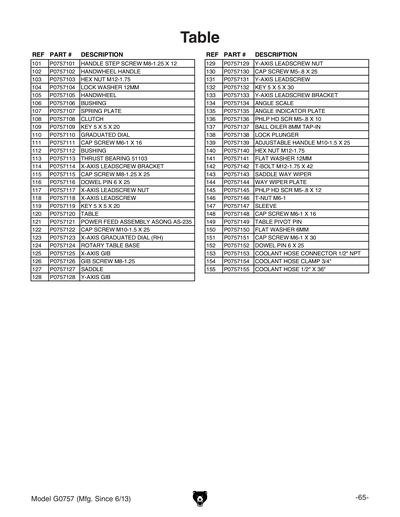

101
HANDLE STEP SCREW M8-1.25 X 12
102
HANDWHEEL HANDLE
103
Now: PN09M
HEX NUT M12-1.75
Price
N/A
104
LOCK WASHER 12MM
Price
N/A
105
HANDWHEEL
106
BUSHING
107
SPRING PLATE
108
CLUTCH
109
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
110
GRADUATED DIAL
111
CAP SCREW M6-1 X 16
Price
N/A
112
BUSHING
113
THRUST BEARING 51103
Price
N/A
114
X-AXIS LEADSCREW BRACKET
115
CAP SCREW M8-1.25 X 25
Price
N/A
116
DOWEL PIN 6 X 25
117
X-AXIS LEADSCREW NUT
118
X-AXIS LEADSCREW
119
Now: PK34M
KEY 5 X 5 X 20
Price
N/A

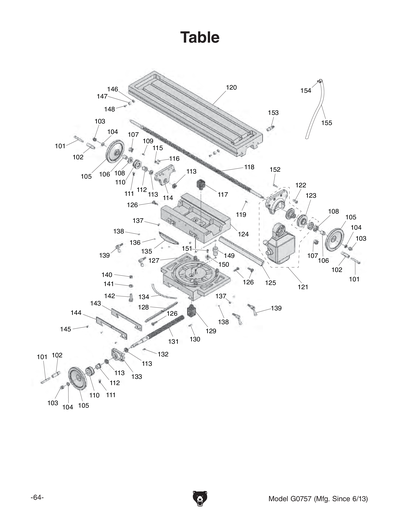

120
TABLE
121
POWER FEED ASSEMBLY ASONG AS-235
122
CAP SCREW M10-1.5 X 25
Price
N/A
123
X-AXIS GRADUATED DIAL (RH)
124
ROTARY TABLE BASE
125
X-AXIS GIB
126
GIB SCREW M8-1.25
127
SADDLE
128
Y-AXIS GIB
129
Y-AXIS LEADSCREW NUT
130
CAP SCREW M5-.8 X 25
Price
N/A
131
Y-AXIS LEADSCREW
132
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
133
Y-AXIS LEADSCREW BRACKET
134
ANGLE SCALE
135
ANGLE INDICATOR PLATE
136
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
137
BALL OILER 8MM PRESS-IN
Price
N/A
138
LOCK PLUNGER
139
ADJUSTABLE HANDLE M10-1.5 X 25
140
Now: PN09M
HEX NUT M12-1.75
Price
N/A
141
Now: PW06M
FLAT WASHER 12MM
Price
N/A
142
T-BOLT M12-1.75 X 42
143
SADDLE WAY WIPER
144
WAY WIPER PLATE
145
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
146
T-NUT M6-1
147
SLEEVE
148
CAP SCREW M6-1 X 16
Price
N/A
149
TABLE PIVOT PIN
150
Now: PW03M
FLAT WASHER 6MM
Price
N/A
151
CAP SCREW M6-1 X 30
Price
N/A
152
DOWEL PIN 6 X 25
Price
N/A
153
COOLANT HOSE CONNECTOR 1/2" NPT
154
COOLANT HOSE CLAMP 3/4"
Price
N/A
155
COOLANT HOSE 1/2" X 36"
Price
N/A

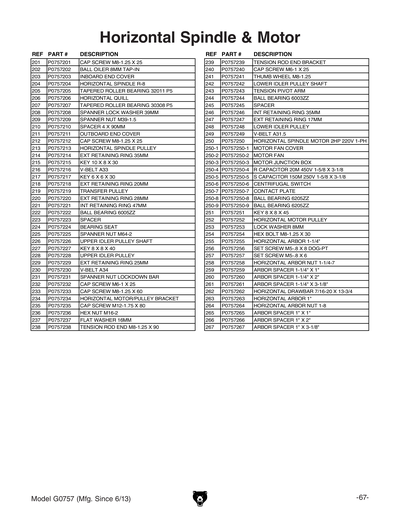

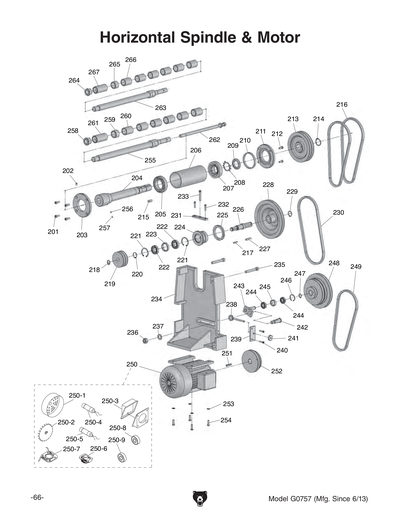

201
CAP SCREW M8-1.25 X 25
Price
N/A
202
BALL OILER 8MM PRESS-IN
Price
N/A
203
INBOARD END COVER
204
HORIZONTAL SPINDLE R-8
205
TAPERED ROLLER BEARING 32011 P5
Price
N/A
206
HORIZONTAL QUILL
207
TAPERED ROLLER BEARING 30308 P5
Price
N/A
208
EXT TOOTH WASHER 38MM
209
SPANNER NUT M39-1.5
210
SPACER 4 X 90MM
211
OUTBOARD END COVER
212
CAP SCREW M8-1.25 X 25
Price
N/A
213
HORIZONTAL SPINDLE PULLEY
214
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
215
Now: PK84M
KEY 10 X 8 X 30
Price
N/A
216
Now: PVA33
V-BELT A33
Price
N/A
217
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
218
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
219
TRANSFER PULLEY
220
Now: PR19M
EXT RETAINING RING 28MM
Price
N/A
221
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
222
BALL BEARING 6005ZZ
Price
N/A
223
SPACER
224
BEARING SEAT
225
SPANNER NUT M64-2
226
UPPER IDLER PULLEY SHAFT
227
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
228
UPPER IDLER PULLEY
229
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
230
Now: PVA34
V-BELT A34
Price
N/A
231
SPANNER NUT LOCKDOWN BAR
232
CAP SCREW M6-1 X 25
Price
N/A
233
CAP SCREW M8-1.25 X 60
Price
N/A
234
HORIZONTAL MOTOR/PULLEY BRACKET
235
CAP SCREW M12-1.75 X 80
Price
N/A
236
Now: PN13M
HEX NUT M16-2
Price
N/A
237
Now: PW08M
FLAT WASHER 16MM
Price
N/A
238
TENSION ROD END M8-1.25 X 90
239
TENSION ROD END BRACKET
240
CAP SCREW M6-1 X 25
Price
N/A
241
THUMB WHEEL M8-1.25
242
LOWER IDLER PULLEY SHAFT
243
TENSION PIVOT ARM
244
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
245
SPACER
246
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
247
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
248
LOWER IDLER PULLEY
249
V-BELT A31.5
250
HORIZONTAL SPINDLE MOTOR 2HP 220V 1-PH
250-1
MOTOR FAN COVER
250-2
MOTOR FAN
250-3
MOTOR JUNCTION BOX
250-4
*DISCD*R CAPACITOR 20M 450V 1-5/8 X 3-1/
Price
N/A
250-5
S CAPACITOR 150M 250V 1-5/8 X 3-1/8
250-6
CENTRIFUGAL SWITCH
250-7
CONTACT PLATE
250-8
BALL BEARING 6205ZZ
Price
N/A
250-9
BALL BEARING 6205ZZ
Price
N/A
251
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
252
HORIZONTAL MOTOR PULLEY
253
LOCK WASHER 8MM
Price
N/A
254
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
255
CHUCK ARBOR R8
256
SET SCREW M5-.8 X 8 DOG-PT
Price
N/A
257
SET SCREW M5-.8 X 6
Price
N/A
258
HORIZONTAL ARBOR NUT 1-1/4-7
259
ARBOR SPACER 1"(L) X 1-1/4"(ID) X 1-9/16
260
ARBOR SPACER 1-31/32"(L) X 1-1/4"(ID)
261
ARBOR SPACER 3-9/64" (L) X 1-1/14" (ID)
262
HORIZONTAL DRAWBAR 7/16-20 X 13-3/4
263
CHUCK ARBOR R8
264
HORIZONTAL ARBOR NUT 1-8
265
ARBOR SPACER 1"(L)X 1"(ID)X 1-9/16" (OD)
266
ARBOR SPACER 1-31/32"(L) X 1"(ID)
267
ARBOR SPACER 3-9/64"(L) X 1"(ID)

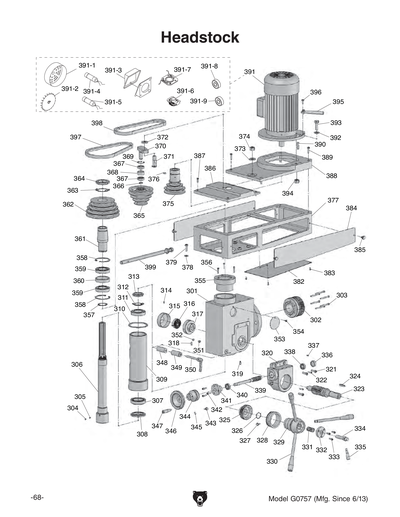

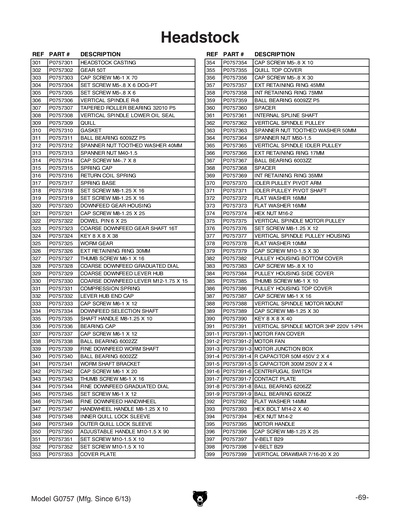

301
HEADSTOCK CASTING
301-1
ANGLE SCALE - HEADSTOCK
301-2
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
302
GEAR 50T
303
CAP SCREW M6-1 X 70
Price
N/A
304
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
305
SET SCREW M5-.8 X 6
Price
N/A
306
VERTICAL SPINDLE R-8
307
TAPERED ROLLER BEARING 32010 P5
Price
N/A
308
VERTICAL SPINDLE LOWER OIL SEAL
309
QUILL
310
GASKET
311
BALL BEARING 6009ZZ P5
Price
N/A
312
EXT TOOTH WASHER 40MM
313
SPANNER NUT M40-1.5
314
CAP SCREW M4-.7 X 8
Price
N/A
315
SPRING CAP
316
RETURN COIL SPRING
317
SPRING BASE
318
SET SCREW M8-1.25 X 16
Price
N/A
319
SET SCREW M8-1.25 X 16
Price
N/A
320
DOWNFEED GEAR HOUSING
321
CAP SCREW M8-1.25 X 25
Price
N/A
322
DOWEL PIN 6 X 25
Price
N/A
323
COARSE DOWNFEED GEAR SHAFT 16T
324
KEY 8 X 8 X 38
Price
N/A
325
WORM GEAR
326
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
327
THUMB SCREW M6-1 X 16
Price
N/A
328
COARSE DOWNFEED GRADUATED DIAL
329
COARSE DOWNFEED LEVER HUB
330
COARSE DOWNFEED LEVER M12-1.75 X 15
331
COMPRESSION SPRING
332
LEVER HUB END CAP
333
CAP SCREW M6-1 X 12
Price
N/A
334
DOWNFEED SELECTION SHAFT
335
SHAFT HANDLE M8-1.25 X 10
336
BEARING CAP
337
CAP SCREW M6-1 X 12
Price
N/A
338
BALL BEARING 6002ZZ
Price
N/A
339
FINE DOWNFEED WORM SHAFT
340
BALL BEARING 6002ZZ
Price
N/A
341
WORM SHAFT BRACKET
342
CAP SCREW M6-1 X 20
Price
N/A
343
THUMB SCREW M6-1 X 16
Price
N/A
344
FINE DOWNFEED GRADUATED DIAL
345
SET SCREW M6-1 X 12
Price
N/A
346
FINE DOWNFEED HANDWHEEL
347
HANDWHEEL HANDLE M8-1.25 X 10
348
INNER QUILL LOCK SLEEVE
349
OUTER QUILL LOCK SLEEVE
350
ADJUSTABLE HANDLE M10-1.5 X 90
351
SET SCREW M10-1.5 X 10
Price
N/A
352
SET SCREW M10-1.5 X 10
Price
N/A
353
COVER PLATE
354
CAP SCREW M5-.8 X 10
Price
N/A
355
QUILL TOP COVER
356
CAP SCREW M5-.8 X 30
Price
N/A
357
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
358
Now: PR67M
INT RETAINING RING 75MM
Price
N/A
359
BALL BEARING 6009ZZ P5
Price
N/A
360
SPACER
361
INTERNAL SPLINE SHAFT
362
VERTICAL SPINDLE PULLEY
363
EXT TOOTH WASHER 50MM
364
SPANNER NUT M50-1.5
365
VERTICAL SPINDLE IDLER PULLEY
366
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
367
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
368
SPACER
369
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
370
IDLER PULLEY PIVOT ARM
371
IDLER PULLEY PIVOT SHAFT
372
Now: PW08M
FLAT WASHER 16MM
Price
N/A
373
Now: PW08M
FLAT WASHER 16MM
Price
N/A
374
Now: PN13M
HEX NUT M16-2
Price
N/A
375
VERTICAL SPINDLE MOTOR PULLEY
376
SET SCREW M8-1.25 X 12
Price
N/A
377
VERTICAL SPINDLE PULLEY HOUSING
378
Now: PW04M
FLAT WASHER 10MM
Price
N/A
379
CAP SCREW M10-1.5 X 30
Price
N/A
382
PULLEY HOUSING BOTTOM COVER
383
CAP SCREW M5-.8 X 10
Price
N/A
384
PULLEY HOUSING SIDE COVER
385
THUMB SCREW M6-1 X 10
Price
N/A
386
PULLEY HOUSING TOP COVER
387
CAP SCREW M6-1 X 16
Price
N/A
388
VERTICAL SPINDLE MOTOR MOUNT
389
CAP SCREW M8-1.25 X 30
Price
N/A
390
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
391
VERTICAL SPINDLE MOTOR 3HP 220V 1-PH
391-1
MOTOR FAN COVER
391-2
MOTOR FAN
391-3
MOTOR JUNCTION BOX
391-4
R CAPACITOR 50M 450V 2 X 4
391-5
S CAPACITOR 300M 250V 2 X 4 LAI
Price
N/A
391-6
CENTRIFUGAL SWITCH
391-7
CONTACT PLATE
391-8
BALL BEARING 6206ZZ
Price
N/A
391-9
BALL BEARING 6206ZZ
Price
N/A
392
Now: PW10M
FLAT WASHER 14MM
Price
N/A
393
HEX BOLT M14-2 X 40
Price
N/A
394
Now: PN32M
HEX NUT M14-2
Price
N/A
395
MOTOR HANDLE
396
CAP SCREW M8-1.25 X 25
Price
N/A
397
Now: PVB29
V-BELT B29
Price
N/A
398
Now: PVB29
V-BELT B29
Price
N/A
399
VERTICAL DRAWBAR 7/16-20 X 20

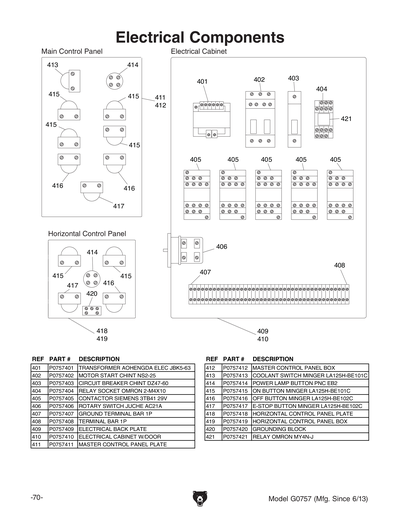

401
TRANSFORMER JBK5 160VA 220/400V-27V
402
MOTOR START CHINT NS2-25
403
CIRCUIT BREAKER 2A CHINT DZ47-60 C2 1P
404
RELAY SOCKET OMRON 2-M4X10
405
CONTACTOR SIEMENS 3TH82 24V
Price
N/A
406
ROTARY SWITCH JUCHE AC21A
407
GROUND TERMINAL BAR 1P
408
TERMINAL BAR 1P
Price
N/A
409
ELECTRICAL BACK PLATE
410
ELECTRICAL CABINET W/DOOR
411
MASTER CONTROL PANEL PLATE
412
MASTER CONTROL PANEL BOX
413
COOLANT SWITCH MINGER LA125H-BE101C
414
POWER LAMP BUTTON PNC EB2
415
ON BUTTON MINGER LA125H-BE101C
416
OFF BUTTON MINGER LA125H-BE102C
417
E-STOP BUTTON MINGER LA125H-BE102C
418
HORIZONTAL CONTROL PANEL PLATE
419
HORIZONTAL CONTROL PANEL BOX
420
GROUNDING BLOCK
421
RELAY OMRON MY4N-J

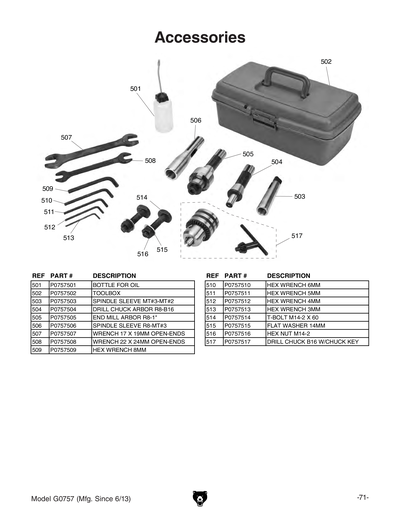

501
BOTTLE FOR OIL
Price
N/A
502
TOOLBOX
Price
N/A
503
SPINDLE SLEEVE MT#3-MT#2
Price
N/A
504
DRILL CHUCK ARBOR R8 X B16
Price
N/A
505
END MILL ARBOR R8-1"
506
SPINDLE SLEEVE R8-MT#3
Price
N/A
507
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
508
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
509
HEX WRENCH 8MM
Price
N/A
510
HEX WRENCH 6MM
Price
N/A
511
HEX WRENCH 5MM
Price
N/A
512
HEX WRENCH 4MM
Price
N/A
513
HEX WRENCH 3MM
Price
N/A
514
T-BOLT M14-2 X 60
515
Now: PW10M
FLAT WASHER 14MM
Price
N/A
516
Now: PN32M
HEX NUT M14-2
Price
N/A
517
DRILL CHUCK B16 W/CHUCK KEY
Price
N/A

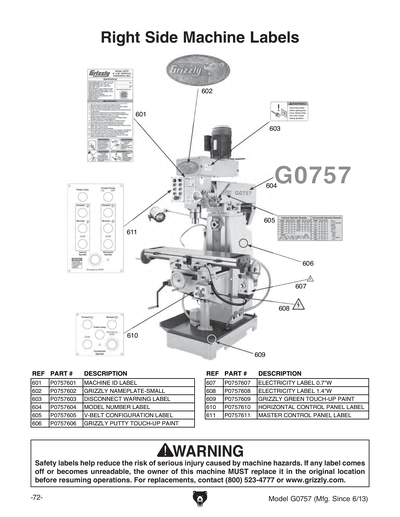

601
MACHINE ID LABEL
602
Now: G8588
Nameplate - Small
Price
N/A

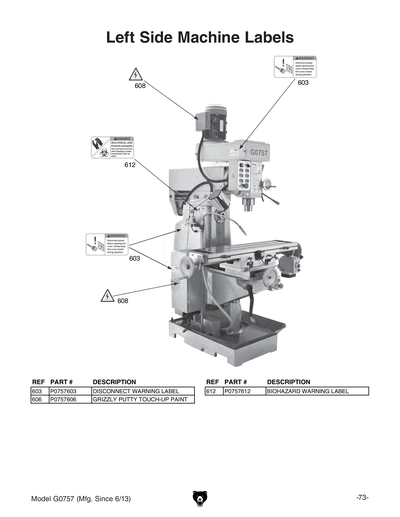

603
DISCONNECT 220V 3.8W X 2H
Price
N/A
604
MODEL NUMBER LABEL
605
V-BELT CONFIGURATION LABEL
606
GREY PUTTY REF G0504
Price
N/A
607
ELECTRICITY 0.7W X 0.6H
Price
N/A
608
ELECTRICITY 1.4W X 1.2H
Price
N/A
609
N/S GRIZZLY GREEN G1023S
Price
N/A
610
HORIZONTAL CONTROL PANEL LABEL
611
MASTER CONTROL PANEL PLATE
Price
N/A
612
BIOLOGICAL/POISON HAZARD 3.8W X 2H
Price
N/A
613
HORIZONTAL SPINDLE MOTOR ID LABEL
614
VERTICAL SPINDLE MOTOR ID LABEL
P
HEX BOLT M16-2 X 65
P
SET SCREW M5-.8 X 6 DOG-PT
Z088V2
WORK LIGHT ASSEMBLY (LED) V2.01.15
Price
N/A
