Parts for G0757Z 9" x 39" 3 HP Variable-Speed Horizontal/Vertical Mill with DRO

Parts Diagrams for G0757Z - 9" x 39" 3 HP Variable-Speed Horizontal/Vertical Mill with DRO

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

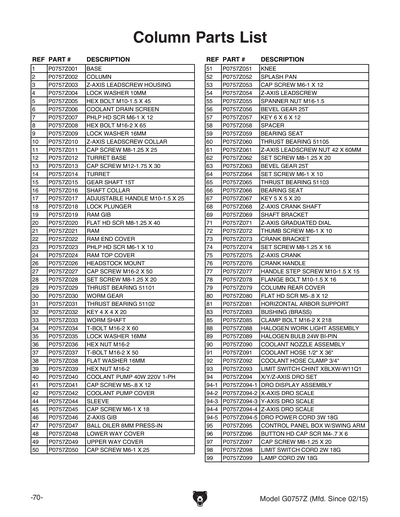

Parts List for Parts for G0757Z 9" x 39" 3 HP Variable-Speed Horizontal/Vertical Mill with DRO

1

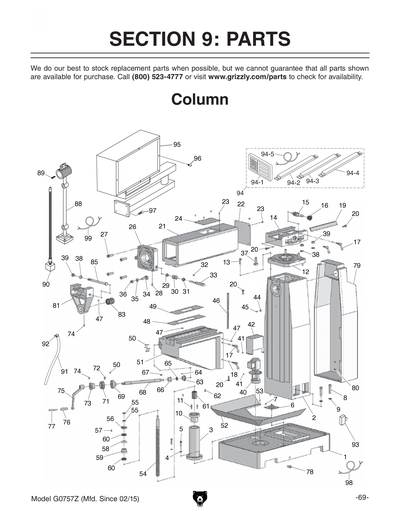

BASE
Price
N/A
2
COLUMN
Price
N/A
3
Z-AXIS LEADSCREW HOUSING
Price
N/A
4
LOCK WASHER 10MM
Price
N/A
5
HEX BOLT M10-1.5 X 45
Price
N/A
6
COOLANT DRAIN SCREEN
Price
N/A
7
Now: PS14M
PHLP HD SCR M6-1 X 12
Price
N/A
8
HEX BOLT M16-2 X 65
Price
N/A
9
LOCK WASHER 16MM
Price
N/A
10
Z-AXIS LEADSCREW COLLAR
Price
N/A
11
CAP SCREW M8-1.25 X 25
Price
N/A
12
TURRET BASE
Price
N/A
13
CAP SCREW M12-1.75 X 30
Price
N/A
14
TURRET
Price
N/A
15
GEAR SHAFT 15T
Price
N/A
16
SHAFT COLLAR
Price
N/A
17
ADJUSTABLE HANDLE M10-1.5 X 25 (CHROME)
Price
N/A
18
LOCK PLUNGER
Price
N/A
19
RAM GIB
Price
N/A
20
FLAT HD SCR M8-1.25 X 40
Price
N/A
21
RAM
Price
N/A
21-1
LARGE CORD CLAMP - MOTOR CORD
$4.70
Enter quantity between 1 and 99
21-2
SMALL CORD CLAMP - RPM SENSOR CORD
$4.70
Enter quantity between 1 and 99
22
RAM END COVER
Price
N/A
23
Now: PS68M
PHLP HD SCR M6-1 X 10
Price
N/A
24
RAM TOP COVER
Price
N/A
26
HEADSTOCK MOUNT
Price
N/A
27
CAP SCREW M16-2 X 50
Price
N/A
28
SET SCREW M8-1.25 X 20
Price
N/A
29
THRUST BEARING 51101
Price
N/A
30
WORM GEAR
Price
N/A
31
THRUST BEARING 51102
Price
N/A
32
Now: PK48M
KEY 4 X 4 X 20
Price
N/A
33
WORM SHAFT
Price
N/A
34
T-BOLT M16-2 X 60
Price
N/A
35
LOCK WASHER 16MM
Price
N/A
36
Now: PN13M
HEX NUT M16-2
Price
N/A
37
T-BOLT M16-2 X 50
Price
N/A
38
Now: PW08M
FLAT WASHER 16MM
Price
N/A
39
Now: PN13M
HEX NUT M16-2
Price
N/A
40
***USE P0751372***
Price
N/A
41
CAP SCREW M5-.8 X 12
Price
N/A
42
COOLANT PUMP COVER
Price
N/A
44
SLEEVE
Price
N/A
45
CAP SCREW M6-1 X 18
Price
N/A
46
Z-AXIS GIB
Price
N/A
47
BALL OILER 8MM PRESS-IN
Price
N/A
48
LOWER WAY COVER
Price
N/A
49
UPPER WAY COVER
Price
N/A
50
CAP SCREW M6-1 X 25
Price
N/A
51
KNEE
Price
N/A
52
SPLASH PAN
Price
N/A
53
CAP SCREW M6-1 X 12
Price
N/A
54
Z-AXIS LEADSCREW
Price
N/A
55
SPANNER NUT M16-1.5
Price
N/A
56
BEVEL GEAR 25T
Price
N/A
57
Now: PK81M
KEY 6 X 6 X 12
Price
N/A
58
SPACER
Price
N/A
59
BEARING SEAT
Price
N/A
60
THRUST BEARING 51105
Price
N/A
61
Z-AXIS LEADSCREW NUT 42 X 60MM & COLLAR
Price
N/A
62
SET SCREW M8-1.25 X 20
Price
N/A
63
BEVEL GEAR 25T
Price
N/A
64
SET SCREW M6-1 X 10
Price
N/A
65
THRUST BEARING 51103
Price
N/A
66
BEARING SEAT
Price
N/A
67
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
68
Z-AXIS CRANK SHAFT
Price
N/A
69
SHAFT BRACKET
Price
N/A
71
Z-AXIS GRADUATED DIAL
Price
N/A
72
THUMB SCREW M6-1 X 10
Price
N/A
73
CRANK BRACKET
Price
N/A
74
SET SCREW M8-1.25 X 16
Price
N/A
75
Z-AXIS CRANK
Price
N/A
76
CRANK HANDLE
Price
N/A
77
HANDLE STEP SCREW M10-1.5 X 15
Price
N/A
78
FLANGE BOLT M10-1.5 X 16
Price
N/A
79
COLUMN REAR COVER
Price
N/A
80
FLAT HD SCR M5-.8 X 12
Price
N/A
81
HORIZONTAL ARBOR SUPPORT
Price
N/A
83
BUSHING (BRASS)
Price
N/A
85
CLAMP BOLT M16-2 X 218
Price
N/A
88
HALOGEN WORK LIGHT ASSEMBLY (HALOGEN) V1
Price
N/A
89
HALOGEN BULB 24W BI-PIN
$23.40
Enter quantity between 1 and 99
90
COOLANT NOZZLE ASSEMBLY
Price
N/A
91
COOLANT HOSE 1/2" X 36"
Price
N/A
92
COOLANT HOSE CLAMP 3/4"
Price
N/A
93
LIMIT SWITCH CHINT XBLXW-W11Q1
Price
N/A
94
X/Y/Z-AXIS DRO SET
$2,072.20
Enter quantity between 1 and 99
94-1
DRO DISPLAY ASSEMBLY
$771.25
Enter quantity between 1 and 99
94-2
X-AXIS DRO SCALE
$517.20
Enter quantity between 1 and 99
94-3
Y-AXIS DRO SCALE
$396.75
Enter quantity between 1 and 99
94-4
Z-AXIS DRO SCALE
$401.10
Enter quantity between 1 and 99
94-5
DRO POWER CORD 3W 18G
$31.35
Enter quantity between 1 and 99
95
CONTROL PANEL BOX W/SWING ARM
$160.70
Enter quantity between 1 and 99
96
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
97
CAP SCREW M8-1.25 X 20
Price
N/A
98
LIMIT SWITCH CORD 2W 18G
$9.00
Enter quantity between 1 and 99
99
LAMP CORD 2W 18G
$13.70
Enter quantity between 1 and 99

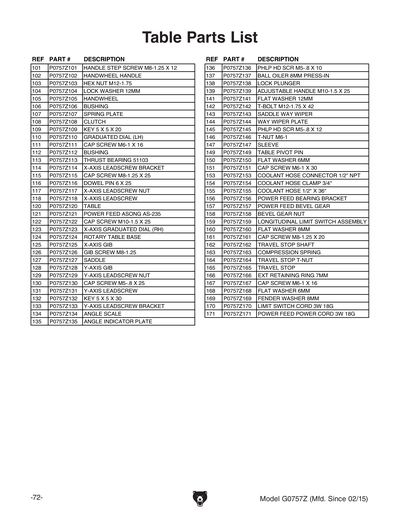

101
HANDLE STEP SCREW M8-1.25 X 12
Price
N/A
102
HANDWHEEL HANDLE
Price
N/A
103
Now: PN09M
HEX NUT M12-1.75
Price
N/A
104
LOCK WASHER 12MM
Price
N/A
105
HANDWHEEL
Price
N/A
106
BUSHING
Price
N/A
107
SPRING PLATE
Price
N/A
108
CLUTCH
Price
N/A
109
Now: PK34M
KEY 5 X 5 X 20
Price
N/A
110
GRADUATED DIAL
Price
N/A
111
CAP SCREW M6-1 X 16
Price
N/A
112
BUSHING
Price
N/A
113
THRUST BEARING 51103
Price
N/A
114
X-AXIS LEADSCREW BRACKET
Price
N/A
115
CAP SCREW M8-1.25 X 25
Price
N/A
116
DOWEL PIN 6 X 25
Price
N/A
117
X-AXIS LEADSCREW NUT
Price
N/A
118
X-AXIS LEADSCREW
Price
N/A

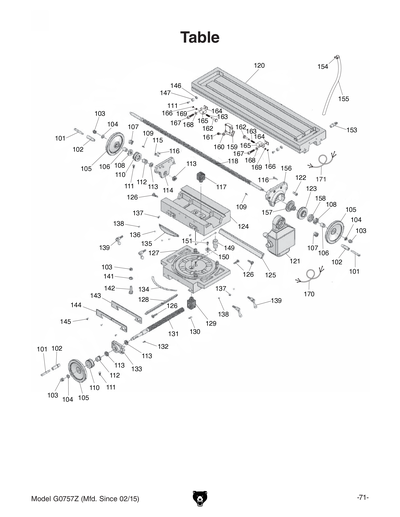

120
TABLE
Price
N/A
121
POWER FEED ASSEMBLY ASONG AS-235
Price
N/A
122
CAP SCREW M10-1.5 X 25
Price
N/A
123
X-AXIS GRADUATED DIAL (RH)
Price
N/A
124
ROTARY TABLE BASE
Price
N/A
125
X-AXIS GIB
Price
N/A
126
GIB SCREW M8-1.25
Price
N/A
127
SADDLE
Price
N/A
128
Y-AXIS GIB
Price
N/A
129
Y-AXIS LEADSCREW NUT
Price
N/A
130
CAP SCREW M5-.8 X 25
Price
N/A
131
Y-AXIS LEADSCREW
Price
N/A
132
Now: PK12M
KEY 5 X 5 X 30
Price
N/A
133
Y-AXIS LEADSCREW BRACKET
Price
N/A
134
ANGLE SCALE
Price
N/A
135
ANGLE INDICATOR PLATE
Price
N/A
136
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
137
BALL OILER 8MM PRESS-IN
Price
N/A
138
LOCK PLUNGER
Price
N/A
139
ADJUSTABLE HANDLE M10-1.5 X 25
Price
N/A
141
Now: PW06M
FLAT WASHER 12MM
Price
N/A
142
T-BOLT M12-1.75 X 42
Price
N/A
143
SADDLE WAY WIPER
Price
N/A
144
WAY WIPER PLATE
Price
N/A
145
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
146
T-NUT M6-1
Price
N/A
147
SLEEVE
Price
N/A
149
TABLE PIVOT PIN
Price
N/A
150
Now: PW03M
FLAT WASHER 6MM
Price
N/A
151
CAP SCREW M6-1 X 30
Price
N/A
153
COOLANT HOSE CONNECTOR 1/2" NPT
Price
N/A
154
COOLANT HOSE CLAMP 3/4"
Price
N/A
155
COOLANT HOSE 1/2" X 36"
Price
N/A
156
POWER FEED BEARING BRACKET
$66.90
Enter quantity between 1 and 99
157
POWER FEED BEVEL GEAR
$156.00
Enter quantity between 1 and 99
158
BEVEL GEAR NUT
$6.90
Enter quantity between 1 and 99
159
LONGITUDINAL LIMIT SWITCH ASSEMBLY
$44.60
Enter quantity between 1 and 99
160
Now: PW01M
FLAT WASHER 8MM
Price
N/A
161
CAP SCREW M8-1.25 X 20
$2.60
Enter quantity between 1 and 99
162
TRAVEL STOP SHAFT
$6.90
Enter quantity between 1 and 99
163
COMPRESSION SPRING
$2.25
Enter quantity between 1 and 99
164
TRAVEL STOP T-NUT
$4.70
Enter quantity between 1 and 99
165
TRAVEL STOP
$6.90
Enter quantity between 1 and 99
166
Now: PR36M
EXT RETAINING RING 7MM
Price
N/A
167
CAP SCREW M6-1 X 16
Price
N/A
168
Now: PW03M
FLAT WASHER 6MM
Price
N/A
169
FENDER WASHER 8MM
Price
N/A
170
LIMIT SWITCH CORD 3W 18G
$4.70
Enter quantity between 1 and 99
171
POWER FEED POWER CORD 3W 18G
$9.00
Enter quantity between 1 and 99
172
WAY COVER (RUBBER)
$31.35
Enter quantity between 1 and 99

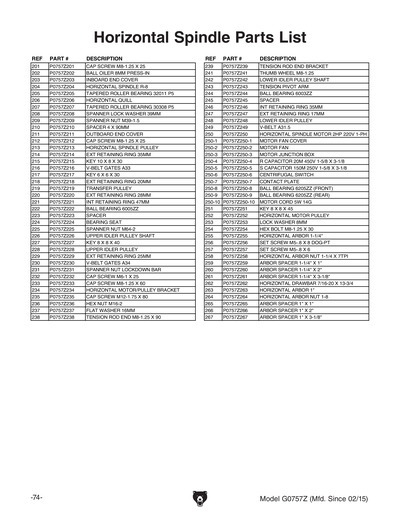

201
CAP SCREW M8-1.25 X 25
Price
N/A
202
BALL OILER 8MM PRESS-IN
Price
N/A
203
INBOARD END COVER
Price
N/A
204

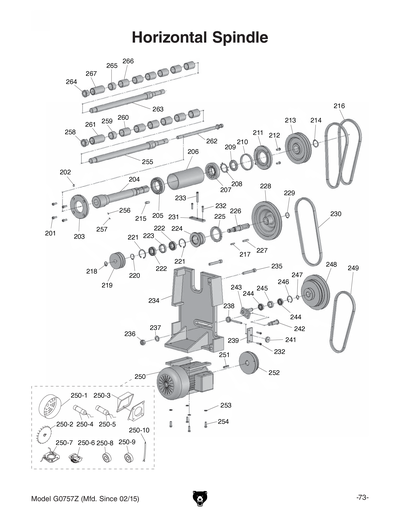

HORIZONTAL SPINDLE R-8
Price
N/A
205
TAPERED ROLLER BEARING 32011 P5
Price
N/A
206
HORIZONTAL QUILL
Price
N/A
207
TAPERED ROLLER BEARING 30308 P5
Price
N/A
208
EXT TOOTH WASHER 38MM
Price
N/A
209
SPANNER NUT M39-1.5
Price
N/A
210
SPACER 4 X 90MM
Price
N/A
211
OUTBOARD END COVER
Price
N/A
212
CAP SCREW M8-1.25 X 25
Price
N/A
213
HORIZONTAL SPINDLE PULLEY
Price
N/A
214
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
215
Now: PK84M
KEY 10 X 8 X 30
Price
N/A
216
Now: PVA33
V-BELT A33
Price
N/A
217
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
218
Now: PR09M
EXT RETAINING RING 20MM
Price
N/A
219
TRANSFER PULLEY
Price
N/A
220
Now: PR19M
EXT RETAINING RING 28MM
Price
N/A
221
Now: PR25M
INT RETAINING RING 47MM
Price
N/A
222
BALL BEARING 6005ZZ
Price
N/A
223
SPACER
Price
N/A
224
BEARING SEAT
Price
N/A
225
SPANNER NUT M64-2
Price
N/A
226
UPPER IDLER PULLEY SHAFT
Price
N/A
227
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
228
UPPER IDLER PULLEY
Price
N/A
229
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
230
Now: PVA34
V-BELT A34
Price
N/A
231
SPANNER NUT LOCKDOWN BAR
Price
N/A
232
CAP SCREW M6-1 X 25
Price
N/A
233
CAP SCREW M8-1.25 X 60
Price
N/A
234
HORIZONTAL MOTOR/PULLEY BRACKET
Price
N/A
235
CAP SCREW M12-1.75 X 80
Price
N/A
236
Now: PN13M
HEX NUT M16-2
Price
N/A
237
Now: PW08M
FLAT WASHER 16MM
Price
N/A
238
TENSION ROD END M8-1.25 X 90
Price
N/A
239
TENSION ROD END BRACKET
Price
N/A
241
THUMB WHEEL M8-1.25
Price
N/A
242
LOWER IDLER PULLEY SHAFT
Price
N/A
243
TENSION PIVOT ARM
Price
N/A
244
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
245
SPACER
Price
N/A
246
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
247
Now: PR18M
EXT RETAINING RING 17MM
Price
N/A
248
LOWER IDLER PULLEY
Price
N/A
249
V-BELT A31.5
Price
N/A
250
HORIZONTAL SPINDLE MOTOR 2HP 220V 1-PH
Price
N/A
250-1
MOTOR FAN COVER
Price
N/A
250-10
MOTOR CORD 5W 14G
$13.70
Enter quantity between 1 and 99
250-2
MOTOR FAN
Price
N/A
250-3
MOTOR JUNCTION BOX
Price
N/A
250-4
*DISCD*R CAPACITOR 20M 450V 1-5/8 X 3-1/
Price
N/A
250-5
S CAPACITOR 150M 250V 1-5/8 X 3-1/8
Price
N/A
250-6
CENTRIFUGAL SWITCH
Price
N/A
250-7
CONTACT PLATE
Price
N/A
250-8
BALL BEARING 6205ZZ
Price
N/A
250-9
BALL BEARING 6205ZZ
Price
N/A
251
Now: PK43M
KEY 8 X 8 X 45
Price
N/A
252
HORIZONTAL MOTOR PULLEY
Price
N/A
253
LOCK WASHER 8MM
Price
N/A
254
Now: PB26M
HEX BOLT M8-1.25 X 30
Price
N/A
255
CHUCK ARBOR R8
Price
N/A
256
SET SCREW M5-.8 X 8 DOG-PT
Price
N/A
257
SET SCREW M5-.8 X 6
Price
N/A
258
HORIZONTAL ARBOR NUT 1-1/4-7
Price
N/A
259
ARBOR SPACER 1"(L) X 1-1/4"(ID) X 1-9/16
Price
N/A
260
ARBOR SPACER 1-31/32"(L) X 1-1/4"(ID)
Price
N/A
261
ARBOR SPACER 3-9/64" (L) X 1-1/14" (ID)
Price
N/A
262
HORIZONTAL DRAWBAR 7/16-20 X 13-3/4
Price
N/A
263
CHUCK ARBOR R8
Price
N/A
264
HORIZONTAL ARBOR NUT 1-8
Price
N/A
265
ARBOR SPACER 1"(L)X 1"(ID)X 1-9/16" (OD)
Price
N/A
266
ARBOR SPACER 1-31/32"(L) X 1"(ID)
Price
N/A
267
ARBOR SPACER 3-9/64"(L) X 1"(ID)
Price
N/A

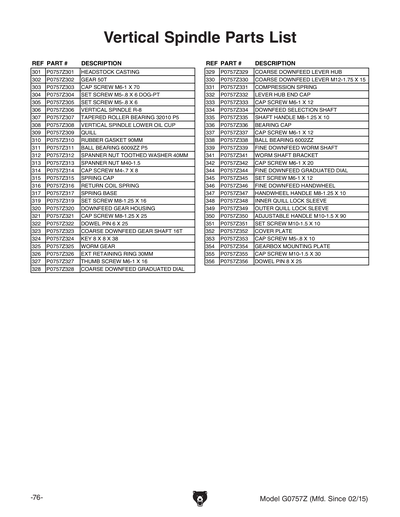

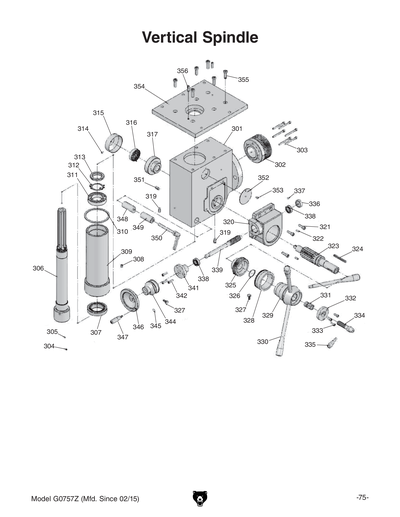

301
HEADSTOCK CASTING
Price
N/A
301-1
ANGLE SCALE - HEADSTOCK
Price
N/A
301-2
RIVET 2 X 5MM NAMEPLATE, ALUMINUM
Price
N/A
302
GEAR 50T
Price
N/A
303
CAP SCREW M6-1 X 70
Price
N/A
304
SET SCREW M5-.8 X 6 DOG-PT
Price
N/A
305
SET SCREW M5-.8 X 6
Price
N/A
306
VERTICAL SPINDLE R-8
Price
N/A
307
TAPERED ROLLER BEARING 32010 P5
Price
N/A
308
VERTICAL SPINDLE LOWER OIL SEAL
Price
N/A
309
QUILL
Price
N/A
310
GASKET
Price
N/A
311
BALL BEARING 6009ZZ P5
Price
N/A
312
EXT TOOTH WASHER 40MM
Price
N/A
313
SPANNER NUT M40-1.5
Price
N/A
314
CAP SCREW M4-.7 X 8
Price
N/A
315
SPRING CAP
Price
N/A
316
RETURN COIL SPRING
Price
N/A
317
SPRING BASE
Price
N/A
319
SET SCREW M8-1.25 X 16
Price
N/A
320
DOWNFEED GEAR HOUSING
Price
N/A
321
CAP SCREW M8-1.25 X 25
Price
N/A
322
DOWEL PIN 6 X 25
Price
N/A
323
COARSE DOWNFEED GEAR SHAFT 16T
Price
N/A
324
KEY 8 X 8 X 38
Price
N/A
325
WORM GEAR
Price
N/A
326
Now: PR15M
EXT RETAINING RING 30MM
Price
N/A
327
THUMB SCREW M6-1 X 16
Price
N/A
328
COARSE DOWNFEED GRADUATED DIAL
Price
N/A
329
COARSE DOWNFEED LEVER HUB
Price
N/A
330
COARSE DOWNFEED LEVER M12-1.75 X 15
Price
N/A
331
COMPRESSION SPRING
Price
N/A
332
LEVER HUB END CAP
Price
N/A
333
CAP SCREW M6-1 X 12
Price
N/A
334
DOWNFEED SELECTION SHAFT
Price
N/A
335
SHAFT HANDLE M8-1.25 X 10
Price
N/A
336
BEARING CAP
Price
N/A
337
CAP SCREW M6-1 X 12
Price
N/A
338
BALL BEARING 6002ZZ
Price
N/A
339
FINE DOWNFEED WORM SHAFT
Price
N/A
341
WORM SHAFT BRACKET
Price
N/A
342
CAP SCREW M6-1 X 20
Price
N/A
344
FINE DOWNFEED GRADUATED DIAL
Price
N/A
345
SET SCREW M6-1 X 12
Price
N/A
346
FINE DOWNFEED HANDWHEEL
Price
N/A
347
HANDWHEEL HANDLE M8-1.25 X 10
Price
N/A
348
INNER QUILL LOCK SLEEVE
Price
N/A
349
OUTER QUILL LOCK SLEEVE
Price
N/A
350
ADJUSTABLE HANDLE M10-1.5 X 90
Price
N/A
351
SET SCREW M10-1.5 X 10
Price
N/A
352
COVER PLATE
Price
N/A
353
CAP SCREW M5-.8 X 10
Price
N/A
354
GEARBOX MOUNTING PLATE
$138.40
Enter quantity between 1 and 99
355
CAP SCREW M10-1.5 X 30
Price
N/A
356
DOWEL PIN 8 X 25
$1.90
Enter quantity between 1 and 99

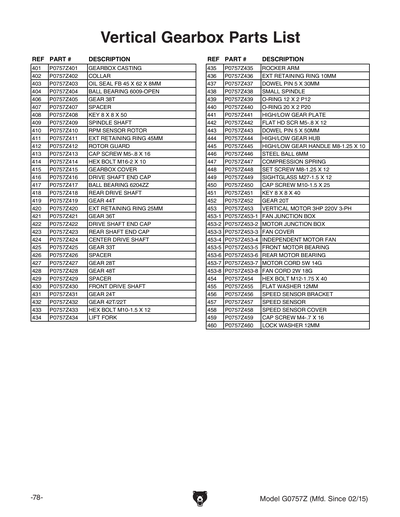

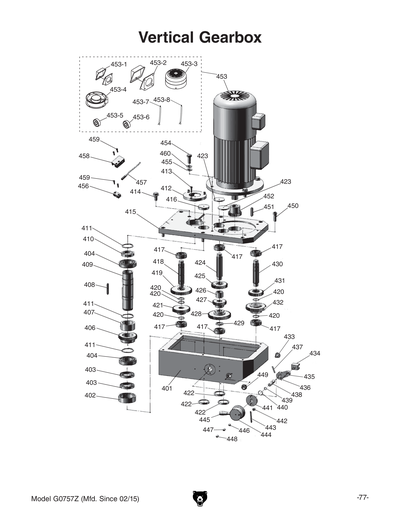

401
GEARBOX CASTING
$289.70
Enter quantity between 1 and 99
402
COLLAR
$18.00
Enter quantity between 1 and 99
403
OIL SEAL FB 45 X 62 X 8
Price
N/A
404
BALL BEARING 6009-OPEN
Price
N/A
405
GEAR 38T
$42.45
Enter quantity between 1 and 99
407
SPACER
$13.70
Enter quantity between 1 and 99
408
KEY 8 X 8 X 50
Price
N/A
409
SPINDLE SHAFT
$111.45
Enter quantity between 1 and 99
410
RPM SENSOR ROTOR
$13.70
Enter quantity between 1 and 99
411
Now: PR56M
EXT RETAINING RING 45MM
Price
N/A
412
ROTOR GUARD
$22.35
Enter quantity between 1 and 99
413
CAP SCREW M5-.8 X 16
Price
N/A
414
HEX BOLT M16-2 X 10
$1.90
Enter quantity between 1 and 99
415
GEARBOX COVER
$138.40
Enter quantity between 1 and 99
416
DRIVE SHAFT END CAP
$9.00
Enter quantity between 1 and 99
417
BALL BEARING 6204ZZ
Price
N/A
418
REAR DRIVE SHAFT
$35.95
Enter quantity between 1 and 99
419
GEAR 44T
$47.15
Enter quantity between 1 and 99
420
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
421
GEAR 36T
$44.60
Enter quantity between 1 and 99
422
DRIVE SHAFT END CAP
$9.00
Enter quantity between 1 and 99
423
REAR SHAFT END CAP
$9.00
Enter quantity between 1 and 99
424
CENTER DRIVE SHAFT
$35.95
Enter quantity between 1 and 99
425
GEAR 33T
$33.45
Enter quantity between 1 and 99
426
SPACER
$6.90
Enter quantity between 1 and 99
427
GEAR 28T
$33.45
Enter quantity between 1 and 99
428
GEAR 48T
$49.25
Enter quantity between 1 and 99
429
SPACER
$3.65
Enter quantity between 1 and 99
430
FRONT DRIVE SHAFT
$35.95
Enter quantity between 1 and 99
431
GEAR 24T
$31.35
Enter quantity between 1 and 99
432
GEAR 42T/22T
$62.60
Enter quantity between 1 and 99
433
HEX BOLT M10-1.5 X 12
Price
N/A
434
LIFT FORK
$22.35
Enter quantity between 1 and 99
435
ROCKER ARM
$22.35
Enter quantity between 1 and 99
436
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
437
DOWEL PIN 5 X 30MM
$1.90
Enter quantity between 1 and 99
438
SMALL SPINDLE
$4.70
Enter quantity between 1 and 99
439
O-RING 12 X 2 P12
$1.90
Enter quantity between 1 and 99
440
O-RING 20 X 2 P20
$1.90
Enter quantity between 1 and 99
441
HIGH/LOW GEAR PLATE
$9.00
Enter quantity between 1 and 99
442
FLAT HD SCR M5-.8 X 12
Price
N/A
443
DOWEL PIN 5 X 50MM
$1.90
Enter quantity between 1 and 99
444
HIGH/LOW GEAR HUB
$22.35
Enter quantity between 1 and 99
445
HIGH/LOW GEAR HANDLE M8-1.25 X 10
$17.90
Enter quantity between 1 and 99
446
STEEL BALL 6MM
Price
N/A
447
COMPRESSION SPRING
$1.90
Enter quantity between 1 and 99
448
SET SCREW M8-1.25 X 12
Price
N/A
449
SIGHTGLASS M27-1.5 X 12
$6.90
Enter quantity between 1 and 99
450
CAP SCREW M10-1.5 X 25
Price
N/A
451
Now: PK41M
KEY 8 X 8 X 40
Price
N/A
452
GEAR 20T
$66.90
Enter quantity between 1 and 99
453
VERTICAL MOTOR 3HP 220V 3-PH
$815.85
Enter quantity between 1 and 99
453-1
FAN JUNCTION BOX
$22.35
Enter quantity between 1 and 99
453-2
MOTOR JUNCTION BOX
$22.35
Enter quantity between 1 and 99
453-3
FAN COVER
$53.60
Enter quantity between 1 and 99
453-4
INDEPENDENT MOTOR FAN
$144.90
Enter quantity between 1 and 99
453-5
FRONT MOTOR BEARING
$18.00
Enter quantity between 1 and 99
453-6
REAR MOTOR BEARING
$18.00
Enter quantity between 1 and 99
453-7
MOTOR CORD 5W 14G
$4.70
Enter quantity between 1 and 99
453-8
FAN CORD 2W 18G
$4.70
Enter quantity between 1 and 99
454
Now: PB35M
HEX BOLT M12-1.75 X 40
Price
N/A
455
Now: PW06M
FLAT WASHER 12MM
Price
N/A
456
SPEED SENSOR BRACKET
$22.35
Enter quantity between 1 and 99
457
SPEED SENSOR
$13.70
Enter quantity between 1 and 99
458
SPEED SENSOR COVER
$31.35
Enter quantity between 1 and 99
459
CAP SCREW M4-.7 X 16
Price
N/A
460
LOCK WASHER 12MM
Price
N/A

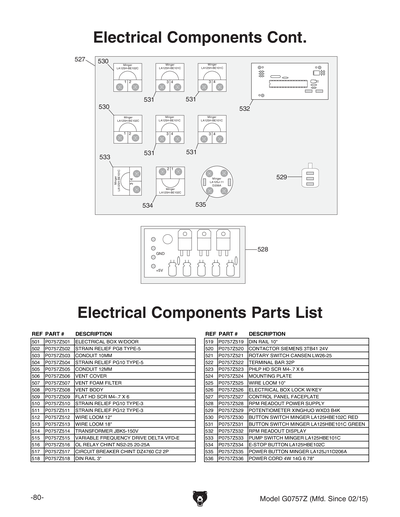

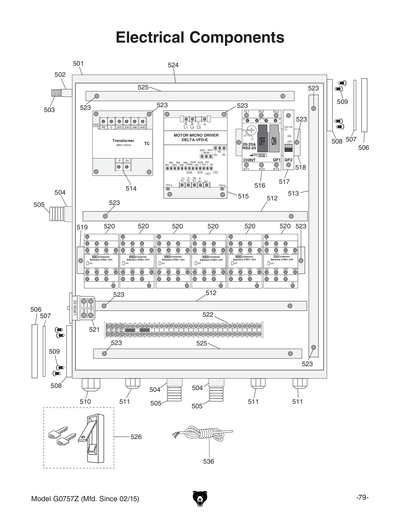

501
ELECTRICAL BOX W/DOOR
$147.40
Enter quantity between 1 and 99
502
STRAIN RELIEF PG8 TYPE-5
$4.70
Enter quantity between 1 and 99
503
CONDUIT 10MM
$9.00
Enter quantity between 1 and 99
504
STRAIN RELIEF PG10 TYPE-5
$4.70
Enter quantity between 1 and 99
505
CONDUIT 12MM
$9.00
Enter quantity between 1 and 99
506
VENT COVER
$9.00
Enter quantity between 1 and 99
507
VENT FOAM FILTER
$9.00
Enter quantity between 1 and 99
508
VENT BODY
$22.35
Enter quantity between 1 and 99
509
FLAT HD SCR M4-.7 X 6
Price
N/A
510
STRAIN RELIEF PG10 TYPE-3
$9.00
Enter quantity between 1 and 99
511
STRAIN RELIEF PG12 TYPE-3
$9.00
Enter quantity between 1 and 99
512
WIRE LOOM 12"
$4.70
Enter quantity between 1 and 99
513
WIRE LOOM 18"
$4.70
Enter quantity between 1 and 99
514
TRANSFORMER JBK5 160VA 220/440V-27V
$130.25
Enter quantity between 1 and 99
515
VFD DELTA MS00 V2.07.19
Price
N/A
515V2
VFD DELTA MS00 V2.07.19
$1,470.60
Enter quantity between 1 and 99
516
OL RELAY CHINT NS2-25 20-25A
$82.25
Enter quantity between 1 and 99
517
CIRCUIT BREAKER CHINT DZ4760 C2 2P
$22.35
Enter quantity between 1 and 99
518
DIN RAIL 3"
$4.70
Enter quantity between 1 and 99
519
DIN RAIL 10"
$4.70
Enter quantity between 1 and 99
520
CONTACTOR SIEMENS 3TB41 24V
$58.25
Enter quantity between 1 and 99
521
ROTARY SWITCH CANSEN LW26-25
$75.90
Enter quantity between 1 and 99
522
TERMINAL BAR 32P
$4.70
Enter quantity between 1 and 99
523
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
524
MOUNTING PLATE
$53.60
Enter quantity between 1 and 99
525
WIRE LOOM 10"
$4.70
Enter quantity between 1 and 99
526
ELECTRICAL BOX LOCK W/KEY
$22.35
Enter quantity between 1 and 99
527
CONTROL PANEL FACEPLATE
$35.95
Enter quantity between 1 and 99
528
RPM READOUT POWER SUPPLY
$66.90
Enter quantity between 1 and 99
529
POTENTIOMETER XINGHUO WXD3 B4K
$18.00
Enter quantity between 1 and 99
530
BUTTON SWITCH MINGER LA125HBE102C RED
$22.35
Enter quantity between 1 and 99
531
BUTTON SWITCH MINGER LA125HBE101C GREEN
$22.35
Enter quantity between 1 and 99
532
RPM READOUT DISPLAY
$50.05
Enter quantity between 1 and 99
533
PUMP SWITCH MINGER LA125HBE101C
$27.00
Enter quantity between 1 and 99
534
E-STOP BUTTON MINGER LA125H-BE102C
Price
N/A
535
POWER BUTTON MINGER LA125J11D206A
$31.35
Enter quantity between 1 and 99
536
POWER CORD 4W 14G 6 78"
$22.35
Enter quantity between 1 and 99

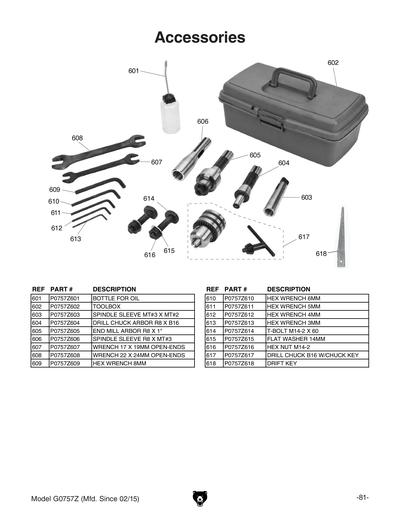

601
BOTTLE FOR OIL
$7.50
Enter quantity between 1 and 99
602
TOOLBOX
Price
N/A
603
SPINDLE SLEEVE MT#3-MT#2
Price
N/A
604
DRILL CHUCK ARBOR R8-B16
Price
N/A
605
END MILL ARBOR R8-1"
Price
N/A
606
SPINDLE SLEEVE R8-MT#3
Price
N/A
607
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
608
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
609
HEX WRENCH 8MM
Price
N/A
610
HEX WRENCH 6MM
Price
N/A
611
HEX WRENCH 5MM
Price
N/A
612
HEX WRENCH 4MM
Price
N/A
613
HEX WRENCH 3MM
Price
N/A
614
T-BOLT M14-2 X 60
Price
N/A
615
Now: PW10M
FLAT WASHER 14MM
Price
N/A
616
Now: PN32M
HEX NUT M14-2
Price
N/A
617
DRILL CHUCK B16 W/CHUCK KEY
$31.35
Enter quantity between 1 and 99
618
DRIFT KEY
$8.35
Enter quantity between 1 and 99

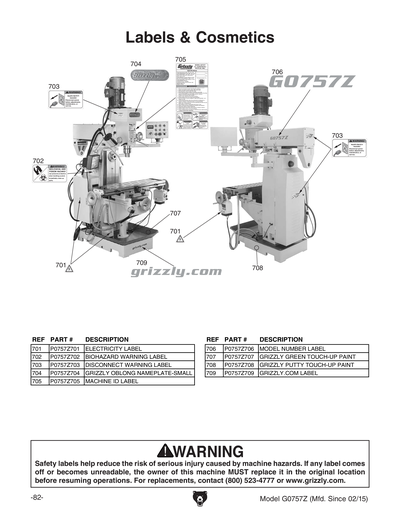

701
ELECTRICITY 0.5W X 0.4H
Price
N/A
702
BIOLOGICAL/POISON HAZARD 2.8W X 1.5H
Price
N/A
703
DISCONNECT 220V 3.8W X 2H
Price
N/A
704
Now: H4609
Oblong Nameplate-Small
Price
N/A
705
MACHINE ID LABEL
$16.40
Enter quantity between 1 and 99
706
MODEL NUMBER LABEL
$7.85
Enter quantity between 1 and 99
707
N/S GRIZZLY GREEN G1023S
Price
N/A
708
GREY PUTTY REF G0504
Price
N/A
709
GRIZZLY.COM LABEL 12",GREEN
Price
N/A
P
SET SCREW M5-.8 X 8 DOG-PT
$1.90
Enter quantity between 1 and 99
