Parts for G0764Z - 14" 10 HP 3-Phase Sliding Table Saw with 124" Cutting Capacity

Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z
Part Diagram for G0764Z

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

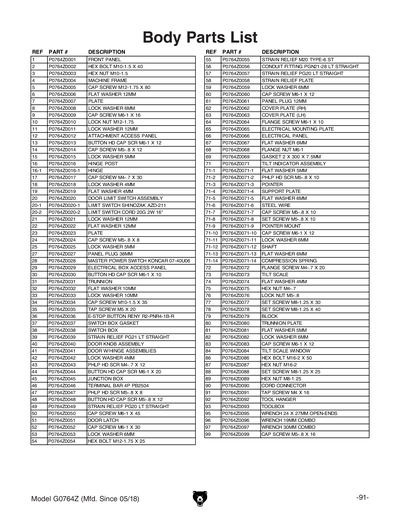

Ref #
Part #
Description

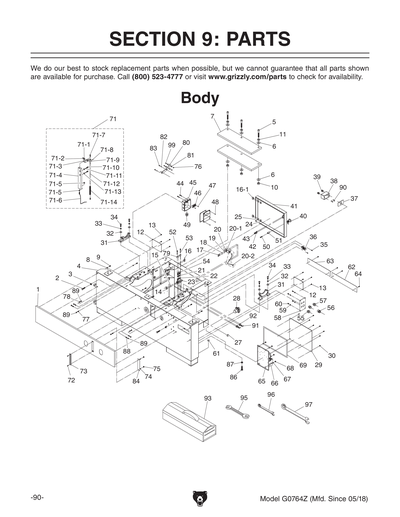

1
FRONT PANEL
Price
$167.30
2
HEX BOLT M10-1.5 X 40
Price
N/A
3
HEX NUT M10-1.5
Price
N/A
4
MACHINE FRAME
Price
$2,403.60
5
CAP SCREW M12-1.75 X 80
Price
N/A
6
FLAT WASHER 12MM
Price
N/A
7
PLATE
Price
$209.25
8
LOCK WASHER 6MM
Price
N/A
9
CAP SCREW M6-1 X 16
Price
N/A
10
LOCK NUT M12-1.75
Price
N/A
11
LOCK WASHER 12MM
Price
N/A
12
ATTACHMENT ACCESS PANEL
Price
N/A
13
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
14
FLANGE SCREW M5-.8 X 10
Price
N/A
15
LOCK WASHER 5MM
Price
N/A
16
HINGE POST
Price
N/A
16-1
HINGE
Price
$23.30
17
CAP SCREW M4-.7 X 30
Price
N/A
18
LOCK WASHER 4MM
Price
N/A
19
FLAT WASHER 4MM
Price
N/A
20
DOOR LIMIT SWITCH SHINOZAK AZD-211
Price
N/A
20-1
LIMIT SWITCH SHINOZAK AZD-S11
Price
$53.25
20-2
LIMIT SWITCH CORD 20G 2W 16"
Price
$4.60
21
LOCK WASHER 12MM
Price
N/A
22
FLAT WASHER 12MM
Price
N/A
23
PLATE
Price
$11.20
24
CAP SCREW M5-.8 X 8
Price
N/A
25
LOCK WASHER 5MM
Price
N/A
27
PANEL PLUG 38MM
Price
$259.35
28
MASTER POWER SWITCH KONCAR 07-40U06
Price
N/A
29
ELECTRICAL BOX ACCESS PANEL
Price
N/A
30
FLANGE SCREW M6-1 X 10
Price
N/A
31
TRUNNION
Price
N/A
32
FLAT WASHER 10MM
Price
N/A
33
LOCK WASHER 10MM
Price
N/A
34
CAP SCREW M10-1.5 X 35
Price
N/A
35
TAP SCREW M5 X 20
Price
N/A
36
EMERGENCY STOP BUTTON
Price
N/A
37
SWITCH BOX GASKET
Price
N/A
38
SWITCH BOX
Price
N/A
39
STRAIN RELIEF M17 TYPE-6 ST
Price
N/A
40
DOOR KNOB ASSEMBLY
Price
N/A
41
DOOR W/HINGE ASSEMBLIES
Price
N/A
42
LOCK WASHER 4MM
Price
N/A
43
PHLP HD SCR M4-.7 X 12
Price
N/A
44
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
45
JUNCTION BOX
Price
N/A
46
TERMINAL BAR 4P PB2504
Price
N/A
47
PHLP HD SCR M5-.8 X 8
Price
N/A
48
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
49
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
50
CAP SCREW M6-1 X 45
Price
N/A
51
DOOR LATCH
Price
N/A
52
CAP SCREW M6-1 X 30
Price
N/A
53
LOCK WASHER 6MM
Price
N/A
54
HEX BOLT M12-1.75 X 25
Price
N/A
55
STRAIN RELIEF M20 TYPE-6 ST
Price
N/A
56
CONDUIT FITTING PGN21-28 LT STRAIGHT
Price
N/A
57
STRAIN RELIEF TYPE-3 M20-1.5
Price
N/A
58
STRAIN RELIEF PLATE
Price
N/A
59
LOCK WASHER 6MM
Price
N/A
60
CAP SCREW M6-1 X 12
Price
N/A
61
PANEL PLUG 12MM
Price
$259.35
62
COVER PLATE (RH)
Price
$22.25
63
COVER PLATE (LH)
Price
N/A
64
FLANGE SCREW M6-1 X 10
Price
N/A
65
ELECTRICAL MOUNTING PLATE
Price
$29.30
66
ELECTRICAL PANEL
Price
$50.15
67
FLAT WASHER 6MM
Price
N/A
68
FLANGE NUT M6-1
Price
N/A
69
GASKET 2 X 300 X 7.5MM
Price
N/A
71
TILT INDICATOR ASSEMBLY
Price
N/A
71-1
FLAT WASHER 5MM
Price
N/A
71-10
CAP SCREW M6-1 X 12
Price
N/A
71-11
LOCK WASHER 6MM
Price
N/A
71-12
SHAFT
Price
N/A
71-13
FLAT WASHER 6MM
Price
N/A
71-14
COMPRESSION SPRING
Price
N/A
71-2
PHLP HD SCR M5-.8 X 10
Price
N/A
71-3
POINTER
Price
N/A
71-4
SUPPORT PLATE
Price
N/A
71-5
FLAT WASHER 6MM
Price
N/A
71-6
STEEL WIRE
Price
N/A
71-7
CAP SCREW M5-.8 X 10
Price
N/A
71-8
SET SCREW M5-.8 X 10
Price
N/A
71-9
POINTER MOUNT
Price
N/A
72
FLANGE SCREW M4-.7 X 20
Price
N/A
73
TILT SCALE
Price
N/A
74
FLAT WASHER 4MM
Price
N/A
75
HEX NUT M4-.7
Price
N/A
76
LOCK NUT M5-.8
Price
N/A
77
SET SCREW M8-1.25 X 30
Price
N/A
78
SET SCREW M8-1.25 X 40
Price
N/A
79
BLOCK
Price
$16.05
80
TRUNNION PLATE
Price
$21.20
81
FLAT WASHER 5MM
Price
N/A
82
LOCK WASHER 6MM
Price
N/A
83
CAP SCREW M6-1 X 12
Price
N/A
84
TILT SCALE WINDOW
Price
N/A
86
HEX BOLT M16-2 X 50
Price
N/A
87
HEX NUT M16-2
Price
N/A
88
SET SCREW M8-1.25 X 25
Price
N/A
89
HEX NUT M8-1.25
Price
N/A
90
CORD CONNECTOR
Price
N/A
91
TAP SCREW M4 X 16
Price
N/A
92
TOOL HANGER
Price
N/A
93
TOOLBOX
Price
N/A
95
WRENCH 24 X 27MM OPEN-ENDS
Price
N/A
96
WRENCH 19MM COMBO
Price
N/A
97
WRENCH 30MM COMBO
Price
N/A
99
CAP SCREW M5-.8 X 16
Price
N/A

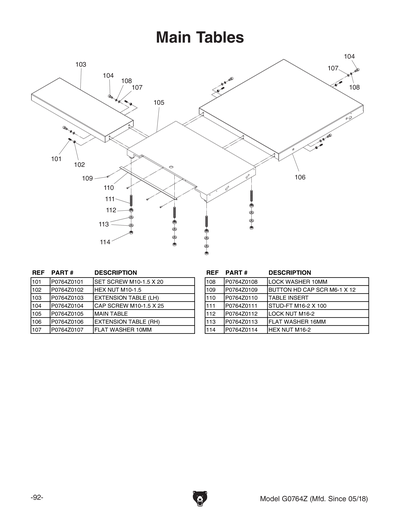

101
SET SCREW M10-1.5 X 20
Price
N/A
102
HEX NUT M10-1.5
Price
N/A
103
EXTENSION TABLE (LH)
Price
N/A
104
CAP SCREW M10-1.5 X 25
Price
N/A
105
MAIN TABLE
Price
$659.05
106
EXTENSION TABLE (RH)
Price
N/A
107
FLAT WASHER 10MM
Price
N/A
108
LOCK WASHER 10MM
Price
N/A
109
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
110
***USE P06990110***
Price
N/A
111
STUD-FT M16-2 X 100
Price
N/A
112
LOCK NUT M16-2
Price
N/A
113
FLAT WASHER 16MM
Price
N/A
114
HEX NUT M16-2
Price
N/A

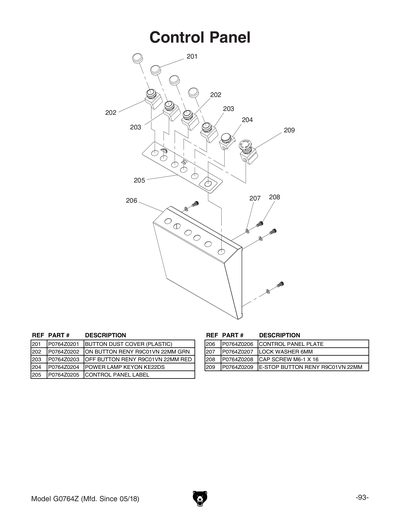

201
BUTTON DUST COVER (PLASTIC)
Price
N/A
202
ON BUTTON RENY R9C01VN 22MM GRN
Price
N/A
203
OFF BUTTON RENY R9C01VN 22MM RED
Price
N/A
204
POWER LAMP KEYON KE22DS
Price
N/A
205
CONTROL PANEL LABEL
Price
N/A
206
CONTROL PANEL PLATE
Price
N/A
207
LOCK WASHER 6MM
Price
N/A
208
CAP SCREW M6-1 X 16
Price
N/A
209
E-STOP BUTTON RENY R9C01VN 22MM
Price
N/A

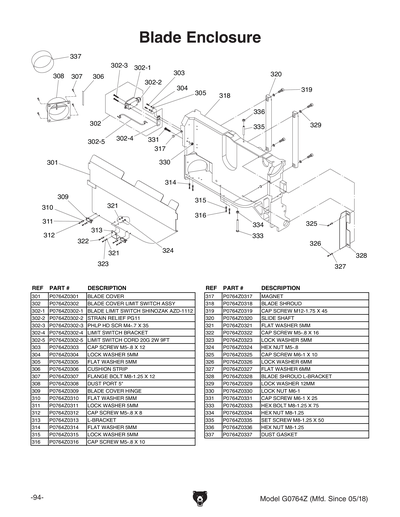

301
BLADE COVER
Price
$87.90
302
BLADE COVER LIMIT SWITCH ASSY
Price
$48.65
302-1
BLADE LIMIT SWITCH SHINOZAK AZD-1112
Price
N/A
302-2
STRAIN RELIEF PG11
Price
$4.60
302-3
PHLP HD SCR M4-.7 X 35
Price
N/A
302-4
LIMIT SWITCH BRACKET
Price
$7.60
302-5
LIMIT SWITCH CORD 20G 2W 9FT
Price
$10.00
303
CAP SCREW M5-.8 X 12
Price
N/A
304
LOCK WASHER 5MM
Price
N/A
305
FLAT WASHER 5MM
Price
N/A
306
CUSHION STRIP
Price
N/A
307
FLANGE BOLT M8-1.25 X 12
Price
N/A
308
DUST PORT 5"
Price
$7.00
309
BLADE COVER HINGE
Price
N/A
310
FLAT WASHER 5MM
Price
N/A
311
LOCK WASHER 5MM
Price
N/A
312
CAP SCREW M5-.8 X 8
Price
N/A
313
L-BRACKET
Price
N/A
314
FLAT WASHER 5MM
Price
N/A
315
LOCK WASHER 5MM
Price
N/A
316
CAP SCREW M5-.8 X 10
Price
N/A
317
MAGNET
Price
$9.40
318
BLADE SHROUD
Price
$439.55
319
CAP SCREW M12-1.75 X 45
Price
N/A
320
SLIDE SHAFT
Price
$97.25
321
FLAT WASHER 5MM
Price
N/A
322
CAP SCREW M5-.8 X 16
Price
N/A
323
LOCK WASHER 5MM
Price
N/A
324
HEX NUT M5-.8
Price
N/A
325
CAP SCREW M6-1 X 10
Price
N/A
326
LOCK WASHER 6MM
Price
N/A
327
FLAT WASHER 6MM
Price
N/A
328
BLADE SHROUD L-BRACKET
Price
$17.85
329
LOCK WASHER 12MM
Price
N/A
330
LOCK NUT M6-1
Price
N/A
331
CAP SCREW M6-1 X 25
Price
N/A
333
HEX BOLT M8-1.25 X 75
Price
N/A
334
HEX NUT M8-1.25
Price
N/A
335
SET SCREW M8-1.25 X 50
Price
N/A
336
HEX NUT M8-1.25
Price
N/A
337
DUST GASKET
Price
$3.05
401
FLANGE CAP SCREW M10-1.5 X 20
Price
N/A
402
PULLEY FLAT WASHER M10
Price
N/A

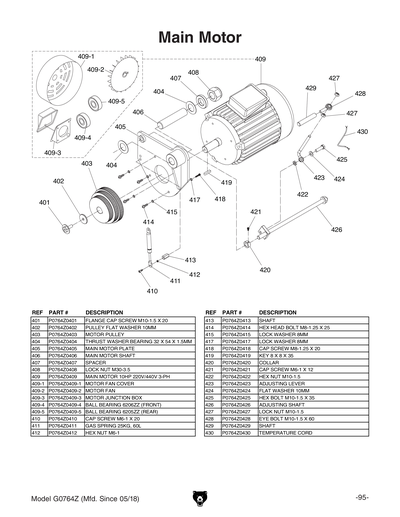

403
MOTOR PULLEY
Price
$243.85
404
THRUST WASHER BEARING 32 X 54 X 1.5MM
Price
$13.60
405
MAIN MOTOR PLATE
Price
$180.55
406
MAIN MOTOR SHAFT
Price
$44.10
407
SPACER
Price
$7.00
408
LOCK NUT M30-3.5
Price
$44.10
409
MOTOR 10HP 220V/440V 3PH
Price
N/A
409-1
MOTOR FAN COVER
Price
$31.15
409-2
MOTOR FAN
Price
$22.05
409-3
MOTOR JUNCTION BOX
Price
$31.15
409-4
BALL BEARING 6206ZZ
Price
N/A
409-5
BALL BEARING 6205ZZ
Price
N/A
410
CAP SCREW M6-1 X 20
Price
N/A
411
GAS SPRING 25KG, 60L
Price
$64.35
412
HEX NUT M6-1
Price
N/A
413
SHAFT
Price
$11.20
414
PHLP HD SCR M8-1.25 X 25
Price
N/A
415
LOCK WASHER 8MM
Price
N/A
417
LOCK WASHER 8MM
Price
N/A
418
SET SCREW M8-1.25 X 20
Price
N/A
419
KEY 8 X 8 X 35
Price
N/A
420
COLLAR
Price
$9.40
421
CAP SCREW M6-1 X 12
Price
N/A
422
HEX NUT M10-1.5
Price
N/A
423
ADJUSTING LEVER
Price
$20.30
424
FLAT WASHER 10MM
Price
N/A
425
HEX BOLT M10-1.5 X 35
Price
N/A
426
ADJUSTING SHAFT
Price
$39.85
427
LOCK NUT M10-1.5
Price
N/A
428
EYE BOLT M10-1.5 X 60
Price
$28.75
429
SHAFT
Price
$17.85
430
TEMPERATURE CORD
Price
$33.85

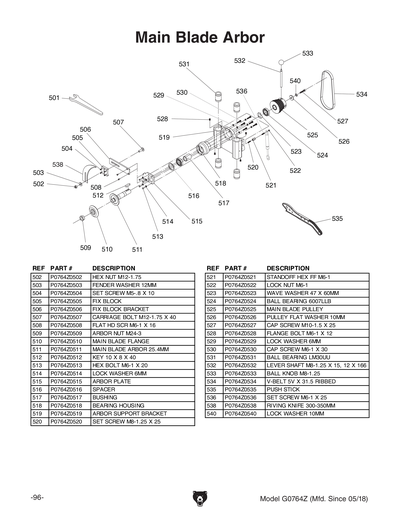

501
ARBOR NUT WRENCH 36MM
Price
$79.50
502
HEX NUT M12-1.75
Price
N/A
503
FENDER WASHER 12MM
Price
N/A
504
SET SCREW M5-.8 X 10
Price
N/A
505
FIX BLOCK
Price
$17.85
506
FIX BLOCK BRACKET
Price
$45.35
507
CARRIAGE BOLT M12-1.75 X 40
Price
N/A
508
FLAT HD SCR M6-1 X 16
Price
N/A
509
ARBOR NUT M24-3
Price
$22.25
510
MAIN BLADE FLANGE
Price
$45.75
511
MAIN BLADE ARBOR 25.4MM
Price
$102.05
512
KEY 10 X 8 X 40
Price
N/A
513
HEX BOLT M6-1 X 20
Price
N/A
514
LOCK WASHER 6MM
Price
N/A
515
ARBOR PLATE
Price
$35.35
516
SPACER
Price
$7.00
517
BUSHING
Price
$24.50
518
BEARING HOUSING
Price
$99.05
519
ARBOR SUPPORT BRACKET
Price
$257.10
520
SET SCREW M8-1.25 X 25
Price
N/A
521
STANDOFF HEX FF M6-1
Price
$10.30
522
LOCK NUT M6-1
Price
N/A
523
WAVE WASHER 47 X 60MM
Price
$3.45
524
BALL BEARING 6007LLB
Price
N/A
525
MAIN BLADE PULLEY
Price
$131.95
526
PULLEY FLAT WASHER 10MM
Price
$7.90
527
CAP SCREW M10-1.5 X 25
Price
N/A
528
FLANGE BOLT M6-1 X 12
Price
N/A
529
LOCK WASHER 6MM
Price
N/A
530
CAP SCREW M6-1 X 30
Price
N/A
531
BALL BEARING LM30UU
Price
$35.45
532
LEVER SHAFT M8-1.25 X 15, 12 X 166
Price
$8.10
533
BALL KNOB M8-1.25
Price
$4.85
534
V-BELT 5V X 31.5 RIBBED
Price
$61.55
535
PUSH STICK
Price
$11.45
536
SET SCREW M6-1 X 25
Price
N/A
537
OIL FITTING
Price
$2.45
538
RIVING KNIFE V2.10.16
Price
N/A
539
RIVING KNIFE V2.10.16
Price
N/A
540
LOCK WASHER 10MM
Price
N/A

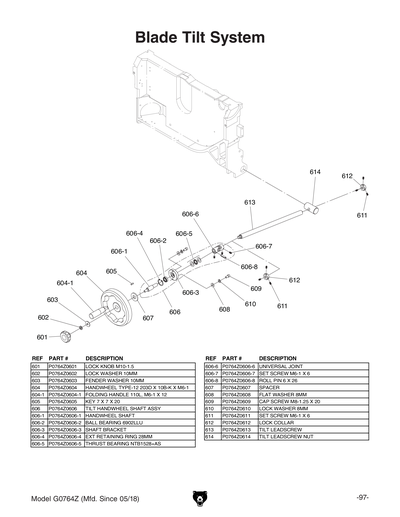

601
LOCK KNOB M10-1.5
Price
$4.60
602
LOCK WASHER 10MM
Price
N/A
603
FENDER WASHER 10MM
Price
N/A
604
HANDWHEEL TYPE-12 203D X 10B-K X M6-1
Price
$128.35
604-1
FOLDING HANDLE 110L, M6-1 X 12
Price
$50.20
605
KEY 7 X 7 X 20
Price
N/A
606
TILT HANDWHEEL SHAFT ASSY
Price
$126.80
606-1
HANDWHEEL SHAFT
Price
$31.15
606-2
BALL BEARING 6902LLU
Price
$10.35
606-3
SHAFT BRACKET
Price
$37.20
606-4
EXT RETAINING RING 28MM
Price
N/A
606-5
THRUST BEARING NTB1528+AS
Price
$10.65
606-6
UNIVERSAL JOINT
Price
$86.70
606-7
SET SCREW M6-1 X 6
Price
N/A
606-8
ROLL PIN 6 X 26
Price
$1.60
607
SPACER
Price
$5.80
608
FLAT WASHER 8MM
Price
N/A
609
CAP SCREW M8-1.25 X 20
Price
N/A
610
LOCK WASHER 8MM
Price
N/A
611
SET SCREW M6-1 X 6
Price
N/A
612
LOCK COLLAR
Price
$26.90
613
TILT LEADSCREW
Price
$46.55
614
TILT LEADSCREW NUT
Price
$61.90

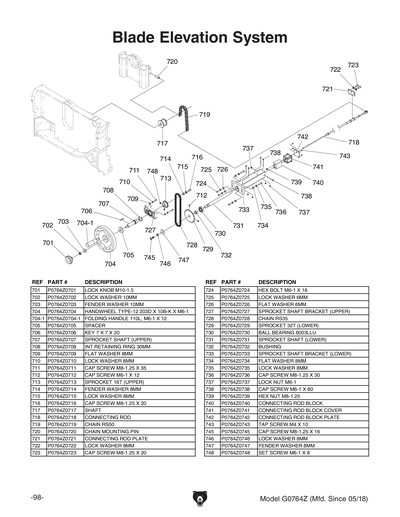

701
LOCK KNOB M10-1.5
Price
$4.60
702
LOCK WASHER 10MM
Price
N/A
703
FENDER WASHER 10MM
Price
N/A
704
HANDWHEEL TYPE-12 203D X 10B-K X M6-1
Price
N/A
704-1
FOLDING HANDLE 110L, M6-1 X 12
Price
N/A
705
SPACER
Price
$5.80
706
KEY 7 X 7 X 20
Price
N/A
707
SPROCKET SHAFT (UPPER)
Price
$39.85
708
INT RETAINING RING 30MM
Price
N/A
709
FLAT WASHER 8MM
Price
N/A
710
LOCK WASHER 8MM
Price
N/A
711
CAP SCREW M8-1.25 X 35
Price
N/A
712
CAP SCREW M6-1 X 12
Price
N/A
713
CHAIN SPROCKET (UPPER)
Price
N/A
714
FENDER WASHER 8MM
Price
N/A
715
LOCK WASHER 8MM
Price
N/A
716
CAP SCREW M8-1.25 X 20
Price
N/A
717
SHAFT
Price
$36.25
718
CONNECTING ROD
Price
$95.30
719
CHAIN RS50
Price
$26.90
720
CHAIN MOUNTING PIN
Price
$14.25
721
CONNECTING ROD PLATE
Price
$21.75
722
LOCK WASHER 8MM
Price
N/A
723
CAP SCREW M8-1.25 X 20
Price
N/A
724
HEX BOLT M6-1 X 16
Price
N/A
725
LOCK WASHER 6MM
Price
N/A
726
FLAT WASHER 6MM
Price
N/A
727
SPROCKET SHAFT BRACKET (UPPER)
Price
$33.55
728
CHAIN RS35
Price
$46.55
729
SPROCKET 32T (LOWER)
Price
$55.30
730
BALL BEARING 6003LLU
Price
$5.90
731
SPROCKET SHAFT (LOWER)
Price
$30.55
732
BUSHING
Price
$14.85
733
SPROCKET SHAFT BRACKET (LOWER)
Price
$150.70
734
FLAT WASHER 8MM
Price
N/A
735
LOCK WASHER 8MM
Price
N/A
736
CAP SCREW M8-1.25 X 30
Price
N/A
737
LOCK NUT M6-1
Price
N/A
738
CAP SCREW M6-1 X 60
Price
N/A
739
HEX NUT M8-1.25
Price
N/A
740
CONNECTING ROD BLOCK
Price
$58.95
741
CONNECTING ROD BLOCK COVER
Price
$4.30
742
CONNECTING ROD BLOCK PLATE
Price
$16.95
743
TAP SCREW M4 X 10
Price
N/A
745
CAP SCREW M8-1.25 X 16
Price
N/A
746
LOCK WASHER 8MM
Price
N/A
747
FENDER WASHER 8MM
Price
N/A
748
SET SCREW M6-1 X 8
Price
N/A

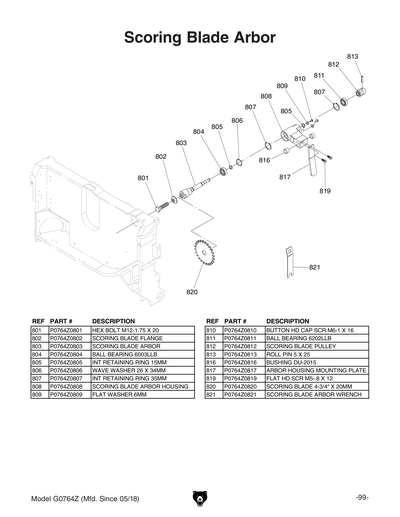

801
HEX BOLT M12-1.75 X 20
Price
N/A
802
SCORING BLADE FLANGE
Price
$10.00
803
SCORING BLADE ARBOR
Price
$76.25
804
BALL BEARING 6003LLB
Price
N/A
805
INT RETAINING RING 15MM
Price
N/A
806
WAVE WASHER 26 X 34MM
Price
$2.20
807
INT RETAINING RING 35MM
Price
N/A
808
SCORING BLADE ARBOR HOUSING
Price
$61.25
809
FLAT WASHER 6MM
Price
N/A
810
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
811
BALL BEARING 6202LLB
Price
N/A
812
SCORING BLADE PULLEY
Price
$39.85
813
ROLL PIN 5 X 25
Price
N/A
816
BUSHING DU-2015
Price
N/A
817
ARBOR HOUSING MOUNTING PLATE
Price
$26.90
819
FLAT HD SCR M5-.8 X 12
Price
N/A
820
SCORING BLADE 4-3/4" X 20MM
Price
N/A
821
SCORING BLADE ARBOR WRENCH
Price
$46.40

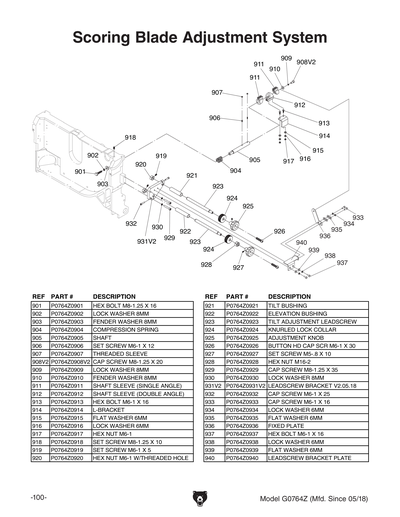

901
HEX BOLT M8-1.25 X 16
Price
N/A
902
LOCK WASHER 8MM
Price
N/A
903
FENDER WASHER 8MM
Price
N/A
904
COMPRESSION SPRING
Price
$9.40
905
SHAFT
Price
$39.85
906
SET SCREW M6-1 X 12
Price
N/A
907
THREADED SLEEVE
Price
$2.45
908
CAP SCREW M8-1.25 X 16
Price
N/A
908V2
CAP SCREW M8-1.25 X 20
Price
N/A
909
LOCK WASHER 8MM
Price
N/A
910
FENDER WASHER 8MM
Price
N/A
911
SHAFT SLEEVE (SINGLE ANGLE)
Price
$22.05
912
SHAFT SLEEVE (DOUBLE ANGLE)
Price
$30.85
913
HEX BOLT M6-1 X 16
Price
N/A
914
L-BRACKET
Price
$17.85
915
FLAT WASHER 6MM
Price
N/A
916
LOCK WASHER 6MM
Price
N/A
917
HEX NUT M6-1
Price
N/A
918
SET SCREW M8-1.25 X 10
Price
N/A
919
SET SCREW M6-1 X 5
Price
N/A
920
HEX NUT M6-1 W/THREADED HOLE
Price
$7.00
921
TILT BUSHING
Price
$14.50
922
ELEVATION BUSHING
Price
$13.60
923
TILT ADJUSTMENT LEADSCREW
Price
N/A
924
KNURLED LOCK COLLAR
Price
$23.90
925
ADJUSTMENT KNOB
Price
$7.60
926
BUTTON HD CAP SCR M6-1 X 30
Price
N/A
927
SET SCREW M5-.8 X 10
Price
N/A
928
HEX NUT M16-2
Price
N/A
929
CAP SCREW M8-1.25 X 35
Price
N/A
930
LOCK WASHER 8MM
Price
N/A
931
LEADSCREW BRACKET V2.05.18
Price
N/A
931V2
LEADSCREW BRACKET V2.05.18
Price
$111.10
932
CAP SCREW M6-1 X 25
Price
N/A
933
CAP SCREW M6-1 X 16
Price
N/A
934
LOCK WASHER 6MM
Price
N/A
935
FLAT WASHER 6MM
Price
N/A
936
FIXED PLATE
Price
$16.95
937
HEX BOLT M6-1 X 16
Price
N/A
938
LOCK WASHER 6MM
Price
N/A
939
FLAT WASHER 6MM
Price
N/A
940
LEADSCREW BRACKET PLATE
Price
$31.40

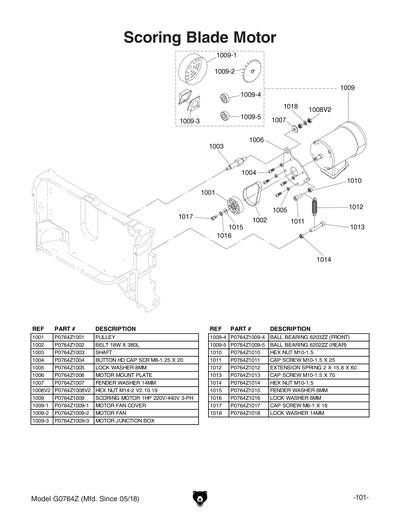

1001
PULLEY
Price
$52.25
1002
BELT 18W X 380L
Price
$60.55
1003
SHAFT
Price
$39.85
1004
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
1005
LOCK WASHER 8MM
Price
N/A
1006
MOTOR MOUNT PLATE
Price
$39.85
1007
FENDER WASHER 14MM
Price
N/A
1008
LOCK NUT M14-2
Price
N/A
1008V2
HEX NUT M14-2
Price
N/A
1009
SCORING MOTOR 1HP 220V/440V 3-PH
Price
$296.20
1009-1
MOTOR FAN COVER
Price
$22.05
1009-2
MOTOR FAN
Price
$14.50
1009-3
MOTOR JUNCTION BOX
Price
$11.20
1009-4
BALL BEARING 6203ZZ
Price
N/A
1009-5
BALL BEARING 6202ZZ
Price
N/A
1010
HEX NUT M10-1.5
Price
N/A
1011
CAP SCREW M10-1.5 X 25
Price
N/A
1012
EXTENSION SPRING 2 X 15.8 X 60
Price
$7.60
1013
CAP SCREW M10-1.5 X 70
Price
N/A
1014
HEX NUT M10-1.5
Price
N/A
1015
FENDER WASHER 6MM
Price
N/A
1016
LOCK WASHER 6MM
Price
N/A
1017
CAP SCREW M6-1 X 16
Price
N/A
1018
LOCK WASHER 14MM
Price
N/A

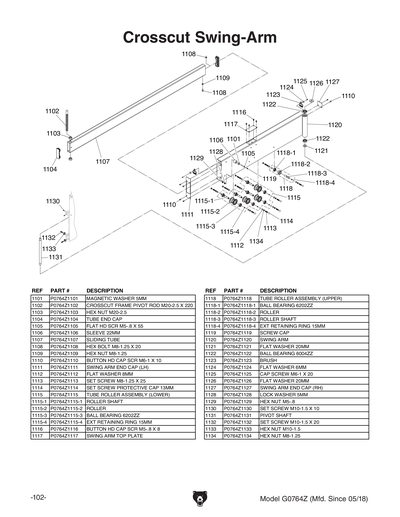

1101
MAGNETIC WASHER
Price
N/A
1102
CROSSCUT FRAME PIVOT ROD M20-2.5 X 220
Price
$46.45
1103
HEX NUT M20-2.5
Price
N/A
1104
TUBE END CAP
Price
N/A
1105
FLAT HD SCR M5-.8 X 55
Price
N/A
1106
SLEEVE
Price
N/A
1107
SLIDING TUBE
Price
N/A
1108
HEX BOLT M8-1.25 X 20
Price
N/A
1109
HEX NUT M8-1.25
Price
N/A
1110
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1111
SWING ARM END CAP (LH)
Price
N/A
1112
FLAT WASHER 8MM
Price
N/A
1113
SET SCREW M8-1.25 X 25
Price
N/A
1114
SET SCREW PROTECTIVE CAP 13MM
Price
$1.49
1115
TUBE ROLLER ASSEMBLY (LOWER)
Price
N/A
1115-1
ROLLER SHAFT
Price
N/A
1115-2
ROLLER
Price
N/A
1115-3
BALL BEARING 6202ZZ
Price
N/A
1115-4
EXT RETAINING RING 15MM
Price
N/A
1116
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
1117
SWING ARM TOP PLATE
Price
$9.25
1118
TUBE ROLLER ASSEMBLY (UPPER)
Price
N/A
1118-1
BALL BEARING 6202ZZ
Price
N/A
1118-2
ROLLER
Price
N/A
1118-3
ROLLER SHAFT
Price
N/A
1118-4
EXT RETAINING RING 15MM
Price
N/A
1119
SCREW CAP
Price
$2.15
1120
SWING ARM
Price
N/A
1121
FLAT WASHER 20MM
Price
N/A
1122
BALL BEARING 6004LLU
Price
$6.75
1123
BRUSH
Price
N/A
1124
FLAT WASHER 6MM
Price
N/A
1125
CAP SCREW M6-1 X 20
Price
N/A
1126
FLAT WASHER 20MM
Price
N/A
1127
SWING ARM END CAP (RH)
Price
N/A
1128
LOCK WASHER 5MM
Price
N/A
1129
HEX NUT M5-.8
Price
N/A
1130
SET SCREW M10-1.5 X 10
Price
N/A
1131
PIVOT SHAFT
Price
N/A
1132
SET SCREW M10-1.5 X 20
Price
N/A
1133
HEX NUT M10-1.5
Price
N/A
1134
HEX NUT M8-1.25
Price
N/A
1201
T-SLOT NUT M8-1.25
Price
N/A
1203
FENCE LOCK HANDLE
Price
N/A
1204
FRAME T-SLOT CLAMP BLOCK
Price
N/A
1205
ADJUSTMENT HANDLE M12-1.75 X 55
Price
N/A
1206
KNOB BOLT M8-1.25 X 50
Price
N/A
1207
KNOB BOLT M8-1.25 X 50
Price
N/A
1208

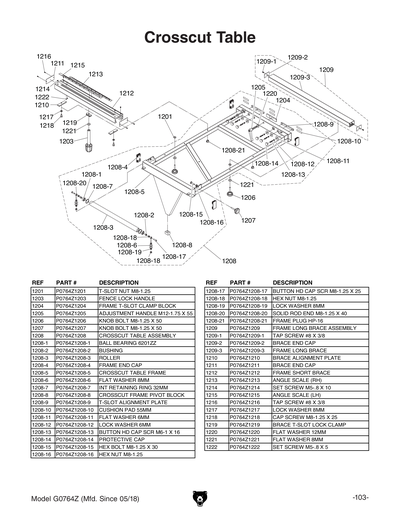

CROSSCUT TABLE ASSEMBLY
Price
N/A
1208-1
BALL BEARING 6201LLU
Price
$5.55
1208-10
CUSHION PAD 55MM
Price
N/A
1208-11
FLAT WASHER 6MM
Price
N/A
1208-12
LOCK WASHER 6MM
Price
N/A
1208-13
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
1208-14
PROTECTIVE CAP
Price
N/A
1208-15
HEX BOLT M8-1.25 X 30
Price
N/A
1208-16
HEX NUT M8-1.25
Price
N/A
1208-17
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
1208-18
HEX NUT M8-1.25
Price
N/A
1208-19
LOCK WASHER 8MM
Price
N/A
1208-2
BUSHING
Price
N/A
1208-20
SOLID ROD END M8-1.25 X 40
Price
N/A
1208-21
FRAME PLUG HP-16
Price
N/A
1208-3
ROLLER
Price
N/A
1208-4
FRAME END CAP
Price
N/A
1208-5
CROSSCUT TABLE FRAME
Price
N/A
1208-6
FLAT WASHER 8MM
Price
N/A
1208-7
INT RETAINING RING 32MM
Price
N/A
1208-8
CROSSCUT FRAME PIVOT BLOCK
Price
N/A
1208-9
T-SLOT ALIGNMENT PLATE
Price
N/A
1209
FRAME LONG BRACE ASSEMBLY
Price
N/A
1209-1
TAP SCREW #8 X 3/8
Price
N/A
1209-2
BRACE END CAP
Price
N/A
1209-3
FRAME LONG BRACE
Price
N/A
1210
FIXED BLOCK
Price
N/A
1211
BRACE END CAP
Price
N/A
1212
FRAME SHORT BRACE
Price
N/A
1213
ANGLE SCALE (RH)
Price
N/A
1214
SET SCREW M5-.8 X 10
Price
N/A
1215
ANGLE SCALE (LH)
Price
N/A
1216
TAP SCREW #8 X 3/8
Price
N/A
1217
LOCK WASHER 8MM
Price
N/A
1218
CAP SCREW M8-1.25 X 25
Price
N/A
1219
T-NUT BLOCK
Price
N/A
1220
FLAT WASHER 12MM
Price
N/A
1221
FLAT WASHER 8MM
Price
N/A
1222
SET SCREW M5-.8 X 5
Price
N/A
1301

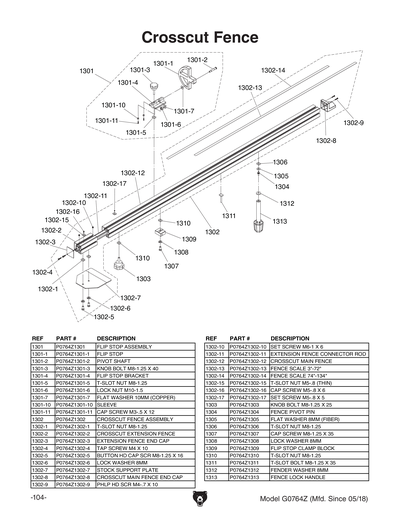

FLIP STOP ASSEMBLY
Price
N/A
1301-1
FLIP STOP
Price
N/A
1301-10
SLEEVE
Price
N/A
1301-11
CAP SCREW M3-.5 X 12
Price
N/A
1301-2
PIVOT SHAFT
Price
N/A
1301-3
KNOB BOLT M8-1.25 X 40
Price
N/A
1301-4
FLIP STOP BRACKET
Price
N/A
1301-5
T-SLOT NUT M8-1.25
Price
N/A
1301-6
LOCK NUT M10-1.5
Price
N/A
1301-7
FLAT WASHER 10MM (COPPER)
Price
N/A
1302
EXT. FENCE ASSEMBLY V2.05.12
Price
N/A
1302-1
T-SLOT NUT M8-1.25
Price
N/A
1302-10
SET SCREW M6-1 X 6
Price
N/A
1302-11
EXTENSION FENCE CONNECTOR ROD
Price
N/A
1302-12
CROSSCUT MAIN FENCE
Price
N/A
1302-13
FENCE SCALE 3"-72"
Price
N/A
1302-14
***USE P06990931***
Price
N/A
1302-15
T-NUT M5-.8
Price
N/A
1302-16
CAP SCREW M5-.8 X 6
Price
N/A
1302-17
SET SCREW M5-.8 X 5
Price
N/A
1302-2
CROSSCUT EXTENSION FENCE
Price
N/A
1302-3
EXTENSION FENCE END CAP
Price
N/A
1302-4
TAP SCREW M4 X 10
Price
N/A
1302-5
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
1302-6
LOCK WASHER 8MM
Price
N/A
1302-7
STOCK SUPPORT PLATE
Price
N/A
1302-8
CROSSCUT MAIN FENCE END CAP
Price
N/A
1302-9
PHLP HD SCR M4-.7 X 10
Price
N/A
1303
KNOB BOLT M8-1.25 X 25
Price
N/A
1304
FENCE PIVOT PIN
Price
N/A
1305
FIBER FLAT WASHER 10MM
Price
N/A
1306
T-SLOT NUT M8-1.25
Price
N/A
1307
CAP SCREW M8-1.25 X 35
Price
N/A
1308
LOCK WASHER 8MM
Price
N/A
1309
FLIP STOP CLAMP BLOCK
Price
N/A
1310
T-SLOT NUT M8-1.25
Price
N/A
1311
T-SLOT BOLT M8-1.25 X 35
Price
N/A
1312
FENDER WASHER 8MM
Price
N/A
1313
FENCE LOCK HANDLE
Price
N/A
1401

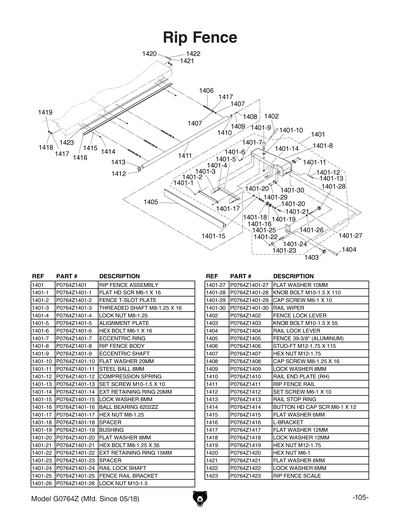

RIP FENCE ASSEMBLY
Price
N/A
1401-1
FLAT HD SCR M6-1 X 16
Price
N/A
1401-10
FLAT WASHER 20MM
Price
N/A
1401-11
STEEL BALL 8MM
Price
N/A
1401-12
COMPRESSION SPRING
Price
N/A
1401-13
SET SCREW M10-1.5 X 10
Price
N/A
1401-14
EXT RETAINING RING 20MM
Price
N/A
1401-15
LOCK WASHER 8MM
Price
N/A
1401-16
BALL BEARING 6202ZZ
Price
N/A
1401-17
HEX NUT M8-1.25
Price
N/A
1401-18
SPACER
Price
N/A
1401-19
BUSHING
Price
N/A
1401-2
FENCE T-SLOT PLATE
Price
N/A
1401-20
FLAT WASHER 8MM
Price
N/A
1401-21
HEX BOLT M8-1.25 X 35
Price
N/A
1401-22
EXT RETAINING RING 15MM
Price
N/A
1401-23
SPACER
Price
N/A
1401-24
RAIL LOCK SHAFT
Price
N/A
1401-25
FENCE RAIL BRACKET
Price
N/A
1401-26
LOCK NUT M10-1.5
Price
N/A
1401-27
FLAT WASHER 10MM
Price
N/A
1401-28
KNOB BOLT M10-1.5 X 110
Price
N/A
1401-29
CAP SCREW M6-1 X 10
Price
N/A
1401-3
THREADED SHAFT M8-1.25 16
Price
N/A
1401-30
RAIL WIPER
Price
N/A
1401-4
LOCK NUT M8-1.25
Price
N/A
1401-5
ALIGNMENT PLATE
Price
N/A
1401-6
HEX BOLT M6-1 X 16
Price
N/A
1401-7
ECCENTRIC RING
Price
N/A
1401-8
RIP FENCE BODY
Price
N/A
1401-9
ECCENTRIC SHAFT
Price
N/A
1402
FENCE LOCK LEVER
Price
N/A
1403
KNOB BOLT M10-1.5 X 55
Price
N/A
1404
***USE P08201102***
Price
N/A
1405
FENCE 39-3/8" (ALUMINUM)
Price
N/A
1406
STUD-FT M12-1.75 X 115
Price
N/A
1407
HEX NUT M12-1.75
Price
N/A
1408
CAP SCREW M8-1.25 X 16
Price
N/A
1409
LOCK WASHER 8MM
Price
N/A
1410
RAIL END PLATE (RH)
Price
N/A
1411
RIP FENCE RAIL
Price
N/A
1412
SET SCREW M6-1 X 10
Price
N/A
1413
RAIL STOP RING
Price
N/A
1414
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1415
FLAT WASHER 6MM
Price
N/A
1416
L-BRACKET
Price
N/A
1417
FLAT WASHER 12MM
Price
N/A
1418
LOCK WASHER 12MM
Price
N/A
1419
HEX NUT M12-1.75
Price
N/A
1420
HEX NUT M6-1
Price
N/A
1421
FLAT WASHER 6MM
Price
N/A
1422
LOCK WASHER 6MM
Price
N/A
1423
RIP FENCE SCALE
Price
N/A

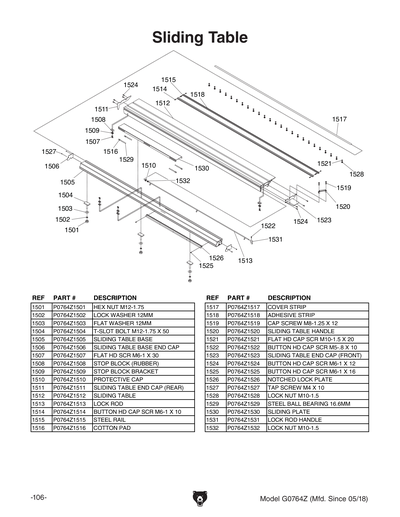

1500A
SLIDING TABLE ASSEMBLY
Price
N/A
1501
HEX NUT M12-1.75
Price
N/A
1502
LOCK WASHER 12MM
Price
N/A
1503
FLAT WASHER 12MM
Price
N/A
1504
T-SLOT BOLT M12-1.75 X 50
Price
N/A
1505
SLIDING TABLE BASE
Price
N/A
1506
SLIDING TABLE BASE END CAP
Price
N/A
1507
FLAT HD SCR M6-1 X 30
Price
N/A
1508
STOP BLOCK (RUBBER)
Price
N/A
1509
STOP BLOCK BRACKET
Price
N/A
1510
PROTECTIVE CAP
Price
N/A
1511
SLIDING TABLE END CAP (REAR)
Price
N/A
1512
SLIDING TABLE
Price
N/A
1513
LOCK ROD
Price
N/A
1514
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1515
STEEL RAIL W/ADHEVISE TAPE
Price
N/A
1516
COTTON PAD
Price
N/A
1517
COVER STRIP
Price
N/A
1518
STEEL RAIL W/ADHEVISE TAPE
Price
N/A
1519
CAP SCREW M8-1.25 X 12
Price
N/A
1520
SLIDING TABLE HANDLE
Price
N/A
1521
FLAT HD CAP SCR M10-1.5 X 20
Price
N/A
1522
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
1523
SLIDING TABLE END CAP (FRONT)
Price
N/A
1524
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1525
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
1526
NOTCHED LOCK PLATE
Price
N/A
1527
TAP SCREW M4 X 10
Price
N/A
1528
LOCK NUT M10-1.5
Price
N/A
1529
STEEL BALL BEARING 16.6MM
Price
N/A
1530
SLIDING PLATE
Price
N/A
1531
LOCK ROD HANDLE
Price
N/A
1532
LOCK NUT M10-1.5
Price
N/A
1600

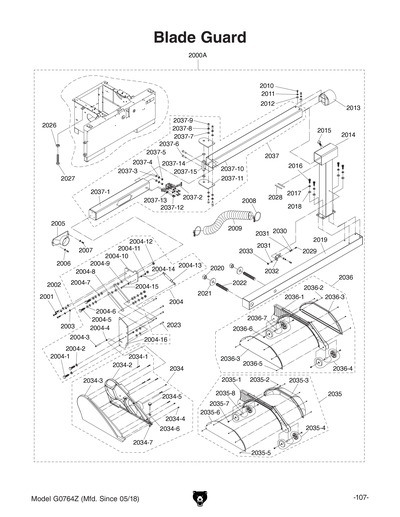

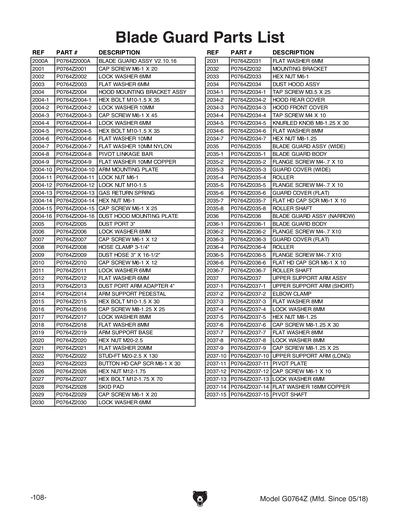

BLADE GUARD ASSY V2.10.16
Price
N/A
1601
GUIDE ROD
Price
N/A
1602
GUIDE ROD BUSHING
Price
N/A
1603
GUIDE ROD SLEEVE
Price
N/A
1604
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
1605
LOCK WASHER 6MM
Price
N/A
1606
FLAT WASHER 6MM
Price
N/A
1608
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
1609
LOCK WASHER 6MM
Price
N/A
1610
FLAT WASHER 6MM
Price
N/A
1616
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
1617
SET SCREW M6-1 X 6
Price
N/A
1618
GUIDE ROD SLEEVE BRACKET
Price
N/A
1619
CAP SCREW M8-1.25 X 16
Price
N/A
1620
COVER HANDLE
Price
N/A
1621
LEFT BLADE COVER V2.03.10
Price
N/A
1622
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
1623
HEX BOLT M8-1.25 X 60
Price
N/A
1624
CASTER
Price
N/A
1625
CASTER BUSHING
Price
N/A
1626
BLADE COVER FRAME V2.03.10
Price
N/A
1627
LOCK NUT M8-1.25
Price
N/A
1629
RIGHT BLADE COVER V2.03.10
Price
N/A
1631
SET SCREW M6-1 X 12
Price
N/A
1632
FLAT WASHER 8MM
Price
N/A
1633
LOCK WASHER 8MM
Price
N/A
1634
CAP SCREW M8-1.25 X 25
Price
N/A
1635
EXTENSION TUBE
Price
N/A
1637
LOCK LEVER ASSEMBLY
Price
N/A
1638
FLAT WASHER 6MM
Price
N/A
1639
LOCK WASHER 6MM
Price
N/A
1640
CAP SCREW M6-1 X 12
Price
N/A
1641
PIVOT BOLT
Price
N/A
1642
TOP SLEEVE COVER
Price
N/A
1643
SPRING SLEEVE
Price
N/A
1644
SPRING ROD SCREW
Price
N/A
1645
SPRING ROD
Price
N/A
1646
COMPRESSION SPRING
Price
N/A
1647
BOTTOM SLEEVE COVER
Price
N/A
1649
CAP SCREW M8-1.25 X 30
Price
N/A
1650
HEX NUT M8-1.25
Price
N/A
1651
CAP SCREW M8-1.25 X 16
Price
N/A
1652
RIVET 4 X 10MM BLIND, STEEL
Price
N/A
1653
DUST PORT 2-1/2" V2.03.10
Price
N/A
1654
HEX NUT M6-1
Price
N/A
1655
HEX BOLT M12-1.75 X 70
Price
N/A
1656
HEX NUT M20-2.5
Price
N/A
1657
FENDER WASHER 20MM
Price
N/A
1658
STUD-FT M20-2.5 X 130
Price
N/A
1659
SUPPORT BRACKET
Price
N/A
1660
HEX NUT M20-2.5
Price
N/A
1661
HEX NUT M10-1.5
Price
N/A
1662
LOCK WASHER 10MM
Price
N/A
1663
SET SCREW M8-1.25 X 16
Price
N/A
1664
HEX NUT M8-1.25
Price
N/A
1665
CLAMP BRACKET
Price
N/A
1666
FENDER WASHER 10MM
Price
N/A
1667
BUTTON HD CAP SCR M10-1.5 X 25
Price
N/A
1668
HEX NUT M12-1.75
Price
N/A
1669
BLADE COVER FLAT (RH)
Price
N/A

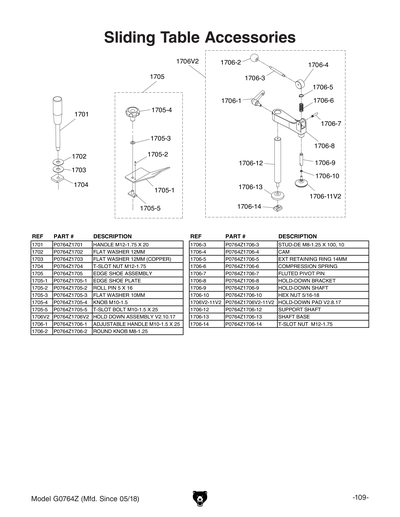

1701
LEVER HANDLE M12-1.75 X 20, 215L
Price
N/A
1702
FLAT WASHER 12MM
Price
N/A
1703
FLAT WASHER 12MM (NYLON)
Price
$1.49
1704
T-SLOT NUT M12-1.75
Price
N/A
1705
EDGE SHOE ASSEMBLY V2.04.12
Price
N/A
1705-1
EDGE SHOE PLATE
Price
N/A
1705-2
ROLL PIN 5 X 16
Price
N/A
1705-3
FLAT WASHER 10MM
Price
N/A
1705-4
KNOB M10-1.5
Price
N/A
1705-5
T-SLOT BOLT M10-1.5 X 25
Price
N/A
1706
HOLD DOWN ASSEMBLY
Price
N/A
1706-1
ADJUSTABLE HANDLE M10-1.5 X 25
Price
N/A
1706-10
HEX NUT 5/16-18
Price
N/A
1706-11
HOLD-DOWN PAD (RECTANGULAR) V2.10.17
Price
N/A
1706-11V2
HOLD-DOWN PAD (RECTANGULAR) V2.10.17
Price
$51.35
1706-12
SUPPORT SHAFT
Price
N/A
1706-13
SHAFT BASE
Price
N/A
1706-14
T-SLOT NUT 14MM WITH HOLE M12-1.75
Price
N/A
1706-2
ROUND KNOB M8-1.25
Price
N/A
1706-3
STUD-DE M8-1.25 X 100, 10
Price
N/A
1706-4
CAM
Price
N/A
1706-5
EXT RETAINING RING 14MM
Price
N/A
1706-6
COMPRESSION SPRING
Price
N/A
1706-7
FLUTED PIVOT PIN
Price
N/A
1706-8
HOLD-DOWN BRACKET
Price
N/A
1706-9
HOLD-DOWN SHAFT
Price
N/A
1706V2
HOLD-DOWN ASSY (NON-SWIVEL PAD) V2.10.17
Price
N/A

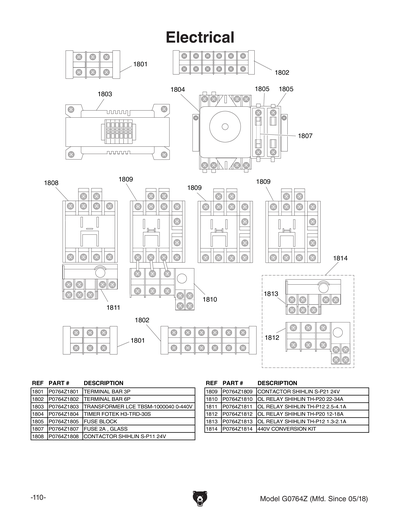

1801
TERMINAL BAR 3P
Price
N/A
1802
TERMINAL BAR 6P
Price
N/A
1803
TRANSFORMER 46VA 220/440V-24V
Price
N/A
1804
STAR-DELTA TIMER TRD-N
Price
N/A
1805
FUSE BLOCK
Price
N/A
1807
FUSE 2A, GLASS
Price
N/A
1808
CONTACTOR SHIHLIN S-P11 24V
Price
N/A
1809
CONTACTOR SHIHLIN S-P21 35A 600V
Price
N/A
1810
OL RELAY SHIHLIN TH-P20 22-34A
Price
N/A
1811
OL RELAY SHIHLIN TH-P12 2.5-4.1A
Price
N/A
1812
OL RELAY SHIHLIN TH-P20 12-18A
Price
N/A
1813
OL RELAY SHIHLIN TH-P12 1.3-2.1A
Price
N/A
1814
440V CONVERSION KIT
Price
N/A

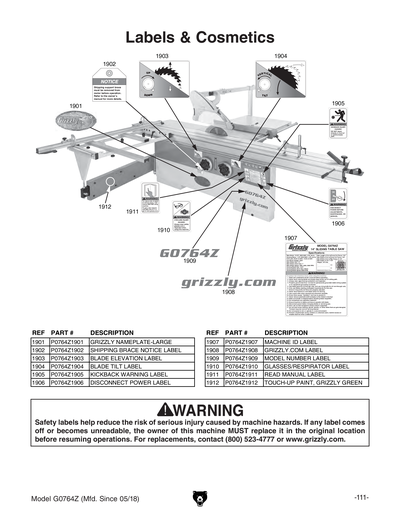

1901
Nameplate - Large
Price
N/A
1902
SHIPPING BRACE NOTICE LABEL
Price
$3.15
1903
BLADE ELEVATION LABEL
Price
$6.05
1904
BLADE TILT LABEL
Price
$3.95
1905
KICKBACK WARNING LABEL
Price
$2.90
1906
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
1907
MACHINE ID LABEL
Price
$16.40
1908
GRIZZLY.COM LABEL 13",GREEN
Price
N/A
1909
MODEL NUMBER LABEL
Price
$12.10
1910
GLASSES/RESPIRATOR 1.5W X 2.5H
Price
N/A
1911
READ MANUAL 1.5W X 2.5H
Price
N/A
1912
N/S GRIZZLY GREEN G1023S
Price
N/A

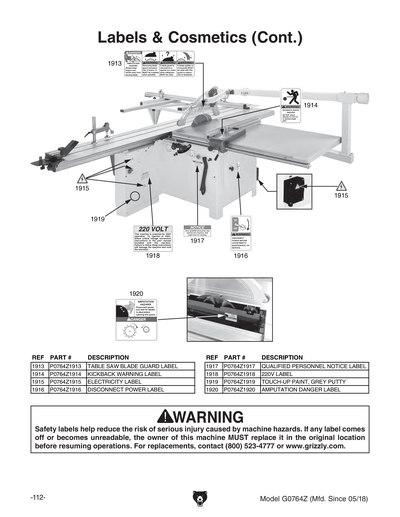

1913
TABLE SAW BLADE GUARD 4.7W X 1.8H
Price
N/A
1914
KICKBACK WARNING LABEL
Price
N/A
1915
ELECTRICITY 1.4W X 1.2H
Price
N/A
1916
DISCONNECT HARDWIRED POWER 1.5W X 2.5H
Price
N/A
1917
QUALIFIED PERSONNEL NOTICE LABEL
Price
$1.35
1918
PREWIRED 220V 4.3W X 2.9H
Price
N/A
1919
GREY PUTTY REF G0504
Price
N/A
1920
MOVING BLADE/AMPUTATION 3.8W X 2H
Price
N/A
1921
SHIPPING BRACE NOTICE LABEL
Price
N/A
2000A
BLADE GUARD ASSY V2.10.16
Price
$1,552.30
2001
CAP SCREW M6-1 X 20
Price
N/A
2002
LOCK WASHER 6MM
Price
N/A
2003
FLAT WASHER 6MM
Price
N/A
2004
HOOD MOUNTING BRACKET ASSY
Price
$137.70
2004-1
HEX BOLT M10-1.5 X 35
Price
N/A
2004-10
ARM MOUNTING PLATE
Price
$33.85
2004-11
LOCK NUT M6-1
Price
N/A
2004-12
LOCK NUT M10-1.5
Price
N/A
2004-13
GAS RETURN SPRING
Price
$56.65
2004-14
HEX NUT M6-1
Price
N/A
2004-15
CAP SCREW M6-1 X 25
Price
N/A
2004-16
DUST HOOD MOUNTING PLATE
Price
$39.85
2004-2
LOCK WASHER 10MM
Price
N/A
2004-3
CAP SCREW M6-1 X 45
Price
N/A
2004-4
LOCK WASHER 6MM
Price
N/A
2004-5
HEX BOLT M10-1.5 X 35
Price
N/A
2004-6
FLAT WASHER 10MM
Price
N/A
2004-7
FLAT WASHER 10MM NYLON
Price
$1.60
2004-8
PIVOT LINKAGE BAR
Price
$25.10
2004-9
FLAT WASHER 10MM COPPER
Price
$4.30
2005
BLADE SHROUD DUST PORT
Price
N/A
2006
LOCK WASHER 6MM
Price
N/A
2007
CAP SCREW M6-1 X 12
Price
N/A
2008
HOSE CLAMP 3-1/4"
Price
$3.95
2009
DUST HOSE 3" X 16-1/2"
Price
$21.20
2010
CAP SCREW M6-1 X 12
Price
N/A
2011
LOCK WASHER 6MM
Price
N/A
2012
FLAT WASHER 6MM
Price
N/A
2013
DUST PORT ARM ADAPTER 4"
Price
$42.00
2014
ARM SUPPORT PEDESTAL
Price
$115.15
2015
HEX BOLT M10-1.5 X 30
Price
N/A
2016
CAP SCREW M8-1.25 X 25
Price
N/A
2017
LOCK WASHER 8MM
Price
N/A
2018
FLAT WASHER 8MM
Price
N/A
2019
ARM SUPPORT BASE
Price
$133.15
2020
HEX NUT M20-2.5
Price
N/A
2021
FLAT WASHER 20MM
Price
N/A
2022
STUD-FT M20-2.5 X 130
Price
$9.35
2023
BUTTON HD CAP SCR M6-1 X 30
Price
N/A
2026
HEX NUT M12-1.75
Price
N/A
2027
HEX BOLT M12-1.75 X 70
Price
N/A
2028
SKID PAD
Price
$3.40
2029
CAP SCREW M6-1 X 20
Price
N/A
2030
LOCK WASHER 6MM
Price
N/A
2031
FLAT WASHER 6MM
Price
N/A
2032
MOUNTING BRACKET
Price
$25.10
2033
HEX NUT M6-1
Price
N/A
2034
DUST HOOD ASSY
Price
$79.95
2034-1
TAP SCREW M3.5 X 25
Price
$1.60
2034-2
HOOD REAR COVER
Price
$33.85
2034-3
HOOD FRONT COVER
Price
$33.85
2034-4
TAP SCREW M4 X 10
Price
N/A
2034-5
KNURLED KNOB M8-1.25 X 30
Price
$6.40
2034-6
FLAT WASHER 8MM
Price
N/A
2034-7
HEX NUT M8-1.25
Price
N/A
2035
BLADE GUARD ASSY (WIDE)
Price
N/A
2035-1
BLADE GUARD BODY
Price
$46.20
2035-2
FLANGE SCREW M4-.7 X 10
Price
N/A
2035-3
RIGHT BLADE COVER V2.03.10
Price
N/A
2035-4
ROLLER
Price
$13.35
2035-5
FLANGE SCREW M4-.7 X 10
Price
N/A
2035-6
LEFT BLADE COVER V2.03.10
Price
N/A
2035-7
FLAT HD CAP SCR M6-1 X 10
Price
N/A
2035-8
ROLLER SHAFT
Price
$6.70
2036
BLADE GUARD ASSY (NARROW)
Price
$172.45
2036-1
BLADE GUARD BODY
Price
N/A
2036-2
FLANGE SCREW M4-.7 X 10
Price
N/A
2036-3
LEFT BLADE COVER V2.03.10
Price
N/A
2036-4
ROLLER
Price
N/A
2036-5
FLANGE SCREW M4-.7 X 10
Price
N/A
2036-6
FLAT HD CAP SCR M6-1 X 10
Price
N/A
2036-7
ROLLER SHAFT
Price
N/A
2037
UPPER SUPPORT ARM ASSY
Price
$243.95
2037-1
UPPER SUPPORT ARM (SHORT)
Price
$75.50
2037-10
UPPER SUPPORT ARM (LONG)
Price
$83.95
2037-11
PIVOT PLATE
Price
$25.10
2037-12
CAP SCREW M6-1 X 10
Price
N/A
2037-13
LOCK WASHER 6MM
Price
N/A
2037-14
FLAT WASHER 16MM COPPER
Price
$4.30
2037-15
PIVOT SHAFT
Price
$37.75
2037-2
ELBOW CLAMP
Price
$35.65
2037-3
FLAT WASHER 8MM
Price
N/A
2037-4
LOCK WASHER 8MM
Price
N/A
2037-5
HEX NUT M8-1.25
Price
N/A
2037-6
CAP SCREW M8-1.25 X 30
Price
N/A
2037-7
FLAT WASHER 8MM
Price
N/A
2037-8
LOCK WASHER 8MM
Price
N/A
2037-9
CAP SCREW M8-1.25 X 25
Price
N/A
BOX2
COMPLETE BOX 2 OF 2 FOR G0764Z
Price
$3,512.70
MAN
MANUAL G0764Z MFD-10.15 V1.08.16
Price
$33.00
