Parts for G0765 - 7" x 14" Variable-Speed Benchtop Metal Lathe

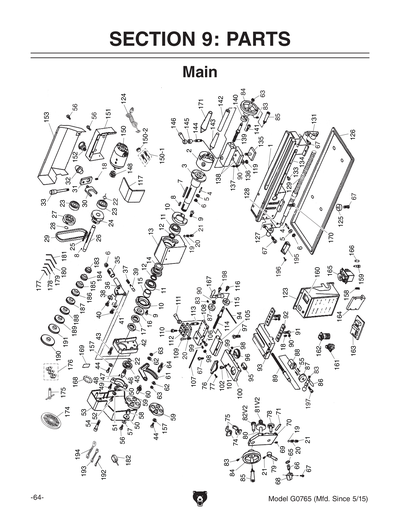

Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765
Part Diagram for G0765

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

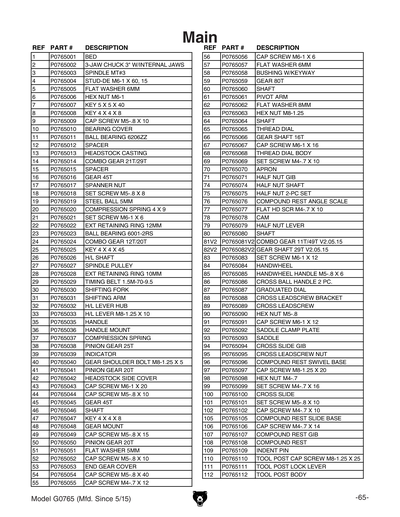

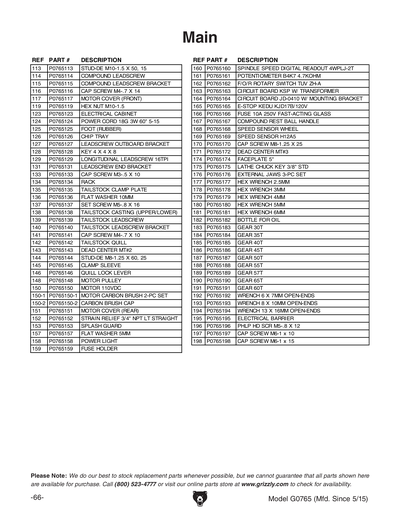

Ref #
Part #
Description
1
BED
Price
$267.40
2
3-JAW CHUCK 3" W/INTERNAL JAWS
Price
$307.35
2-1
INTERNAL JAWS FOR 3-JAW CHUCK 3PC
Price
$81.95
3
SPINDLE MT#3
Price
$116.15
4
STUD-DE M6-1 X 60, 15
Price
$2.25
5
FLAT WASHER 6MM
Price
N/A
6
HEX NUT M6-1
Price
N/A
7
KEY 5 X 5 X 40
Price
N/A
8
KEY 4 X 4 X 8
Price
N/A
9
CAP SCREW M5-.8 X 10
Price
N/A
10
BEARING COVER
Price
$5.75
11
BALL BEARING 6206ZZ
Price
N/A
12
SPACER
Price
$2.60
13
HEADSTOCK CASTING
Price
$178.25
14
COMBO GEAR 21T/29T
Price
$17.25
15
SPACER
Price
$2.20
16
GEAR 45T
Price
$22.35
17
SPANNER NUT
Price
$13.70
18
SET SCREW M5-.8 X 8
Price
N/A
19
STEEL BALL 5MM
Price
N/A
20
COMPRESSION SPRING 4 X 9
Price
$17.90
21
SET SCREW M6-1 X 6
Price
N/A
22
EXT RETAINING RING 12MM
Price
N/A
23
BALL BEARING 6001-2RS
Price
N/A
24
COMBO GEAR 12T/20T
Price
$17.90
25
KEY 4 X 4 X 45
Price
N/A
26
H/L SHAFT
Price
$17.65
27
SPINDLE PULLEY
Price
$12.95
28
EXT RETAINING RING 10MM
Price
N/A
29
TIMING BELT 1.5M-70-9.5
Price
$13.40
30
SHIFTING FORK
Price
$6.70
31
SHIFTING ARM
Price
$6.90
32
H/L LEVER HUB
Price
$8.65
33
H/L LEVER M8-1.25 X 10
Price
$1.90
35
HANDLE
Price
$4.35
36
HANDLE MOUNT
Price
$24.85
37
COMPRESSION SPRING
Price
$3.15
38
PINION GEAR 25T
Price
$11.65
39
INDICATOR
Price
$4.35
40
GEAR SHOULDER BOLT M8-1.25 X 5
Price
$3.65
41
PINION GEAR 20T
Price
$11.65
42
HEADSTOCK SIDE COVER
Price
$31.25
43
CAP SCREW M6-1 X 20
Price
N/A
44
CAP SCREW M5-.8 X 10
Price
N/A
45
GEAR 45T
Price
$11.50
46
SHAFT
Price
$8.95
47
KEY 4 X 4 X 8
Price
N/A
48
GEAR MOUNT
Price
$14.30
49
CAP SCREW M5-.8 X 15
Price
N/A
50
PINION GEAR 20T
Price
$9.30
51
FLAT WASHER 5MM
Price
N/A
52
CAP SCREW M5-.8 X 10
Price
N/A
53
END GEAR COVER W/ LABELS
Price
$56.25
54
CAP SCREW M5-.8 X 40
Price
N/A
55
CAP SCREW M4-.7 X 12
Price
N/A
56
CAP SCREW M6-1 X 6
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
BUSHING W/KEYWAY
Price
$4.50
59
GEAR 80T
Price
$15.15
60
SHAFT
Price
$8.95
61
PIVOT ARM
Price
$8.65
62
FLAT WASHER 8MM
Price
N/A
63
HEX NUT M8-1.25
Price
N/A
64
SHAFT
Price
$5.85
65
THREAD DIAL
Price
$5.45
66
GEAR SHAFT 16T
Price
$11.65
67
CAP SCREW M6-1 X 16
Price
N/A
68
THREAD DIAL BODY
Price
$5.85
69
SET SCREW M4-.7 X 10
Price
N/A
70
APRON
Price
$91.70
71
HALF NUT GIB
Price
$4.50
74
HALF NUT SHAFT
Price
$2.25
75
HALF NUT 2-PC SET
Price
$42.40
76
COMPOUND REST ANGLE SCALE
Price
$4.50
77
FLAT HD SCR M4-.7 X 10
Price
N/A
78
CAM
Price
$12.65
79
HALF NUT LEVER
Price
$2.20
80
SHAFT
Price
$4.95
81
COMBO GEAR 11T/49T V2.05.15
Price
N/A
81V2
COMBO GEAR 11T/49T V2.05.15
Price
$26.75
82
GEAR SHAFT 29T V2.05.15
Price
N/A
82V2
GEAR SHAFT 29T V2.05.15
Price
$15.15
83
SET SCREW M6-1 X 12
Price
N/A
84
APRON HANDWHEEL
Price
$34.50
84-1
TAILSTOCK HANDWHEEL
Price
$35.95
84-2
TAILSTOCK GRADUATED DIAL
Price
$18.00
84-3
APRON GRADUATED DIAL
Price
$13.95
85
APRON HANDWHEEL HANDLE M5
Price
$6.50
85-1
TAILSTOCK HANDWHEEL HANDLE M4
Price
$9.00
86
CROSS BALL HANDLE 2 PC
Price
$8.65
87
GRADUATED DIAL
Price
$8.65
88
CROSS LEADSCREW BRACKET
Price
$17.25
89
CROSS LEADSCREW
Price
$21.60
90
HEX NUT M5-.8
Price
N/A
91
CAP SCREW M6-1 X 12
Price
N/A
92
SADDLE CLAMP PLATE
Price
$8.65
93
SADDLE
Price
$160.45

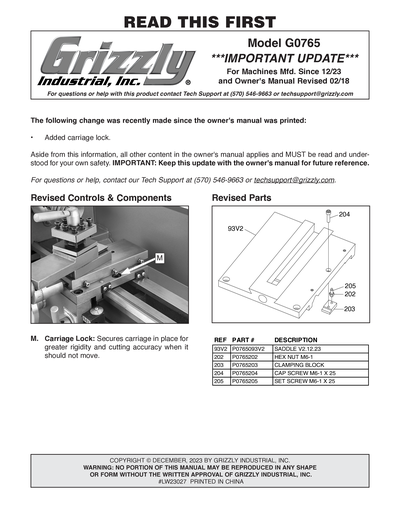

93V2
SADDLE V2.12.23
Price
$160.45
94
CROSS SLIDE GIB
Price
$8.15
95
CROSS LEADSCREW NUT
Price
$8.65
96
COMPOUND REST SWIVEL BASE
Price
$10.85
97
CAP SCREW M8-1.25 X 20
Price
N/A
98
HEX NUT M4-.7
Price
N/A
99
SET SCREW M4-.7 X 16
Price
N/A
100
CROSS SLIDE
Price
$69.60
101
SET SCREW M5-.8 X 10
Price
N/A
102
CAP SCREW M4-.7 X 10
Price
N/A
105
COMPOUND REST SLIDE BASE
Price
$32.40
106
CAP SCREW M4-.7 X 14
Price
N/A
107
COMPOUND REST GIB
Price
$5.45
108
COMPOUND REST
Price
$41.00
109
INDENT PIN
Price
$2.25
110
TOOL POST CAP SCREW M8-1.25 X 25
Price
$1.90
111
TOOL POST LOCK LEVER
Price
$2.70
112
TOOL POST BODY
Price
$34.50
113
STUD-DE M10-1.5 X 50, 15
Price
$1.90
114
COMPOUND LEADSCREW
Price
$15.15
115
COMPOUND LEADSCREW BRACKET
Price
$12.95
116
CAP SCREW M4-.7 X 14
Price
N/A
117
MOTOR COVER (FRONT)
Price
$8.65
119
HEX NUT M10-1.5
Price
N/A
123
ELECTRICAL CABINET W/ LABELS
Price
$33.75
124
POWER CORD 18G 3W 60" 5-15
Price
$17.25
125
FOOT (RUBBER)
Price
$2.25
126
CHIP TRAY
Price
$73.35
127
LEADSCREW OUTBOARD BRACKET
Price
$21.60
128
KEY 4 X 4 X 8
Price
N/A
129
LONGITUDINAL LEADSCREW 16TPI
Price
$66.90
130
GEAR SPACER
Price
$9.00
131
LEADSCREW END BRACKET
Price
$29.00
133
CAP SCREW M3-.5 X 10
Price
N/A
134
RACK
Price
$35.10
135
TAILSTOCK CLAMP PLATE
Price
$11.20
136
FLAT WASHER 10MM
Price
N/A
137
SET SCREW M5-.8 X 16
Price
N/A
138
TAILSTOCK CASTING (UPPER/LOWER)
Price
$167.15
139
TAILSTOCK LEADSCREW
Price
$29.15
140
TAILSTOCK LEADSCREW BRACKET
Price
$18.00
141
CAP SCREW M4-.7 X 10
Price
N/A
142
TAILSTOCK QUILL
Price
$52.50
143
DEAD CENTER MT#2
Price
$19.45
144
STUD-DE M8-1.25 X 60, 25
Price
$2.25
145
CLAMP SLEEVE
Price
$4.70
146
QUILL LOCK LEVER
Price
$6.50
147
TAILSTOCK LOCKING LEVER
Price
$24.60
148
MOTOR PULLEY
Price
$10.45
150
MOTOR 110VDC
Price
$172.50
150-1
CARBON BRUSH (SINGLE)
Price
$13.70
150-2
CARBON BRUSH CAP
Price
$5.45
151
MOTOR COVER (REAR)
Price
$21.60
152
STRAIN RELIEF 3/4" TYPE-6 ST
Price
$2.20
153
SPLASH GUARD
Price
$86.25
157
FLAT WASHER 5MM
Price
N/A
158
POWER LIGHT
Price
$6.90
159
FUSE HOLDER
Price
$2.90
160
SPINDLE SPEED DIGITAL READOUT 4WPLJ-2T
Price
$86.25
161
POTENTIOMETER B4K7 4.7KOHM
Price
$12.25
161-2
SPEED KNOB
Price
$4.50
162
F/O/R ROTARY SWITCH TUV ZH-A
Price
$42.45
163
CIRCUIT BOARD KSP W/TRANSFORMER
Price
$57.95
164
CIRCUIT BOARD JD-0410 W/MOUNTING BRACKET
Price
$200.60
165
E-STOP KEDU KJD17B/120V
Price
$38.15
166
FUSE 10A 250V FAST-ACTING GLASS
Price
$2.60
167
COMPOUND REST BALL HANDLE
Price
$12.95
168
SPEED SENSOR WHEEL
Price
$12.65
169
SPEED SENSOR H12A5
Price
$18.00
170
CAP SCREW M8-1.25 X 25
Price
N/A
171
DEAD CENTER MT#3
Price
$27.00

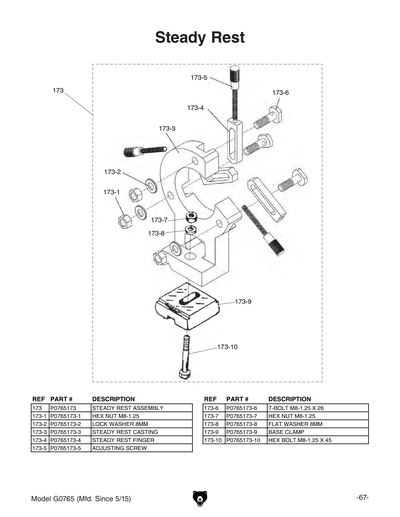

173
STEADY REST ASSEMBLY
Price
$82.70
173-1
HEX NUT M8-1.25
Price
N/A
173-10
HEX BOLT M8-1.25 X 45
Price
N/A
173-2
LOCK WASHER 8MM
Price
N/A
173-3
STEADY REST CASTING
Price
$38.85
173-4
STEADY REST FINGER
Price
$11.90
173-5
ADJUSTING SCREW
Price
$6.50
173-6
T-BOLT M8-1.25 X 26
Price
$5.45
173-7
HEX NUT M8-1.25
Price
N/A
173-8
FLAT WASHER 8MM
Price
N/A
173-9
BASE CLAMP
Price
$23.40
174
FACEPLATE 5"
Price
$43.15
175
LATHE CHUCK KEY 3/8" STD
Price
$14.75
176
EXTERNAL JAWS 3-PC SET
Price
$111.45
177
HEX WRENCH 2.5MM
Price
N/A
178
HEX WRENCH 3MM
Price
N/A
179
HEX WRENCH 4MM
Price
N/A
180
HEX WRENCH 5MM
Price
N/A
181
HEX WRENCH 6MM
Price
N/A
182
BOTTLE FOR OIL
Price
$8.65
183
GEAR 30T
Price
$10.85
184
GEAR 35T
Price
$8.65
185
GEAR 40T
Price
$12.25
186
GEAR 45T
Price
$10.85
187
GEAR 50T
Price
$11.65
188
GEAR 55T
Price
$13.70
189
GEAR 57T
Price
$10.85
190
GEAR 65T
Price
$10.85
191
GEAR 60T
Price
$10.85
192
WRENCH 6 X 7MM OPEN-ENDS
Price
N/A
193
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
194
WRENCH 13 X 16MM OPEN-ENDS
Price
N/A
195
ELECTRICAL BARRIER
Price
$4.35
196
PHLP HD SCR M5-.8 X 12
Price
N/A
197
CAP SCREW M6-1 X 10
Price
N/A
198
CAP SCREW M6-1 X 15
Price
N/A
199
LOCK BLOCK
Price
$8.95
200
TAILSTOCK LOCKING HANDLE
Price
$12.95
201
TAILSTOCK LOCKING CAM
Price
$22.35
202
HEX NUT M6-1
Price
N/A
203
CLAMPING BLOCK
Price
$17.90
204
CAP SCREW M6-1 X 25
Price
N/A
205
SET SCREW M6-1 X 25
Price
N/A

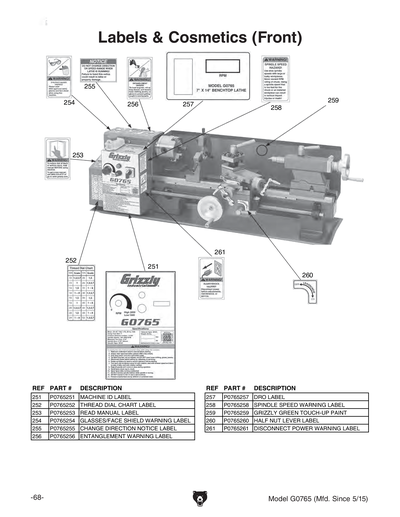

251
MACHINE ID LABEL
Price
$16.40
252
THREAD DIAL CHART LABEL
Price
$7.15
253
READ MANUAL 1.5W X 2.5H
Price
N/A
254
FACE SHIELD & SAFETY GLASSES 2W X 3.3H
Price
N/A
255
CHANGE DIRECTION NOTICE LABEL
Price
$3.75
256
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
257
DRO LABEL
Price
$3.75
258
SPINDLE SPEED WARNING LABEL
Price
$5.00
259
N/S GRIZZLY GREEN G1023S
Price
N/A
260
HALF NUT LEVER LABEL
Price
$4.15
261
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
262
SPEED RANGE LABEL
Price
$3.75
263
OUTBOARD ENTANGLE WARNING LABEL
Price
$3.75
264
FEED RATE GEAR CHART
Price
$9.00
265
ELECTRICITY 1.4W X 1.2H
Price
N/A
MAN
MANUAL G0765 MFD-12/13+ V1.03.14
Price
$15.00
