Parts for G0767 - 4" x 79" Abrasive Tube Notcher

Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767
Part Diagram for G0767

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

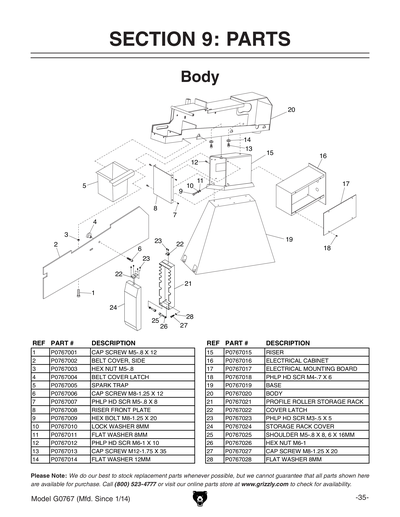

Ref #
Part #
Description
1
CAP SCREW M5-.8 X 12
Price
N/A
2
BELT COVER, SIDE
Price
$181.15
3
HEX NUT M5-.8
Price
N/A
4
BELT COVER LATCH
Price
$4.35
5
SPARK TRAP
Price
$51.75
6
CAP SCREW M8-1.25 X 12
Price
N/A
7
PHLP HD SCR M5-.8 X 8
Price
N/A
8
RISER FRONT PLATE
Price
$25.90
9
HEX BOLT M8-1.25 X 20
Price
N/A
10
LOCK WASHER 8MM
Price
N/A
11
FLAT WASHER 8MM
Price
N/A
12
PHLP HD SCR M6-1 X 10
Price
N/A
13
CAP SCREW M12-1.75 X 35
Price
N/A
14
FLAT WASHER 12MM
Price
N/A
15
RISER
Price
$181.15
16
ELECTRICAL CABINET
Price
$103.50
17
ELECTRICAL MOUNTING BOARD
Price
$25.90
18
PHLP HD SCR M4-.7 X 6
Price
N/A
19
BASE
Price
$366.60
20
BODY
Price
$1,035.00
21
PROFILE ROLLER STORAGE RACK
Price
$107.85
22
COVER LATCH DK502
Price
$6.50
23
PHLP HD SCR M3-.5 X 5
Price
N/A
24
STORAGE RACK COVER
Price
$47.45
25
SHOULDER M5-.8 X 8, 6 X 16MM
Price
$4.35
26
HEX NUT M6-1
Price
N/A
27
CAP SCREW M8-1.25 X 20
Price
N/A
28
FLAT WASHER 8MM
Price
N/A

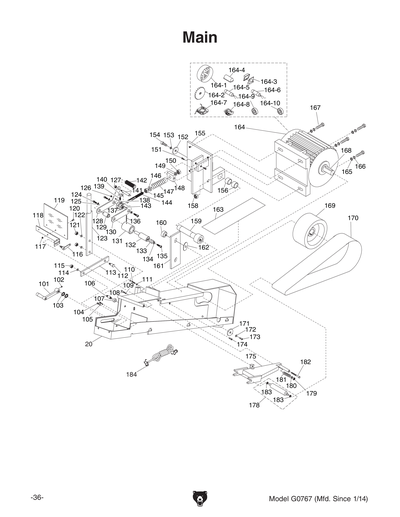

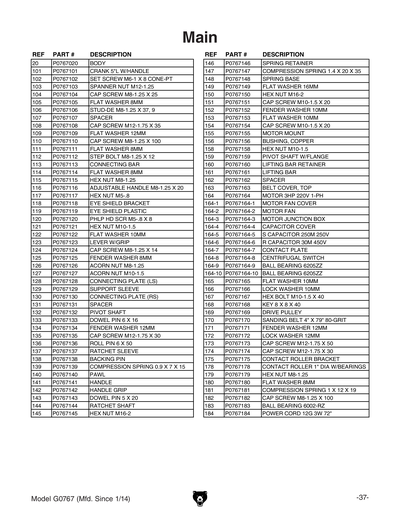

101
CRANK 5"L W/HANDLE
Price
$52.50
102
SET SCREW M6-1 X 8 CONE-PT
Price
N/A
103
SPANNER NUT M12-1.25
Price
$2.25
104
CAP SCREW M8-1.25 X 25
Price
N/A
105
FLAT WASHER 8MM
Price
N/A
106
STUD-DE M8-1.25 X 37, 9
Price
$7.60
107
SPACER
Price
$4.35
108
CAP SCREW M12-1.75 X 35
Price
N/A
109
FLAT WASHER 12MM
Price
N/A
110
CAP SCREW M8-1.25 X 100
Price
N/A
111
FLAT WASHER 8MM
Price
N/A
112
STEP BOLT M8-1.25 X 12
Price
$4.00
113
CONNECTING BAR
Price
$15.85
114
FLAT WASHER 8MM
Price
N/A
115
HEX NUT M8-1.25
Price
N/A
116
ADJUSTABLE HANDLE M8-1.25 X 20
Price
$7.95
117
HEX NUT M5-.8
Price
N/A
118
EYE SHIELD BRACKET
Price
$5.45
119
EYE SHIELD PLASTIC
Price
$27.00
120
PHLP HD SCR M5-.8 X 8
Price
N/A
121
HEX NUT M10-1.5
Price
N/A
122
FLAT WASHER 10MM
Price
N/A
123
LEVER W/GRIP
Price
$45.35
124
CAP SCREW M8-1.25 X 14
Price
N/A
125
FENDER WASHER 8MM
Price
N/A
126
ACORN NUT M8-1.25
Price
N/A
127
ACORN NUT M10-1.5
Price
N/A
128
CONNECTING PLATE (LS)
Price
$38.85
129
SUPPORT SLEEVE
Price
$12.25
130
CONNECTING PLATE (RS)
Price
$38.85
131
SPACER
Price
$51.75
132
PIVOT SHAFT
Price
$39.95
133
DOWEL PIN 6 X 16
Price
$1.90
134
FENDER WASHER 12MM
Price
N/A
135
CAP SCREW M12-1.75 X 30
Price
N/A
136
ROLL PIN 6 X 50
Price
N/A
137
RATCHET SLEEVE
Price
$50.70
138
BACKING PIN
Price
$4.35
139
COMPRESSION SPRING 0.9 X 7 X 15
Price
$10.45
140
PAWL
Price
$16.95
141
HANDLE
Price
$25.90
142
HANDLE GRIP
Price
$9.40
143
DOWEL PIN 5 X 20
Price
$1.90
144
RATCHET SHAFT
Price
$55.65
145
HEX NUT M16-2
Price
N/A
146
SPRING RETAINER
Price
$1.90
147
COMPRESSION SPRING 1.4 X 20 X 35
Price
$10.45
148
SPRING BASE
Price
$33.85
149
FLAT WASHER 16MM
Price
N/A
150
HEX NUT M16-2
Price
N/A
151
CAP SCREW M10-1.5 X 20
Price
N/A
152
FENDER WASHER 10MM
Price
N/A
153
FLAT WASHER 10MM
Price
N/A
154
CAP SCREW M10-1.5 X 20
Price
N/A
155
MOTOR MOUNT
Price
$194.10
156
*DISCD*BUSHING, COPPER
Item is no longer available
Price
N/A
158
HEX NUT M10-1.5
Price
N/A
159
PIVOT SHAFT W/FLANGE
Price
$92.70
160
LIFTING BAR RETAINER
Price
$9.75
161
LIFTING BAR
Price
$69.00
162
SPACER
Price
$1.90
163
GRAPHITE PAD
Price
$15.85
164
MOTOR 3HP 220V 1-PH
Price
$639.40
164-1
MOTOR FAN COVER
Price
$29.15
164-10
BALL BEARING 6205ZZ
Price
N/A
164-2
MOTOR FAN
Price
$8.65
164-3
MOTOR JUNCTION BOX
Price
$40.15
164-4
CAPACITOR COVER
Price
$8.65
164-5
S CAPACITOR 250M 250V 3-3/4 X 2
Price
$38.15
164-6
R CAPACITOR 30M 450V 2 X 3-3/4
Price
$38.15
164-7
CONTACT PLATE
Price
$5.75
164-8
CENTRIFUGAL SWITCH
Price
$12.95
164-9
BALL BEARING 6205ZZ
Price
N/A
165
FLAT WASHER 10MM
Price
N/A
166
LOCK WASHER 10MM
Price
N/A
167
HEX BOLT M10-1.5 X 40
Price
N/A
168
KEY 8 X 8 X 40
Price
N/A
169
DRIVE PULLEY
Price
$503.60
170
SANDING BELT 4" X 79" 80-GRIT
Price
$62.60
171
FENDER WASHER 12MM
Price
N/A
172
LOCK WASHER 12MM
Price
N/A
173
CAP SCREW M12-1.75 X 50
Price
N/A
174
CAP SCREW M12-1.75 X 30
Price
N/A
175
CONTACT ROLLER BRACKET
Price
$156.00
178
CONTACT ROLLER 1" DIA W/BEARINGS
Price
$77.65
179
HEX NUT M8-1.25
Price
N/A
180
FLAT WASHER 8MM
Price
N/A
181
COMPRESSION SPRING 1 X 12 X 19
Price
$10.45
182
CAP SCREW M8-1.25 X 100
Price
N/A
183
BALL BEARING 6002-RZ
Price
N/A
184
POWER CORD 12G 3W 72"
Price
$25.90

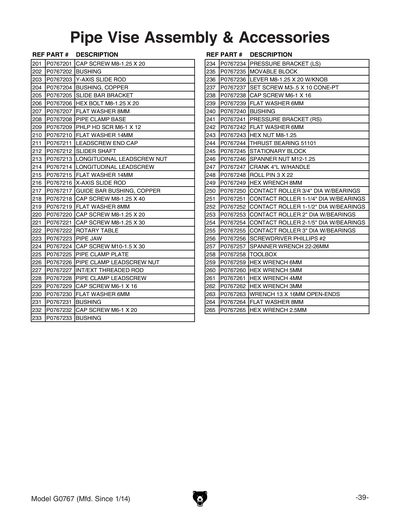

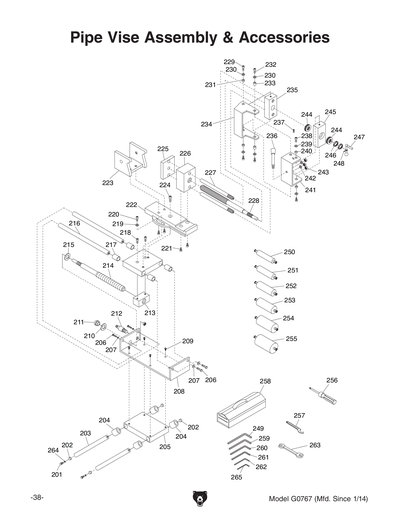

201
CAP SCREW M8-1.25 X 20
Price
N/A
202
BUSHING
Price
$2.90
203
Y-AXIS SLIDE ROD
Price
$21.60
204
BUSHING, COPPER
Price
$2.90
205
SLIDE BAR BRACKET
Price
$155.25
206
HEX BOLT M8-1.25 X 20
Price
N/A
207
FLAT WASHER 8MM
Price
N/A
208
PIPE CLAMP BASE
Price
$51.75
209
PHLP HD SCR M6-1 X 12
Price
N/A
210
FLAT WASHER 14MM
Price
N/A
211
LEADSCREW END CAP
Price
$4.30
212
SLIDER SHAFT
Price
$1.90
213
LONGITUDINAL LEADSCREW NUT
Price
$187.25
214
LONGITUDINAL LEADSCREW
Price
$38.15
215
FLAT WASHER 14MM
Price
N/A
216
X-AXIS SLIDE ROD
Price
$25.90
217
GUIDE BAR BUSHING, COPPER
Price
$181.15
218
CAP SCREW M8-1.25 X 40
Price
N/A
219
FLAT WASHER 8MM
Price
N/A
220
CAP SCREW M8-1.25 X 20
Price
N/A
221
CAP SCREW M8-1.25 X 30
Price
N/A
222
ROTARY TABLE
Price
$271.70
223
PIPE JAW
Price
$125.10
224
CAP SCREW M10-1.5 X 30
Price
N/A
225
PIPE CLAMP PLATE
Price
$38.85
226
PIPE CLAMP LEADSCREW NUT
Price
$3.25
227
INT/EXT THREADED ROD
Price
$25.90
228
PIPE CLAMP LEADSCREW
Price
$44.60
229
CAP SCREW M6-1 X 16
Price
N/A
230
FLAT WASHER 6MM
Price
N/A
231
BUSHING
Price
$11.20
232
CAP SCREW M6-1 X 20
Price
N/A
233
BUSHING
Price
$11.20
234
PRESSURE BRACKET (LS)
Price
$5.45
235
MOVABLE BLOCK
Price
$41.70
236
LEVER M8-1.25 X 20 W/KNOB
Price
$11.20
237
SET SCREW M3-.5 X 10 CONE-PT
Price
N/A
238
CAP SCREW M6-1 X 16
Price
N/A
239
FLAT WASHER 6MM
Price
N/A
240
BUSHING
Price
$4.50
241
PRESSURE BRACKET (RS)
Price
$224.25
242
FLAT WASHER 6MM
Price
N/A
243
HEX NUT M8-1.25
Price
N/A
244
THRUST BEARING 51101
Price
N/A
245
STATIONARY BLOCK
Price
$33.85
246
SPANNER NUT M12-1.25
Price
N/A
247
CRANK 4"L W/HANDLE
Price
$50.00
248
ROLL PIN 3 X 22
Price
N/A
249
HEX WRENCH 8MM
Price
N/A
250
PROFILE ROLLER 3/4" DIA W/BEARINGS
Price
$93.85
251
PROFILE ROLLER 1-1/4" DIA W/BEARINGS
Price
$129.25
252
PROFILE ROLLER 1-1/2" DIA W/BEARINGS
Price
$182.95
253
PROFILE ROLLER 2" DIA W/BEARINGS
Price
$229.70
254
PROFILE ROLLER 2-1/2" DIA W/BEARINGS
Price
$248.00
255
PROFILE ROLLER 3" DIA W/BEARINGS
Price
$308.40
256
SCREWDRIVER PHILLIPS #2
Price
N/A
257
SPANNER WRENCH 22-26MM
Price
$6.50
258
TOOLBOX
Price
$17.25
259
HEX WRENCH 6MM
Price
N/A
260
HEX WRENCH 5MM
Price
N/A
261
HEX WRENCH 4MM
Price
N/A
262
HEX WRENCH 3MM
Price
N/A
263
WRENCH 13 X 16MM OPEN-ENDS
Price
N/A
264
FLAT WASHER 8MM
Price
N/A
265
HEX WRENCH 2.5MM
Price
N/A

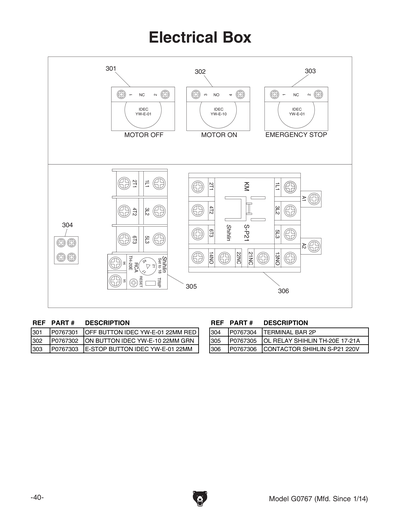

301
OFF BUTTON IDEC YW-E-01 22MM RED
Price
$12.95
302
ON BUTTON IDEC YW-E-10 22MM GRN
Price
$12.95
303
E-STOP BUTTON IDEC YW-E-01 22MM
Price
$21.60
304
TERMINAL BAR 2P
Price
$7.20
305
E-STOP BUTTON IDEC YW-E-01 22MM
Price
$66.15
306
CONTACTOR SHIHLIN S-P21 220V
Price
$164.95

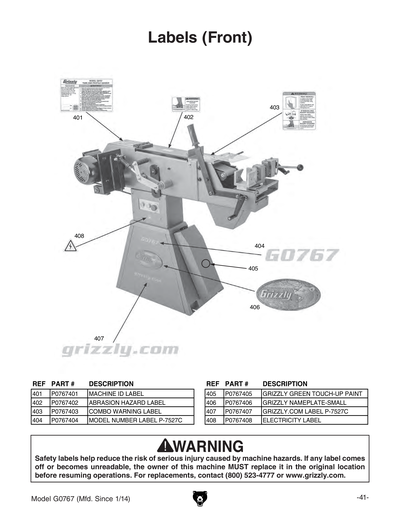

401
MACHINE ID LABEL
Price
$16.40

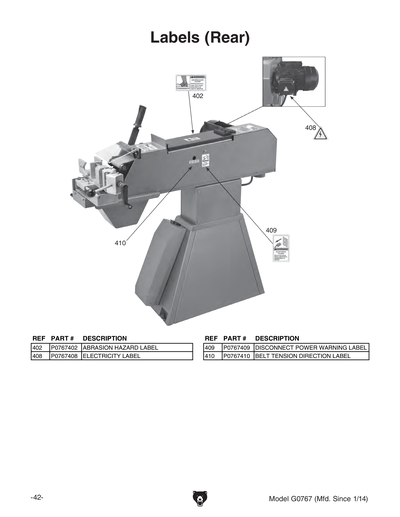

402
ABRASION HAZARD LABEL
Price
$1.25
403
COMBO WARNING LABEL
Price
$3.75
404
MODEL NUMBER LABEL P-7527C
Price
$6.25
405
N/S GRIZZLY GREEN G1023S
Price
N/A
406
Nameplate - Small
Price
N/A
407
GRIZZLY.COM LABEL 11.5",BEIGE
Price
N/A
408
ELECTRICITY 1.4W X 1.2H
Price
N/A
409
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
410
BELT TENSION DIRECTION LABEL
Price
$1.25
MAN
MANUAL G0767 MFD-1/14+ V1.05.14
Price
$14.65
P
SET SCREW M3-.5 X 10 CONE-PT
Price
$2.20
