Parts for G0768 - 8" x 16" Variable-Speed Benchtop Lathe

1/15

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

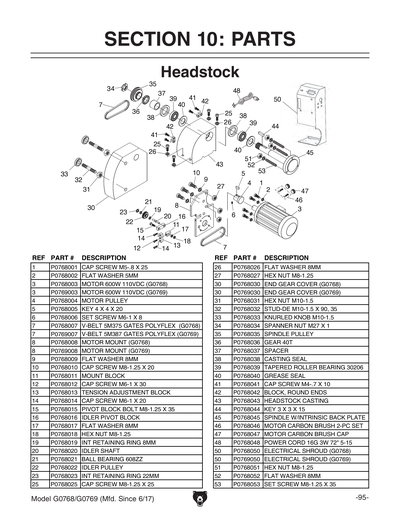

Ref #
Part #
Description
1
CAP SCREW M5-.8 X 25
Price
N/A
2
FLAT WASHER 5MM
Price
N/A
3
MOTOR 600W 110VDC
Price
$168.00
4
MOTOR PULLEY
Price
$9.00
5
KEY 4 X 4 X 20
Price
N/A
6
SET SCREW M6-1 X 8
Price
N/A
7
BELT GATES POLYFLEX 5M375
Price
$18.75
8
MOTOR MOUNT
Price
$28.25
9
FLAT WASHER 8MM
Price
N/A
10
CAP SCREW M8-1.25 X 20
Price
N/A
11
MOUNT BLOCK
Price
$4.50
13
*DISCD*TENSION ADJUSTMENT BLOCK
Item is no longer available
Price
N/A
15
PIVOT BLOCK BOLT M8-1.25 X 35
Price
$1.25
16
IDLER PIVOT BLOCK
Price
$3.00
17
FLAT WASHER 8MM
Price
N/A
18
HEX NUT M8-1.25
Price
N/A
19
INT RETAINING RING 8MM
Price
N/A
20
IDLER SHAFT
Price
$4.75
21
***USE G3845***
Price
N/A
22
IDLER PULLEY
Price
$4.25
23
INT RETAINING RING 22MM
Price
N/A
25
CAP SCREW M8-1.25 X 25
Price
N/A
26
FLAT WASHER 8MM
Price
N/A
27
HEX NUT M8-1.25
Price
N/A
28
FLAT WASHER 6MM
Price
N/A
29
CAP SCREW M6-1 X 20
Price
N/A
30
END GEAR COVER
Price
$77.50
31
HEX NUT M10-1.5
Price
N/A
32
STUD-DE M10-1.5 X 90, 35
Price
$4.25
33
KNURLED KNOB M10-1.5
Price
$4.50
34
SPANNER NUT M27 X 1
Price
$8.25
35
SPINDLE PULLEY
Price
$18.75
36
GEAR 40T
Price
$9.00
37
SPACER
Price
$3.00
38
CASTING SEAL
Price
$6.25
39
TAPERED ROLLER BEARING 30206
Price
N/A
40
GREASE SEAL
Price
$6.25
41
CAP SCREW M4-.7 X 10
Price
N/A
42
BLOCK, ROUND ENDS
Price
$1.50
43
HEADSTOCK CASTING
Price
$105.00
44
KEY 3 X 3 X 15
Price
N/A
45
SPINDLE W/INTRINSIC BACK PLATE
Price
$63.00
45-1
SPEED SENSOR RING
Price
$6.75
46
CARBON BRUSH (SINGLE)
Price
$9.50
47
MOTOR CARBON BRUSH CAP
Price
$3.75
49
HEX NUT M6-1
Price
N/A
50
ELECTRICAL SHROUD
Price
$37.25
50-1
ELECTRICAL PANEL-REAR
Price
$10.50
50-2
CAP SCREW M4-.7 X 8
Price
N/A
51
HEX NUT M8-1.25
Price
N/A
52
FLAT WASHER 8MM
Price
N/A
53
SET SCREW M8-1.25 X 35
Price
N/A

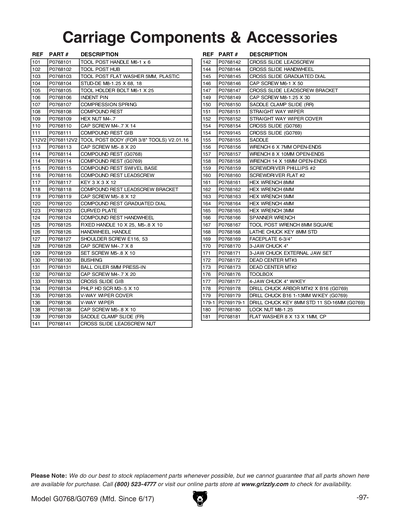

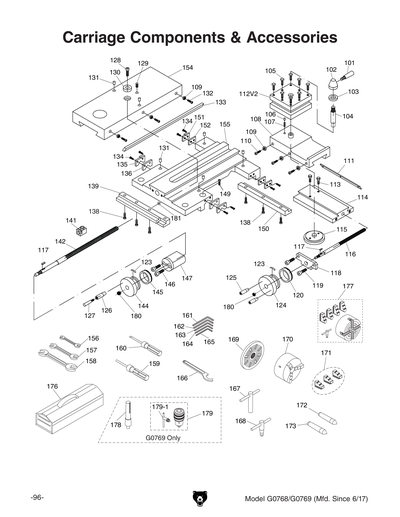

101
TOOL POST HANDLE M5-.8 X 5
Price
$6.25
102
TOOL POST HUB
Price
$4.75
103
FLAT WASHER 10MM
Price
N/A
104
STUD-DE M8-1.25 X 68, 18
Price
$3.00
105
TOOL HOLDER BOLT M6-1 X 25
Price
$1.25
106
INDENT PIN
Price
$1.75
107
COMPRESSION SPRING
Price
$1.75
108
COMPOUND REST
Price
$31.00
109
HEX NUT M4-.7
Price
N/A
110
CAP SCREW M4-.7 X 14
Price
N/A
111
COMPOUND REST GIB
Price
$7.75
112
TOOL POST BODY (FOR 12MM TOOLS) V1
Price
$30.00
112V2
TOOL POST BODY (FOR 3/8" TOOLS) V2.01.16
Price
$24.00
113
CAP SCREW M5-.8 X 20
Price
N/A
114
COMPOUND REST SLIDE
Price
$28.25
114-1
COMPOUND REST ANGLE SCALE
Price
$4.50
114-2
PHLP HD SCR M4-.7 X 8
Price
N/A
115
COMPOUND REST SWIVEL BASE
Price
$12.50
116
COMPOUND REST LEADSCREW
Price
$17.25
117
KEY 3 X 3 X 12
Price
N/A
118
COMPOUND REST LEADSCREW BRACKET
Price
$15.50
119
CAP SCREW M5-.8 X 12
Price
N/A
120
COMPOUND REST GRADUATED DIAL
Price
$12.50
123
CURVED PLATE
Price
$1.50
124
COMPOUND REST HANDWHEEL
Price
$17.25
125
FIXED HANDLE 10 X 25, M5-.8 X 10
Price
$7.50
126
HANDWHEEL HANDLE
Price
$6.25
127
SHOULDER SCREW E116, 53
Price
$4.50
128
CAP SCREW M4-.7 X 8
Price
N/A
129
SET SCREW M5-.8 X 10
Price
N/A
130
BUSHING
Price
$1.75
131
BALL OILER 6MM PRESS-IN
Price
N/A
132
CAP SCREW M4-.7 X 20
Price
N/A
133
CROSS SLIDE GIB
Price
$9.50
134
PHLP HD SCR M3-.5 X 10
Price
N/A
135
V-WAY WIPER COVER
Price
$1.50
136
V-WAY WIPER
Price
$1.50
138
CAP SCREW M5-.8 X 10
Price
N/A
139
SADDLE CLAMP SLIDE (FR)
Price
$9.90
140
CAP SCREW M4-.7 X 10
Price
N/A
141
CROSS SLIDE LEADSCREW NUT
Price
$11.00
142
CROSS SLIDE LEADSCREW
Price
$21.75
144
CROSS SLIDE HANDWHEEL
Price
$12.00
145
CROSS SLIDE GRADUATED DIAL
Price
$15.50
146
CAP SCREW M6-1 X 50
Price
N/A
147
CROSS SLIDE LEADSCREW BRACKET
Price
$25.00
148
CLAMP BLOCK
Price
$4.50
149
CAP SCREW M8-1.25 X 30
Price
N/A
150
SADDLE CLAMP SLIDE (RR)
Price
$12.50
151
STRAIGHT WAY WIPER
Price
$1.50
152
STRAIGHT WAY WIPER COVER
Price
$1.50
154
CROSS SLIDE
Price
$33.00
155
SADDLE
Price
$60.00
156
WRENCH 6 X 7MM OPEN-ENDS
Price
N/A
157
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
158
WRENCH 14 X 16MM OPEN-ENDS
Price
N/A
159
SCREWDRIVER PHILLIPS #2
Price
N/A
160
SCREWDRIVER FLAT #2
Price
N/A
161
HEX WRENCH 8MM
Price
N/A
162
HEX WRENCH 6MM
Price
N/A
163
HEX WRENCH 5MM
Price
N/A
164
HEX WRENCH 4MM
Price
N/A
165
HEX WRENCH 3MM
Price
N/A
166
SPANNER WRENCH
Price
$5.50
167
TOOL POST WRENCH 8MM SQUARE
Price
$11.50
168
LATHE CHUCK KEY 8MM STD
Price
$10.50
169
FACEPLATE 6-3/4"
Price
$69.00
170
3-JAW CHUCK 4"
Price
$234.00
171
3-JAW CHUCK EXTERNAL JAW SET
Price
$74.50
172
DEAD CENTER MT#3
Price
$12.75
173
DEAD CENTER MT#2
Price
$10.50

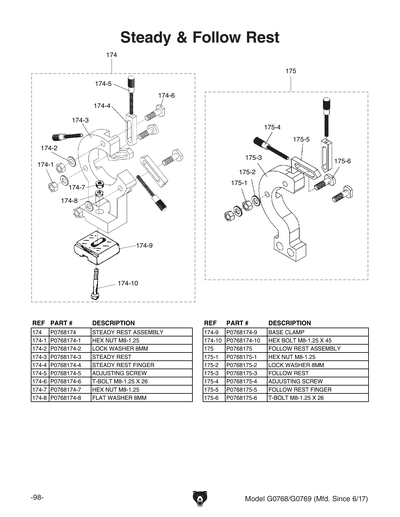

174
STEADY REST ASSEMBLY
Price
$48.00
174-1
HEX NUT M8-1.25
Price
N/A
174-10
HEX BOLT M8-1.25 X 45
Price
N/A
174-2
LOCK WASHER 8MM
Price
N/A
174-3
STEADY REST
Price
$9.50
174-4
STEADY REST FINGER
Price
$9.00
174-5
ADJUSTING SCREW
Price
$4.25
174-6
T-BOLT M8-1.25 X 26
Price
$3.00
174-7
HEX NUT M8-1.25
Price
N/A
174-8
FLAT WASHER 8MM
Price
N/A
174-9
BASE CLAMP
Price
$22.50
175
FOLLOW REST ASSEMBLY
Price
$56.25
175-1
HEX NUT M8-1.25
Price
N/A
175-2
LOCK WASHER 8MM
Price
N/A
175-3
FOLLOW REST
Price
$27.00
175-4
ADJUSTING SCREW
Price
$4.25
175-5
FOLLOW REST FINGER
Price
$7.50
175-6
T-BOLT M8-1.25 X 26
Price
N/A
176
TOOLBOX
Price
$16.50
177
4-JAW CHUCK 4" W/KEY
Price
$195.00
177-1
CHUCK KEY -4-JAW
Price
$7.50
180
LOCK NUT M8-1.25
Price
N/A

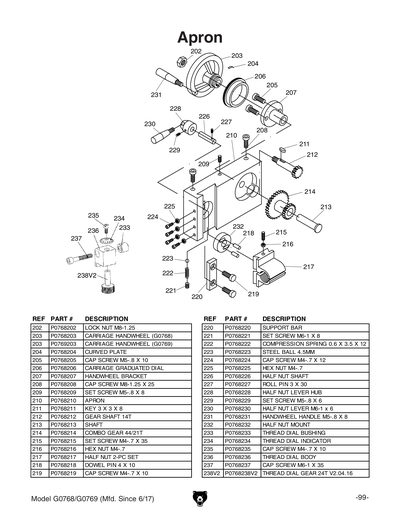

201
SET SCREW M8-1.25 X 8
Price
N/A
202
LOCK NUT M8-1.25
Price
N/A
203
CARRIAGE HANDWHEEL
Price
$18.00
204
CURVED PLATE
Price
$1.00
205
CAP SCREW M5-.8 X 10
Price
N/A
206
CARRIAGE GRADUATED DIAL
Price
$10.25
207
HANDWHEEL BRACKET
Price
$7.50
208
CAP SCREW M8-1.25 X 25
Price
N/A
209
SET SCREW M5-.8 X 8
Price
N/A
210
APRON
Price
$57.00
211
KEY 3 X 3 X 8
Price
N/A
212
GEAR SHAFT 14T
Price
$10.50
213
SHAFT
Price
$6.00
214
COMBO GEAR 44/21T
Price
$16.50
215
SET SCREW M4-.7 X 35
Price
$1.38
216
HEX NUT M4-.7
Price
N/A
217
HALF NUT 2-PC SET
Price
$22.50
218
DOWEL PIN 4 X 10
Price
$1.38
219
CAP SCREW M4-.7 X 10
Price
N/A
220
SUPPORT BAR
Price
$4.50
221
SET SCREW M6-1 X 8
Price
N/A
222
COMPRESSION SPRING 0.6 X 3.5 X 12
Price
$1.25
223
STEEL BALL 4.5MM
Price
N/A
224
CAP SCREW M4-.7 X 12
Price
N/A
225
HEX NUT M4-.7
Price
N/A
226
HALF NUT SHAFT
Price
$6.00
227
ROLL PIN 3 X 30
Price
N/A
228
HALF NUT LEVER HUB
Price
$5.62
229
SET SCREW M5-.8 X 6
Price
N/A
230
TOOL POST HANDLE M5-.8 X 5
Price
N/A
231
HANDWHEEL HANDLE M5-.8 X 8
Price
$12.50
232
HALF NUT MOUNT
Price
$7.50
233
THREAD DIAL BUSHING
Price
$4.75
234
THREAD DIAL INDICATOR
Price
$3.12
235
CAP SCREW M4-.7 X 10
Price
N/A
236
THREAD DIAL BODY
Price
$12.00
237
CAP SCREW M6-1 X 35
Price
N/A
238
COMBO GEAR 32T
Price
$10.50
238V2
THREAD DIAL GEAR 24T V2.04.16
Price
$10.50

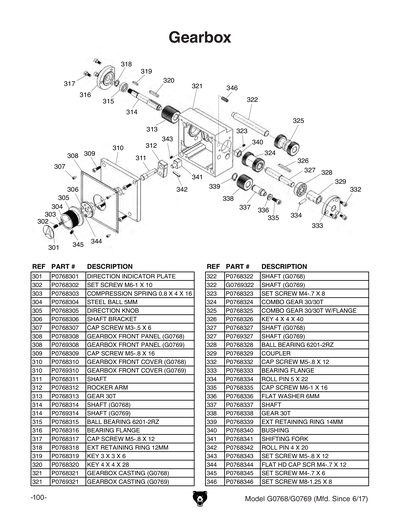

301
DIRECTION INDICATOR PLATE
Price
$2.50
302
SET SCREW M6-1 X 10
Price
N/A
303
COMPRESSION SPRING 0.8 X 4 X 16
Price
$1.75
304
STEEL BALL 5MM
Price
N/A
305
DIRECTION KNOB
Price
$15.00
306
SHAFT BRACKET
Price
$5.62
307
CAP SCREW M3-.5 X 6
Price
N/A
308
GEARBOX FRONT PANEL
Price
$7.50
309
CAP SCREW M5-.8 X 16
Price
N/A
310
GEARBOX FRONT COVER
Price
$30.00
311
SHAFT
Price
$4.69
312
ROCKER ARM
Price
$4.50
313
GEAR 30T
Price
$15.00
314
SHAFT
Price
$9.00
315
BALL BEARING 6201-2RZ
Price
$9.50
316
BEARING FLANGE
Price
$15.00
317
CAP SCREW M5-.8 X 12
Price
N/A
318
EXT RETAINING RING 12MM
Price
N/A
319
KEY 3 X 3 X 6
Price
N/A
320
KEY 4 X 4 X 28
Price
N/A
321
GEARBOX CASTING
Price
$57.00
322
SHAFT
Price
$12.00
323
SET SCREW M4-.7 X 8
Price
N/A
324
COMBO GEAR 30/30T W/SHAFT
Price
$21.25
325
COMBO GEAR 30/30T W/FLANGE
Price
$18.00
326
KEY 4 X 4 X 40
Price
N/A
327
*DISCD*SHAFT
Item is no longer available
Price
N/A
328
BALL BEARING 6201-2RZ
Price
$6.00
329
COUPLER
Price
$6.25
331
CAP SCREW M4-.7 X 8
Price
N/A
332
CAP SCREW M5-.8 X 12
Price
N/A
333
BEARING FLANGE
Price
$15.00
334
ROLL PIN 5 X 22
Price
N/A
335
CAP SCREW M6-1 X 16
Price
N/A
336
FLAT WASHER 6MM
Price
N/A
337
SHAFT
Price
$6.00
338
GEAR 30T
Price
$15.50
339
EXT RETAINING RING 14MM
Price
N/A
340
BUSHING
Price
$4.75
341
SHIFTING FORK
Price
$9.50
342
ROLL PIN 4 X 20
Price
N/A
343
SET SCREW M5-.8 X 12
Price
N/A
345
SET SCREW M4-.7 X 6
Price
N/A
346
SET SCREW M8-1.25 X 8
Price
N/A

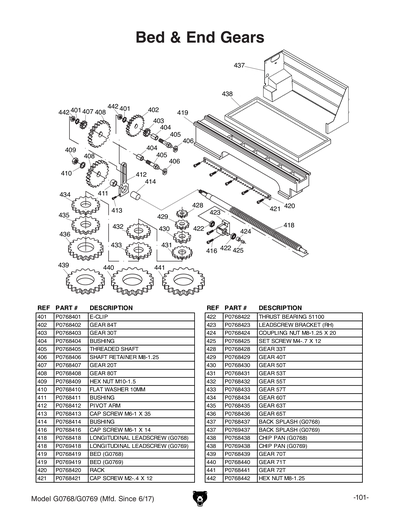

401
EXT RETAINING RING 8MM
Price
N/A
402
GEAR 84T
Price
$15.00
403
GEAR 30T
Price
$14.00
404
BUSHING
Price
$4.75
405
THREADED SHAFT
Price
$15.00
406
SHAFT RETAINER M8-1.25
Price
$2.50
407
GEAR 20T
Price
$11.25
408
GEAR 80T
Price
$17.25
409
HEX NUT M10-1.5
Price
N/A
410
FLAT WASHER 10MM
Price
N/A
411
BUSHING
Price
$3.30
412
PIVOT ARM
Price
$28.25
413
CAP SCREW M6-1 X 35
Price
N/A
414
BUSHING
Price
$4.25
416
CAP SCREW M6-1 X 14
Price
N/A
417
KEY 3 X 3 X 16
Price
N/A
418
LONGITUDINAL LEADSCREW
Price
$45.00
419
BED
Price
$318.75
420
RACK
Price
$21.00
421
*DISCD*CAP SCREW M2-.4 X 12
Price
N/A
422
THRUST BEARING 51100
Price
N/A
423
LEADSCREW BRACKET (RH)
Price
$16.50
424
COUPLING NUT M8-1.25 X 20
Price
$2.50
425
SET SCREW M4-.7 X 12
Price
N/A
427
CAP SCREW M4-.7 X 12
Price
N/A
428
GEAR 33T
Price
$11.50
429
GEAR 40T
Price
$12.50
430
GEAR 50T
Price
$14.00
431
GEAR 53T
Price
$13.12
432
GEAR 55T
Price
$13.12
433
GEAR 57T
Price
$14.00
434
GEAR 60T
Price
$13.12
435
GEAR 63T
Price
$17.25
436
GEAR 65T
Price
$16.25
437
BACK SPLASH
Price
$111.75
438
CHIP PAN
Price
$108.50
439
GEAR 70T
Price
$13.20
440
GEAR 71T
Price
$15.00
441
GEAR 72T
Price
$17.25
501

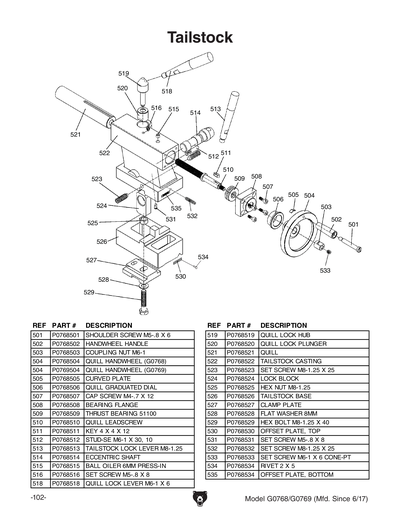

SHOULDER SCREW M5-.8 X 6
Price
$4.95
502
HANDWHEEL HANDLE
Price
$4.50
503
COUPLING NUT M6-1
Price
$1.25
504
QUILL HANDWHEEL
Price
$24.00
505
CURVED PLATE
Price
$1.75
506
QUILL GRADUATED DIAL
Price
$12.50
507
CAP SCREW M4-.7 X 12
Price
N/A
508
BEARING FLANGE
Price
$12.00
509
THRUST BEARING 51100
Price
N/A
510
QUILL LEADSCREW
Price
$21.00
511
KEY 4 X 4 X 12
Price
N/A
512
STUD-SE M6-1 X 30, 10
Price
$1.75
513
TAILSTOCK LOCK LEVER M8-1.25
Price
$16.25
514
ECCENTRIC SHAFT
Price
$16.25
515
BALL OILER 6MM PRESS-IN
Price
$1.38
516
SET SCREW M5-.8 X 8
Price
N/A
517
SHOULDER SCREW M4-.7 X 4
Price
$1.25
518
QUILL LOCK LEVER M6-1 X 5
Price
$16.50
519
QUILL LOCK HUB
Price
$6.60
520
QUILL LOCK PLUNGER
Price
$3.75
521
QUILL
Price
$31.35
522
TAILSTOCK CASTING
Price
$75.00
523
SET SCREW M8-1.25 X 25
Price
N/A
524
LOCK BLOCK
Price
$6.25
525
HEX NUT M8-1.25
Price
N/A
526
TAILSTOCK BASE
Price
$30.00
527
CLAMP PLATE
Price
$6.00
528
FLAT WASHER 8MM
Price
N/A
529
HEX BOLT M8-1.25 X 40
Price
N/A
530
OFFSET PLATE, TOP
Price
$1.25
531
SET SCREW M5-.8 X 8
Price
N/A
532
SET SCREW M8-1.25 X 25
Price
N/A
533
SET SCREW M6-1 X 6 CONE-PT
Price
$1.38
534
RIVET 2 X 5
Price
$1.00
535
OFFSET PLATE, BOTTOM
Price
$1.25
701

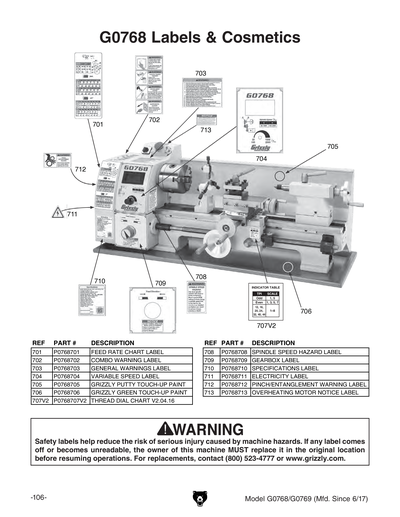

FEED RATE CHART LABEL
Price
$4.95
702
COMBO WARNING LABEL
Price
$4.95
703
GENERAL WARNINGS LABEL
Price
$4.50
704
VARIABLE SPEED LABEL
Price
$6.60
705
GREY PUTTY REF G0504
Price
N/A
706
N/S GRIZZLY GREEN G1023S
Price
N/A
707
THREAD DIAL CHART V2.04.16
Price
N/A
707V2
THREAD DIAL CHART V2.04.16
Price
$4.25
708
SPINDLE SPEED HAZARD LABEL
Price
$3.00
709
GEARBOX LABEL
Price
$6.00
710
SPECIFICATIONS LABEL
Price
$4.95
711
ELECTRICITY 1.4W X 1.2H
Price
N/A
712
PINCH/ENTANGLEMENT WARNING LABEL
Price
$3.30
713
OVERHEATING MOTOR NOTICE LABEL
Price
$3.00
902
***USE P0765165***
Item is no longer available
Price
N/A
903

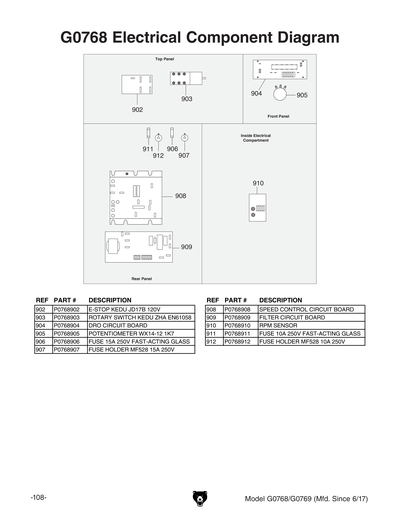

ROTARY SWITCH KEDU ZHA EN61058
Price
$29.50
904
DRO CIRCUIT BOARD
Price
$71.50
905
POTENTIOMETER WX14-12 1K7
Price
$7.50
906
FUSE 15A 250V FAST-ACTING GLASS
Price
$1.00
907
FUSE HOLDER
Price
N/A
908
SPEED CONTROL CIRCUIT BOARD
Price
$139.50
909
FILTER CIRCUIT BOARD
Price
$51.25
910
RPM SENSOR
Price
$9.00
911
FUSE 10A 250V FAST-ACTING GLASS
Price
$1.25
912
FUSE HOLDER
Price
$2.50
MAN
MANUAL G0768-69 MFD-06.14 V1.08.14
Price
$24.75
MANV2
MANUAL G0768-69 MFD-08.15 V2.06.17
Price
$23.75
MANV3
MANUAL G0768-69 MFD-06.17 V3.06.18
Price
$23.25
P
WRENCH 14 X 16MM OPEN-ENDS
Price
$8.50
