Parts for G0769 - 8" x 16" Variable-Speed Combination Lathe/Mill

Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769
Part Diagram for G0769

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description

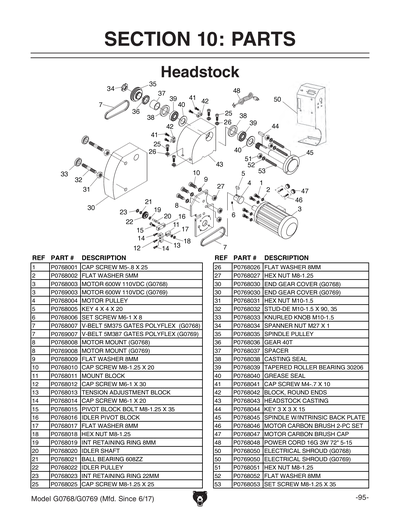

1
CAP SCREW M5-.8 X 25
Price
N/A
2
FLAT WASHER 5MM
Price
N/A
3
MOTOR 600W 110VDC
Price
$241.50
4
MOTOR PULLEY
Price
N/A
5
KEY 4 X 4 X 20
Price
N/A
6
SET SCREW M6-1 X 8
Price
N/A
7
V-BELT GATES POLYFLEX 5M387
Price
$32.30
8
MOTOR MOUNT
Price
$81.95
9
FLAT WASHER 8MM
Price
N/A
10
CAP SCREW M8-1.25 X 20
Price
N/A
11
MOUNT BLOCK
Price
N/A
12
CAP SCREW M6-1 X 30
Price
N/A
13
*DISCD*TENSION ADJUSTMENT BLOCK
Price
N/A
14
CAP SCREW M6-1 X 20
Price
N/A
15
PIVOT BLOCK BOLT M8-1.25 X 35
Price
N/A
16
IDLER PIVOT BLOCK
Price
N/A
17
FLAT WASHER 8MM
Price
N/A
18
HEX NUT M8-1.25
Price
N/A
19
INT RETAINING RING 8MM
Price
N/A
20
IDLER SHAFT
Price
N/A
21
Bearing - 22mm x 8mm
Price
N/A
22
IDLER PULLEY
Price
N/A
23
INT RETAINING RING 22MM
Price
N/A
24
GEARBOX COVER, INBOARD
Price
$32.40
25
CAP SCREW M8-1.25 X 25
Price
N/A
26
FLAT WASHER 8MM
Price
N/A
27
HEX NUT M8-1.25
Price
N/A
28
FLAT WASHER 6MM
Price
N/A
29
CAP SCREW M6-1 X 20
Price
N/A
30
END GEAR COVER
Price
$73.35
31
HEX NUT M10-1.5
Price
N/A
32
STUD-DE M10-1.5 X 90, 35
Price
N/A
33
KNURLED KNOB M10-1.5
Price
N/A
34
SPANNER NUT M27 X 1
Price
N/A
35
SPINDLE PULLEY
Price
N/A
36
GEAR 40T
Price
N/A
37
SPACER
Price
N/A
38
CASTING SEAL
Price
N/A
39
TAPERED ROLLER BEARING 30206
Price
N/A
40
GREASE SEAL
Price
N/A
41
CAP SCREW M4-.7 X 10
Price
N/A
42
BLOCK, ROUND ENDS
Price
N/A
43
HEADSTOCK CASTING
Price
N/A
44
KEY 3 X 3 X 15
Price
N/A
45
SPINDLE W/INTRINSIC BACK PLATE
Price
N/A
46
CARBON BRUSH (SINGLE)
Price
$13.40
47
MOTOR CARBON BRUSH CAP
Price
N/A
48
*DISCD*POWER CORD 16G 3W 72" 5-15
Price
N/A
49
HEX NUT M6-1
Price
N/A
50
ELECTRICAL SHROUD
Price
$51.75
50-1
ELECTRICAL PANEL-REAR
Price
N/A
50-2
CAP SCREW M4-.7 X 8
Price
N/A
51
HEX NUT M8-1.25
Price
N/A
52
FLAT WASHER 8MM
Price
N/A
53
SET SCREW M8-1.25 X 35
Price
N/A

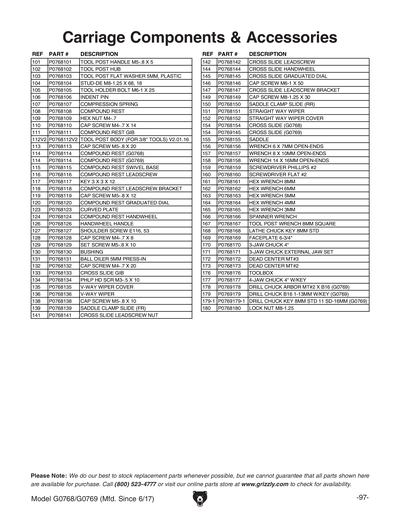

101
TOOL POST HANDLE M6-.1 X 6
Price
N/A
102
TOOL POST HUB
Price
N/A
103
FLAT WASHER 10MM
Price
N/A
104
STUD-DE M8-1.25 X 68, 18
Price
N/A
105
TOOL HOLDER BOLT M6-1 X 25
Price
N/A
106
INDENT PIN
Price
N/A
107
COMPRESSION SPRING
Price
N/A
108
COMPOUND REST
Price
N/A
109
HEX NUT M4-.7
Price
N/A
110
CAP SCREW M4-.7 X 14
Price
N/A
111
COMPOUND REST GIB
Price
N/A
112
TOOL POST BODY (FOR 12MM TOOLS) V1
Price
N/A
112V2
TOOL POST BODY (FOR 3/8" TOOLS) V2.01.16
Price
N/A
113
CAP SCREW M5-.8 X 20
Price
N/A
114
COMPOUND REST SLIDE
Price
$44.60
115
COMPOUND REST SWIVEL BASE
Price
N/A
116
COMPOUND REST LEADSCREW
Price
$35.95
117
KEY 3 X 3 X 12
Price
N/A
118
COMPOUND REST LEADSCREW BRACKET
Price
N/A
119
CAP SCREW M5-.8 X 12
Price
N/A
120
COMPOUND REST GRADUATED DIAL
Price
N/A
123
CURVED PLATE
Price
N/A
124
COMPOUND REST HANDWHEEL
Price
N/A
126
HANDWHEEL HANDLE
Price
N/A
127
SHOULDER SCREW E116, 53
Price
N/A
128
CAP SCREW M4-.7 X 8
Price
N/A
129
SET SCREW M5-.8 X 10
Price
N/A
130
BUSHING
Price
N/A
131
*DISCD*BALL OILER 5MM PRESS-IN
Price
N/A
132
CAP SCREW M4-.7 X 20
Price
N/A
133
CROSS SLIDE GIB
Price
N/A
134
PHLP HD SCR M3-.5 X 10
Price
N/A
135
V-WAY WIPER COVER
Price
N/A
136
V-WAY WIPER
Price
N/A
137
*DISCD*SADDLE GIB (FR)
Price
N/A
138
CAP SCREW M5-.8 X 10
Price
N/A
139
SADDLE CLAMP SLIDE (FR)
Price
N/A
140
CAP SCREW M4-.7 X 10
Price
N/A
141
CROSS SLIDE LEADSCREW NUT
Price
N/A
142
CROSS SLIDE LEADSCREW
Price
N/A
144
CROSS SLIDE HANDWHEEL
Price
N/A
145
CROSS SLIDE GRADUATED DIAL
Price
N/A
146
CAP SCREW M6-1 X 50
Price
N/A
147
CROSS SLIDE LEADSCREW BRACKET
Price
N/A
148
CLAMP BLOCK
Price
N/A
149
CAP SCREW M8-1.25 X 30
Price
N/A
150
SADDLE CLAMP SLIDE (RR)
Price
N/A
151
STRAIGHT WAY WIPER COVER
Price
N/A
152
STRAIGHT WAY WIPER
Price
N/A
153
*DISCD*SADDLE GIB (RR)
Price
N/A
154
CROSS SLIDE
Price
$66.90
155
SADDLE
Price
N/A
156
WRENCH 6 X 7MM OPEN-ENDS
Price
N/A
157
WRENCH 8 X 10MM OPEN-ENDS
Price
N/A
158
WRENCH 14 X 16MM OPEN-ENDS
Price
N/A
159
SCREWDRIVER PHILLIPS #2
Price
N/A
160
SCREWDRIVER FLAT #2
Price
N/A
161
HEX WRENCH 8MM
Price
N/A
162
HEX WRENCH 6MM
Price
N/A
163
HEX WRENCH 5MM
Price
N/A
164
HEX WRENCH 4MM
Price
N/A
165
HEX WRENCH 3MM
Price
N/A
166
SPANNER WRENCH
Price
N/A
167
TOOL POST WRENCH 8MM SQUARE
Price
N/A
168
LATHE CHUCK KEY 8MM STD
Price
N/A
169
FACEPLATE 6-3/4"
Price
N/A
170
3-JAW CHUCK 4"
Price
N/A
171
3-JAW CHUCK EXTERNAL JAW SET
Price
N/A
172
DEAD CENTER MT#3
Price
N/A
173
DEAD CENTER MT#2
Price
N/A
174
STEADY REST ASSEMBLY
Price
N/A
174-1
HEX NUT M8-1.25
Price
N/A
174-10
HEX BOLT M8-1.25 X 45
Price
N/A
174-2
LOCK WASHER 8MM
Price
N/A
174-3
STEADY REST
Price
N/A
174-4
STEADY REST FINGER
Price
N/A
174-5
ADJUSTING SCREW
Price
N/A
174-6
T-BOLT M8-1.25 X 26
Price
N/A
174-7
HEX NUT M8-1.25
Price
N/A
174-8
FLAT WASHER 8MM
Price
N/A
174-9
BASE CLAMP
Price
N/A
174-P
BASE CLAMP
Price
N/A
175
FOLLOW REST ASSEMBLY
Price
N/A
175-1
HEX NUT M8-1.25
Price
N/A
175-2
LOCK WASHER 8MM
Price
N/A
175-3
FOLLOW REST
Price
N/A
175-4
ADJUSTING SCREW
Price
N/A
175-5
ADJUSTING SCREW
Price
N/A
175-6
T-BOLT M8-1.25 X 26
Price
N/A
176
TOOLBOX
Price
N/A
177
4-JAW CHUCK 4" W/KEY
Price
N/A
178
DRILL CHUCK ARBOR MT#2 X B16
Price
$44.60
178-1
DRILL CHUCK B16 1-13MM W/CHUCK KEY
Price
N/A
179
DRILL CHUCK B16 1-13MM W/CHUCK KEY
Price
$35.70
179-1
DRILL CHUCK B16 1-13MM W/CHUCK KEY
Price
N/A
180
LOCK NUT M8-1.25
Price
N/A

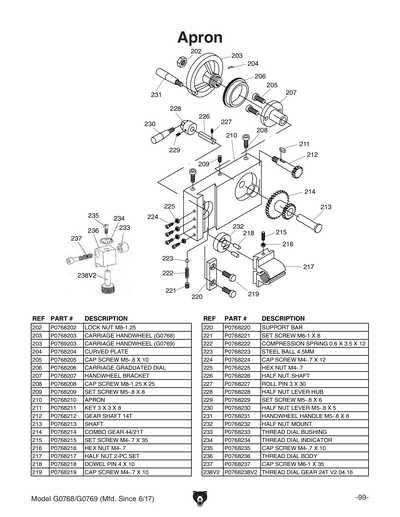

201
SET SCREW M8-1.25 X 8
Price
N/A
202
LOCK NUT M8-1.25
Price
N/A
203
CARRIAGE HANDWHEEL
Price
$40.15
204
CURVED PLATE
Price
N/A
205
CAP SCREW M5-.8 X 10
Price
N/A
206
CARRIAGE GRADUATED DIAL
Price
N/A
207
HANDWHEEL BRACKET
Price
N/A
208
CAP SCREW M8-1.25 X 25
Price
N/A
209
SET SCREW M5-.8 X 8
Price
N/A
210
APRON
Price
N/A
211
KEY 3 X 3 X 8
Price
N/A
212
GEAR SHAFT 14T
Price
N/A
213
SHAFT
Price
N/A
214
COMBO GEAR 44/21T
Price
N/A
215
SET SCREW M4-.7 X 35
Price
N/A
216
HEX NUT M4-.7
Price
N/A
217
HALF NUT 2-PC SET
Price
N/A
218
DOWEL PIN 4 X 10
Price
N/A
219
CAP SCREW M4-.7 X 10
Price
N/A
220
SUPPORT BAR
Price
N/A
221
SET SCREW M6-1 X 8
Price
N/A
222
COMPRESSION SPRING 0.6 X 3.5 X 12
Price
N/A
223
STEEL BALL 4.5MM
Price
N/A
224
CAP SCREW M4-.7 X 12
Price
N/A
225
HEX NUT M4-.7
Price
N/A
226
HALF NUT SHAFT
Price
N/A
227
ROLL PIN 3 X 30
Price
N/A
228
HALF NUT LEVER HUB
Price
N/A
229
SET SCREW M5-.8 X 6
Price
N/A
230
TOOL POST HANDLE M6-.1 X 6
Price
N/A
231
HANDWHEEL HANDLE M5-.8 X 8
Price
N/A
232
HALF NUT MOUNT
Price
N/A
233
THREAD DIAL BUSHING
Price
N/A
234
THREAD DIAL INDICATOR
Price
N/A
235
CAP SCREW M4-.7 X 10
Price
N/A
236
THREAD DIAL BODY
Price
N/A
237
CAP SCREW M6-1 X 35
Price
N/A
238
THREAD DIAL GEAR 24T V2.04.16
Price
N/A
238V2
THREAD DIAL GEAR 24T V2.04.16
Price
N/A

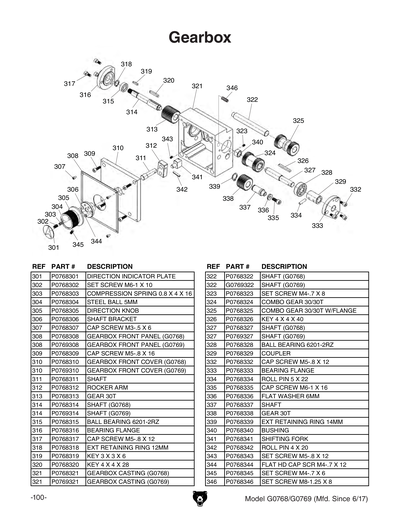

301
DIRECTION INDICATOR PLATE
Price
N/A
302
SET SCREW M6-1 X 10
Price
N/A
303
COMPRESSION SPRING 0.8 X 4 X 16
Price
N/A
304
STEEL BALL 5MM
Price
N/A
305
DIRECTION KNOB
Price
N/A
306
SHAFT BRACKET
Price
N/A
307
CAP SCREW M3-.5 X 6
Price
N/A
308
GEARBOX FRONT PANEL
Price
$21.60
309
CAP SCREW M5-.8 X 16
Price
N/A
310
GEARBOX FRONT COVER
Price
$34.50
311
SHAFT
Price
N/A
312
ROCKER ARM
Price
N/A
313
GEAR 30T
Price
N/A
314
SHAFT
Price
$14.25
315
BALL BEARING 6201-2RZ
Price
N/A
316
BEARING FLANGE
Price
N/A
317
CAP SCREW M5-.8 X 12
Price
N/A
318
EXT RETAINING RING 12MM
Price
N/A
319
KEY 3 X 3 X 6
Price
N/A
320
KEY 4 X 4 X 28
Price
N/A
321
GEARBOX CASTING
Price
$90.60
322
SHAFT
Price
$21.60
323
SET SCREW M4-.7 X 8
Price
N/A
324
COMBO GEAR 30/30T W/SHAFT
Price
N/A
325
COMBO GEAR 30/30T W/FLANGE
Price
N/A
326
KEY 4 X 4 X 40
Price
N/A
327
SHAFT
Price
$12.95
328
BALL BEARING 6201-2RZ
Price
N/A
329
COUPLER
Price
N/A
330
END BRACKET
Price
$25.90
331
CAP SCREW M4-.7 X 8
Price
N/A
332
CAP SCREW M5-.8 X 12
Price
N/A
333
BEARING FLANGE
Price
N/A
334
ROLL PIN 5 X 22
Price
N/A
335
CAP SCREW M6-1 X 16
Price
N/A
336
FLAT WASHER 6MM
Price
N/A
337
SHAFT
Price
N/A
338
GEAR 30T
Price
N/A
339
EXT RETAINING RING 14MM
Price
N/A
340
BUSHING
Price
N/A
341
SHIFTING FORK
Price
N/A
342
ROLL PIN 4 X 20
Price
N/A
343
SET SCREW M5-.8 X 12
Price
N/A
344
FLAT HD CAP SCR M4-.7 X 12
Price
N/A
345
SET SCREW M4-.7 X 6
Price
N/A
346
SET SCREW M8-1.25 X 8
Price
N/A

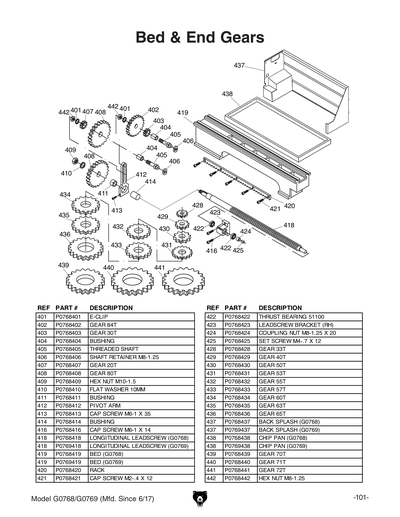

401
EXT RETAINING RING 8MM
Price
N/A
402
GEAR 84T
Price
N/A
403
GEAR 30T
Price
N/A
404
BUSHING
Price
N/A
405
THREADED SHAFT
Price
N/A
406
SHAFT RETAINER M8-1.25
Price
N/A
407
GEAR 20T
Price
N/A
408
GEAR 80T
Price
N/A
409
HEX NUT M10-1.5
Price
N/A
410
FLAT WASHER 10MM
Price
N/A
411
BUSHING
Price
N/A
412
PIVOT ARM
Price
N/A
413
CAP SCREW M6-1 X 35
Price
N/A
414
BUSHING
Price
N/A
415
LEADSCREW BRACKET (LH)
Price
$25.90
416
CAP SCREW M6-1 X 14
Price
N/A
417
KEY 3 X 3 X 16
Price
N/A
418
LONGITUDINAL LEADSCREW
Price
$64.70
419
BED
Price
$392.45
420
RACK
Price
N/A
421
*DISCD*CAP SCREW M2-.4 X 12
Price
N/A
422
THRUST BEARING 51100
Price
N/A
423
LEADSCREW BRACKET (RH)
Price
N/A
424
COUPLING NUT M8-1.25 X 20
Price
N/A
425
SET SCREW M4-.7 X 12
Price
N/A
426
*DISCD*END FLANGE
Price
N/A
427
CAP SCREW M4-.7 X 12
Price
N/A
428
GEAR 33T
Price
N/A
429
GEAR 40T
Price
N/A
430
GEAR 50T
Price
N/A
431
GEAR 53T
Price
N/A
432
GEAR 55T
Price
N/A
433
GEAR 57T
Price
N/A
434
GEAR 60T
Price
N/A
435
GEAR 63T
Price
N/A
436
GEAR 65T
Price
N/A
437
BACK SPLASH
Price
$173.85
438
CHIP PAN
Price
$107.85
439
GEAR 70T
Price
N/A
440
GEAR 71T
Price
N/A
441
GEAR 72T
Price
N/A
501
SHOULDER SCREW M5-.8 X 6
Price
N/A
502
HANDWHEEL HANDLE
Price
N/A
503
COUPLING NUT M6-1
Price
N/A
504
QUILL HANDWHEEL
Price
$34.85
505
CURVED PLATE
Price
N/A
506
QUILL GRADUATED DIAL
Price
N/A
507
CAP SCREW M4-.7 X 12
Price
N/A
508
BEARING FLANGE
Price
N/A
509
THRUST BEARING 51100
Price
N/A
510
QUILL LEADSCREW
Price
N/A
511
KEY 4 X 4 X 12
Price
N/A
512
STUD-SE M6-1 X 30, 10
Price
N/A
513
TAILSTOCK LOCK LEVER M8-1.25
Price
N/A
514
ECCENTRIC SHAFT
Price
N/A
515
BALL OILER 6MM PRESS-IN
Price
N/A
516
SET SCREW M5-.8 X 8
Price
N/A
517
SHOULDER SCREW M4-.7 X 4
Price
$1.90
518
TOOL POST HANDLE M6-.1 X 6
Price
N/A
519
QUILL LOCK HUB
Price
N/A
520
QUILL LOCK PLUNGER
Price
N/A
521
QUILL
Price
N/A
522
TAILSTOCK CASTING
Price
N/A
523
SET SCREW M8-1.25 X 25
Price
N/A
524
LOCK BLOCK
Price
N/A
525
HEX NUT M8-1.25
Price
N/A
526
TAILSTOCK BASE
Price
N/A
527
CLAMP PLATE
Price
N/A
528
FLAT WASHER 8MM
Price
N/A
529
HEX BOLT M8-1.25 X 40
Price
N/A
530
OFFSET PLATE, TOP
Price
N/A
531
SET SCREW M5-.8 X 8
Price
N/A
532
SET SCREW M8-1.25 X 25
Price
N/A
533
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
534
RIVET 2 X 5
Price
N/A
535
RIVET 2 X 5
Price
N/A

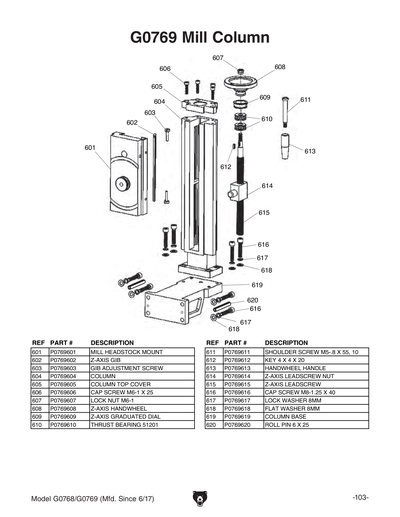

601
MILL HEADSTOCK MOUNT
Price
$86.25
602
Z-AXIS GIB
Price
$12.95
603
GIB ADJUSTMENT SCREW
Price
$1.90
604
COLUMN
Price
$211.35
605
COLUMN TOP COVER
Price
$23.75
606
CAP SCREW M6-1 X 25
Price
N/A
607
LOCK NUT M6-1
Price
N/A
608
Z-AXIS HANDWHEEL
Price
$38.15
609
Z-AXIS GRADUATED DIAL
Price
$8.35
610
THRUST BEARING 51201
Price
N/A
611
SHOULDER SCREW E116, 53
Price
N/A
612
KEY 4 X 4 X 20
Price
N/A
613
HANDWHEEL HANDLE
Price
$8.35
614
Z-AXIS LEADSCREW NUT
Price
$14.40
615
Z-AXIS LEADSCREW
Price
$28.75
616
CAP SCREW M8-1.25 X 40
Price
N/A
617
LOCK WASHER 8MM
Price
N/A
618
FLAT WASHER 8MM
Price
N/A
619
COLUMN BASE
Price
$78.00
620
ROLL PIN 6 X 25
Price
N/A

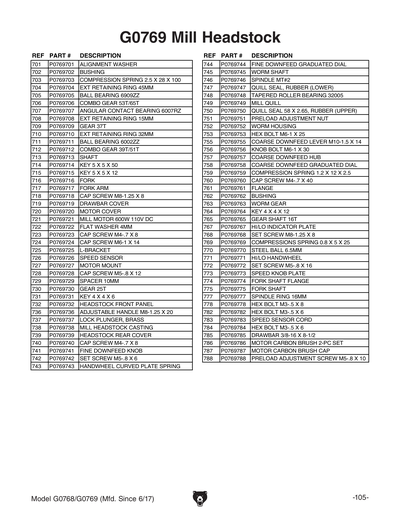

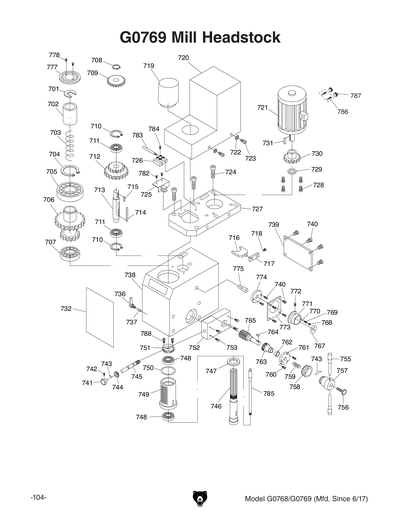

701
CLIPPED WASHER 14MM
Price
$1.90
702
BUSHING
Price
$7.60
703
COMPRESSION SPRING 2.5 X 28 X 100
Price
$4.35
704
EXT RETAINING RING 45MM
Price
N/A
705
BALL BEARING 6909ZZ
Price
$25.00
706
COMBO GEAR 53T/65T
Price
$102.50
707
ANGULAR CONTACT BEARING 6007RZ
Price
$33.45
708
EXT RETAINING RING 15MM
Price
N/A
709
GEAR 37T
Price
$24.85
710
EXT RETAINING RING 32MM
Price
N/A
711
BALL BEARING 6002ZZ
Price
N/A
712
COMBO GEAR 39T/51T
Price
$44.60
713
SHAFT
Price
$5.75
714
KEY 5 X 5 X 50
Price
N/A
715
KEY 5 X 5 X 12
Price
N/A
716
FORK
Price
$7.60
717
FORK ARM
Price
$5.10
718
CAP SCREW M8-1.25 X 8
Price
N/A
719
DRAWBAR COVER
Price
$6.50
720
MOTOR COVER
Price
$40.25
721
MILL MOTOR 600W 110V DC
Price
$189.75
722
FLAT WASHER 4MM
Price
N/A
723
CAP SCREW M4-.7 X 8
Price
N/A
724
CAP SCREW M6-1 X 14
Price
N/A
725
L-BRACKET
Price
$5.45
726
SPEED SENSOR
Price
$14.25
727
MOTOR MOUNT
Price
$30.20
728
CAP SCREW M5-.8 X 12
Price
N/A
729
SPACER 10MM
Price
$4.00
730
GEAR 25T
Price
$19.10
731
KEY 4 X 4 X 6
Price
N/A
732
HEADSTOCK FRONT PANEL
Price
$17.25
736
ADJUSTABLE HANDLE M8-1.25 X 20
Price
$10.70
737
LOCK PLUNGER, BRASS
Price
$1.90
738
MILL HEADSTOCK CASTING
Price
$202.70
739
HEADSTOCK REAR COVER
Price
$40.15
740
CAP SCREW M4-.7 X 8
Price
N/A
741
FINE DOWNFEED KNOB
Price
$9.75
742
SET SCREW M5-.8 X 6
Price
N/A
743
HANDWHEEL CURVED PLATE SPRING
Price
$1.90
744
FINE DOWNFEED GRADUATED DIAL
Price
$7.95
745
WORM SHAFT
Price
$6.50
746
SPINDLE MT#2
Price
$94.90
747
QUILL SEAL, RUBBER (LOWER)
Price
$7.60
748
TAPERED ROLLER BEARING 32005
Price
N/A
749
MILL QUILL
Price
$85.60
750
QUILL SEAL 58 X 2.65, RUBBER (UPPER)
Price
$1.90
751
PRELOAD ADJUSTMENT NUT
Price
$9.75
752
WORM HOUSING
Price
$43.15
753
HEX BOLT M6-1 X 25
Price
N/A
755
COARSE DOWNFEED LEVER M10-1.5 X 14
Price
$6.50
756
KNOB BOLT M6-1 X 30
Price
$5.75
757
COARSE DOWNFEED HUB
Price
$16.95
758
COARSE DOWNFEED GRADUATED DIAL
Price
$9.75
759
COMPRESSION SPRING 1.2 X 12 X 2.5
Price
$2.90
760
CAP SCREW M4-.7 X 40
Price
N/A
761
FLANGE
Price
$5.75
762
BUSHING
Price
$1.90
763
WORM GEAR
Price
$23.75
764
KEY 4 X 4 X 12
Price
N/A
765
GEAR SHAFT 16T
Price
$14.40
767
HI/LO INDICATOR PLATE
Price
$1.90
768
SET SCREW M8-1.25 X 8
Price
N/A
769
COMPRESSIONS SPRING 0.8 X 5 X 25
Price
$1.90
770
STEEL BALL 6.5MM
Price
N/A
771
HI/LO HANDWHEEL
Price
$16.95
772
SET SCREW M5-.8 X 16
Price
N/A
773
SPEED KNOB PLATE
Price
$7.60
774
FORK SHAFT FLANGE
Price
$4.35
775
FORK SHAFT
Price
$4.00
776
CAP SCREW M3-.5 X 16
Price
N/A
777
SPINDLE RING 16MM
Price
$8.65
778
HEX BOLT M3-.5 X 8
Price
N/A
779
GEAR GUARD
Price
$21.60
780
HEX BOLT M3-.5 X 6
Price
N/A
782
HEX BOLT M3-.5 X 6
Price
N/A
783
SPEED SENSOR CORD
Price
$2.20
784
HEX BOLT M3-.5 X 6
Price
N/A
785
DRAWBAR 3/8-16 X 8-1/2
Price
$15.85
786
CARBON BRUSH (2PC)
Price
$15.85
787
MOTOR CARBON BRUSH CAP
Price
$4.00
788
PRELOAD ADJUSTMENT SCREW M5-.8 X 10
Price
$1.90

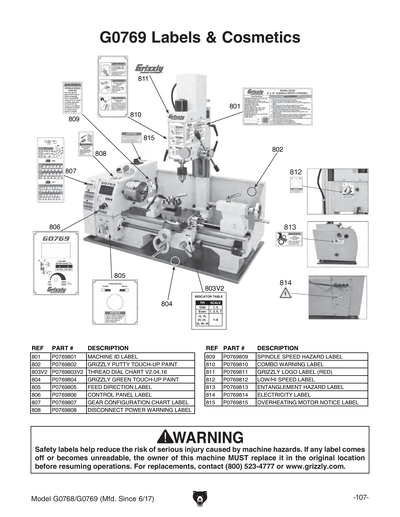

801
MACHINE ID LABEL
Price
$16.40
802
GREY PUTTY REF G0504
Price
N/A
803
THREAD DIAL CHART V2.04.16
Price
N/A
803V2
THREAD DIAL CHART V2.04.16
Price
$4.35
804
N/S GRIZZLY GREEN G1023S
Price
N/A
805
FEED DIRECTION LABEL
Price
$15.00
806
CONTROL PANEL LABEL
Price
$22.35
807
GEAR CONFIGURATION CHART LABEL
Price
$7.50
808
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
809
SPINDLE SPEED HAZARD LABEL
Price
$5.35
810
COMBO WARNING LABEL
Price
$7.50
811
GRIZZLY LOGO LABEL (RED)
Price
$7.20
812
LOW/HI SPEED LABEL
Price
$2.50
813
ENTANGLEMENT HAZARD LABEL
Price
$3.75
814
ELECTRICITY 1.4W X 1.2H
Price
N/A
815
OVERHEATING MOTOR NOTICE LABEL
Price
N/A

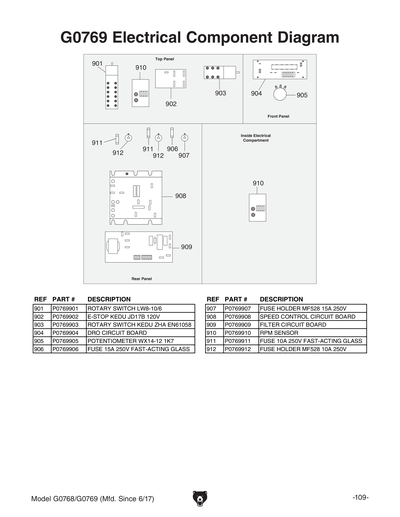

901
ROTARY SWITCH LW8-10/6
Price
$64.70
902
E-STOP KEDU JD17B 120V
Price
$34.85
903
ROTARY SWITCH KEDU ZHA EN61058
Price
$30.20
904
DRO CIRCUIT BOARD
Price
$76.70
905
POTENTIOMETER WX14-12 1K7
Price
$10.85
906
FUSE 15A 250V FAST-ACTING GLASS
Price
$1.80
907
FUSE HOLDER MF528 15A 250V
Price
$2.90
908
SPEED CONTROL CIRCUIT BOARD
Price
$200.60
909
FILTER CIRCUIT BOARD
Price
$73.60
910
RPM SENSOR
Price
$12.95
911
FUSE 10A 250V FAST-ACTING GLASS
Price
$1.90
912
FUSE HOLDER MF528 10A 250V
Price
$3.65
MAN
MANUAL G0768-69 MFD-06.14 V1.08.14
Price
N/A
MANV2
MANUAL G0768-69 MFD-08.15 V2.06.17
Price
N/A
MANV3
MANUAL G0768-69 MFD-06.17 V3.06.18
Price
N/A
