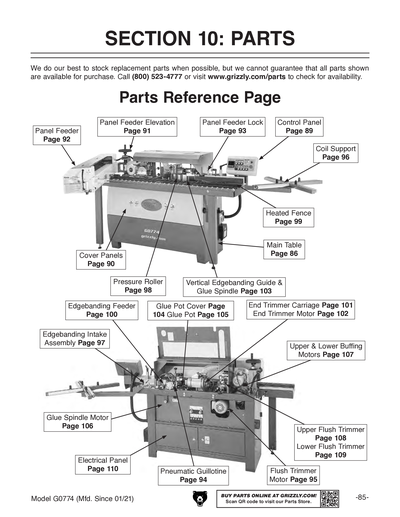

Parts for G0774 - Automatic Edgebander

Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774
Part Diagram for G0774

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

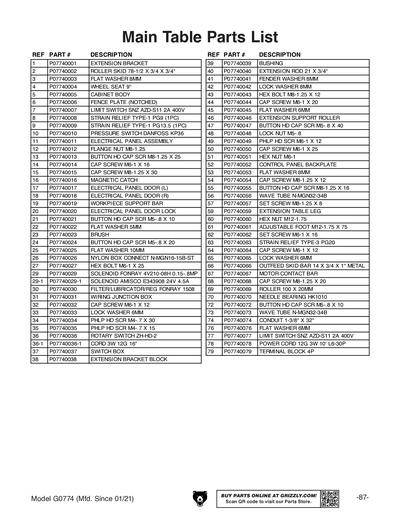

Ref #
Part #
Description

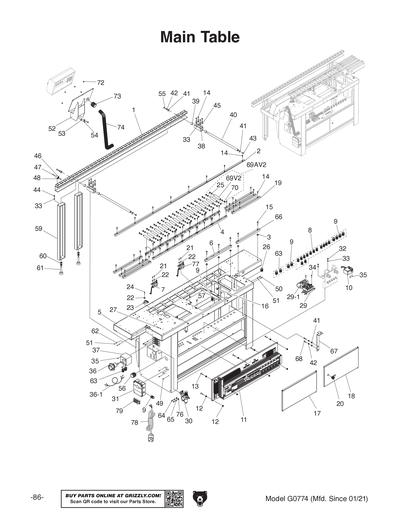

1
EXTENSION BRACKET
Price
$136.20
2
ROLLER SKID 78-1/2 X 3/4 X 3/4"
Price
$83.95
3
FLAT WASHER 8MM
Price
N/A
4
WHEEL SEAT 9"
Price
$6.40
5
CABINET BODY
Price
$1,702.90
6
FENCE PLATE (NOTCHED)
Price
$167.60
7
LIMIT SWITCH SNZ AZD-S11 2A 400V
Price
$97.80
8
STRAIN RELIEF TYPE-1 PG9 (1PC)
Price
$4.30
9
STRAIN RELIEF TYPE-1 PG13.5 (1PC)
Price
$4.30
10
PRESSURE SWITCH DANFOSS KP36
Price
$116.35
11
ELECTRICAL PANEL ASSEMBLY
Price
$3,255.45
12
FLANGE NUT M8-1.25
Price
N/A
13
BUTTON HD CAP SCR M8-1.25 X 25
Price
N/A
14
CAP SCREW M6-1 X 16
Price
N/A
15
CAP SCREW M8-1.25 X 30
Price
N/A
16
MAGNETIC CATCH
Price
$14.85
17
ELECTRICAL PANEL DOOR (L)
Price
$71.25
18
ELECTRICAL PANEL DOOR (R)
Price
$58.95
19
WORKPIECE SUPPORT BAR
Price
$12.75
20
ELECTRICAL PANEL DOOR LOCK
Price
$33.85
21
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
22
FLAT WASHER 5MM
Price
N/A
23
BRUSH
Price
$6.40
24
BUTTON HD CAP SCR M5-.8 X 20
Price
N/A
25
FLAT WASHER 10 X 16 X .5MM
Price
$1.49
26
STRAIN RELIEF 15MM
Price
$11.20
27
HEX BOLT M6-1 X 25
Price
N/A
28
PRESSURE REGULATOR ASSY V1
Price
$217.70
28-1
FLOW CONTROL VALVE ASSY
Price
N/A
28-10
REGULATOR 1/8" AL
Price
N/A
28-2
ELBOW 1/8 X 8 90DEG
Price
N/A
28-3
REGULATOR 1/8" AL
Price
N/A
28-4
REGULATOR PLATE
Price
N/A
28-5
REGULATOR 1/4" AL
Price
N/A
28-6
ELBOW 1/4 X 8 90DEG
Price
N/A
28-7
ELBOW 1/4 X 6 90DEG
Price
N/A
28-8
PRESSURE REGULATOR 5KG-PT1/4"
Price
N/A
28-9
ELBOW FITTING 1/8 X 6 90DEG
Price
N/A

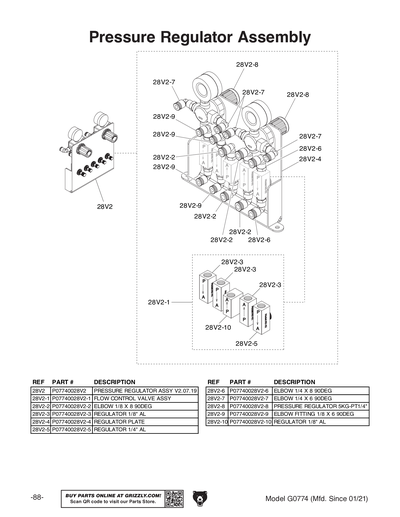

28V2
PRESSURE REGULATOR ASSY V2.07.19
Price
$239.40
28V2-1
FLOW CONTROL VALVE ASSY
Price
$104.80
28V2-10
REGULATOR 1/8" AL
Price
$28.90
28V2-2
ELBOW 1/8 X 8 90DEG
Price
$4.30
28V2-3
REGULATOR 1/8" AL
Price
$20.05
28V2-4
REGULATOR PLATE
Price
$27.55
28V2-5
REGULATOR 1/4" AL
Price
$21.20
28V2-6
ELBOW 1/4 X 8 90DEG
Price
$4.30
28V2-7
ELBOW 1/4 X 6 90DEG
Price
$4.30
28V2-8
PRESSURE REGULATOR 5KG-PT1/4"
Price
$28.90
28V2-9
ELBOW FITTING 1/8 X 6 90DEG
Price
$4.30
29
SOLENOID FONRAY 0.15-.8MP 24V 4.51A
Price
$487.60
29-1
SOLENOID FONRAY 0.15-.8MP 24V 4.51A
Price
N/A
29-2
SOLENOID FONRAY GASKET W/ SCREW
Price
$9.10
30
FILTER/LUBRICATOR/REG FONRAY AFC2000A
Price
$148.95
30-1
90 DEGREE ELBOW CONNECTOR
Price
$10.65
31
WIRING JUNCTION BOX
Price
$42.00
32
CAP SCREW M6-1 X 12
Price
N/A
33
LOCK WASHER 6MM
Price
N/A
34
PHLP HD SCR M4-.7 X 30
Price
N/A
35
PHLP HD SCR M4-.7 X 15
Price
N/A
36
ROTARY SWITCH ZH-HD-2
Price
$48.80
36-1
CORD 3W 12G 16"
Price
$16.95
37
SWITCH BOX
Price
$50.15
38
EXTENSION BRACKET BLOCK
Price
$44.10
39
BUSHING
Price
$4.30
40
EXTENSION ROD 21 X 3/4"
Price
$37.75
41
FENDER WASHER 8MM
Price
$1.60
42
LOCK WASHER 8MM
Price
N/A
43
HEX BOLT M8-1.25 X 12
Price
N/A
44
CAP SCREW M6-1 X 20
Price
N/A
45
FLAT WASHER 6MM
Price
N/A
46
EXTENSION SUPPORT ROLLER
Price
$2.45
47
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
48
LOCK NUT M5-.8
Price
N/A
49
PHLP HD SCR M6-1 X 12
Price
N/A
50
CAP SCREW M6-1 X 25
Price
N/A
51
HEX NUT M6-1
Price
N/A
52
CONTROL PANEL BACKPLATE
Price
$104.80
53
FLAT WASHER 8MM
Price
N/A
54
CAP SCREW M8-1.25 X 12
Price
N/A
55
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
56
STRAIN RELIEF 32MM
Price
$21.20
57
SET SCREW M8-1.25 X 8
Price
N/A
58
GROUNDING PLATE
Price
$16.95
59
EXTENSION TABLE LEG
Price
$75.50
60
HEX NUT M12-1.75
Price
N/A
61
ADJUSTABLE FOOT M12-1.75 X 75
Price
$5.20
62
SET SCREW M6-1 X 16
Price
N/A
63
STRAIN RELIEF TYPE-3 PG20
Price
$4.30
64
CAP SCREW M6-1 X 12
Price
N/A
65
LOCK WASHER 6MM
Price
N/A
66
OUTFEED SKID BAR 14 X 3/4 X 1" METAL
Price
$121.70
67
MOTOR CONTACT BAR
Price
$21.20
68
CAP SCREW M8-1.25 X 10
Price
N/A
69
ROLLER 96MM W/BEARING V2.01.21
Price
N/A
69A
ROLLER 96MM W/BEARING V2.01.21
Price
N/A
69AV2
ROLLER 96MM W/BEARING V2.01.21
Price
$45.30
70
ROLLER 96MM W/BEARING V2.01.21
Price
N/A

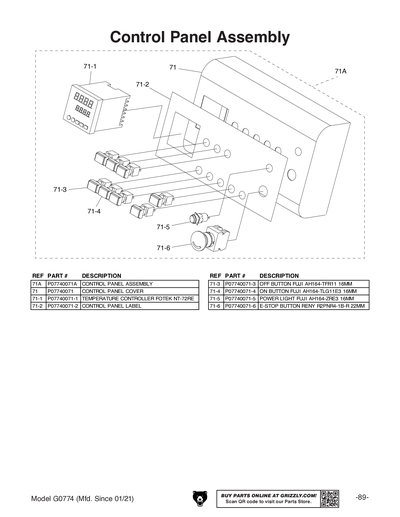

71
CONTROL PANEL COVER
Price
$682.25
71-1
TEMPERATURE CONTROLLER FOTEK NT-72RE
Price
$243.85
71-2
CONTROL PANEL LABEL
Price
$44.10
71-3
OFF BUTTON FUJI AH164-TFR11 16MM
Price
$43.50
71-4
ON BUTTON FUJI AH164-TLG11E3 16MM
Price
$74.00
71-5
POWER LIGHT FUJI AH164-ZRE3 16MM
Price
$36.25
71-6
E-STOP BUTTON RENY R2PNR4-1B-R 22MM
Price
$34.15
71A
CONTROL PANEL ASSEMBLY
Price
$803.00
72
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
73
STRAIN RELIEF 32MM
Price
$21.20
74
CONDUIT 1-3/8" X 32"
Price
$12.75
75
CORD 3W 12G 16"
Price
N/A
76
FLAT WASHER 6MM
Price
N/A
77
LIMIT SWITCH SNZ AZD-S11 2A 400V
Price
N/A
78
POWER CORD 12G 3W 72" L6-30P
Price
$105.70
79
TERMINAL BLOCK 4P
Price
$10.90

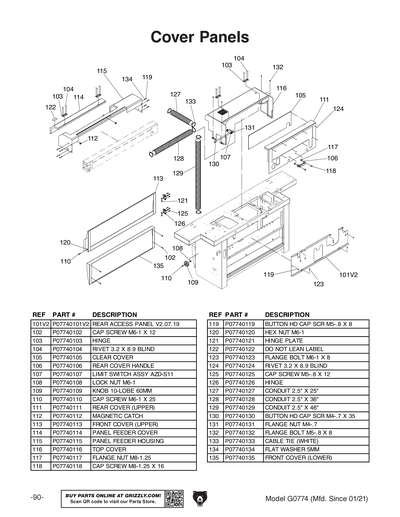

101
REAR ACCESS PANEL V1
Price
$96.60
101V2
REAR ACCESS PANEL V2.07.19
Price
$113.55
102
CAP SCREW M6-1 X 12
Price
N/A
103
HINGE
Price
$8.95
104
RIVET 3.2 X 8.9 BLIND
Price
$2.25
105
CLEAR COVER
Price
$71.00
106
REAR COVER HANDLE
Price
$4.05
107
LIMIT SWITCH ASSY AZD-S11
Price
$72.80
108
LOCK NUT M6-1
Price
N/A
109
KNOB 10-LOBE 60MM
Price
$4.30
110
CAP SCREW M6-1 X 25
Price
N/A
111
REAR COVER (UPPER)
Price
$119.90
112
MAGNETIC CATCH
Price
$17.25
113
FRONT COVER (UPPER)
Price
$167.60
114
PANEL FEEDER COVER
Price
$133.15
115
PANEL FEEDER HOUSING
Price
$278.60
116
TOP COVER
Price
$282.85
117
FLANGE NUT M8-1.25
Price
N/A
118
CAP SCREW M8-1.25 X 16
Price
N/A
119
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
120
HEX NUT M6-1
Price
N/A
121
HINGE PLATE
Price
$10.65
122
DO NOT LEAN LABEL
Price
$1.35
123
FLANGE BOLT M6-1 X 8
Price
N/A
124
RIVET 3.2 X 8.9 BLIND
Price
N/A
125
CAP SCREW M5-.8 X 12
Price
N/A
126
HINGE
Price
$37.75
127
CONDUIT 2.5" X 25"
Price
$14.85
128
CONDUIT 2.5" X 36"
Price
$23.30
129
CONDUIT 2.5" X 46"
Price
$27.55
130
BUTTON HD CAP SCR M4-.7 X 35
Price
N/A
131
FLANGE NUT M4-.7
Price
N/A
132
FLANGE BOLT M5-.8 X 8
Price
$1.60
133
CABLE TIE (WHITE)
Price
$1.60
134
FLAT WASHER 5MM
Price
N/A
135
FRONT COVER (LOWER)
Price
$167.60

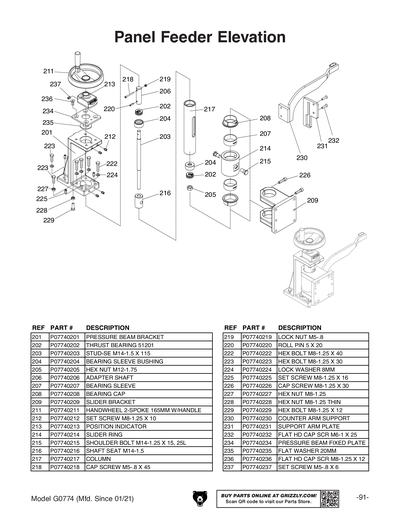

201
PRESSURE BEAM BRACKET
Price
$138.30
202
THRUST BEARING 51201
Price
N/A
203
STUD-SE M14-1.5 X 115
Price
$42.00
204
BEARING SLEEVE BUSHING
Price
$12.75
205
HEX NUT M12-1.75
Price
N/A
206
ADAPTER SHAFT
Price
$14.85
207
BEARING SLEEVE
Price
$8.50
208
BEARING CAP
Price
$12.75
209
SLIDER BRACKET
Price
$175.75
211
HANDWHEEL 2-SPOKE 165MM W/HANDLE
Price
$42.00
212
SET SCREW M8-1.25 X 10
Price
N/A
213
POSITION INDICATOR
Price
$48.30
214
SLIDER RING
Price
$67.05
215
SHOULDER BOLT M14-1.25 X 15, 25L
Price
$12.75
216
SHAFT SEAT M14-1.5
Price
$23.30
217
COLUMN
Price
$77.60
218
CAP SCREW M5-.8 X 45
Price
N/A
219
LOCK NUT M5-.8
Price
N/A
220
ROLL PIN 5 X 20
Price
N/A
222
HEX BOLT M8-1.25 X 40
Price
N/A
223
HEX BOLT M8-1.25 X 30
Price
N/A
224
LOCK WASHER 8MM
Price
N/A
225
SET SCREW M8-1.25 X 16
Price
N/A
226
CAP SCREW M8-1.25 X 30
Price
N/A
227
HEX NUT M8-1.25
Price
N/A
228
HEX NUT M8-1.25 THIN
Price
N/A
229
HEX BOLT M8-1.25 X 12
Price
N/A
230
COUNTER ARM SUPPORT
Price
$75.40
231
SUPPORT ARM PLATE
Price
$39.85
232
FLAT HD CAP SCR M6-1 X 25
Price
$1.60
234
PRESSURE BEAM FIXED PLATE
Price
$33.85
235
FLAT WASHER 20MM
Price
N/A
236
FLAT HD CAP SCR M8-1.25 X 12
Price
$4.30
237
SET SCREW M5-.8 X 6
Price
N/A

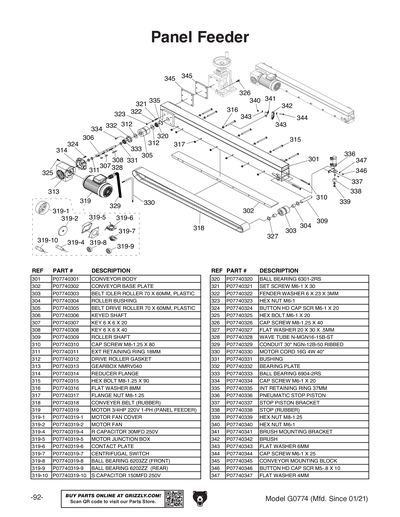

301
CONVEYOR BODY
Price
$309.75
302
CONVEYOR BASE PLATE
Price
$177.90
303
BELT IDLER ROLLER 70 X 60MM, PLASTIC
Price
$42.00
304
ROLLER BUSHING
Price
$4.30
305
BELT DRIVE ROLLER 70 X 60MM, PLASTIC
Price
$126.40
306
KEYED SHAFT
Price
$53.15
307
KEY 6 X 6 X 20
Price
N/A
308
KEY 6 X 6 X 40
Price
N/A
309
ROLLER SHAFT
Price
$25.40
310
CAP SCREW M8-1.25 X 80
Price
N/A
311
EXT RETAINING RING 18MM
Price
N/A
312
DRIVE ROLLER GASKET
Price
$6.40
313
GEARBOX NMRV040
Price
$359.85
314
GEARBOX NMRV040
Price
N/A
315
HEX BOLT M8-1.25 X 90
Price
N/A
316
FLAT WASHER 8MM
Price
N/A
317
FLANGE NUT M8-1.25
Price
N/A
318
CONVEYER BELT (RUBBER)
Price
$279.30
319
MOTOR 3/4HP 220V 1-PH (PANEL FEEDER)
Price
$432.95
319-1
MOTOR FAN COVER
Price
$13.95
319-10
S CAPACITOR 150MFD 250V
Price
$6.70
319-2
MOTOR FAN
Price
$11.85
319-4
R CAPACITOR 30MFD 250V
Price
$15.55
319-5
MOTOR JUNCTION BOX
Price
$10.65
319-6
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
$12.75
319-7
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
N/A
319-8
BALL BEARING 6203ZZ
Price
N/A
319-9
BALL BEARING 6202ZZ
Price
N/A
320
BALL BEARING 6301-2RS
Price
$8.80
321
SET SCREW M6-1 X 30
Price
N/A
322
FENDER WASHER 6 X 23 X 3MM
Price
$2.45
323
HEX NUT M6-1
Price
N/A
324
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
325
HEX BOLT M6-1 X 20
Price
N/A
326
CAP SCREW M8-1.25 X 40
Price
N/A
327
FLAT WASHER 20 X 30 X .5MM
Price
$6.55
328
STRAIN RELIEF 15MM
Price
$10.65
329
CONDUIT 30" NGN-12B-50 RIBBED
Price
$8.95
330
MOTOR CORD 16G 4W 40"
Price
$16.95
331
BUSHING
Price
$8.50
332
BEARING PLATE
Price
$29.30
333
BALL BEARING 6904-2RS
Price
$13.80
334
CAP SCREW M6-1 X 20
Price
N/A
335
INT RETAINING RING 37MM
Price
N/A
336
PNEUMATIC STOP PISTON
Price
$88.70
337
STOP PISTON BRACKET
Price
$13.35
338
STOP (RUBBER)
Price
$6.70
339
HEX NUT M8-1.25
Price
N/A
340
HEX NUT M6-1
Price
N/A
341
BRUSH MOUNTING BRACKET
Price
$10.65
342
BRUSH
Price
$6.40
343
FLAT WASHER 6MM
Price
N/A
344
CAP SCREW M6-1 X 25
Price
N/A
345
CONVEYOR MOUNTING BLOCK
Price
$35.65
346
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
347
FLAT WASHER 4MM
Price
N/A

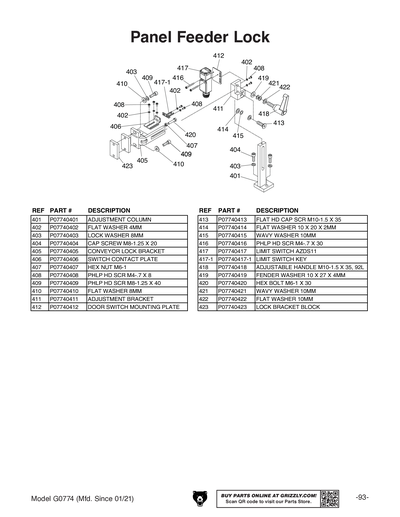

401
ADJUSTMENT COLUMN
Price
$31.40
402
FLAT WASHER 4MM
Price
N/A
403
LOCK WASHER 8MM
Price
N/A
404
CAP SCREW M8-1.25 X 20
Price
N/A
405
CONVEYOR LOCK BRACKET
Price
$31.40
406
SWITCH CONTACT PLATE
Price
$14.85
407
HEX NUT M6-1
Price
N/A
408
PHLP HD SCR M4-.7 X 8
Price
N/A
409
PHLP HD SCR M8-1.25 X 40
Price
N/A
410
FLAT WASHER 8MM
Price
N/A
411
ADJUSTMENT BRACKET
Price
$44.45
412
DOOR SWITCH MOUNTING PLATE
Price
$12.75
413
FLAT HD CAP SCR M10-1.5 X 35
Price
$4.30
414
FLAT WASHER 10 X 20 X 2MM
Price
$1.60
415
WAVY WASHER 10MM
Price
$1.60
416
PHLP HD SCR M4-.7 X 30
Price
N/A
417
LIMIT SWITCH AZDS11 W/KEY
Price
$57.65
417-1
LIMIT SWITCH AZDS11 W/KEY
Price
N/A
418
ADJUSTABLE HANDLE M10-1.5 X 35, 92L
Price
$12.75
419
FENDER WASHER 10 X 27 X 4MM
Price
$2.45
420
HEX BOLT M6-1 X 30
Price
N/A
421
WAVY WASHER 10MM
Price
N/A
422
FLAT WASHER 10MM
Price
N/A
423
LOCK BRACKET BLOCK
Price
$16.95
427
BELT 20 X 730MM
Price
N/A

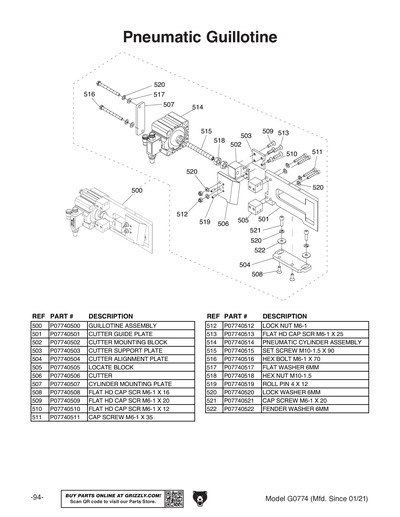

500
GUILLOTINE ASSEMBLY
Price
$408.15
501
CUTTER GUIDE PLATE
Price
$121.70
502
CUTTER MOUNTING BLOCK
Price
$147.85
503
ROLLER LOCK PLATE M8-1.25
Price
N/A
504
CUTTER ALIGNMENT PLATE
Price
$39.85
505
LOCATE BLOCK
Price
$29.30
506
CUTTER
Price
$77.60
507
CYLINDER MOUNTING PLATE
Price
$12.75
508
FLAT HD CAP SCR M6-1 X 16
Price
N/A
509
FLAT HD CAP SCR M6-1 X 20
Price
N/A
510
FLAT HD CAP SCR M6-1 X 12
Price
N/A
511
CAP SCREW M6-1 X 35
Price
N/A
512
LOCK NUT M6-1
Price
N/A
513
FLAT HD CAP SCR M6-1 X 25
Price
$2.45
514
PNEUMATIC CYLINDER ASSEMBLY
Price
$229.20
515
SET SCREW M10-1.5 X 90
Price
$10.65
516
HEX BOLT M6-1 X 70
Price
N/A
517
FLAT WASHER 6MM
Price
N/A
518
HEX NUT M10-1.5
Price
N/A
519
ROLL PIN 4 X 12
Price
N/A
520
LOCK WASHER 6MM
Price
N/A
521
CAP SCREW M6-1 X 20
Price
N/A
522
FENDER WASHER 6MM
Price
N/A

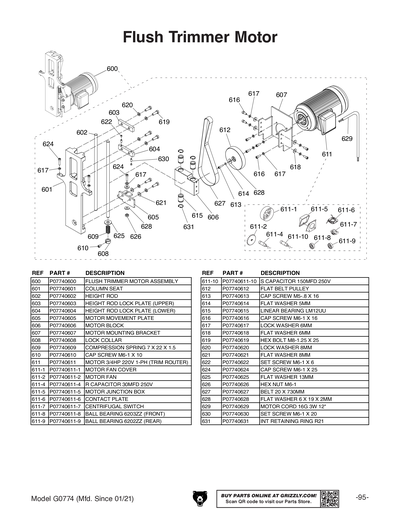

600
FLUSH TRIMMER MOTOR ASSEMBLY
Price
$795.20
601
COLUMN SEAT
Price
$75.50
602
HEIGHT ROD
Price
$29.30
603
HEIGHT ROD LOCK PLATE (UPPER)
Price
$16.95
604
HEIGHT ROD LOCK PLATE (LOWER)
Price
$25.10
605
MOTOR MOVEMENT PLATE
Price
$33.85
606
MOTOR BLOCK
Price
$67.05
607
MOTOR MOUNTING BRACKET
Price
$50.15
608
LOCK COLLAR
Price
$6.40
609
COMPRESSION SPRING 7 X 22 X 1.5
Price
$8.50
610
CAP SCREW M6-1 X 10
Price
N/A
611
MOTOR 3/4HP 220V 1-PH (TRIM ROUTER)
Price
$470.95
611-1
MOTOR FAN COVER
Price
N/A
611-10
S CAPACITOR 150MFD 250V
Price
N/A
611-2
MOTOR FAN
Price
N/A
611-3
*DISCD*CAPACITOR COVER
Price
N/A
611-4
R CAPACITOR 20M 300V 1-5/16 X 2
Price
N/A
611-5
MOTOR JUNCTION BOX
Price
N/A
611-6
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
N/A
611-7
CONTACT PLATE W/CENTRIFUGAL SWITCH
Price
N/A
611-8
BALL BEARING 6203ZZ
Price
N/A
611-9
BALL BEARING 6202ZZ
Price
N/A
612
FLAT BELT PULLEY
Price
$48.80
613
CAP SCREW M5-.8 X 16
Price
N/A
614
FLAT WASHER 5MM
Price
N/A
615
LINEAR BEARING LM12UU
Price
$18.75
616
CAP SCREW M6-1 X 16
Price
N/A
617
LOCK WASHER 6MM
Price
N/A
618
FLAT WASHER 6MM
Price
N/A
619
HEX BOLT M8-1.25 X 25
Price
N/A
620
LOCK WASHER 8MM
Price
N/A
621
FLAT WASHER 8MM
Price
N/A
622
SET SCREW M6-1 X 6
Price
N/A
624
CAP SCREW M6-1 X 25
Price
N/A
625
FLAT WASHER 13MM
Price
N/A
626
HEX NUT M6-1
Price
N/A
627
BELT 20 X 730MM
Price
$58.70
628
FLAT WASHER 6 X 19 X 2MM
Price
$1.60
629
MOTOR CORD 16G 3W 12"
Price
$18.75
630
SET SCREW M6-1 X 20
Price
N/A
631
INT RETAINING RING R21
Price
$1.60

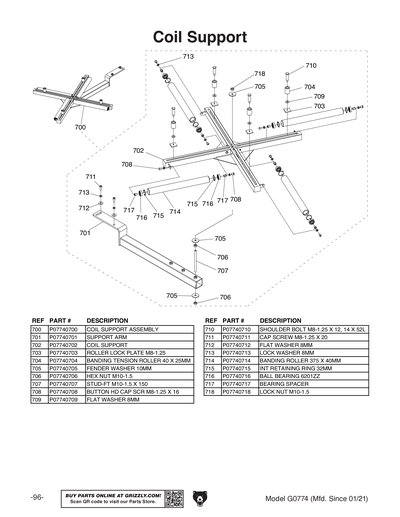

700
COIL SUPPORT ASSEMBLY
Price
$347.50
701
SUPPORT ARM
Price
$75.50
702
COIL SUPPORT
Price
$153.10
703
ROLLER LOCK PLATE M8-1.25
Price
$8.95
704
BANDING TENSION ROLLER 40 X 25MM
Price
$4.95
705
FENDER WASHER 10MM
Price
N/A
706
HEX NUT M10-1.5
Price
N/A
707
STUD-FT M10-1.5 X 150
Price
$14.85
708
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
709
FLAT WASHER 8MM
Price
N/A
710
SHOULDER BOLT M8-1.25 X 12, 14 X 52L
Price
$9.85
711
CAP SCREW M8-1.25 X 20
Price
N/A
712
FLAT WASHER 8MM
Price
N/A
713
LOCK WASHER 8MM
Price
N/A
714
BANDING ROLLER 375 X 40MM
Price
$39.85
715
INT RETAINING RING 32MM
Price
N/A
716
BALL BEARING 6201ZZ
Price
N/A
717
BEARING SPACER
Price
$2.30
718
LOCK NUT M10-1.5
Price
N/A

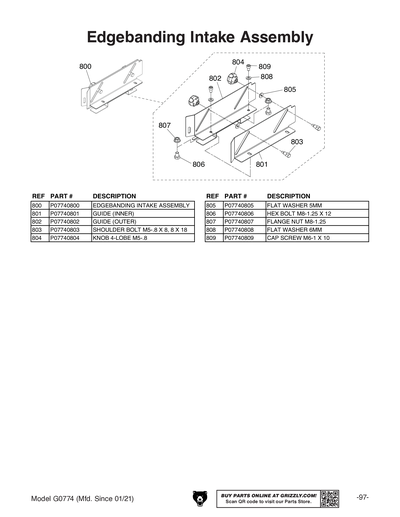

800
EDGEBANDING INTAKE ASSEMBLY
Price
$109.00
801
GUIDE (INNER)
Price
$33.85
802
GUIDE (OUTER)
Price
$54.70
803
SHOULDER BOLT M5-.8 X 8, 8 X 18
Price
$10.50
804
KNOB 4-LOBE M5-.8
Price
$6.40
805
FLAT WASHER 5MM
Price
N/A
806
HEX BOLT M8-1.25 X 12
Price
N/A
807
FLANGE NUT M8-1.25
Price
N/A
808
FLAT WASHER 6MM
Price
N/A
809
CAP SCREW M6-1 X 10
Price
N/A

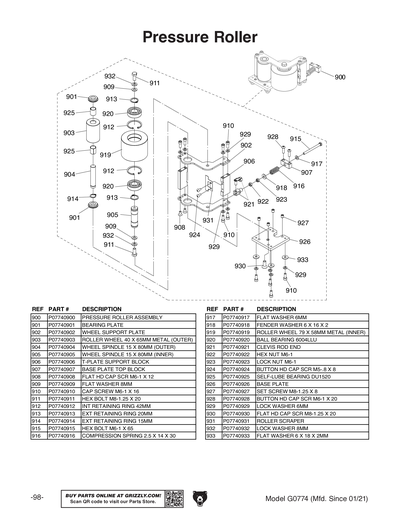

900
PRESSURE ROLLER ASSEMBLY
Price
$272.05
901
BEARING PLATE
Price
$12.75
902
WHEEL SUPPORT PLATE
Price
$42.00
903
ROLLER WHEEL 40 X 65MM METAL (OUTER)
Price
$31.40
904
WHEEL SPINDLE 15 X 80MM (OUTER)
Price
$10.65
905
WHEEL SPINDLE 15 X 80MM (OUTER)
Price
N/A
906
T-PLATE SUPPORT BLOCK
Price
$33.85
907
BASE PLATE TOP BLOCK
Price
$21.20
908
FLAT HD CAP SCR M6-1 X 12
Price
N/A
909
FLAT WASHER 8MM
Price
N/A
910
CAP SCREW M6-1 X 16
Price
N/A
911
HEX BOLT M8-1.25 X 20
Price
N/A
912
INT RETAINING RING 42MM
Price
N/A
913
EXT RETAINING RING 20MM
Price
N/A
914
EXT RETAINING RING 15MM
Price
N/A
915
HEX BOLT M6-1 X 65
Price
N/A
916
COMPRESSION SPRING 2.5 X 14 X 30
Price
$8.95
917
FLAT WASHER 6MM
Price
N/A
918
FENDER WASHER 6 X 16 X 2
Price
$1.60
919
ROLLER WHEEL 79 X 58MM METAL (INNER)
Price
$62.80
920
BALL BEARING 6004LLU
Price
N/A
921
CLEVIS ROD END
Price
$29.30
922
HEX NUT M6-1
Price
N/A
923
LOCK NUT M6-1
Price
N/A
924
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
925
SELF-LUBE BEARING DU1520
Price
$4.30
926
BASE PLATE
Price
$58.95
927
SET SCREW M8-1.25 X 8
Price
N/A
928
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
929
LOCK WASHER 6MM
Price
N/A
930
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
931
ROLLER SCRAPER
Price
$6.35
932
LOCK WASHER 8MM
Price
N/A
933
FLAT WASHER 6 X 18 X 2MM
Price
$1.60

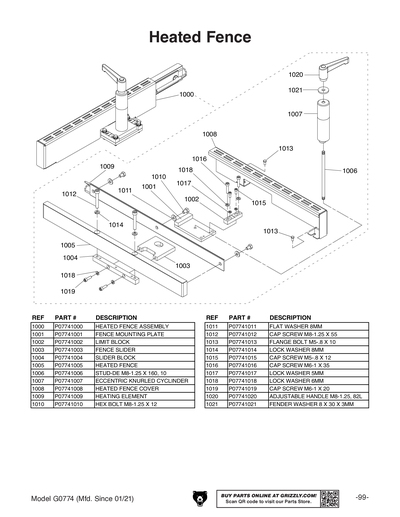

1000
HEATED FENCE ASSEMBLY
Price
$359.85
1001
FENCE MOUNTING PLATE
Price
$62.80
1002
LIMIT BLOCK
Price
$27.55
1003
FENCE SLIDER
Price
$44.10
1004
SLIDER BLOCK
Price
$48.30
1005
HEATED FENCE
Price
$129.85
1006
STUD-DE M8-1.25 X 160, 10
Price
$8.50
1007
ECCENTRIC KNURLED CYLINDER
Price
$35.65
1008
HEATED FENCE COVER
Price
$42.00
1009
HEATING ELEMENT
Price
$92.90
1010
HEX BOLT M8-1.25 X 12
Price
N/A
1011
FLAT WASHER 8MM
Price
N/A
1012
CAP SCREW M8-1.25 X 55
Price
N/A
1013
FLANGE BOLT M5-.8 X 10
Price
N/A
1014
LOCK WASHER 8MM
Price
N/A
1015
CAP SCREW M5-.8 X 12
Price
N/A
1016
CAP SCREW M6-1 X 35
Price
N/A
1017
LOCK WASHER 5MM
Price
N/A
1018
LOCK WASHER 6MM
Price
N/A
1019
CAP SCREW M6-1 X 20
Price
N/A
1020
ADJUSTABLE HANDLE M8-1.25, 82L
Price
$12.75
1021
FENDER WASHER 8 X 30 X 3MM
Price
$1.60

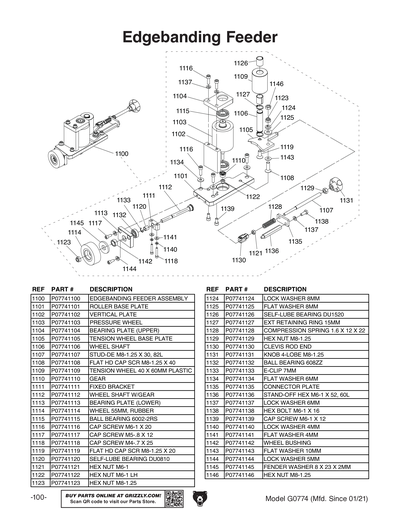

1100
EDGEBANDING FEEDER ASSEMBLY
Price
$460.40
1101
ROLLER BASE PLATE
Price
$62.80
1102
VERTICAL PLATE
Price
$42.00
1103
PRESSURE WHEEL
Price
$110.20
1104
BEARING PLATE (UPPER)
Price
$48.30
1105
TENSION WHEEL BASE PLATE
Price
$21.20
1106
WHEEL SHAFT
Price
$8.50
1107
STUD-DE M8-1.25 X 30, 82L
Price
$7.00
1108
FLAT HD CAP SCR M8-1.25 X 40
Price
$2.45
1109
TENSION WHEEL 40 X 60MM PLASTIC
Price
$44.10
1110
GEAR
Price
$48.65
1111
FIXED BRACKET
Price
$25.10
1112
WHEEL SHAFT W/GEAR
Price
$62.80
1113
BEARING PLATE (LOWER)
Price
$35.65
1114
WHEEL 55MM, RUBBER
Price
$41.95
1115
BALL BEARING 6002-2RS
Price
N/A
1116
CAP SCREW M6-1 X 20
Price
N/A
1117
CAP SCREW M5-.8 X 12
Price
N/A
1118
CAP SCREW M4-.7 X 25
Price
N/A
1119
FLAT HD CAP SCR M8-1.25 X 20
Price
N/A
1120
SELF-LUBE BEARING DU0810
Price
$2.45
1121
HEX NUT M6-1
Price
N/A
1122
HEX NUT M6-1 LH
Price
N/A
1123
LOCK NUT M8-1.25
Price
N/A
1124
LOCK WASHER 8MM
Price
N/A
1125
FLAT WASHER 8MM
Price
N/A
1126
SELF-LUBE BEARING DU1520
Price
$4.30
1127
EXT RETAINING RING 15MM
Price
N/A
1128
COMPRESSION SPRING 1.6 X 12 X 22
Price
$8.50
1129
HEX NUT M8-1.25
Price
N/A
1130
CLEVIS ROD END
Price
$31.40
1131
KNOB 4-LOBE M8-1.25
Price
N/A
1132
Bearing - 22mm x 8mm
Price
N/A
1133
E-CLIP 7MM
Price
N/A
1134
FLAT WASHER 6MM
Price
N/A
1135
CONNECTOR PLATE
Price
$8.50
1136
STAND-OFF HEX M6-1 X 52, 60L
Price
$7.00
1137
LOCK WASHER 6MM
Price
N/A
1138
HEX BOLT M6-1 X 16
Price
N/A
1139
CAP SCREW M6-1 X 12
Price
N/A
1140
LOCK WASHER 4MM
Price
N/A
1141
FLAT WASHER 4MM
Price
N/A
1142
WHEEL BUSHING
Price
$2.45
1143
FLAT WASHER 8MM
Price
N/A
1144
LOCK WASHER 5MM
Price
N/A
1145
FENDER WASHER 8 X 23 X 2MM
Price
$1.60
1146
HEX NUT M8-1.25
Price
N/A

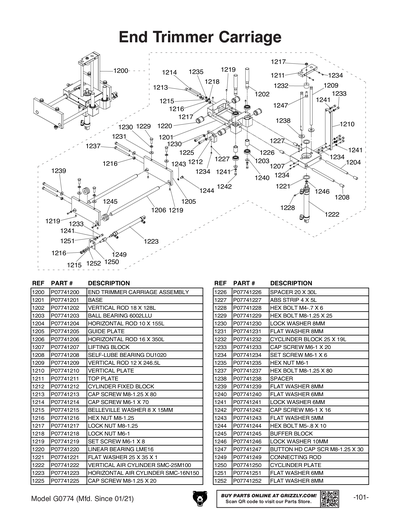

1200
END TRIMMER CARRIAGE ASSEMBLY
Price
$1,130.00
1201
BASE
Price
$308.15
1202
VERTICAL ROD 18 X 128L
Price
$44.10
1203
BALL BEARING 6002LLU
Price
$5.35
1204
HORIZONTAL ROD 10 X 155L
Price
$21.20
1205
GUIDE PLATE
Price
$77.60
1206
HORIZONTAL ROD 16 X 350L
Price
$39.85
1207
LIFTING BLOCK
Price
$128.00
1208
SELF-LUBE BEARING DU1020
Price
$2.45
1209
VERTICAL ROD 12 X 246.5L
Price
$33.85
1210
VERTICAL PLATE
Price
$37.75
1211
TOP PLATE
Price
$29.30
1212
CYLINDER FIXED BLOCK
Price
$29.30
1213
CAP SCREW M8-1.25 X 80
Price
N/A
1214
CAP SCREW M6-1 X 70
Price
N/A
1215
BELLEVILLE WASHER 8 X 15MM
Price
$4.30
1216
HEX NUT M8-1.25
Price
N/A
1217
LOCK NUT M8-1.25
Price
N/A
1218
LOCK NUT M6-1
Price
N/A
1219
SET SCREW M6-1 X 8
Price
N/A
1220
LINEAR BEARING LME16
Price
$25.10
1221
FLAT WASHER 25 X 35 X 1
Price
$2.45
1222
VERTICAL AIR CYLINDER SMC-25M100
Price
$163.05
1223
HORIZONTAL AIR CYLINDER SMC-16N150
Price
$121.05
1225
CAP SCREW M8-1.25 X 20
Price
N/A
1226
SPACER 20 X 30L
Price
$10.65
1227
ABS STRIP 4 X 5L
Price
$27.55
1228
HEX BOLT M4-.7 X 6
Price
N/A
1229
HEX BOLT M8-1.25 X 25
Price
N/A
1230
LOCK WASHER 8MM
Price
N/A
1231
FLAT WASHER 8MM
Price
N/A
1232
CYCLINDER BLOCK 25 X 19L
Price
$6.35
1233
CAP SCREW M6-1 X 20
Price
N/A
1234
SET SCREW M6-1 X 6
Price
N/A
1235
HEX NUT M6-1
Price
N/A
1237
HEX BOLT M8-1.25 X 80
Price
N/A
1238
SPACER
Price
$2.75
1239
FLAT WASHER 8MM
Price
N/A
1240
FLAT WASHER 6MM
Price
N/A
1241
LOCK WASHER 6MM
Price
N/A
1242
CAP SCREW M6-1 X 16
Price
N/A
1243
FLAT WASHER 5MM
Price
N/A
1244
HEX BOLT M5-.8 X 10
Price
N/A
1245
BUFFER BLOCK
Price
$1.60
1246
LOCK WASHER 10MM
Price
N/A
1247
BUTTON HD CAP SCR M8-1.25 X 30
Price
N/A
1249
CONNECTING ROD
Price
$13.35
1250
CYLINDER PLATE
Price
$10.65
1251
FLAT WASHER 6MM
Price
N/A
1252
FLAT WASHER 10MM
Price
N/A

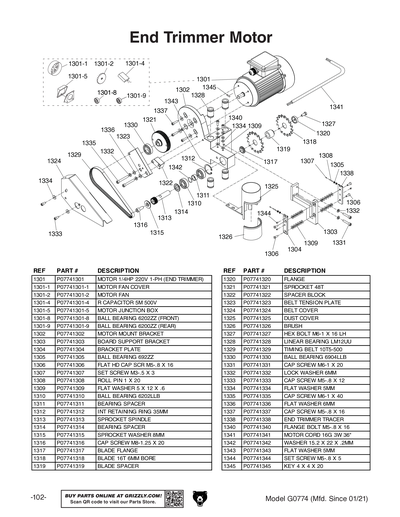

1301
MOTOR 1/4HP 220V 1-PH (END TRIMMER)
Price
$261.00
1301-1
MOTOR FAN COVER
Price
$10.65
1301-2
MOTOR FAN
Price
$6.70
1301-4
R CAPACITOR 5M 500V 1-1/2 X 2
Price
$12.40
1301-5
MOTOR JUNCTION BOX
Price
$6.70
1301-8
BALL BEARING 6202ZZ
Price
N/A
1301-9
BALL BEARING 6200ZZ
Price
N/A
1302
MOTOR MOUNT BRACKET V2.05.24
Price
N/A
1302V2
MOTOR MOUNT BRACKET V2.05.24
Price
$230.45
1303
BOARD SUPPORT BRACKET
Price
$79.70
1304
BRACKET PLATE
Price
$86.05
1305
BALL BEARING 692ZZ
Price
N/A
1306
FLAT HD CAP SCR M5-.8 X 16
Price
N/A
1307
SET SCREW M3-.5 X 3
Price
N/A
1308
ROLL PIN 1 X 20
Price
$1.85
1309
FLAT WASHER 5 X 12 X .6
Price
$4.50
1310
BALL BEARING 6202LLB
Price
N/A
1311
BEARING SPACER
Price
$8.50
1312
INT RETAINING RING 35MM
Price
N/A
1313
SPROCKET SPINDLE
Price
$67.05
1314
BEARING SPACER
Price
$8.50
1315
SPROCKET WASHER 8MM
Price
$18.75
1316
CAP SCREW M8-1.25 X 20
Price
N/A
1317
BLADE FLANGE
Price
$13.35
1318
BLADE 16T 6MM BORE
Price
$181.50
1319
BLADE SPACER
Price
$17.80
1320
FLANGE
Price
$8.50
1321
***SEE EXT DESC***
Item is no longer available
Price
N/A
1321V2
SPROCKET 48T V2.05.24
Price
$117.70
1322
SPACER BLOCK
Price
$21.20
1323
BELT TENSION PLATE
Price
$46.85
1324
BELT COVER
Price
$37.75
1325
DUST COVER
Price
$81.55
1326
BRUSH
Price
$18.85
1327
HEX BOLT M6-1 X 16 LH
Price
N/A
1328
LINEAR BEARING LM12UU
Price
$18.75
1329
TIMING BELT 10T5-500
Price
$41.00
1330
BALL BEARING 6904-LLB
Price
N/A
1331
CAP SCREW M6-1 X 20
Price
N/A
1332
LOCK WASHER 6MM
Price
N/A
1333
CAP SCREW M5-.8 X 12
Price
N/A
1334
FLAT WASHER 5MM
Price
N/A
1335
CAP SCREW M6-1 X 40
Price
N/A
1336
FLAT WASHER 6MM
Price
N/A
1337
CAP SCREW M5-.8 X 16
Price
N/A
1338
END TRIMMER TRACER
Price
$83.95
1340
FLANGE BOLT M5-.8 X 16
Price
N/A
1341
MOTOR CORD 16G 3W 36"
Price
$42.00
1342
WASHER 15.2 X 22 X .2MM
Price
$4.30
1343
FLAT WASHER 5MM
Price
N/A
1344
SET SCREW M5-.8 X 5
Price
N/A
1345
KEY 4 X 4 X 20
Price
N/A
1346
SET SCREW M5-.8 X 5
Price
N/A

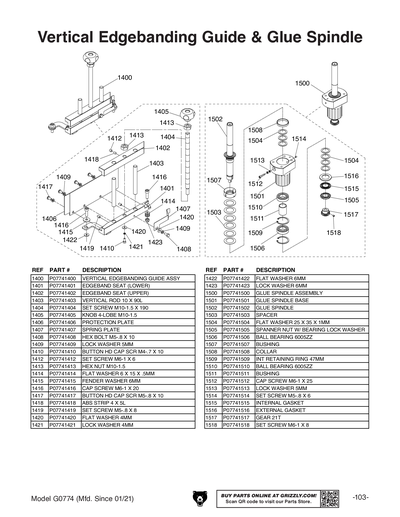

1400
VERTICAL EDGEBANDING GUIDE ASSY
Price
$215.60
1401
EDGEBAND SEAT (LOWER)
Price
$87.90
1402
EDGEBAND SEAT (UPPER)
Price
$62.80
1403
VERTICAL ROD 10 X 90L
Price
$11.20
1404
SET SCREW M10-1.5 X 190
Price
$12.75
1405
KNOB 4-LOBE M10-1.5
Price
$6.40
1406
PROTECTION PLATE
Price
$18.75
1407
SPRING PLATE
Price
$10.50
1408
HEX BOLT M5-.8 X 10
Price
N/A
1409
LOCK WASHER 5MM
Price
N/A
1410
BUTTON HD CAP SCR M4-.7 X 10
Price
N/A
1412
SET SCREW M6-1 X 6
Price
N/A
1413
HEX NUT M10-1.5
Price
N/A
1414
FLAT WASHER 6 X 15 X .5MM
Price
$1.60
1415
FENDER WASHER 6MM
Price
N/A
1416
CAP SCREW M6-1 X 20
Price
N/A
1417
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
1418
ABS STRIP 4 X 5L
Price
$27.55
1419
SET SCREW M5-.8 X 8
Price
N/A
1420
FLAT WASHER 4MM
Price
N/A
1421
LOCK WASHER 4MM
Price
N/A
1422
FLAT WASHER 6MM
Price
N/A
1423
LOCK NUT M6-1
Price
N/A
1431
HEAT ROD MOUNTING PLATE
Price
N/A
1455
HEATING ELEMENT 220V 160W
Price
N/A
1456
HEATING ELEMENT 220V 250W
Price
N/A
1458
STRAIN RELIEF TYPE-1 PG11
Price
N/A
1459
JUNCTION BOX
Price
N/A
1465
CERAMIC TERMINAL BLOCK
Price
N/A
1500
GLUE SPINDLE ASSEMBLY
Price
$416.65
1501
GLUE SPINDLE BASE
Price
$83.95
1501V2
GLUE SPINDLE BASE V2.12.23
Price
$108.40
1502
GLUE SPINDLE
Price
$125.60
1503
SPACER 46.5 X 3 X 0.6MM
Price
$8.50
1504
FLAT WASHER 25 X 35 X 1MM
Price
$4.30
1505
SPANNER NUT W/ BEARING LOCK WASHER
Price
$21.20
1506
BALL BEARING 6005ZZ
Price
N/A
1507
BUSHING
Price
$115.35
1508
COLLAR
Price
$16.95
1509
INT RETAINING RING 47MM
Price
N/A
1510
BALL BEARING 6005ZZ
Price
N/A
1511
BUSHING
Price
$15.55
1512
CAP SCREW M6-1 X 25
Price
N/A
1513
LOCK WASHER 5MM
Price
N/A
1514
SET SCREW M5-.8 X 6
Price
N/A
1514V2
GREASE FITTING 1/4-28 UNF STRAIGHT V2.12
Price
$2.20
1515
INTERNAL GASKET
Price
$21.20
1516
EXTERNAL GASKET
Price
$25.10
1517
GEAR 21T
Price
$52.60
1518
SET SCREW M6-1 X 8
Price
N/A
1522
MOTOR 1/3HP 220V 1-PH (GLUE SPINDLE)
Price
N/A

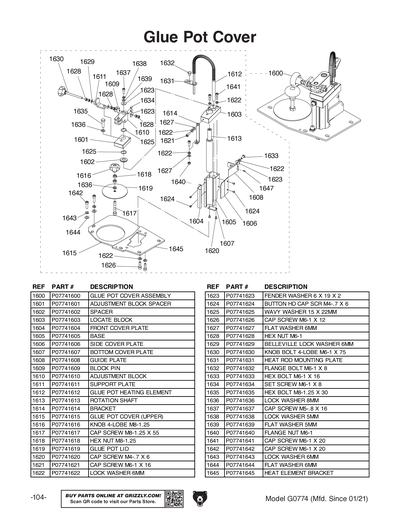

1600
GLUE POT COVER ASSEMBLY
Price
$443.30
1601
ADJUSTMENT BLOCK SPACER
Price
$37.75
1602
SPACER
Price
$10.65
1603
LOCATE BLOCK
Price
$50.15
1604
FRONT COVER PLATE
Price
$11.15
1605
BASE
Price
$100.55
1606
SIDE COVER PLATE
Price
$9.50
1607
BOTTOM COVER PLATE
Price
$8.50
1608
GUIDE PLATE
Price
$30.65
1609
BLOCK PIN
Price
$8.95
1610
ADJUSTMENT BLOCK
Price
$39.85
1611
SUPPORT PLATE
Price
$12.75
1612
GLUE POT HEATING ELEMENT
Price
$116.35
1613
ROTATION SHAFT
Price
$172.45
1614
BRACKET
Price
$11.60
1615
***SEE EXT DESC***
Item is no longer available
Price
N/A
1615V2
GLUE POT COVER (UPPER) V2.12.23
Price
$27.20
1616
***SEE EXT DESC***
Item is no longer available
Price
N/A
1616V2
FIXED HANDLE 33 X 118, M8-1.25 V2.12.23
Price
$14.50
1617
CAP SCREW M8-1.25 X 55
Price
N/A
1617V2
CAP SCREW M8-1.25 X 20
Price
N/A
1618
HEX NUT M8-1.25
Price
N/A
1619
***SEE EXT DESC***
Item is no longer available
Price
N/A
1619V2
GLUE POT LID V2.12.23
Price
$35.25
1620
CAP SCREW M4-.7 X 6
Price
N/A
1621
CAP SCREW M6-1 X 16
Price
N/A
1622
LOCK WASHER 6MM
Price
N/A
1623
FENDER WASHER 6 X 19 X 2
Price
$1.60
1624
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
1625
WAVY WASHER 15 X 22MM
Price
$1.60
1626
CAP SCREW M6-1 X 12
Price
N/A
1627
FLAT WASHER 6MM
Price
N/A
1628
HEX NUT M6-1
Price
N/A
1629
BELLEVILLE LOCK WASHER 6MM
Price
$1.60
1630
KNOB BOLT 4-LOBE M6-1 X 75
Price
$10.00
1631
HEAT ROD MOUNTING PLATE
Price
$9.40
1632
FLANGE BOLT M6-1 X 8
Price
$1.60
1633
HEX BOLT M6-1 X 16
Price
N/A
1634
SET SCREW M6-1 X 8
Price
N/A
1635
HEX BOLT M8-1.25 X 30
Price
N/A
1636
LOCK WASHER 8MM
Price
N/A
1637
CAP SCREW M5-.8 X 16
Price
N/A
1638
LOCK WASHER 5MM
Price
N/A
1639
FLAT WASHER 5MM
Price
N/A
1640
FLANGE NUT M6-1
Price
N/A
1641
CAP SCREW M6-1 X 20
Price
N/A
1642
CAP SCREW M6-1 X 20
Price
N/A
1643
LOCK WASHER 6MM
Price
N/A
1644
FLAT WASHER 6MM
Price
N/A
1645
***SEE EXT DESC***
Item is no longer available
Price
N/A
1645V2
HEAT ELEMENT BRACKET V2.12.23
Price
$36.25
1647
SET SCREW M6-1 X 12
Price
N/A
1700

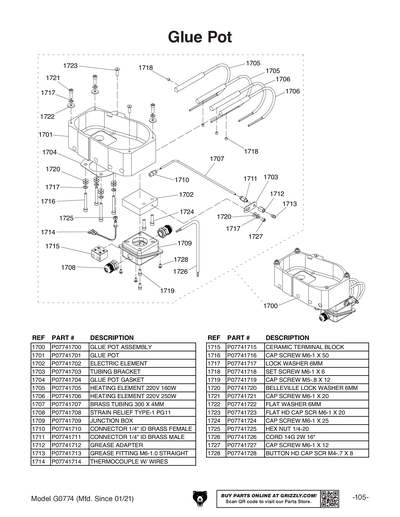

GLUE POT ASSEMBLY
Price
$620.55
1701
GLUE POT
Price
$234.95
1702
ISOLATION BLOCK
Price
$54.70
1703
TUBING BRACKET
Price
$10.65
1704
GLUE POT GASKET
Price
$4.60
1705
HEATING ELEMENT 220V 160W
Price
$82.45
1706
HEATING ELEMENT 220V 250W
Price
$79.15
1707
BRASS TUBING 300 X 4MM
Price
$25.10
1708
STRAIN RELIEF TYPE-1 PG11
Price
$4.60
1709
JUNCTION BOX
Price
$22.05
1710
CONNECTOR 1/4" ID BRASS FEMALE
Price
$6.40
1711
CONNECTOR 1/4" ID BRASS MALE
Price
$6.40
1712
GREASE ADAPTER
Price
$6.40
1713
GREASE FITTING M6-1.0 STRAIGHT
Price
$4.30
1714
THERMOCOUPLE W/ WIRES
Price
$44.45
1715
CERAMIC TERMINAL BLOCK
Price
$18.65
1716
CAP SCREW M6-1 X 50
Price
N/A
1717
FLAT WASHER 6MM
Price
N/A
1718
SET SCREW M6-1 X 6
Price
N/A
1719
CAP SCREW M5-.8 X 12
Price
N/A
1720
BELLEVILLE LOCK WASHER 6MM
Price
N/A
1721
CAP SCREW M6-1 X 20
Price
N/A
1722
FLAT WASHER 6MM
Price
N/A
1723
FLAT HD CAP SCR M6-1 X 20
Price
N/A
1724
CAP SCREW M6-1 X 25
Price
N/A
1725
HEX NUT 1/4-20
Price
N/A
1726
CORD 14G 2W 24"
Price
$18.75
1727
CAP SCREW M6-1 X 12
Price
N/A
1728
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
1800

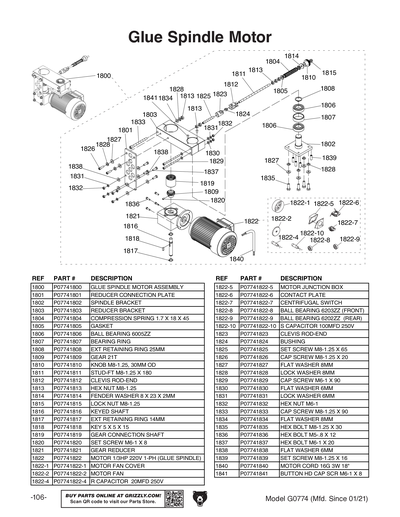

GLUE SPINDLE MOTOR ASSEMBLY
Price
$961.80
1801
REDUCER CONNECTION PLATE
Price
$44.10
1802
SPINDLE BRACKET
Price
$60.70
1803
REDUCER BRACKET
Price
$115.35
1804
COMPRESSION SPRING 1.7 X 18 X 45
Price
$8.95
1805
GASKET
Price
$4.30
1806
BALL BEARING 6005ZZ
Price
N/A
1807
BEARING RING
Price
$14.85
1808
EXT RETAINING RING 25MM
Price
N/A
1809
GEAR 21T
Price
$32.65
1810
KNOB M8-1.25, 30MM OD
Price
$12.75
1811
STUD-FT M8-1.25 X 180
Price
$6.40
1812
CLEVIS ROD-END
Price
$35.65
1813
HEX NUT M8-1.25
Price
N/A
1814
FENDER WASHER 8 X 23 X 2MM
Price
$42.60
1815
LOCK NUT M8-1.25
Price
N/A
1816
KEYED SHAFT
Price
$14.85
1817
EXT RETAINING RING 14MM
Price
N/A
1818
KEY 5 X 5 X 15
Price
N/A
1819
GEAR CONNECTION SHAFT
Price
$7.00
1820
SET SCREW M6-1 X 8
Price
N/A
1821
GEAR REDUCER
Price
$310.35
1822
MOTOR 1/3HP 220V 1-PH (GLUE SPINDLE)
Price
$390.10
1822-1
MOTOR FAN COVER
Price
$12.75
1822-10
S CAPACITOR 100MFD 250V
Price
$6.40
1822-2
MOTOR FAN
Price
$10.65
1822-4
R CAPACITOR 20MFD 250V
Price
$11.15
1822-5
MOTOR JUNCTION BOX
Price
$10.65
1822-6
CONTACT PLATE W/ CENTRIFUGAL SWITCH
Price
$10.65
1822-7
CONTACT PLATE W/ CENTRIFUGAL SWITCH
Price
N/A
1822-8
BALL BEARING 6203ZZ
Price
N/A
1822-9
BALL BEARING 6202ZZ
Price
N/A
1823
CLEVIS ROD-END
Price
$14.85
1824
BUSHING
Price
$2.45
1825
SET SCREW M8-1.25 X 65
Price
$4.30
1826
CAP SCREW M8-1.25 X 20
Price
N/A
1827
FLAT WASHER 8MM
Price
N/A
1828
LOCK WASHER 8MM
Price
N/A
1829
CAP SCREW M6-1 X 90
Price
N/A
1830
FLAT WASHER 6MM
Price
N/A
1831
LOCK WASHER 6MM
Price
N/A
1832
HEX NUT M6-1
Price
N/A
1833
CAP SCREW M8-1.25 X 90
Price
N/A
1834
FLAT WASHER 8MM
Price
N/A
1835
HEX BOLT M8-1.25 X 30
Price
N/A
1836
HEX BOLT M5-.8 X 12
Price
N/A
1837
HEX BOLT M6-1 X 20
Price
N/A
1838
FLAT WASHER 6MM
Price
N/A
1839
SET SCREW M8-1.25 X 16
Price
N/A
1840
MOTOR CORD 16G 3W 18"
Price
$18.75
1841
BUTTON HD CAP SCR M6-1 X 8
Price
N/A
1900
UPPER BUFFING MOTOR ASSEMBLY
Price
$470.95
1901
MOTOR 1/4HP 220V 1-PH (UPPER BUFF)
Price
$381.70
1901-1
MOTOR FAN COVER
Price
N/A
1901-2
MOTOR FAN
Price
N/A
1901-3
*DISCD*CAPACITOR COVER
Price
N/A
1901-4
R CAPACITOR 5M 500V 1-1/2 X 2
Price
N/A
1901-5
MOTOR JUNCTION BOX
Price
N/A
1901-6
*DISCD*CONTACT PLATE
Price
N/A
1901-7
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
1901-8
BALL BEARING 6202ZZ
Price
N/A
1901-9
BALL BEARING 6200ZZ
Price
N/A
1902
***USE P07741902V2***
Price
$40.00
1902V2
MOTOR MOUNTING PLATE V2.01.21
Price
$49.55
1903
BUFFING WHEEL 5 X 1/2 X 3/4
Price
$36.55
1904
CAP SCREW M5-.8 X 16
Price
N/A
1905
LOCK WASHER 5MM
Price
N/A
1906
BOLT PLATE
Price
$12.75
1907
HEX BOLT M8-1.25 X 25
Price
N/A
1908
FLAT WASHER 8MM
Price
N/A
1909
WHEEL FLANGE
Price
$16.95
1910
SPINDLE (UPPER)
Price
$33.85
1912
LOCK WASHER 8MM
Price
N/A
1915
CAP SCREW M6-1 X 12
Price
N/A
1917
HEX BOLT M8-1.25 X 20 LH
Price
$1.60
1918
FLAT WASHER 22 X 55 X 3MM
Price
$6.40
1919
MOTOR CORD 16G 3W 36"
Price
$23.30
1922
PLW04M
Price
$1.60
2000
LOWER BUFFING MOTOR ASSEMBLY
Price
$351.70
2001
MOTOR 1/4HP 220V 1-PH (LOWER BUFF)
Price
$353.25
2001-1
MOTOR FAN COVER
Price
N/A
2001-2
MOTOR FAN
Price
N/A
2001-3
*DISCD*CAPACITOR COVER
Price
N/A
2001-4
R CAPACITOR 5M 500V 1-1/2 X 2
Price
N/A
2001-5
MOTOR JUNCTION BOX
Price
N/A
2001-6
*DISCD*CONTACT PLATE
Price
N/A
2001-7
*DISCD*CENTRIFUGAL SWITCH
Price
N/A
2001-8
BALL BEARING 6202ZZ
Price
N/A
2001-9
BALL BEARING 6200ZZ
Price
N/A
2002
MOTOR MOUNTING PLATE V2.01.21
Price
N/A
2002V2
MOTOR MOUNTING PLATE V2.01.21
Price
N/A
2003
BUFFING WHEEL 5 X 1/2 X 3/4
Price
N/A
2004
CAP SCREW M5-.8 X 16
Price
N/A
2005
LOCK WASHER 5MM
Price
N/A
2006
BOLT PLATE
Price
N/A
2007
HEX BOLT M8-1.25 X 25
Price
N/A
2008
FLAT WASHER 8MM
Price
N/A
2009
WHEEL FLANGE
Price
N/A
2011
HEX BOLT M8-1.25 X 20
Price
N/A
2012
LOCK WASHER 8MM
Price
N/A
2015
CAP SCREW M6-1 X 12
Price
N/A
2016
SPINDLE (LOWER)
Price
$33.85
2018
FLAT WASHER 22 X 55 X 3MM
Price
N/A
2020
MOTOR CORD 16G 3W 24"
Price
$16.95
2100

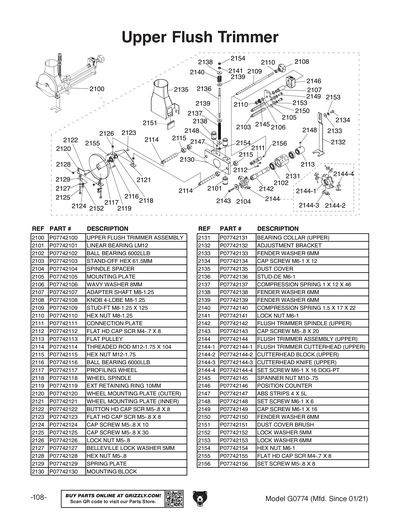

UPPER FLUSH TRIMMER ASSEMBLY
Price
$1,308.60
2101
LINEAR BEARING LM12
Price
$18.75
2102
BALL BEARING 6002-LLB
Price
N/A
2103
STAND-OFF HEX 61.5MM
Price
$6.40
2104
SPINDLE SPACER
Price
$6.40
2105
MOUNTING PLATE
Price
$16.95
2106
WAVY WASHER 8MM
Price
$1.60
2107
ADAPTER SHAFT M8-1.25
Price
$39.10
2108
KNOB 4-LOBE M8-1.25
Price
$7.00
2109
STUD-FT M8-1.25 X 125
Price
$32.35
2110
HEX NUT M8-1.25
Price
N/A
2111
CONNECTION PLATE
Price
$33.30
2112
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
2113
FLAT PULLEY
Price
$17.80
2114
THREADED ROD M12-1.75 X 104
Price
$20.05
2115
HEX NUT M12-1.75
Price
N/A
2116
BALL BEARING 6000LLB
Price
N/A
2117
PROFILING WHEEL
Price
$48.30
2118
WHEEL SPINDLE
Price
$14.85
2119
EXT RETAINING RING 10MM
Price
N/A
2120
WHEEL MOUNTING PLATE (OUTER)
Price
$22.20
2121
WHEEL MOUNTING PLATE (INNER)
Price
$23.30
2122
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
2123
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
2124
CAP SCREW M5-.8 X 10
Price
N/A
2125
CAP SCREW M5-.8 X 30
Price
N/A
2126
LOCK NUT M5-.8
Price
N/A
2127
BELLEVILLE LOCK WASHER 5MM
Price
$4.30
2128
HEX NUT M5-.8
Price
N/A
2129
SPRING PLATE
Price
$4.85
2130
MOUNTING BLOCK
Price
$102.65
2131
BEARING COLLAR (UPPER)
Price
$33.30
2132
ADJUSTMENT BRACKET
Price
$25.10
2133
FENDER WASHER 6MM
Price
N/A
2134
CAP SCREW M6-1 X 12
Price
N/A
2135
DUST COVER
Price
$84.05
2136
STUD-DE M6-1
Price
$8.95
2137
COMPRESSION SPRING 1 X 12 X 46
Price
$6.40
2138
FENDER WASHER 6MM
Price
N/A
2139
FENDER WASHER 6MM
Price
N/A
2140
COMPRESSION SPRING 1.5 X 17 X 22
Price
$8.50
2141
LOCK NUT M6-1
Price
N/A
2142
FLUSH TRIMMER SPINDLE (UPPER)
Price
$37.70
2143
CAP SCREW M5-.8 X 20
Price
N/A
2144
FLUSH TRIMMER ASSEMBLY (UPPER)
Price
$505.40
2144-1
FLUSH TRIMMER CUTTERHEAD (UPPER)
Price
$292.55
2144-2
CUTTERHEAD BLOCK (UPPER)
Price
$15.55
2144-3
Upper Blades for G0774 - Pack of 4
Price
N/A
2144-4
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
2145
SPANNER NUT M10-.75
Price
$13.75
2146
POSITION COUNTER
Price
$53.25
2147
ABS STRIP 4 X 5L
Price
N/A
2148
SET SCREW M6-1 X 6
Price
N/A
2149
CAP SCREW M6-1 X 16
Price
N/A
2150
FENDER WASHER 6MM
Price
N/A
2151
DUST COVER BRUSH
Price
$8.50
2152
LOCK WASHER 5MM
Price
N/A
2153
LOCK WASHER 6MM
Price
N/A
2154
HEX NUT M6-1
Price
N/A
2155
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
2156
SET SCREW M5-.8 X 8
Price
N/A
2200
LOWER FLUSH TRIMMER ASSEMBLY
Price
$1,422.75
2201
LOWER MOUNTING BLOCK
Price
$92.10
2202
LINEAR BEARING LM12
Price
N/A
2203
BEARING COLLAR (LOWER)
Price
$31.40
2204
BALL BEARING 6002LLB
Price
$5.35
2205
FLUSH TRIMMER SPINDLE (LOWER)
Price
$37.70
2206
STAND-OFF HEX 61.5MM
Price
N/A
2207
SPINDLE SPACER
Price
N/A
2208
MOUNTING PLATE
Price
N/A
2209
WAVY WASHER 8MM
Price
N/A
2210
ADAPTER SHAFT M8-1.25
Price
N/A
2211
KNOB 4-LOBE M8-1.25
Price
N/A
2212
STUD-FT M8-1.25 X 125
Price
N/A
2213
HEX NUT M8-1.25
Price
N/A
2214
CONNECTION PLATE
Price
N/A
2215
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
2216
FLAT PULLEY
Price
N/A
2217
THREADED ROD M12-1.75 X 104
Price
N/A
2218
HEX NUT M12-1.75
Price
N/A
2219
BALL BEARING 6000LLB
Price
N/A
2220
PROFILING WHEEL
Price
N/A
2221
WHEEL SPINDLE
Price
N/A
2222
EXT RETAINING RING 10MM
Price
N/A
2223
WHEEL MOUNTING PLATE (OUTER)
Price
N/A
2224
WHEEL MOUNTING PLATE (INNER)
Price
N/A
2225
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
2226
FLAT HD CAP SCR M5-.8 X 8
Price
N/A
2227
CAP SCREW M5-.8 X 10
Price
N/A
2228
CAP SCREW M5-.8 X 30
Price
N/A
2229
LOCK NUT M5-.8
Price
N/A
2230
BELLEVILLE LOCK WASHER 5.2 X 12 X .6MM
Price
$4.30
2231
HEX NUT M5-.8
Price
N/A
2232
SPRING PLATE
Price
N/A
2233
DUST COVER
Price
$73.40
2234
CAP SCREW M5-.8 X 16 LH
Price
$2.45
2235
FLUSH TRIMMER ASSEMBLY (LOWER)
Price
$505.40
2235-1
FLUSH TRIMMER CUTTERHEAD (LOWER)
Price
$276.30
2235-2
CUTTERHEAD BLOCK (LOWER)
Price
$15.55
2235-3
Lower Blades for G0774 - Pack of 4
Price
N/A
2235-4
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
2236
SPANNER NUT M10-.75
Price
N/A
2237
POSITION COUNTER
Price
N/A
2238
LOCK WASHER 5MM
Price
N/A
2239
CAP SCREW M6-1 X 16
Price
N/A
2240
FENDER WASHER 6MM
Price
N/A
2241
SET SCREW M6-1 X 6
Price
N/A
2242
CAP SCREW M6-1 X 20
Price
N/A
2243
LOCK WASHER 6MM
Price
N/A
2244
ABS STRIP
Price
$27.55
2245
DUST COVER BRUSH
Price
N/A
2247
FLAT HD CAP SCR M4-.7 X 8
Price
N/A
2248
SET SCREW M5-.8 X 8
Price
N/A
2249
FLANGE BOLT M6-1 X 12
Price
N/A
2301
TERMINAL BAR PYK2 1-PC
Price
$4.30
2302
TERMINAL BAR PYK2, GROUND 1-PC
Price
$16.95
2303
TERMINAL END PLATE
Price
$4.30
2304
MOUNTING RAIL END PLATE
Price
$4.30
2305
TERMINAL JUMPER
Price
$4.50
2306
TRANSFORMER 220V LCE LCP-TBSM-100120
Price
$112.95
2307
PLC DELTA DVP32ES200R
Price
$945.80
2308
CONTACTOR SHIHLIN S-P11S 24V
Price
$40.00
2309
FLANGE SCREW M5-.8 X 10
Price
N/A
2310
FLANGE SCREW M5-.8 X 10
Price
N/A
2311
OL RELAY SHIHLIN MR-32S-2.5 1.6-2.5A
Price
$111.10
2312
OL RELAY SHIHLIN MR-32S-4 2.5-4A
Price
$100.55
2313
OL RELAY SHIHLIN MR-32S-6.3 4-6.3A
Price
$105.55
2314
FUSE HOLDER PMX-10 X 38 RM32 32A 680V
Price
$22.25
2315
FUSE 10 X 38MM 6A 600V F-A, CERAMIC
Price
$26.65
2316
FUSE 10 X 38MM 3A 600V F-A, CERAMIC
Price
$26.65
2317
GROUND TERMINAL 6-POLE 20A
Price
$6.40
2318
CONTROL PANEL MOUNT
Price
$87.90
2319
RELAY OMRON MY4N-J 24V
Price
$29.65
2320
WIRING LOOM 1 X 2-1/2 X 34"
Price
$25.10
2321
WIRING LOOM 1 X 2-1/2 X 7"
Price
$25.10
2322
WIRING LOOM 1 X 2-1/2 X 5"
Price
$25.10
2323
MOUNTING RAIL 1-3/8 X 1-3/8 X 17"
Price
$16.95
2324
MOUNTING RAIL 1-3/8 X 1-3/8 X 6-1/4"
Price
$16.95
2325
MOUNTING RAIL 1-3/8 X 1-3/8 X 17-1/4"
Price
$16.95
2326
MOUNTING RAIL 1-3/8 X 1-3/8 X 12-1/4"
Price
$16.95
2401
NOTICE UNLOCK CONVEYOR LABEL
Price
$2.10
2402
N/S GRIZZLY GREEN G1023S
Price
N/A
2403
Nameplate - Large
Price
N/A
2404
WARNING HOT SURFACE LABEL
Price
$1.35
2405
NOTICE AIR PRESSURE LABEL
Price
$2.10
2406
GREY PUTTY REF G0504
Price
N/A
2407
ELECTRICITY 1.4W X 1.2H
Price
N/A
2408
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
2409
ENTANGLEMENT HAZARD 2W X 3.3H
Price
N/A
2410
GRIZZLY.COM LABEL 13",BEIGE
Price
N/A
2411
MODEL NUMBER LABEL
Price
$12.90
2412
DISCONNECT 110V 2W X 3.3H
Price
N/A
2413
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
2414
MACHINE ID LABEL
Price
$16.40
2415
CONVEYOR BELT TENSION LABEL
Price
$3.95
2416
NOTICE COMPONENTS POWERED UP
Price
$8.50
2417
WARNING FEEDER AMPUTATION LABEL
Price
$4.20
2418
NOTICE FEEDER MISALIGNMENT LABEL
Price
$4.20
2420
LUBRICATION NOTICE LABEL
Price
$4.25
2501
WARNING HOT SURFACE LABEL
Price
$1.35
2502
ELECTRICITY 1.4W X 1.2H
Price
N/A
2503
COUNTER ROTATION LABEL
Price
$2.10
2505
DISCONNECT 110V 2W X 3.3H
Price
N/A
2506
VALVE ADJUSTMENT LABEL
Price
$1.60
2507
LUBRICATION NOTICE LABEL
Price
N/A
2508
WARNING FEEDER AMPUTATION LABEL
Price
N/A
2509
GLUE SPINDLE HANG TAG
Price
$7.25
MAN
MANUAL G0774 MFD-02.15-09.18 V1.02.18
Price
$26.50
MANV2
MANUAL G0774 MFD-10.18-06.19 V2.10.18
Price
$26.50
MANV3
MANUAL G0774 MFD-07.19-12.20 V3.07.19
Price
$26.50
MANV4
MANUAL G0774 MFD-01.21-11.23 V4.08.22
Price
$26.75
MANV5
MANUAL G0774 MFD-12.23+ V5.04.24
Price
$22.80
P
BALL BEARING 692ZZ
Price
$12.25
P
FLANGE BOLT M6-1 X 8
Price
$1.60
P
FLANGE BOLT M5-.8 X 16
Price
$1.60
