Parts for G0778 - 14" 1-3/4 HP Deluxe Bandsaw

Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778
Part Diagram for G0778

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
*DISCD*BODY
Price
N/A
2
UPPER WHEEL DOOR W/LABELS
Price
N/A
3
LOWER WHEEL DOOR
Price
N/A
4
CAP SCREW M6-1 X 10
Price
N/A
5
LOCK WASHER 6MM
Price
N/A
6
CAP SCREW M5-.8 X 12
Price
N/A
7
BIAS SHAFT
Price
N/A
8
BIAS SHAFT CLAMP SEAT
Price
N/A
9
TENSION ADJUSTMENT HUB
Price
N/A
10
CAP SCREW M8-1.25 X 20
Price
N/A
11
HEX NUT M8-1.25
Price
N/A
12
TENSION HANDLE
Price
N/A
21
CAP SCREW M6-1 X 10
Price
N/A
22
LOCK WASHER 8MM
Price
N/A
23
CAP SCREW M8-1.25 X 20
Price
N/A
24
LOCK KNOB M8-1.25 X 20
Price
N/A
25
UPPER GUIDE POST SUPPORT
Price
N/A
26
FLAT HD SCR M4-.7 X 6
Price
N/A
27
SPRING TENSIONER
Price
N/A
28
ADJUSTMENT GEAR SHAFT
Price
N/A
29
BUSHING
Price
N/A
30
GEAR SHAFT BRACKET
Price
N/A
31
LOCK WASHER 6MM
Price
N/A
32
CAP SCREW M6-1 X 10
Price
N/A
33
COVER PLATE
Price
N/A
34
CAP SCREW M6-1 X 35
Price
N/A
35
FLAT HD SCR M4-.7 X 6
Price
N/A
36
RACK
Price
N/A
37
HAND KNOB M10-1.5
Price
N/A
38
GUIDE POST
Price
N/A
39
CHANGE SHAFT
Price
N/A
40
PHLP HD SCR M6-1 X 12
Price
N/A
41
FIBER WASHER 5MM
Price
N/A
42
LOCK NUT M6-1
Price
N/A
43
UPPER BLADE GUIDE ASSEMBLY
Price
N/A
44
LOWER BLADE GUIDE ASSEMBLY
Price
N/A
50
SLIDING BLADE GUARD
Price
N/A
51
BLADE GUARD
Price
N/A
52
HEX BOLT M6-1 X 8
Price
N/A
53
FLAT WASHER 6MM
Price
N/A
54
FLANGE SCREW M6-1 X 8
Price
N/A
55
CAM
Price
N/A
56
***USE P0555131B***
Price
N/A
57
SET SCREW M5-.8 X 5
Price
N/A
58
TENSION ADJUSTMENT SCREW
Price
N/A
59
ADJUSTMENT SCREW BRACKET
Price
N/A
60
COMPRESSION SPRING
Price
N/A
61
TENSION INDICATOR
Price
N/A
62
THREADED PLATE
Price
N/A
63
LOCK KNOB M8-1.25 X 45
Price
N/A
64
KNOB M8-1.25
Price
N/A
65
FLAT WASHER 6MM
Price
N/A
66
PULL NUT M8-1.25
Price
N/A
67
BRACKET
Price
N/A
68
SQUARE SHAFT 12 X 12MM
Price
N/A
69
CAP SCREW M8-1.25 X 20
Price
N/A
70
LOCK WASHER 8MM
Price
N/A
71
FLAT WASHER 8MM
Price
N/A
72
SLEEVE
Price
N/A
73
UPPER WHEEL SHAFT BRACKET
Price
N/A
74
ROLL PIN 5 X 35
Price
N/A
75
UPPER WHEEL SHAFT
Price
N/A
76
WAVY WASHER 15 X 22MM
Price
N/A
77
UPPER WHEEL
Price
N/A
78
WHEEL TIRE
Price
N/A
79
HEX BOLT M8-1.25 X 16
Price
N/A
80
LOCK WASHER 8MM
Price
N/A
81
FLAT WASHER 8MM
Price
N/A
82
BALL BEARING 6202ZZ
Price
N/A
83
INT RETAINING RING 35MM
Price
N/A
86
HEX NUT M18-1.5
Price
N/A
87
LOCK WASHER 18MM
Price
N/A
88
LOWER WHEEL SHAFT
Price
N/A
89
LEFT BLADE COVER
Price
N/A
90
HEX NUT M8-1.25
Price
N/A
91
SET SCREW M8-1.25 X 20
Price
N/A
92
SHAFT END CAP
Price
N/A
93
FLANGE SCREW M5-.8 X 8
Price
N/A
94
DUST PORT
Price
N/A
95
FLANGE SCREW M6-1 X 10
Price
N/A
96
MOTOR 1-3/4 HP 220/110V 1-PH
Item is no longer available
Price
N/A
96-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
96-10
R CAPACITOR COVER
Item is no longer available
Price
N/A
96-11
R CAPACITOR 50M 250V 1-1/2 X 2-3/8
Price
N/A
96-2
MOTOR FAN
Item is no longer available
Price
N/A
96-3
S CAPACITOR COVER
Item is no longer available
Price
N/A
96-4
S CAPACITOR 300M 250V 1-1/2 X 2-3/8
Price
N/A
96-5
MOTOR JUNCTION BOX
Item is no longer available
Price
N/A
96-6
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Item is no longer available
Price
N/A
96-7
CENTRIFUGAL SWITCH W/ CONTACT PLATE
Price
N/A
96-8
FRONT MOTOR BEARING 6205ZZ
Item is no longer available
Price
N/A
96-9
REAR MOTOR BEARING 6203ZZ
Item is no longer available
Price
N/A
97
KEY 5 X 5 X 20
Price
N/A
100
CAP SCREW M6-1 X 20
Price
N/A
101
LATCH KNOB 6MM
Price
N/A
102
LOCK NUT M6-1
Price
N/A
103
ALIGNMENT PIN
Price
N/A
104
FLANGE SCREW M5-.8 X 6
Price
N/A
105
RIGHT BLADE COVER
Price
N/A
111
POINTER
Price
N/A
112
HEX BOLT M6-1 X 12
Price
N/A
113
FLAT WASHER 8MM
Price
N/A
114
LOCK WASHER 8MM
Price
N/A
115
CAP SCREW M8-1.25 X 20
Price
N/A
116
WHEEL BRUSH
Price
N/A
117
FLANGE SCREW M5-.8 X 8
Price
N/A
118
HEX BOLT M8-1.25 X 35
Price
N/A
119
LOCK WASHER 8MM
Price
N/A
120
TRUNNION BRACKET CAST IRON
Price
N/A
121
HEX BOLT M8-1.25 X 80
Price
N/A
122
HEX NUT M8-1.25
Price
N/A
123
POINTER
Price
N/A
124
PHLP HD SCR M5-.8 X 6
Price
N/A
125
LOCK KNOB M10-1.5
Price
N/A
126
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
127
***USE P0555X100***
Price
N/A
128
TABLE
Price
N/A
129
HEX BOLT M10-1.5 X 50
Price
N/A
130
TRUNNION CLAMP SHOE 1PC
Price
N/A
131
TRUNNION CAST IRON
Price
N/A
132
SCALE
Price
N/A
133
FLANGE BOLT M6-1 X 12
Price
N/A
134
BLADE 106 X 3/8 X 0.35" 6TPI
Price
N/A
135
FLANGE SCREW M5-.8 X 8
Price
N/A
136
PHLP HD SCR M4-.7 X 10
Price
N/A
137
PHLP HD SCR M5-.8 X 12
Price
N/A
138
EXT TOOTH WASHER 5MM
Price
N/A
139
HEX NUT M5-.8
Price
N/A
140
POWER CORD 14G 3W 84" 5-15P
Item is no longer available
Price
N/A
141
MOTOR CORD 14G 3C
Price
N/A
142
FLANGE SCREW M5-.8 X 8
Price
N/A
144
SWITCH BOX REAR PLATE
Price
N/A
145
SWITCH BOX FRONT PLATE
Price
N/A
146
ON/OFF SWITCH 110/220V V2.05.11
Price
N/A
148
MITER GAUGE ASSEMBLY
Price
N/A

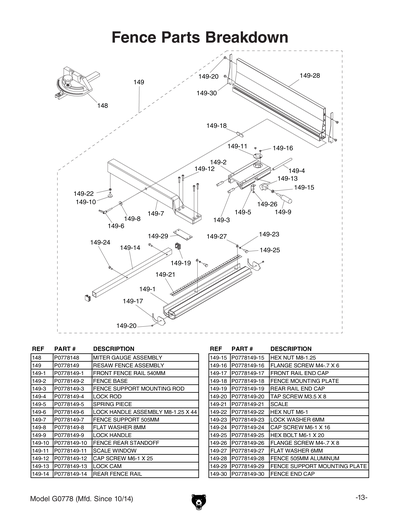

149
Resaw Fence Complete for 14" Bandsaws
Price
N/A
149-1
FIXED BASE 540MM
Price
N/A
149-10
RAIL PAD ADJUSTMENT SCREW
Price
N/A
149-11
CONVEX WINDOW
Price
N/A
149-12
CAP SCREW M6-1 X 25
Price
N/A
149-13
LOCK BLOCK
Price
N/A
149-14
SQUARE TUBE 540MM
Price
N/A
149-15
HEX NUT M8-1.25
Price
N/A
149-16
FLANGE SCREW M4-.7 X 6
Price
N/A
149-17
FRONT RAIL END CAP
Price
N/A
149-18
MOVING PLATE
Price
N/A
149-19
REAR RAIL END CAP
Price
N/A
149-2
ADJUST BASE
Price
N/A
149-20
TAP SCREW M3.5 X 8
Price
N/A
149-21
SCALE
Price
N/A
149-22
HEX NUT M6-1
Price
N/A
149-23
LOCK WASHER 6MM
Price
N/A
149-24
CAP SCREW M6-1 X 16
Price
N/A
149-25
HEX BOLT M6-1 X 20
Price
N/A
149-26
FLANGE SCREW M4-.7 X 8
Price
N/A
149-27
FLAT WASHER 6MM
Price
N/A
149-28
FENCE AL 505MM
Price
N/A
149-29
SPACER PLATE
Price
N/A
149-3
ALIGNMENT SHAFT
Price
N/A
149-30
FENCE END CAP
Price
N/A
149-4
SHAFT
Price
N/A
149-5
***USE P0555305***
Price
N/A
149-6
ADJUSTMENT HANDLE M8 X 44
Price
N/A
149-7
SUPPORT TUBE 505MM
Price
N/A
149-8
FLAT WASHER 8MM
Price
N/A
149-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
150
POINTER BRACKET
Price
N/A
151
FLANGE SCREW M5-.8 X 12
Price
N/A
157
LEVER PLATE
Price
N/A
158
HEX BOLT M8-1.25 X 20
Price
N/A
159
LOCK WASHER 8MM
Price
N/A
160
FLAT WASHER 8MM
Price
N/A
161
SHIM PLASTIC
Price
N/A
162
SET SCREW M6-1 X 6
Price
N/A
164
SET SCREW M8-1.25 X 10
Price
N/A
201
WHEEL LOWER ASSEMBLY
Price
N/A
202
RIBBED V-BELT 200J5
Price
N/A
203
MOTOR PULLEY 3/4" BORE
Price
N/A
204
SET SCREW M6-1 X 10
Price
N/A

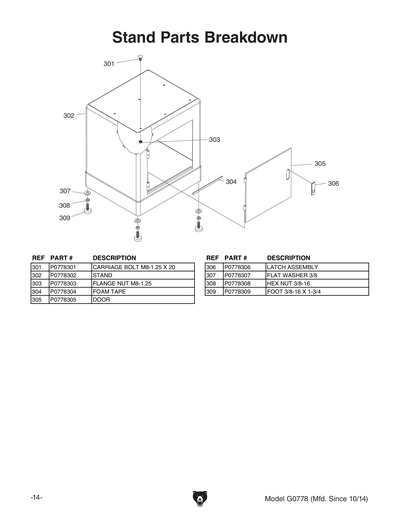

301
CARRIAGE BOLT M8-1.25 X 20
Price
N/A
302
STAND
Price
N/A
303
FLANGE NUT M8-1.25
Price
N/A
304
FOAM TAPE
Price
N/A
305
DOOR
Price
N/A
306
LATCH ASSEMBLY
Price
N/A
307
P0778307
Now: PW02
FLAT WASHER 3/8
Price
N/A
308
P0778308
Now: PN08
HEX NUT 3/8-16
Price
N/A
309
***USE P0555213***
Price
N/A

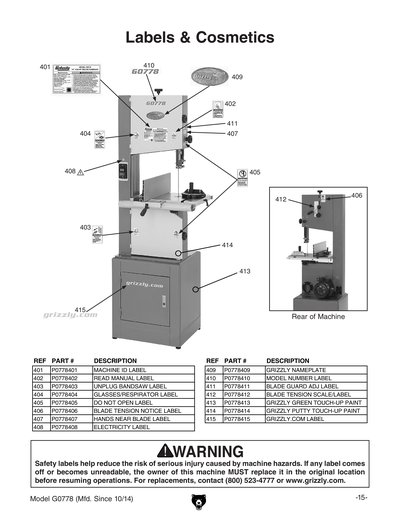

401
MACHINE ID LABEL
Item is no longer available
Price
N/A
402
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
403
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
404
EAR PROTECTION 2W X 3.3H V2.04.08
Price
N/A
405
DONT OPEN 2W X 3.3H
Price
N/A
406
BLADE TENSION NOTICE LABEL
Price
N/A
407
BANDSAW BLADE 2W X 3.3H V1.07.02
Price
N/A
408
ELECTRICITY 1.4W X 1.2H
Price
N/A
409
Nameplate - Mini
Price
N/A
410
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
411
BLADE TENSION SCALE/LABEL
Price
N/A
412
MOTOR LABEL
Price
N/A
413
N/S GRIZZLY GREEN G1023S
Price
N/A
414
GREY PUTTY REF G0504
Price
N/A
415
GRIZZLY.COM LABEL 10",BEIGE
Price
N/A
MANUAL
MANUAL G0778 MFD-10/14 V1.11.14
Item is no longer available
Price
N/A
