Parts for G0779 23-3/8" Heavy-Duty Floor Model Gearhead Drill Press

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

1

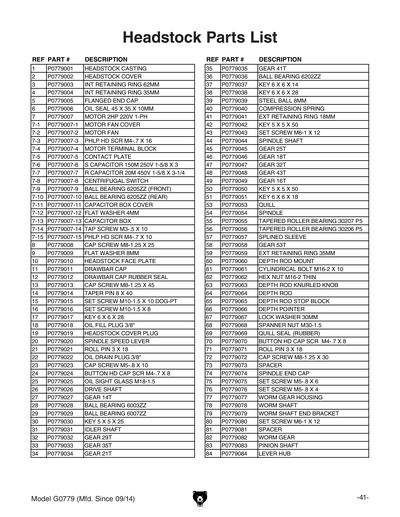

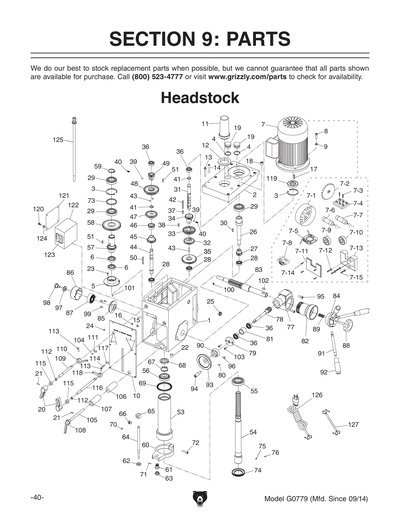

HEADSTOCK CASTING
2
HEADSTOCK COVER
3
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
4
Now: PR21M
INT RETAINING RING 35MM
Price
N/A
5
***USE P0754005***
6
OIL SEAL 45 X 35 X 10MM
7
MOTOR 2HP 220V 1-PH
Price
N/A
7-1
MOTOR FAN COVER
7-10
BALL BEARING 6205ZZ
Price
N/A
7-11
CAPACITOR BOX COVER
7-12
Now: PW05M
FLAT WASHER 4MM
Price
N/A
7-13
CAPACITOR BOX
7-14
TAP SCREW M3-.5 X 10
7-15
Now: PS38M
PHLP HD SCR M4-.7 X 10
Price
N/A
7-2
MOTOR FAN
7-3
Now: PS56M
PHLP HD SCR M4-.7 X 16
Price
N/A
7-4
MOTOR TERMINAL BLOCK
7-5
CONTACT PLATE
7-6
S CAPACITOR 150M 250V 1-1/2 X 2-3/8
Price
N/A
7-7
Now: PC20B
R CAPACITOR 20M 450V 1-5/8 X 3-1/4
Price
N/A
7-8
CENTRIFUGAL SWITCH
7-9
BALL BEARING 6205ZZ
Price
N/A
8
CAP SCREW M8-1.25 X 25
Price
N/A
9
Now: PW01M
FLAT WASHER 8MM
Price
N/A
10
HEADSTOCK FACE PLATE
11
DRAWBAR CAP
12
DRAWBAR CAP RUBBER SEAL
13
CAP SCREW M8-1.25 X 45
Price
N/A
14
TAPER PIN 8 X 40
15
SET SCREW M10-1.5 X 10 DOG-PT
Price
N/A
16
SET SCREW M10-1.5 X 8
Price
N/A
17
Now: PK32M
KEY 6 X 6 X 28
Price
N/A
18
OIL FILL PLUG 3/8"
19
HEADSTOCK COVER PLUG
20
SPINDLE SPEED LEVER
21
ROLL PIN 3 X 18
Price
N/A
22
OIL DRAIN PLUG 3/8"
23
CAP SCREW M5-.8 X 10
Price
N/A
24
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
25
OIL SIGHT GLASS M18-1.5
Price
N/A
26
DRIVE SHAFT
27
GEAR 14T
28
Now: G3850
Bearing - 35mm x 17mm
Price
N/A
29
BALL BEARING 6007ZZ
Price
N/A
30
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
31
IDLER SHAFT
32
GEAR 29T
33
GEAR 35T
34
GEAR 21T
35
GEAR 41T
36
BALL BEARING 6202ZZ
Price
N/A
37
KEY 6 X 6 X 14
Price
N/A
38
Now: PK32M
KEY 6 X 6 X 28
Price
N/A
39
STEEL BALL 8MM
Price
N/A
40
COMPRESSION SPRING
41
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
42
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
43
SET SCREW M6-1 X 12
Price
N/A
44
SPINDLE SHAFT
Price
N/A
45
GEAR 25T
46
GEAR 18T
47
GEAR 32T
48
GEAR 16T / 43T
49
GEAR 16T / 43T
Price
N/A
50
Now: PK36M
KEY 5 X 5 X 50
Price
N/A
51
KEY 6 X 6 X 18
Price
N/A
53
QUILL
54
SPINDLE
55
TAPERED ROLLER BEARING 30207 P5
Price
N/A
56
TAPERED ROLLER BEARING 30206 P5
Price
N/A
57
SPLINED SLEEVE
Price
N/A
58
GEAR 53T
Price
N/A
59
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
60
DEPTH ROD MOUNT
61
CYLINDRICAL BOLT M16-2 X 10
62
Now: PN48M
HEX NUT M16-2 THIN
Price
N/A
63
DEPTH ROD KNURLED KNOB
64
DEPTH ROD
65
DEPTH ROD STOP BLOCK
66
DEPTH POINTER
67
LOCK WASHER 30MM
Price
N/A
68
SPANNER NUT M30-1.5
69
QUILL SEAL (RUBBER)
70
BUTTON HD CAP SCR M4-.7 X 8
71
ROLL PIN 3 X 18
Price
N/A
72
CAP SCREW M8-1.25 X 30
Price
N/A
73
SPACER
74
SPINDLE END CAP
Price
N/A
75
SET SCREW M5-.8 X 6
Price
N/A
76
SET SCREW M5-.8 X 4
Price
N/A
77
WORM GEAR HOUSING
Price
N/A
78
WORM SHAFT
Price
N/A
79
WORM SHAFT END BRACKET
Price
N/A
80
SET SCREW M6-1 X 12
Price
N/A
81
SPACER
82
WORM GEAR
83
PINION SHAFT
84
LEVER HUB
85

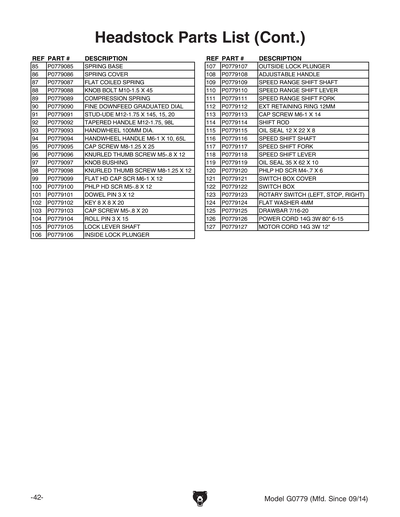

SPRING BASE
Price
N/A
86
SPRING COVER
87
FLAT COILED SPRING
88
KNOB BOLT M10-1.5 X 45
89
COMPRESSION SPRING
90
FINE DOWNFEED GRADUATED DIAL
91
STUD-UDE M12-1.75 X 145, 15, 20
92
TAPERED HANDLE M12-1.75, 98L
93
HANDWHEEL 100MM DIA.
94
HANDWHEEL HANDLE M6-1 X 10, 65L
95
CAP SCREW M8-1.25 X 25
Price
N/A
96
KNURLED THUMB SCREW M5-.8 X 12
97
KNOB BUSHING
98
KNURLED THUMB SCREW M8-1.25 X 12
99
FLAT HD CAP SCR M6-1 X 12
Price
N/A
100
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
101
DOWEL PIN 3 X 12
102
KEY 8 X 8 X 20
Price
N/A
103
CAP SCREW M5-.8 X 20
Price
N/A
104
ROLL PIN 3 X 15
Price
N/A
105
LOCK LEVER SHAFT
Price
N/A
106
INSIDE LOCK PLUNGER
107
OUTSIDE LOCK PLUNGER
108
ADJUSTABLE HANDLE
109
SPEED RANGE SHIFT SHAFT
Price
N/A
110
SPEED RANGE SHIFT LEVER
111
SPEED RANGE SHIFT FORK
112
Now: PR03M
EXT RETAINING RING 12MM
Price
N/A
113
CAP SCREW M6-1 X 14
Price
N/A
114
SHIFT ROD
Price
N/A
115
OIL SEAL 12 X 22 X 8
116
SPEED SHIFT SHAFT
117
SPEED SHIFT FORK
Price
N/A
118
SPEED SHIFT LEVER
119
OIL SEAL 35 X 62 X 10
120
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
121
SWITCH BOX COVER
122
SWITCH BOX
123
ROTARY SWITCH (LEFT, STOP, RIGHT)
124
Now: PW05M
FLAT WASHER 4MM
Price
N/A
125
DRAWBAR 7/16-20
126
POWER CORD 14G 3W 80" 6-15
127
MOTOR CORD 14G 3W 12"
201

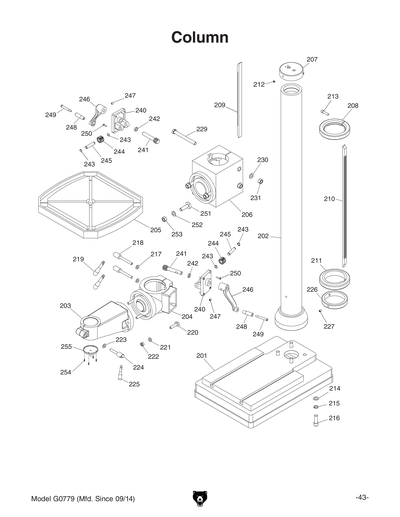

BASE
202
COLUMN
203
TABLE BRACKET W/ARM BRACKET
Price
N/A
204
TABLE BRACKET W/ARM BRACKET
205
TABLE
206
HEAD ELEVATION GEAR HOUSING
207
COLUMN CAP
208
RACK GUIDE RING
209
RACK (HEAD ELEVATION)
210
RACK (TABLE ELEVATION)
211
RACK RING
212
SET SCREW M10-1.5 X 10
Price
N/A
213
CAP SCREW M10-1.5 X 40
Price
N/A
214
Now: PW08M
FLAT WASHER 16MM
Price
N/A
215
LOCK WASHER 16MM
Price
N/A
216
Now: PB51M
HEX BOLT M16-2 X 50
Price
N/A
217
Now: PW06M
FLAT WASHER 12MM
Price
N/A
218
TABLE LOCK HUB M12-1.75 X 95
219
TABLE LOCK HANDLE M10-1.5 X 12, 115L
220
T-BOLT M12-1.75 X 45
221
Now: PW06M
FLAT WASHER 12MM
Price
N/A
222
Now: PN09M
HEX NUT M12-1.75
Price
N/A
223
Now: PW06M
FLAT WASHER 12MM
Price
N/A
224
PIVOT LOCK HUB M12-1.75 X 60
225
LEVER HANDLE M10-1.5 X 8, 75L
226
RACK RING BASE
227
SET SCREW M10-1.5 X 16
Price
N/A
229
HEX BOLT M16-2 X 190
Price
N/A
230
Now: PW08M
FLAT WASHER 16MM
Price
N/A
231
Now: PN13M
HEX NUT M16-2
Price
N/A
240
ELEVATION CRANK BRACKET
241
WORM GEAR
242
SPACER
243
Now: PR02M
EXT RETAINING RING 14MM
Price
N/A
244
HELICAL GEAR 15T
245
SHAFT
246
ELEVATION CRANK
247
SET SCREW M10-1.5 X 12
Price
N/A
248
CRANK HANDLE 75MM
249
SHOULDER SCREW M10-1.5 X 10, 12 X 68
250
CAP SCREW M6-1 X 20
Price
N/A
251
T-BOLT M14-2 X 55
252
Now: PW10M
FLAT WASHER 14MM
Price
N/A
253
Now: PN32M
HEX NUT M14-2
Price
N/A
254
CAP SCREW M6-1 X 12
Price
N/A
255
COOLANT DRAIN
301

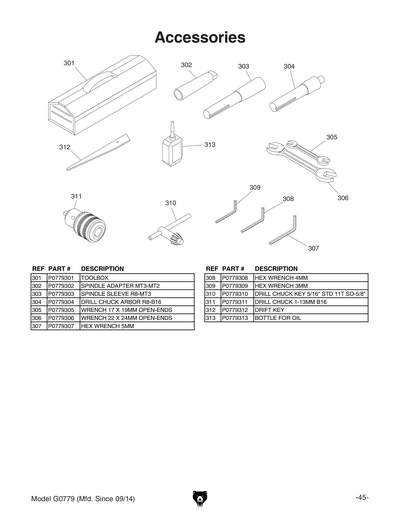

TOOLBOX
Price
N/A
302
SPINDLE ADAPTER MT3-MT2
303
SPINDLE SLEEVE R8-MT#3
Price
N/A
304
DRILL CHUCK ARBOR R8-B16
305
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
306
WRENCH 22 X 24MM OPEN-ENDS
Price
N/A
307
HEX WRENCH 5MM
Price
N/A
308
HEX WRENCH 4MM
Price
N/A
309
HEX WRENCH 3MM
Price
N/A
310
DRILL CHUCK KEY 8MM STD 11 SD-16MM
Price
N/A
311
DRILL CHUCK 1-13MM B16
312
DRIFT KEY
Price
N/A
313
BOTTLE FOR OIL
Price
N/A
401

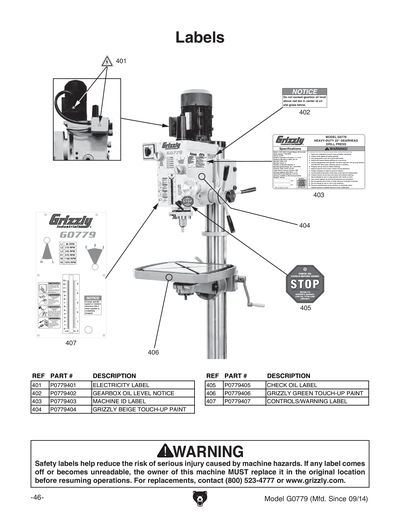

ELECTRICITY 0.7W X 0.6H
Price
N/A
402
GEARBOX OIL LEVEL NOTICE
403
MACHINE ID LABEL
404
BEIGE REF G0555
Price
N/A
405
STOP OIL FILL TAG 4W X 4H
Price
N/A
406
N/S GRIZZLY GREEN G1023S
Price
N/A
407
CONTROLS/WARNING LABEL
MAN
MANUAL G0779 MFD-01.15 V1.04.15
