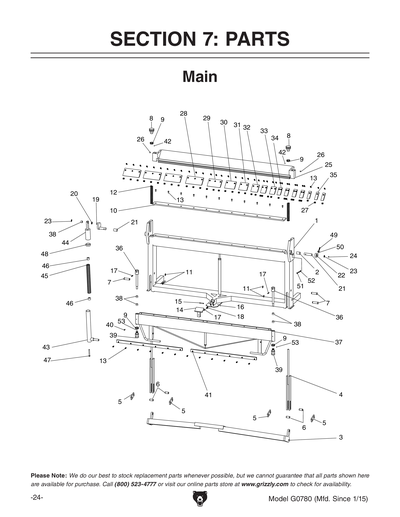

Parts for G0780 81" Pan and Box Brake

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

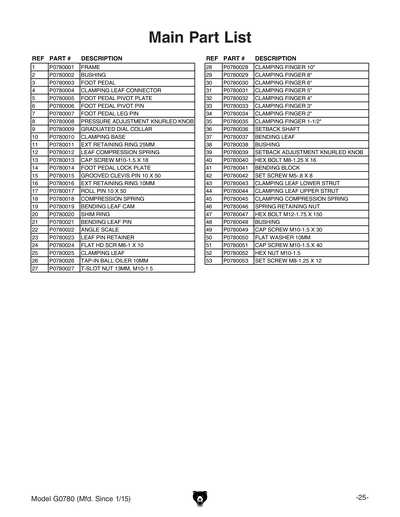

1
FRAME
Item is no longer available
Price
N/A
2
BUSHING
Item is no longer available
Price
N/A
3
FOOT PEDAL
Item is no longer available
Price
N/A
4
CLAMPING LEAF CONNECTOR
Item is no longer available
Price
N/A
5
FOOT PEDAL PIVOT PLATE
Item is no longer available
Price
N/A
6
FOOT PEDAL PIVOT PIN
Item is no longer available
Price
N/A
7
FOOT PEDAL LEG PIN
Item is no longer available
Price
N/A
8
PRESSURE ADJUSTMENT KNURLED KNOB
Item is no longer available
Price
N/A
9
GRADUATED DIAL COLLAR
Item is no longer available
Price
N/A
10
CLAMPING BASE
Item is no longer available
Price
N/A
11
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
12
LEAF COMPRESSION SPRING
Item is no longer available
Price
N/A
13
CAP SCREW M10-1.5 X 18
Price
N/A
14
FOOT PEDAL LOCK PLATE
Item is no longer available
Price
N/A
15
GROOVED CLEVIS PIN 10 X 50
Item is no longer available
Price
N/A
16
Now: PR01M
EXT RETAINING RING 10MM
Price
N/A
17
ROLL PIN 10 X 50
Price
N/A
18
COMPRESSION SPRING
Item is no longer available
Price
N/A
19
BENDING LEAF CAM
Item is no longer available
Price
N/A
20
SHIM RING
Item is no longer available
Price
N/A
21
BENDING LEAF PIN
Item is no longer available
Price
N/A
22
ANGLE SCALE
Item is no longer available
Price
N/A
23
LEAF PIN RETAINER
Item is no longer available
Price
N/A
24
FLAT HD SCR M6-1 X 10
Price
N/A
25
CLAMPING LEAF
Item is no longer available
Price
N/A
26
TAP-IN BALL OILER 10MM
Item is no longer available
Price
N/A
27
T-SLOT NUT 13MM, M10-1.5
Item is no longer available
Price
N/A
28
CLAMPING FINGER 10"
Item is no longer available
Price
N/A
29
CLAMPING FINGER 8"
Item is no longer available
Price
N/A
30
CLAMPING FINGER 6"
Item is no longer available
Price
N/A
31
CLAMPING FINGER 5"
Item is no longer available
Price
N/A
32
CLAMPING FINGER 4"
Item is no longer available
Price
N/A
33
CLAMPING FINGER 3"
Item is no longer available
Price
N/A
34
CLAMPING FINGER 2"
Item is no longer available
Price
N/A
35
CLAMPING FINGER 1-1/2"
Item is no longer available
Price
N/A
36
SETBACK SHAFT
Item is no longer available
Price
N/A
37
BENDING LEAF
Item is no longer available
Price
N/A
38
BUSHING
Item is no longer available
Price
N/A
39
SETBACK ADJUSTMENT KNURLED KNOB
Item is no longer available
Price
N/A
40
Now: PB03M
HEX BOLT M8-1.25 X 16
Price
N/A
41
BENDING BLOCK
Item is no longer available
Price
N/A
42
SET SCREW M5-.8 X 8
Price
N/A
43
CLAMPING LEAF LOWER STRUT
Item is no longer available
Price
N/A
44
CLAMPING LEAF UPPER STRUT
Item is no longer available
Price
N/A
45
CLAMPING COMPRESSION SPRING
Item is no longer available
Price
N/A
46
SPRING RETAINING NUT
Item is no longer available
Price
N/A
47
HEX BOLT M12-1.75 X 150
Price
N/A
48
BUSHING
Item is no longer available
Price
N/A
49
CAP SCREW M10-1.5 X 30
Price
N/A
50
Now: PW04M
FLAT WASHER 10MM
Price
N/A
51
CAP SCREW M10-1.5 X 40
Price
N/A
52
Now: PN02M
HEX NUT M10-1.5
Price
N/A
53
SET SCREW M8-1.25 X 12
Price
N/A
54

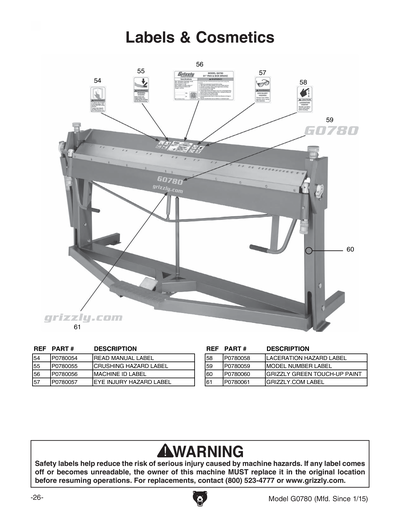

READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
55
CRUSHING HAZARD LABEL
Item is no longer available
Price
N/A
56
MACHINE ID LABEL
Item is no longer available
Price
N/A
57
EYE INJURY HAZARD LABEL
Item is no longer available
Price
N/A
58
LACERATION HAZARD LABEL
Item is no longer available
Price
N/A
59
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
60
N/S GRIZZLY GREEN G1023S
Price
N/A
61
GRIZZLY.COM LABEL 12",BEIGE
Price
N/A
MAN
MANUAL G0780 MFD-01.15 V1.03.15
Item is no longer available
Price
N/A
