Parts for G0782 - 13" x 40" Gearhead Floor Lathe

Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782
Part Diagram for G0782

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
MOTOR MOUNT PLATE
Item is no longer available
Price
N/A
2
LATHE BED
Item is no longer available
Price
N/A
3
GAP INSERT
Item is no longer available
Price
N/A
4
SET SCREW M6-1 X 16
Price
N/A
5
CAP SCREW M10-1.5 X 40
Price
N/A
6
HEX NUT M8-1.25 THIN
Price
N/A
7
TAPER PIN 8 X 60
Item is no longer available
Price
N/A
8
PULLEY
Item is no longer available
Price
N/A
9
END COVER
Item is no longer available
Price
N/A
10
HEX BOLT M12-1.75 X 60
Price
N/A
11
RACK (SHORT)
Item is no longer available
Price
N/A
12
TAPER PIN 6 X 28
Item is no longer available
Price
N/A
13
RACK (LONG)
Item is no longer available
Price
N/A
14
CAP SCREW M6-1 X 22
Price
N/A
15
CAP SCREW M6-1 X 25
Price
N/A
16
LEADSCREW
Price
$272.45
17
FEED ROD
Item is no longer available
Price
N/A
18
CONTROL ROD
Item is no longer available
Price
N/A
26
TAPER PIN 6 X 55
Item is no longer available
Price
N/A
27
PLUG
Item is no longer available
Price
N/A
28
DOWEL PIN
Item is no longer available
Price
N/A
32
CAP SCREW M6-1 X 16
Price
N/A
33
SET SCREW M6-1 X 20 CONE POINT
Price
N/A
34
HEX NUT M6-1
Price
N/A
35
CAP SCREW M8-1.25 X 55
Price
N/A
36
SHAFT END PLUG
Item is no longer available
Price
N/A
37
BALL OILER 8MM PRESS-IN
Price
N/A
38
SHAFT END PLUG
Item is no longer available
Price
N/A
39
SHAFT END BRACKET
Price
$69.75
40
TAPERED KEY W/HEAD 4 X 3.5 X 38
Item is no longer available
Price
N/A
41
COLLAR
Item is no longer available
Price
N/A
43
SPINDLE LEVER BRACKET
Item is no longer available
Price
N/A
44
SPINDLE LEVER HUB
Item is no longer available
Price
N/A
45
ROLL PIN 4 X 20
Price
N/A
46
SPINDLE LEVER M12-1.75 X 15
Item is no longer available
Price
N/A
47
BALL KNOB M12-1.75 (ORANGE)
Item is no longer available
Price
N/A
48
KNURLED THUMB KNOB M8-1.25
Item is no longer available
Price
N/A
49
STANDOFF-HEX MM M8-1.25, 104L
Item is no longer available
Price
N/A
50
STANDOFF-HEX MM M8-1.25, 140L
Item is no longer available
Price
N/A
51
END GEAR COVER
Item is no longer available
Price
N/A
52
PHLP HD SCR M5-.8 X 6
Price
N/A
53
ELECTRICAL BOX COVER
Item is no longer available
Price
N/A
54
BACK SPLASH
Item is no longer available
Price
N/A
55
PHLP HD SCR M6-1 X 10
Price
N/A
56
PHLP HD SCR M6-1 X 20
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
COTTER PIN 2 X 33MM STANDARD
Price
N/A
59
CLEVIS PIN 8 X 21
Item is no longer available
Price
N/A
60
CHIP PAN
Item is no longer available
Price
N/A
61
LEFT CABINET COVER (REAR)
Item is no longer available
Price
N/A
62
BRAKE LINKAGE
Item is no longer available
Price
N/A
63
BASE PEDESTAL (LEFT)
Item is no longer available
Price
N/A
64
BASE PEDESTAL (RIGHT)
Item is no longer available
Price
N/A
65
ROUND COVER
Item is no longer available
Price
N/A
66
LEFT CABINET COVER (SIDE)
Item is no longer available
Price
N/A
67
HEX NUT M10-1.5
Price
N/A
68
EXTENSION SPRING 3 X 26 X 300
Item is no longer available
Price
N/A
69
BRAKE ROCKER
Item is no longer available
Price
N/A
70
BRAKE LINKAGE PIN
Item is no longer available
Price
N/A
71
ROLL PIN 3 X 25
Price
N/A
72
BRAKE PEDAL SHAFT (SHORT)
Item is no longer available
Price
N/A
73
SET SCREW M8-1.25 X 6 CONE-PT
Price
N/A
74
SWITCH BLOCK
Item is no longer available
Price
N/A
75
ROLL PIN 5 X 40
Price
N/A
76
BRAKE PEDAL SHAFT (LONG)
Item is no longer available
Price
N/A
77
BRAKE PEDAL
Item is no longer available
Price
N/A
78
HEX NUT M6-1
Price
N/A
79
CAP SCREW M12-1.75 X 50
Price
N/A
80
CAP SCREW M10-1.5 X 60
Price
N/A
81
CAP SCREW M10-1.5 X 20
Price
N/A
82
STAND PLATE BRACKET (LEFT)
Item is no longer available
Price
N/A
84
STAND PLATE
Item is no longer available
Price
N/A
85
STAND PLATE BRACKET (RIGHT)
Item is no longer available
Price
N/A
86
HEX BOLT M10-1.5 X 30
Price
N/A
87
FLAT WASHER 11MM
Price
N/A
88
HEX BOLT M8-1.25 X 25
Price
N/A
89
*DISCD*MOTOR 2HP 220V 1-PH
Item is no longer available
Price
N/A
89-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
89-2
S CAPACITOR 150M 250V 1-5/8 X 3-3/16
Price
N/A
89-3
R CAPACITOR 20M 450V 1-5/8 X 3-3/16
Price
$30.60
89-4
MOTOR FAN
Item is no longer available
Price
N/A
89-5
CENTRUFUGAL SWITCH
Item is no longer available
Price
N/A
89-6
MOTOR JUNCTION BOX
Price
$29.15
89-7
CONTACT PLATE
Price
$35.95
89-8
BALL BEARING 6205ZZ
Price
N/A
89-9
BALL BEARING 6205ZZ
Price
N/A
90
CAP SCREW M6-1 X 8
Price
N/A
91
HEX BOLT M10-1.5 X 40
Price
N/A
92
ELECTRICAL BOX
Item is no longer available
Price
N/A
93
STRAIN RELIEF M20-1.5 TYPE-3
Item is no longer available
Price
N/A
94
STRAIN RELIEF M16-1.5 TYPE-3
Item is no longer available
Price
N/A
95
STRAIN RELIEF M20-1.5 TYPE-7
Item is no longer available
Price
N/A
96
ELECTRICAL BOX MOUNTING PLATE
Item is no longer available
Price
N/A
97
DIN RAIL
Item is no longer available
Price
N/A
98
PHLP HD SCR M4-.7 X 6
Price
N/A
99
V-BELT AX33
Price
$34.90
101
SHIFT LEVER
Item is no longer available
Price
N/A
102
ROLL PIN 5 X 32
Price
N/A
103
CAP SCREW M6-1 X 18

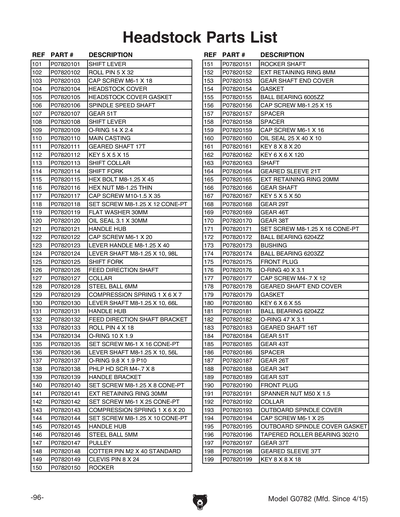

Price
N/A
104
HEADSTOCK COVER
Item is no longer available
Price
N/A
105
HEADSTOCK COVER GASKET
Item is no longer available
Price
N/A
106
SPINDLE SPEED SHAFT
Item is no longer available
Price
N/A
107
GEAR 51T
Item is no longer available
Price
N/A
108
SHIFT LEVER
Item is no longer available
Price
N/A
109
O-RING 14 X 2.4
Item is no longer available
Price
N/A
110
MAIN CASTING
Item is no longer available
Price
N/A
111
GEARED SHAFT 17T
Item is no longer available
Price
N/A
112
KEY 5 X 5 X 15
Price
N/A
113
SHIFT COLLAR
Item is no longer available
Price
N/A
114
SHIFT FORK
Item is no longer available
Price
N/A
115
HEX BOLT M8-1.25 X 45
Price
N/A
116
HEX NUT M8-1.25 THIN
Price
N/A
117
CAP SCREW M10-1.5 X 35
Price
N/A
118
SET SCREW M8-1.25 X 12 CONE-PT
Price
N/A
119
FLAT WASHER 30MM
Price
N/A
120
OIL SEAL 3.1 X 30MM
Item is no longer available
Price
N/A
121
HANDLE HUB
Item is no longer available
Price
N/A
122
CAP SCREW M6-1 X 20
Price
N/A
123
LEVER HANDLE M8-1.25 X 40
Item is no longer available
Price
N/A
124
LEVER SHAFT M8-1.25 X 10, 98L
Item is no longer available
Price
N/A
125
SHIFT FORK
Item is no longer available
Price
N/A
126
FEED DIRECTION SHAFT
Item is no longer available
Price
N/A
127
COLLAR
Item is no longer available
Price
N/A
128
STEEL BALL 6MM
Price
N/A
129
COMPRESSION SPRING 1 X 6 X 7
Item is no longer available
Price
N/A
130
LEVER SHAFT M8-1.25 X 10, 66L
Item is no longer available
Price
N/A
131
HANDLE HUB
Item is no longer available
Price
N/A
132
FEED DIRECTION SHAFT BRACKET
Item is no longer available
Price
N/A
133
ROLL PIN 4 X 18
Price
N/A
134
O-RING 10 X 1.9
Item is no longer available
Price
N/A
135
SET SCREW M6-1 X 16 CONE-PT
Price
N/A
136
LEVER SHAFT M8-1.25 X 10, 56L
Item is no longer available
Price
N/A
137
O-RING 9.8 X 1.9 P10
Price
N/A
138
PHLP HD SCR M4-.7 X 8
Price
N/A
139
HANDLE BRACKET
Item is no longer available
Price
N/A
140
SET SCREW M8-1.25 X 8 CONE-PT
Price
N/A
141
EXT RETAINING RING 30MM
Price
N/A
142
SET SCREW M6-1 X 25 CONE-PT
Price
N/A
143
COMPRESSION SPRING 1 X 6 X 20
Item is no longer available
Price
N/A
144
SET SCREW M8-1.25 X 10 CONE POINT
Price
N/A
145
HANDLE HUB
Item is no longer available
Price
N/A
146
STEEL BALL 5MM
Price
N/A
147
PULLEY
Item is no longer available
Price
N/A
148
COTTER PIN M2 X 40 STANDARD
Item is no longer available
Price
N/A
149
CLEVIS PIN 8 X 24
Item is no longer available
Price
N/A
150
ROCKER
Item is no longer available
Price
N/A
151
ROCKER SHAFT
Item is no longer available
Price
N/A
152
EXT RETAINING RING 8MM
Price
N/A
153
GEAR SHAFT END COVER
Item is no longer available
Price
N/A
154
GASKET
Item is no longer available
Price
N/A
155
BALL BEARING 6005ZZ
Price
N/A
156
CAP SCREW M8-1.25 X 15
Price
N/A
157
SPACER
Item is no longer available
Price
N/A
158
SPACER
Item is no longer available
Price
N/A
159
CAP SCREW M6-1 X 16
Price
N/A
160
OIL SEAL 25 X 40 X 10
Item is no longer available
Price
N/A
161
KEY 8 X 8 X 20
Price
N/A
162
KEY 6 X 6 X 120
Price
N/A
163
SHAFT
Item is no longer available
Price
N/A
164
GEARED SLEEVE 21T
Item is no longer available
Price
N/A
165
EXT RETAINING RING 20MM
Price
N/A
166
GEAR SHAFT
Item is no longer available
Price
N/A
167
KEY 5 X 5 X 50
Price
N/A
168
GEAR 29T
Item is no longer available
Price
N/A
169
GEAR 46T
Item is no longer available
Price
N/A
170
GEAR 38T
Item is no longer available
Price
N/A
171
SET SCREW M8-1.25 X 16 CONE-PT
Price
N/A
172
BALL BEARING 6204ZZ
Price
N/A
173
BUSHING
Item is no longer available
Price
N/A
174
BALL BEARING 6203ZZ
Price
N/A
175
FRONT PLUG
Item is no longer available
Price
N/A
176
O-RING 40 X 3.1
Item is no longer available
Price
N/A
177
CAP SCREW M4-.7 X 12
Price
N/A
178
GEARED SHAFT END COVER
Item is no longer available
Price
N/A
179
GASKET
Item is no longer available
Price
N/A
180
KEY 6 X 6 X 55
Price
N/A
181
BALL BEARING 6204ZZ
Price
N/A
182
O-RING 47 X 3.1
Item is no longer available
Price
N/A
183
GEARED SHAFT 16T
Item is no longer available
Price
N/A
184
GEAR 51T
Item is no longer available
Price
N/A
185
GEAR 43T
Item is no longer available
Price
N/A
186
SPACER
Item is no longer available
Price
N/A
187
GEAR 26T
Item is no longer available
Price
N/A
188
GEAR 34T
Item is no longer available
Price
N/A
189
GEAR 53T
Item is no longer available
Price
N/A
190
FRONT PLUG
Item is no longer available
Price
N/A
191
SPANNER NUT M50 X 1.5
Item is no longer available
Price
N/A
192
COLLAR
Item is no longer available
Price
N/A
193
OUTBOARD SPINDLE COVER
Item is no longer available
Price
N/A
194
CAP SCREW M6-1 X 25
Price
N/A
195
OUTBOARD SPINDLE COVER GASKET
Price
$6.15
196
TAPERED ROLLER BEARING 30210
Price
N/A
197
GEAR 37T
Item is no longer available
Price
N/A
198
GEARED SLEEVE 37T
Item is no longer available
Price
N/A
199
KEY 8 X 8 X 18
Price
N/A

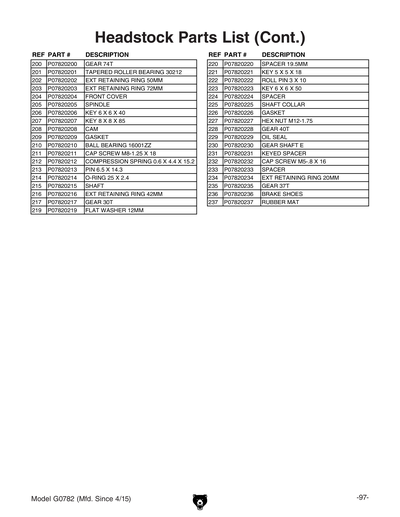

200
GEAR 74T
Item is no longer available
Price
N/A
201
TAPERED ROLLER BEARING 30212
Price
N/A
202
EXT RETAINING RING 50MM
Price
N/A
203
EXT RETAINING RING 72MM
Price
N/A
204
FRONT COVER
Item is no longer available
Price
N/A
205
SPINDLE
Item is no longer available
Price
N/A
206
KEY 6 X 6 X 40
Price
N/A
207
KEY 8 X 8 X 85
Price
N/A
208
CAM
Item is no longer available
Price
N/A
209
GASKET
Price
$6.15
210
BALL BEARING 16001ZZ
Item is no longer available
Price
N/A
211
CAP SCREW M8-1.25 X 18
Price
N/A
212
COMPRESSION SPRING 0.6 X 4.4 X 15.2
Price
$1.90
213
PIN 6.5 X 14.3
Price
$1.90
214
O-RING 25 X 2.4
Price
N/A
215
SHAFT
Item is no longer available
Price
N/A
216
EXT RETAINING RING 42MM
Price
N/A
217
GEAR 30T
Item is no longer available
Price
N/A
219
FLAT WASHER 12MM
Price
N/A
220
SPACER 19.5MM
Item is no longer available
Price
N/A
221
KEY 5 X 5 X 18
Price
N/A
222
ROLL PIN 3 X 10
Price
N/A
223
KEY 6 X 6 X 50
Price
N/A
224
SPACER
Item is no longer available
Price
N/A
225
SHAFT COLLAR
Item is no longer available
Price
N/A
226
GASKET
Item is no longer available
Price
N/A
227
HEX NUT M12-1.75
Price
N/A
228
GEAR 40T
Item is no longer available
Price
N/A
229
OIL SEAL
Item is no longer available
Price
N/A
230
GEAR SHAFT E
Item is no longer available
Price
N/A
231
KEYED SPACER
Item is no longer available
Price
N/A
232
CAP SCREW M5-.8 X 16
Price
N/A
233
SPACER
Item is no longer available
Price
N/A
234
EXT RETAINING RING 20MM
Price
N/A
235
GEAR 37T
Item is no longer available
Price
N/A
236
BRAKE SHOES
Price
$42.00
237
RUBBER MAT
Item is no longer available
Price
N/A

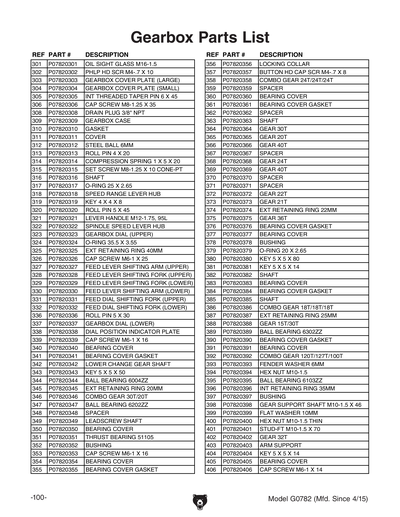

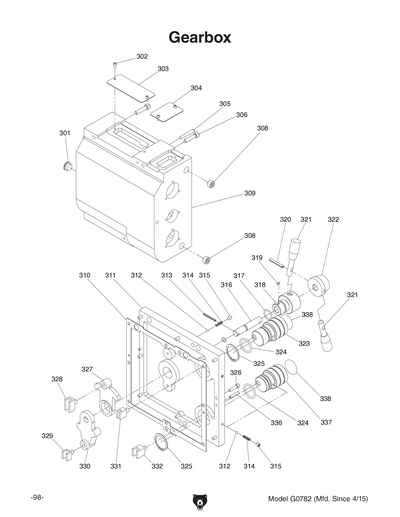

301
OIL SIGHT GLASS M16-1.5
Item is no longer available
Price
N/A
302
PHLP HD SCR M4-.7 X 10
Price
N/A
303
GEARBOX COVER PLATE (LARGE)
Item is no longer available
Price
N/A
304
GEARBOX COVER PLATE (SMALL)
Item is no longer available
Price
N/A
305
INT THREADED TAPER PIN 6 X 45
Item is no longer available
Price
N/A
306
CAP SCREW M8-1.25 X 35
Price
N/A
308
DRAIN PLUG 3/8" NPT
Item is no longer available
Price
N/A
309
GEARBOX CASE
Item is no longer available
Price
N/A
310
GASKET
Item is no longer available
Price
N/A
311
COVER
Item is no longer available
Price
N/A
312
STEEL BALL 6MM
Price
N/A
313
ROLL PIN 4 X 20
Price
N/A
314
COMPRESSION SPRING 1 X 5 X 20
Price
$1.90
315
SET SCREW M8-1.25 X 10 CONE POINT
Price
N/A
316
SHAFT
Item is no longer available
Price
N/A
317
O-RING 25 X 2.65
Item is no longer available
Price
N/A
318
SPEED RANGE LEVER HUB
Item is no longer available
Price
N/A
319
KEY 4 X 4 X 8
Price
N/A
320
ROLL PIN 5 X 45
Price
N/A
321
LEVER HANDLE M12-1.75, 95L
Item is no longer available
Price
N/A
322
SPINDLE SPEED LEVER HUB
Item is no longer available
Price
N/A
323
GEARBOX DIAL (UPPER)
Item is no longer available
Price
N/A
324
O-RING 35.5 X 3.55
Item is no longer available
Price
N/A
325
EXT RETAINING RING 40MM
Price
N/A
326
CAP SCREW M6-1 X 25
Price
N/A
327
FEED LEVER SHIFTING ARM (UPPER)
Item is no longer available
Price
N/A
328
FEED LEVER SHIFTING FORK (UPPER)
Item is no longer available
Price
N/A
329
FEED LEVER SHIFTING FORK (LOWER)
Item is no longer available
Price
N/A
330
FEED LEVER SHIFTING ARM (LOWER)
Item is no longer available
Price
N/A
331
FEED DIAL SHIFTING FORK (UPPER)
Item is no longer available
Price
N/A
332
FEED DIAL SHIFTING FORK (LOWER)
Item is no longer available
Price
N/A
336
ROLL PIN 5 X 30
Price
N/A
337
GEARBOX DIAL (LOWER)
Item is no longer available
Price
N/A
338
DIAL POSITION INDICATOR PLATE
Item is no longer available
Price
N/A
339
CAP SCREW M6-1 X 16
Price
N/A
340
BEARING COVER
Item is no longer available
Price
N/A
341
BEARING COVER GASKET
Item is no longer available
Price
N/A
342

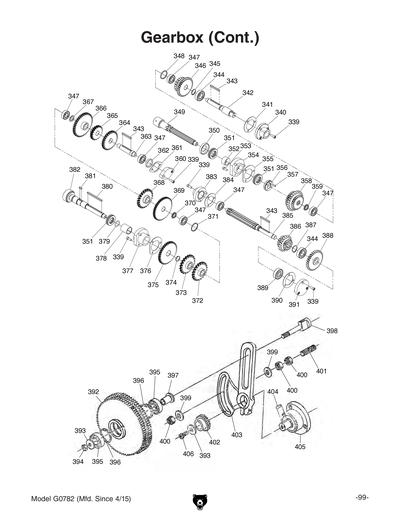

LOWER CHANGE GEAR SHAFT
Item is no longer available
Price
N/A
343
KEY 5 X 5 X 50
Price
N/A
344
BALL BEARING 6004ZZ
Price
N/A
345
EXT RETAINING RING 20MM
Price
N/A
346
COMBO GEAR 30T/20T
Item is no longer available
Price
N/A
347
BALL BEARING 6202ZZ
Price
N/A
348
SPACER
Item is no longer available
Price
N/A
349
LEADSCREW SHAFT
Item is no longer available
Price
N/A
350
BEARING COVER
Item is no longer available
Price
N/A
351
THRUST BEARING 51105
Price
N/A
352
BUSHING
Item is no longer available
Price
N/A
353
CAP SCREW M6-1 X 16
Price
N/A
354
BEARING COVER
Item is no longer available
Price
N/A
355
BEARING COVER GASKET
Item is no longer available
Price
N/A
356
LOCKING COLLAR
Item is no longer available
Price
N/A
357
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
358
COMBO GEAR 24T/24T/24T
Item is no longer available
Price
N/A
359
SPACER
Item is no longer available
Price
N/A
360
BEARING COVER
Item is no longer available
Price
N/A
361
BEARING COVER GASKET
Item is no longer available
Price
N/A
362
SPACER
Item is no longer available
Price
N/A
363
SHAFT
Item is no longer available
Price
N/A
364
GEAR 30T
Item is no longer available
Price
N/A
365
GEAR 20T
Item is no longer available
Price
N/A
366
*DISCD*GEAR 40T
Item is no longer available
Price
N/A
367
SPACER
Item is no longer available
Price
N/A
368
GEAR 24T
Item is no longer available
Price
N/A
369
GEAR 40T
Price
$49.25
370
SPACER
Item is no longer available
Price
N/A
371
SPACER
Item is no longer available
Price
N/A
372
GEAR 22T
Item is no longer available
Price
N/A
373
GEAR 21T
Item is no longer available
Price
N/A
374
EXT RETAINING RING 22MM
Price
N/A
375
GEAR 36T
Item is no longer available
Price
N/A
376
BEARING COVER GASKET
Item is no longer available
Price
N/A
377
BEARING COVER
Item is no longer available
Price
N/A
378
BUSHING
Item is no longer available
Price
N/A
379
O-RING 20 X 2.65
Item is no longer available
Price
N/A
380
KEY 5 X 5 X 80
Price
N/A
381
KEY 5 X 5 X 14
Price
N/A
382
SHAFT
Item is no longer available
Price
N/A
383
BEARING COVER
Item is no longer available
Price
N/A
384
BEARING COVER GASKET
Item is no longer available
Price
N/A
385
SHAFT
Item is no longer available
Price
N/A
386
COMBO GEAR 18T/18T/18T
Item is no longer available
Price
N/A
387
EXT RETAINING RING 25MM
Price
N/A
388
GEAR 15T/30T
Item is no longer available
Price
N/A
389
BALL BEARING 6302ZZ
Price
N/A
390
BEARING COVER GASKET
Item is no longer available
Price
N/A
391
BEARING COVER
Item is no longer available
Price
N/A
392
COMBO GEAR 100T
Item is no longer available
Price
N/A
393
FENDER WASHER 6MM
Price
N/A
394
HEX NUT M10-1.5
Price
N/A
395
BALL BEARING 6103ZZ
Item is no longer available
Price
N/A
396
INT RETAINING RING 35MM
Price
N/A
397
BUSHING
Item is no longer available
Price
N/A
398
GEAR SUPPORT SHAFT M10-1.5 X 46
Item is no longer available
Price
N/A
399
FLAT WASHER 10MM
Price
N/A
400
HEX NUT M10-1.5 THIN
Price
N/A
401
STUD-FT M10-1.5 X 70
Item is no longer available
Price
N/A
402
GEAR 32T
Price
$40.65
403
ARM SUPPORT
Price
$37.10
404
KEY 5 X 5 X 14
Price
N/A
405
BEARING COVER
Item is no longer available
Price
N/A
406
CAP SCREW M6-1 X 14
Price
N/A

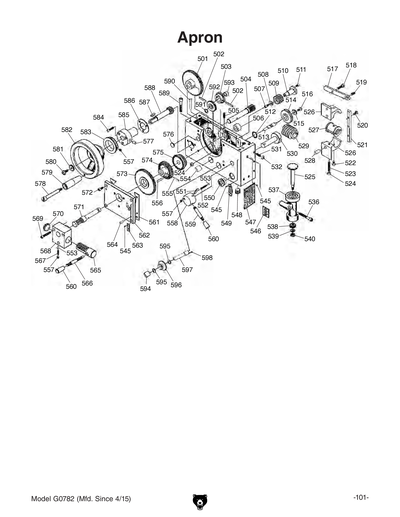

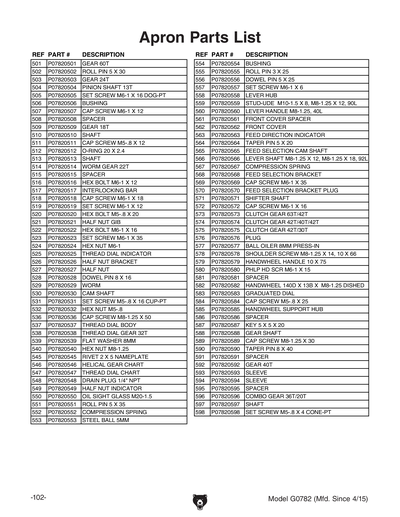

501
GEAR 60T
Item is no longer available
Price
N/A
502
ROLL PIN 5 X 30
Price
N/A
503
GEAR 24T
Item is no longer available
Price
N/A
504
PINION SHAFT 13T
Price
$49.50
505
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
506
BUSHING
Item is no longer available
Price
N/A
507
CAP SCREW M6-1 X 12
Price
N/A
508
SPACER
Item is no longer available
Price
N/A
509
GEAR 18T
Price
$18.70
510
SHAFT
Item is no longer available
Price
N/A
511
CAP SCREW M5-.8 X 12
Price
N/A
512
O-RING 20 X 2.4
Price
$1.49
513
SHAFT
Item is no longer available
Price
N/A
514
WORM GEAR 22T
Price
$38.15
515
SPACER
Item is no longer available
Price
N/A
516
HEX BOLT M6-1 X 12
Price
N/A
517
INTERLOCKING BAR
Item is no longer available
Price
N/A
518
CAP SCREW M6-1 X 18
Price
N/A
519
SET SCREW M6-1 X 12
Price
N/A
520
HEX BOLT M5-.8 X 20
Price
N/A
521
HALF NUT GIB
Item is no longer available
Price
N/A
522
HEX BOLT M6-1 X 16
Price
N/A
523
SET SCREW M6-1 X 35
Price
N/A
524
HEX NUT M6-1
Price
N/A
525
THREAD DIAL INDICATOR
Item is no longer available
Price
N/A
526
HALF NUT BRACKET
Item is no longer available
Price
N/A
527
HALF NUT
Price
$58.25
528
DOWEL PIN 8 X 16
Item is no longer available
Price
N/A
529
WORM
Price
$38.15
530
CAM SHAFT
Item is no longer available
Price
N/A
531
SET SCREW M5-.8 X 16 CUP-PT
Item is no longer available
Price
N/A
532
HEX NUT M5-.8
Price
N/A
536
CAP SCREW M8-1.25 X 50
Price
N/A
537
THREAD DIAL BODY
Item is no longer available
Price
N/A
537A
THREAD DIAL ASSEMBLY
Price
$79.10
538
THREAD DIAL GEAR 32T
Item is no longer available
Price
N/A
539
FLAT WASHER 8MM
Price
N/A
540
HEX NUT M8-1.25
Price
N/A
545
RIVET 2 X 5 NAMEPLATE
Item is no longer available
Price
N/A
546
HELICAL GEAR CHART
Item is no longer available
Price
N/A
547
THREAD DIAL CHART
Price
$7.20
548
DRAIN PLUG 1/4" NPT
Item is no longer available
Price
N/A
549
HALF NUT INDICATOR
Item is no longer available
Price
N/A
550
OIL SIGHT GLASS M20-1.5
Item is no longer available
Price
N/A
551
ROLL PIN 5 X 35
Price
N/A
552
COMPRESSION SPRING
Item is no longer available
Price
N/A
553
STEEL BALL 5MM
Price
N/A
554
BUSHING
Item is no longer available
Price
N/A
555
ROLL PIN 3 X 25
Price
N/A
556
DOWEL PIN 5 X 25
Item is no longer available
Price
N/A
557
SET SCREW M6-1 X 6
Price
N/A
558
LEVER HUB
Item is no longer available
Price
N/A
559
STUD-UDE M10-1.5 X 8, M8-1.25 X 12, 90L
Item is no longer available
Price
N/A
560
LEVER HANDLE M8-1.25, 40L
Item is no longer available
Price
N/A
561
FRONT COVER SPACER
Item is no longer available
Price
N/A
562
FRONT COVER
Item is no longer available
Price
N/A
563
FEED DIRECTION INDICATOR
Item is no longer available
Price
N/A
564
TAPER PIN 5 X 20
Item is no longer available
Price
N/A
565
FEED SELECTION CAM SHAFT
Price
$40.25
566
LEVER SHAFT M8-1.25 X 12,M8-1.25 X18,92L
Item is no longer available
Price
N/A
567
COMPRESSION SPRING
Item is no longer available
Price
N/A
568
FEED SELECTION BRACKET
Item is no longer available
Price
N/A
569
CAP SCREW M6-1 X 35
Price
N/A
570
FEED SELECTION BRACKET PLUG
Item is no longer available
Price
N/A
571
SHIFTER SHAFT
Item is no longer available
Price
N/A
572
CAP SCREW M6-1 X 16
Price
N/A
573
CLUTCH GEAR 63T/42T
Item is no longer available
Price
N/A
574
CLUTCH GEAR 42T/40T/42T
Item is no longer available
Price
N/A
575
CLUTCH GEAR 42T/30T
Item is no longer available
Price
N/A
576
PLUG
Item is no longer available
Price
N/A
577
BALL OILER 8MM PRESS-IN
Price
N/A
578
SHOULDER SCREW M8-1.25 X 14, 10 X 66
Item is no longer available
Price
N/A
579
HANDWHEEL HANDLE 10 X 75
Item is no longer available
Price
N/A
580
PHLP HD SCR M6-1 X 15
Item is no longer available
Price
N/A
581
SPACER
Item is no longer available
Price
N/A
582
HANDWHEEL 140D X 13B X M8-1.25 DISHED
Price
$46.40
583
GRADUATED DIAL
Item is no longer available
Price
N/A
584
CAP SCREW M5-.8 X 25
Price
N/A
585
HANDWHEEL SUPPORT HUB
Item is no longer available
Price
N/A
586
SPACER
Item is no longer available
Price
N/A
587
KEY 5 X 5 X 20
Price
N/A
588
GEAR SHAFT
Item is no longer available
Price
N/A
589
CAP SCREW M8-1.25 X 30
Price
N/A
590
TAPER PIN 8 X 40
Item is no longer available
Price
N/A
591
SPACER
Item is no longer available
Price
N/A
592
GEAR 40T
Item is no longer available
Price
N/A
593
SLEEVE
Item is no longer available
Price
N/A
594
SLEEVE
Item is no longer available
Price
N/A
595
SPACER
Item is no longer available
Price
N/A
596
COMBO GEAR 36T/20T
Item is no longer available
Price
N/A
597
SHAFT
Item is no longer available
Price
N/A
598
SET SCREW M5-.8 X 4 CONE-PT
Item is no longer available
Price
N/A
599
APRON CASTING
Item is no longer available
Price
N/A

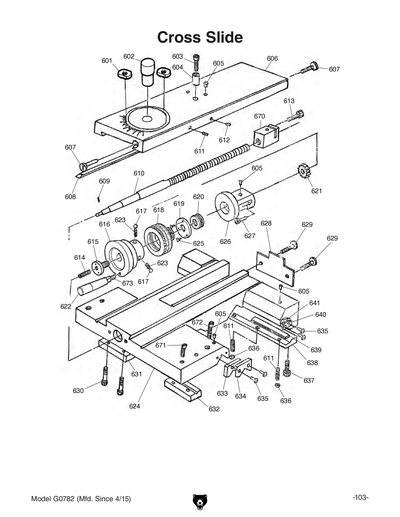

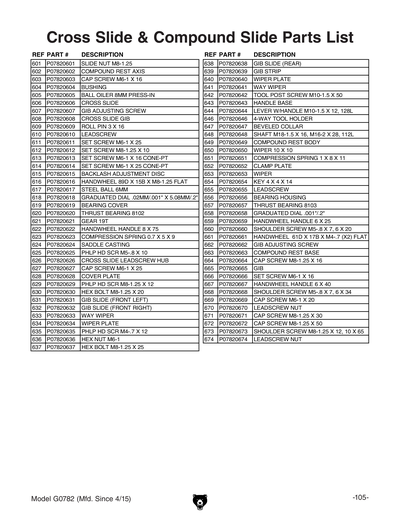

601
SLIDE NUT M8-1.25
Price
$1.90
602
COMPOUND REST AXIS
Item is no longer available
Price
N/A
603
CAP SCREW M6-1 X 16
Price
N/A
604
BUSHING
Item is no longer available
Price
N/A
605
BALL OILER 8MM PRESS-IN
Price
N/A
606
CROSS SLIDE
Item is no longer available
Price
N/A
607
GIB ADJUSTING SCREW
Price
$4.70
608
CROSS SLIDE GIB
Item is no longer available
Price
N/A
609
ROLL PIN 3 X 16
Price
N/A
610
LEADSCREW
Price
$69.75
611
SET SCREW M6-1 X 25
Price
N/A
612
SET SCREW M8-1.25 X 10
Price
N/A
613
SET SCREW M6-1 X 16 CONE-PT
Price
N/A
614
SET SCREW M6-1 X 25 CONE-PT
Item is no longer available
Price
N/A
615
BACKLASH ADJUSTMENT DISC
Item is no longer available
Price
N/A
616
HANDWHEEL 89D X 15B X M8-1.25 FLAT
Item is no longer available
Price
N/A
617
STEEL BALL 6MM
Price
N/A
618
GRADUATED DIAL .02MM/.001" X 5.08MM/.2"
Item is no longer available
Price
N/A
619
BEARING COVER
Item is no longer available
Price
N/A
620
THRUST BEARING 8102
Price
N/A
621
GEAR 19T
Item is no longer available
Price
N/A
622
HANDWHEEL HANDLE 8 X 75
Item is no longer available
Price
N/A
623
COMPRESSION SPRING 0.7 X 5 X 9
Item is no longer available
Price
N/A
624
SADDLE CASTING
Item is no longer available
Price
N/A
625
PHLP HD SCR M5-.8 X 10
Price
N/A
626
CROSS SLIDE LEADSCREW HUB
Item is no longer available
Price
N/A
627
CAP SCREW M6-1 X 25
Price
N/A
628
COVER PLATE
Item is no longer available
Price
N/A
629
PHLP HD SCR M8-1.25 X 12
Price
N/A
630
HEX BOLT M8-1.25 X 20
Price
N/A
631
GIB SLIDE (FRONT LEFT)
Item is no longer available
Price
N/A
632
GIB SLIDE (FRONT RIGHT)
Item is no longer available
Price
N/A
633
WAY WIPER
Item is no longer available
Price
N/A
634
WIPER PLATE
Item is no longer available
Price
N/A
635
PHLP HD SCR M4-.7 X 12
Price
N/A
636
HEX NUT M6-1
Price
N/A
637
HEX BOLT M8-1.25 X 25
Price
N/A
638
GIB SLIDE (REAR)
Item is no longer available
Price
N/A
639
GIB STRIP
Item is no longer available
Price
N/A
640
WIPER PLATE
Item is no longer available
Price
N/A
641
WAY WIPER
Item is no longer available
Price
N/A
642
TOOL POST SCREW M10-1.5 X 50
Item is no longer available
Price
N/A
643
HANDLE BASE
Item is no longer available
Price
N/A
644
LEVER W/HANDLE M10-1.5 X 12, 128L
Price
$10.95
646

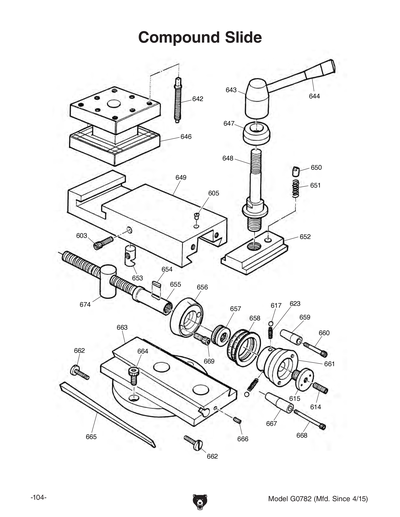

4-WAY TOOL HOLDER
Item is no longer available
Price
N/A
647
BEVELED COLLAR
Item is no longer available
Price
N/A
648
SHAFT M18-1.5 X 16, M16-2 X 28, 112L
Item is no longer available
Price
N/A
649
COMPOUND REST BODY
Price
$187.25
650
WIPER 10 X 10
Item is no longer available
Price
N/A
651
COMPRESSION SPRING 1 X 8 X 11
Item is no longer available
Price
N/A
652
CLAMP PLATE
Price
$51.45
653
WIPER
Item is no longer available
Price
N/A
654
KEY 4 X 4 X 14
Price
N/A
655
LEADSCREW
Item is no longer available
Price
N/A
656
BEARING HOUSING
Item is no longer available
Price
N/A
657
THRUST BEARING 8103
Price
N/A
658
GRADUATED DIAL .001"/.2"
Item is no longer available
Price
N/A
659
HANDWHEEL HANDLE 6 X 25
Item is no longer available
Price
N/A
660
SHOULDER SCREW M5-.8 X 7, 6 X 20
Item is no longer available
Price
N/A
661
HANDWHEEL 61D X 17B X M4-.7 (X2) FLAT
Item is no longer available
Price
N/A
662
GIB ADJUSTING SCREW
Item is no longer available
Price
N/A
663
COMPOUND REST BASE
Price
$187.25
664
CAP SCREW M8-1.25 X 16
Price
N/A
665
GIB
Price
$22.35
666
SET SCREW M6-1 X 16
Price
N/A
667
HANDWHEEL HANDLE 6 X 40
Item is no longer available
Price
N/A
668
SHOULDER SCREW M5-.8 X 7, 6 X 34
Item is no longer available
Price
N/A
669
CAP SCREW M6-1 X 20
Price
N/A
670
LEADSCREW NUT
Price
$46.40
671
CAP SCREW M8-1.25 X 30
Price
N/A
672
CAP SCREW M8-1.25 X 50
Price
N/A
673
SHOULDER SCREW M8-1.25 X 12, 10 X 65
Price
$1.90
674
LEADSCREW NUT
Item is no longer available
Price
N/A
700

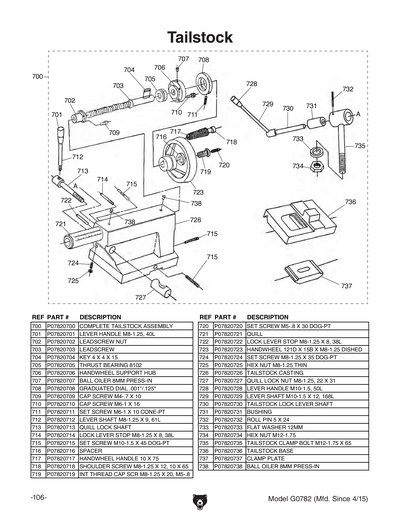

COMPLETE TAILSTOCK ASSEMBLY
Price
$824.45
701
LEVER HANDLE M8-1.25, 40L
Item is no longer available
Price
N/A
702
LEADSCREW NUT
Price
$35.95
703
LEADSCREW
Price
$69.40
704
KEY 4 X 4 X 15
Price
N/A
705
THRUST BEARING 8102
Price
N/A
706
HANDWHEEL SUPPORT HUB
Price
$27.00
707
BALL OILER 8MM PRESS-IN
Price
N/A
708
GRADUATED DIAL .001"/.125"
Item is no longer available
Price
N/A
709
CAP SCREW M4-.7 X 10
Price
N/A
710
CAP SCREW M6-1 X 16
Price
N/A
711
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
712
LEVER SHAFT M8-1.25 X 9, 61L
Item is no longer available
Price
N/A
713
QUILL LOCK SHAFT
Item is no longer available
Price
N/A
714
LOCK LEVER STOP M8-1.25 X 8, 38L
Item is no longer available
Price
N/A
715
SET SCREW M10-1.5 X 45 DOG-PT
Item is no longer available
Price
N/A
716
SPACER
Price
$6.15
717
HANDWHEEL HANDLE 10 X 75
Item is no longer available
Price
N/A
718
SHOULDER SCREW M8-1.25 X 12, 10 X 65
Item is no longer available
Price
N/A
719
INT THREAD CAP SCR M8-1.25 X 20, M5-.8
Price
$2.60
720
SET SCREW M5-.8 X 30 DOG-PT
Price
$2.60
721
QUILL
Price
$84.50
722
LOCK LEVER STOP M8-1.25 X 8, 38L
Price
N/A
723
HANDWHEEL 121D X 15B X M8-1.25 DISHED
Item is no longer available
Price
N/A
724
SET SCREW M8-1.25 X 35 DOG-PT
Price
$1.49
725
HEX NUT M8-1.25 THIN
Price
N/A
726
TAILSTOCK CASTING
Item is no longer available
Price
N/A
727
QUILL LOCK NUT M8-1.25, 22 X 31
Item is no longer available
Price
N/A
728
LEVER HANDLE M10-1.5, 50L
Price
$15.85
729
LEVER SHAFT M10-1.5 X 12, 168L
Price
$18.00
730
TAILSTOCK LOCK LEVER SHAFT
Price
$18.00
731
BUSHING
Price
$18.00
732
ROLL PIN 5 X 24
Price
N/A
733
FLAT WASHER 12MM
Price
N/A
734
HEX NUT M12-1.75
Price
N/A
735
TAILSTOCK CLAMP BOLT M12-1.75 X 65
Price
$11.90
736
TAILSTOCK BASE
Item is no longer available
Price
N/A
737
CLAMP PLATE
Item is no longer available
Price
N/A
738
BALL OILER 8MM PRESS-IN
Price
N/A
801

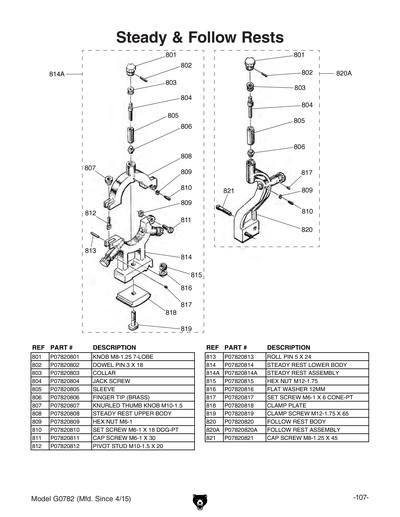

KNOB M8-1.25 7-LOBE
Item is no longer available
Price
N/A
802
DOWEL PIN 3 X 18
Item is no longer available
Price
N/A
803
COLLAR
Item is no longer available
Price
N/A
804
JACK SCREW
Item is no longer available
Price
N/A
805
SLEEVE V1
Item is no longer available
Price
N/A
805V2
SLEEVE V2.10.15
Item is no longer available
Price
N/A
807
KNURLED THUMB KNOB M10-1.5
Item is no longer available
Price
N/A
808
STEADY REST UPPER BODY
Item is no longer available
Price
N/A
809
HEX NUT M6-1
Price
N/A
810
SET SCREW M6-1 X 18 DOG-PT
Item is no longer available
Price
N/A
811
CAP SCREW M6-1 X 30
Price
N/A
812
PIVOT STUD M10-1.5 X 20
Price
$3.75
813
ROLL PIN 5 X 24
Price
N/A
814
STEADY REST LOWER BODY
Item is no longer available
Price
N/A
814A
STEADY REST ASSEMBLY V1
Price
$156.70
814AV2
STEADY REST ASSEMBLY V2.10.15
Item is no longer available
Price
N/A
815
HEX NUT M12-1.75
Price
N/A
816
FLAT WASHER 12MM
Price
N/A
817
SET SCREW M6-1 X 6 CONE-PT
Price
N/A
818
CLAMP PLATE
Price
$18.70
819
CLAMP SCREW M12-1.75 X 65
Price
$2.60
820
FOLLOW REST BODY
Item is no longer available
Price
N/A
820A
FOLLOW REST ASSEMBLY V1
Price
$121.90
820AV2
FOLLOW REST ASSEMBLY V2.10.15
Item is no longer available
Price
N/A
821
CAP SCREW M8-1.25 X 45
Price
N/A
822
Bearing - 16mm x 5mm
Price
N/A
823
DOWEL PIN 5 X 16
Price
N/A

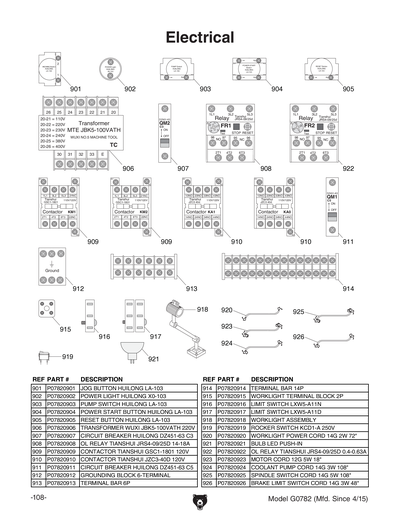

901
JOG BUTTON HUILONG LA-103
Item is no longer available
Price
N/A
902
POWER LIGHT HUILONG X0-103
Item is no longer available
Price
N/A
903
PUMP SWITCH HUILONG LA-103
Item is no longer available
Price
N/A
904
POWER START BUTTON HUILONG LA-103
Item is no longer available
Price
N/A
905
RESET BUTTON HUILONG LA-103
Price
$38.15
906
TRANSFORMER JBK5 63VA 110/400V-110V
Price
$240.85
907
CIRCUIT BREAKER HUILONG DZ451-63 C3
Item is no longer available
Price
N/A
908
OL RELAY TIANSHUI JRS4-09/25D 14-18A
Item is no longer available
Price
N/A
909
CONTACTOR TIANSHUI GSC1-1801 120V
Price
$100.05
910
CONTACTOR TIANSHUI JZC3-40D 120V
Price
$60.70
911
CIRCUIT BREAKER HUILONG DZ451-63 C5
Item is no longer available
Price
N/A
912
GROUNDING BLOCK 6-TERMINAL
Item is no longer available
Price
N/A
913
TERMINAL BAR 6P
Item is no longer available
Price
N/A
914
TERMINAL BAR 14P
Item is no longer available
Price
N/A
915
WORKLIGHT TERMINAL BLOCK 2P
Item is no longer available
Price
N/A
916
LIMIT SWITCH LXW5-A11N
Item is no longer available
Price
N/A
917
LIMIT SWITCH LXW5-A11D
Item is no longer available
Price
N/A
918
WORKLIGHT ASSEMBLY
Item is no longer available
Price
N/A
919
ROCKER SWITCH KCD1-A 250V
Item is no longer available
Price
N/A
920
WORKLIGHT POWER CORD 14G 2W 72"
Item is no longer available
Price
N/A
921
BULB LED PUSH-IN
Price
$25.05
922
OL RELAY TIANSHUI JRS4-09/25D 0.4-0.63A
Item is no longer available
Price
N/A
923
MOTOR CORD 12G 5W 18"
Item is no longer available
Price
N/A
924
COOLANT PUMP CORD 14G 3W 108"
Item is no longer available
Price
N/A
925
SPINDLE SWITCH CORD 14G 5W 108"
Item is no longer available
Price
N/A
926
BRAKE LIMIT SWITCH CORD 14G 3W 48"
Item is no longer available
Price
N/A

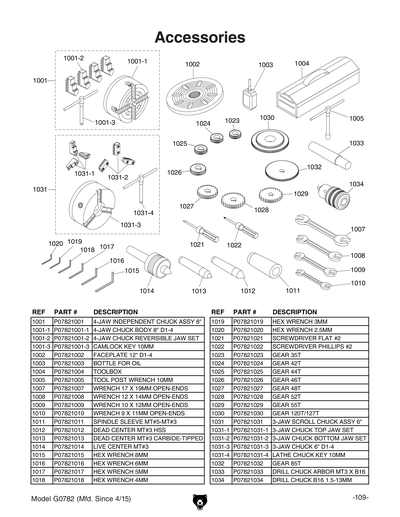

1001
4-JAW INDEPENDENT CHUCK ASSY 8"
Item is no longer available
Price
N/A
1001-1
4-JAW CHUCK BODY 8" D1-4
Item is no longer available
Price
N/A
1001-2
4-JAW CHUCK REVERSIBLE JAW SET
Item is no longer available
Price
N/A
1001-3
CAMLOCK KEY 10MM
Item is no longer available
Price
N/A
1002
FACEPLATE 12" D1-4
Item is no longer available
Price
N/A
1003
BOTTLE FOR OIL
Item is no longer available
Price
N/A
1004
TOOLBOX
Item is no longer available
Price
N/A
1005
TOOL POST WRENCH 10MM
Item is no longer available
Price
N/A
1007
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
1008
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
1009
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
1010
WRENCH 9 X 11MM OPEN-ENDS
Price
N/A
1011
SPINDLE SLEEVE MT#5-MT#3
Price
$37.10
1012
DEAD CENTER MT#3 HSS
Item is no longer available
Price
N/A
1013
DEAD CENTER MT#3 CARBIDE-TIPPED
Item is no longer available
Price
N/A
1014
LIVE CENTER MT#3
Item is no longer available
Price
N/A
1015
HEX WRENCH 8MM
Price
N/A
1016
HEX WRENCH 6MM
Price
N/A
1017
HEX WRENCH 5MM
Price
N/A
1018
HEX WRENCH 4MM
Price
N/A
1019
HEX WRENCH 3MM
Price
N/A
1020
HEX WRENCH 2.5MM
Price
N/A
1021
SCREWDRIVER FLAT #2
Price
N/A
1022
SCREWDRIVER PHILLIPS #2
Price
N/A
1023
GEAR 35T
Price
$19.30
1024
GEAR 42T
Price
$30.60
1025
GEAR 44T
Item is no longer available
Price
N/A
1026
GEAR 46T
Item is no longer available
Price
N/A
1027
GEAR 48T
Item is no longer available
Price
N/A
1028
GEAR 52T
Item is no longer available
Price
N/A
1029
GEAR 55T
Item is no longer available
Price
N/A
1030
GEAR 120T/127T
Price
$120.45
1031
3-JAW SCROLL CHUCK ASSY 6"
Item is no longer available
Price
N/A
1031-1
3-JAW CHUCK TOP JAW SET
Price
$189.20
1031-2
3-JAW CHUCK BOTTOM JAW SET
Price
$236.50
1031-3
3-JAW CHUCK 6" D1-4
Item is no longer available
Price
N/A
1031-4
LATHE CHUCK KEY 10MM
Item is no longer available
Price
N/A
1032
GEAR 85T
Price
$49.25
1033
DRILL CHUCK ARBOR MT3 X B16
Item is no longer available
Price
N/A
1034
DRILL CHUCK B16 1.5-13MM
Item is no longer available
Price
N/A
1101

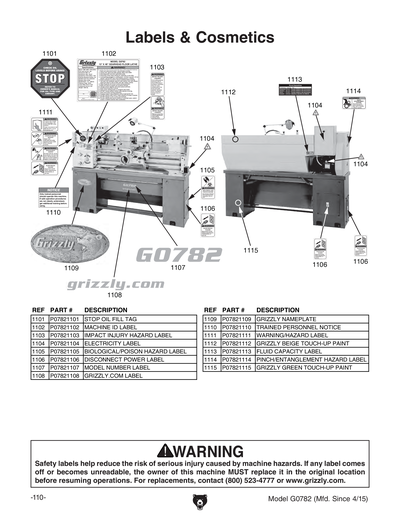

STOP OIL FILL TAG 4W X 4H
Item is no longer available
Price
N/A
1102
MACHINE ID LABEL
Item is no longer available
Price
N/A
1103
IMPACT INJURY HAZARD LABEL
Item is no longer available
Price
N/A
1104
ELECTRICITY 0.7W X 0.6H
Price
N/A
1105
BIOLOGICAL/POISON HAZARD 1.5W X 2.5H
Price
N/A
1106
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
1107
MODEL NUMBER LABEL
Item is no longer available
Price
N/A
1108
GRIZZLY.COM LABEL 10",BEIGE
Price
N/A
1109
***USE G8588***
Item is no longer available
Price
N/A
1110
TRAINED PERSONNEL NOTICE
Item is no longer available
Price
N/A
1111
WARNING/HAZARD LABEL
Item is no longer available
Price
N/A
1112
BEIGE REF G0555
Price
N/A
1113
FLUID CAPACITY LABEL
Item is no longer available
Price
N/A
1114
PINCH/ENTANGLEMENT 2.8W X 1.5H
Price
N/A
1115
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL G0782 MFD-01.15 V1.08.15
Item is no longer available
Price
N/A
