Parts for G0783 - 11" Slow-Speed Cold-Cut Saw

Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783
Part Diagram for G0783

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

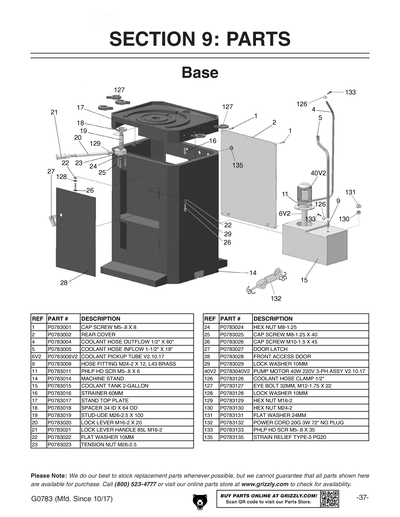

Ref #
Part #
Description
1
CAP SCREW M5-.8 X 8
Price
N/A
2
REAR COVER
Price
$42.45
4
COOLANT HOSE OUTFLOW 1/2" X 60"
Price
$9.00
5
COOLANT HOSE INFLOW 1-1/2" X 18"
Price
$11.20
6
COOLANT MOTOR 40W 220V 1-PH ASSY V1
Price
N/A
6V2
PUMP MOTOR 40W 220V 3-PH ASSY V2.10.17
Price
N/A
9
HOSE FITTING M24-2 X 12, L43 BRASS
Price
$18.00
11
PHLP HD SCR M5-.8 X 6
Price
N/A
14
MACHINE STAND
Price
$623.90
15
COOLANT TANK 2-GALLON
Price
$66.90
16
STRAINER 60MM
Price
$15.85
17
STAND TOP PLATE
Price
$289.70
18
SPACER 34 ID X 64 OD
Price
$7.95
19
STUD-UDE M26-2.5 X 100
Price
$15.85
20
LOCK LEVER M16-2 X 20
Price
$13.70
21
LOCK LEVER HANDLE 85L M16-2
Price
$9.00
22
FLAT WASHER 10MM
Price
N/A
23
TENSION NUT M26-2.5
Price
$18.00
24
HEX NUT M8-1.25
Price
N/A
25
CAP SCREW M8-1.25 X 40
Price
N/A
26
CAP SCREW M10-1.5 X 45
Price
N/A
27
DOOR LATCH
Price
$24.85
28
FRONT ACCESS DOOR
Price
$44.60
29
LOCK WASHER 10MM
Price
N/A

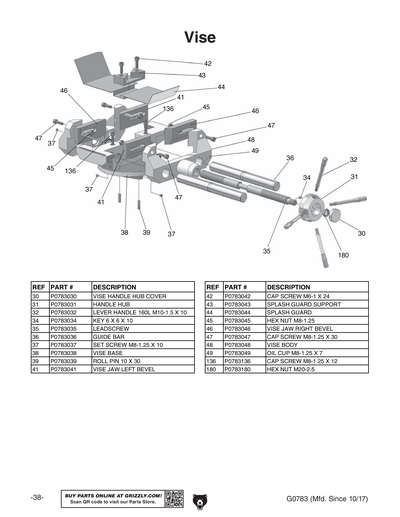

30
VISE HANDLE HUB COVER
Price
$6.90
31
HANDLE HUB
Price
$191.95
32
LEVER HANDLE 160L M10-1.5 X 10
Price
$24.85
34
KEY 6 X 6 X 10
Price
N/A
35
LEADSCREW
Price
$47.15
36
GUIDE BAR
Price
$69.55
37
SET SCREW M8-1.25 X 10
Price
N/A
38
VISE BASE
Price
$153.30
39
ROLL PIN 10 X 30
Price
$2.60
40
COOLANT MOTOR 40W 220V 1-PH ASSY V1
Price
$191.95
40V2
PUMP MOTOR 40W 220V 3-PH ASSY V2.10.17
Price
$200.60
41
VISE JAW LEFT BEVEL
Price
$75.90
42
CAP SCREW M6-1 X 24
Price
N/A
43
SPLASH GUARD SUPPORT
Price
$21.40
44
SPLASH GUARD
Price
$9.00
45
HEX NUT M8-1.25
Price
N/A
46
VISE JAW RIGHT BEVEL
Price
$75.90
47
CAP SCREW M8-1.25 X 30
Price
N/A
48
VISE BODY
Price
$96.30
49
OIL CUP M8-1.25 X 7
Price
$6.15

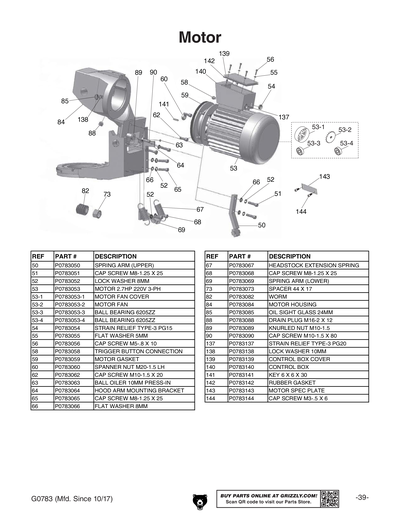

50
SPRING ARM (UPPER)
Price
$16.60
50-1
SPRING ANCHOR M8-1.25
Price
$6.90
51
CAP SCREW M8-1.25 X 25
Price
N/A
52
LOCK WASHER 8MM
Price
N/A
53
MOTOR 2.7HP 220V 3-PH
Price
$735.35
53-1
MOTOR FAN COVER
Price
$49.25
53-2
MOTOR FAN
Price
$13.70
53-3
BALL BEARING 6205ZZ
Price
N/A
53-4
BALL BEARING 6205ZZ
Price
N/A
54
STRAIN RELIEF TYPE-3 PG15
Price
$4.70
55
FLAT WASHER 5MM
Price
N/A
56
CAP SCREW M5-.8 X 10
Price
N/A
58
TRIGGER BUTTON CONNECTION
Price
$44.60
59
MOTOR GASKET
Price
$11.20
60
SPANNER NUT M20-1.5 LH
Price
$4.70
61
*DISCD*GEAR 17T
Item is no longer available
Price
N/A
62
CAP SCREW M10-1.5 X 20
Price
N/A
63
BALL OILER 10MM PRESS-IN
Price
N/A
64
HOOD ARM MOUNTING BRACKET
Price
$17.65
65
CAP SCREW M8-1.25 X 25
Price
N/A
66
FLAT WASHER 8MM
Price
N/A
67
HEADSTOCK EXTENSION SPRING
Price
$34.90
68
CAP SCREW M8-1.25 X 25
Price
N/A
69
SPRING ARM (LOWER)
Price
$15.85
69-1
SPRING ANCHOR M8-1.25
Price
N/A
72
*DISCD*GEAR 31T
Item is no longer available
Price
N/A
73
SPACER 44 X 17
Price
$11.20
75
*DISCD*WORM SHAFT RETAINING COLLAR 96MM
Price
$8.65
76
BALL BEARING 6206ZZ
Price
N/A
77
*DISCD*BEARING COVER 62 X 7
Item is no longer available
Price
N/A

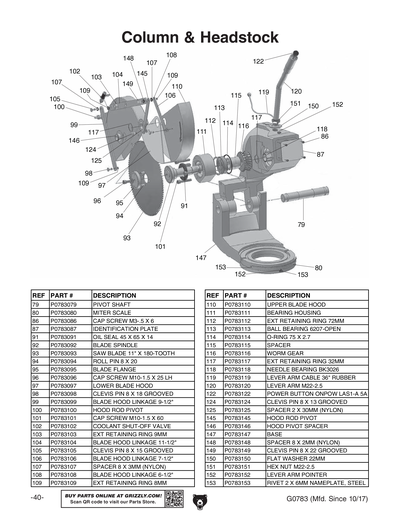

79
PIVOT SHAFT
Price
$27.00
80
MITER SCALE
Price
$4.70
82
WORM
Price
$69.40
83
NEEDLE BEARING BK3026
Price
$29.15
84
MOTOR HOUSING
Price
$347.90
85
OIL SIGHT GLASS 24MM
Price
$4.70
86
CAP SCREW M3-.5 X 6
Price
N/A
87
IDENTIFICATION PLATE
Price
$9.00
88
DRAIN PLUG M16-2 X 12
Price
$4.70
89
KNURLED NUT M10-1.5
Price
$9.00
90
CAP SCREW M10-1.5 X 80
Price
N/A
91
OIL SEAL 45 X 65 X 14
Price
$19.10
92
BLADE SPINDLE
Price
$138.20
93
*SEE EXT. DESCRIPTION*
Item is no longer available
Price
N/A
94
ROLL PIN 8 X 20
Price
N/A
95
BLADE FLANGE
Price
$18.00
96
CAP SCREW M10-1.5 X 25 LH
Price
N/A
97
LOWER BLADE HOOD
Price
$47.15
98
CLEVIS PIN 8 X 18 GROOVED
Price
$2.60
99
BLADE HOOD LINKAGE 9-1/2"
Price
$6.90
100
HOOD ROD PIVOT
Price
$6.90
101
CAP SCREW M10-1.5 X 60
Price
N/A
102
COOLANT SHUT-OFF VALVE
Price
$23.20
103
EXT RETAINING RING 9MM
Price
N/A
104
BLADE HOOD LINKAGE 11-1/2"
Price
$9.00
105
CLEVIS PIN 8 X 15 GROOVED
Price
$2.60
106
BLADE HOOD LINKAGE 7-1/2"
Price
$4.70
107
SPACER 8 X 3MM (NYLON)
Price
$4.70
108
BLADE HOOD LINKAGE 6-1/2"
Price
$4.70
109
EXT RETAINING RING 8MM
Price
N/A
110
UPPER BLADE HOOD
Price
$38.15
111
BEARING HOUSING
Price
$104.95
112
INT RETAINING RING 72MM
Price
N/A
113
BALL BEARING 6207-OPEN
Price
N/A
114
O-RING 75 X 2.7
Price
$4.35
115
SPACER
Price
$14.75
116
WORM GEAR
Price
$434.50
117
EXT RETAINING RING 32MM
Price
N/A
118
NEEDLE BEARING BK3026
Price
$29.15
119
LEVER ARM CABLE 36" RUBBER
Price
$6.90
120
LEVER ARM M22-2.5
Price
$42.45
122
POWER BUTTON ONPOW LAS1-A 5A
Price
$20.15
124
CLEVIS PIN 8 X 13 GROOVED
Price
$9.00
125
SPACER 2 X 30MM (NYLON)
Price
$6.90
126
COOLANT HOSE CLAMP 1/2"
Price
$16.60
127
EYE BOLT 32MM, M12-1.75 X 22
Price
$8.35
128
LOCK WASHER 10MM
Price
N/A
129
HEX NUT M16-2
Price
N/A
130
HEX NUT M24-2
Price
N/A
131
FLAT WASHER 24MM
Price
N/A
132
POWER CORD 20G 3W 72" NO PLUG
Price
$18.00
133
PHLP HD SCR M5-.8 X 35
Price
N/A
134
CAPACITOR MPP225K 1-1/4" X 3/4"
Price
$9.00
135
STRAIN RELIEF TYPE-3 PG20
Price
$4.70
136
CAP SCREW M8-1.25 X 12
Price
N/A
137
STRAIN RELIEF TYPE-3 PG20
Price
N/A
138
LOCK WASHER 10MM
Price
N/A
139
CONTROL BOX COVER
Price
$9.00
140
CONTROL BOX
Price
$49.25
141
KEY 6 X 6 X 30
Price
N/A
142
RUBBER GASKET
Price
$3.65
143
MOTOR SPEC PLATE
Price
$2.60
144
CAP SCREW M3-.5 X 6
Price
N/A
145
HOOD ROD PIVOT
Price
$7.95
146
HOOD PIVOT SPACER
Price
$6.15
147
BASE
Price
$256.25
148
SPACER 8 X 2MM (NYLON)
Price
$2.60
149
CLEVIS PIN 8 X 22 GROOVED
Price
$8.35
150
FLAT WASHER 22MM
Price
N/A
151
HEX NUT M22-2.5
Price
$6.15
152
LEVER ARM POINTER
Price
$1.90
153
RIVET 2 X 6MM NAMEPLATE, STEEL
Price
N/A

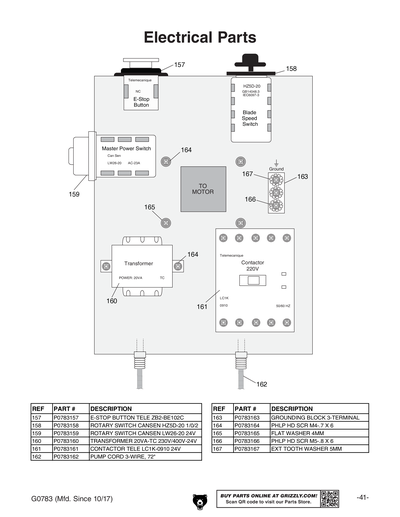

157
E-STOP BUTTON TELE ZB2-BE102C
Price
$27.00
158
ROTARY SWITCH CANSEN HZ5D-20 1/0/2
Price
$58.25
159
ROTARY SWITCH CANSEN LW26-20 24V
Price
$84.85
160
TRANSFORMER 20VA-TC 230V/400V-24V
Price
$49.25
161
CONTACTOR TELE LC1K-0910 24V
Price
$42.45
162
PUMP CORD 3-WIRE, 72"
Price
$22.35
163
GROUNDING BLOCK 3-TERMINAL
Price
$11.20
164
PHLP HD SCR M4-.7 X 6
Price
N/A
165
FLAT WASHER 4MM
Price
N/A
166
PHLP HD SCR M5-.8 X 6
Price
N/A
167
EXT TOOTH WASHER 5MM
Price
N/A
168
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
169
BIOLOGICAL/POISON HAZARD 1.5W X 2.5H
Price
N/A
170
MODEL NUMBER LABEL
Price
$7.85
171
BLADE/AMPUTATION LABEL
Price
$4.70
172
SAFETY GLASSES 1.5W X 2.5H
Price
N/A
173
ELECTRICITY 0.7W X 0.6H
Price
N/A
174
READ MANUAL 1.5W X 2.5H
Price
N/A
175
GREY PUTTY REF G0504
Price
N/A
176
MACHINE ID LABEL
Price
$16.40
177
Nameplate - Mini
Price
N/A
178
GRIZZLY.COM LABEL 9.25",BEIGE
Price
N/A
179
N/S GRIZZLY GREEN G1023S
Price
N/A
180
HEX NUT M20-2.5
Price
N/A
497
LOWER BLADE HOOD
Price
$47.15
504
TRANSFORMER 20VA 230V/400V-24V
Price
$49.25
MAN
MANUAL G0783 MFD-05.15-09.17 V1.03.18
Price
$14.65
MANV2
MANUAL G0783 MFD-10.17+ V2.08.18
Price
$18.50
