Parts for G0786 - 2 HP Portable Dust Collector

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

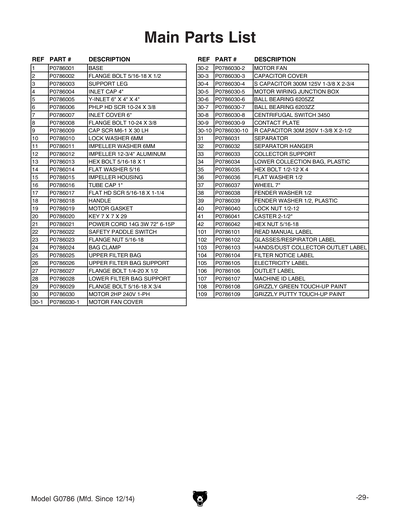

Ref # Part # Description Price Qty

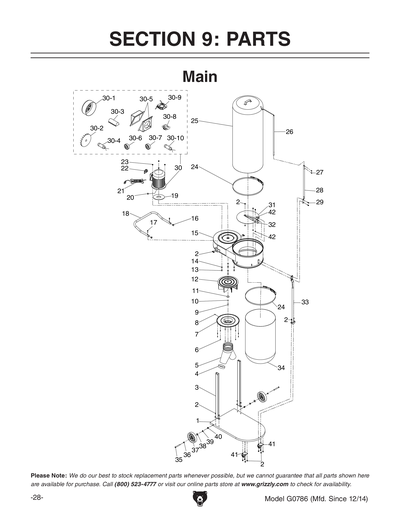

1 P0786001
BASE
N/A
2 P0786002
Replaced By PFS20
FLANGE SCREW 5/16-18 X 1/2
N/A View Replacement
3 P0786003
SUPPORT LEG
N/A
4 P0786004 INLET CAP 4" $2.00
5 P0786005
Y-INLET 6" X 4" X 4"
N/A
6 P0786006
Replaced By PS06
PHLP HD SCR 10-24 X 3/8
N/A View Replacement
7 P0786007
INLET COVER 6"
N/A
8 P0786008
Replaced By PFS03
FLANGE SCREW 10-24 X 3/8
N/A View Replacement
9 P0786009
CAP SCR M6-1 X 30 LH
N/A
10 P0786010
Replaced By PLW03M
LOCK WASHER 6MM
N/A View Replacement
11 P0786011
IMPELLER WASHER 6MM
N/A
12 P0786012
IMPELLER 12-3/4" ALUMINUM
N/A
13 P0786013
Replaced By PB03
HEX BOLT 5/16-18 X 1
N/A View Replacement
14 P0786014
Replaced By PW07
FLAT WASHER 5/16
N/A View Replacement
15 P0786015 IMPELLER HOUSING $197.50
16 P0786016 TUBE CAP 1" $1.00
17 P0786017
Replaced By PFH07
FLAT HD SCR 5/16-18 X 1-1/4
N/A View Replacement
18 P0786018
HANDLE
N/A
19 P0786019
MOTOR GASKET
N/A
20 P0786020
Replaced By PK28M
KEY 7 X 7 X 29
N/A View Replacement
21 P0786021
POWER CORD 14G 3W 72" 6-15P
N/A
22 P0786022
Replaced By G8988
Safety Paddle Switch
N/A View Replacement
23 P0786023
Replaced By PFN02
FLANGE NUT 5/16-18
N/A View Replacement
24 P0786024 BAG CLAMP $11.50
25 P0786025 UPPER FILTER BAG $44.25
26 P0786026
UPPER FILTER BAG SUPPORT
N/A
27 P0786027
Replaced By PFS21
FLANGE SCREW 1/4-20 X 1/2
N/A View Replacement
28 P0786028
LOWER FILTER BAG SUPPORT
N/A
29 P0786029
Replaced By PFB02
FLANGE BOLT 5/16-18 X 3/4
N/A View Replacement
30 P0786030
MOTOR 2HP 240V 1-PH
N/A
30-1 P0786030-1
MOTOR FAN COVER
N/A
30-10 P0786030-10
Replaced By PC30
R CAPACITOR 30M 250V 1-3/8 X 2-1/2
N/A View Replacement
30-2 P0786030-2
MOTOR FAN
N/A
30-3 P0786030-3
CAPACITOR COVER
N/A
30-4 P0786030-4
Replaced By PC300D
S CAPACITOR 300M 125V 1-3/8 X 2-3/4
N/A View Replacement
30-5 P0786030-5
MOTOR WIRING JUNCTION BOX
N/A
30-6 P0786030-6
Replaced By P6205ZZ
BALL BEARING 6205ZZ
N/A View Replacement
30-7 P0786030-7
Replaced By P6203ZZ
BALL BEARING 6203ZZ
N/A View Replacement
30-8 P0786030-8
CENT SWITCH 3450
N/A
30-9 P0786030-9
CONTACT PLATE
N/A
31 P0786031
SEPARATOR
N/A
32 P0786032 SEPARATOR HANGER $11.25
33 P0786033
COLLECTOR SUPPORT
N/A
34 P0786034 LOWER COLLECTION BAG, PLASTIC $8.00
35 P0786035
Replaced By PB43
HEX BOLT 1/2-12 X 4
N/A View Replacement
36 P0786036
Replaced By PW01
FLAT WASHER 1/2
N/A View Replacement
37 P0786037
WHEEL 7"
N/A
38 P0786038
Replaced By PWF04
FENDER WASHER 1/2
N/A View Replacement
39 P0786039 FENDER WASHER 1/2, PLASTIC $2.50
40 P0786040 LOCK NUT 1/2-12 $1.00
41 P0786041 CASTER 2-1/2" $8.00
42 P0786042
Replaced By PN02
HEX NUT 5/16-18
N/A View Replacement

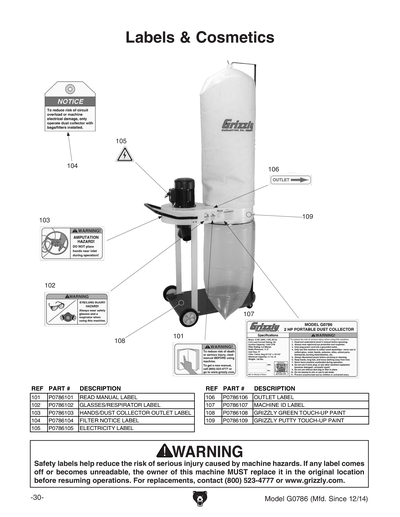

101 P0786101
Replaced By PLABEL-12D
READ MANUAL 2.8W X 1.5H
N/A View Replacement
102 P0786102
Replaced By PLABEL-57C
GLASSES/RESPIRATOR 2.8W X 1.5H
N/A View Replacement
103 P0786103
Replaced By PLABEL-59C
HANDS/DUST COLLECTOR OUTLET 2.8W X 1.5H
N/A View Replacement
104 P0786104
FILTER NOTICE LABEL
N/A
105 P0786105
Replaced By PLABEL-14A
ELECTRICITY 0.7W X 0.6H
N/A View Replacement
106 P0786106 OUTLET LABEL $1.50
107 P0786107 MACHINE ID LABEL $9.50
108 P0786108
Replaced By PPAINT-1
N/S GRIZZLY GREEN G1023S
N/A View Replacement
109 P0786109
Replaced By PPAINT-11
GREY PUTTY REF G0504
N/A View Replacement
MAN P0786MAN
MANUAL G0786 MFD-12.14 V1.02.15
N/A
