Parts for G0790 - 12-1/2" 2 HP Benchtop Planer with Dust Collection

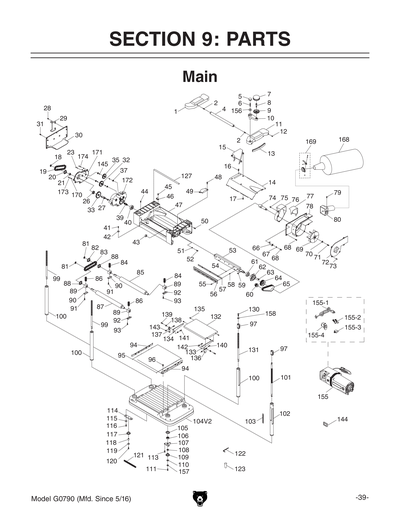

Part Diagram for G0790

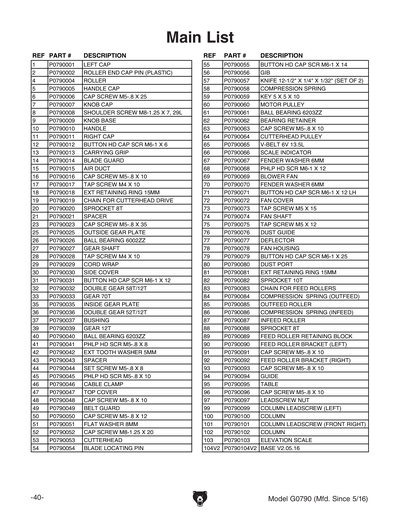

Part Diagram for G0790
Part Diagram for G0790
Part Diagram for G0790
Part Diagram for G0790
Part Diagram for G0790
Part Diagram for G0790
Part Diagram for G0790

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
LEFT CAP
Item is no longer available
Price
N/A
2
ROLLER END CAP PIN (PLASTIC)
Price
$1.60
4
ROLLER
Price
$5.15
5
HANDLE CAP
Price
$1.60
6
CAP SCREW M5-.8 X 25
Price
N/A
7
KNOB CAP
Price
$1.70
8
SHOULDER SCREW M8-1.25 X 7, 29L
Price
$1.60
9
KNOB BASE
Price
$1.60
10
HANDLE
Price
$5.10
11
RIGHT CAP
Price
$10.90
12
BUTTON HD CAP SCR M6-1 X 6
Price
N/A
13
CARRYING GRIP
Price
$1.60
14
BLADE GUARD
Price
$22.40
15
AIR DUCT
Item is no longer available
Price
N/A
16
CAP SCREW M5-.8 X 10
Price
N/A
17
TAP SCREW M4 X 10
Price
N/A
18
EXT RETAINING RING 15MM
Price
N/A
19
CHAIN FOR CUTTERHEAD DRIVE
Item is no longer available
Price
N/A
20
SPROCKET 8T
Price
$2.45
21
SPACER
Price
$1.60
22
CAP SCREW M5-.8 X 30
Price
N/A
23
CAP SCREW M5-.8 X 35
Price
N/A
24
CAP SCREW M5-.8 X 27
Price
N/A
24V2
CAP SCREW M5-.8 X 12
Price
N/A
25
*DISCD*OUTSIDE GEAR PLATE V1
Item is no longer available
Price
N/A
25V2
GEARBOX COVER V2.03.17
Item is no longer available
Price
N/A
26
BALL BEARING 6002ZZ
Price
N/A
27
*DISCD*GEAR SHAFT
Price
$4.60
28
TAP SCREW M4 X 10
Price
N/A
29
CORD WRAP
Item is no longer available
Price
N/A
30
SIDE COVER
Item is no longer available
Price
N/A
31
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
32
DOUBLE GEAR 58T/12T
Price
$10.90
33
GEAR 70T
Price
$10.00
34
SPACER 5 X 20MM FEMALE ENDS
Item is no longer available
Price
N/A
35
INSIDE GEAR PLATE V1
Price
$4.85
35V2
GEARBOX V2.03.17
Price
$7.25
36
DOUBLE GEAR 52T/12T
Price
$10.00
37
BUSHING
Price
$1.60
38
SPACER 5 X 20MM MALE ENDS
Item is no longer available
Price
N/A
39
GEAR 12T
Price
$6.40
40
BALL BEARING 6203ZZ
Price
N/A
41
PHLP HD SCR M5-.8 X 8
Price
N/A
42
EXT TOOTH WASHER 5MM
Price
N/A
43
SPACER
Price
$1.60
44
SET SCREW M5-.8 X 8
Price
N/A
45
PHLP HD SCR M5-.8 X 10
Price
N/A
46
CABLE CLAMP
Item is no longer available
Price
N/A
47
TOP COVER
Item is no longer available
Price
N/A
48
CAP SCREW M5-.8 X 10
Price
N/A
49
BELT GUARD
Item is no longer available
Price
N/A
50
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
51
FLAT WASHER 8MM
Price
N/A
52
CAP SCREW M8-1.25 X 20
Price
N/A
53
CUTTERHEAD
Price
$96.95
54
BLADE LOCATING PIN
Price
$1.60
55
BUTTON HD CAP SCR M6-1 X 14
Price
N/A
56
GIB
Price
$5.90
57
KNIFE 12-1/2" X 1/4" X 1/32" (SET OF 2)
Price
$54.10
58
*DISCD*COMPRESSION SPRING
Price
$1.60
59
KEY 5 X 5 X 10
Price
N/A
60
MOTOR PULLEY
Item is no longer available
Price
N/A
61
BALL BEARING 6203ZZ
Price
N/A
62
BEARING RETAINER
Price
$4.60
63
CAP SCREW M5-.8 X 10
Price
N/A
64
CUTTERHEAD PULLEY
Item is no longer available
Price
N/A
65
V-BELT 6V 13.5L
Price
$6.85
66
SCALE INDICATOR
Price
$1.60
67
FENDER WASHER 6MM
Price
N/A
68
PHLP HD SCR M6-1 X 12
Price
N/A
69
BLOWER FAN
Price
$5.65
70
FENDER WASHER 6MM
Price
N/A
71
BUTTON HD CAP SCR M6-1 X 12 LH
Price
$1.60
72
FAN COVER
Price
$3.70
73
TAP SCREW M5 X 15
Price
N/A
74
FAN SHAFT
Price
$8.20
75
TAP SCREW M5 X 12
Price
N/A
76
DUST GUIDE
Price
$2.45
77
DEFLECTOR
Price
$1.60
78
FAN HOUSING
Price
$11.85
79
BUTTON HD CAP SCR M6-1 X 25
Price
N/A
80
DUST PORT
Price
$3.40
81
EXT RETAINING RING 15MM
Price
N/A
82
SPROCKET 10T
Item is no longer available
Price
N/A
83
CHAIN FOR FEED ROLLERS
Item is no longer available
Price
N/A
84
COMPRESSION SPRING (OUTFEED)
Price
$1.60
85
OUTFEED ROLLER
Price
$35.05
86
COMPRESSION SPRING (INFEED)
Price
$1.60
87
INFEED ROLLER
Price
$35.05
88
*DISCD*SPROCKET 8T
Item is no longer available
Price
N/A
89
FEED ROLLER RETAINING BLOCK
Price
$4.30
90
FEED ROLLER BRACKET (LEFT)
Item is no longer available
Price
N/A
91
CAP SCREW M5-.8 X 10
Price
N/A
92
FEED ROLLER BRACKET (RIGHT)
Price
$1.60
93
CAP SCREW M5-.8 X 10
Price
N/A
94
GUIDE
Item is no longer available
Price
N/A
95
*DISCD*TABLE
Item is no longer available
Price
N/A
96
CAP SCREW M5-.8 X 10
Price
N/A
97
LEADSCREW NUT
Price
$3.65
99
COLUMN LEADSCREW (LEFT)
Item is no longer available
Price
N/A
100
COLUMN
Item is no longer available
Price
N/A
101
COLUMN LEADSCREW (FRONT RIGHT)
Item is no longer available
Price
N/A
102
COLUMN
Price
$14.70
103
ELEVATION SCALE
Price
$1.49
104
BASE V1
Price
$120.20
104V2
BASE V2.05.16
Item is no longer available
Price
N/A
105
EXT RETAINING RING 30MM
Price
N/A
106
BALL BEARING 6000ZZ
Price
N/A
107
BEARING RETAINER
Item is no longer available
Price
N/A
108
SPACER
Item is no longer available
Price
N/A
109
SPROCKET 10T
Price
$1.85
110
FENDER WASHER 4MM
Price
N/A
111
CAP SCREW M4-.7 X 12
Price
N/A
113
CAP SCREW M5-.8 X 10
Price
N/A
114
IDLER BRACKET
Item is no longer available
Price
N/A
115
FENDER WASHER 5MM
Price
N/A
116
CAP SCREW M5-.8 X 10
Price
N/A
117
SPROCKET 10T
Price
$4.85
118
SPACER
Item is no longer available
Price
N/A
119
FENDER WASHER 6MM
Price
N/A
120
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
121
CHAIN
Price
$20.30
122
HEX WRENCH 4MM
Price
N/A
123
KNIFE CHANGING MAGNET
Item is no longer available
Price
N/A
127
TOP COVER GASKET
Item is no longer available
Price
N/A
130
CAP SCREW M5-.8 X 10
Price
N/A
131
COLUMN LEADSCREW (REAR RIGHT)
Item is no longer available
Price
N/A
132
EXTENSION TABLE
Price
$16.65
133
EXTENSION TABLE BRACKET (RIGHT)
Price
$1.60
134
EXTENSION TABLE BRACKET (LEFT)
Price
$1.60
135
PHLP HD SCR M4-.7 X 6
Price
N/A
136
SUPPORT BRACKET (RIGHT)
Price
$5.15
137
SUPPORT BRACKET (LEFT)
Price
$5.15
138
BUSHING
Price
$1.85
139
CAP SCREW M6-1 X 12
Price
N/A
140
PHLP HD SCR M6-1 X 16
Price
N/A
141
CAP SCREW M5-.8 X 20
Price
N/A
142
HEX NUT M5-.8
Price
N/A
143
HEX NUT M6-1
Price
N/A
144
MOTOR VENT GASKET 14 X 60 X 90MM
Price
$1.60
145
SHIM WASHER 8 X 14MM
Price
$1.60
155
*DISCD*MOTOR 2HP 110V 1-PH
Item is no longer available
Price
N/A
155-1
POWER CORD 14G 3W 72" 5-15P
Item is no longer available
Price
N/A
155-2
MOTOR BRUSHES (2-PC SET)
Price
$3.65
155-3
CIRCUIT BREAKER 15A 125/250VAC
Price
$7.90
155-4
Safety Paddle Switch
Price
N/A
155-5
THREADED MOTOR BRUSH CAP
Item is no longer available
Price
N/A
156
FLAT WASHER 5MM
Price
N/A
157
LOCK WASHER 4MM
Price
N/A
158
FLAT WASHER 4MM
Price
N/A
159

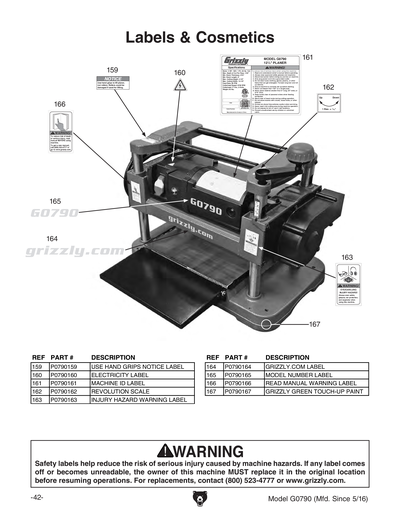

USE HAND GRIPS NOTICE LABEL
Item is no longer available
Price
N/A
160
ELECTRICITY 0.7W X 0.6H
Price
N/A
161
MACHINE ID LABEL
Item is no longer available
Price
N/A
162
REVOLUTION SCALE
Item is no longer available
Price
N/A
163
INJURY HAZARD WARNING LABEL
Item is no longer available
Price
N/A
164
GRIZZLY.COM LABEL 6.75",BEIGE
Price
N/A
165
MODEL NUMBER LABEL
Price
$1.60
166
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
167
N/S GRIZZLY GREEN G1023S
Price
N/A
168
*DISC* DUST BAG
Price
N/A
169
DUST BAG CLAMP ASSEMBLY
Price
$5.15
170
LOCK WASHER 5MM
Price
N/A
171
GEARBOX COVER V2.03.17
Price
N/A
172
GEARBOX V2.03.17
Price
N/A
173
CAP SCREW M5-.8 X 35
Price
N/A
174
CAP SCREW M5-.8 X 12
Price
N/A
MAN
MANUAL G0790 MFD-10.14 V1.12.14
Price
$14.65
MANV2
MANUAL G0790 MFD-09.15+ V2.09.15
Item is no longer available
Price
N/A
MANV3
MANUAL G0790 MFD-05.16+ V3.05.16
Item is no longer available
Price
N/A
P
CAP SCREW M5-.8 X 27
Price
$1.49
