Parts for G0795 8" x 28" 1 HP HD Benchtop Mill/Drill

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

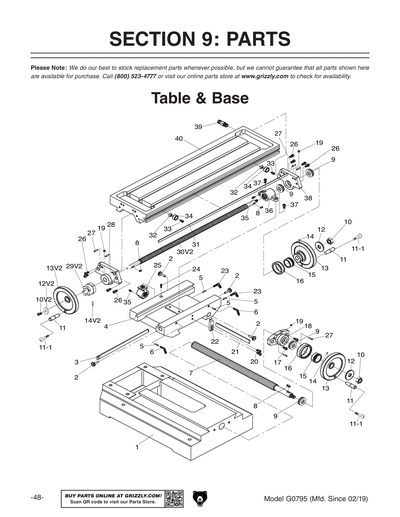

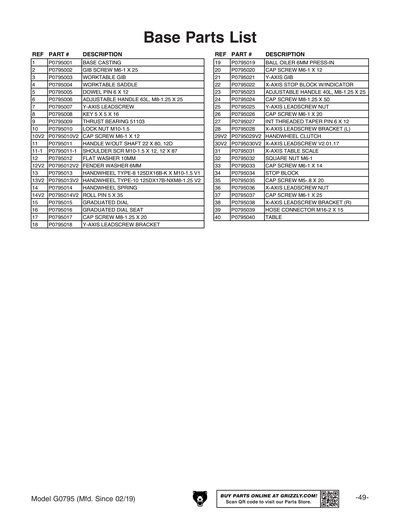

1
BASE CASTING
Item is no longer available
Price
N/A
2
GIB SCREW M6-1 X 25
Item is no longer available
Price
N/A
3
WORKTABLE GIB
Item is no longer available
Price
N/A
4
WORKTABLE SADDLE
Item is no longer available
Price
N/A
5
DOWEL PIN 6 X 12
Item is no longer available
Price
N/A
6
ADJUSTABLE HANDLE 63L, M8-1.25 X 25
7
Y-AXIS LEADSCREW
Item is no longer available
Price
N/A
8
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
9
THRUST BEARING 51103
Price
N/A
10
LOCK NUT M10-1.5
Price
N/A
10V2
CAP SCREW M6-1 X 12
Price
N/A
11
HANDLE W/OUT SHAFT 22 X 80, 12D
11-1
HANDLE W/OUT SHAFT 22 X 80, 12D
Price
N/A
12
Now: PW04M
FLAT WASHER 10MM
Price
N/A
12V2
FENDER WASHER 6MM
Item is no longer available
Price
N/A
13
HANDWHEEL TYPE-8 125DX16B-K X M10-1.5 V1
13V2
HANDWHEEL TYPE-10 125DX17B-NXM8-1.25 V2
14
HANDWHEEL SPRING
14V2
ROLL PIN 5 X 35
Price
N/A
15
GRADUATED DIAL
16
GRADUATED DIAL SEAT
Item is no longer available
Price
N/A
17
CAP SCREW M8-1.25 X 20
Price
N/A
18
Y-AXIS LEADSCREW BRACKET
Item is no longer available
Price
N/A
19
BALL OILER 6MM PRESS-IN
Price
N/A
20
CAP SCREW M6-1 X 12
Price
N/A
21
Y-AXIS GIB
22
X-AXIS STOP BLOCK W/ INDICATOR
Item is no longer available
Price
N/A
23
ADJUSTABLE HANDLE 40L, M8-1.25 X 25
24
CAP SCREW M8-1.25 X 50
Price
N/A
25
Y-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
26
CAP SCREW M6-1 X 20
Price
N/A
27
INT THREADED TAPER PIN 6 X 12
Item is no longer available
Price
N/A
28
X-AXIS LEADSCREW BRACKET (L)
29
X-AXIS DIAL SEAT
29V2
HANDWHEEL CLUTCH
Item is no longer available
Price
N/A
30
X-AXIS LEADSCREW V1
30V2
X-AXIS LEADSCREW V2.01.17
31
X-AXIS TABLE SCALE
32
SQUARE NUT M6-1
Item is no longer available
Price
N/A
33
CAP SCREW M6-1 X 14
Price
N/A
34
STOP BLOCK
Item is no longer available
Price
N/A
35
CAP SCREW M5-.8 X 20
Price
N/A
36
X-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
37
CAP SCREW M6-1 X 25
Price
N/A
38
X-AXIS LEADSCREW BRACKET (R)
Item is no longer available
Price
N/A
39
HOSE CONNECTOR M16-2 X 15
Item is no longer available
Price
N/A
40
TABLE
Item is no longer available
Price
N/A

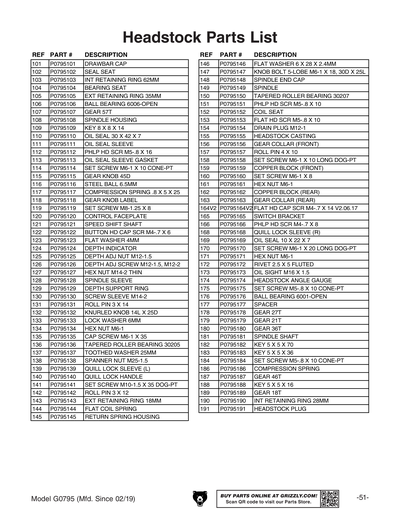

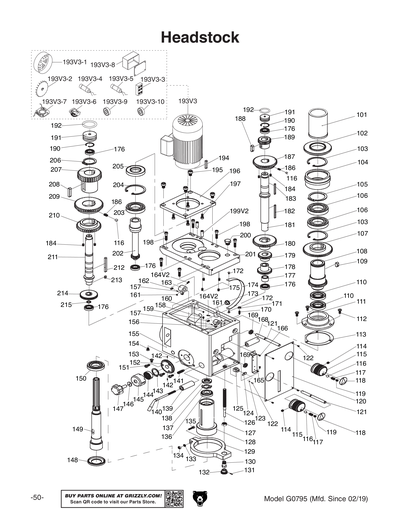

101
DRAWBAR CAP
Item is no longer available
Price
N/A
102
SEAL SEAT
Item is no longer available
Price
N/A
103
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
104
BEARING SEAT
Item is no longer available
Price
N/A
105
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A
106
BALL BEARING 6006-OPEN
Price
N/A
107
GEAR 57T
Item is no longer available
Price
N/A
108
SPINDLE HOUSING
109
KEY 8 X 8 X 14
Price
N/A
110
OIL SEAL 30 X 42 X 7
111
OIL SEAL SLEEVE
112
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
113
*DISCD*OIL SEAL SLEEVE GASKET
Item is no longer available
Price
N/A
114
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
115
GEAR KNOB 45D
Item is no longer available
Price
N/A
116
STEEL BALL 6.5MM
Price
N/A
117
COMPRESSION SPRING .8 X 5 X 25
118
GEAR KNOB LABEL
119
SET SCREW M8-1.25 X 8
Price
N/A
120
CONTROL FACEPLATE
Item is no longer available
Price
N/A
121
SPEED SHIFT SHAFT
Item is no longer available
Price
N/A
122
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
123
Now: PW05M
FLAT WASHER 4MM
Price
N/A
124
DEPTH INDICATOR
Item is no longer available
Price
N/A
125
DEPTH ADJUSTMENT NUT M12-1.5
Item is no longer available
Price
N/A
126
DEPTH ADJUSTMENT SCREW M12-1.5, M12-2
127
Now: PN58M
HEX NUT M12-1.75 THIN
Price
N/A
128
SPINDLE SLEEVE
Item is no longer available
Price
N/A
129
DEPTH SUPPORT RING
130
SCREW SLEEVE M14-2
131
ROLL PIN 3 X 14
Price
N/A
132
KNURLED KNOB 14L X 25D
133
LOCK WASHER 6MM
Price
N/A
134
Now: PN01M
HEX NUT M6-1
Price
N/A
135
CAP SCREW M6-1 X 35
Price
N/A
136
TAPERED ROLLER BEARING 30205
Price
N/A
137
TOOTHED WASHER 25MM
Item is no longer available
Price
N/A
138
*DISCD*SPANNER NUT M25-1.5
Price
N/A
139
QUILL LOCK SLEEVE (L)
Item is no longer available
Price
N/A
140
QUILL LOCK HANDLE
Item is no longer available
Price
N/A
141
SET SCREW M10-1.5 X 35 DOG-PT
Price
N/A
142
ROLL PIN 3 X 12
Price
N/A
143
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
144
FLAT COIL SPRING
145
RETURN SPRING HOUSING
146
Now: PW03M
FLAT WASHER 6MM
Price
N/A
147
KNOB BOLT 5-LOBE M6-1 X 18, 30D X 25L
Item is no longer available
Price
N/A
148
SPINDLE END CAP
149
SPINDLE
150
TAPERED ROLLER BEARING 30207
Price
N/A
151
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
152
COIL SEAT
Item is no longer available
Price
N/A
153
FLAT HD SCR M5-.8 X 10
Price
N/A
154
DRAIN PLUG M12-1
155
HEADSTOCK CASTING
Item is no longer available
Price
N/A
156
GEAR COLLAR (FRONT)
157
ROLL PIN 4 X 10
Price
N/A
158
SET SCREW M6-1 X 10 LONG DOG-PT
Price
N/A
159
COPPER BLOCK (FRONT)
160
SET SCREW M6-1 X 8
Price
N/A
161
Now: PN01M
HEX NUT M6-1
Price
N/A
162
COPPER BLOCK (REAR)
Item is no longer available
Price
N/A
163
GEAR COLLAR (REAR)
Item is no longer available
Price
N/A
164
FLAT HD CAP SCR M4-.7 X 20
Price
N/A
164V2
FLAT HD CAP SCR M4-.7 X 14
Item is no longer available
Price
N/A
165
SWITCH BRACKET
Item is no longer available
Price
N/A
166
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
168
QUILL LOCK SLEEVE (R)
Item is no longer available
Price
N/A
169
OIL SEAL 10 X 22 X 7
170
SET SCREW M6-1 X 20 LONG DOG-PT
Price
N/A
171
Now: PN01M
HEX NUT M6-1
Price
N/A
172
RIVET 2.5 X 5 FLUTED
Item is no longer available
Price
N/A
173
OIL SIGHT M16 X 1.5
Item is no longer available
Price
N/A
174
HEADSTOCK ANGLE GAUGE
Item is no longer available
Price
N/A
175
SET SCREW M5-.8 X 10 CONE-PT
Price
N/A
176
BALL BEARING 6001-OPEN
Price
N/A
177
SPACER
Item is no longer available
Price
N/A
178
GEAR 27T
Item is no longer available
Price
N/A
179
GEAR 21T
Item is no longer available
Price
N/A
180
GEAR 36T
Item is no longer available
Price
N/A
181
SPINDLE SHAFT
182
Now: PK13M
KEY 5 X 5 X 70
Price
N/A
183
KEY 5 X 5 X 36
Price
N/A
184
SET SCREW M5-.8 X 10 CONE-PT
Price
N/A
186
COMPRESSION SPRING
Item is no longer available
Price
N/A
187
GEAR 46T
Item is no longer available
Price
N/A
188
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
189
GEAR 18T
Item is no longer available
Price
N/A
190
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
191
HEADSTOCK PLUG
Item is no longer available
Price
N/A
192

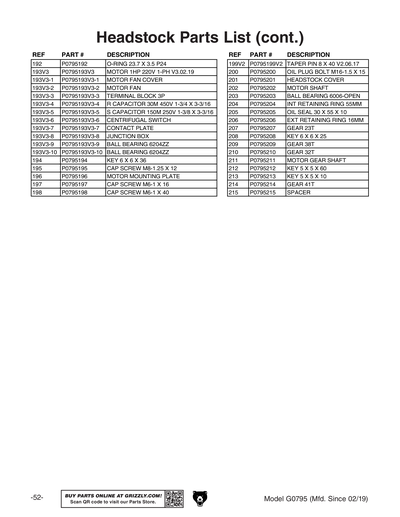

O-RING 23.7 X 3.5 P24
Price
N/A
193
MOTOR 1HP 220V 1-PH V3.02.19
Price
N/A
193-1
MOTOR FAN COVER
193-10
BALL BEARING 6204ZZ
Price
N/A
193-11
MOTOR TERMINAL BLOCK
193-2
MOTOR FAN
193-3
CAPACITOR COVER
Item is no longer available
Price
N/A
193-4
Now: PC20D
R CAPACITOR 20M 450V 1-1/2 X 3-1/4
Price
N/A
193-5
*DISCD*S CAPACITOR 100M 250V 1-1/2 X 3-1/4
Item is no longer available
Price
N/A
193-6
CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
193-7
CONTACT PLATE
Item is no longer available
Price
N/A
193-8
JUNCTION BOX
Item is no longer available
Price
N/A
193-9
BALL BEARING 6204ZZ
Price
N/A
193V2
***USE P0795193V3***
193V2-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
193V2-10
BALL BEARING 6204ZZ
Price
N/A
193V2-2
MOTOR FAN
Item is no longer available
Price
N/A
193V2-4
R CAPACITOR 25M 450V 1-3/4 X 3-1/16
Item is no longer available
Price
N/A
193V2-5
S CAPACITOR 300M 250V 1-5/8 X 3-1/16
Item is no longer available
Price
N/A
193V2-6
CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
193V2-7
CONTACT PLATE
Item is no longer available
Price
N/A
193V2-8
JUNCTION BOX
Item is no longer available
Price
N/A
193V2-9
BALL BEARING 6204ZZ
Price
N/A
193V3
MOTOR 1HP 220V 1-PH V3.02.19
193V3-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
193V3-10
BALL BEARING 6204ZZ
Price
N/A
193V3-2
MOTOR FAN
Item is no longer available
Price
N/A
193V3-3
TERMINAL BLOCK 3P
Item is no longer available
Price
N/A
193V3-4
R CAPACITOR 30M 450V 1-3/4 X 3-3/16
Item is no longer available
Price
N/A
193V3-5
S CAPACITOR 150M 250V 1-3/8 X 3-3/16
Item is no longer available
Price
N/A
193V3-6
CENTRIFUGAL SWITCH
Item is no longer available
Price
N/A
193V3-7
CONTACT PLATE
Item is no longer available
Price
N/A
193V3-8
JUNCTION BOX
Item is no longer available
Price
N/A
193V3-9
BALL BEARING 6204ZZ
Price
N/A
194
KEY 6 X 6 X 36
Price
N/A
195
CAP SCREW M8-1.25 X 12
Price
N/A
196
MOTOR MOUNTING PLATE
197
CAP SCREW M6-1 X 16
Price
N/A
198
CAP SCREW M6-1 X 40
Price
N/A
199
TAPER PIN 8 X 35 V1
Item is no longer available
Price
N/A
200
OIL PLUG BOLT M16-1.5 X 15
Item is no longer available
Price
N/A
201
HEADSTOCK COVER
Item is no longer available
Price
N/A
202
MOTOR SHAFT
Item is no longer available
Price
N/A
203
BALL BEARING 6006-OPEN
Price
N/A
204
Now: PR51M
INT RETAINING RING 55MM
Price
N/A
205
OIL SEAL 30 X 55 X 10
Item is no longer available
Price
N/A
206
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
207
GEAR 23T
Item is no longer available
Price
N/A
208
KEY 6 X 6 X 25
Price
N/A
209
GEAR 38T
Item is no longer available
Price
N/A
210
GEAR 32T
Item is no longer available
Price
N/A
211
MOTOR GEAR SHAFT
Item is no longer available
Price
N/A
212
KEY 5 X 5 X 60
Price
N/A
213
Now: PK06M
KEY 5 X 5 X 10
Price
N/A
214
GEAR 41T
Item is no longer available
Price
N/A
215
SPACER
Item is no longer available
Price
N/A

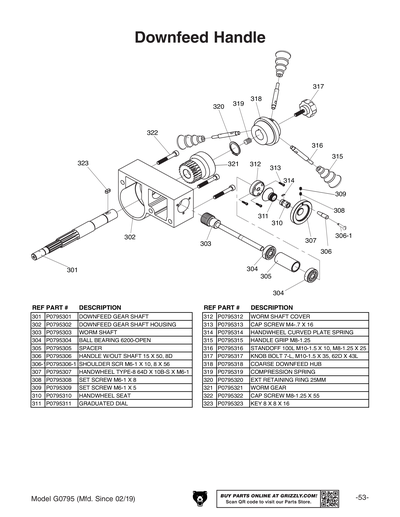

301
DOWNFEED GEAR SHAFT
Item is no longer available
Price
N/A
302
DOWNFEED GEAR SHAFT HOUSING
Item is no longer available
Price
N/A
303
WORM SHAFT
304
BALL BEARING 6200-OPEN
Price
N/A
305
SPACER
Item is no longer available
Price
N/A
306
HANDLE W/OUT SHAFT 15 X 50, 8D
306-1
HANDLE W/OUT SHAFT 15 X 50, 8D
Price
N/A
307
HANDWHEEL TYPE-8 64D X 10B-S X M6-1
Item is no longer available
Price
N/A
308
SET SCREW M6-1 X 8
Price
N/A
309
SET SCREW M6-1 X 5
Price
N/A
310
HANDWHEEL SEAT
311
GRADUATED DIAL
312
WORM SHAFT COVER
Item is no longer available
Price
N/A
313
CAP SCREW M4-.7 X 16
Price
N/A
314
HANDWHEEL CURVED PLATE SPRING
Item is no longer available
Price
N/A
315
HANDLE GRIP M8-1.25
316
STANDOFF 100L M10-1.5 X 10, M8-1.25 X 25
Item is no longer available
Price
N/A
317
KNOB BOLT 7-L, M10-1.5 X 35, 62D X 43L
Item is no longer available
Price
N/A
318
COARSE DOWNFEED HUB
319
COMPRESSION SPRING
320
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
321
WORM GEAR
Item is no longer available
Price
N/A
322
CAP SCREW M8-1.25 X 55
Price
N/A
323
Now: PK40M
KEY 8 X 8 X 16
Price
N/A

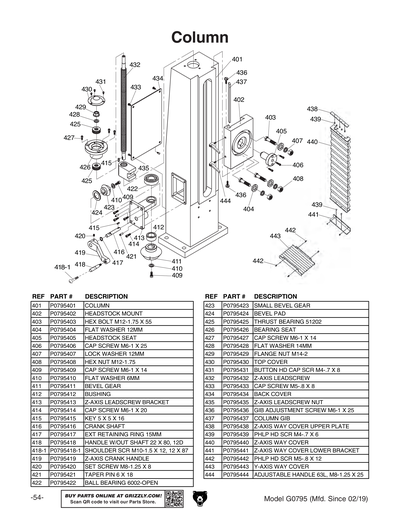

401
COLUMN
Item is no longer available
Price
N/A
402
HEADSTOCK MOUNT
Item is no longer available
Price
N/A
403
Now: PB12M
HEX BOLT M12-1.75 X 55
Price
N/A
404
Now: PW06M
FLAT WASHER 12MM
Price
N/A
405
HEADSTOCK SEAT
Item is no longer available
Price
N/A
406
CAP SCREW M6-1 X 25
Price
N/A
407
LOCK WASHER 12MM
Price
N/A
408
Now: PN09M
HEX NUT M12-1.75
Price
N/A
409
CAP SCREW M6-1 X 14
Price
N/A
410
Now: PW03M
FLAT WASHER 6MM
Price
N/A
411
BEVEL GEAR
Item is no longer available
Price
N/A
412
BUSHING
413
Z-AXIS LEADSCREW BRACKET
414
CAP SCREW M6-1 X 20
Price
N/A
415
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
416
CRANK SHAFT
Item is no longer available
Price
N/A
417
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
418
HANDLE W/OUT SHAFT 22 X 80, 12D
Price
N/A
418-1
*DISCD*SHOULDER SCR M10-1.5 X 12, 12 X 8
Price
N/A
419
Z-AXIS CRANK HANDLE
Item is no longer available
Price
N/A
420
SET SCREW M8-1.25 X 12
Price
N/A
421
TAPER PIN 6 X 18
Item is no longer available
Price
N/A
422
BALL BEARING 6002-OPEN
Price
N/A
423
SMALL BEVEL GEAR
Item is no longer available
Price
N/A
424
BEVEL PAD
Item is no longer available
Price
N/A
425
THRUST BEARING 51202
Price
N/A
426
BEARING SEAT
Item is no longer available
Price
N/A
427
CAP SCREW M6-1 X 14
Price
N/A
428
Now: PW10M
FLAT WASHER 14MM
Price
N/A
429
FLANGE NUT M14-2
Price
N/A
430
TOP COVER
Item is no longer available
Price
N/A
431
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
432
Z-AXIS LEADSCREW
Item is no longer available
Price
N/A
433
CAP SCREW M5-.8 X 8
Price
N/A
434
BACK COVER
Item is no longer available
Price
N/A
435
Z-AXIS LEADSCREW NUT
Item is no longer available
Price
N/A
436
GIB ADJUSTMENT SCREW M6-1 X 25
Item is no longer available
Price
N/A
437
COLUMN GIB
Item is no longer available
Price
N/A
438
Z-AXIS WAY COVER UPPER PLATE
Item is no longer available
Price
N/A
439
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
440
Z-AXIS WAY COVER
441
Z-AXIS WAY COVER LOWER BRACKET
Item is no longer available
Price
N/A
442
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
443
Y-AXIS WAY COVER
Item is no longer available
Price
N/A
444
ADJUSTABLE HANDLE 63L, M8-1.25 X 25
Price
N/A

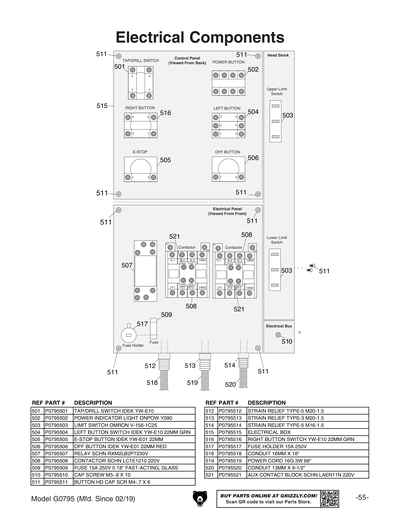

501
TAP/DRILL SWITCH IDEK YW-E10
502
POWER INDICATOR LIGHT ONPOW Y090
503
LIMIT SWITCH OMRON V-156-1C25
Item is no longer available
Price
N/A
504
LEFT BUTTON SWITCH IDEK YW-E10 22MM GRN
505
E-STOP BUTTON IDEK YW-E01 22MM
506
OFF BUTTON IDEK YW-E01 22MM RED
507
RELAY SCHN RXM2LB2P7230V
508
CONTACTOR SCHN LC1E1210 220V
509
FUSE 15A 250V 0.18" FAST-ACTING, GLASS
510
CAP SCREW M5-.8 X 10
Price
N/A
511
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
512
STRAIN RELIEF 20MM TYPE-5
Item is no longer available
Price
N/A
513
STRAIN RELIEF 20MM TYPE-3
Item is no longer available
Price
N/A
514
STRAIN RELIEF 16MM TYPE-5
Item is no longer available
Price
N/A
515
ELECTRICAL BOX
Item is no longer available
Price
N/A
516
RIGHT BUTTON SWITCH YW-E10 22MM GRN
517
FUSE HOLDER 15A 250V
518
CONDUIT 16MM X 18"
Item is no longer available
Price
N/A
519
POWER CORD 16G 3W 68"
Item is no longer available
Price
N/A
520
CONDUIT 13MM X 9-1/2"
521
AUXILARY CONTACT BLOCK SCHN LAEN11N 220V

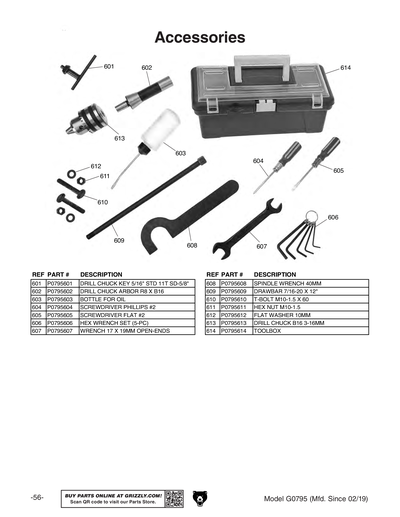

601
***USE P0784316***
Price
N/A
602
DRILL CHUCK ARBOR R8 X B16
Price
N/A
603
BOTTLE FOR OIL
Item is no longer available
Price
N/A
604
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
605
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
606
HEX WRENCH SET (5-PC)
Item is no longer available
Price
N/A
607
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
608
SPINDLE WRENCH 40MM
Item is no longer available
Price
N/A
609
DRAWBAR 7/16-20 X 12"
610
T-BOLT M10-1.5 X 60
Price
N/A
611
Now: PN02M
HEX NUT M10-1.5
Price
N/A
612
Now: PW04M
FLAT WASHER 10MM
Price
N/A
613
DRILL CHUCK B16 3-16MM
Price
N/A
614
TOOLBOX
Item is no longer available
Price
N/A

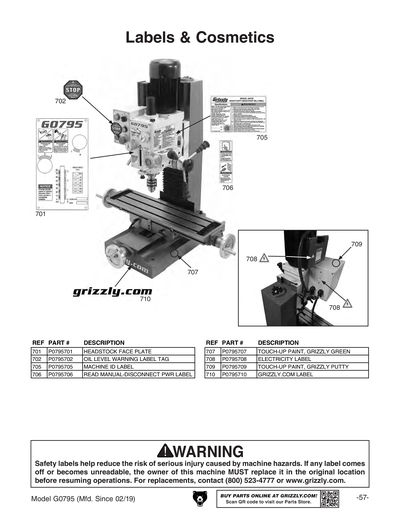

701
HEADSTOCK FACE PLATE
Item is no longer available
Price
N/A
702
OIL LEVEL WARNING LABEL
Item is no longer available
Price
N/A
703
HEADSTOCK FACE PLATE
Price
N/A
704
HEADSTOCK FACE PLATE
Price
N/A
705
MACHINE ID LABEL
Item is no longer available
Price
N/A
706
READ MANUAL-DISCONNECT PWR LABEL
Item is no longer available
Price
N/A
707
N/S GRIZZLY GREEN G1023S
Price
N/A
708
ELECTRICITY 0.5W X 0.4H
Price
N/A
709
GREY PUTTY REF G0504
Price
N/A
710
GRIZZLY.COM LABEL 9",BEIGE
Price
N/A
MAN
MANUAL G0795 MFD-02.15-05.18 V1.07.15
Item is no longer available
Price
N/A
MANV2
MANUAL G0795 MFD-06.18+ V2.08.18
PC100D
*DISCD*S CAPACITOR 100M 250V 1-1/2 X 3-1/4
Item is no longer available
Price
N/A
PFH98M
FLAT HD CAP SCR M4-.7 X 20
Item is no longer available
Price
N/A
PFN09M
FLANGE NUT M14-2
Item is no longer available
Price
N/A
PK189M
KEY 8 X 8 X 14
Item is no longer available
Price
N/A
PSS166M
SET SCREW M10-1.5 X 35 DOG-PT
Item is no longer available
Price
N/A
PSS167M
SET SCREW M6-1 X 20 LONG DOG-PT
Item is no longer available
Price
N/A
