Parts for G0795Z 8" x 28" 2 HP HD Benchtop Mill/Drill with Variable-Speed

IMPORTANT

Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

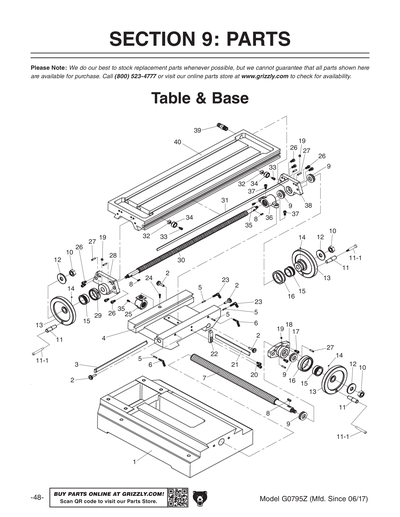

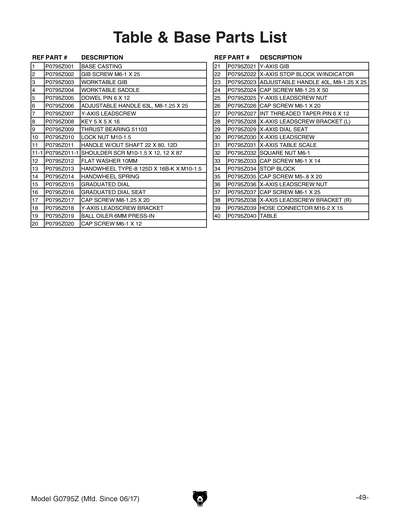

1
BASE CASTING
Price
N/A
2
GIB SCREW M6-1 X 25
Price
N/A
3
WORKTABLE GIB
Price
N/A
4
WORKTABLE SADDLE
Price
N/A
5
DOWEL PIN 6 X 12
Price
N/A
6
ADJUSTABLE HANDLE 63L, M8-1.25 X 25
Price
N/A
7
Y-AXIS LEADSCREW
Price
N/A
8
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
9
THRUST BEARING 51103
Price
N/A
10
LOCK NUT M10-1.5
Price
N/A
11
HANDLE W/OUT SHAFT 22 X 80, 12D
Price
N/A
11-1
*DISCD*SHOULDER SCR M10-1.5 X 12, 12 X 8
Price
N/A
12
Now: PW04M
FLAT WASHER 10MM
Price
N/A
13
HANDWHEEL TYPE-8 125DX16B-K X M10-1.5 V1
Price
N/A
14
HANDWHEEL SPRING
Price
N/A
15
GRADUATED DIAL
Price
N/A
16
GRADUATED DIAL SEAT
Price
N/A
17
CAP SCREW M8-1.25 X 20
Price
N/A
18
Y-AXIS LEADSCREW BRACKET
Price
N/A
19
BALL OILER 6MM PRESS-IN
Price
N/A
20
CAP SCREW M6-1 X 12
Price
N/A
21
Y-AXIS GIB
Price
N/A
22
X-AXIS STOP BLOCK W/ INDICATOR
Price
N/A
23
ADJUSTABLE HANDLE 40L, M8-1.25 X 25
Price
N/A
24
CAP SCREW M8-1.25 X 50
Price
N/A
25
Y-AXIS LEADSCREW NUT
Price
N/A
26
CAP SCREW M6-1 X 20
Price
N/A
27
INT THREADED TAPER PIN 6 X 12
Price
N/A
28
X-AXIS LEADSCREW BRACKET (L)
Price
N/A
29
X-AXIS DIAL SEAT
Price
N/A
30
X-AXIS LEADSCREW V1
Price
N/A
31
X-AXIS TABLE SCALE
Price
N/A
32
SQUARE NUT M6-1
Price
N/A
33
CAP SCREW M6-1 X 14
Price
N/A
34
STOP BLOCK
Price
N/A
35
CAP SCREW M5-.8 X 20
Price
N/A
36
X-AXIS LEADSCREW NUT
Price
N/A
37
CAP SCREW M6-1 X 25
Price
N/A
38
X-AXIS LEADSCREW BRACKET (R)
Price
N/A
39
HOSE CONNECTOR M16-2 X 15
Price
N/A
40
TABLE
Price
N/A

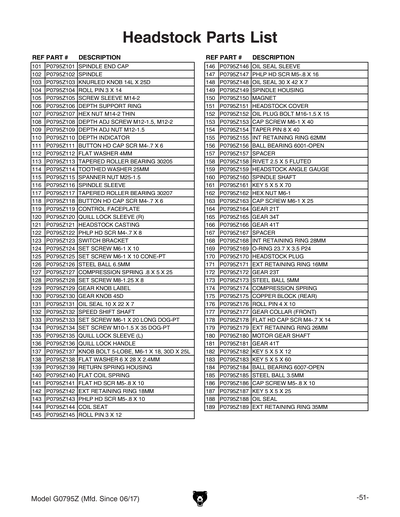

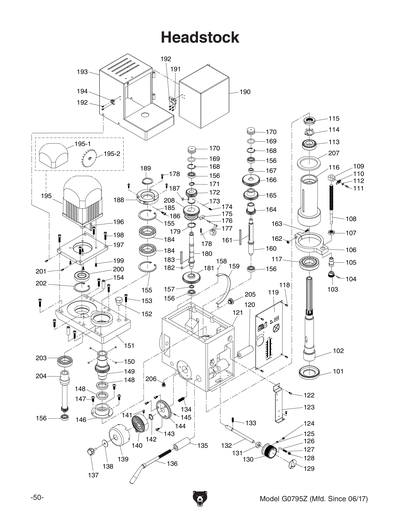

101
SPINDLE END CAP
Price
N/A
102
SPINDLE
Price
N/A
103
KNURLED KNOB 14L X 25D
Price
N/A
104
ROLL PIN 3 X 14
Price
N/A
105
SCREW SLEEVE M14-2
Price
N/A
106
DEPTH SUPPORT RING
Price
N/A
108
DEPTH ADJUSTMENT SCREW M12-1.5, M12-2
Price
N/A
109
DEPTH ADJUSTMENT NUT M12-1.5
Price
N/A
110
DEPTH INDICATOR
Price
N/A
111
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
112
Now: PW05M
FLAT WASHER 4MM
Price
N/A
113
TAPERED ROLLER BEARING 30205
Price
N/A
114
TOOTHED WASHER 25MM
Price
N/A
115
*DISCD*SPANNER NUT M25-1.5
Price
N/A
116
SPINDLE SLEEVE
Price
N/A
117
TAPERED ROLLER BEARING 30207
Price
N/A
118
BUTTON HD CAP SCR M4-.7 X 6
Price
N/A
119
CONTROL FACEPLATE
Item is no longer available
Price
N/A
120
QUILL LOCK SLEEVE (R)
Price
N/A
121
HEADSTOCK CASTING
122
Now: PS07M
PHLP HD SCR M4-.7 X 8
Price
N/A
123
SWITCH BRACKET
Price
N/A
124
SET SCREW M6-1 X 10
Price
N/A
125
SET SCREW M6-1 X 10 CONE-PT
Price
N/A
126
STEEL BALL 6.5MM
Price
N/A
127
COMPRESSION SPRING .8 X 5 X 25
Price
N/A
128
SET SCREW M8-1.25 X 8
Price
N/A
129
GEAR KNOB LABEL
Price
N/A
130
GEAR KNOB 45D
Price
N/A
131
OIL SEAL 10 X 22 X 7
Price
N/A
132
SPEED SHIFT SHAFT
Price
N/A
133
SET SCREW M6-1 X 20 LONG DOG-PT
Price
N/A
134
SET SCREW M10-1.5 X 35 DOG-PT
Price
N/A
135
QUILL LOCK SLEEVE (L)
Price
N/A
136
QUILL LOCK HANDLE
Price
N/A
137
KNOB BOLT 5-LOBE M6-1 X 18, 30D X 25L
Price
N/A
138
Now: PW03M
FLAT WASHER 6MM
Price
N/A
139
RETURN SPRING HOUSING
Price
N/A
140
FLAT COIL SPRING
Price
N/A
141
FLAT HD SCR M5-.8 X 10
Price
N/A
142
Now: PR07M
EXT RETAINING RING 18MM
Price
N/A
143
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
144
COIL SEAT
Price
N/A
145
ROLL PIN 3 X 12
Price
N/A
146
OIL SEAL SLEEVE
Price
N/A
147
Now: PS40M
PHLP HD SCR M5-.8 X 16
Price
N/A
148
OIL SEAL 30 X 42 X 7
Price
N/A
149
SPINDLE HOUSING
Item is no longer available
Price
N/A
150
MAGNET
Item is no longer available
Price
N/A
151
HEADSTOCK COVER
Price
N/A
152
OIL PLUG BOLT M16-1.5 X 15
Price
N/A
153
CAP SCREW M6-1 X 40
Price
N/A
155
Now: PR38M
INT RETAINING RING 62MM
Price
N/A
156
BALL BEARING 6001-OPEN
Price
N/A
157
SPACER
Price
N/A
158
RIVET 2.5 X 5 FLUTED
Price
N/A
159
HEADSTOCK ANGLE GAUGE
Price
N/A
160
SPINDLE SHAFT
Item is no longer available
Price
N/A
161
Now: PK13M
KEY 5 X 5 X 70
Price
N/A
162
Now: PN01M
HEX NUT M6-1
Price
N/A
163
CAP SCREW M6-1 X 25
Price
N/A
164
GEAR 21T
Item is no longer available
Price
N/A
165
GEAR 34T
Item is no longer available
Price
N/A
166
GEAR 41T
Item is no longer available
Price
N/A
167
SPACER
Item is no longer available
Price
N/A
168
Now: PR20M
INT RETAINING RING 28MM
Price
N/A
169
O-RING 23.7 X 3.5 P24
Price
N/A
170
HEADSTOCK PLUG
Price
N/A
171
Now: PR06M
EXT RETAINING RING 16MM
Price
N/A
172
GEAR 23T
Item is no longer available
Price
N/A
173
STEEL BALL 5MM
Price
N/A
174
COMPRESSION SPRING
Price
N/A
175
COPPER BLOCK (REAR)
Price
N/A
176
ROLL PIN 4 X 10
Price
N/A
177
GEAR COLLAR (FRONT)
Price
N/A
178
FLAT HD CAP SCR M4-.7 X 14
Price
N/A
179
Now: PR17M
EXT RETAINING RING 26MM
Price
N/A
180
MOTOR GEAR SHAFT
Item is no longer available
Price
N/A
181
GEAR 41T
Price
N/A
182
Now: PK10M
KEY 5 X 5 X 12
Price
N/A
183
KEY 5 X 5 X 60
Price
N/A
184
BALL BEARING 6007-OPEN
Price
N/A
185
STEEL BALL 3.5MM
Item is no longer available
Price
N/A
186
CAP SCREW M5-.8 X 10
Price
N/A
187
Now: PK23M
KEY 5 X 5 X 25
Price
N/A
188
OIL SEAL
Item is no longer available
Price
N/A
189
Now: PR12M
EXT RETAINING RING 35MM
Price
N/A

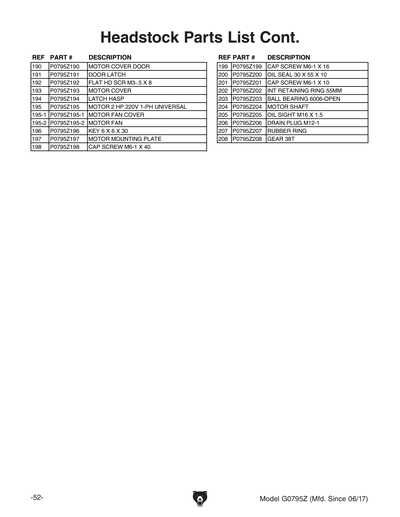

190
MOTOR COVER DOOR
Item is no longer available
Price
N/A
191
DOOR LATCH
Item is no longer available
Price
N/A
192
FLAT HD SCR M3-.5 X 8
Price
N/A
193
MOTOR COVER
Item is no longer available
Price
N/A
194
LATCH HASP
Item is no longer available
Price
N/A
195
MOTOR 2 HP 220V 1-PH UNIVERSAL
195-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
195-2
MOTOR FAN
Item is no longer available
Price
N/A
196
Now: PK42M
KEY 6 X 6 X 30
Price
N/A
197
MOTOR MOUNTING PLATE
Item is no longer available
Price
N/A
198
CAP SCREW M6-1 X 40
Price
N/A
199
CAP SCREW M6-1 X 16
Price
N/A
200
OIL SEAL 30 X 55 X 10
Price
N/A
201
CAP SCREW M6-1 X 10
Price
N/A
202
Now: PR51M
INT RETAINING RING 55MM
Price
N/A
203
BALL BEARING 6006-OPEN
Price
N/A
204
MOTOR SHAFT
Price
N/A
205
OIL SIGHT M16 X 1.5
Price
N/A
206
DRAIN PLUG M12-1
Price
N/A
207
RUBBER RING
Item is no longer available
Price
N/A
208
GEAR 38T
Item is no longer available
Price
N/A

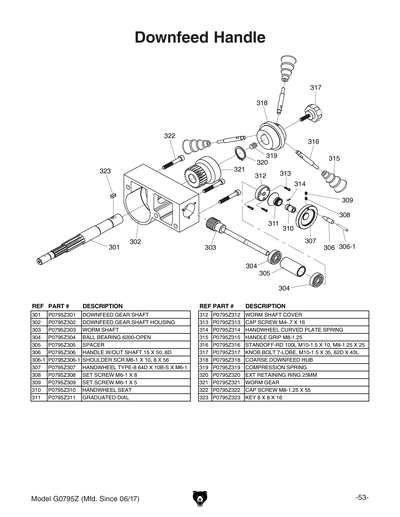

301
DOWNFEED GEAR SHAFT
Price
N/A
302
DOWNFEED GEAR SHAFT HOUSING
Price
N/A
303
WORM SHAFT
Price
N/A
304
BALL BEARING 6200-OPEN
Price
N/A
305
SPACER
Price
N/A
306
HANDLE W/OUT SHAFT 15 X 50, 8D
Price
N/A
306-1
*DISCD*SHOULDER SCR M6-1 X 10, 8 X 56
Price
N/A
307
HANDWHEEL TYPE-8 64D X 10B-S X M6-1
Price
N/A
308
SET SCREW M6-1 X 8
Price
N/A
309
SET SCREW M6-1 X 5
Price
N/A
310
HANDWHEEL SEAT
Price
N/A
311
GRADUATED DIAL
Price
N/A
312
WORM SHAFT COVER
Price
N/A
313
CAP SCREW M4-.7 X 16
Price
N/A
314
HANDWHEEL CURVED PLATE SPRING
Price
N/A
315
HANDLE GRIP M8-1.25
Price
N/A
316
STANDOFF 100L M10-1.5 X 10, M8-1.25 X 25
Price
N/A
317
KNOB BOLT 7-L, M10-1.5 X 35, 62D X 43L
Price
N/A
318
COARSE DOWNFEED HUB
Price
N/A
319
COMPRESSION SPRING
Price
N/A
320
Now: PR11M
EXT RETAINING RING 25MM
Price
N/A
321
WORM GEAR
Price
N/A
322
CAP SCREW M8-1.25 X 55
Price
N/A
323
Now: PK40M
KEY 8 X 8 X 16
Price
N/A

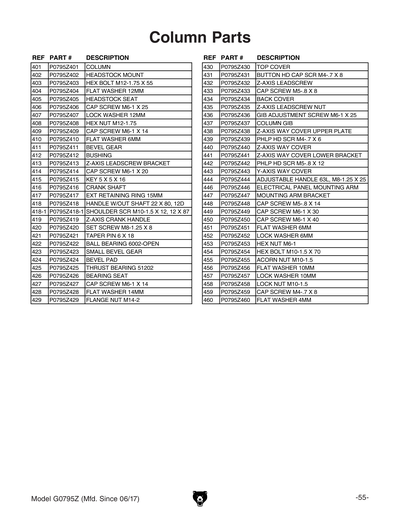

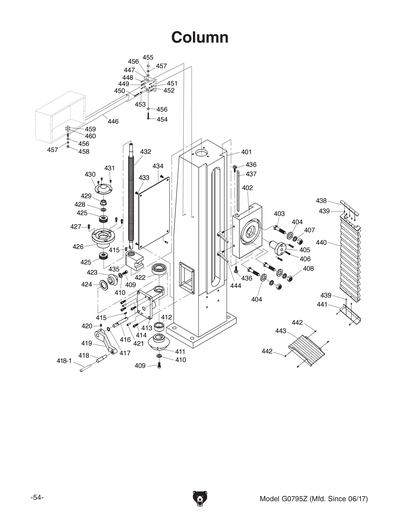

401
COLUMN
Item is no longer available
Price
N/A
402
HEADSTOCK MOUNT
Price
N/A
403
Now: PB12M
HEX BOLT M12-1.75 X 55
Price
N/A
404
Now: PW06M
FLAT WASHER 12MM
Price
N/A
405
HEADSTOCK SEAT
Price
N/A
406
CAP SCREW M6-1 X 25
Price
N/A
407
LOCK WASHER 12MM
Price
N/A
408
Now: PN09M
HEX NUT M12-1.75
Price
N/A
409
CAP SCREW M6-1 X 14
Price
N/A
410
Now: PW03M
FLAT WASHER 6MM
Price
N/A
411
BEVEL GEAR
Price
N/A
412
BUSHING
Price
N/A
413
Z-AXIS LEADSCREW BRACKET
Price
N/A
414
CAP SCREW M6-1 X 20
Price
N/A
415
Now: PK08M
KEY 5 X 5 X 16
Price
N/A
416
CRANK SHAFT
Price
N/A
417
Now: PR05M
EXT RETAINING RING 15MM
Price
N/A
418
HANDLE W/OUT SHAFT 22 X 80, 12D
Price
N/A
418-1
*DISCD*SHOULDER SCR M10-1.5 X 12, 12 X 8
Price
N/A
419
Z-AXIS CRANK HANDLE
Price
N/A
420
SET SCREW M8-1.25 X 8
Price
N/A
421
TAPER PIN 6 X 18
Price
N/A
422
BALL BEARING 6002-OPEN
Price
N/A
423
SMALL BEVEL GEAR
Price
N/A
424
BEVEL PAD
Price
N/A
425
THRUST BEARING 51202
Price
N/A
426
BEARING SEAT
Price
N/A
427
CAP SCREW M6-1 X 14
Price
N/A
428
Now: PW10M
FLAT WASHER 14MM
Price
N/A
429
FLANGE NUT M14-2
Price
N/A
430
TOP COVER
Price
N/A
431
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
432
Z-AXIS LEADSCREW
Price
N/A
433
CAP SCREW M5-.8 X 8
Price
N/A
434
BACK COVER
Price
N/A
435
Z-AXIS LEADSCREW NUT
Price
N/A
436
GIB ADJUSTMENT SCREW M6-1 X 25
Price
N/A
437
COLUMN GIB
Price
N/A
438
Z-AXIS WAY COVER UPPER PLATE
Price
N/A
439
Now: PS17M
PHLP HD SCR M4-.7 X 6
Price
N/A
440
Z-AXIS WAY COVER
Price
N/A
441
Z-AXIS WAY COVER LOWER BRACKET
Price
N/A
442
Now: PS08M
PHLP HD SCR M5-.8 X 12
Price
N/A
443
Y-AXIS WAY COVER
Price
N/A
444
ADJUSTABLE HANDLE 63L, M8-1.25 X 25
Price
N/A
446
ELECTRICAL PANEL MOUNTING ARM
447
MOUNTING ARM BRACKET
Item is no longer available
Price
N/A
448
CAP SCREW M5-.8 X 14
Price
N/A
449
CAP SCREW M6-1 X 30
Price
N/A
450
CAP SCREW M6-1 X 40
Price
N/A
451
Now: PW03M
FLAT WASHER 6MM
Price
N/A
452
LOCK WASHER 6MM
Price
N/A
453
Now: PN01M
HEX NUT M6-1
Price
N/A
454
HEX BOLT M10-1.5 X 70
Price
N/A
455
Now: PN43M
ACORN NUT M10-1.5
Price
N/A
456
Now: PW04M
FLAT WASHER 10MM
Price
N/A
457
LOCK WASHER 10MM
Price
N/A
458
LOCK NUT M10-1.5
Price
N/A
459
CAP SCREW M4-.7 X 8
Price
N/A
460
Now: PW05M
FLAT WASHER 4MM
Price
N/A

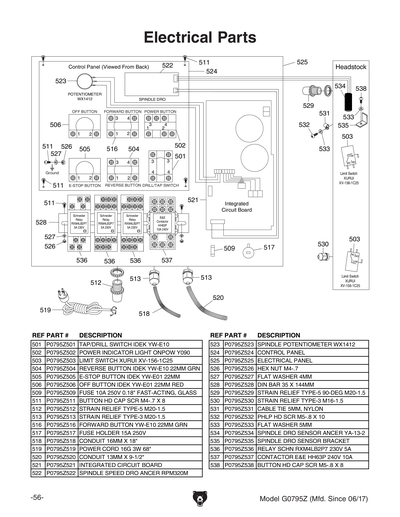

501
TAP/DRILL SWITCH IDEK YW-E10
Price
N/A
502
POWER INDICATOR LIGHT ONPOW Y090
Price
N/A
503
LIMIT SWITCH XURUI XV-156-1C25
Item is no longer available
Price
N/A
504
REVERSE BUTTON IDEK YW-E10 22MM GRN
Item is no longer available
Price
N/A
505
E-STOP BUTTON IDEK YW-E01 22MM
Price
N/A
506
OFF BUTTON IDEK YW-E01 22MM RED
Price
N/A
511
BUTTON HD CAP SCR M4-.7 X 8
Price
N/A
512
STRAIN RELIEF TYPE-5 M20-1.5
513
STRAIN RELIEF TYPE-3 M20-1.5
Item is no longer available
Price
N/A
516
FORWARD BUTTON YW-E10 22MM GRN
Item is no longer available
Price
N/A
517
FUSE HOLDER 15A 250V
Price
N/A
518
CONDUIT 16MM X 18"
Price
N/A
519
POWER CORD 16G 3W 68"
Price
N/A
520
CONDUIT 13MM X 9-1/2"
Price
N/A
521
INTEGRATED CIRCUIT BOARD
522
SPINDLE SPEED DRO ANCER RPM320M
523
SPINDLE POTENTIOMETER WX1412
Item is no longer available
Price
N/A
524
CONTROL PANEL
Item is no longer available
Price
N/A
525
ELECTRICAL PANEL
Item is no longer available
Price
N/A
526
Now: PN04M
HEX NUT M4-.7
Price
N/A
527
Now: PW05M
FLAT WASHER 4MM
Price
N/A
528
DIN BAR 35 X 144MM
Item is no longer available
Price
N/A
529
STRAIN RELIEF TYPE-5 90-DEG M20-1.5
530
STRAIN RELIEF TYPE-3 M16-1.5
Item is no longer available
Price
N/A
531
CABLE TIE 5MM, NYLON
Item is no longer available
Price
N/A
532
Now: PS09M
PHLP HD SCR M5-.8 X 10
Price
N/A
533
Now: PW02M
FLAT WASHER 5MM
Price
N/A
534
SPINDLE DRO SENSOR ANCER YA-13-2
535
SPINDLE DRO SENSOR BRACKET
Item is no longer available
Price
N/A
536
RELAY SCHN RXM4LB2P7 230V 5A
Item is no longer available
Price
N/A
537
CONTACTOR E&E HH63P 240V 10A
Item is no longer available
Price
N/A
538
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A

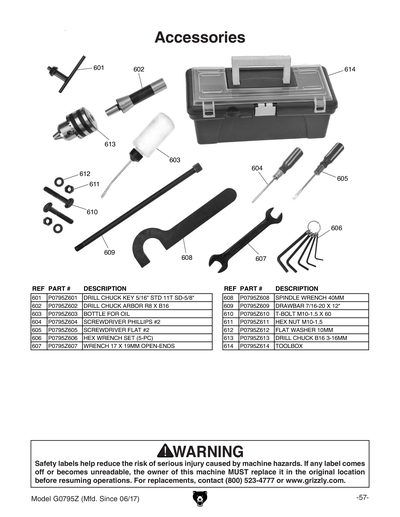

601
***USE P0784316***
Price
N/A
602
DRILL CHUCK ARBOR R8 X B16
Price
N/A
603
BOTTLE FOR OIL
Price
N/A
604
Now: PSDP2
SCREWDRIVER PHILLIPS #2
Price
N/A
605
Now: PSDF2
SCREWDRIVER FLAT #2
Price
N/A
606
HEX WRENCH SET (5-PC)
Price
N/A
607
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
608
SPINDLE WRENCH 40MM
Price
N/A
609
DRAWBAR 7/16-20 X 12"
Price
N/A
610
T-BOLT M10-1.5 X 60
Price
N/A
611
Now: PN02M
HEX NUT M10-1.5
Price
N/A
612
Now: PW04M
FLAT WASHER 10MM
Price
N/A
613
DRILL CHUCK B16 3-16MM
Price
N/A
614
TOOLBOX
Price
N/A
701
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
702
Now: G9987
Nameplate - Mini
Price
N/A
703
GREY PUTTY REF G0504
Price
N/A
704
GENERAL WARNING LABEL
Item is no longer available
Price
N/A
705
HANGING TAG
Item is no longer available
Price
N/A
706
N/S GRIZZLY GREEN G1023S
Price
N/A
707
GRIZZLY.COM LABEL 9",BEIGE
Price
N/A
708
HEADSTOCK FACE LABEL
Item is no longer available
Price
N/A
709
CONTROL PANEL LABEL
Item is no longer available
Price
N/A
MAN
MANUAL G0795Z MFD-06.17 V1.01.18
Item is no longer available
Price
N/A
